USER MANUAL

When baby’s more congested than
rush hour trac, it’s time to turn on the
BreatheFrida 3-in-1 Humidifier for some
much-needed sinus-soothing, ultrasonic
humidity. Between the cool mist, the
aromatherapy vapors + the relaxing
color-change nightlight, baby will be in
the fast lane to feeling better in no time.
Here’s what it can do.

MIST.
BREATHE.
SLEEP.
REPEAT.
TABLE OF CONTENTS
SPECIFICATIONS
FEATURES
WARNINGS
OPERATING INSTRUCTIONS
CLEANING
INFORMATION ON USE OF ESSENTIAL OILS
TROUBLESHOOTING
6
7
8
10
12
13
14

HUMIDIFIER – This bad boy uses the power of ultrasonic
vibrations to turn water into a cool hydrating mist that
runs for up to 12 hours. Can your smart phone do that?!
AROMATHERAPY – Add BreatheFrida Vapor Drops or any
aromatherapy-grade essential oil when you’re ready to
set the mood.
COLOR CHANGING NIGHTLIGHT – Looking to inspire
dreams of unicorn gardens or space exploration? Want
the light to match your baby’s outfit? More of the set it
and forget it type? Whatever your color preference, the
3-in-1 Humidifier is equipped with a range of nightlight
colors for even more control over the ambiance. Dreamy.
AUTOSTOP FEATURE – The 3-in-1 Humidifier is designed
to automatically turn o when the water runs out or the
tank is removed. Safety first.
MIST ADJUSTER – Go from gentle mist to tropical
rainforest with a twist of the knob.
Product Name: BreatheFrida 3-in-1 Humidifier
Model Number: FB9080
Input Voltage: 24VDC, 0.5A
Water Tank Volume: 0.5 Gal
Rated Power: 12 W
Dimensions: 196201200mm
Coverage Area: 320 sq ft
Use only with a Class 2 Power Supply Model IVP2400-0500W
SPECIFICATIONS: FEATURES
Water Tank
Mist Tube
TECHNICAL DATA:
Power + Mist
Adjuster
360OMister
Tank Cap
Base
Nightlight Control Button
Transducer
(see detailed diagram on p12)
Power Adapter
Power Cord
6 7

READ AND SAVE THESE INSTRUCTIONS
Failure to comply with the warnings below may result in electric shock or serious
injury.
STRANGULATION HAZARD! - Keep out of reach of children. Do not use with
extension cords. This is not a toy. For adult use only.
This product should be used only in accordance with the specifications outlined
in this manual. Usage other than what has been specified here may result in
serious injury.
CAUTION:
• Disassembly, repair or remodeling by any unauthorized person may result in
serious harm and will void the manufacturer’s warranty.
• Always place the humidifier on a flat surface. It may not work properly on an
uneven surface.
• Do not place the humidifier on cloth, carpet or a soft and fluy surface, as this
may block air intake.
• This product releases mist. Do not place this humidifier directly on
wooden furniture, flooring or any surface that could be damaged by water.
Manufacturer does not accept any liability for damage in the case of the unit
being placed incorrectly.
• Do not use if the plug is damaged or loose.
• Before filling or cleaning the unit, make sure it is unplugged.
• Once the humidifier has been plugged in, do not tilt or move the unit.
• Do not remove the water tank from the unit while it is on.
• Do not handle the plug with wet hands.
• Do not excessively bend, twist, pull or damage the power cord.
• Avoid placing this product where the 360Omister is pointed directly at an
object or person.
• Do not directly inhale the mist/vapor expelled from the product or drink water
from the tank.
• Do not fill the water tank with hot or boiling water.
• Do not use this product in direct sunlight or near a heat source such as a stove,
heater or radiator.
• If the water tank becomes cracked or damaged, do not use.
• Do not keep product running for more than 12 hours.
• Unplug the cord when unit is not in use for an extended period of time and/or
when no one is home.
• Do not keep water in the tank when not in use for an extended period of time.
• Do not clean the unit, water tank or water reservoir with detergents or
chemicals of any kind.
• Do not fill water through the 360OMister (as in picture A).
• Do not fill water through air outlet (as in picture B.).
• Do not use this product near any other electronic
device.
• Do not cover the mister at any time during use.
WARNINGS: • Do not put anything other than water or essential oil in the water tank.
• For household use only. Do not use outdoors.
• Do not use the power cord as a handle. Never pull on the power cord.
• Arrange power cord to minimize the possibility of accidents. Discontinue use if
any signs of deterioration appear on the unit or on the power cord.
• Do not tamper with humidifier in any way. If for any reason the unit fails to
function properly, immediately return it to Fridababy LLC if within the
warranty period.
• This product is not intended for use by children or persons with limited physical
and mental capabilities unless they have been instructed or supervised on the
proper use of this product by a person responsible for their safety.
The device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) This device must accept any interference received, including
interference that may cause undesired operation.
WARNING Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
NOTE This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between
the equipment and receiver.
• Connect the equipment into
an outlet on a circuit dierent
from that to which the receiver is
connected.
• Consult Fridababy LCC or a
qualified technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
8 9
Picture A Picture B

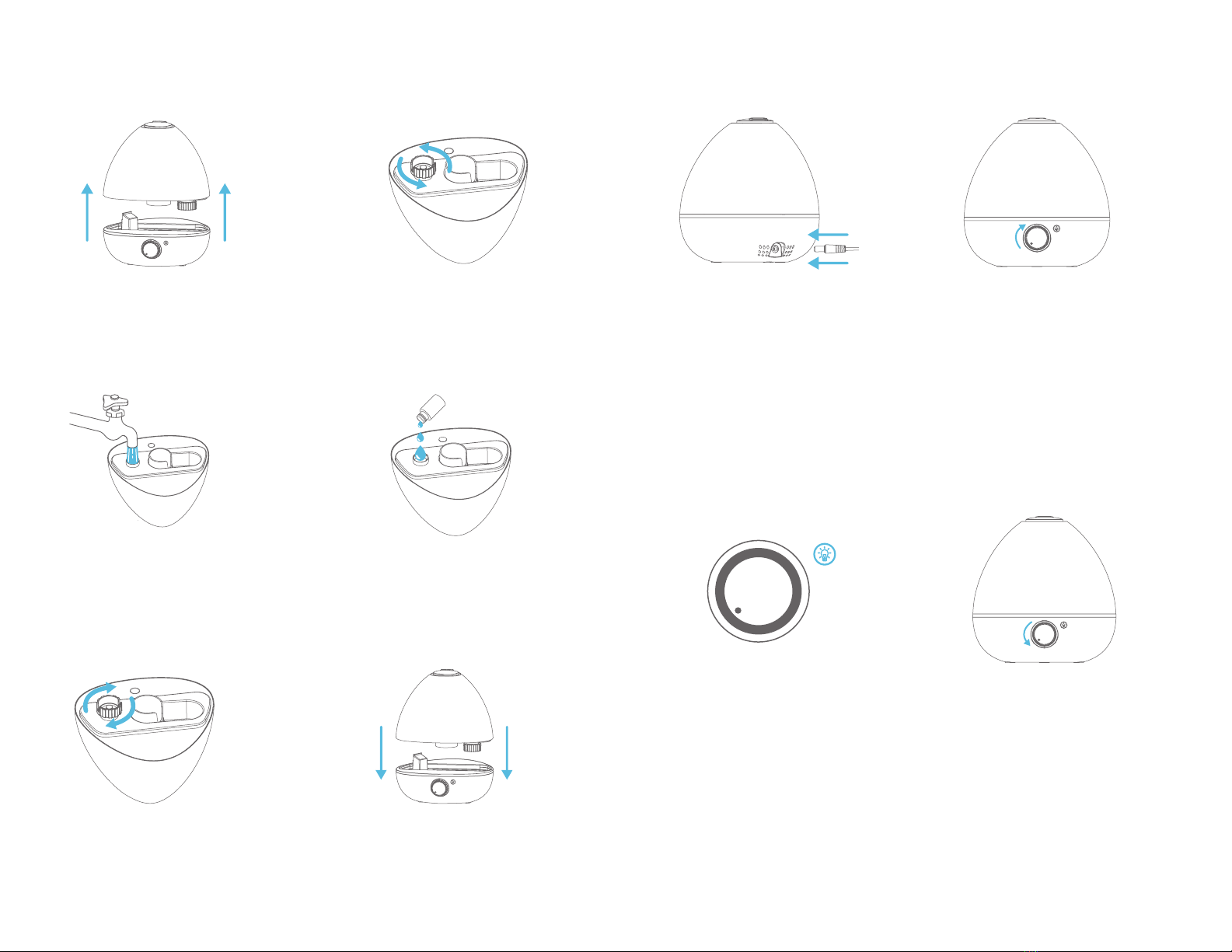

OPERATING INSTRUCTIONS
1. Lift Water Tank o of Base.
3. Fill tank with water. Use
filtered or distilled water for
best performance.
5. Screw Cap back on the
Water Tank in a clockwise
direction.
4. (Optional) Add BreatheFrida
Vapor Drops (or other aromatherapy
-grade essential oils) as desired.
6. Place Water Tank back on Base.
7. Plug Power Cord into
Base + outlet.
8. Twist the Power + Mist Adjuster knob
clockwise to turn the humidifier on and to
control the mist level.
• Twist the knob to ON, and the humidifier
starts to work.
• Twist the knob clockwise to adjust the mist
level from min to max.
• Twist the knob counter-clockwise to adjust
vvthe mist level from max to min.
10. Twist Power + Mist Adjuster
knob counterclockwise to OFF to
turn o the humidifier.
9. Tap the lightbulb icon to turn
nightlight on with rotating colors.
Tap again to select a specific
color. Tap one more time to turn o
the nightlight.
2. Unscrew Water Tank
Cap in a counter-clockwise
direction.
10 11

INSIDE THE BASE OF THE UNIT Pour excess water out of the unit.
Wash the unit with fresh water using a cleaning brush and soft
cloth as needed. DO NOT submerge the Base of the unit into water.
WATER TANK Empty Water Tank. Remove Mister and clean
the mist outlet with fresh water and a soft bristle brush (bottle
cleaning brush is recommended).
OUTER SURFACE OF THE UNIT Wipe the surface of the unit with
a soft, damp cloth if needed. If you notice an accumulation of
water during usage, reduce humidity and dry outer surface with
a cloth.
TRANSDUCER
1. Unplug humidifier.
2. Remove the tank and empty all the water
in the Base and Water Tank.
3. Locate the Transducer on the inner center
of the base unit and wipe clean with a soft cloth.
(Do not scrub or scrape the transducer.)
DEEPER CLEANING  DESCALING Everyone’s water content
is dierent, so cleaning and scale removal may be required
weekly or every other week to optimize unit performance. If scale
becomes dicult to remove with brush, follow the steps below.
1. In a cup, combine 1 tsp of white vinegar and 1 tsp of water.
2. Let solution stand for 5 minutes.
3. Pour the mixture into the base, cleaning all interior surfaces
with a soft cloth or brush to help remove scale.
4. Check 360O Mister and Mist Tube in Water Tank. Clean as
needed.
5. Rinse the base thoroughly with water to remove remaining
scale and the leftover vinegar solution.
ALWAYS UNPLUG THE UNIT
BEFORE CLEANING.
INFORMATION ON USE OF
ESSENTIAL OILS:
Using essential oils is a great way to enhance the humidifier’s
eects. Be sure to follow our recommendations on how to use
essential oils with your humidifier. Failure to do so may result in
malfunction or damage to the humidifier or even harm to the user.
•Add drops of BreatheFrida Vapor Drops or other aromatherapy-
grade essential oils into 0.5 Gal. of water.
•Only use essential oils with adult supervision. Do not allow child to
use essential oils unsupervised.
•Wash the Water Tank thoroughly after each use to remove residue.
•The Water Tank and the Tank Cap are made of oil-proof materials.
Other parts may be damaged by direct contact with oil. Do not spill
oil outside the Water Tank.
•Clean Water Tank every time you change essential oils.
•Do not apply undiluted oil directly onto your skin or swallow it.
•If oil comes in direct contact with your skin, wash it o with water. If
swallowed, seek medical help immediately. Keep oils away from
eyes. If oils come in contact with eyes, wash eyes immediately with
water. Consult a doctor, should irritation persist.
•If you feel unwell while using the product, turn o the device
immediately.
•Pregnant women, elderly people, young children or people with
chronic diseases may be more sensitive to scent. If they feel unwell,
stop using immediately.
•Store essential oils in a dark cool place with the cap tightly closed
and out of reach of children and pets.
•Use essential oils with a valid expiration date.
CLEANING: STORAGE
• Follow the Cleaning and Descaling instructions when the
humidifier will not be in use for a long period.
• Dry the humidifier completely before storing. DO NOT store with
water inside the Base or Water Tank.
• Pack the unit in its original box and store in a cool, dry location.
12 13
TRANSDUCER
TOP-DOWN VIEW OF BASE
(ROUND METAL PLATE)

Water vapor and
humidity are not
produced.
CHECK THE FOLLOWING IF YOUR HUMIDIFIER IS NOT WORKING
CORRECTLY
Air blows but water
vapor is not produced.
Humidity level is
low.
The mist has a bad
smell.
White dust is
forming on nearby
furniture.
Unit has stopped
working.
Water is
accumulating
outside of unit or
area surrounding
unit.
Water dripping
when refilling.
Increased noise
level.
Blue light flashing
three times.
No reaction when
the Light Control
Button is pressed.
Power plug - unplug cord from Humidifier + try
again.
Power failure - when power is restored, try again.
Tank installation - make sure tank is attached
correctly.
The surface of the transducer is dirty - wipe with
soft cloth.
Excessive water - remove a cup of water from the
tank.
Dirty tank - wash out tank and try again.
Dirty Transducer - wipe the Transducer with a soft
cloth. If you have hard water in your home, try
using distilled water.
The water tank is not properly connected to the
base - place the tank onto the base properly so
that there is no gap between the tank + base all
the way around.
The surface of the Transducer is dirty - Wipe the
Transducer with a soft cloth.
The water in the unit is too cold - replace with
cool, but not cold, water.
Poor maintenance or dirty water - clean the tank
+ base thoroughly according to instructions on
page 10-11 and fill with fresh water.
Hard water may deposit a dust-like residue. In
addition, dust in the air may settle due to the
added humidity in the room. If this becomes a
nuisance, use distilled water.
Low to no water - unplug unit and refill tank.
Saturation of humidity - lower mist control
setting.
Unit not level - unplug and place on level
surface.
Point spray away from objects.
Raise unit on a water-resistant level surface 2-3
feet o of floor.
Loose cap - tighten cap by turning all the way in
a clockwise direction.
Water remaining on bottom of tank - wipe tank
or tilt to drain before transporting.
Unit on uneven surface - unit must be placed on a
flat, hard surface. Make sure it is NOT placed on a
soft or absorbent surface.
Indicates low water - unplug and refill tank.
The water tank is not properly connected to the
base - place the tank onto the base properly so
that there is no gap between the tank + base all
the way around.
The power adapter is not inserted properly.
Reinsert the adapter into both the base + outlet.
TROUBLESHOOTING GUIDE:
PROBLEM
PROBLEM
SOLUTION
SOLUTION
14 15

BREATHE
EASY, BABY.
YOU JUST FINISHED
READING THE MANUAL.
3-in-1 Humidifier Questions?
fussbust[email protected]
