Frigidaire FDB130RG User manual

P30L0080.eps P30C0159.eps P30B0045.eps P30U0024.eps P30M0030.eps P30F0022.eps
P30R0045.eps
Product No. FDB130RGB3 FDB130RGQ3 FDB130RGS3
Series Built-in 24" Built-in 24" Built-in 24"
Color black bisque white
Owner's Guide English 154648801 154648801 154648801
Owner's Guide Spanish 154648803 154648803 154648803
Owner's Guide French 154648802 154648802 154648802
Service Data Sheet 154441201 154441201 154441201
Energy Guide 154678501 154678501 154678501
Installation Instructions 154427301 154427301 154427301
Market North America North America North America
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995518940
08/07/16
(EN/SERVICE/ECL)
821
24-INCH BUILT-IN
DISHWASHER
Model No.
FDB130RG
Copyright ©All rights reserved.

Publication No: 5995518940 FDB130RG
07/08 2
CONTROL PANEL

FDB130RG Publication No: 5995518940
# Functional Parts 3 07/08
* Non-Illustrated Parts
CONTROL PANEL
Model Index: AFDB130RG (FDB130RGB3)
BFDB130RG (FDB130RGQ3)
CFDB130RG (FDB130RGS3)
POS. NO PART NO. DESCRIPTION
1 154667403 A - - Panel, control, black, w/graphics
1 154667404 - B - Panel, control, brown, w/graphics
1 154667401 - - C Panel, control, white, w/graphics
3 # 154437801 A B C Timer
3* 154131204 A B C Shield, timer
3* 154095701 A B C Screw, thread rolling, (2), timer
8 # 154240403 A - - Switch, rocker/selector, black
8 # 154240404 - B - Switch, rocker/selector, bisque
8 # 154240401 - - C Switch, rocker/selector, white
8* 5303318719 A B C Screw, mtg.
13 154338303 A - - Knob, timer, black
13 154338304 - B - Knob, timer, bisque
13 154338301 - - C Knob, timer, white
20 154433001 A B C Vent assy, static dry
20* 154436201 A B C Screw, dry duct, (3)
* # 154645901 A B C Harness, wiring, main
* 154678501 A B C Energy guide label

Publication No: 5995518940 FDB130RG
07/08 4
DOOR

FDB130RG Publication No: 5995518940
# Functional Parts 5 07/08
* Non-Illustrated Parts
DOOR
Model Index: AFDB130RG (FDB130RGB3)
BFDB130RG (FDB130RGQ3)
CFDB130RG (FDB130RGS3)
POS. NO PART NO. DESCRIPTION
1 154430501 A B C Spring, door, (2)
1A 154325201 A B C Linkage, door spring, (2)
2 154093301 A B C Screw, arm assy, (4)
3 154691201 A B C Arm Assy,LH
3A 154691101 A B C Arm Assy, RH
* 154647101 A B C Hinge Pin, arm assy
* 154686401 A B C Bearing, hinge pin
5 154079601 A B C Nut, arm assy, and handle mtg.
7 154494601 A B C Liner, door assy.
9 154574401 A B C Dispenser, det/rinse aid, w/o reed
9* 154294701 A B C Screw, #7 plas .375, (6), disp. assy.
10 154103702 A B C Screw, latch mtg, (2)
12 # 154537303 A - - Latch assy,black
12 # 154537304 - B - Latch assy, bisque
12 # 154537301 - - C Latch assy, white
20 154359107 A - - Door, black
20 154359110 - B - Door, bisque
20 154359105 - - C Door, white
20* 5304428306 A B C Screw, door mtg., (2)
22 154388801 A B C Cap, Rinse aid
49 154588201 A B C Gasket, door wiper
51 154320301 A B C Clamp, drip loop, wire
* 154200601 A B C Screw, #10-16 x 3/8

Publication No: 5995518940 FDB130RG
07/08 6
TUB

FDB130RG Publication No: 5995518940
# Functional Parts 7 07/08
* Non-Illustrated Parts
TUB
Model Index: AFDB130RG (FDB130RGB3)
BFDB130RG (FDB130RGQ3)
CFDB130RG (FDB130RGS3)
POS. NO PART NO. DESCRIPTION
1 # 154730001 A B C Tub assy, w/frame parts, white, tower
2 154662601 A B C Strike, door
3 # 154561001 A B C Gasket, tub
4 154200602 A B C Screw, 10-16 x 3/8, hex
5 154333902 A B C Roller, tub
6 5303943103 A B C Screw, w/washer, (8)
22 154577401 A B C Tubing, water inlet
23 5303318539 A B C Clamp, tubing, (2)
24 # 154606701 A B C Hose, drain
25 # 154209701 A B C Float
28 154408701 A B C Switch Assy, float
29 # 154290204 A B C Thermostat, re-settable
30 154241101 A B C Retainer, thermostat
30* 154297701 A B C Screw, retainer-thermo
* 154685101 A B C Gasket, tub, corner, (2)
* 5300807270 A B C Screw, (2), countertop mtg.
* 154041001 A B C Screw, plask #1, 10-10 x 9/16
* 154200601 A B C Screw, #10-16 x 3/8

Publication No: 5995518940 FDB130RG
07/08 8

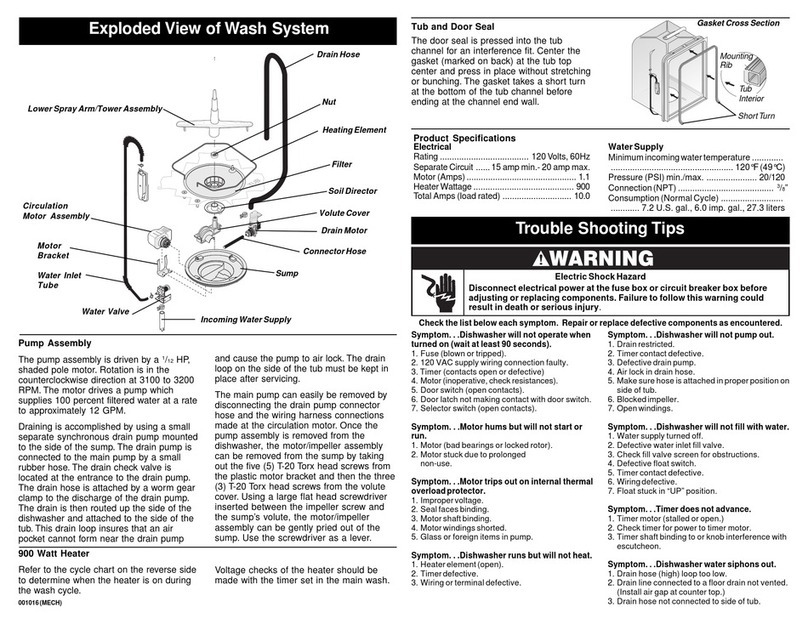

MOTOR & PUMP

FDB130RG Publication No: 5995518940
# Functional Parts 9 07/08
* Non-Illustrated Parts
MOTOR & PUMP
Model Index: AFDB130RG (FDB130RGB3)
BFDB130RG (FDB130RGQ3)
CFDB130RG (FDB130RGS3)
POS. NO PART NO. DESCRIPTION
1 154247601 A B C Heater
1* 154106202 A B C Nut, heater, (2)
1* 154289801 A B C Shield, heater terminal
2 154479601 A B C Bracket, heater, (2)
10 154335301 A B C Cover, volute
13 154246801 A B C Gasket, sump
14 154365903 A B C Housing, sump
16 154246502 A B C Retainer, sump
24 154567701 A B C Spray arm, lower, w/heat shield
24A 154335201 A B C Nut, spray arm
40 154348401 A B C Clamp, hose, red, push spring, (3)
40 154348502 A B C Clamp, red, hose
40* 154380601 A B C Clamp, hose, 1.5" open, worm gear, (5)
54 154234401 A B C Hose, connector
55 154595901 A B C Bracket, motor
55* 5303316032 A B C Screw, truss ss, 8 .625, (7)
59 154246901 A B C O-ring, rear
59A 154247001 A B C O-ring, front
60 # 154640201 A B C Drain Pump Assy
60* 154426201 A B C Bracket, motor, drain
60* 154581501 A B C Screw, drain motor, (3)
63 154252201 A B C Base, soil director
64 154332602 A B C Filter, soil director
65 154252401 A B C Filter, polypro
70 # 154683201 A B C Motor & Pump Assy
* 154200601 A B C Screw, #10-16 x 3/8

Publication No: 5995518940 FDB130RG
07/08 10
FRAME

FDB130RG Publication No: 5995518940
# Functional Parts 11 07/08
* Non-Illustrated Parts
FRAME
Model Index: AFDB130RG (FDB130RGB3)
BFDB130RG (FDB130RGQ3)
CFDB130RG (FDB130RGS3)
POS. NO PART NO. DESCRIPTION
3 # 154637401 A B C Valve, water
4 154669301 A B C Brace, front frame
8 154589403 A - - Toeplate, adjustable, black
8 154589405 - B - Toeplate, adjustable, bisque
8 154589401 - - C Toeplate, adjustable, white
9 154589503 A - - Kickplate Assy, black
9 154589505 - B - Kickplate Assy, bisque
9 154589501 - - C Kickplate Assy, white
10 5300808658 A - - Screw, #8A x .375", black
10 154371303 - B - Screw, Phillips head, bisque
10 154371301 - - C Screw, Phillips head, white
11 154200701 A B C Screw, #10-32 x 3/8
11A 154200601 A B C Screw, #10-16 x 3/8
15 154571101 A B C Leg, leveling, (4)
20 154597001 A B C Cover, junction box
* 154041001 A B C Screw, plask #1, 10-10 x 9/16
* 154200602 A B C Screw, 10-16 x 3/8, hex
* 154409401 A B C Screw, #8-18 x .375

Publication No: 5995518940 FDB130RG
07/08 12
RACKS

FDB130RG Publication No: 5995518940
# Functional Parts 13 07/08
* Non-Illustrated Parts
RACKS
Model Index: AFDB130RG (FDB130RGB3)
BFDB130RG (FDB130RGQ3)
CFDB130RG (FDB130RGS3)
POS. NO PART NO. DESCRIPTION
1 154331604 A B C Rack assy, lower
2 5300808994 A B C Basket, silverware
3 154331502 A B C Rack assy, upper
4 154522901 A B C Wheel & bushing assy, upper rack, (8)
5 5300809927 A B C Cap, slide, (4)
6 154597801 A B C Slide, rack, upper, (2)
7 154174502 A B C Wheel & bracket assy, lower rack
