Frigidaire FDBC45BAS2 User guide

Remedy 1. Replace fuse or reset breaker. 2. Repair or replace wire fasteners at
dishwasher junction box.
3. Replace timer. 4. Replace motor/impeller assembly. 5. Replace latch assembly. 6. Replace latch assembly. 7. Replace selector switch. 1. Replace motor assembly. 2. Rotate motor impeller. 1. Check voltage. 2. Replace motor/impeller assembly. 3. Clean and clear blockage. 1. Replace heater element. 2. Replace timer. 3. Repair or replace. 4. Replace thermostat. 1. Replace dispenser. 2. Replace timer. 3. Repair or replace. 4. Replace dispenser. 5. Replace dispenser. 1. Clear restrictions. 2. Replace timer. 3. Replace pump. 4. Check for blockage, clear. 5. Replace pump assembly. 1. Turn water supply on. 2. Replace water inlet fill valve. 3. Disassemble and clean screen. 4. Repair or replace. 5. Replace timer. 6. Repair or replace. 7. Clean float. 1. Replace timer. 2. Repair or replace timer. 3. Repair or adjust. 4. Replace or adjust position of
thermostat.
1. Repair to proper
32-inch minimum
height
.
2. Install air gap at counter top. 1. Instruct customer/user. 2. Instruct customer/user. 3. Instruct customer/user on proper
loading of dishes.
4. Incoming water temperature of 120°F
is required to properly dissolve dishwashing detergents.

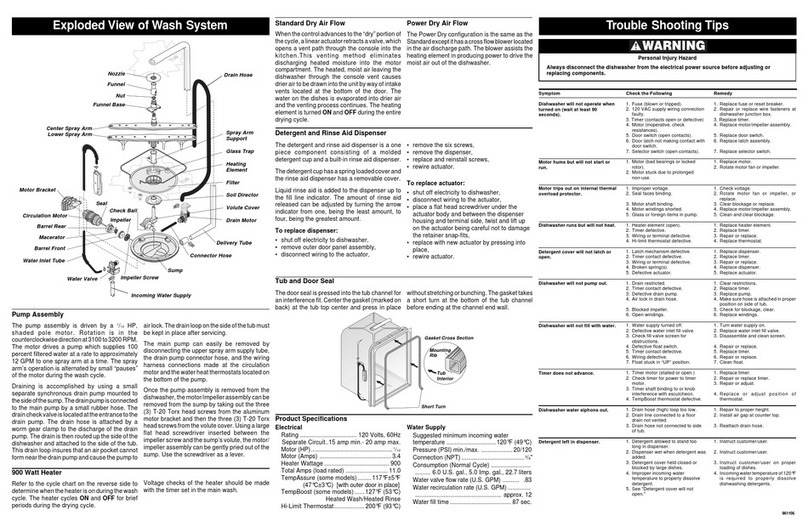

Trouble Shooting TipsExploded View of Wash System
Tub and Door Seal The door seal is pressed into the tub channel for an interference fit. Center the gasket (marked on back) at the tub top center and press in place Product Specifications Electrical
Rating .................................. 120 Volts, 60Hz
Separate Circuit..15 amp min.- 20 amp max.
Motor (Amps) ........................................... 1.1
Heater Wattage ....................................... 900
Total Amps (load rated) ......................... 10.0 Temp Boost Wash ....................... 117°F±5°F (47°C±3°C) [with outer door in place] Temp Boost Rinse ................... 122°F (50°C) Hi-Limit Thermostat ................. 200°F (93°C)
Water Supply
Suggested minimum incoming water temperature .............................. 120°F (49°C) Pressure (PSI) min./max. ................... 20/120 Connection (NPT) ...................................... 3/8" Consumption (Normal Cycle) ........................
......... 6.0 U.S. gal., 5.0 Imp. gal., 22.7 liters
Water valve flow rate (U.S. GPM) .......... .83 Water recirculation rate (U.S. GPM)..............
.................................................... approx. 12
Water fill time ..................................... 87 sec.
Detergent and Rinse Aid Dispenser The detergent and rinse aid dispenser is a one piece component consisting of a molded detergent cup and a built-in rinse aid dispenser. The detergent cup has a spring loaded cover and the rinse aid dispenser has a removable cover. Liquid rinse aid is added to the dispenser up to the fill line indicator. The amount of rinse aid released can be adjusted by turning the arrow indicator from one, being the least amount, to four, being the greatest amount.
To replace dispenser: • shut off electricity to dishwasher, • remove outer door panel assembly, • disconnect wiring to the actuator, • remove the six screws, • remove the dispenser, • replace and reinstall screws, • rewire actuator.
Check the Following 1. Fuse (blown or tripped). 2. 120 VAC supply wiring connection
faulty.
3. Timer (contacts open or defective) 4. Motor (inoperative). 5. Door switch (open contacts). 6. Door latch not making contact with
door switch.
7. Selector switch (open contacts). 1. Motor (bad bearings). 2. Motor stuck due to prolonged
non-use.
1. Improper voltage. 2. Motor windings shorted. 3. Glass or foreign items in pump. 1. Heater element (open). 2. Timer defective. 3. Wiring or terminal defective. 4. Hi-limit thermostat defective. 1. Latch mechanism defective. 2. Timer contact defective. 3. Wiring or terminal defective. 4. Broken spring(s). 5. Defective actuator. 1. Drain restricted. 2. Timer contact defective. 3. Defective drain pump. 4. Blocked impeller. 5. Open windings. 1. Water supply turned off. 2. Defective water inlet fill valve. 3. Check fill valve screen for
obstructions.
4. Defective float switch. 5. Timer contact defective. 6. Wiring defective. 7. Float stuck in “UP” position. 1. Timer motor (stalled or open.) 2. Check timer for power to timer
motor.
3. Timer shaft binding to or knob
interference with escutcheon.
4. TempBoost thermostat defective. 1. Drain hose (high) loop too low. 2. Drain line connected to a floor drain
not vented.
1. Detergent allowed to stand too long
in dispenser.
2. Dispenser wet when detergent was
added.
3. Detergent cover held closed or
blocked by large dishes.
4. Improper incoming water
temperature to properly dissolve detergent.
5. See "Detergent cover will not
open."
Always disconnect the dishwasher from the electrical power source before adjusting or replacing components.
Personal Injury Hazard
900 Watt Heater Refer to the cycle chart on the reverse side to determine when the heater is on during the wash cycle. The heater cycles ON and OFF for brief periods during the drying cycle.
Voltage checks of the heater should be made with the timer set in the main wash. a worm gear clamp to the discharge end of the drain pump. The drain hose must have a loop at a
minimum
height of 32 inches
in order to insure proper
drainage. The main pump can easily be removed by disconnecting the upper spray arm supply tube hose, the drain pump connector hose, the wiring harness connections made at the circulation motor and rotating the four sump retainers toward the middle of the sump.
Pump Assembly The pump assembly is driven by a synchronous motor. Rotation is in the counterclockwise direction at 3600 RPM. The motor drives a pump which supplies 100 percent filtered water at a rate to approximately 12 GPM to one spray arm at a time. The spray arm’s operation is alternated by small “pauses” of the motor during the wash cycle. Draining is accomplished by using a small separate synchronous drain pump mounted to the side of the sump. The drain pump is connected to the main pump by a small rubber hose. The drain check valve is located at the discharge end of the drain pump. The drain hose is attached by
Symptom Dishwasher will not operate when turned on (wait at least 90 seconds). Motor hums but will not start or run. Motor trips out on internal thermal overload protector. Dishwasher runs but will not heat. Detergent cover will not latch or open. Dishwasher will not pump out. Dishwasher will not fill with water. Timer does not advance. Dishwasher water siphons out. Detergent left in dispenser.
without stretching or bunching. The gasket takes a short turn at the bottom of the tub channel before ending at the channel end wall.
Tub
Interior
Mounting
Rib
Gasket Cross Section
Short Turn
020822
Nozzle
Funnel
Nut
Funnel Base
Center Spray Arm
Lower Spray Arm
Delivery Tube
Connector Hose and Clamps
Sump
Water Valve
Water Inlet Tube
Check Ball
Circulation Motor
Assembly
Motor Bracket
Incoming Water Supply
Drain Hose (32" minimum
height)
Spray Arm
Support
Glass Trap Heating
Element
Filter Soil Director Volute Cover Drain Motor
Sump Retainers (4)
Standard Dry Air Flow The heated, moist air leaves the dishwasher through the console vent causing drier air to be drawn into the unit by way of intake vents located at the bottom of the door. The water on the dishes is evaporated into drier air and the venting process continues. The heating element is turned ON and OFF during the entire drying cycle.
