FPEC3085K S 30" Electric24" Built-In
Signature Features
Dishwashers
FFBD2409L S / M / W / B / Q
Quiet Dishwasher
A quiet performance every time.
Tall-Tub Design
Our large capacity, tall-tub dishwasher
fits up to 14 place settings so you can
wash more at once.
SpaceWise™
Silverware Basket
There’s a place for all of your
silverware in our multicompartment,
removable basket.
Multiple Cycle Options
Features easy-to-use cleaning
cycle options.
Product Dimensions
Height (Adjustable) 33-1/2" – 35"
Width 24"
Depth (Including Door) 25"
More Easy-To-Use Features
Delay Start
Set your dishwasher to run
on your schedule.
Ready-Select™ Controls
Easily select options with the touch
of a button.
Energy Saver Plus Cycle
Eco-friendly cycle uses less energy
without compromising cleaning
performance.
Energy Saver Dry Option
No heat dry option.
Attractive Stainless Steel Exterior1
Low Rinse-Aid Indicator Light
Control Lock Option
5-Level Wash Design
White Interior
UltraQuiet™ 3
Sound Reduction System
ENERGY STAR®
NSF® International
Certification
Available in:
1 Select model only.
Stainless
(S)
Bisque
(Q)
Black
(B)
White
(W)
Silver Mist
(M)

Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FFBD2409L 07/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Features
Control Design
Digital Display
Door Latch
Stay-Put Door Hinge Design
Low Rinse-Aid Indicator Light
Interior Design
Interior Color
Wash System
Wash Levels / Wash Speeds
Sound Package
Filter
Filter Trap
Soft Food Disposer
dB Level
Drying System
Cycles
Number of Cycles
Heavy
Normal
Light
Delicate
Favorite
China Crystal
Rinse Only
Energy Saver
Upper Rack Wash Only
Cycle Indicator Light
Control Lock
Options
Heat / No Heat Dry
Hi-Temp Wash
NSF® Certified Sanitize Rinse
Delay Start
Rack System
Rack Design / Rack Coating
Upper Rack –
Stemware / Champagne Glass Holders
Fold-Down Tines
Cup Shelves
Lower Rack –
SpaceWise™ Silverware Basket
Fold-Down Tines
Small Items Cover
Certifications
ENERGY STAR®
NSF® International Certification
Specifications
Water Inlet Location
Water Usage (Gallons)
Water Pressure (PSI)
Integral Air Gap on Supply
Leveling Legs
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts 1
Amps @ 120 Volts
Shipping Weight (Approx.)
Ready-Select™
Yes
Yes
Tall Tub
White
Direct
5 / 1
UltraQuiet™ 3
Plastic
Removable
Yes
55
Active Vent
5
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
2-4-6 Hour
Deluxe / PVC
2
Ultra 1
Yes
Yes
Left Bottom Front
6.0
20 – 120
Yes
4
Right Bottom Front
120V / 60 Hz / 15A
1.44
10
64 Lbs.
1 For use on adequately wired 120V, dedicated circuit having
2-wire service with a separate ground wire. Appliance must be
grounded for safe operation.
Dishwashers

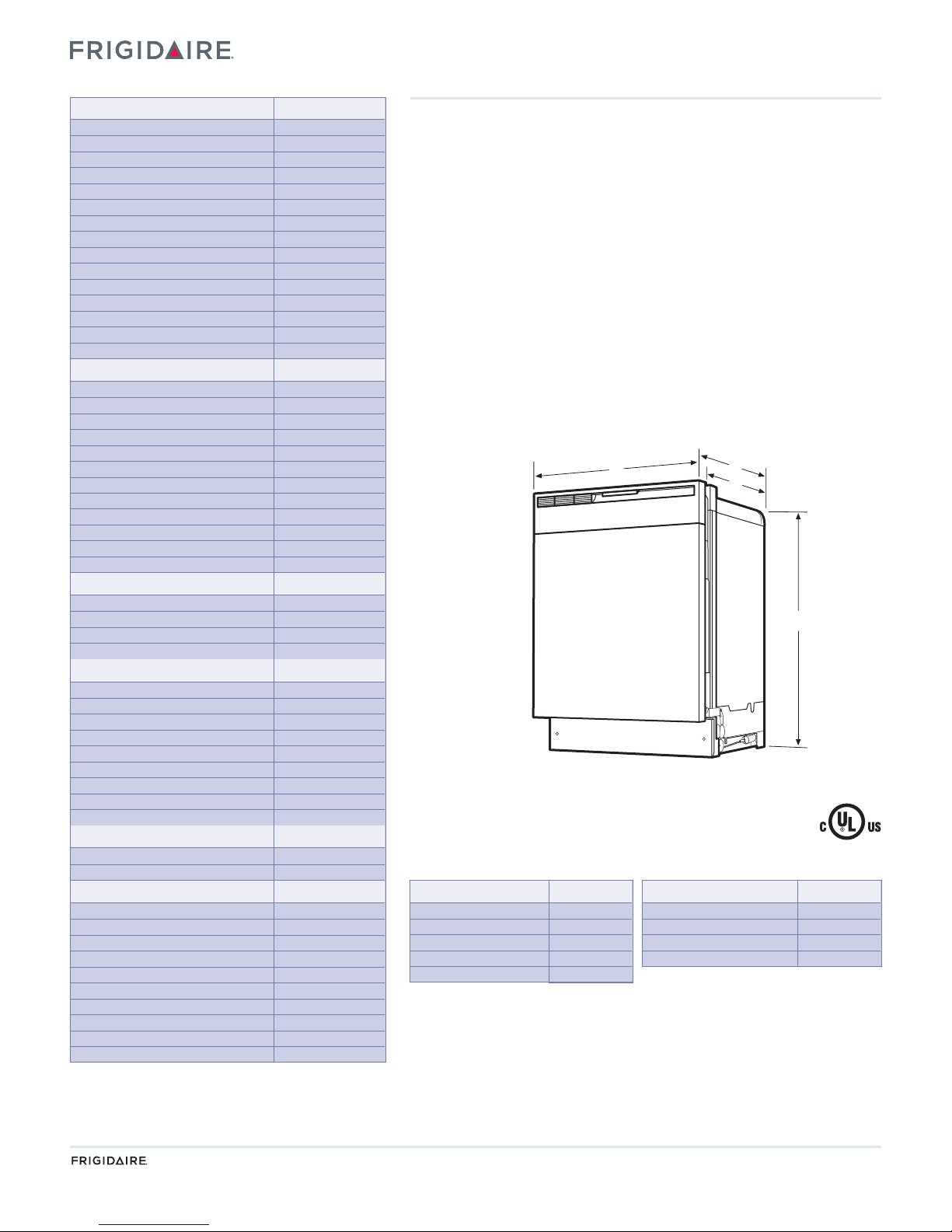

FFBD2409L S / M / W/ B / Q 24" Built-In
Product Dimensions
A - Height (Adjustable)
B - Width
C - Depth (Including Door)
D - Depth (To Tub Flange)
Depth with Door Open 90˚
33-1/2" – 35"
24"
25"
22-1/2"
49-1/4"
Cutout Dimensions
Height (Min.)
Height (Max.)
Width (Min.)
Depth (Min.)
34-1/4"
35-1/4"
24"
24"
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
B
A
D
C
24" Built-In Dishwashers
Frigidaire Baseline
Meets requirements
of ASSE 1006
