Frigidaire FPHD2491KF User manual

frigidaire.com
24" Built-In
Signature Features
Product Dimensions
Height (Adjustable) 34" – 35"
Width 23-3/4"
Depth (Including Door) 25-3/8"
More Easy-To-Use Features
Energy Saver Plus Cycle
Eco-friendly cycle uses less energy
without compromising cleaning
performance.
Energy Saver Dry Option
No heat dry option.
Stainless Steel Interior
Premium stainless steel interior for
maximum durability.
DishSense™ Technology
Sensors select the cycle for you based
on your cleaning needs.
SpaceWise® Organization System
Our SpaceWise® Organization System
features adjustable racks and the
Largest Silverware Basket1so there’s
a place for virtually anything.
Most Adaptable Delay Start
1 to 24-hour options.
NSF® Certified
Sanitize cycle removes 99.9% of
common household bacteria.
Smudge-Proof™ Stainless Steel
Reduces fingerprints and smudges so
it’s easy to clean.
PowerPlus® Cycle
For an extra-heavy wash performance.
Largest Silverware Basket1
There’s room for over 180 items in our
multi-compartment silverware basket.
ENERGY STAR®
NSF® International
Certification
Available in:
1 Among leading brands.
Stainless
(F)
SilentDesign™ Sound Package
Excellent Wash System
Our stainless steel spray arm and
dual filtration system gives you a
thoroughly clean wash every time.
Excellent Drying Performance
Fits-More™ Capacity
Our large capacity, tall-tub dishwasher
fits up to 14 place settings so you can
wash even more at once.
Dishwasher
FPHD2491KF

Specifications
subject to change.
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
24" Built-In Dishwashers with Integrated Controls
Frigidaire Professional
B
A
D
C
Accessories information available
on the web at frigidaire.com
Meets requirements
of ASSE 1006
Dishwasher
FPHD2491KF 24" Built-In
Cutout Dimensions
Height (Min.)
Height (Max.)
Width (Min.)
Depth (Min.)
34-1/4"
35-1/4"
24"
24"
Product Dimensions
A - Height (Adjustable)
B - Width
C - Depth (Including Door)
D - Depth (To Tub Flange)
Depth with Door Open 90°
34"– 35"
23-3/4"
25-3/8"
23"
50-3/8"
Features
Control Design
Digital Display
Door Latch / Stay-Put Door Hinge Design
Low Rinse-Aid Indicator Light
Interior Design / Interior Color
Wash System
Wash Levels / Wash Speeds
DishSense™ Technology
AquaSurge™ Technology
Sound Package
Filter / Filter Trap
Soft Food Disposer
dB Level
Drying System
Cycles
Number of Cycles
PowerPlus® (Heavy)
Normal
Light
Quick
Favorite
China Crystal
Rinse Only
Energy Saver Plus
Upper Rack Wash Only
Cycle Indicator Light / Control Lock
Options
Heat / No Heat Dry
Hi-Temp Wash
NSF® Certified Sanitize Rinse
Delay Start
Rack System
Rack Design
Rack Coating
SpaceWise® Upper Rack –
Rack Handles
Stemware / Champagne Glass Holders
Fold-Down Tines
Cup Shelves
Versa-Tray™
Adjustable Rack Height
Lower Rack –
SpaceWise® Silverware Basket
Fold-Down Tines
Small Items Cover
Certifications
ENERGY STAR®
NSF® International Certification
Specifications
Water Inlet Location
Water Usage (Gallons)
Water Pressure (PSI)
Integral Air Gap on Supply
Leveling Legs
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts 1
Amps @ 120 Volts
Shipping Weight (Approx.)
Fully-Integrated
Pro-Select®
Yes
Yes / Yes
Yes
Tall Tub / Stainless Steel
Direct
5 / 1
Yes
SilentDesign™
S. Steel / Removable
Yes
51
PowerPlus®
6
Yes
Yes
Yes
Yes
Yes
Yes
No / Yes
Yes
Yes
Yes
1–24 Hour
Maximum
Nylon TufRacks™
Yes
Yes
Yes
2
Yes
3-Piece Split
2 Full Rows
3
Yes
Yes
Left Bottom Front
4.9 – 8.5
20 – 120
Yes
4
Right Bottom Front
120V / 60 Hz / 15A
1.44
10
83 Lbs.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FPHD2491K 02/14 © 2014 Electrolux Home Products, Inc.
1 For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.

Specifications
subject to change.
Meets
requirements of
ASSE 1006

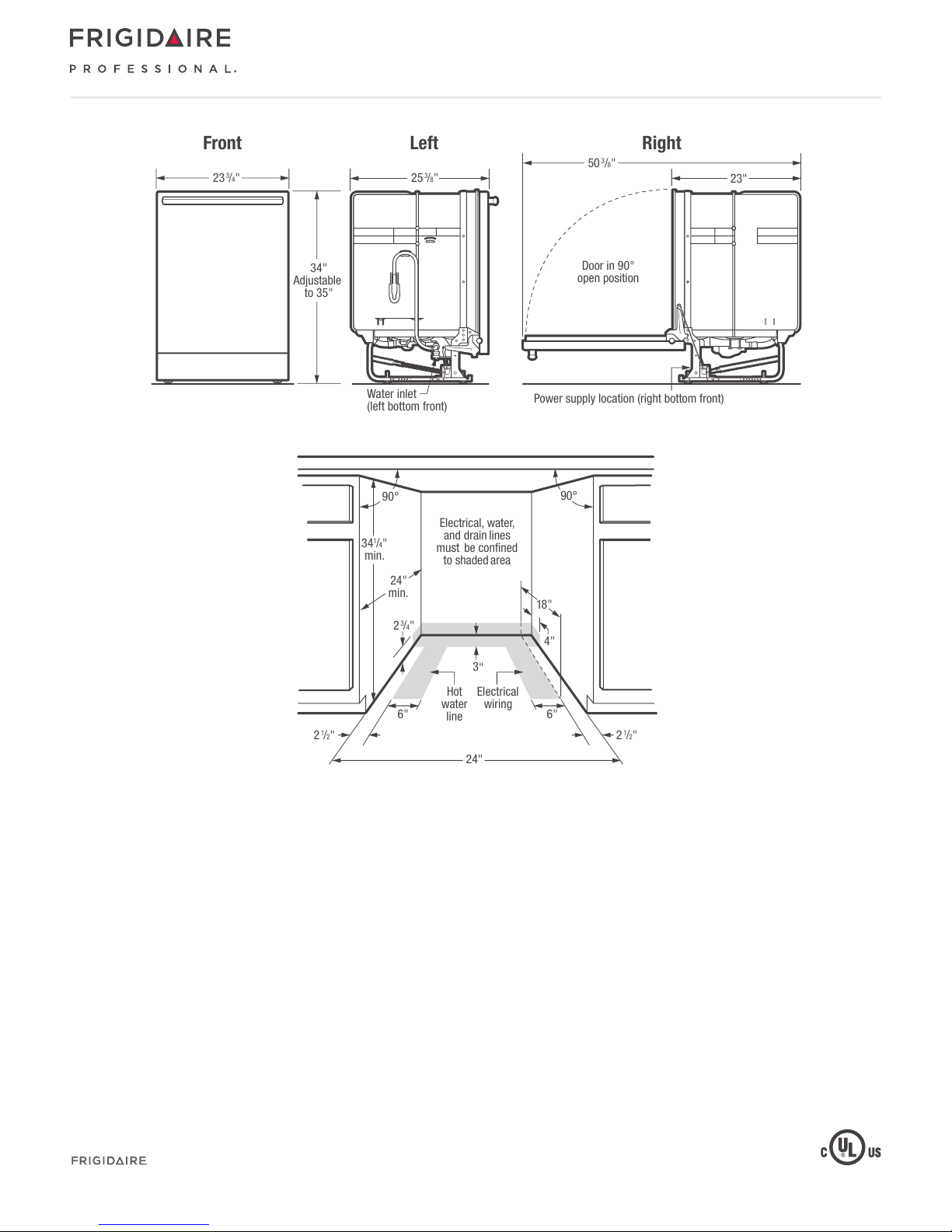

24" Built-In Dishwasher w/Integrated Controls (IC)
Professional (FPHD2491K)
6"
2
1/2
"2
1/2"
4"
18"
24"
min.
Electrical, water,
and drain
lines
must be confined
to shaded
area
6"
24"
2
3/4"
90° 90°
3"
341/4"
min.
Hot
water
line
Electrical
wiring
Front
34"
Adjustable
to 35"
23
3/4"
Power supply location (right bottom front)
50
3/8"
23"
Right
Door in 90°
open position
Left
25
3/8"
Water inlet
(left bottom front)
Dishwasher Specifications
• Product Shipping Weight (approx.) – 90 Lbs.
• Voltage Rating – 120V / 60 Hz / 15 Amps (maximum 20 Amps if
connected with disposer)
• Connected Load (kW Rating) @ 120 Volts = 1.44 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
• Amps @ 120V = 10 Amps
• Always consult local and national electric & plumbing codes.
Meets requirements of ASSE 1006 — integral air gap on supply.
• Water Pressure – Hot water line to dishwasher must provide
between 20 and 120 pounds per square inch (psi) with at least 120° F
hot water temperature.
• Make sure location has correct drain, water and electrical outlets
to make connections.
• Electrical and water supplies should enter cabinet opening on floor,
or through back or side walls, as shown in shaded areas.
• Keep back free of drain, water & electrical supply.
• Connections preferably located toward left side of dishwasher.
Do not cross drain, water or electrical lines in front of motor, blower
or frame.
• If connecting drain hose to sink trap, local code may require
installation of Air Gap Kit (not included).
• Leveling legs supplied to adjust height.
• When installing adjacent to wall, cabinet or other obstruction that
extends beyond front edge of unit, allow 2" minimum clearance
between opened door and obstruction.
• Floor should be flat and free of obstructions.
• When installing at end of cabinet line, sides and back must be
fully enclosed.
• Do not install unit under a cooktop, damage will occur.
• Recommended to seal cabinets, enclosing all sides of dishwasher,
including underside of countertop, with oil-based paint or moisture-
proof polyurethane to prevent possible steam/moisture damage.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FPHD2491K 02/14 © 2014 Electrolux Home Products, Inc.
Dishwasher
