Frigidaire FFC20D7HW User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FFC20D7HW4 FFC20D7HW 134A white 115
MARKET
North America
Publication No.
5995351649
010326
-EN/SERVICE /GS
365
FREEZER
Model No.
FFC20D7HW
©2001 White Consolidated Industries, Inc.
All rights reserved

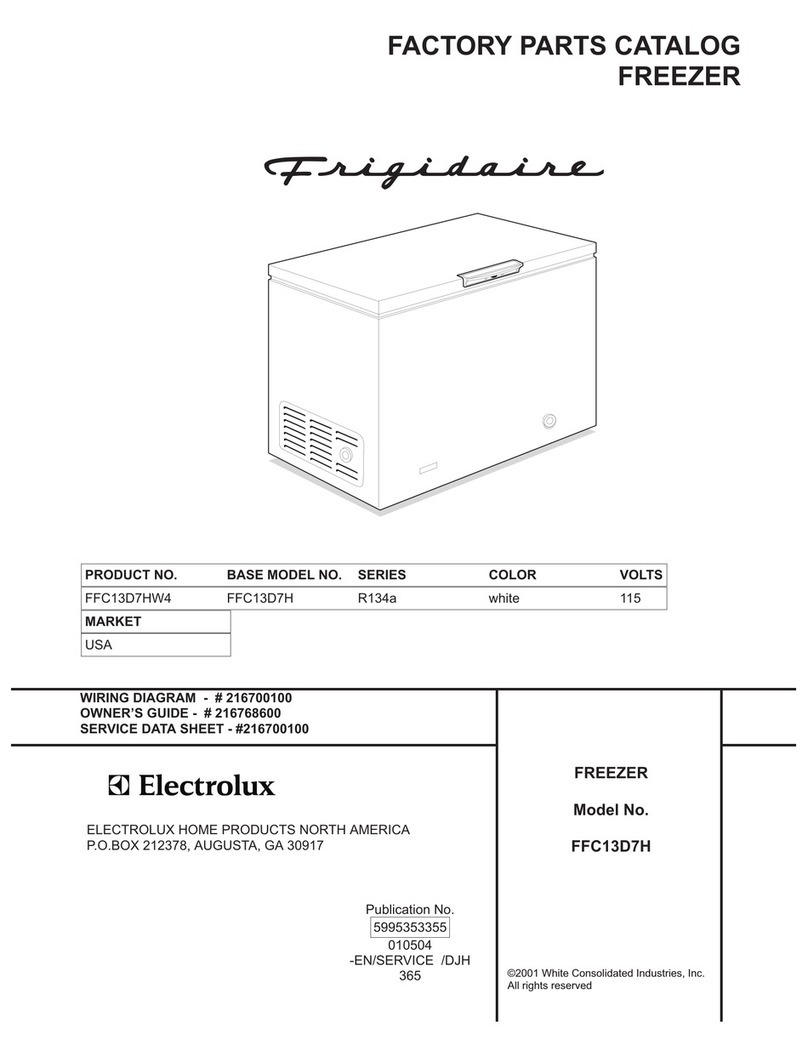

FACTORY PARTS CATALOG
FREEZER
WIRING DIAGRAM - # 216700100
OWNER’S GUIDE - # 216768600
MINI MANUAL - # 216700100
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O.BOX 212378, AUGUSTA, GA 30917

05/01 2
Publication No. FFC20D7HW
5995351649
DOOR

# = Fast-moving Parts 3 05/01
* = Non-Illustrated Parts
FFC20D7HW Publication No.
5995351649
DOOR
POS. NO PART NO DESCRIPTION
1 216481401 Gasket-door,white
2 # 5303925107 Lock Assy
5 # 216702900 Key,lock
9 216687500 Panel-inner door,frzr
10 216141101 Plug button,white
11 216130114 Lid,white
14 # 216472300 Switch-light plunger
15 # 216608600 Lamp,light bulb ,40 W ,120 V
16 # 216684000 Socket-light/lamp
18 216205004 Handle,white
23 216212700 Light-signal,amber
27 5303212828 Clip,panel
31 08009392 Gasket,white
34 216160400 Shield-light
35 5303297015 Washer,signal light
36 5306599968 Plate,backup ,light switch
40 5309948647 Fastener,handle
44 # 5303017178 Switch-rocker
45 # 3201509 Switch-defrost
46 08037851 Screw,PH type AB ,8-32x1/2 , wiring harness
47 # 216756000 Harness-lid/defrost
53 # 5303208483 Buzzer,alarm
55 216164000 Housing,switch
56 216694200 Sealing cap
61 5309948955 Clip-panel
92 5303272319 Screw,hex washer head ,8-32 x 7/16 , buzzer
* 5303925098 Insulation

05/01 4
Publication No. FFC20D7HW
5995351649
CABINET

# = Fast-moving Parts 5 05/01
* = Non-Illustrated Parts
FFC20D7HW Publication No.
5995351649
POS. NO PART NO DESCRIPTION
1 5303208488 Latch-door
1A 216080800 Support,lock
2 216269500 Adapter-drain
3 216502600 Plug-drain,interior ,interior
4 216073900 Plug-drain,exterior
6 216111200 Breaker,hinge side
7 216111800 Breaker,lock side
11 216110800 Breaker,white ,ends
12 216373000 Frame-nameplate
12A 316095402 Label-nameplate,Frigidaire ,white
18 216707200 Knob-control cold
21 # 216714700 Control-temperature
27 216629600 Screw-hinge
28 216035300 Hinge
30 216110700 Breaker,white ,corners
59 216080300 Basket
71 5303302714 Screw,8-18x3/4 ,(2)
73 216128200 Divider/drain pan
74 5306594584 Support-shelf
75 216034301 Panel-access,white
93 5303161215 Screw
* 5303305324 Paint,touch-up ,white
CABINET

05/01 6
Publication No. FFC20D7HW
5995351649
SYSTEM

# = Fast-moving Parts 7 05/01
* = Non-Illustrated Parts
FFC20D7HW Publication No.
5995351649
POS. NO PART NO DESCRIPTION
1 # 5303280307 Condenser
4 216634500 Drier-filter
5 216702000 Harness-main
22 216056400 Clip-spring mtg
27 5308002681 Grommet,compressor
28 5303212615 Support-compressor
29 # 216470500 Compressor,Service
30 216649302 Controller
32 216649100 Clamp,elec cont mtg ,compressor
42 216232700 Washer-flat
43A 5303212614 Clip-harness
47 216629600 Screw-hinge
48 # 216700800 Solenoid
49 216722800 Nut,self-threading ,1/8
51 # 216718400 Valve,formed
55 # 218909901 Capacitor-run,220 VAC ,15 microfarad
86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2
* 5303298960 Spacer-tube,.75"
SYSTEM
