Frigidaire FFC7C4AW0 User manual

FREEZER
Model numbers
FFC7C4AW0
FFC9C4AW0
FFC13C4AW0
©2001 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
FREEZER

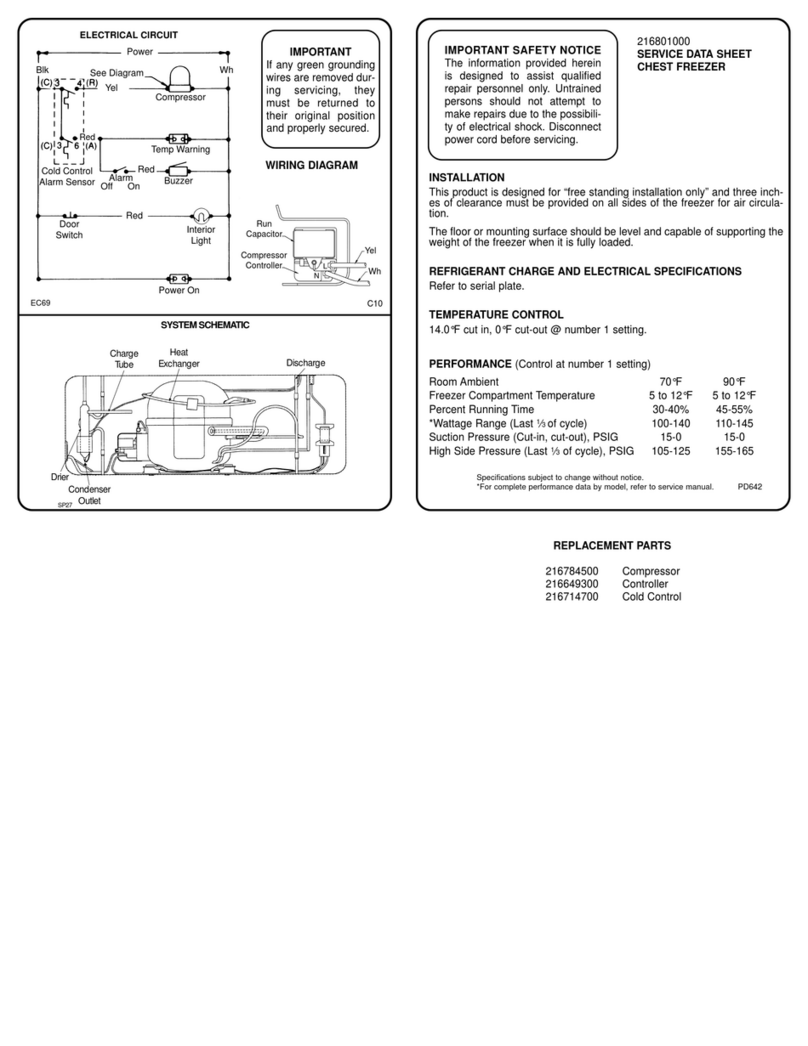

WIRING DIAGRAM - # 216787900 / 216803900
OWNER’S GUIDE - # 216802800
SERVICE DATA SHEET - #216787900 / 216803900
PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FFC07C4AW0 FFC07C4AW 134A white 115
FFC09C4AW0 FFC09C4AW 134A white 115
FFC13C4AW0 FFC13C4AW 134A white 115
MARKET
North America
Publication No.
5995357307
010808
-EN/SERVICE /GS
365
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O BOX 212378, AUGUSTA , GA 30917

10/01
2
Publication No FFC7/9/13C4AW0
5995357307
DOOR

# = Fast-moving Parts 3 10/01
* = Non-Illustrated Parts
FFC7/9/13C4AW0 Publication No.
5995357307
DOOR
A = FFC07C4A (FFC07C4AW0)
B = FFC09C4A (FFC09C4AW0)
C = FFC13C4A (FFC13C4AW0)
POS. NO PART NO DESCRIPTION
1 216480901 A - - Gasket-door,white
1 216481001 - B - Gasket-door,white
1 216481101 - - C Gasket-door,white
2 # 5303925107 A B C Lock Assy
5 # 216702900 A B C Key,lock
9 216688100 A - - Panel-inner door,frzr
9 216688200 - B - Panel-inner door,frzr
9 216686604 - - C Panel-inner door,frzr
10 216141101 A B C Plug button,white
11 216113127 A - - Panel-lid
11 216117929 - B - Panel-lid
11 216129821 - - C Panel-lid
12A 216816801 A B C Nameplate
14 # 216472300 A B C Switch-light plunger
15 # 216608600 A B C Lamp,light bulb ,40 W ,120 V
16 216684000 A B C Socket-light/lamp
18 216446600 A B C Handle
23 5308002706 A B C Light-signal,amber
27 5303212828 A B C Clip,panel
34 216160400 A B C Shield-light
36 5306599968 A B C Plate,backup ,light switch
40 5309948647 A B C Fastener,handle
46 216707800 A B C Screw,PH ,8-32 x 1/2 ,wiring harness
47 216819800 A B - Harness-lid/defrost
47 216819900 - - C Harness-lid/defrost
56 216694200 A B C Sealing cap
* 5303917276 A B - Insulation-door,fiberglass ,(bulk)
* 5303925098 - - C Insulation
* 5309948955 - B C Clip-panel

10/01
4
Publication No FFC7/9/13C4AW0
5995357307
CABINET

# = Fast-moving Parts 5 10/01
* = Non-Illustrated Parts
FFC7/9/13C4AW0 Publication No.
5995357307
A = FFC07C4A (FFC07C4AW0)
B = FFC09C4A (FFC09C4AW0)
C = FFC13C4A (FFC13C4AW0)
POS. NO PART NO DESCRIPTION
1 216117700 A B - Catch-lock
1 5303208488 - - C Latch-door
1A 216080800 - - C Support,lock
3 216502600 A B C Plug-drain,interior ,interior
4 216073905 A B C Plug-drain,exterior
6 216112800 A - - Breaker-hinge,white
6 216117500 - B - Breaker-hinge side,white
6 216110900 - - C Breaker
7 216112900 A - - Breaker-lock side
7 216117600 - B - Breaker-lock side
7 216111500 - - C Breaker,lock side
11 216105600 A B - Breaker-ends,white
11 216110800 - - C Breaker,white ,ends
18 216707200 A B C Knob-control cold
21 # 216787700 A B - Control-temperature
21 # 216714600 - - C Control-temperature
27 216337700 A B C Screw,hex washer head ,10-24 x 0.500
28 216478800 A B - Hinge Assy
28 216039600 - - C Hinge
30 216105500 A B - Breaker-corners,white
30 216110700 - - C Breaker,white ,corners
59 216078600 A B - Basket
59 216080300 - - C Basket
71 5303302714 A B C Screw,8-18x3/4 ,(2)
75 216329402 A B - Panel-access,white
75 216034301 - - C Panel-access,white
* 216802800 A B C Owners guide
* 5303305324 A B C Paint,touch-up ,white
CABINET

10/01
6
Publication No FFC7/9/13C4AW0
5995357307
SYSTEM

# = Fast-moving Parts 7 10/01
* = Non-Illustrated Parts
FFC7/9/13C4AW0 Publication No.
5995357307
SYSTEM
A = FFC07C4A (FFC07C4AW0)
B = FFC09C4A (FFC09C4AW0)
C = FFC13C4A (FFC13C4AW0)
POS. NO PART NO DESCRIPTION
1 # 5300120780 A - - Condenser
1 # 5300120781 - B - Condenser
1 5303925238 - - C Condenser
4 216634500 A B C Drier-filter
5 216807100 A B - Harness-main
5 216806900 - - C Harness-main
22 216056400 A B C Clip-spring mtg
27 5308002681 A B C Grommet,compressor
28 5303212615 - - C Support-compressor
29 # 216784200 A B - Compressor,w/o electricals
29 # 216784300 - - C Compressor,w/o electricals
30 216649314 A B - Controller
30 216649313 - - C Controller
32 216649200 A B C Clip,controller
42 216232700 - - C Washer-flat
47 216337700 A B C Screw,hex washer head ,10-24 x 0.500
55 # 216787800 A B C Capacitor-run
85 216533500 - - C Wire,ground
86 216036600 A B C Screw,rwhd (gx-ca) ,8-32 x 1/2
* 5303212614 - - C Clip-harness
