Frigidaire FPUH17D7KF User manual

All Freezer
FPUH17D7K F
SpaceWise™ Design
Optional Single Trim Kit
Part # ALLFRZKIT
Optional Double Trim Kit
Part # DUOTRIMKIT
Ice Maker-Ready
Part # IM501
Frigidare® Professional Stainless Steel Handle
Freezer –
Frost Free
2 Full-Width Cantilever Glass Shelves
Full-Width Fixed Glass Shelf
2 Tilt-Out Wire Door Bins
Bright Lighting
3 Full-Width Contoured Door Bins
4 Adjustable Leg Levelers
Quiet Pack
ENERGY STAR®
Capacities
Total Capacity 16.7 Cu. Ft.
Interior Volume 16.7 Cu. Ft.
Overall Exterior Dimensions
Height 65-3/4"
(Including Hinges)
Width 32"
Depth 26-1/2"
Available in:
frigidaire.com
17 Cu. Ft. Built-In
Signature Features
Real Stainless Steel
Real stainless steel with a protective
coating that reduces fingerprints and
smudges so it's easy to clean.
SpaceWise™
Organization System
Our SpaceWise™ Organization system
includes tilt-out wire door bins, a slid-
ing glass shelf and full-width storage
drawers to make it easy to keep food
organized and easy to find when you
need it.
SpaceWise™ Storage Baskets
Two full-width storage baskets keep
things organized and slide out for
easy access.
SpaceWise™ Sliding Shelf
Full-width shelf can accommodate
large items - up to 26" wide.
Shown with companion, All-Refrigerator model FPRH17D7KF and optional
coordinated Double Louvered Trim Kit (DUOTRIMKIT).
Stainless
(F)

All-Freezer Specifications
•Product Shipping Weight (approx.) – 229 Lbs.
•An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
•Voltage Rating – 115V / 60 Hz / 15 or 20 Amps
•Amps @ 115 Volts = 5 Amps
•Always consult local and national electric & plumbing codes.
•Minimum opening of 66" H x 33" W x 25-1/4" D required for single-unit
“Built-In Look” installation; 66" W required for double-unit installation.
(66" H to be measured from finished floor to underside of soffit or
overhead cabinet.)
•Minimum 25-1/4" depth requires recessed electrical outlet and
copper water line.
•Remove all wall / floor molding prior to built-in installation.
•
When installing refrigerator adjacent to wall, cabinet or other
appliance that extends beyond front edge of unit, 20" minimum
clearance recommended to allow for optimum 140° door swing,
providing complete crisper access and removal. (Absolute 4"
minimum clearance will ONLY allow for 90° door swing which
will provide limited crisper access with restricted removal.)
•Optional Ice Maker Kit (PN # IM501) available for installation.
•Water line for ice maker can enter opening through floor or rear wall.
Copper tubing recommended between cold water line and water
connection location. Water line tubing recommended is 48" minimum
length by 1/4" diameter. Installation of easily accessible shutoff valve
in water line required.
•To allow for ease of moving out side-by-side units after installation,
84" minimum length of coiled copper tubing recommended.
•Freezer must be placed on level surface of hard material, same height
as flooring. Surface must support approximately 800 lbs. when fully
loaded. Unit equipped with 4-point leveling.

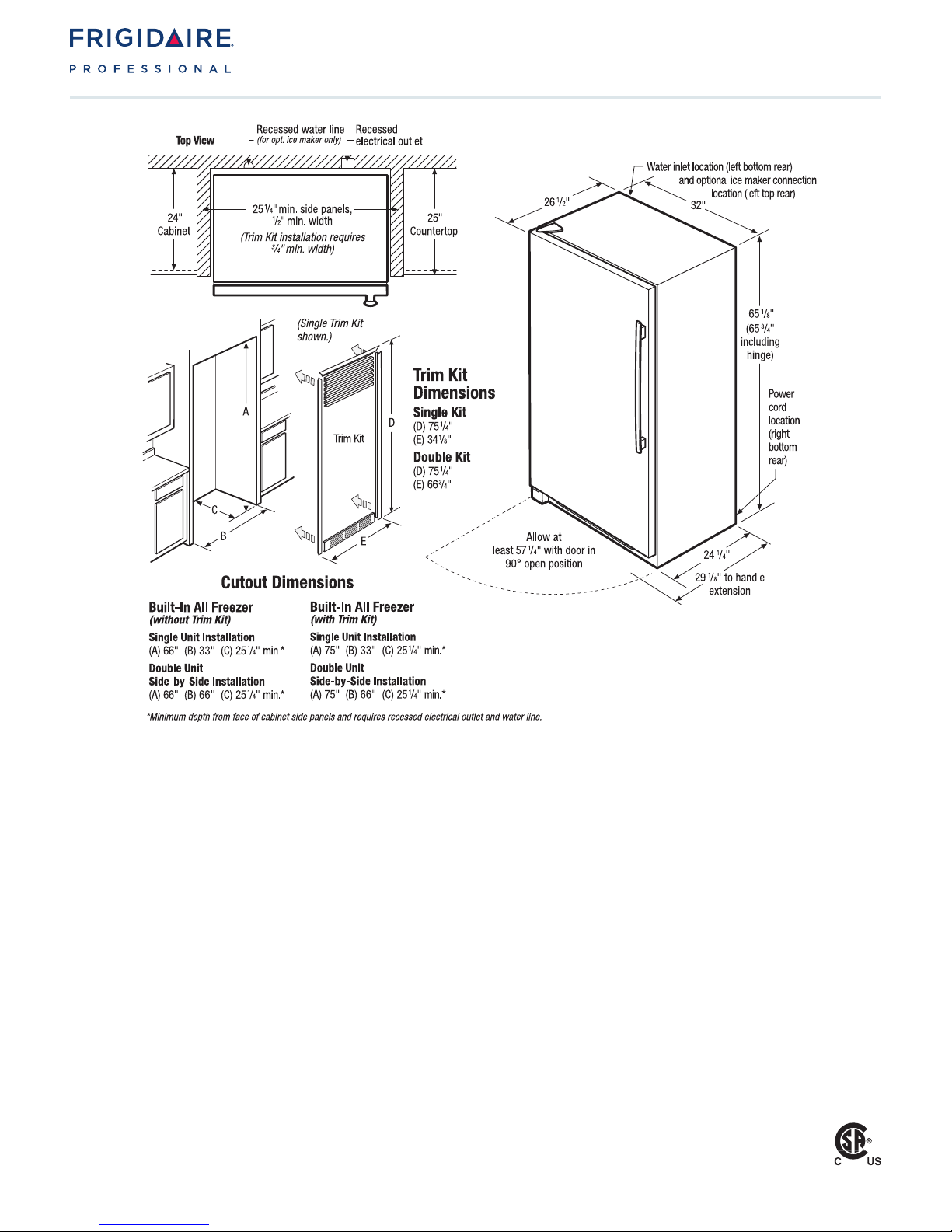

•If optional Single or Double Trim Kit is to be used, different cutout
dimensions are required. (Refer to cutout dimensions on this page
and to Trim Kits Installation Specifications page on web.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•Single Trim Kit – (PN # ALLFRZKIT).
•Double Trim Kit – (PN # DUOTRIMKIT).
•Ice Maker Kit – (PN # IM501).
All Freezer (17 Cu. Ft.) with OPTIONAL ice maker
Professional
Specifications
subject to change.
Note: Optional Trim Kits available for Built-In
All Freezer. For specifications, refer to Trim Kits
Installation page on web.
All Freezer
FPUH17D7K F 17 Cu. Ft. Built-In
FRIGIDAIRE®
USA
•
250 Bobby Jones Expressway
•
Martinez, GA 30907
•
1-800-FRIGIDAIRE •frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FPUH17D7K 05/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.

Specifications
subject to change.
FRIGIDAIRE®
USA
•
250 Bobby Jones Expressway
•
Martinez, GA 30907
•
1-800-FRIGIDAIRE •frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
AFARLVRKIT 17INST FR 05/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
Trim Kits Installation
For Built-In All Freezer and All Refrigerator
All Freezer_All Refrigerator Trim Kit
Frigidaire
Shim
3
/8"
All-Freezer and All-Refrigerator
Optional Trim Kits Specifications
•
To use Single Trim Kit (PN # ALLFRZKIT or PN # ALLREFKIT), an
enclosure is required around All Freezer or All Refrigerator having
an opening of 75" H x 33" W with minimum cabinet side panels of
25-1/4" D x 3/4" W.
•To use Double Trim Kit (PN # DUOTRIMKIT), an enclosure is required
around All Freezer and All Refrigerator having an opening of
75" H x 66" W with minimum cabinet side panels of 25-1/4" D x 3/4" W.
•Minimum 25-1/4" depth requires recessed electrical outlet and
water line.
•Cabinet or soffit above unit must extend out to same depth
as side panels.
•Minimum 7' x 8' clear floor space required for Single Trim Kit
assembly, minimum 10' x 8' clear floor space required for Double
Trim Kit assembly.
•For complete Trim Kit installation, refer to detailed instructions
included with kit or on web.
•For detailed All-Freezer and All-Refrigerator installations, refer
to model-specific product page and installation guide on web.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
