Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damages that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
•Do not let children play with the appliance.
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
•Keep all packaging away from children and dispose of it
appropriately.
General Safety
•This appliance is intended to be used in household and
similar applications such as:
–Farm houses; staff kitchen areas in shops, offices and
other working environments
–By clients in hotels, motels, bed and breakfast and other
residential type environments
•Keep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
•Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by
the manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
2
SAFETY INFORMATION

•Do not use water spray and steam to clean the appliance.
•Clean the appliance with a moist soft cloth. Only use neutral
detergents. Do not use abrasive products, abrasive cleaning
pads, solvents or metal objects.
•Do not store explosive substances such as aerosol cans with
a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
3
SAFETY INFORMATION

Installation
WARNING!
Only a qualified person must install
this appliance.
• Remove all the packaging and the transit
bolts.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Make sure the air can circulate around
the appliance.
• Wait at least 4 hours before connecting
the appliance to the power supply. This
is to allow the oil to flow back in the
compressor.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
• The rear of the appliance must stand
against the wall.
• Do not install the appliance where there
is direct sunlight.
• Do not install this appliance in areas that
are too humid or too colds, such as the
construction appendices, garages or
wine cellars.
• When you move the appliance, lift it by
the front edge to avoid scratching the
floor.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the power
supply. If not, contact an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact the
Authorised Service Centre or an
electrician to change the electrical
components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
Use
WARNING!
Risk of injury, burns, electrical shock
or fire.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g. ice
cream makers) in the appliance unless
they are stated applicable by the
manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains isobutane
(R600a), a natural gas with a high level
of environmental compatibility. This gas
is flammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the plastic
parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create pressure
on the drink container.
• Do not store flammable gas and liquid in
the appliance.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
4
SAFETY INSTRUCTIONS

• Do not remove or touch items from the
freezer compartment if your hands are
wet or damp.
• Do not freeze again food that has been
thawed.
• Obey the storage instructions on the
packaging of frozen food.
Internal light
• The type of lamp used for this appliance
is not suitable for household room
illumination
Care and cleaning
WARNING!
Risk of injury or damage to the
appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• This appliance contains hydrocarbons in
the cooling unit. Only a qualified person
must do the maintenance and the
recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the appliance.
Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and
pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation
materials of this appliance are ozone-
friendly.
• The insulation foam contains flammable
gas. Contact your municipal authority for
information on how to discard the
appliance correctly.
• Do not cause damage to the part of the
cooling unit that is near the heat
exchanger.
5
SAFETY INSTRUCTIONS

Switching on
1. Insert the plug into the wall socket.
2. Turn the Temperature regulator
clockwise to a medium setting.
Switching off
To turn off the appliance, turn the
temperature regulator to the "O" position.
Temperature regulation
The temperature is regulated automatically.
A medium setting is generally the most
suitable.
However, the exact setting should be
chosen keeping in mind that the
temperature inside the appliance
depends on:
• room temperature,
• how often the door is opened,
• the quantity of food stored,
• the location of the appliance.
1. Turn the Temperature regulator toward
lower settings to obtain the minimum
coldness.
2. Turn the Temperature regulator toward
higher settings to obtain the maximum
coldness.
CAUTION!
If the ambient temperature is high or
the appliance is fully loaded, and the
appliance is set to the lowest
temperatures, it may run continuously
causing frost to form on the rear wall.
In this case the dial must be set to a
higher temperature to allow automatic
defrosting and therefore reduced
energy consumption.
6
OPERATION

WARNING!
Refer to Safety chapters.
Cleaning the interior
Before using the appliance for the first time,
the interior and all internal accessories
should be washed with lukewarm water and
some neutral soap to remove the typical
smell of a brand-new product, then dried
thoroughly.
CAUTION!
Do not use detergents, abrasive
powders, chlorine or oil-based
cleaners as they will damage the
finish.

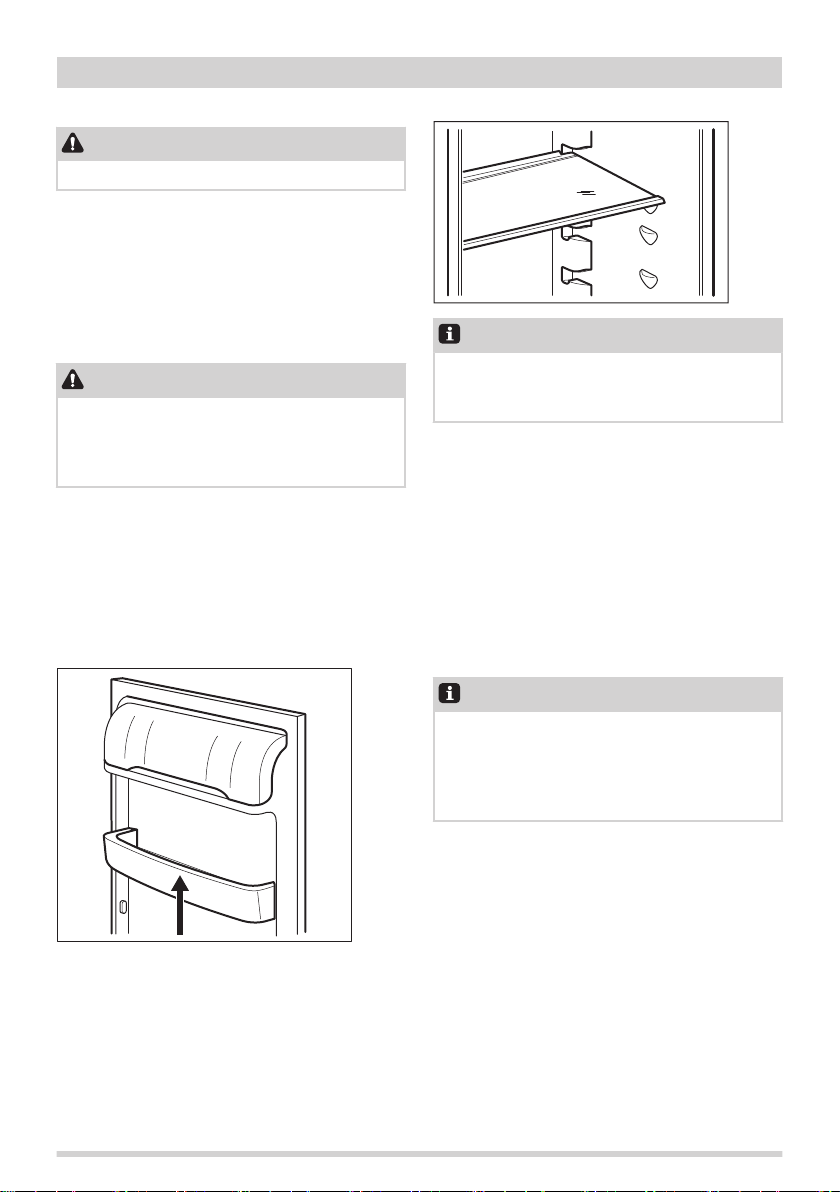

Positioning the door shelves
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
1. Gradually pull the shelf in the direction
of the arrows until it comes free.
2. Reposition as required.
Movable shelves
The walls of the refrigerator are equipped
with a series of runners so that the shelves
can be positioned as desired.
Do not move the glass shelf above the
vegetable drawer to ensure correct air
circulation.
Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze fresh foods it is not necessary to
change the medium setting.
However, for a faster freezing operation,
turn the temperature regulator toward
higher settings to obtain the maximum
coldness.
In this condition, the refrigerator
compartment temperature might drop
below 0°C. If this occurs reset the
temperature regulator to a warmer
setting.
Place the fresh food to be frozen in the
second compartment.
The maximum amount of food that can be
frozen in 24 hours is specified on the rating
plate, a label located on the inside of the
appliance.
The freezing process lasts 24 hours: during
this period do not add other food to be
frozen.
7
DAILY USE

Storage of frozen food
When first starting-up or after a period out
of use, before putting the products in the
compartment let the appliance run at least
2 hours on the higher settings.
In the event of accidental defrosting,
for example due to a power failure, if
the power has been off for longer than
the value shown in the technical
characteristics chart under "rising
time", the defrosted food must be
consumed quickly or cooked
immediately and then re-frozen (after
cooling).
Thawing
Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator
compartment or at room temperature,
depending on the time available for this
operation.
Small pieces may even be cooked still
frozen, directly from the freezer: in this
case, cooking will take longer.
Ice-cube production
This appliance is equipped with one or
more trays for the production of ice-cubes.
Do not use metallic instruments to
remove the trays from the freezer.
1. Fill these trays with water
2. Put the ice trays in the freezer
compartment.

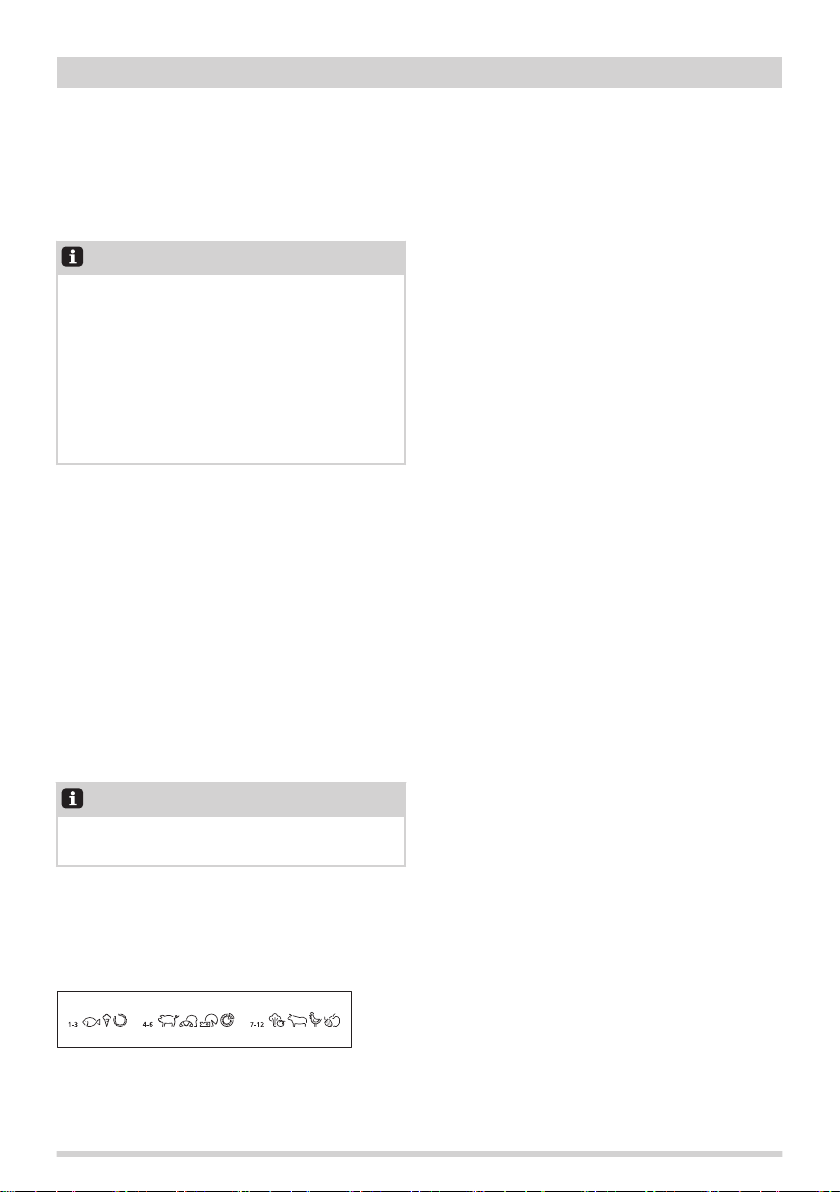

Frozen Food Calendar
The symbols show different types of frozen
goods.
The numbers indicate storage times in
months for the appropriate types of frozen
goods. Whether the upper or lower value of
the indicated storage time is valid depends
on the quality of the foods and treating
before freezing.
8
DAILY USE

Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound from
coils sound when refrigerant is pumped.
• A whirring and pulsating sound from the
compressor when refrigerant is pumped.
• A sudden cracking noise from inside
appliance caused by thermic dilatation (a
natural and not dangerous physical
phenomenon).
• A faint click noise from the temperature
regulator when the compressor switches
on or off.
Hints for energy saving
• Do not open the door frequently or leave
it open longer than absolutely
necessary.
• If the ambient temperature is high and
the Temperature Regulator is set to low
temperature and the appliance is fully
loaded, the compressor may run
continuously, causing frost or ice on the
evaporator. If this happens, set the
Temperature Regulator toward warmer
settings to allow automatic defrosting
and so a saving in electricity
consumption.
Hints for fresh food
refrigeration
To obtain the best performance:
• do not store warm food or evaporating
liquids in the refrigerator
• do cover or wrap the food, particularly if
it has a strong flavour
• position food so that air can circulate
freely around it
Hints for refrigeration
Useful hints:
• Meat (all types): wrap in a suitable
packaging and place it on the glass shelf
above the vegetable drawer. Store meat
for at most 1-2 days.
• Cooked foods, cold dishes: cover and
place on any shelf.
• Fruit and vegetables: clean thoroughly
and place in a special drawer. Bananas,
potatoes, onions and garlic must not be
kept in the refrigerator if not packed.
• Butter and cheese: place in a special
airtight container or wrap in an
aluminium foil or a polythene bag to
exclude as much air as possible.
• Bottles: close with a cap and place on
the door bottle shelf, or (if available) on
the bottle rack.
Hints for freezing
To help you make the most of the freezing
process, here are some important hints:
• the maximum quantity of food which can
be frozen in 24 hours is shown on the
rating plate;
• the freezing process takes 24 hours no
further food to be frozen should be
added during this period;
• freeze only top quality, fresh and
thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable
it to be rapidly and completely frozen
and to make it possible subsequently to
thaw only the quantity required;
• wrap up the food in aluminium foil or
polythene and make sure that the
packages are airtight;
• do not allow fresh, unfrozen food to
touch food which is already frozen, thus
avoiding a rise in temperature of the
latter;
• lean foods store better and longer than
fatty ones; salt reduces the storage life
of food;
• water ices, if consumed immediately
after removal from the freezer
compartment, can possibly cause the
skin to be freeze burnt;
• it is advisable to show the freezing in
date on each individual pack to enable
you to keep tab of the storage time.
9
HINTS AND TIPS

Hints for storage of frozen food
To obtain the best performance from this
appliance, you should:
• make sure that the commercially frozen
foodstuffs were adequately stored by the
retailer;
• be sure that frozen foodstuffs are
transferred from the foodstore to the
freezer in the shortest possible time;
• not open the door frequently or leave it
open longer than absolutely necessary;
• once defrosted, food deteriorates rapidly
and cannot be refrozen;
• do not exceed the storage period
indicated by the food manufacturer.
10
HINTS AND TIPS

WARNING!
Refer to Safety chapters.
General warnings
CAUTION!
Unplug the appliance before carrying
out any maintenance operation.
This appliance contains hydrocarbons
in its cooling unit; maintenance and
recharging must therefore only be
carried out by authorized technicians.
The accessories and parts of the
appliance are not suitable for washing
in a dishwasher.
Periodic cleaning
CAUTION!
Do not pull, move or damage any
pipes and/or cables inside the cabinet.
CAUTION!
Take care of not to damage the
cooling system.
CAUTION!
When moving the cabinet, lift it by the
front edge to avoid scratching the
floor.
The equipment has to be cleaned regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral soap.
2. Regularly check the door seals and
wipe clean to ensure they are clean and
free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser and
the compressor at the back of the
appliance with a brush.
This operation will improve the
performance of the appliance and save
electricity consumption.
Defrosting of the refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator compartment
every time the motor compressor stops,
during normal use. The defrost water drains
out through a trough into a special
container at the back of the appliance, over
the motor compressor, where it evaporates.

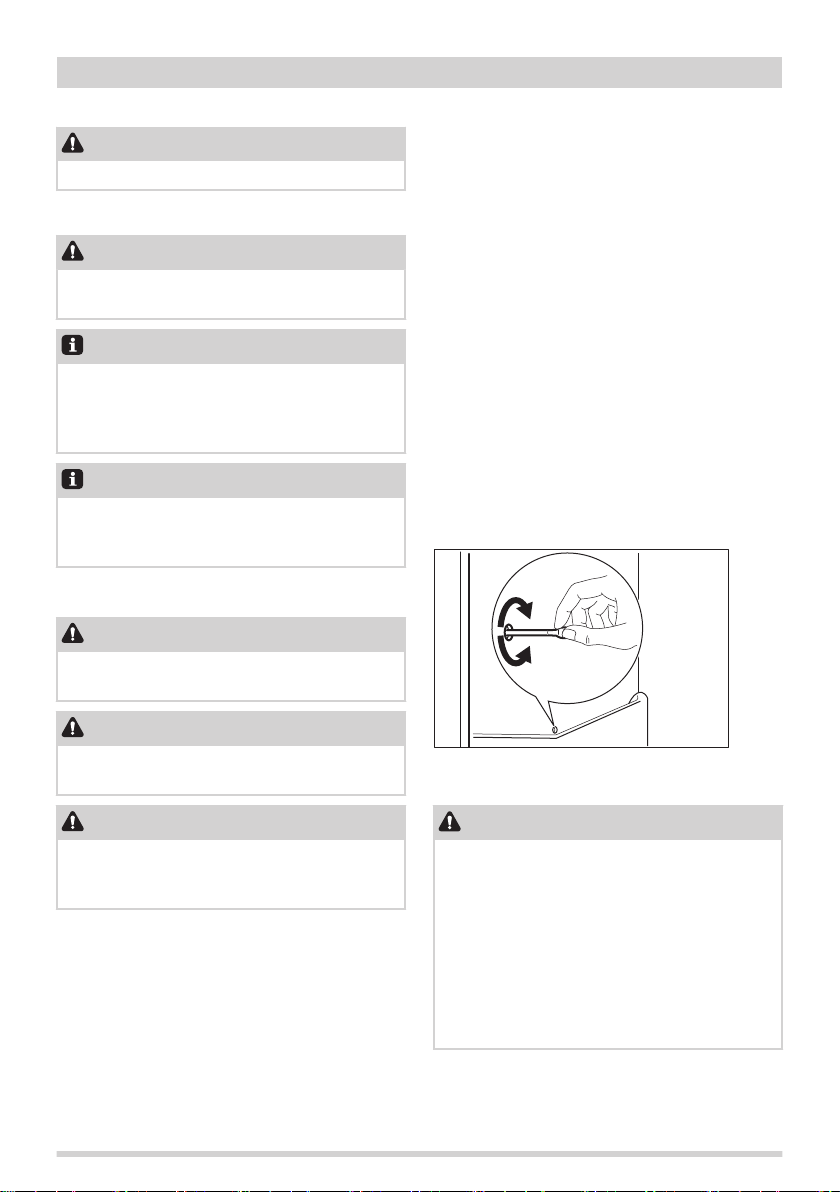

It is important to periodically clean the
defrost water drain hole in the middle of the
refrigerator compartment channel to
prevent the water overflowing and dripping
onto the food inside.
Defrosting the freezer
CAUTION!
Never use sharp metal tools to scrape
off frost from the evaporator as you
could damage it. Do not use a
mechanical device or any artificial
means to speed up the thawing
process other than those
recommended by the manufacturer. A
temperature rise of the frozen food
packs, during defrosting, may shorten
their safe storage life.
11
CARE AND CLEANING

About 12 hours prior to defrosting, set
a lower temperature, in order to build
up sufficient chill reserve for the
interruption in operation.
A certain amount of frost will always form
on the freezer shelves and around the top
compartment.
Defrost the freezer when the frost layer
reaches a thickness of about 3-5 mm.
1. Switch off the appliance, or pull out the
electrical plug from the wall socket.
2. Remove any stored food, wrap it in
several layers of newspaper and put it
in a cool place.
WARNING!
Do not touch frozen food with wet
hands. Hands can freeze to the
goods.
3. Leave the door open and insert the
plastic scraper in the appropriate
seating at the bottom centre, placing a
basin underneath to collect the defrost
water.
In order to speed up the defrosting
process, place a pot of warm water in
the freezer compartment. In addition,
remove pieces of ice that break away
before defrosting is complete.
4. When defrosting is complete, dry the
interior thoroughly and keep the scraper
for future use.
5. Switch on the appliance.
Wait at least 3 hours before putting the
food back into the freezer compartment.
Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Defrost (if necessary) and clean the
appliance and all accessories.
4. Clean the appliance and all
accessories.
5. Leave the door/doors open to prevent
unpleasant smells.
WARNING!
If you want to keep the appliance
switched on, ask somebody to check it
once in a while to prevent the food
inside from spoiling in case of a power
failure.
12
CARE AND CLEANING

WARNING!
Refer to Safety chapters.
What to do if...
PROBLEM POSSIBLE CAUSE SOLUTION
The appliance does not op-
erate.
The appliance is switched
off.
Switch on the appliance.
The mains plug is not con-
nected to the mains socket
correctly.
Connect the mains plug to the
mains socket correctly.
There is no voltage in the
mains socket.
Connect a different electrical
appliance to the mains socket.
Contact a qualified electrician.
The appliance is noisy. The appliance is not sup-
ported properly.
Check if the appliance stands
stable.
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp is defective. Refer to "Replacing the lamp".
The compressor operates
continually.
Temperature is set incor-
rectly.
Refer to "Operation".
Many food products were
put in at the same time.
Wait some hours and then
check the temperature again.
The room temperature is
too high.
Refer to climate class chart on
the rating plate.
Food products placed in
the appliance were too
warm.
Allow food products to cool to
room temperature before stor-
ing.
The door is not closed cor-
rectly.
Refer to "Closing the door".
There is too much frost and
ice.
The door is not closed cor-
rectly or the gasket is de-
formed/dirty.
Refer to "Closing the door".
The water drainage plug is
not correctly positioned.
Position the water drainage
plug in the correct way.
Food products are not
wrapped properly.
Wrap the food products bet-
ter.
13
TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
Temperature is set incor-
rectly.
Refer to "Operation" .
Water flows on the rear
plate of the refrigerator.
During the automatic de-
frosting process, frost
melts on the rear plate.
This is correct.
Water flows inside the re-
frigerator.
The water outlet is clog-
ged.
Clean the water outlet.
Food products prevent
that water flows into the
water collector.
Make sure that food products
do not touch the rear plate.
Water flows on the floor. The melting water outlet is
not connected to the evap-
orative tray above the
compressor.
Attach the melting water out-
let to the evaporative tray.
The temperature in the ap-
pliance is too low/too high.
The temperature regulator
is not set correctly.
Set a higher/lower tempera-
ture.
The door is not closed cor-
rectly.
Refer to "Closing the door".
The food products' tem-
perature is too high.
Let the food products temper-
ature decrease to room tem-
perature before storage.
Many food products are
stored at the same time.
Store less food products at the
same time.
The thickness of the frost
is greater than 4-5 mm.
Defrost the appliance.
The door has been opened
often.
Open the door only if necessa-
ry.
There is no cold air circula-
tion in the appliance.
Make sure that there is cold
air circulation in the appliance.
If the advice does not lead to the
desired result, contact the nearest
Authorised Service Centre.
Replacing the lamp
CAUTION!
Disconnect the plug from the mains
socket.
14
TROUBLESHOOTING

1. Pull the left side of the lamp cover with
your fingers to unlock it. Remove the
cover by pulling it towards yourself.
1
2
1
2. Replace the lamp with one of the same
power and shape, specifically designed
for household appliances. The
maximum power is shown on the light
bulb cover.
3. Install the lamp cover.
4. Connect the plug to the mains socket.
5. Open the door.
Make sure that the light switches on.
Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to
assembly instructions.
3. If necessary, replace the defective door
gaskets. Contact the Authorised Service
Centre.
FRIGIDAIRE-Customer Care
and Service
Service and spare parts.
Please contact your Authorised Service
Force Centre on: 03445 616616 (Your call
will automatically be routed to your local
centre). For the address of your local
centre please visit
www.serviceforce.co.uk
Please ensure you read the information
under "What to do if" in your instruction
booklet before contacting us for service.
Servicing and/or installation of your
product, including electrical connections
should be carried out by a suitably qualified
engineer. in the user manual you will find
some useful information on how to deal
with minor faults and how to take care of
your product.
When contacting us for Service please
ensure that you have your purchase receipt
and the following information available:
• Model No.............................
• Serial No..............................
• Product No..........................
• Purchase Date....................
Customer Care. Please contact Frigidaire,
Addington Way, Luton, Bedfordshire,
LU49QQ. Telephone No. 03445 610528
15
TROUBLESHOOTING

Location
Refer to the assembly instructions for
the installation.
To ensure best performance, install the
appliance well away from sources of heat
such as radiators, boilers, direct sunlight
etc. Make sure that air can circulate freely
around the back of the cabinet.
Positioning
Install the appliance in a dry, well ventilated
indoors where the ambient temperature
corresponds to the climate class indicated
on the rating plate of the appliance.
CLIMATE
CLASS AMBIENT TEMPERATURE
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Some functional problems might occur
for some types of models when
operating outside of that range. The
correct operation can only be
guaranteed within the specified
temperature range. If you have any
doubts regarding where to install the
appliance, please turn to the vendor,
to our customer service or to the
nearest Authorised Service Centre.
Electrical Connection
CAUTION!
Any electrical work required to install
this appliance should be carried out by
a qualified electrician or competent
person.
WARNING!
This appliance must be earthed.
The manufacturer declines any liability
should these safety measures not be
observed.
The wires in the mains lead are coloured in
accordance with the following code:
A B
C
D
E
•A - green and yellow: Earth
•C - brown: Live
•D - blue: Neutral
As the colours of the wires in the mains
lead of this appliance may not correspond
with the coloured markings identifying the
terminals in your plug, proceed as follows:
1. Connect the wire coloured green and
yellow to the terminal marked either
with the letter “E“ or by the earth symbol
or coloured green and yellow.
2. Connect the wire coloured blue to the
terminal either marked with the letter
“N“ or coloured black.
16
INSTALLATION

3. Connect the wire coloured brown to the
terminal either marked with the “L“ or
coloured red.
4. Check that no cut, or stray strands of
wire is present and the cord clamp (E)
is secure over the outer sheath.
Make sure the electricity supply voltage
is the same as that indicated on the
appliance rating plate.
5. Switch on the appliance.
The appliance is supplied with a 13 amp
fuse (B). In the event of having to change
the fuse in the plug supplied, a 13 amp
ASTA approved (BS 1362) fuse must be
used.
WARNING!
A cut off plug inserted into a 13 amp
socket is a serious safety (shock)
hazard. Ensure that it is disposed of
safely.
Ventilation requirements
The airflow behind the appliance must be
sufficient.
5 cm min.
200 cm2
min.
200 cm2
CAUTION!
Refer to the assembly instructions for
the installation.
17
INSTALLATION

Technical data
Dimensions of the recess
Height mm 1780
Width mm 560
Depth mm 550
Rising time Hours 22
Voltage Volts 230-240
Frequency Hz 50
The technical information is situated in the
rating plate, on the external or internal side
of the appliance and in the energy label.
18
TECHNICAL DATA

Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do not
dispose appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
19
*
ENVIRONMENTAL CONCERNS

222372914-A-162016
