Drop-In Cooktop
FPEC3085K S 30" Electric
Signature Features
24" Gas
Single Wall Ovens
FGB24L2A S / B
Large Capacity
Our large capacity oven gives you room
to cook more at once.
Ready-Select® Controls
Easily select options or control
cooking temperature with our
easy-to-use controls.
Product Dimensions
Height 38-7/16"
Width 23-7/8"
Depth 25-3/8"
More Easy-To-Use Features
GlideOut™ Broiler
Bright Oven Lighting
Our bright lighting makes it easy to see
what’s inside.
Timer Function
Manual-Clean Oven
A.D.A. Compliant1
Available in:
1When properly installed, meets the appliance
standards in the Americans with Disabilities Act
and the Architectural Barriers Act Accessibility
Guidelines as published by the United States
Access Board on June 23, 2004, as amended
August 5, 2005.
Large Window
Our large oven window lets you easily
see what’s inside.
Vari-Broil™ Option
Allows you to choose between two
heat levels.
White
(S)
Black
(B)

Accessories information available
on the web at frigidaire.com
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGB24L2A 02/12 © 2012 Electrolux Home Products, Inc.
Specifications
subject to change.
Single Wall Ovens
FGB24L2A S / B 24" Gas
Cutout Dimensions
Height (Min.)
Height (Max.)
Width (Min.)
Depth (Min.)
37-1/2"
38"
22"
23-1/2"
Product Dimensions
A - Height
B - Width
C - Depth
D - Height (Wrapper)
E - Width (Wrapper)
Depth with Door Open 90˚
38-7/16"
23-7/8"
25-3/8"
37-3/8"
21-11/16"
43"
24" Single Gas Wall Ovens_1-1/2 Cell
Frigidaire Baseline
E
D
B
C
A
NOTE: For planning purposes only. Always consult local and national electric and gas codes. Refer
to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
1When properly installed, meets the appliance standards in the
Americans with Disabilities Act and the Architectural Barriers Act
Accessibility Guidelines as published by the United States
Access Board on June 23, 2004, as amended August 5, 2005.
2For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.
Features
Oven Control / Timing System
Window
Exterior Door Finish
Handle Design
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake / Broil
Convection Conversion
Convection Bake / Broil / Roast
Quick Bake Convection
PowerPlus® / Quick Preheat
My Favorite
Chicken Nugget Button
Pizza Button
Keep Warm
Add-a-Minute
Delay Bake
Self-Clean
Rapid / Quick Clean Option
Delay Clean
Kitchen Timer
Timed Cook Option
Control Lock
Auto Oven Shut-O
Oven Lock-Out
Oven Features
Capacity (Cu. Ft.)
Convection System
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake / Broil Element (BTU)
Certifications
A.D.A. Compliant1
Sabbath Mode (Star-K® Certified)
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Gas Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 120 Volts2
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Approved for Under-Counter
Installation
Shipping Weight (Approx.)
Ready-Select®
Large
Color-Coordinated
Color-Coordinated
Manual Clean
GlideOut™ Broiler
Yes /
Variable (Hi - Lo)
Yes
3.2
1
2 Racks
Regular
Vari-Broil™
16,000 / 16,000
Yes
16" x 18-1/2" x 18-1/2"
Right Bottom Rear
Right Bottom Rear
120V / 60Hz
.001
5.0
15
150 Lbs.

Accessories information available
on the web at frigidaire.com
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE •frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGB24L2A 02/12 © 2012 Electrolux Home Products, Inc
Specifications
subject to change.
Single Wall Ovens
FGB24L2A S / B 24" Gas
Single Wall Oven Specifications
•Product Shipping Weight (approx.) – 150 Lbs.
•Voltage Rating – 120V / 60 Hz / 15 Amps
•Connected Load (kW Rating) @ 120 Volts = .60 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•Amps @ 120V = 5 Amps
•Always consult local and national electric and gas codes.
•Oven ships with 3/4" factory regulator.
•LP Gas convertible.
•Do not obstruct flow of combustion air at oven vent nor around base
or beneath lower front panel of appliance. Oven requires fresh air for
proper burner combustion.
•Minimum 19-3/8" clearance for oven door depth when open.
•Full oven base of solid plywood or similar material required, capable
of supporting 150 Lbs.
•Base must be level and cabinet front must be square.
•Single Wall Oven is NOT approved to be used in side-by-side
installation.
•Single Wall Oven is NOT approved to be used alone in under-counter
installation or in combination with any Frigidaire® Warmer Drawer or
Built-In Microwave Oven.

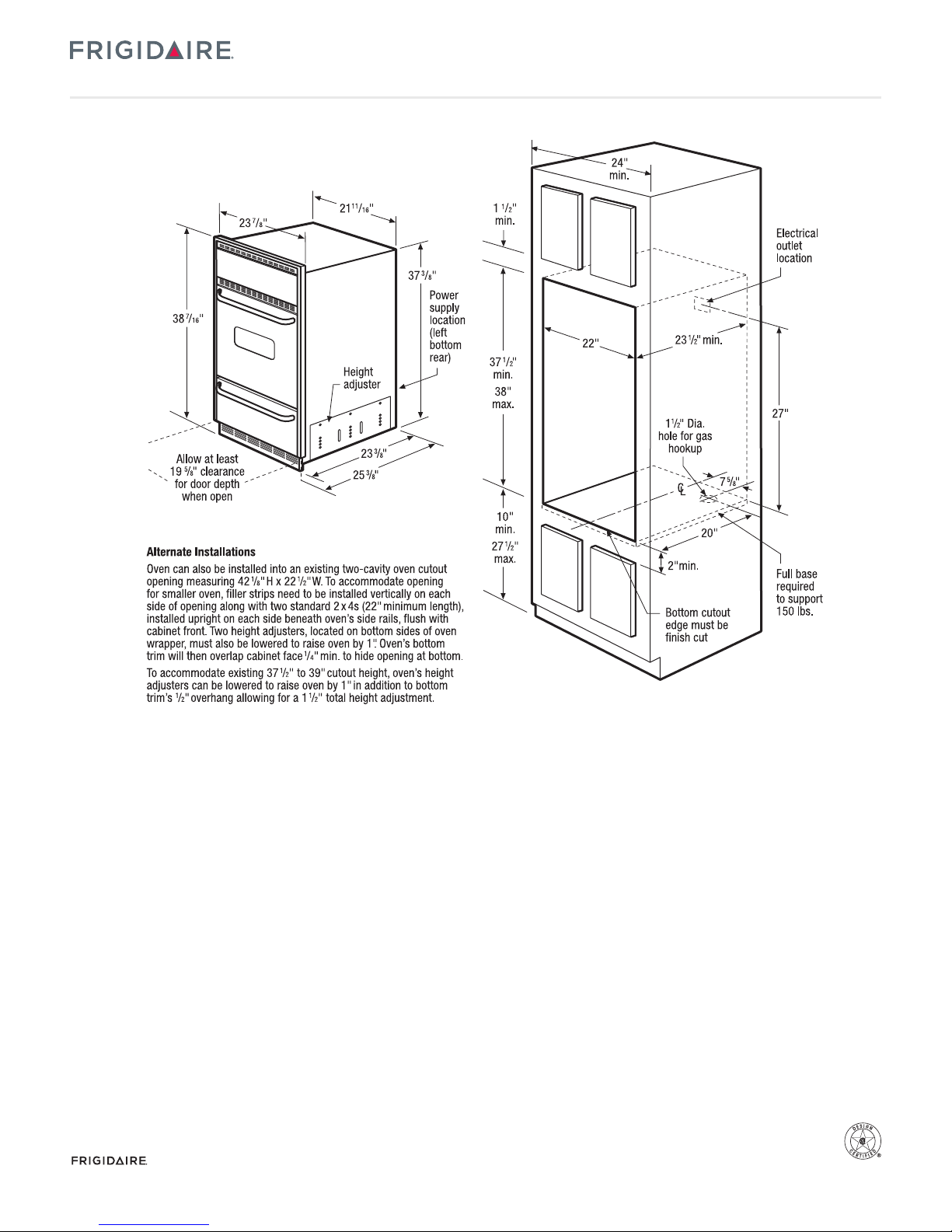

Alternate Installations
•Oven can also be installed into an existing two-cavity oven cutout
opening measuring 42-1/8" H x 22-1/2" W. To accommodate opening
for smaller oven, filler strips need to be installed vertically on each
side of opening along with two standard 2 x 4s (22" minimum length),
installed upright on each side beneath oven’s side rails, flush with
cabinet front. Two height adjusters, located on bottom sides of oven
wrapper, must also be lowered to raise oven by 1". Oven’s bottom
trim will then overlap cabinet face 1/4" minimum to hide opening at
bottom.
•To accommodate existing 37-1/2" to 39" cutout height, oven’s height
adjusters must be lowered to raise oven by 1" in addition to bottom
trim’s 1/2" overhang allowing for a 1-1/2" total height adjustment.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
24" Single Gas Wall Ovens_1-1/2 Cell
Baseline

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_SSR FR 02/12 © 2012 Electrolux Home Products, Inc.
General Installation Guidelines
with Side-by-Side Refrigerator
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_TMR FR 02/12 © 2012 Electrolux Home Products, Inc.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top
General Installation Guidelines
with Top Mount Refrigerator

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_FDR FR 02/12 © 2012 Electrolux Home Products, Inc.
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
General Installation Guidelines
with French Door Refrigerator
