Drop-In Cooktop
FPEC3085K S 30" Electric30" Electric
Signature Features
Even Baking Technology
Our latest technology ensures
even baking every time.
One-Touch Self Clean
Start the self-cleaning cycle with
just the touch of a button.
Large Capacity
Our large capacity oven gives you
room to cook more at once.
Ready-Select™ Controls
Easily select options or control
cooking temperature with our
easy-to-use controls.
Product Dimensions
Height (Adjustable) 26-1/2" – 26-5/8"
Width 30"
Depth 28-5/16"
More Easy-To-Use Features
Quick Clean
For a quick, light oven cleaning.
Extra-Large Window
Our extra-large oven window lets
you easily see what’s inside.
Delay Start Baking Option
Delay Clean
Set the oven to begin cleaning
on your schedule.
Hi /Lo Broil Option
Offers two-position broiling and
variable temperature control for
more control.
Auto Shut-O
As an extra safety measure, the oven
will automatically shut off after 12 hours.
Timed Cook Option
Electronic Kitchen Timer
Bright Lighting
Our bright lighting makes it easy
to see what’s inside.
A.D.A. Compliant1
Sabbath Mode (Star-K® Certified)
Available in:
Drop-In Ranges
FFED3015L W/ B
Black
(B)
White
(W)
Elements
Right Front
Right Rear
Left Front
Left Rear
Watts
2,600
1,500
1,500
2,600
Size
8"
6"
6"
8"
1
When properly installed, meets the appliance
standards in the Americans with Disabilities Act
and the Architectural Barriers Act Accessibility
Guidelines as published by the United States
Access Board on June 23, 2004, as amended
August 5, 2005.

Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
1
When properly installed, meets the appliance standards in the
Americans with Disabilities Act and the Architectural Barriers Act
Accessibility Guidelines as published by the United States
Access Board on June 23, 2004, as amended August 5, 2005.
Features
Oven Control / Timing System
Surface Type
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake
Broil
Add-a-Minute
Delay Bake
One-Touch Self Clean
Quick Clean Option
Delay Clean
Kitchen Timer
Timed Cook Option
Auto Oven Shuto
Cooktop Features
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Center Element (Watts)
Hot Surface Indicator Light
Coil Cooktop / Drip Bowls
Oven Features
Capacity (Cu. Ft.)
Oven Light
Hidden Bake Element
Rack Configuration
Even Baking System
Broiling System
Bake Element / Broil Element (Watts)
Optional Accessories
Rear Filler Kit –
White (W) / Black (B)
Side Panel Kit –
White (W) / Black (B)
Backguard Kit –
White (W) / Black (B)
Side Trim Kit –
White (W) / Black (B)
Bottom Trim Kit –
White (W) / Black (B)
Certifications
A.D.A. Compliant1
Sabbath Mode (Star-K® Certified)
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Ready-Select™ Controls
Color-Coordinated Porcelain
Extra-Large
Color-Coordinated
Color-Coordinated
Color-Coordinated
Self Clean
Yes
Low and High
Yes
2, 3 Hours (Scroll Thru)
Yes
Yes
Yes
Yes
12 Hours
8" – 2,600
6" – 1,500
6" – 1,500
8" – 2,600
Yes / Chrome
4.2
1
2 Standard
Yes
Vari-Broil™ Hi / Lo
2,750 / 3,400
(W) PN # 901193-9011
(B) PN # 901193-9010
(W) PN # 903046-9011
(B) PN # 903046-9010
(W) PN # 903076-9011
(B) PN # 903076-9010
(W) PN # 903068-9011
(B) PN # 903068-9010
Yes
Yes
16-1/2" x 24-1/8" x 18-1/32"
Left Bottom Rear
240V / 208V / 60 Hz
11.6 / 8.7
43.7 / 41.8
40
145 Lbs.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FFED3015L 07/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.

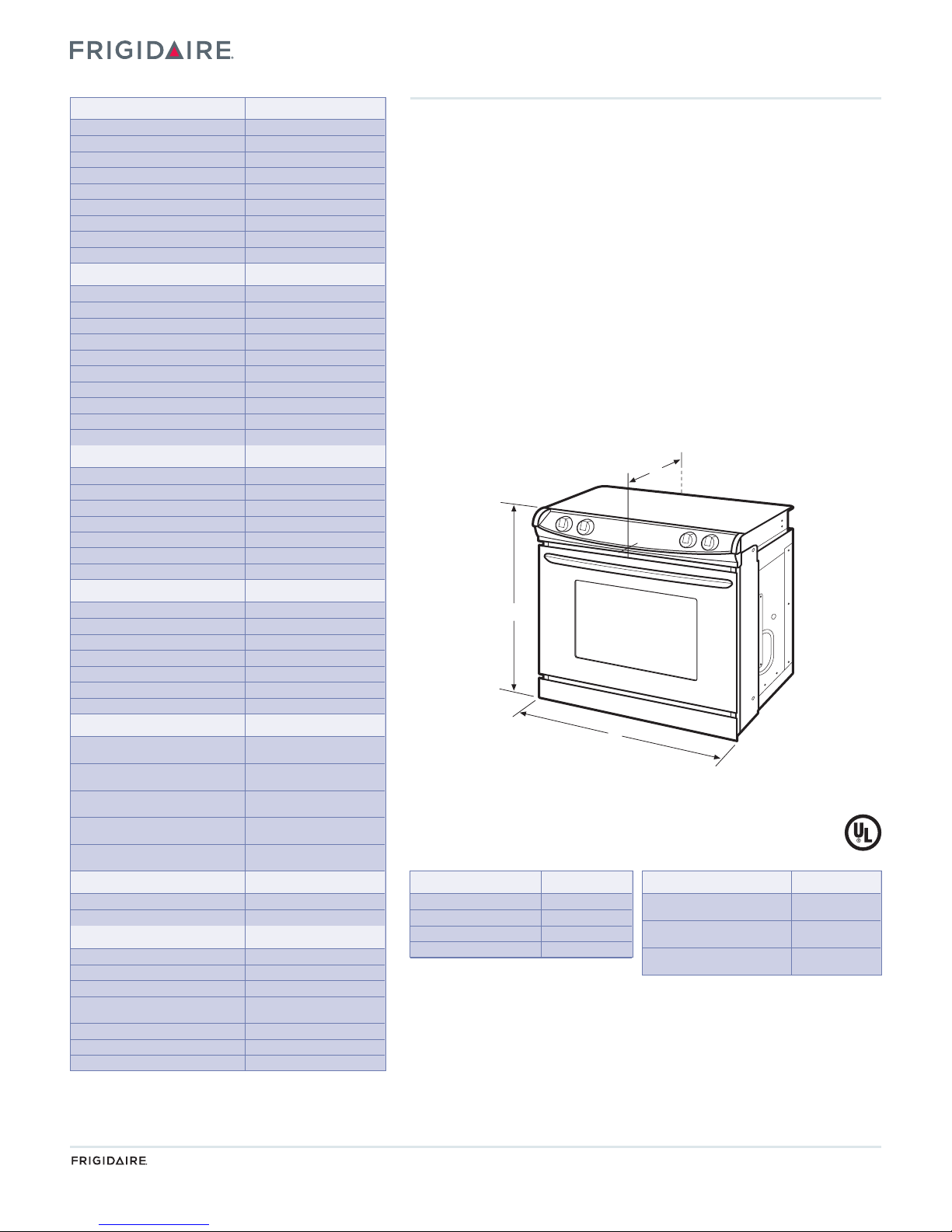

Drop-In Ranges
FFED3015L W/ B 30" Electric
Cutout Dimensions
Height (min.)
(max.)
Width (min.)
(max.)
Depth (min.)
(max.)
29"
29"
29-15/16"
30-1/16" *
21-3/4"
22-1/8" **
Product Dimensions
A - Height
B - Width
C - Depth
Depth with Door Open 90˚
26-1/2"
30"
28-5/16"
45-1/2"
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Slide-In Electric Ranges
Frigidaire Baseline
B
A
* To extreme
rear protrusion
C*
Product Dimensions
A - Height (Adjustable)
B - Width
C - Depth
Depth with Door Open 90˚
26-1/2" – 26-5/8"
30"
28-5/16"
45-1/2"
*Cutout and countertop cutout width should match.
**24" with optional backguard installed.
