Frigidaire FPDF4085KF - 40" Dual Fuel Range Installation instructions

frigidaire.com
Signature Features
Pro-Select® Controls
Precise control at your fingertips.
SpaceWise® Side Oven
This range features an extra 1.7 Cu. Ft.
SpaceWise® side oven that gives you
more space to cook multiple dishes at
the same time.
Dual-Fuel Technology
Features the power of a gas cooktop
and the precision of an electric oven for
baking, so you get maximum versatility.
True Convection1
Multi-rack baking is faster and more
even with True Convection.
Product Dimensions
Height (Max.) 48-1/8"
Width 40-1/8"
Depth (Including Handle) 28-1/2"
More Easy-To-Use Features
One-Touch Keep Warm Setting
Just one touch of a button keeps food
warm until everything — and everyone—
is ready.
Real Stainless Steel
Real stainless steel with a protective
coating that reduces fingerprints and
smudges so it’s easy to clean.
Delay Start
Set your oven to begin cooking on
your schedule. It can be programmed
from 1 to 24 hours.
Heavy-Duty Grates and
Professional-Style Knobs
“My Favorite” Setting
Easily program your most used setting
with the touch of a button.
Continuous Grates
Continuous Grates make it easy to
move heavy pots and pans between
burners without lifting.
Even Baking Technology
Our latest technology ensures even
baking every time.
Auto Shut-O
As an extra safety measure, the oven
will automatically shut off after 6 hours.
Sabbath Mode (Star-K® Certified)
Available in:
Stainless
(F)
Burners
Right Front
Right Rear
Left Front
Left Rear
Center Extra Zone
BTU
9,100
5,000
13,000
5,000
9,100
1Main oven only.
Freestanding Range
FPDF4085K F 40" Dual Fuel

Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FPDF4085K 01/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
36"
40-1/4"
24"
Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90˚
48-1/8"
40-1/8"
28-1/2"
44-5/8"
NOTE: For planning purposes only. Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Features
Oven Control / Timing System
Surface Type
Sealed Gas Burners
Grates
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Auxiliary Oven
Oven Controls
Bake / Broil
Eortless™ Convection Conversion
Convection Bake / Broil / Roast
Quick Bake Convection
PowerPlus® Preheat
My Favorite
Chicken Nugget Button
Pizza Button
Keep Warm
Add-a-Minute
Delay Bake
Self Clean
Rapid Clean Option
Delay Clean
Kitchen Timer / Timed Cook Option
Auto Oven Shuto
Lower Drawe r Control
Auxiliary Oven Control
Cooktop Features
Right Front Burner (BTU)
Right Rear Burner (BTU)
Left Front Burner (BTU)
Left Rear Burner (BTU)
Center Extra Zone Burner (BTU)
Oven Features
Main / Auxiliary Capacity (Cu. Ft.)
Main / Auxiliary Oven Light
Rack Configuration
Baking System
Broiling System
Main Bake / Broil Elements (Watts)
Aux. Bake / Broil Elements (Watts)
Auxiliary Oven Racks
Certifications
Sabbath Mode (Star-K® Cert.)
Specifications
Main Oven Interior ( H x W x D )
Auxiliary Oven Interior ( H x W x D )
Power Supply Connection Location
Gas Supply Connection Location
LP Gas Conversion Kit
Voltage Rating
Connected Load (kW Rating)
@ 240 / 208 Volts
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Pro-Select® Controls (Main)
Black Ceramic Glass
Yes
Continuous Cast Iron with
Black Matte Finish
Extra-Large with
Pro-Tint Finish
Real Stainless Steel
Stainless Steel
Black
True Convection (Main)
Self Clean (Main)
Storage
SpaceWise® Side Oven
Yes / Low and High
Yes (Main)
Yes / No / Yes (Main)
Yes
Yes
Yes
Yes (Main)
Yes
Yes
Yes / Yes
6 Hours
Mechanical
9,100
5,000
13,000
5,000
9,100
3.7 / 1.7
2 / 1
3 Heavy Duty
Even Baking Technology
Vari-Broil™ Hi/Lo
3,000 / 2,750
1,500 / 1,500
1 Standard
Yes
15-3/4" x 22-5/8" x 17-3/4"
16" x 9-9/16" x 19-1/2"
Middle Bottom Rear
Right Bottom Rear
Included
240V / 208V / 60 Hz
4.5 / 3.4
19.0 / 16.0
30
265 Lbs.
Freestanding Range
FPDF4085K F 40" Dual Fuel
40" Dual Fuel/Electric Freestanding Ranges
Frigidaire Professional
C
A
B

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FPDF4085K 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.

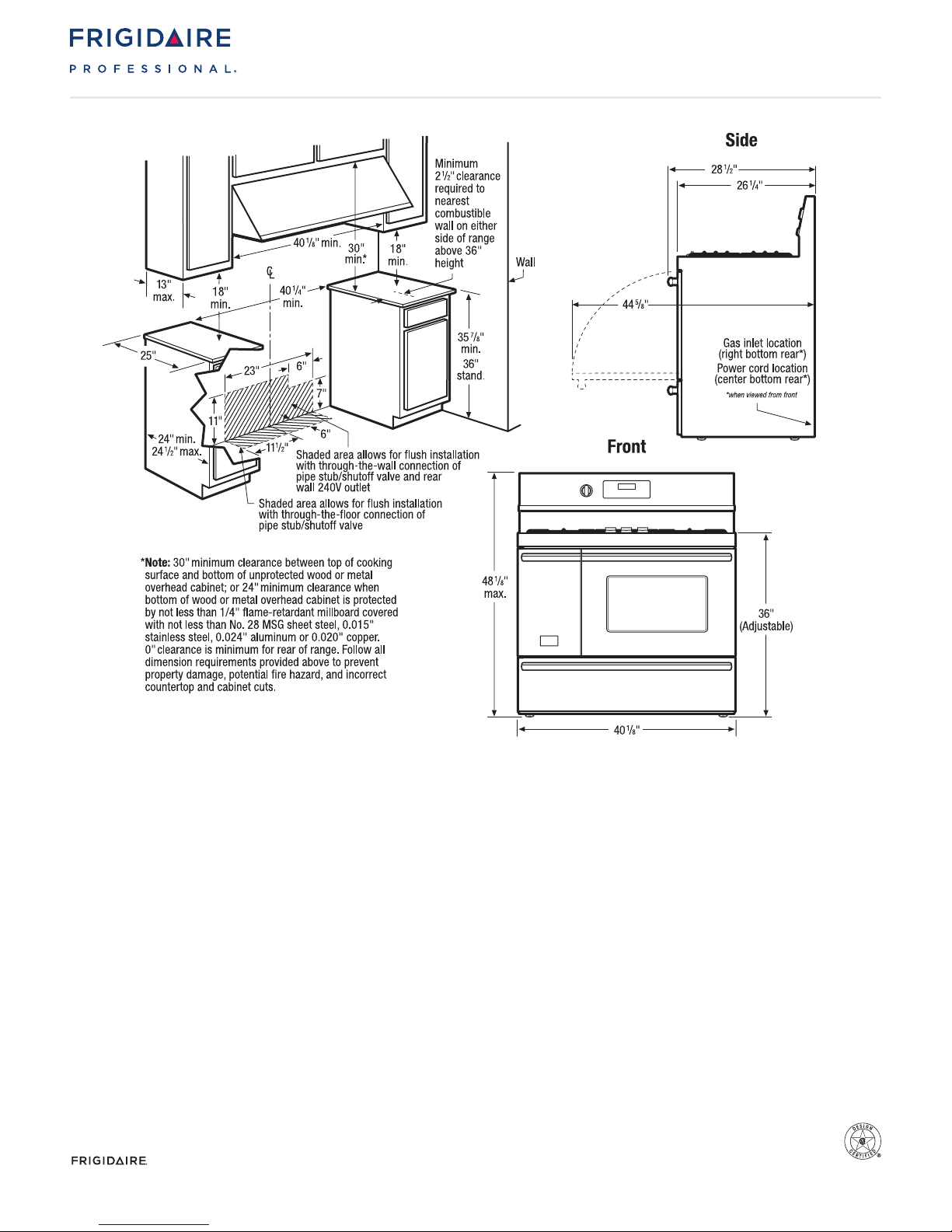

Freestanding Range Specifications
•Product Shipping Weight (approx.) – 265 Lbs.
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt,
60 Hertz, fused on both sides of line with ground. (If local code
permits, range may be connected by hard-wiring or by means
of power supply cord kit.)
•Connected Load (kW Rating) @ 240 / 208 Volts = 4.5 / 3.4 kW
•Amps @ 240 / 208 Volts = 19.0 / 16.0 Amps
•Recommended Circuit Breaker – 30 Amps
•Always consult local and national electric and gas codes.
•Make sure wall coverings around range can withstand heat generated
by range.
•Linoleum or any other synthetic floor covering located beneath range,
must be capable of withstanding minimum heat of 90° F above room
temperature without shrinking, warping or discoloring. Insulating pad
or 1/4"-thick plywood required between range and a carpeted floor.
•Do not obstruct flow of combustion air at oven vent nor around base
or beneath lower front panel of range. Range requires fresh air for
proper burner combustion.
•Range ships with 1/2" NPT factory regulator.
•LP Gas conversion kit supplied.
•Gas supply piping can be routed through side wall of right cabinet.
Right side cabinet is ideal location for main shutoff valve.
•Overhead cabinetry should not exceed a 13" maximum depth.
•Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•Allow 24" minimum clearance between rangetop and bottom of
cabinet when bottom of wood or metal cabinet is protected by
not less than 1/4" flame-retardant millboard covered with not less
than No. 28 MGS sheet steel, 0.015" stainless steel, 0.024" aluminum
or 0.020" copper. Allow 30" minimum clearance when cabinet is
unprotected.
•To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
•Minimum 2-1/2" clearance required from edge of rangetop to nearest
combustible wall on either side of range above 36" height.
•Range can be installed flush to wall with 0" minimum rear clearance.
•For installation against left side wall that extends to or beyond
range's side panel, allow 2-3/4" minimum clearance to allow
auxiliary oven door to open.
•Follow all dimension requirements provided to prevent property
damage, potential fire hazard, and incorrect countertop and
cabinet cuts.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Freestanding Range
FPDF4085K F 40" Dual Fuel
40" Dual-Fuel Freestanding Ranges
Professional

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_SSR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
General Installation Guidelines
with Side-by-Side Refrigerator
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_TMR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top
General Installation Guidelines
with Top Mount Refrigerator
