Signature Features
26 Cu. Ft. Standard-Depth
Largest Crisper Drawers1
Store more in our largest capacity
crisper drawers.
SpaceWise™
Organization System
Our SpaceWise™ Organization system
makes it easy to keep food organized
and easy to find when you need it.
Quick Ice3
Quick Ice delivers up to 37 percent
more ice.
Best-in-Class Ice &
Water Filtration2
PureSource Ultra™ Water Filtration
offers best-in-class water filtration so
you get cleaner, better-tasting water
at your fingertips.
Powerful Performance
Quick Freeze
PureAir Ultra™ Filters
Energy Saver Plus Technology
Quiet Pack
Performance-Driven Style
Express-Select™ Controls
Designer Lighting
Tall, 11-Button Water & Ice Dispenser
Digital Electronic Temperature Controls
Textured Cabinet
SpaceWise™ Design
Refrigerator –
3 Sliding SpillSafe™ Glass Shelves
Chill Drawer
2 Clear Crispers with Adjustable
Humidity Controls
2 Adjustable Clear Gallon Door Bins
2 Fixed Clear 2-Liter Door Bins
Freezer –
2 Fixed Glass Shelves
Pizza Shelf
Tall Plastic Basket
Regular Basket
4 Fixed White Door Bins
ENERGY STAR®
Sabbath Mode (Star-K® Certified)
Capacities
Total Capacity 26.0 Cu. Ft.
Refrigerator Volume 16.5 Cu. Ft.
Freezer Volume 9.5 Cu. Ft.
Overall Exterior Dimensions
Height 69-3/8"
(Including Hinges & Rollers)
Width 35-5/8"
Depth 31-3/4"
Available in:
1As compared to other side-by-side models.
2As compared to other consumer refrigeration water
filtration systems.
3In a 24-hour period.
Side-by-Side Refrigerators
FGHS2667K P / E / W / B
Ebony
(E)
White
(W)
Black
(B)
Pearl
(P)

Specifications
subject to change.
Standard-Depth Refrigerator - 26 Cu. Ft.
Gallery
Side-by-Side Refrigerator Specifications
•Product Shipping Weight (approx.) – 300 Lbs.
•Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
•Connected Load (kW Rating) @ 120 Volts = 1.02 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•Amps @ 120 Volts = 8.5 Amps
•Always consult local and national electric & plumbing codes.
•Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.
•When installing refrigerator adjacent to wall, cabinet or other appliance
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 120° to 180° door swing, providing
complete drawer / crisper access and removal. (Absolute 4-1/2"
minimum clearance will ONLY allow for 90° door swing which will
provide drawer / crisper access with restricted removal.)
•To ensure optimum performance, avoid installing in direct sunlight or
close proximity to range, dishwasher or other heat source.
•For proper ventilation, front grille MUST remain unobstructed.
•Recess electrical outlet when possible.
•Water recess on rear wall recommended to prevent water line damage.
•Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
•Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
•Adjustable front rollers to assist with door alignment.

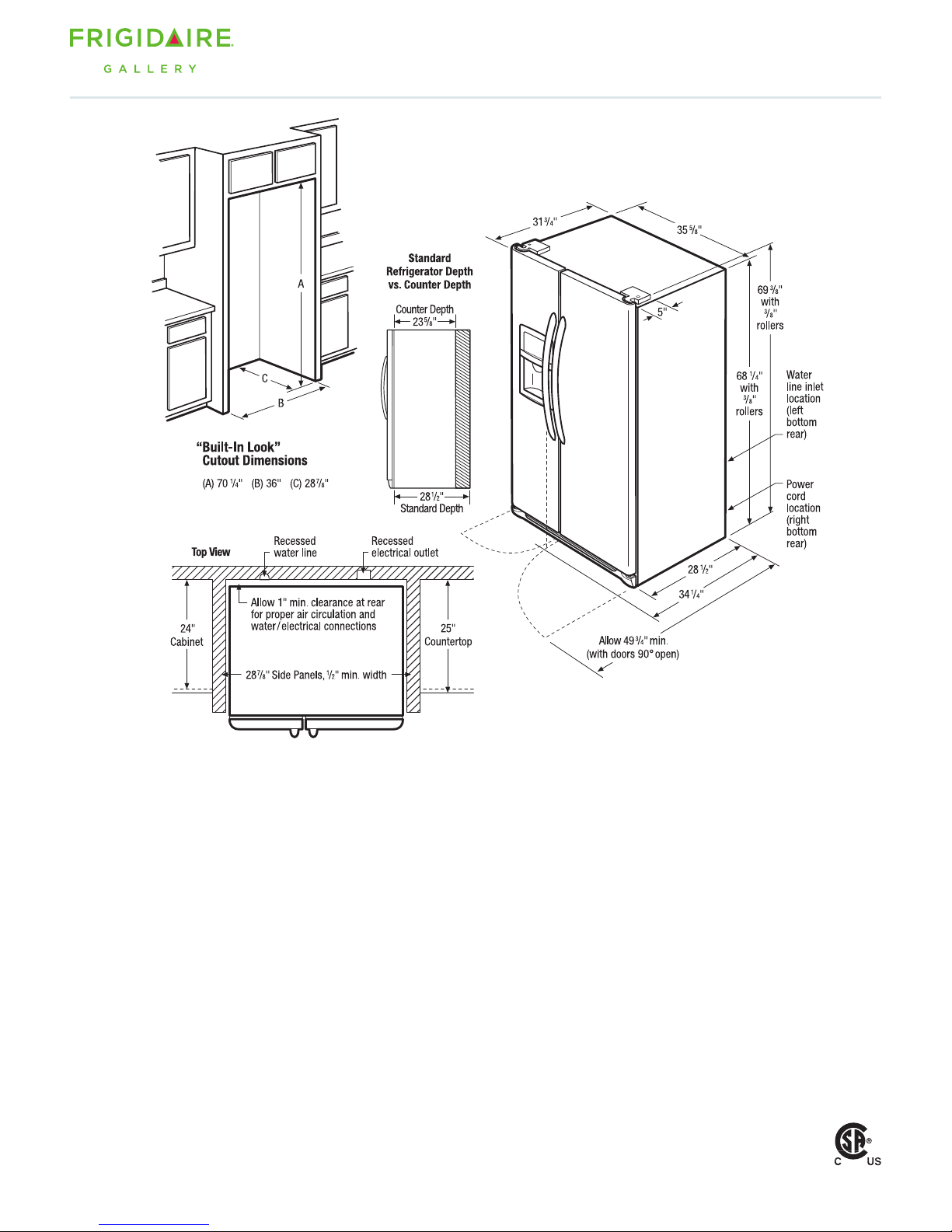

“Built-In Look” Specifications
•Minimum opening of 70-1/4" H x 36" W x 28-7/8" D required to allow
for ease of installation, proper air circulation, and plumbing / electrical
connections.
•Remove all wall / floor molding prior to installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
FRIGIDAIRE®
USA
•
250 Bobby Jones Expressway
•
Martinez, GA 30907
•
1-800-FRIGIDAIRE •frigidaire.com
CANADA
• 5855 Terry Fox Way •
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGHS2667K 06/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
Side-by-Side Refrigerators
FGHS2667K P / E / W / B 26 Cu. Ft. Standard-Depth
