Frigidaire FRS23R4A User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS23R4AB0 FRS23R4A R134a black 115
FRS23R4AQ0 FRS23R4A R134a bisque 115
FRS23R4AW0 FRS23R4A R134a white 115
MARKET
North America
Publication No.
5995351797
010329
-EN/SERVICE/KHB
357
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS23R4A
©2001 White Consolidated Industries, Inc.
All rights reserved
WIRING DIAGRAM - # 2404261013
OWNER’S GUIDE - # 240389300
SERVICE DATA SHEET - # 240389600
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. BOX 212378, Augusta, GA 30917
FACTORY
PARTS CATALOG

03/01 2
Publication No. FRS23R4A
5995351797
FREEZER DOOR

# = Fast-moving Parts 3 03/01
* = Non-Illustrated Parts
FRS23R4A Publication No.
5995351797
FREEZER DOOR
A = FRS23R4A (FRS23R4AB0)
B = FRS23R4A (FRS23R4AQ0)
C = FRS23R4A (FRS23R4AW0)
POS. NO PART NO DESCRIPTION
1 # 240390608 A - - Gasket-frzr door,black ,magnetic
1 240390604 - B C Gasket-door,white
4A 240367301 A B C Bin-door,frzr-upper
4B 240359001 A B C Bin-door
11 240451829 A - - Door-frzr,black ,complete assy
11 240451825 - B - Door-frzr,bisque ,complete assy
11 240451819 - - C Door-frzr,white ,complete assy
13A 240456906 A - - Door Stop,black ,frzr
13A 240456904 - B - Door Stop,bisque ,frzr
13A 240456902 - - C Door Stop,white ,frzr
14 218915703 A - - Plug-button,black
14 218915704 - B - Plug-button,bisque
14 218915701 - - C Plug-button,white
18 218762703 A - - Handle-door,black
18 218762706 - B - Handle-door,bisque
18 218762701 - - C Handle-door,white
21A 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500
21C 218781100 A B C Screw,pan head ,8-18 x 0.625
22A 240328202 A B C Bearing-hinge,closer
22C 240328404 A - - Bearing-hinge,black ,upper
22C 240328402 - B C Bearing-hinge,upper
37 218811620 A - - Trim-handle,black ,upper
37 218811632 - B - Trim-handle,bisque ,upper
37 218811618 - - C Trim-handle,white ,upper
37A 218811617 A - - Trim-handle,black ,lower
37A 218811631 - B - Trim-handle,bisque ,lower
37A 218811615 - - C Trim-handle,white ,lower
37A* 218676004 A B C Band-decorative, satin aluminum, handle trim
37A* 215782300 A B C Lock-handle trim,snap-in
68 240321902 A B C Chute-ice
96 240345504 A - - Plug-foam hole,black
96 240345503 - B C Plug-foam hole,white
* 240323201 A B C Wiring Harness
* 240352101 A B C Connector-water,straight

03/01 4
Publication No. FRS23R4A
5995351797

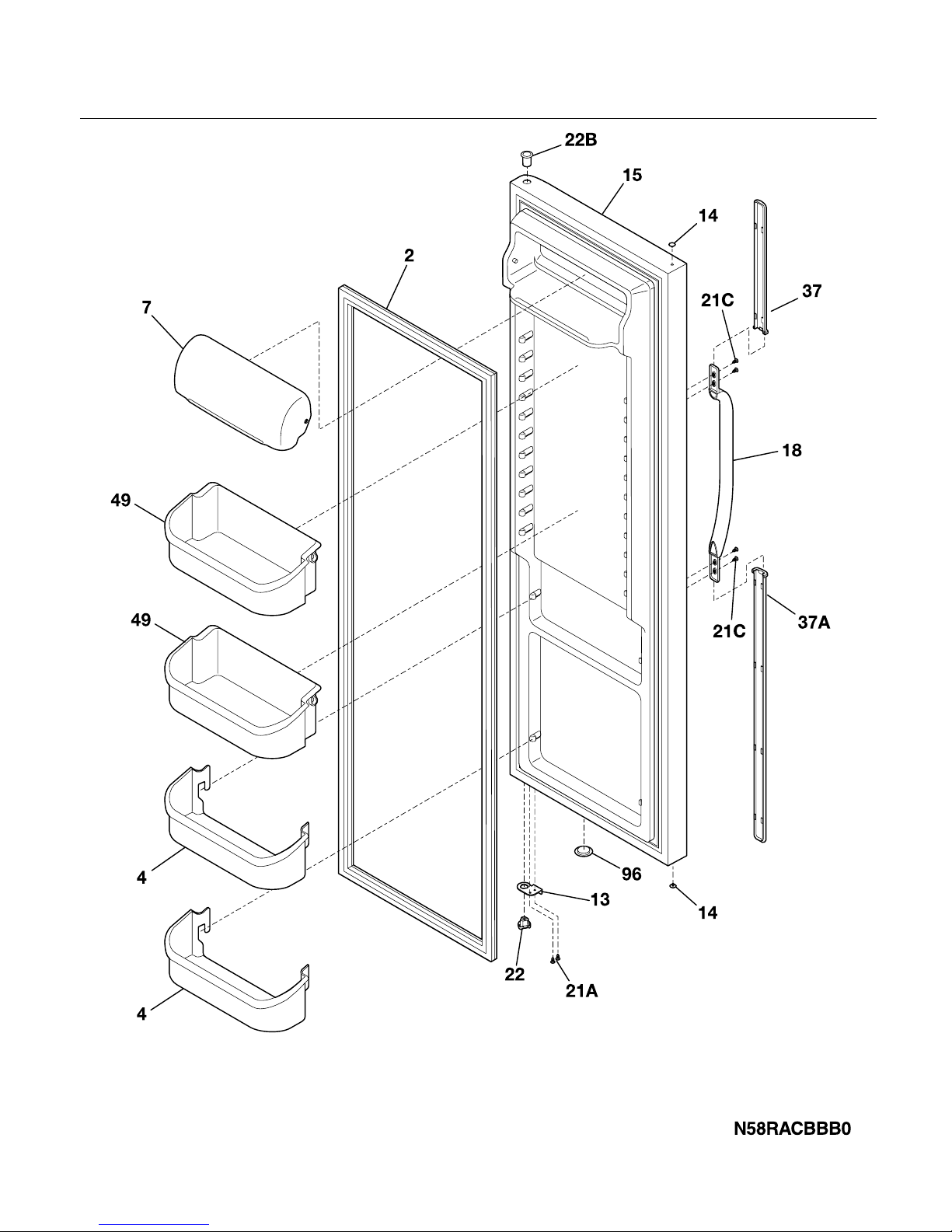

REFRIGERATOR DOOR

# = Fast-moving Parts 5 03/01
* = Non-Illustrated Parts
FRS23R4A Publication No.
5995351797
A = FRS23R4A (FRS23R4AB0)
B = FRS23R4A (FRS23R4AQ0)
C = FRS23R4A (FRS23R4AW0)
POS. NO PART NO DESCRIPTION
2 # 240390607 A - - Gasket-refr door,black ,magnetic
2 # 240390603 - B C Gasket-refr door,white ,magnetic
4 240363701 A B C Bin-door,2-liter
7 240338303 A B C Door-dairy
13 240456905 A - - Door Stop,black ,ref
13 240456903 - B - Door Stop,bisque ,ref
13 240456901 - - C Door Stop,white ,ref
14 218915703 A - - Plug-button,black
14 218915704 - B - Plug-button,bisque
14 218915701 - - C Plug-button,white
15 240451920 A - - Door-refr,black ,complete assy
15 240451916 - B - Door-refr,bisque ,complete assy
15 240451912 - - C Door-refr,white ,complete assy
18 218762703 A - - Handle-door,black
18 218762706 - B - Handle-door,bisque
18 218762701 - - C Handle-door,white
21 218781100 A B C Screw,pan head ,8-18 x 0.625
21C 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500
22 240328201 A B C Bearing-hinge,closer
22B 240328403 A - - Bearing-hinge,upper
22B 240328401 - B C Bearing-hinge,upper
37 218811620 A - - Trim-handle,black ,upper
37 218811632 - B - Trim-handle,bisque ,upper
37 218811618 - - C Trim-handle,white ,upper
37A 218811617 A - - Trim-handle,black ,lower
37A 218811631 - B - Trim-handle,bisque ,lower
37A 218811615 - - C Trim-handle,white ,lower
37A* 218676004 A B C Band-decorative, satin aluminum, handle trim
37A* 215782300 A B C Lock-handle trim,snap-in
49 240324501 A B C Bin-door,gallon
96 240345504 A - - Plug-foam hole,black
96 240345503 - B C Plug-foam hole,white
REFRIGERATOR DOOR

03/01 6
Publication No. FRS23R4A
5995351797

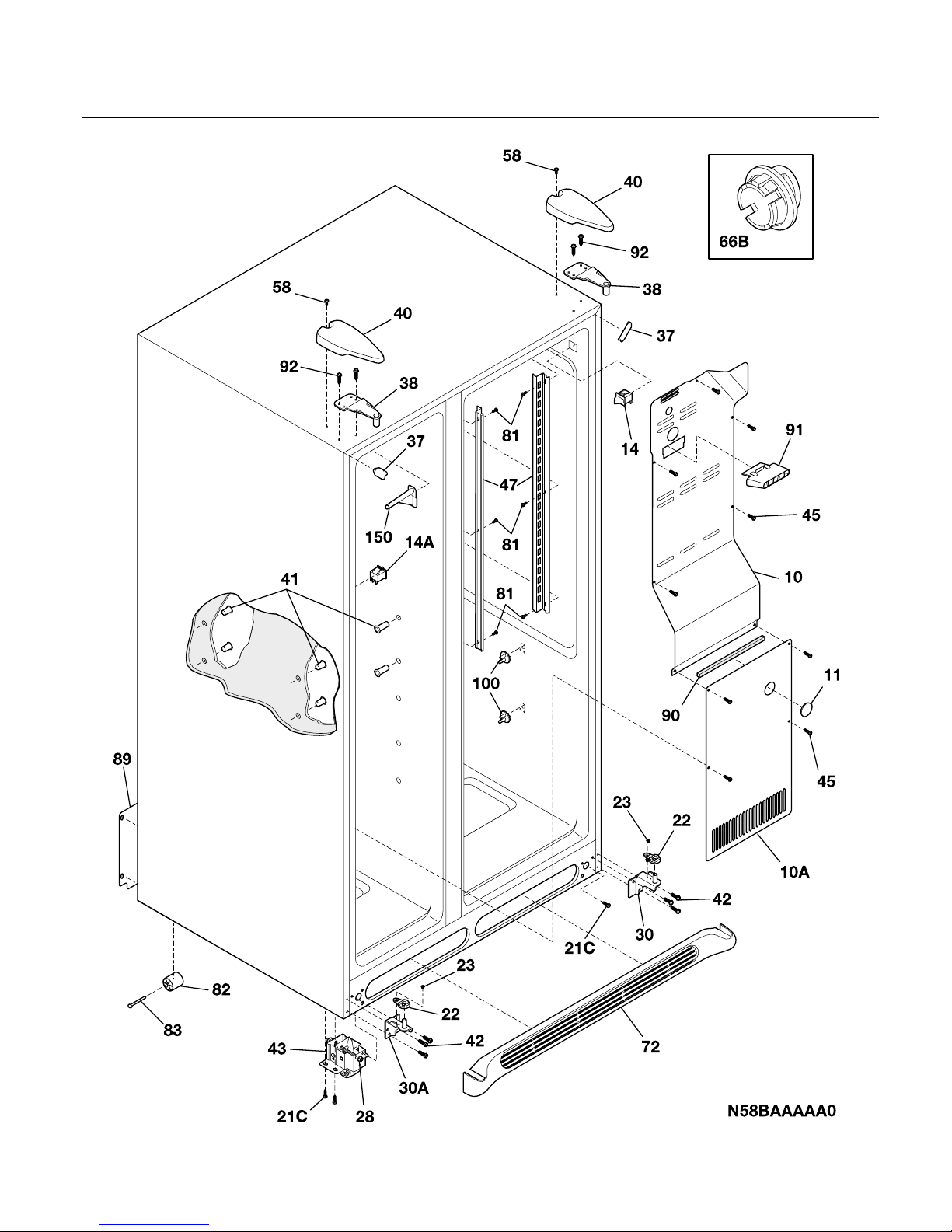

CABINET

# = Fast-moving Parts 7 03/01
* = Non-Illustrated Parts
FRS23R4A Publication No.
5995351797
A = FRS23R4A (FRS23R4AB0)
B = FRS23R4A (FRS23R4AQ0)
C = FRS23R4A (FRS23R4AW0)
POS. NO PART NO DESCRIPTION
10 240435901 A B C Cover-air duct
10A 240435801 A B C Cover-evap coil,lower
11 5303208309 A B C Plug-hole,factory test
14 # 240413601 A B C Switch-light/lamp
14A# 215486600 A B C Switch-light/lamp
21C 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500
22 240407801 A B C Plate-door closer
23 240402701 A B C Screw-#10-32 x 1/4 flat hd
28 240335501 A B C Bolt-roller adj, hex wshr hd, 1/4-20 x 4.020,(2),special
30 240419101 A B C Bracket-lower hinge, ref
30A 240419102 A B C Bracket-lower hinge
37 240337603 A - - Trim-cabinet corner,black
37 240337604 - B - Trim-cabinet corner,bisque ,(2)
37 240337601 - - C Trim-cabinet corner,white ,(2)
38 240327201 A B C Bracket-upper hinge
40 240327003 A - - Cover-upper hinge,black
40 240327002 - B - Cover-upper hinge,bisque
40 240327001 - - C Cover-hinge
41 240358701 A B C Grommet-shelf mtg,1.40" long
41* 240358801 A B C Grommet-shelf mtg,.875" long
42 240315301 A B C Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B C Roller Assy,front ,(2)
45 5303001343 A B C Screw,hex washer head ,8-15A x 0.500
47 218659500 A B C Channel-shelf mtg,side ,(2)
58 218749600 A B C Screw,#10 pan hd ,8-18 x .5
66B 240374301 A B C Diffuser-air
72 240324405 A - - Grille/Kickplate,black
72 240324403 - B - Grille/Kickplate,bisque
72 240324401 - - C Grille/Kickplate,white
81 5308016566 A B C Screw,hex wshr hd, 8-15A x 0.625, low profile
82 5304418225 A B C Roller-rear,comp base ,(2)
83 215164200 A B C Pin-roller,(2)
89 240326103 A B C Cover-access,w/label
89* 241500301 A B C Screw,#8 18 x .500 ,(3)
90 218249804 A B C Seal-coil cover
91 240380101 A B C Duct-ice maker
92 5303001479 A B C Screw-hinge mtg,hex hd ,1/4-20 x 0.875
100 240423701 A B C Support-crspr cover,(4)
100* 240350802 A B C Support-crspr cover,(4)
150 240368701 A B C Guide-control bulb
* 5303305345 A - - Paint,touch-up ,black
* 5304414035 - B - Paint,touch-up ,bisque
* 5303305324 - - C Paint,touch-up ,white
CABINET

03/01 8
Publication No. FRS23R4A
5995351797
SHELVES

# = Fast-moving Parts 9 03/01
* = Non-Illustrated Parts
FRS23R4A Publication No.
5995351797
A = FRS23R4A (FRS23R4AB0)
B = FRS23R4A (FRS23R4AQ0)
C = FRS23R4A (FRS23R4AW0)
POS. NO PART NO DESCRIPTION
2 240434601 A B C Trim-basket
11 240338801 A B C Shelf-freezer,flip-up
11A 240338701 A B C Shelf-freezer,fixed wire
11B 240338703 A B C Shelf-freezer,fixed wire
24 240355211 A B C Shelf-"Spill-Safe",fixed
25 240354501 A B C Cover-crisper pan,upper
25* 240362101 A B C Clip-slide,cover-crisper
25A 240354601 A B C Cover-crisper pan,lower
26 240354705 A B C Pan-crisper,upper
26* 240349801 A B C Clip-slide,pan-crisper
26A 240351101 A B C Control-humidity
27 240354807 A B C Pan-crisper,lower
39 240430705 A B C Trim-shelf,front
39B 240430701 A B C Trim-shelf,front
42 240356501 A B C Hanger-meat pan,RH
42 240365401 A B C Hanger-meat pan,white ,LH
47 240350635 A B C Insert-pan cover,glass
47A 240350614 A B C Insert-pan cover,glass
49 240338401 A B C Basket-sliding
51 240343001 A B C Hanger-basket,RH
52 240343101 A B C Hanger-basket,LH
54 240351901 A B C Plug-hanger,right hand
55 240352001 A B C Plug-hanger,left hand
62 240355506 A B C Pan-meat
81 5308016566 A B C Screw, hex wshr hd, 8-15A x 0.625, low profile
97 240453002 A B C Water Tank Assy,with tubes
100 240326301 A B C Cover-water tank
101 218493100 A B C Screw,hex washer head ,8-18AB x 1-3/4
123 215005100 A B C Screw-roller/hanger,8-10 x 0.438
126 218867401 A B C Channel,auger mtg ,LH
126 218867402 A B C Channel,auger mtg ,RH
SHELVES

03/01 10
Publication No. FRS23R4A
5995351797

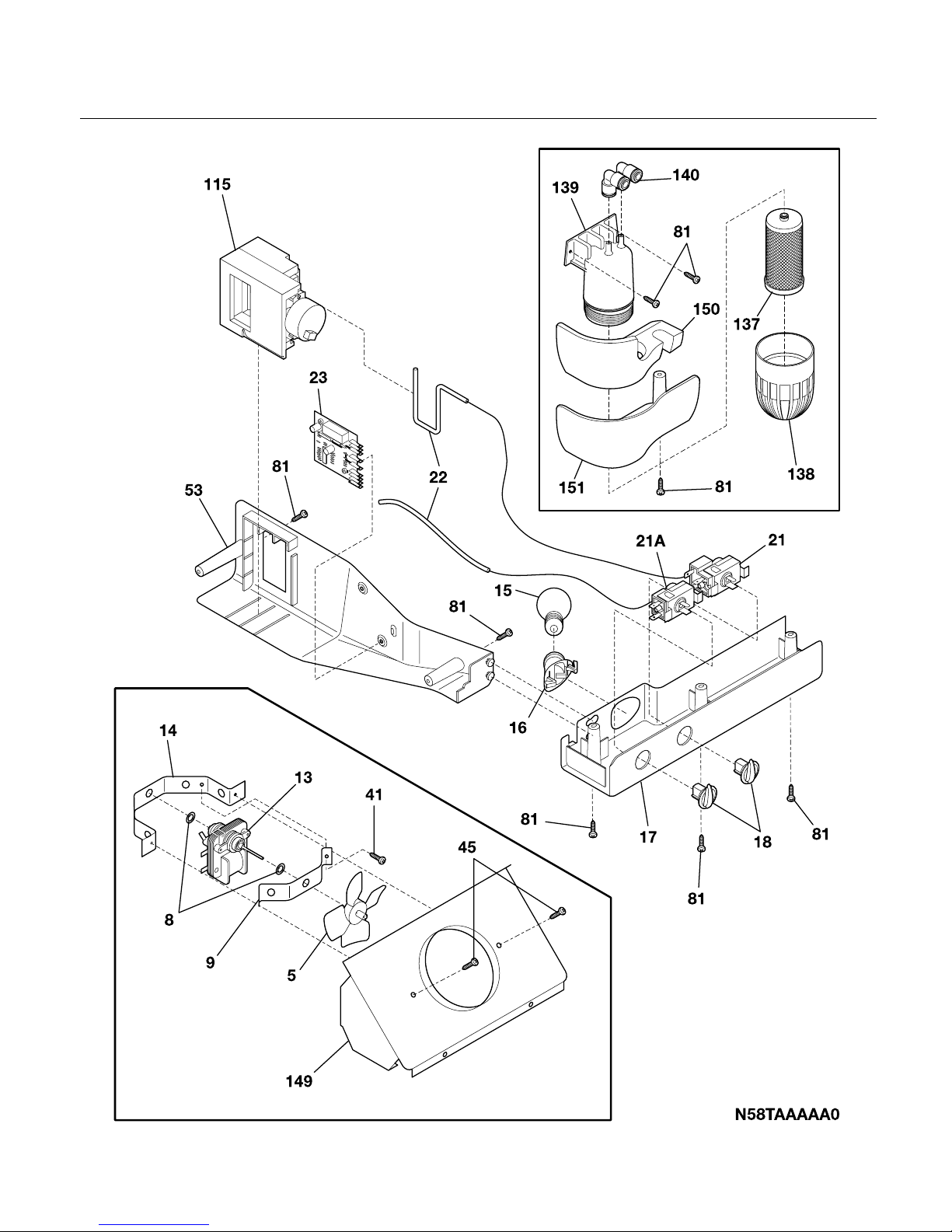

CONTROLS

# = Fast-moving Parts 11 03/01
* = Non-Illustrated Parts
FRS23R4A Publication No.
5995351797
A = FRS23R4A (FRS23R4AB0)
B = FRS23R4A (FRS23R4AQ0)
C = FRS23R4A (FRS23R4AW0)
POS. NO PART NO DESCRIPTION
5 # 5308000010 A B C Fan Blade,red ,evaporator fan
8 5300157666 A B C Bushing-motor mtg,(2)
9 5303292396 A B C Bracket-motor mtg,front
13 # 240315801 A B C Motor-evap fan
13* 215474201 A B C Washer,"slinger" ,nylon ,evap fan shaft
14 5303292397 A B C Bracket-motor mtg,rear
15 5303001179 A B C Light Bulb/Lamp,40 W
16 218906801 A B C Socket-light/lamp
17 240374006 A B C Box-control,front
17* 240425701 A B C Harness-wiring,control box
18 240360801 A B C Knob-control
21 240375902 A B C Control-temperature,refr section
21A 5304421067 A B C Control-temperature,frzr section
22 218660702 A B C Tube-insulator
23 # 215846602 A B C Timer-defrost, 60 Hz, 120 V, 8 hour/30 min
23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
45 5303001343 A B C Screw,hex washer head ,8-15A x 0.500
53 240369501 A B C Box-control
81 5308016566 A B C Screw, hex wshr hd, 8-15A x 0.625, low profile
115 240347901 A B C Damper Assy,w/seal
115* 5304421593 A B C Switch-micro, single pole, dble throw, damper assy
137# 240389101 A B C Filter-water,carbon ,with o’rings
138 240370201 A B C Cup-water filter
* 218904301 A B C O-ring,wtr filter cup
139 240369901 A B C Housing-wtr filter
140 240388601 A B C Elbow-water tube
149 240331601 A B C Shroud-fan orfice
150 240394102 A B C Insulation-water filter cover
151 240376002 A B C Cover-water filter
* 3205266 A B C Edge Protector,wiring harness
CONTROLS

03/01 12
Publication No. FRS23R4A
5995351797

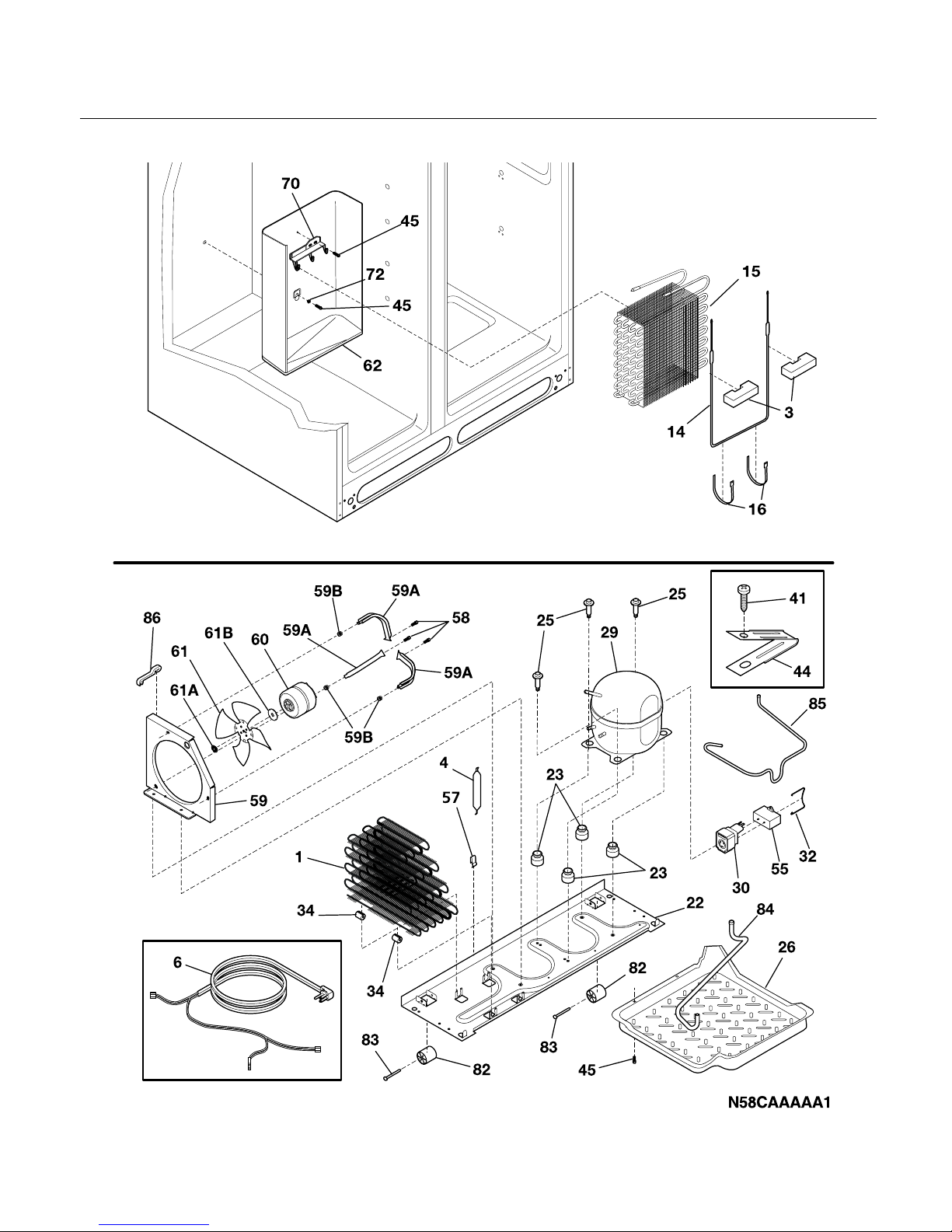

SYSTEM

# = Fast-moving Parts 13 03/01
* = Non-Illustrated Parts
FRS23R4A Publication No.
5995351797
A = FRS23R4A (FRS23R4AB0)
B = FRS23R4A (FRS23R4AQ0)
C = FRS23R4A (FRS23R4AW0)
POS. NO PART NO DESCRIPTION
1 240333602 A B C Condenser
3 218679606 A B C Block-evap coil,styrofoam ,(2)
4 # 218944001 A B C Drier-filter,R134a System
6 240346401 A B C Wiring Harness,machine compt
6* 240315901 A B C Harness-wiring
6* 240425701 A B C Harness-wiring,control box
14 # 5303918255 A B C Defrost Heater Kit
15 # 5303918211 A B C Evaporator Kit
16 5308000110 A B C Strap-evap/heater,aluminum ,(2)
22 240330002 A B C Plate-compr mtg
23 218513300 A B C Grommet-compr mtg,(4)
25 240330402 A B C Screw-shoulder, hex hd, 1/4-28 shoulder, (3)
26 240332602 A B C Pan-defrost drain
29 # 5303918235 A B C Compressor,w/electricals
30 # 218721113 A B C Starter-PTC
32 218740800 A B C Clamp,elec cont mtg ,compressor
34 240405201 A B C Grommet-cond mtg,(4)
41 218897001 A B C Screw,hex washer head ,8-32 x 1/4
44 5303001199 A B C Clamp-wiring harness,strain relief, galv steel
45 5308016566 A B C Screw,hex wshr hd ,8-15A x 0.625, low profile
55 # 218909901 A B C Capacitor-run,220 VAC ,15 microfarad
57 240403601 A B C Clip-wiring harness
58 218749600 A B C Screw,#10 pan hd ,8-18 x .5
59 240315501 A B C Shroud-cond fan
59* 240346701 A B C Tape-foam seal,shroud
59* 240359401 A B C Screw-fan shroud,(2)
59A 240346501 A B C Bracket-support,cond mtr ,(3)
59B 240346601 A B C Grommet-bracket,(3)
60 # 240334001 A B C Motor-condenser fan
61 # 240315401 A B C Fan Blade,galv steel ,condenser fan
61A 215004700 A B C Nut,speed
61B 215004800 A B C Grommet-silencer
62 240429401 A B C Trough-drain
70 218990801 A B C Bracket-evap/cvr mtg
72 218397000 A B C Button-handle mtg,dovetail
82 5304418225 A B C Roller-rear,comp base ,(2)
83 215164200 A B C Pin-roller,(2)
84 5304421068 A B C Tube-drain,lower
85 240346201 A B C Tube-connector,suction
86 240409301 A B C Spacer-cond tube,black
* # 5303918213 A B C Heat Exchanger Kit,suction line
* # 5303918222 A B C Hot Tube Repair Kit,Service
SYSTEM

03/01 14
Publication No. FRS23R4A
5995351797

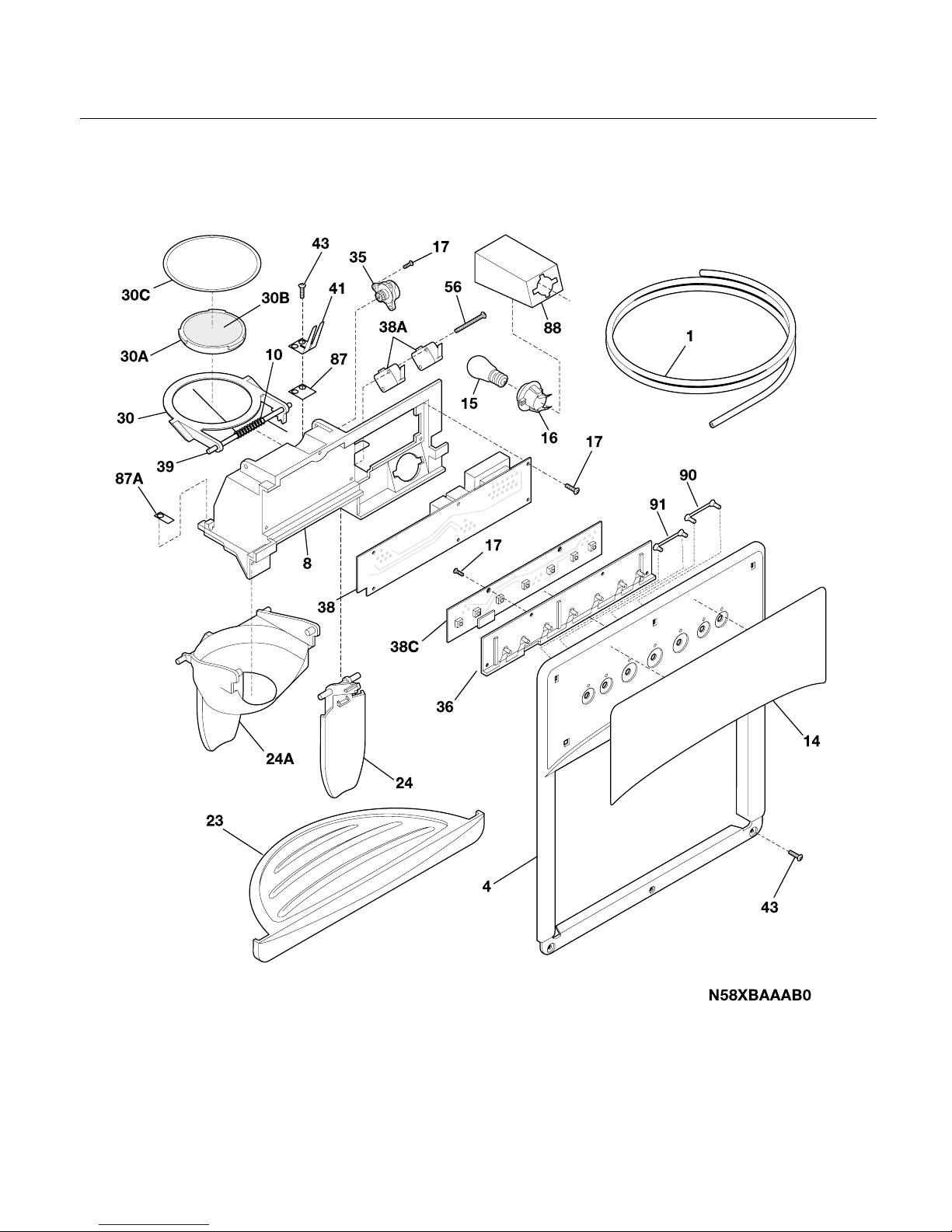

DISPENSER

# = Fast-moving Parts 15 03/01
* = Non-Illustrated Parts
FRS23R4A Publication No.
5995351797
A = FRS23R4A (FRS23R4AB0)
B = FRS23R4A (FRS23R4AQ0)
C = FRS23R4A (FRS23R4AW0)
POS. NO PART NO DESCRIPTION
1 218976901 A B C Tube-water inlet, inlet valve to ice maker
1* 218976904 A B C Tube-water inlet,valve to filter
1* 218976907 A B C Tube-water inlet,valve to door
4 5304422012 A - - Cover-module,black
4 5304421848 - B - Cover-module,bisque
4 5304421822 - - C Cover-module,white
8 5304422013 A - - Module-dispenser
8 5304421849 - B - Module-dispenser
8 5304422030 - - C Module-dispenser
10 5304421626 A B C Spring-torsion
14 240323910 A - - Label-module cover,black
14 240323905 - B - Label-module cover,bisque
14 240323904 - - C Label-module cover,white
15 5304421616 A B C Light Bulb/Lamp
16 215284900 A B C Socket-light/lamp
17 5304421619 A B C Screw
23 240323603 A - - Drip Tray,black
23 240323602 - B - Drip Tray,bisque
23 240323601 - - C Drip Tray,white
24 5304422026 A - - Actuator-water,black
24 5304422027 - B - Actuator-water,bisque
24 5304421825 - - C Actuator-water,white
24A 5304422025 A - - Actuator-ice,black
24A 5304422028 - B - Actuator-ice,bisque
24A 5304421826 - - C Actuator-ice,white
30 5304421628 A B C Door Assy-ice chute
30A 5304421624 A B C Door center
30B 5304421625 A B C Insulation-door
30C 5304421629 A B C Door seal
35 5304421620 A B C Damper-rotary
36 5304421824 A B C Carrier
38 5304421827 A B C Power Board
38A# 5304421617 A B C Switch-micro,single pole ,double throw
38C 5304422029 A B C Board-control
39 5304421627 A B C Pin-hinge
41 5304421829 A B C Spring-actuator
43 215296300 A B C Screw,plask h/l ,#6 x 3/8
56 5304421830 A B C Screw-micro switch,pan head
87 5304421622 A B C Bearing Plate
87A 5304421621 A B C Bearing Plate
88 5304421615 A B C Shield-light
90 5304421831 A B C Light pipe
91 5304421850 A B C Light pipe,short
DISPENSER

03/01 16
Publication No. FRS23R4A
5995351797

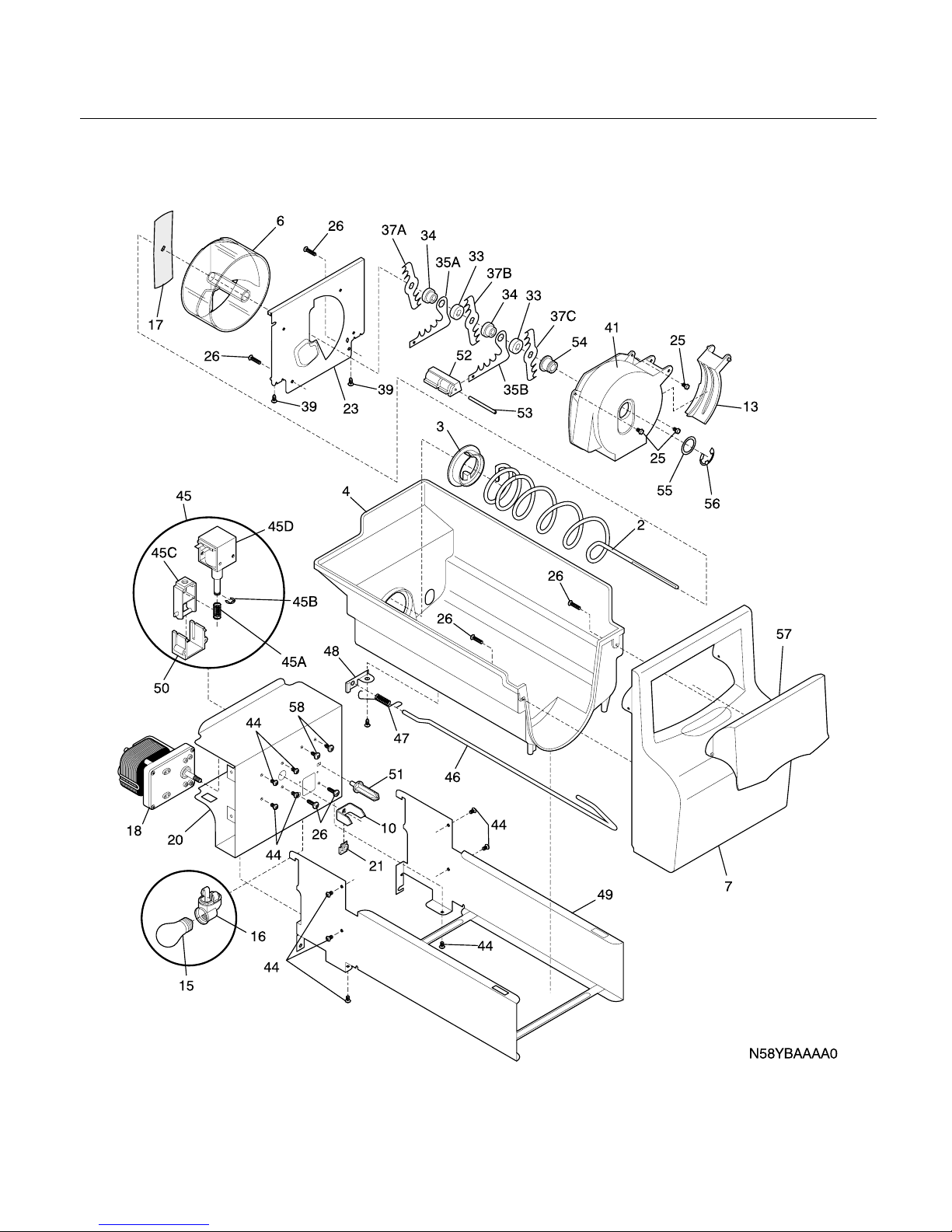

ICE CONTAINER

# = Fast-moving Parts 17 03/01
* = Non-Illustrated Parts
FRS23R4A Publication No.
5995351797
A = FRS23R4A (FRS23R4AB0)
B = FRS23R4A (FRS23R4AQ0)
C = FRS23R4A (FRS23R4AW0)
POS. NO PART NO DESCRIPTION
2 5304404344 A B C Auger-ice
3 5304404343 A B C Cam-drive
4 218815300 A B C Container-ice,bucket only
6 5304404346 A B C Drum-ice disp
7 218815400 A B C Front-ice container
10 5304404337 A B C Bar-drive
13 5304404359 A B C Gate
15 5303001179 A B C Light Bulb/Lamp,40 W
16 5303289050 A B C Socket-light/lamp
17 5304404345 A B C Drive Blade
18 # 240326901 A B C Motor-auger
18* 5304404335 A B C Wiring Harness,auger motor
20 5304404332 A B C Cover-motor
21 215285100 A B C Nut-drive
23 5304404347 A B C Plate-front
25 5304404362 A B C Screw,hex washer head ,8-32T x 0.375
26 215503200 A B C Screw,cr pan hd ,10-16 x 0.500
33 5304404351 A B C Spacer
34 5304404349 A B C Spacer
35A 5304404353 A B C Fixed Blade,round
35B 5304404352 A B C Fixed Blade,square
37A 5304404348 A B C Blade-crusher,#1
37B 5304404350 A B C Blade-crusher,#2
37C 5304404356 A B C Blade-crusher,#3
39 5304404365 A B C Screw
41 5304404358 A B C Housing-crusher
44 218359200 A B C Screw,pan head ,8-32 x 0.250
45 # 5304404333 A B C Solenoid Assy
45A 5304406816 A B C Spring-solenoid
45B 5304406817 A B C E-Ring-solenoid
45C 5304406818 A B C Actuator-solenoid
45D 5304406819 A B C Solenoid
46 5304404341 A B C Control Rod
47 5304404342 A B C Spring-control rod
48 5304404340 A B C Bracket-control rod
48* 5304404364 A B C Screw-bracket
49 5304404329 A B C Rail Assy
50 5304404334 A B C Guide-solenoid
51 5304404336 A B C Rotation Stop
52 5304404354 A B C Spacer-fixed blades
53 5304404355 A B C Pin-spiral,fixed blades
54 5304404357 A B C Nut-auger
55 5304404360 A B C Washer
56 5304404361 A B C E-ring
57 5304404363 A B C Door-access
58 5304404331 A B C Screw-solenoid
* 218842802 A B C Ice Container Assy,w/moving parts
ICE CONTAINER

03/01 18
Publication No. FRS23R4A
5995351797
ICE MAKER

# = Fast-moving Parts 19 03/01
* = Non-Illustrated Parts
FRS23R4A Publication No.
5995351797
A = FRS23R4A (FRS23R4AB0)
B = FRS23R4A (FRS23R4AQ0)
C = FRS23R4A (FRS23R4AW0)
POS. NO PART NO DESCRIPTION
1 218976901 A B C Tube-water inlet, inlet valve to ice maker
1* 218976904 A B C Tube-water inlet, valve to filter
1* 218976907 A B C Tube-water inlet, valve to door
2 5304420650 A B C Spring, shut-off arm
3 3206299 A B C Label, ID plate
4 3206301 A B C Gear
5 3206303 A B C Plate-mounting
6 3206305 A B C Screw-ground wire,8-32 x 0.250
7 # 3206306 A B C Motor-ice maker
8 3206312 A B C Spacer-hold switch
9 3206313 A B C Cam
10 3206315 A B C Clamp
11 # 3206319 A B C Thermal Cutoff, ice maker, complete assy
12 # 240352601 A B C Wiring Harness, ice maker, internal, with plug
13 # 3206322 A B C Thermostat Assy,ice maker
14 5304420652 A B C Screw,4 x 3/4 ,switch mtg.
15 # 3206324 A B C Switch,(3)
16 5304420653 A B C Support,phenolic
17 # 5303320545 A B C Mold-ice maker,Radius Cube ,with heater
18 3206328 A B C Ejector-ice
19 3206330 A B C Bearing & Inlet
20 5304408581 A B C Screw,8-32 x 0.375
21 3206332 A B C Ice Stripper
22 3206333 A B C Shut-off Arm
23 5304408582 A B C Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B C Lever Arm
25 3206336 A B C Screw,8-18 x 0.562 ,lever arm/sprt
26 5304420654 A B C Screw-thermo/sprt,4-24 x 0.375 ,(4)
27 3206338 A B C Screw,4-40 x 1.000 ,hold switch mtg, (2)
28 3206339 A B C Screw-timing stop,4-40 x 0.375
29 3206323 A B C Screw,4-24 x 0.750 ,(6)
30 3206341 A B C Screw-timing adj,8-32 x 1.000
31 3206342 A B C Insulator
32 3206343 A B C Plate-valve switch
33 5304408583 A B C Spring-timing adj
34 5304420655 A B C Screw,plazcrew ,8-10 ,(3)
35 5304408585 A B C Screw
36 3206347 A B C Cover-ice maker
42 218515402 A B C Clip,(2) ,tube mtg.
42* 5303001199 A B C Clamp-wiring harness, strain relief, galv steel
45 5303001343 A B C Screw,hex washer head ,8-15A x 0.500
46 5303001193 A B C Clamp,.50 ID ,steel ,water tube
51 240387101 A B C Tube-water,ice mold fill ,extension
55 # 240321801 A B C Valve-water,triple solenoid
55* 218873001 A B C Cap-water valve
55* 240363601 A B C Screw-shoulder
60 5303207328 A B C Screw, hex wshr hd, 8-15A x 1.000, (2)
61 218721500 A B C Bracket-leveling,ice maker
62 218737900 A B C Screw-IM brkt mtg, hex wshr hd, 8-32D x 0.375
64 5303001549 A B C Clamp,0.31 ID ,steel ,copper wtr line
* 218888001 A B C Adapter-water sply
* 240352401 A B C Ice Maker, Radius Cube, 115 V, no instl parts
ICE MAKER

03/01 20
Publication No. FRS23R4A
5995351797
WIRING SCHEMATIC
