Frigidaire FRS26ZNH User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS26ZNHQ2 FRS26ZNH R134a bisque 115
MARKET
North America
Publication No.
5995330692
991206
-EN/SERVICE /ECL
357
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS26ZNH
©1999 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
SIDE BY SIDE
REFRIGERATOR
WIRING DIAGRAM - # 218903201
OWNER’S GUIDE - # 218954000
SERVICE DATA SHEET - # 218909400
101 Masters Blvd.
Anderson, SC 29624

12/99 2
Publication No. FRS26ZNHQ2
5995330692

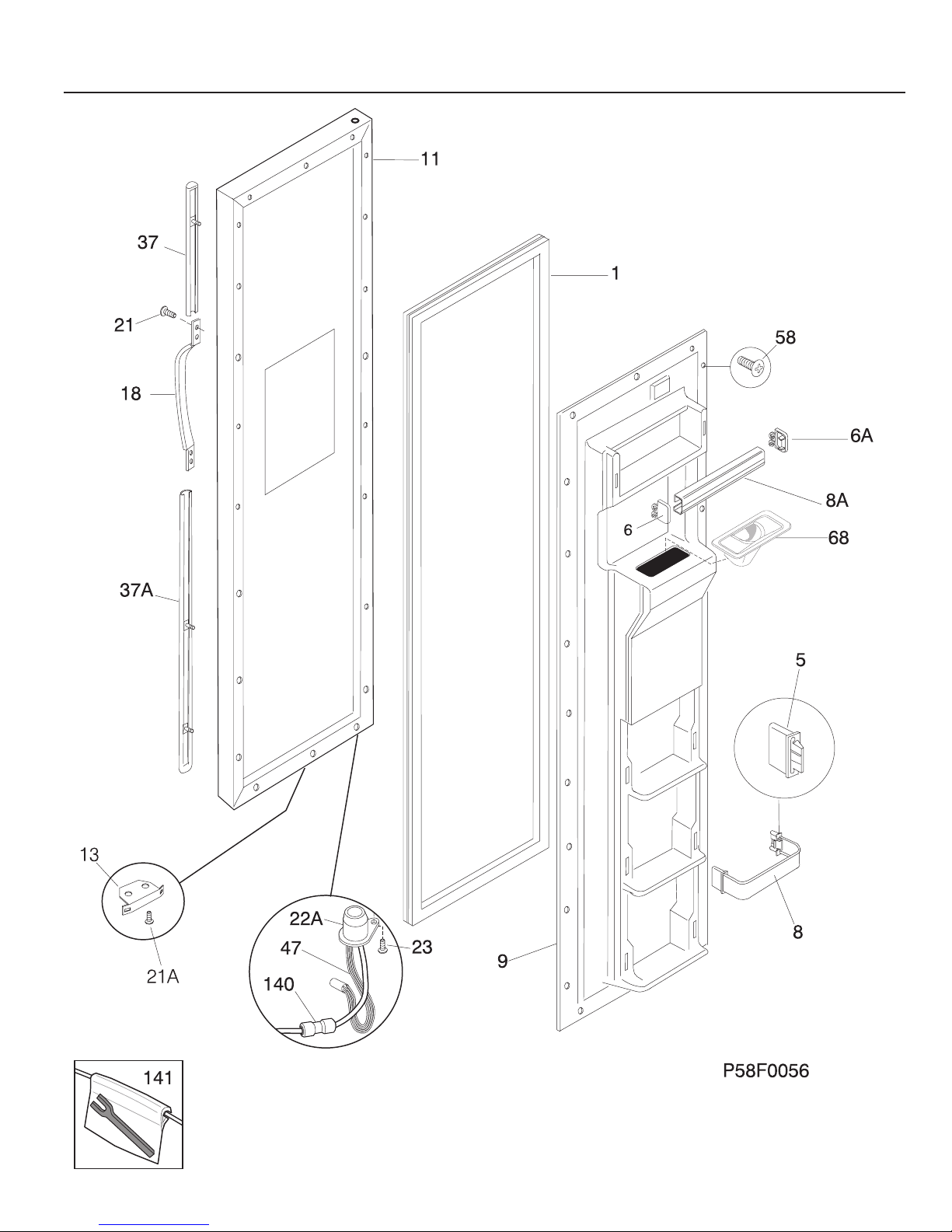

FREEZER DOOR

# = Fast-moving Parts 3 12/99
* = Non-Illustrated Parts
FRS26ZNHQ2 Publication No.
5995330692
FREEZER DOOR
POS. NO PART NO DESCRIPTION
1 # 215734313 Gasket-frzr door,white ,magnetic
5 5303288950 Support-door rack,RH/LH
6 5303323484 Support-door rack,white ,LH
6A 5303323485 Support-door rack,white ,RH
8 218807028 Rack-door,w/end caps
8A 215474052 Rack-door
9 218510401 Panel-inner door,frzr
11 5303918152 Panel-frzr door,bisque ,w/foam insulatn
13 5303289522 Door Stop
18 218762706 Handle-door,bisque
21 218886801 Screw-8-32 X 1/2 #10 Truss ca,8 32 x 1/2 #10
21A 218578600 Screw-door stop mtg,phl truss hd ,10-16 x 3/4
22A 215615300 Bushing-door,bronze
23 5303001020 Screw,cr flat head ,8-32D x 1/2
37 218811632 Trim-handle,bisque ,upper
37A 218811631 Trim-handle,bisque ,lower
37A* 215782300 • Lock-handle trim,snap-in
37A* 218676004 • Band-decorative,satin aluminum ,handle trim
47 218922901 Wiring Harness,frzr door
58 218781100 Screw,pan head ,8-18 x 0.625
68 218495200 Chute-ice
140 218922801 Elbow-water tube
141 218929601 Tool-Push Connector
* 215598900 Washer-flat,.691x1x.05,zinc ,I&W hinge brkt
* 5303917276 Insulation-door,fiberglass ,(bulk)

12/99 4
Publication No. FRS26ZNHQ2
5995330692

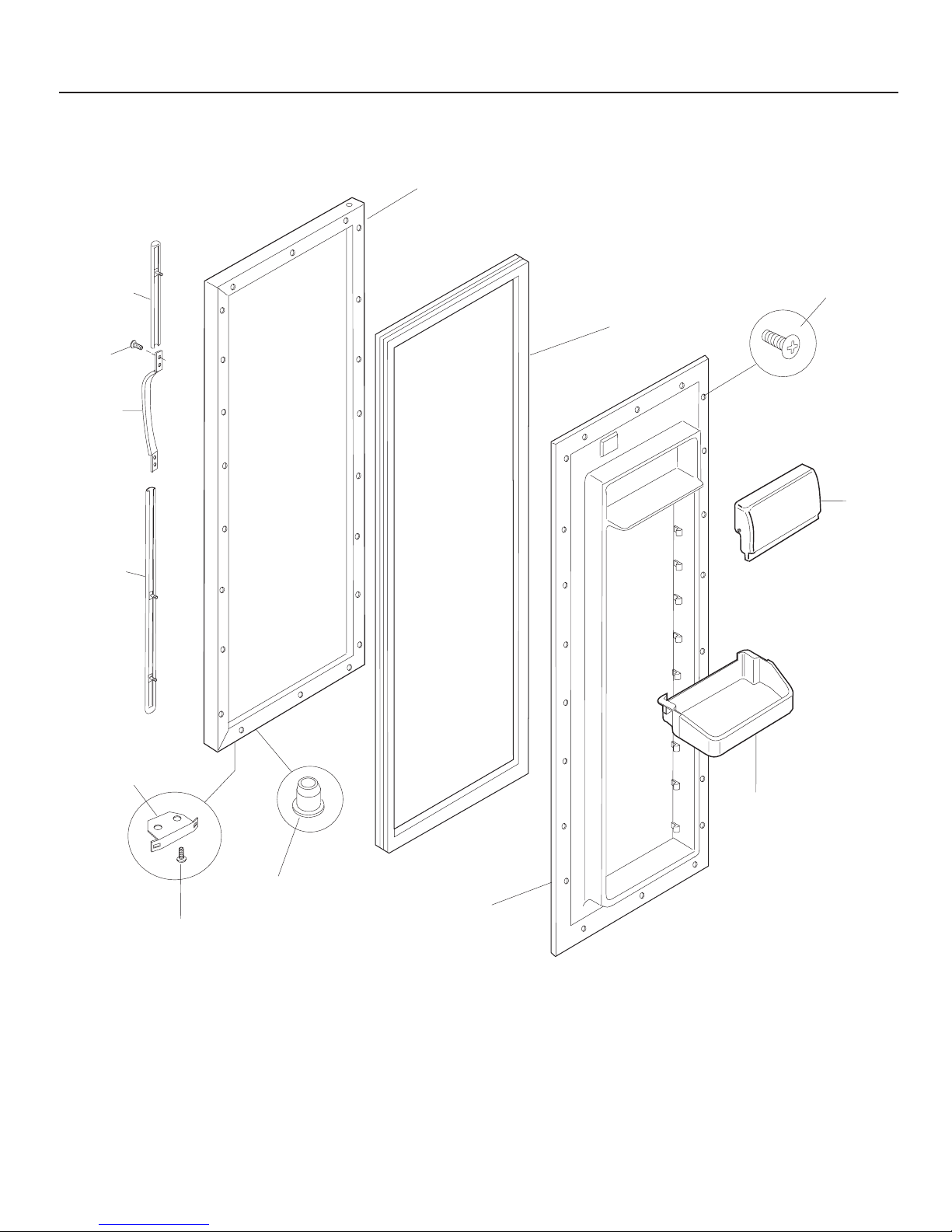

REFRIGERATOR DOOR
P58R0078
13
2
3
7
58
15
22
21A
49
37
21
18
37A

# = Fast-moving Parts 5 12/99
* = Non-Illustrated Parts
FRS26ZNHQ2 Publication No.
5995330692
POS. NO PART NO DESCRIPTION
2 # 215734314 Gasket-refr door,white ,magnetic
3 215403201 Panel-inner door,refr
7 5303304563 Door-dairy
13 5303289522 Door Stop
15 5303918151 Panel-refr door,bisque ,w/foam insulatn
18 218762706 Handle-door,bisque
21 218886801 Screw-8-32 X 1/2 #10 Truss ca,8 32 x 1/2 #10
21A 218578600 Screw-door stop mtg,phl truss hd ,10-16 x 3/4
22 5303289320 Bearing-hinge
37 218811632 Trim-handle,bisque ,upper
37A 218811631 Trim-handle,bisque ,lower
37A* 215782300 • Lock-handle trim,snap-in
37A* 218676004 • Band-decorative,satin aluminum ,handle trim
49 218592325 Bin-door,2-liter
58 218781100 Screw,pan head ,8-18 x 0.625
* 5303917276 Insulation-door,fiberglass ,(bulk)
REFRIGERATOR DOOR

12/99 6
Publication No. FRS26ZNHQ2
5995330692
CABINET

# = Fast-moving Parts 7 12/99
* = Non-Illustrated Parts
FRS26ZNHQ2 Publication No.
5995330692
POS. NO PART NO DESCRIPTION
10 215637602 Cover-air duct
10* 5303209814 Nut,"U" type ,8-15(A) ,fan mtr mtg
10A 215637401 Cover-evap coil,lower
10A* 5308009617 Washer,ext tooth lock ,#10 ,grounding
11 5303208309 Plug-hole,factory test
12 215230400 Plug-harness hole
18 5303289043 Support-air duct cvr,2.55" long
18* 5303289044 Support-air duct cvr,1.83" long
28 5303289062 Bolt-roller adj,hex head ,5/16-24 x 7/8
29 215314301 Washer,.40 x .75 x .06 ,nylon
29* 215598900 Washer-flat,.691x1x.05,zinc ,I&W hinge brkt
29* 218871201 Washer,nylon ,0.363 ID w/nibs
30 215008900 Bracket-lower hinge,w/hinge pin
30* 218730800 Tapping Plate,RH
30A 215009100 Bracket-lower hinge,LH ,w/hinge pin
30A* 218730700 Tapping Plate,LH
37 5304413167 Trim-cabinet corner,bisque
38 218215229 Bracket-upper hinge,with closer ,white ,LH
38 218215231 Bracket-upper hinge,with closer ,white ,RH
40 5304414819 Cover-upper hinge,bisque
41 5303001609 Grommet,shelf/rod mtg ,RH
41* 5308009759 Grommet,shelf mtg ,LH
43 218615300 Roller Assy,front ,(2)
43* 5308017044 Screw-roller mtg,spcl ind hex hd ,5/16-18(23)x7/8
44 218738300 Roller Assy,rear ,(2)
47 218659500 Channel-shelf mtg,side ,(2)
52 215454600 Tube-water inlet
58 5308002748 Screw,hex wshr hd ,8-15A x 0.500 ,special
66 215050201 Damper-meat keeper
66A 218171301 Cover-meat kpr dmpr
72 218359616 Grille/Kickplate,bisque
77 5303001216 Washer-nylon,3/16 x 5/8 OD
78 5303274237 Screw-bracket,hex wshr hd ,8-32CA x 0.500
80 218249802 Seal-coil cover,(2)
80* 5303289036 Gasket-coil cover,(2)
80* 5303289037 Gasket-air duct cvr,(2)
81 5308016566 Screw,hex wshr hd ,8-15A x 0.625 ,low profile
85 218922708 Cover-lower hinge,bisque
89 218871501 Cover-machine compt
90 215022602 Seal-foam
90* 5303322647 Tape-foam
91 218770000 Deflector-air,air duct cover
92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875
100 5303288973 Support-pan cover
101 215305702 Seal-foam
101* 218663103 Gasket-air duct cvr
* 218902101 Cap-protector, lower hinge
* 5304414035 Paint,touch-up ,bisque
CABINET

12/99 8
Publication No. FRS26ZNHQ2
5995330692
SHELVES

# = Fast-moving Parts 9 12/99
* = Non-Illustrated Parts
FRS26ZNHQ2 Publication No.
5995330692
POS. NO PART NO DESCRIPTION
2 5303298147 Trim-basket
11 218298003 Shelf-freezer,sliding ,wire
11* 218159700 Spacer-shelf
11A 5304405879 Shelf-freezer,fixed wire
11C 218815501 Shelf-pizza,24B
24 215029009 Shelf-"Spill-Safe",cantilever ,sliding
25 215124343 Cover-storage pan
25* 5303301393 Control-humidity
25* 5304412757 Trim-storage pan cvr,upper ,w/humidity hole
25A 218015302 Trim-storage pan cvr,snap-on ,front
25C 218015402 Trim-storage pan cvr,snap-on ,rear
26 5303289500 Pan-storage,upper
26A 5303289501 Pan-storage,lower
28 08013638 End Cap-shelf,protector ,lower fzr shelf
39 215217543 Trim-frzr shelf
39A 215217558 Trim-frzr shelf
42 215002301 Hanger-pan/tray,LH
42* 215002401 Hanger-pan/tray,RH
46 5304411659 Front-storage pan
47 218498182 Insert-pan cover,glass
47A 215723552 Insert-pan cover,16.31" x 17.32" ,glass
49 5303296573 Basket-sliding
51 5303296575 Hanger-basket,RH
52 215162502 Hanger-basket,LH,with spring
52* 5303299662 • Hanger-basket,LH
57 5303271653 Ferrule-inner
62 5303289517 Tray-deli
67 5304411662 Front-deli tray
81 5308016566 Screw,hex wshr hd ,8-15A x 0.625 ,low profile
96 215192600 Support-water tank
97 218942701 Water Tank
100A 218015501 Support-pan cover,LH
100B 218015601 Support-pan cover,RH
101 215005000 Screw,hex wshr hd ,8-18AB x 0.750 ,gusset/hanger
123 215005100 Screw-roller/hanger,8-10 x 0.438
126 218867401 Channel,auger mtg ,LH
126 218867402 Channel,auger mtg ,RH
* 215328300 Clip-shelf
SHELVES

12/99 10
Publication No. FRS26ZNHQ2
5995330692
CONTROLS

# = Fast-moving Parts 11 12/99
* = Non-Illustrated Parts
FRS26ZNHQ2 Publication No.
5995330692
POS. NO PART NO DESCRIPTION
2 215028605 Knob-damper control
5 # 5308000010 Fan Blade,red
7 5308000124 Ring-fan orifice
8 5300157666 Bushing-motor mtg,(2)
9 5304414684 Bracket-motor mtg,front
12 215809600 Diffuser-air
13 # 215426200 Motor-evap fan
13* 215474201 Washer,"slinger" ,nylon ,evap fan shaft
14 5303205119 Bracket-motor mtg,rear
15 5303001179 Light Bulb/Lamp,40 W
16 # 5303289050 Socket-light/lamp
17 5303296805 Control Box,refr
17A 5303296581 Control Box,frzr
17A* 215188300 Screw-control box mtg,hex head ,8-15A x 1.000,refr/frzr
18 5303308568 Knob-temp control,frzr
20 5304411663 Label-control box,refr
20A 5303308611 Label-control box,frzr
21 # 5303300027 Control-temperature
22 5303319683 Housing-temp sensor,plastic
22* 218731102 Tube,insulator ,PVC ,white ,on temp sensor
23 # 215846602 Timer-defrost,60 Hz ,120 V ,8 hour/30 min
23* 215277000 Cover-defrost timer,top
23* 5303001259 Screw-timer mtg,pan hd ,6-20 x 0.438
23* 5303289058 Shield-defrost timr,btm
41 5308000039 Screw,hex wshr hd ,8-32CA x 0.500 ,serrated head
41* 5303209814 Nut,"U" type ,8-15(A) ,fan mtr mtg
53 215809512 Box-damper control
65 5303001361 Pin-mounting,push-in ,plastic
75 218465101 Shield-light,refr
76 218225800 Cover-light socket
78 5303274237 Screw-bracket,hex wshr hd ,8-32CA x 0.500
81 5308016566 Screw,hex wshr hd ,8-15A x 0.625 ,low profile
83 5308000107 Bracket-connector
111 5303297842 Wireway,frzr
114# 5303289051 Switch-light/lamp,white
115 215011505 Damper Assy,w/seal
116 215011400 Seal-damper,foam
125 215334201 Switch-auger kill,white
137 218904602 Filter-water,carbon ,with o’ ring
138 218893301 Cup-water filter
139 218893201 Housing-wtr filter
140 218518700 Elbow-water tube
141# 218832401 Valve-water,dual solenoid ,115 V ,w/nut
141* 215290100 Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
143 218696700 Heater-water filter
* 218646000 Wiring Harness,filter heater
CONTROLS

12/99 12
Publication No. FRS26ZNHQ2
5995330692
SYSTEM

# = Fast-moving Parts 13 12/99
* = Non-Illustrated Parts
FRS26ZNHQ2 Publication No.
5995330692
POS. NO PART NO DESCRIPTION
1 # 218787900 Condenser
1* 5303208866 Spacer-cond tube,black
1* 5303289026 Spacer-tube
1* 5304406721 Spacer-cond tube,round ,5/8 OD x .81"lg
2 5303289029 Clip-cond mtg,(4)
3 218679603 Block-evap coil,styrofoam ,(2)
4 # 218944001 Drier-filter,R134a System
5 218959901 Wiring Harness,main
5* 215005200 Wiring Harness,refr controls
5* 218815101 Wiring Harness,frzr controls
6 218960201 Wiring Harness,machine compt
7 215459201 Cord-electric power
8 218803400 Cover-wiring
13 # 215006701 Heat Exchanger,suction line
14 # 218169802 Heater-defrost
15 # 218691301 Evaporator,R134a System
15* 3206414 Tube-inlet
16 5308000110 Strap-evap/heater,aluminum ,(2)
17 5303289496 Insulator-evap
19 218631200 Tube,rubber
21 # 218969901 Thermostat-defrost
22 218811100 Base-compressor mtg,(drain pan)
23 218513300 Grommet-compr mtg,(4)
25 218773500 Screw-compressor mtg,hex washer head ,10Bx11/4
29 # 218894802 Compressor,R134a ,w/o electricals
30 # 218721106 Starter-PTC
32 218888601 Wire-bale
41 5308000039 Screw,hex wshr hd ,8-32CA x 0.500 ,serrated head
43 215174700 Clamp-service cord,strain relief ,galv steel
43* 5303001199 Clamp-wiring harness,strain relief ,galv steel
43* 5308000133 Clamp,nylon ,.75 OD tube
45 218754500 Screw,hex hd ser wshr ,8-18 x 0.375
45* 218769200 Screw,hx wshr hd spec ,#6-32 x .5
45* 5300141713 Screw,hex wshr hd ,8-32 x 0.625 ,spec
49 215506900 Bracket-evap mtg
54 5303289027 Rail-cabinet base,rear
54* 215732700 Screw,pan head ,10-12A x 0.50
54A 5303289311 Rail-compr support
54B 5303289292 Rail-cabinet base,front
55 # 218909902 Capacitor-run,180 VAC ,20 microfarad
55* 218897001 Screw,hex washer head ,8-32 x 1/4
56 218769300 Insert-compressor mtg
57 218247300 Clip-wiring harness
58 215004600 Screw-cond fan mtr,hx serr wshr hd ,8-36 x 7/16,(2)
59 5303289031 Shroud-cond fan mtr
60 # 215501901 Motor-condenser fan
61 5303289032 Blade-cond fan
61* 215004700 Nut,speed
61* 215004800 Grommet-silencer
62 215048701 Trough-drain,w/shield assy ,& #17 insulator
64 5303289063 Tube-drain
65 5303289301 Spacer-tube
70 5303289041 Bracket-evap/cvr mtg
81 5308016566 Screw,hex wshr hd ,8-15A x 0.625 ,low profile
* 5303917166 Hot Tube Repair Kit,Service
SYSTEM

12/99 14
Publication No. FRS26ZNHQ2
5995330692

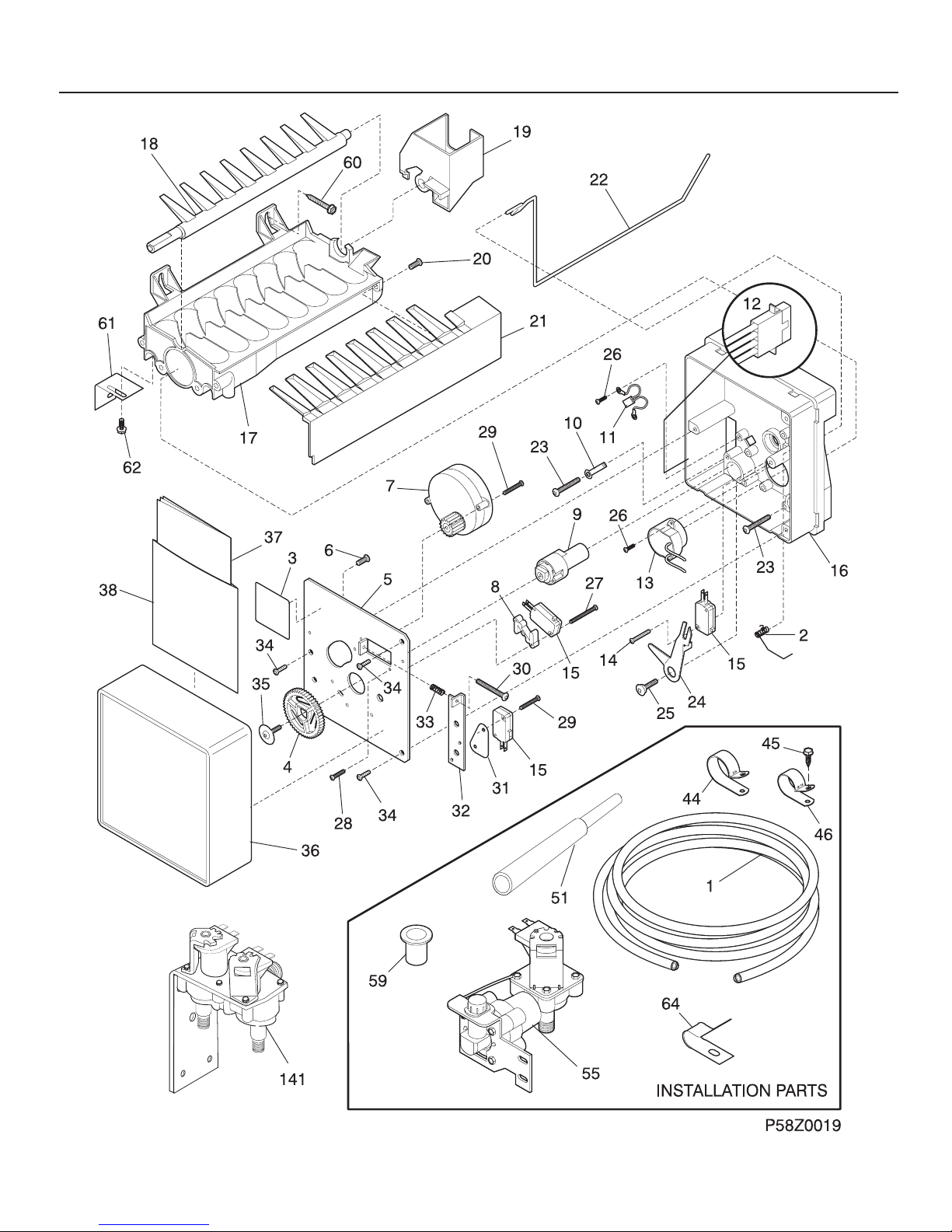

DISPENSER

# = Fast-moving Parts 15 12/99
* = Non-Illustrated Parts
FRS26ZNHQ2 Publication No.
5995330692
POS. NO PART NO DESCRIPTION
1 5318582501 Tube-water inlet,93" ,plastic ,cut-to-size
1* 218832301 Tube-water inlet,inlet valve ,to filter
1* 218859901 Tube-water inlet,inlet valve ,to filter
1* 218949201 Tube-water inlet,formed ,plastic ,dispenser
2 218505304 Deflector-ice disp,bisque
3 # 215484300 Heater-door housing
4 218852404 Housing-dispenser,bisque
7 218284800 Switch-actuator,micro
8 218874901 Module-dispenser
10 218209800 Spring,dispenser door
12 218836204 Knob-selector,bisque
12A 218925404 Knob-selector,bisque
12A* 218925501 Spring-knob
14 218903740 Label-module cover,bisque
15 218284900 Light Bulb/Lamp,4 W ,115 V
16 215284900 Socket-light/lamp
17 215794400 Screw,#6 x 1/4
17A 215840700 Screw,truss head ,6-20 x 3/8
17A* 215923400 Washer-flat
23 5304414820 Drip Tray,bisque
24 218921304 Actuator,bisque
26 215503200 Screw,cr pan hd ,10-16 x 0.500 ,spec/hi-lo
27 218432600 Cam-slide
27A 218814901 Rocker-switch
28 218906204 Cover-module,bisque
30 215753600 Door Assy-ice chute,w/gasket,insul
33 218870201 Heater-disp throat
35 # 218740005 Heat Motor,115 V
36 218906001 Cover-selector sw
38 # 218905901 PC Board
38A# 218479900 Switch-micro,single pole ,double throw
38B# 218835401 Switch-micro,single pole ,single throw
39 218284600 Wire-ice door
40 218284500 Yoke-heat motor
41 215917800 Spring-actuator
43 215760300 Screw,#4 x 3/8
49 215794000 Bracket-heat motor
56 218434300 Screw-micro switch,pan head ,4-24 x 9/16
56A 218927401 Screw,pan head ,4-24 x 1.125 ,microswitch mtg
82 215296300 Screw,plask h/l ,#6 x 3/8
84 218906401 Switch-membrane
85 218948201 Transformer-dispenser
* 218863111 Wiring Harness,disp
DISPENSER

12/99 16
Publication No. FRS26ZNHQ2
5995330692
ICE CONTAINER

# = Fast-moving Parts 17 12/99
* = Non-Illustrated Parts
FRS26ZNHQ2 Publication No.
5995330692
POS. NO PART NO DESCRIPTION
2 5304404344 Auger-ice
3 5304404343 Cam-drive
4 218815300 Container-ice
6 5304404346 Drum-ice disp
7 218815400 Front-ice container
10 5304404337 Bar-drive
13 5304404359 Gate
15 5303001179 Light Bulb/Lamp,40 W
16 # 5303289050 Socket-light/lamp
17 5304404345 Drive Blade
18 # 5304404330 Motor-auger
18* 5304404335 Wiring Harness,auger motor
20 5304404332 Cover-motor
21 215285100 Nut-drive
23 5304404347 Plate-front
25 5304404362 Screw
26 215503200 Screw,cr pan hd ,10-16 x 0.500 ,spec/hi-lo
33 5304404351 Spacer
34 5304404349 Spacer
35A 5304404353 Fixed Blade,round
35B 5304404352 Fixed Blade,square
37A 5304404348 Blade-crusher,#1
37B 5304404350 Blade-crusher,#2
37C 5304404356 Blade-crusher,#3
39 5304404365 Screw
41 5304404358 Housing-crusher
44 218359200 Screw,pan head ,8-32 x 0.250
45 # 5304404333 Solenoid Assy
45A 5304406816 Spring-solenoid
45B 5304406817 E-Ring-solenoid
45C 5304406818 Actuator-solenoid
45D 5304406819 Solenoid
46 5304404341 Control Rod
47 5304404342 Spring-control rod
48 5304404340 Bracket-control rod
48* 5304404364 Screw-bracket
49 5304404329 Rail Assy
50 5304404334 Guide-solenoid
51 5304404336 Rotation Stop
52 5304404354 Spacer-fixed blades
53 5304404355 Pin-spiral,fixed blades
54 5304404357 Nut-auger
55 5304404360 Washer
56 5304404361 E-ring
57 5304404363 Door-access
58 5304404331 Screw-solenoid
* 218842802 Ice Container Assy
ICE CONTAINER

12/99 18
Publication No. FRS26ZNHQ2
5995330692
ICE MAKER

# = Fast-moving Parts 19 12/99
* = Non-Illustrated Parts
FRS26ZNHQ2 Publication No.
5995330692
POS. NO PART NO DESCRIPTION
1 5318582501 Tube-water inlet,93" ,plastic ,cut-to-size
1* 218832301 Tube-water inlet,inlet valve ,to filter
1* 218859901 Tube-water inlet,inlet valve ,to filter
1* 218949201 Tube-water inlet,formed ,plastic ,dispenser
2 3206348 Spring,shut-off arm
3 3206299 Plate-I.D.
4 3206301 Gear
5 3206303 Plate-mounting
6 3206305 Screw-ground wire,8-32 x 1/4
7 # 3206306 Motor-ice maker
8 3206312 Spacer-hldg switch
9 3206313 Cam
10 3206315 Clamp
11 # 3206319 Thermal Cutoff,icemaker ,complete assy
12 # 3206349 Wiring Harness,IM internal ,with plug
12* 3206321 • Connector Plug,wiring harness
13 # 3206322 Thermostat Assy,ice maker
14 3206323 Screw-switch mtg,4-24 x 3/4 ,sw to support,(2)
15 # 3206324 Switch,(3)
16 3206326 Support
17 # 5303320545 Mold-ice maker,radius cube ,with heater
18 3206328 Ejector
19 3206330 Bearing & Inlet
20 3206331 Screw,8-18 x 0.375 ,(2)
21 3206332 Ice Stripper
22 3206333 Arm,shut-off
23 3206334 Screw-sup/mold body,8-18 x 1 ,(4)
24 3206335 Lever Arm
25 3206336 Screw-arm levr/sprt,8-18 x 9/16
26 3206337 Screw-thermo/sprt,4-24 x 3/8 ,(4)
27 3206338 Screw-sw&spcr/plate,4-40 x 1
28 3206339 Screw-timing stop,4-40 x 3/8
29 3206340 Screw-mtr & sw/plate,4-40 x 3/4
30 3206341 Screw-timing,8-32 x 1
31 3206342 Insulator
32 3206343 Plate-valve switch
33 3206344 Spring
34 3206345 Screw-mtg plate/sprt,8-18 x 7/16
35 3206346 Screw-gear/cam,6-20 x 0.437
36 3206347 Cover-ice maker,complete
37 5303320544 Data Sheet,ice maker
38 5303207445 Envelope-data sheet
44 5308000133 Clamp,nylon ,.75 OD tube
45 5303001343 Screw,hex wshr hd ,8-15A x 0.500 ,spec
46 5303001193 Clamp-inlet tube,metal
51 215811600 Tube-fill
55 # 218859701 Valve-water,single solenoid ,115 V ,w/nut
55* 218873001 Cap-water valve
59 5303001191 Sleeve-tube insert
60 5303207328 Screw,hex wshr hd ,8-15A x 1
61 218721500 Bracket-leveling,ice maker
62 218737900 Screw-IM brkt mtg,hex hd ,8-32 x 0.375
64 5303001549 Clamp-copper tube,steel
141# 218832401 Valve-water,dual solenoid ,115 V ,w/nut
* 215290100 Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
* 218699501 Icemaker,radius cube ,no instl parts
ICE MAKER

12/99 20
Publication No. FRS26ZNHQ2
5995330692
WIRING SCHEMATIC
