Frigidaire FRS26R2A User manual

N58L00001.eps N58FAAAAB4.eps N58RAAABB4.eps N58BAAAAA0.eps
N58SACACB22.eps N58TAAAAA4.eps N58CAAAAA3.eps N58XCAAAA0.eps
N58YCAAAA0.eps N58I115.eps W241526901A.eps S241526901A.eps
Product No. FRS26R2AQ7 FRS26R2AW7
Series R134a R134a
Color bisque white
Volts 115 115
Wiring Diagram 241526901 241526901
Owner's Guide 240389311 240389311
Market North America North America
Service Data Sheet 240389616 240389616
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995410395
04/05/25
(EN/SERVICE/DCS)
357
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS26R2A
Copyright ©All rights reserved.

Publication No: 5995410395 FRS26R2A
05/04 2
FREEZER DOOR

FRS26R2A Publication No: 5995410395
# Functional Parts 3 05/04
* Non-Illustrated Parts
FREEZER DOOR
Model Index: AFRS26R2A (FRS26R2AQ7)
BFRS26R2A (FRS26R2AW7)
POS. NO PART NO. DESCRIPTION
1 # 240390602 A B Gasket-frzr door, white, magnetic
4A 240334201 A B Bin-door, frzr-upper
4B 240351601 A B Bin-door
11 240451808 A - Door-frzr, bisque, complete assy
11 240451802 - B Door-frzr, white, complete assy
13A 240537104 A - Door Stop, bisque, frzr
13A 240537102 - B Door Stop, white, frzr
18 218762706 A - Handle-door, bisque
18 218762701 - B Handle-door, white
21A 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
21C 218781100 A B Screw, pan head, 8-18 x 0.625
22A 240328202 A B Bearing-hinge, closer
22C 240328402 A B Bearing-hinge, upper
37A 215870633 A - Trim-handle, 2.47", bisque, w/satin AL band
37A 215870629 - B Trim-handle, 2.47", white, w/satin AL band
68 241525101 A B Chute-ice
* 240352102 A B Connector-water, straight
* 240552101 A B Harness-wiring, door
* 5303918256 A B Dispenser heater kit

Publication No: 5995410395 FRS26R2A
05/04 4

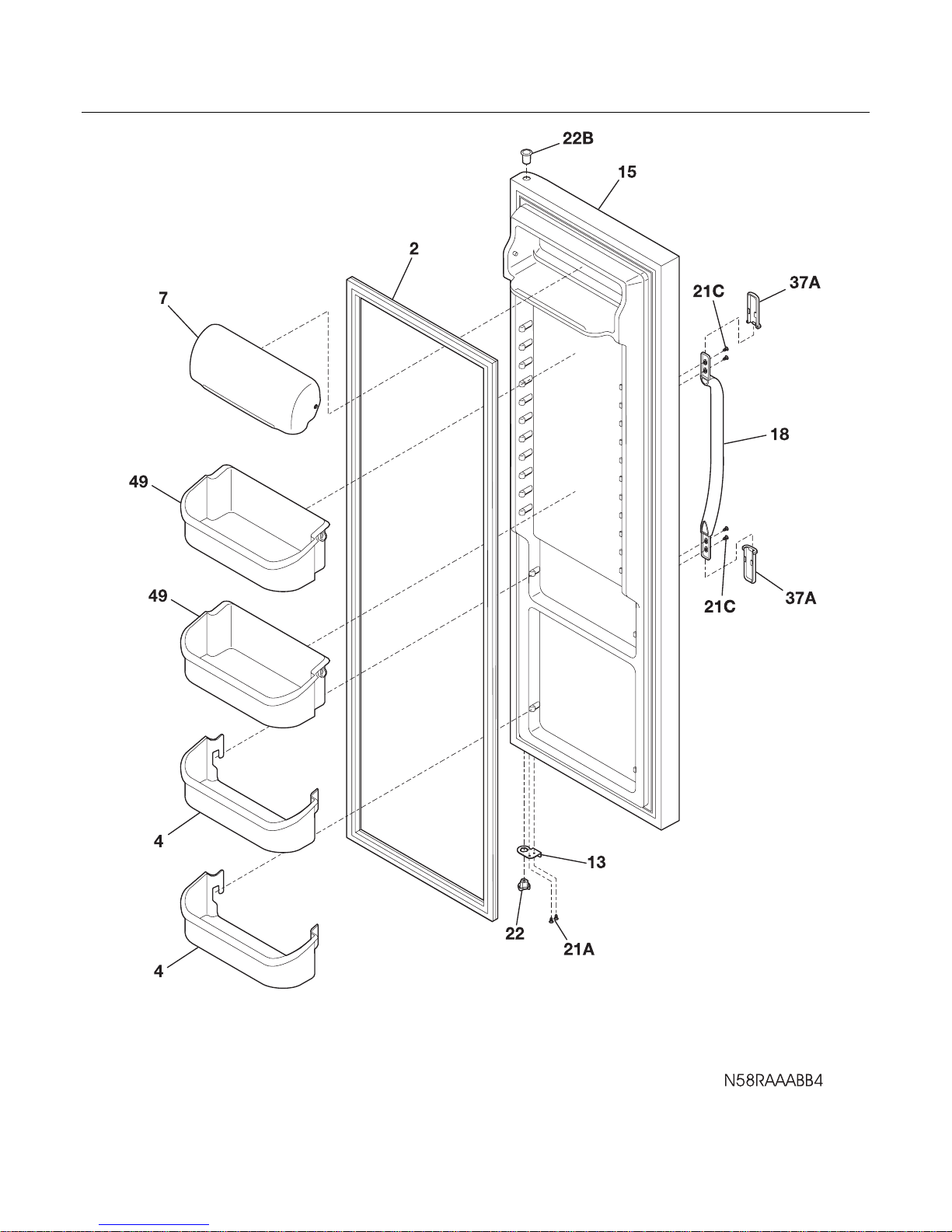

REFRIGERATOR DOOR

FRS26R2A Publication No: 5995410395
# Functional Parts 5 05/04
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AFRS26R2A (FRS26R2AQ7)
BFRS26R2A (FRS26R2AW7)
POS. NO PART NO. DESCRIPTION
2 # 240390601 A B Gasket-refr door, white, magnetic
4 240323001 A B Bin-door, pseudo, bottom
7 240326203 A B Door-dairy
13 240537103 A - Door Stop, bisque, ref
13 240537101 - B Door Stop, white, ref
15 240451906 A - Door-refr, bisque, complete assy
15 240451902 - B Door-refr, white, complete assy
18 218762706 A - Handle-door, bisque
18 218762701 - B Handle-door, white
21A 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
21C 218781100 A B Screw, pan head, 8-18 x 0.625
22 240328201 A B Bearing-hinge, closer
22B 240328401 A B Bearing-hinge, upper
37A 215870633 A - Trim-handle, 2.47", bisque, w/satin AL band
37A 215870629 - B Trim-handle, 2.47", white, w/satin AL band
49 240356401 A B Bin-door, gallon

Publication No: 5995410395 FRS26R2A
05/04 6
CABINET

FRS26R2A Publication No: 5995410395
# Functional Parts 7 05/04
* Non-Illustrated Parts
CABINET
Model Index: AFRS26R2A (FRS26R2AQ7)
BFRS26R2A (FRS26R2AW7)
POS. NO PART NO. DESCRIPTION
10 240435906 A B Cover-air duct
10A 240475907 A B Cover-evap coil, lower
11 5303208309 A B Plug-hole, factory test
14 240505801 A B Switch, light/lamp
14A# 215486600 A B Switch-light/lamp
21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500
22 240457701 A B Plate-door closer
23 240402701 A B Screw-#10-32 x 1/4 flat hd
28 240335501 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 240419103 A B Bracket-lower hinge, ref
30A 240419104 A B Bracket-lower hinge
37 240337604 A - Trim-cabinet corner, bisque, (2)
37 240337601 - B Trim-cabinet corner, white, (2)
38 240327202 A B Bracket-upper hinge
40 240327006 A - Cover-upper hinge, bisque
40 240327005 - B Cover-upper hinge, white
41 240358701 A B Grommet-shelf mtg, 1.40" long
41* 240358801 A B Grommet-shelf mtg, .875" long
42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 A B Roller Assy, front, (2)
45 241500301 A B Screw, hex washer head, 8-18AB x 0.500
47 218659500 A B Channel-shelf mtg, side, (2)
58 218781100 A B Screw, pan head, 8-18 x 0.625
66B 240374301 A B Diffuser-air
66B* 240518802 A B Pin-push, push-in, plastic
72 240324404 A - Grille/Kickplate, bisque
72 240324402 - B Grille/Kickplate, white
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B Roller, compressor base, rear, (2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 240326104 A B Cover, access, system compt, with label
90 218249808 A B Seal-coil cover
91 240380101 A B Duct-ice maker
92 216850900 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B Support, crisper cover, front, (4)
100* 240350802 A B Support, crisper cover, rear, (4)
150 240368701 A B Guide-control bulb
* 240396801 A B Clamp, tube/wiring, nylon, black/natural
* 240479601 A B Plug, button, cab liner holes, (2)
* 240481601 A B Shim-lower hinge
* 5304414035 A - Paint, touch-up, bisque
* 5303305324 - B Paint, touch-up, white

Publication No: 5995410395 FRS26R2A
05/04 8
SHELVES

FRS26R2A Publication No: 5995410395
# Functional Parts 9 05/04
* Non-Illustrated Parts
SHELVES
Model Index: AFRS26R2A (FRS26R2AQ7)
BFRS26R2A (FRS26R2AW7)
POS. NO PART NO. DESCRIPTION
2 241510604 A B Trim-basket
11 240338802 A B Shelf-freezer, flip-up
11A 240338702 A B Shelf-freezer, fixed wire
11B 240338704 A B Shelf-freezer, fixed wire
24 240355208 A B Shelf-"Spill-Safe", fixed
25 240350702 A B Cover-crisper pan, upper
25* 240362101 A B Clip-slide, cover-crisper
25A 240350902 A B Cover-crisper pan, lower
26 240351007 A B Pan-crisper, upper
26* 240349801 A B Clip-slide, pan-crisper
27 240351207 A B Pan-crisper, lower
39 240430706 A B Trim-shelf, 11.21", front
39A 240430702 A B Trim-shelf, 12.39", front
47 240350633 A B Insert-pan cover, glass
47A 240350603 A B Insert-pan cover, glass
49 240530402 A B Basket-sliding
51 240343002 A B Hanger-basket, RH
52 240343102 A B Hanger-basket, LH
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
97 240545302 A B Water Tank Assy, coiled tubing, rear filter
100 240326302 A B Cover-water tank
101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4
126 218867405 A B Channel, auger mtg, LH
126 218867406 A B Channel, auger mtg, RH
140 240430501 A B Channel, wtr tube cover

Publication No: 5995410395 FRS26R2A
05/04 10

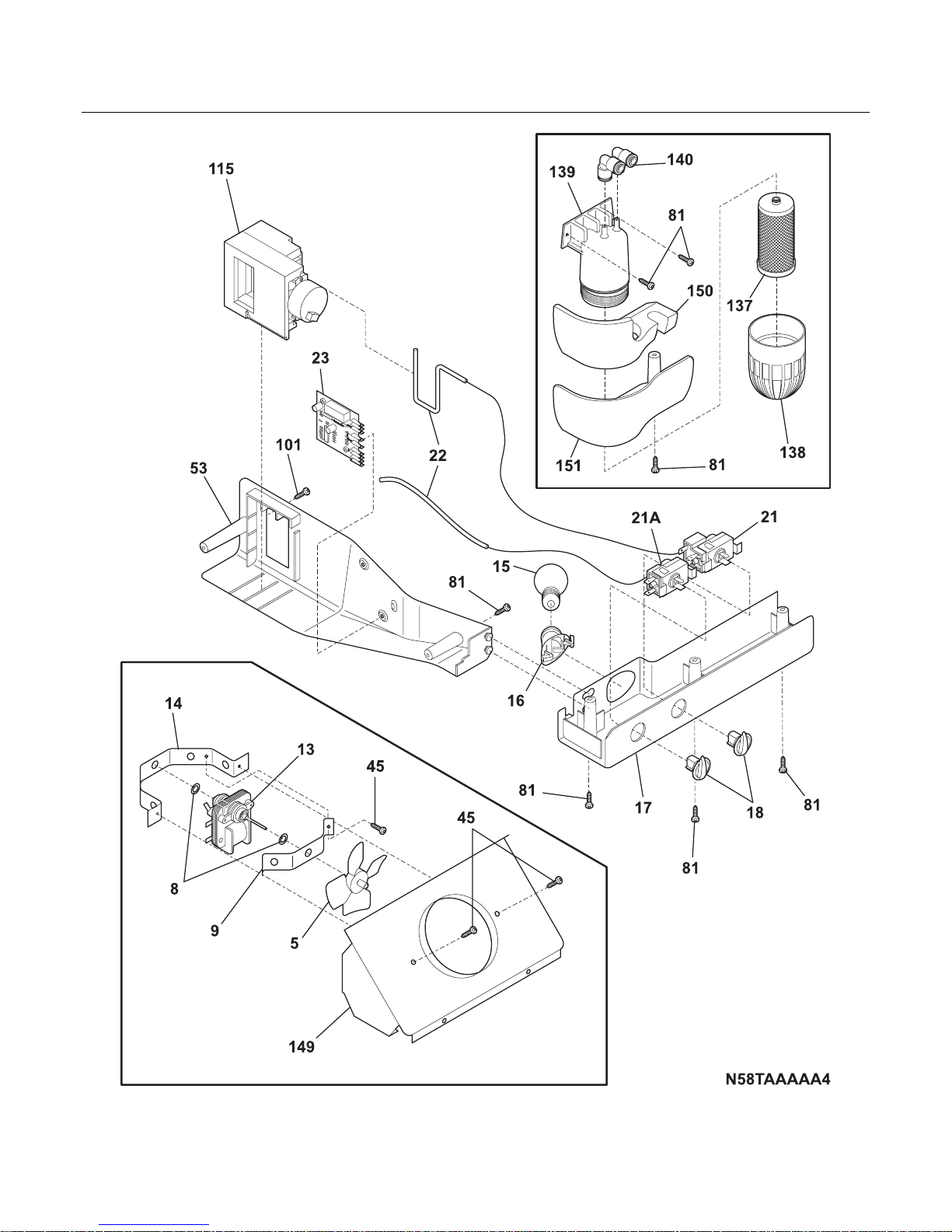

CONTROLS

FRS26R2A Publication No: 5995410395
# Functional Parts 11 05/04
* Non-Illustrated Parts
CONTROLS
Model Index: AFRS26R2A (FRS26R2AQ7)
BFRS26R2A (FRS26R2AW7)
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B Fan Blade, red, evaporator fan
8 5300157666 A B Bushing-motor mtg, (2)
9 5303292396 A B Bracket-motor mtg, front
13 # 240369701 A B Motor-evap fan
13* 215474201 A B Washer, "slinger", nylon, evap fan shaft
14 5303292397 A B Bracket-motor mtg, rear
15 240436702 A B Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature
16 # 241513901 A B Socket-light
17 240383301 A B Box-control, front
17* 241537802 A B Harness-wiring, control box
18 240360801 A B Knob, temp control
21# 241507701 A B Control-temperature
21A 5304421067 A B Control-temperature, frzr section
22 218660702 A B Tube-insulator
23 # 241508001 A B Control-defrost, adaptive timer, PC board
23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
45 5303001343 A B Screw, hex washer head, 8-15A x 0.500
53 240369501 A B Box-control
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4
115 241546902 A B Damper Assy, w/seal
137# 240389102 A B Filter-water, carbon, with o'rings
137* 218710300 A B Wrench-filter
138 240434401 A B Cup-water filter
138* 218904301 A B O-ring, wtr filter cup
139 240434301 A B Housing-water filtr
140 240545201 A B Elbow-water tube
149 240331608 A B Shroud-fan orfice
150 240394102 A B Insulation-water filter cover
151 240376002 A B Cover-water filter

Publication No: 5995410395 FRS26R2A
05/04 12

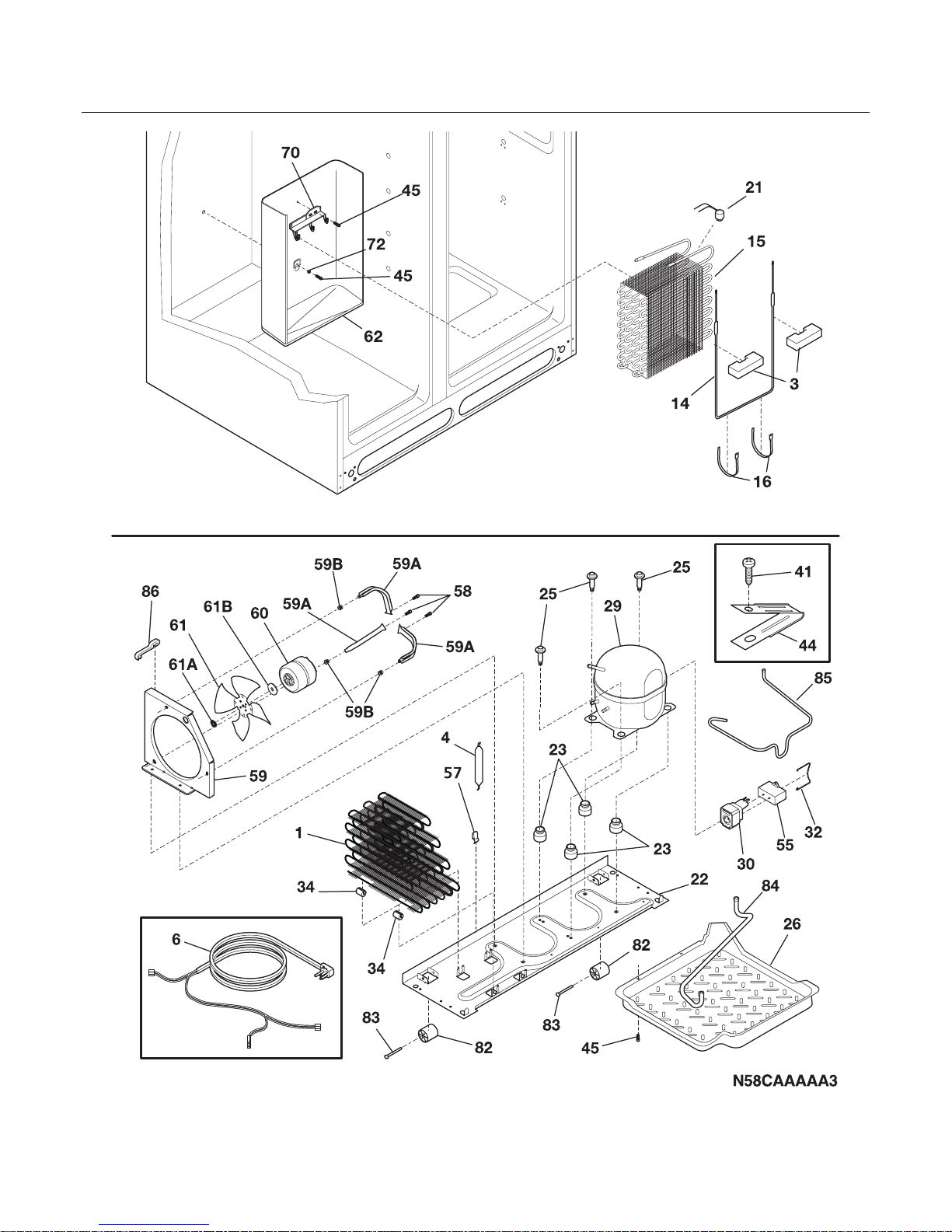

SYSTEM

FRS26R2A Publication No: 5995410395
# Functional Parts 13 05/04
* Non-Illustrated Parts
SYSTEM
Model Index: AFRS26R2A (FRS26R2AQ7)
BFRS26R2A (FRS26R2AW7)
POS. NO PART NO. DESCRIPTION
1 240333603 A B Condenser
3 218679607 A B Block-evap coil, styrofoam, (2)
4 # 218944001 A B Drier-filter, R134a System
6 241527401 A B Harness-wiring, machine compt
6* 240449601 A B Harness-wiring
6* 241537802 A B Harness-wiring, control box
14 # 5303918253 A B Defrost Heater Kit
15 # 5303918284 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater, aluminum, (2)
21 5303918214 A B Thermostat-defrost, kit
22 240330008 A B Base-compressor mtg
22* 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B Grommet-compr mtg, (4)
25 240491501 A B Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 240332602 A B Pan-defrost drain
29 # 5303918303 A B Compressor, w/electricals
30 # 241524604 A B Starter-PTC
32 240553401 A B Clamp, elec cont mtg, compressor
34 240405201 A B Grommet, rubber, black, cond tube/wire
41 240555001 A B Screw-#8-32 X 3/8
44 215174700 A B Clamp-service cord, strain relief, galv steel
45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 A B Capacitor-run, 220 VAC, 15 microfarad
57 240542601 A B Clip-wiring harness
58 215004600 A B Screw, hx serr wshr hd, 8-36 x 7/16, cond fan motor, (2)
59 240315501 A B Shroud-cond fan
59* 240346701 A B Tape-foam seal, shroud
59* 240359401 A B Screw-fan shroud, (2)
59A 240346501 A B Bracket-support, cond mtr, (3)
59B 240346601 A B Grommet-bracket, (3)
60 # 240334003 A B Motor-condenser fan
61 # 240315401 A B Fan Blade, galv steel, condenser fan
61A 215004700 A B Nut, speed
61B 215004800 A B Grommet-silencer
62 240429402 A B Trough-drain
70 218990801 A B Bracket-evap/cvr mtg
72 218397000 A B Button-handle mtg, dovetail
82 5304418225 A B Roller, compressor base, rear, (2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B Tube-drain, lower
85 240553501 A B Tube-connector, suction
86 240409302 A B Spacer-cond tube, black
* 5303918213 A B Heat Exchanger Kit, suction line
* # 5303918222 A B Hot Tube Repair Kit, Service

Publication No: 5995410395 FRS26R2A
05/04 14

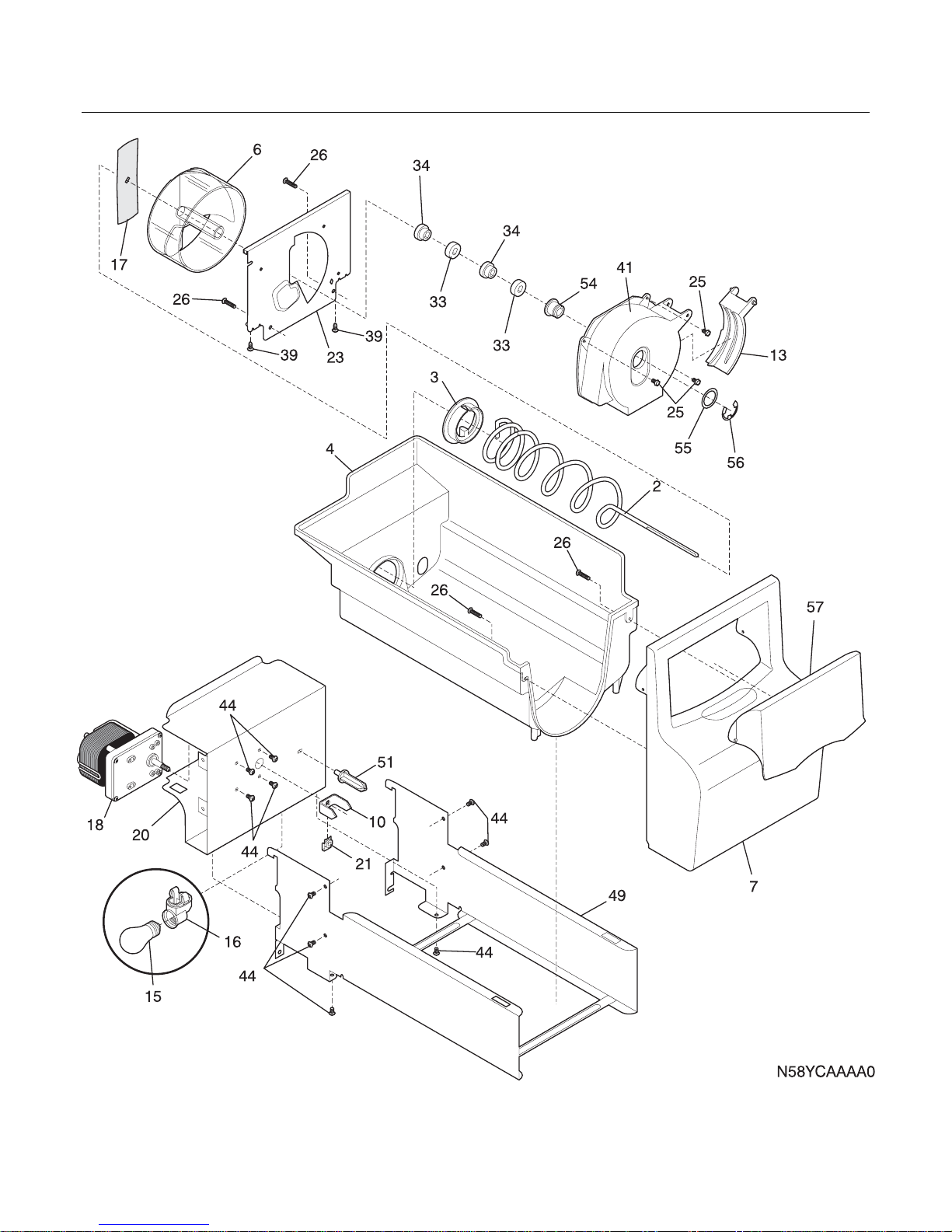

ICE & WATER DISPENSER

FRS26R2A Publication No: 5995410395
# Functional Parts 15 05/04
* Non-Illustrated Parts
ICE & WATER DISPENSER
Model Index: AFRS26R2A (FRS26R2AQ7)
BFRS26R2A (FRS26R2AW7)
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube-water
1* 218976901 A B Tube-water inlet, inlet valve, to ice maker
1* 218976904 A B Tube-water inlet, valve to filter
1* 218976907 A B Tube-water inlet, valve to door
4 5304429705 A - Cover-module, bisque
4 5304428805 - B Cover-module, white
8 5304422144 A - Module-dispenser, bisque
8 5304421823 - B Module-dispenser, white
10 5304426649 A B Spring-torsion
14 240323909 A - Label-module cover, bisque
14 240323908 - B Label-module cover, white
17 5304421619 A B Screw
23 240323602 A - Drip Tray, bisque
23 240323601 - B Drip Tray, white
24 5304422027 A - Actuator-water, bisque
24 5304421825 - B Actuator-water, white
24A 5304422028 A - Actuator-ice, bisque
24A 5304421826 - B Actuator-ice, white
30 5304421628 A B Door Assy-ice chute
30A 5304421624 A B Door center
30B 5304421625 A B Insulation-door
30C 5304421629 A B Door seal
35 5304421620 A B Damper-rotary
38A# 5304421617 A B Switch-micro, single pole, double throw
39 5304421627 A B Pin-hinge
41 5304421829 A B Spring-actuator
43 215296300 A B Screw, plask h/l, #6 x 3/8
56 5304421830 A B Screw-micro switch, pan head
87 5304421622 A B Bearing Plate
87A 5304421621 A B Bearing Plate
* 5303918256 A B Dispenser heater kit

Publication No: 5995410395 FRS26R2A
05/04 16
ICE CONTAINER

FRS26R2A Publication No: 5995410395
# Functional Parts 17 05/04
* Non-Illustrated Parts
ICE CONTAINER
Model Index: AFRS26R2A (FRS26R2AQ7)
BFRS26R2A (FRS26R2AW7)
POS. NO PART NO. DESCRIPTION
2 5304428402 A B Auger-ice
3 5304404343 A B Cam-drive
4 218815300 A B Container-ice, bucket only
6 5304404346 A B Drum-ice disp
7 218815400 A B Front-ice container
10 5304404337 A B Bar-drive
13 5304404359 A B Gate
15 240436702 A B Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature
16 240433701 A B Receptacle, E27A lampholder, 250 V
17 5304404345 A B Drive Blade
18 # 241551504 A B Motor-auger
18*# 240352601 A B Wiring Harness, internal, with plug
20 5304407106 A B Cover-motor
21 215285100 A B Nut-drive
23 5304404347 A B Plate-front
25 5304404362 A B Screw, hex washer head, 8-32T x 0.375
26 215503200 A B Screw, cr pan hd, 10-16 x 0.500
33 5304404351 A B Spacer
34 5304404349 A B Spacer
39 5304404365 A B Screw
41 5304404358 A B Housing-crusher
44 218359200 A B Screw, pan head, 8-32 x 0.250
49 5304404329 A B Rail Assy
51 5304404336 A B Rotation Stop
54 5304404357 A B Nut-auger
55 5304404360 A B Washer
56 5304404361 A B E-ring
57 5304404363 A B Door-access
* 215781700 A B Clip-tube
* 240323807 A B Ice Container Assy, w/moving parts

Publication No: 5995410395 FRS26R2A
05/04 18

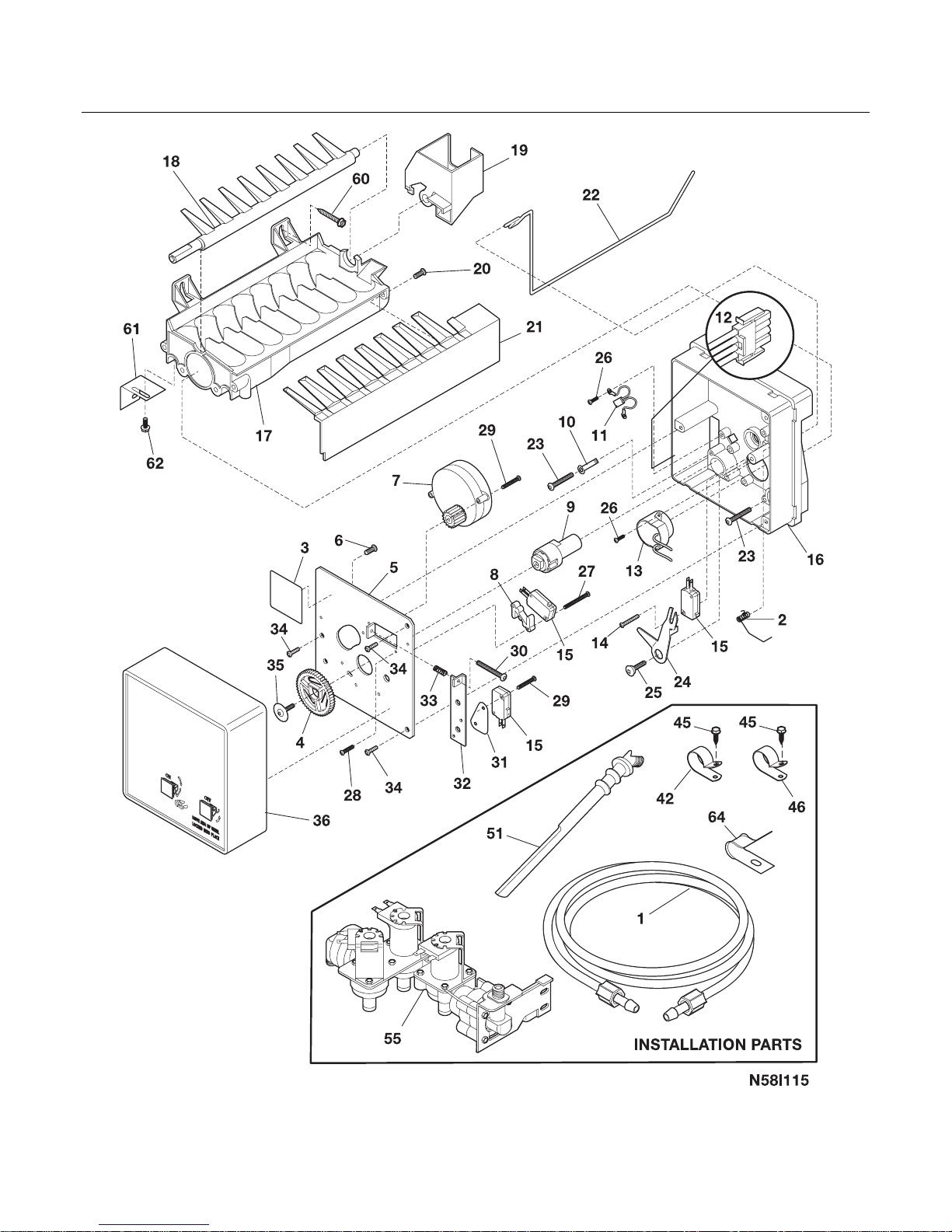

ICE MAKER

FRS26R2A Publication No: 5995410395
# Functional Parts 19 05/04
* Non-Illustrated Parts
ICE MAKER
Model Index: AFRS26R2A (FRS26R2AQ7)
BFRS26R2A (FRS26R2AW7)
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube-water
1* 218976901 A B Tube-water inlet, inlet valve, to ice maker
1* 218976903 A B Tube-water inlet, inlet valve, to filter
1* 218976907 A B Tube-water inlet, valve to door
1* 240561701 A B Seal-water inlet, inlet valve, to ice maker
2 5304420650 A B Spring, shut-off arm
3 3206299 A B Label, ID plate
4 3206301 A B Gear
5 3206303 A B Plate-mounting
6 3206305 A B Screw-ground wire, 8-32 x 0.250
7 # 3206306 A B Motor-ice maker
8 3206312 A B Spacer-hold switch
9 3206313 A B Cam
10 3206315 A B Clamp
11 # 3206319 A B Thermal Cutoff, ICE MAKER, complete assy
12 # 240352601 A B Wiring Harness, internal, with plug
13 # 3206322 A B Thermostat Assy, ICE MAKER
14 5304420652 A B Screw, 4 x 0.750, switch mtg.
15 # 3206324 A B Switch, (3)
16 5304420653 A B Support, phenolic
17 # 5303320545 A B Mold-ice maker, Radius Cube, with heater
18 3206328 A B Ejector-ice
19 3206330 A B Bearing & Inlet
20 5304408581 A B Screw, 8-32 x 0.375
21 3206332 A B Ice Stripper
22 3206333 A B Shut-off Arm
23 5304408582 A B Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B Lever Arm
25 3206336 A B Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 A B Screw-thermo/sprt, 4-24 x 0.375, (4)
27 3206338 A B Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B Screw-timing stop, 4-40 x 0.375
29 3206323 A B Screw, 4-24 x 0.750, (6)
30 3206341 A B Screw-timing adj, 8-32 x 1.000
31 3206342 A B Insulator
32 3206343 A B Plate-valve switch
33 5304408583 A B Spring-timing adj
34 5304420655 A B Screw, plazscrew, 8-10, (3)
35 5304408585 A B Screw
36 3206347 A B Cover-ice maker
42 5303001199 A B Clamp-wiring harness, strain relief, galv steel
42* 218515402 A B Clip, (2), tube mtg.
45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
45* 5303001343 A B Screw, hex washer head, 8-15A x 0.500
46 5303001193 A B Clamp, .50 ID, steel, water tube
46* 5308000133 A B Clamp, nylon, .625 ID
51 240387101 A B Tube-water, ice mold fill, extension
55 # 240531101 A B Valve-water, triple solenoid
55* 218709100 A B Screw, hex head, 10-32 x 0.500

Publication No: 5995410395 FRS26R2A
05/04 20
ICE MAKER
