Frigidaire FRS26ZSH User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS26ZSHB0 FRS26ZSH R134a System stainless/black 115
FRS26ZSHW0 FRS26ZSH R134a System stainless/white 115
MARKET
North America
Publication No.
5995324331
990604
-EN/SERVICE /KB
357
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS26ZSH
©1999 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
SIDE BY SIDE
REFRIGERATOR
WIRING DIAGRAM - # 218875901
OWNER’S GUIDE - # 218910000
SERVICE DATA SHEET - # 218909400
101 Masters Blvd.
Anderson, SC 29624

06/99 2
Publication No. FRS26ZSH
5995324331

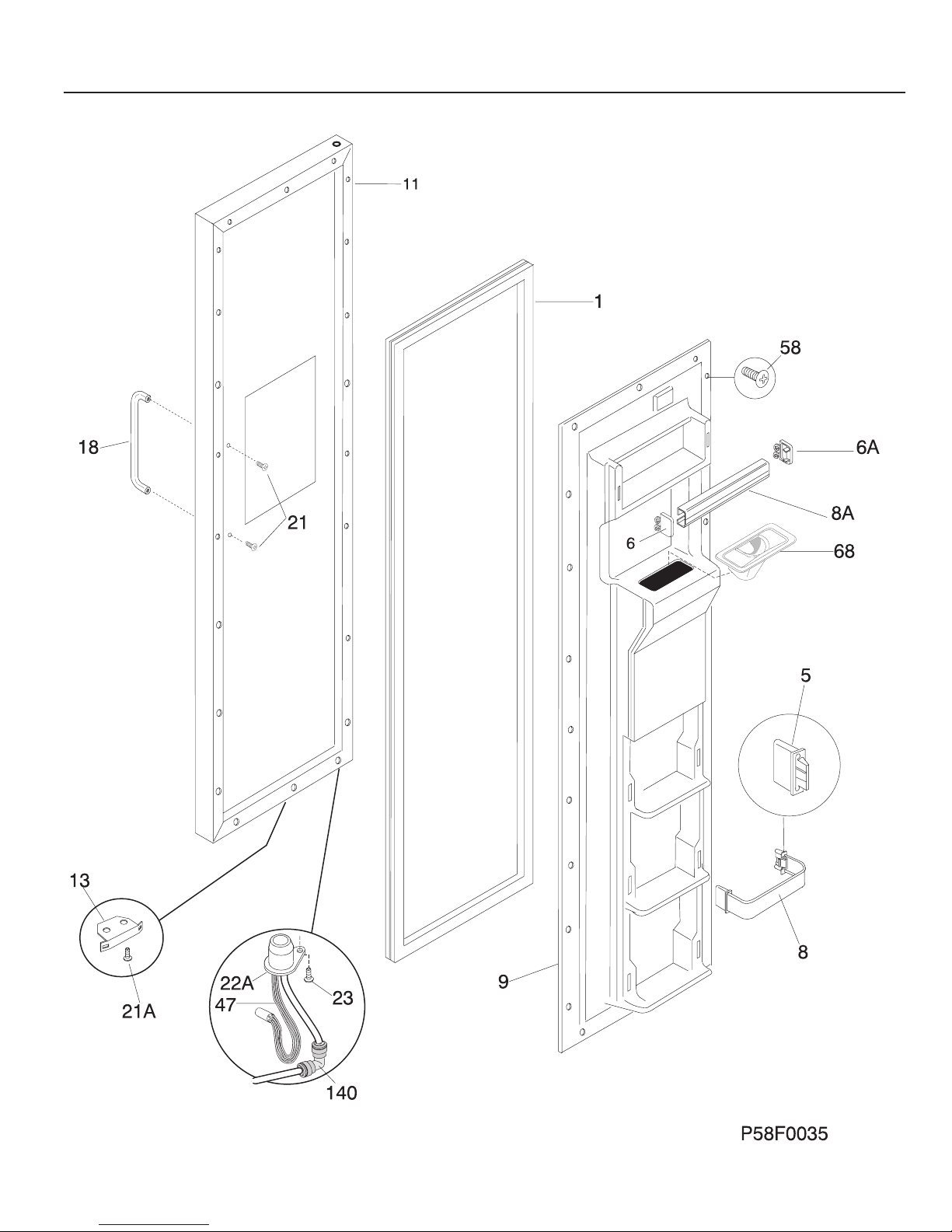

FREEZER DOOR

# = Fast-moving Parts 3 06/99
* = Non-Illustrated Parts
FRS26ZSH Publication No.
5995324331
FREEZER DOOR
A = FRS26ZSH (FRS26ZSHB0)
B = FRS26ZSH (FRS26ZSHW0)
POS. NO PART NO DESCRIPTION
1 # 215734323 A - Gasket-frzr door,black ,magnetic
1 # 215734313 - B Gasket-frzr door,white ,magnetic
5 5303288950 A B Support-door rack,RH/LH
6 5303323484 A B Support-door rack,white ,LH
6A 5303323485 A B Support-door rack,white ,RH
8 218807027 A B Rack-door,w/end caps
8A 215474039 A B Rack-door
9 218510401 A B Panel-inner door,frzr
11 218631500 A B Panel-frzr door,stainless steel, w/foam insulatn
13 5303289522 A B Door Stop
18 218756501 A B Handle-door,stainless steel, with insert
21 218709100 A B Screw-handle mtg,hex head, 10-32 x 0.500
21A 218578600 A B Screw-door stop mtg, phl truss hd, 10-16 x 3/4
22A 215615300 A B Bushing-door,bronze
23 5303001020 A B Screw,cr flat head ,8-32D x 1/2
47 218896201 A B Harness-wiring,frzr door
58 218781100 A B Screw,pan head ,8-18 x 0.625
68 218495200 A B Chute-ice
140 218518700 A B Elbow-water tube
* 218490900 A B Cleaner,stainless steel
* 218789501 A B Heater-lower flange
* 5303917276 A B Insulation-door,fiberglass ,(bulk)
* 215598900 A B Washer-flat, .691x1x.05, zinc, I&W hinge brkt

06/99 4
Publication No. FRS26ZSH
5995324331

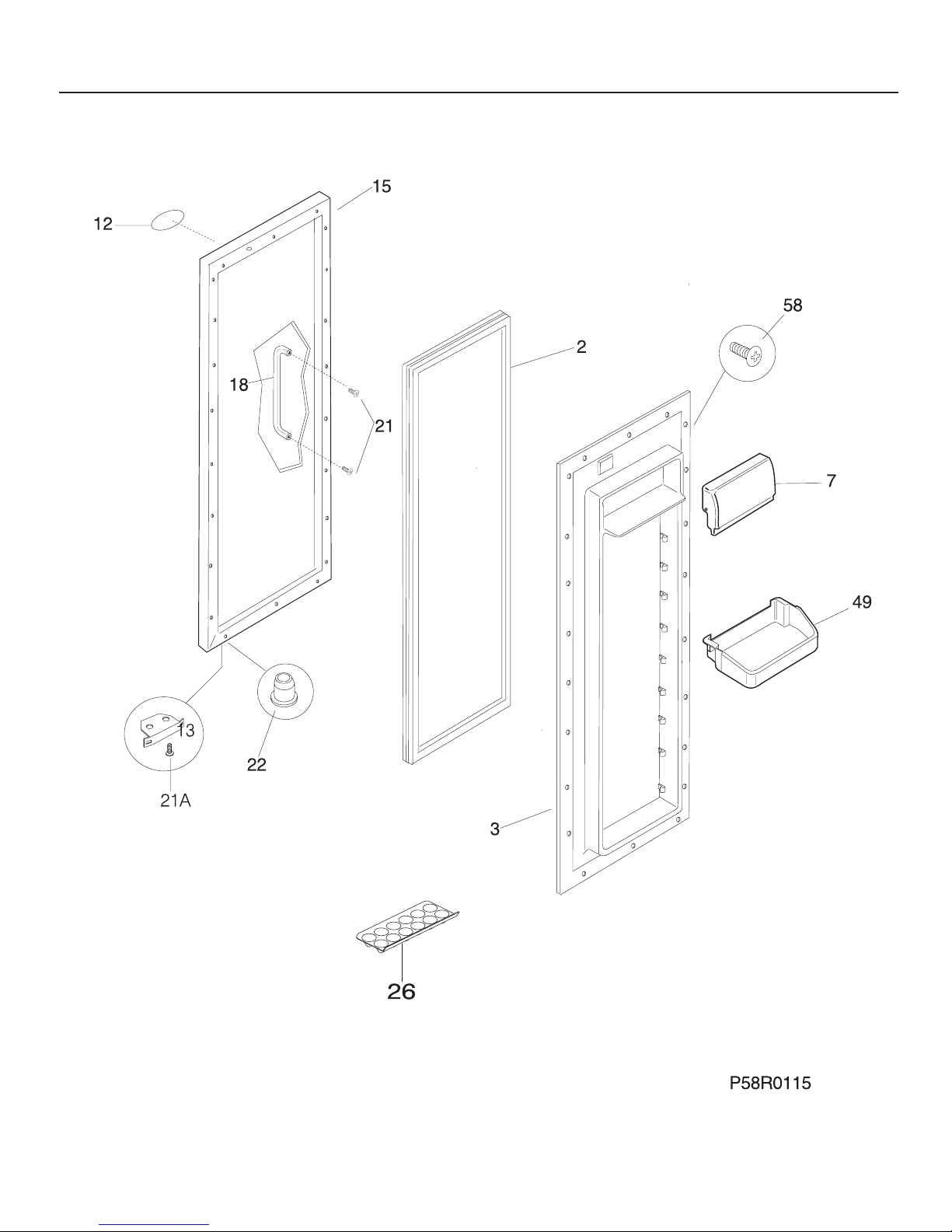

REFRIGERATOR DOOR

# = Fast-moving Parts 5 06/99
* = Non-Illustrated Parts
FRS26ZSH Publication No.
5995324331
A = FRS26ZSH (FRS26ZSHB0)
B = FRS26ZSH (FRS26ZSHW0)
POS. NO PART NO DESCRIPTION
2 # 215734324 A - Gasket-refr door,black ,magnetic
2 215734314 - B Gasket-refr door,white ,magnetic
3 215403201 A B Panel-inner door,refr
7 5304404909 A B Door-dairy
12 218395401 A - Nameplate,black
12 218395402 - B Nameplate,white
13 5303289522 A B Door Stop
15 218631600 A B Panel-refr door,stainless steel, w/foam insulatn
18 218756501 A B Handle-door,stainless steel, with insert
21 218709100 A B Screw-handle mtg,hex head, 10-32 x 0.500
21A 218578600 A B Screw-door stop mtg,phl truss hd, 10-16 x 3/4
22 5303289320 A B Bearing-hinge
26 215817806 A B Tray-egg
49 218592303 A B Bin-door,"Mongo"
58 218781100 A B Screw,pan head ,8-18 x 0.625
* 218490900 A B Cleaner,stainless steel
* 5303917276 A B Insulation-door,fiberglass ,(bulk)
REFRIGERATOR DOOR

06/99 6
Publication No. FRS26ZSH
5995324331
CABINET

# = Fast-moving Parts 7 06/99
* = Non-Illustrated Parts
FRS26ZSH Publication No.
5995324331
A = FRS26ZSH (FRS26ZSHB0)
B = FRS26ZSH (FRS26ZSHW0)
POS. NO PART NO DESCRIPTION
10 215637602 A B Cover-air duct
10* 5308009617 A B Washer,ext tooth lock ,#10 ,grounding
10A 215637401 A B Cover-evap coil,lower
11 5303208309 A B Plug-hole,factory test
12 215230400 A B Plug-harness hole
15A 218708700 A B Light Bulb/Lamp,crisper light ,(2)
16A 5303299157 A B Socket-light/lamp,crisper light
18 5303289043 A B Support-air duct cvr,2.55" long
18* 5303289044 A B Support-air duct cvr,1.83" long
28 5303289062 A B Bolt-roller adj,hex head ,5/16-24 x 7/8
29 215314301 A B Washer,.40 x .75 x .06 ,nylon
29* 215598900 A B Washer-flat, .691x1x.05, zinc, I&W hinge brkt
29* 218871201 A B Washer,nylon ,0.363 ID w/nibs
30 215008900 A B Bracket-lower hinge,w/hinge pin
30* 218730800 A B Tapping Plate,RH
30A 215009100 A B Bracket-lower hinge,LH ,w/hinge pin
30A* 218730700 A B Tapping Plate,LH
37 5303321083 A - Trim-cabinet corner,black
37 5303321081 - B Trim-cabinet corner,white
38 218215218 A - Bracket-upper hinge,with closer ,black, LH
38 218215220 A - Bracket-upper hinge,with closer ,black, RH
38 218215217 - B Bracket-upper hinge,with closer, white, LH
38 218215219 - B Bracket-upper hinge,with closer ,white, RH
40 5303323268 A - Cover-upper hinge,black
40 5303318773 - B Cover-upper hinge,white
43 218615300 A B Roller Assy,front ,(2)
43* 5308017044 A B Screw-roller mtg,spcl ind hex hd, 5/16-18(23)x7/8
44 218738300 A B Roller Assy,rear ,(2)
47 218659500 A B Channel-shelf mtg,side ,(2)
52 215454600 A B Tube-water inlet
58 5308002748 A B Screw,hex wshr hd ,8-15A x 0.500, special
66 215050201 A B Damper-meat keeper
66A 218171301 A B Cover-meat kpr dmpr
71 218515401 A B Clip-grille
72 218359609 A - Grille/Kickplate,black
72 218359601 - B Grille/Kickplate,white
77 5303001216 A B Washer-nylon,3/16 x 5/8 OD
78 5303274237 A B Screw-bracket,hex wshr hd, 8-32CA x 0.500
80 218249802 A B Seal-coil cover,(2)
80* 5303289036 A B Gasket-coil cover,(2)
80* 5303289037 A B Gasket-air duct cvr,(2)
81 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625, low profile
85 218359806 A - Cover-lower hinge,black
85 218359802 - B Cover-lower hinge,white
89 218871501 A B Cover-machine compt
90 215022602 A B Seal-foam
90* 218154003 A B Gasket-air duct cvr
90* 5303322647 A B Tape-foam
91 218770000 A B Deflector-air,air duct cover
92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875, (6)
100 5303288973 A B Support-pan cover
101 215305702 A B Seal-foam
101* 218663103 A B Gasket-air duct cvr
107 218835901 A B Shield-light,crisper
108 218834202 A B Cover-wiring,crisper light
* 218902101 A B Cap-protector, lower hinge
* 5303305345 A - Paint,touch-up ,black
* 5303305324 - B Paint,touch-up ,white
CABINET

06/99 8
Publication No. FRS26ZSH
5995324331
SHELVES

# = Fast-moving Parts 9 06/99
* = Non-Illustrated Parts
FRS26ZSH Publication No.
5995324331
A = FRS26ZSH (FRS26ZSHB0)
B = FRS26ZSH (FRS26ZSHW0)
POS. NO PART NO DESCRIPTION
2 5303298147 A B Trim-basket
11 218298003 A B Shelf-freezer,sliding ,wire
11A 218298004 A B Shelf-freezer,sliding ,wire
11C 218815501 A B Shelf-pizza,24B
24 215029002 A B Shelf-"Spill-Safe",cantilever ,sliding
24* 215019701 A B Frame-cantilever,spill-safe shlf
24* 215036602 A B Shelf-"Spill-Safe",sliding, included w/#24
24C 218869602 A B Shelf-"Spill-Safe",sliding ,"Aspect", complete
25 218147701 A B Cover-storage pan
25* 5303289586 A B Trim-storage pan cvr,lower
25* 5303307878 A B Trim-storage pan cvr, upper, w/humidity hole
25* 5303307881 A B Control-humidity
26 5303299657 A B Pan-storage,upper
26A 5303289501 A B Pan-storage,lower
39 215217543 A B Trim-frzr shelf
42 215002301 A B Hanger-pan/tray,LH
42* 215002401 A B Hanger-pan/tray,RH
46 218278201 A B Front-storage pan,upper
46A 218278202 A B Front-storage pan,lower
47 215723574 A B Insert-pan cover,glass ,clear, w/teal graphics
47A 5303289387 A B Insert-pan cover,glass ,clear
49 5303296573 A B Basket-sliding
51 5303296575 A B Hanger-basket,RH
51A 5303307887 A B Hanger-basket,RH
52 215162502 A B Hanger-basket,LH,with spring
52* 5303299662 A B Hanger-basket,LH
52A 215162504 A B Hanger-basket,LH ,with spring
57 5303271653 A B Ferrule-inner
62 218285701 A B Tray-deli
67 218278501 A B Front-deli tray
81 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625, low profile
96 215192600 A B Support-water tank
97 218871301 A B Water Tank
101 215005000 A B Screw,hex wshr hd ,8-18AB x 0.750, gusset/hanger
123 215005100 A B Screw-roller/hanger,8-10 x .438
126 218867401 A B Channel,auger mtg ,LH
126 218867402 A B Channel,auger mtg ,RH
* 215328300 A B Clip-shelf
SHELVES

06/99 10
Publication No. FRS26ZSH
5995324331
CONTROLS

# = Fast-moving Parts 11 06/99
* = Non-Illustrated Parts
FRS26ZSH Publication No.
5995324331
A = FRS26ZSH (FRS26ZSHB0)
B = FRS26ZSH (FRS26ZSHW0)
POS. NO PART NO DESCRIPTION
2 5303307883 A B Knob-damper control,white/teal line
5 # 5308000010 A B Fan Blade,red
7 5308000124 A B Ring-fan orifice
8 5300157666 A B Bushing-motor mtg,(2)
9 5303205118 A B Bracket-motor mtg,front
12 215809600 A B Diffuser-air
13 # 215426200 A B Motor-evap fan
13* 215474201 A B Washer,"slinger" ,nylon ,evap fan shaft
14 5303205119 A B Bracket-motor mtg,rear
15 5303001179 A B Light Bulb/Lamp,40 W
16 5303289050 A B Socket-light/lamp
17 218468701 A B Control Box,refr ,w/light tunnel
17A 5303296581 A B Control Box,frzr
17A* 215188300 A B Screw-control box mtg,hex head, 8-15A x 1.000,refr/frzr
18 5303307882 A B Knob-temp control
20 5303307884 A B Label-control box,refr
20A 5303307888 A B Label-control box,frzr
21 # 5303300027 A B Control-temperature
22 5303319683 A B Housing-temp sensor,plastic
22* 218731102 A B Tube,insulator ,PVC ,white, on temp sensor
23 # 215846602 A B Timer-defrost
23* 215277000 A B Cover-defrost timer,top
23* 5303001259 A B Screw-timer mtg,pan hd ,6-20 x 0.438
23* 5303289058 A B Shield-defrost timr,btm
41 5308000039 A B Screw,hex wshr hd ,8-32CA x 0.500, serrated head
41* 5303209814 A B Nut,"U" type ,8-15(A) ,fan mtr mtg
53 215809511 A B Box-damper control
65 5303001361 A B Pin-mounting,push-in ,plastic
75 218465101 A B Shield-light,refr
76 218225800 A B Cover-light socket
78 5303274237 A B Screw-bracket,hex wshr hd, 8-32CA x 0.500
81 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625, low profile
83 5308000107 A B Bracket-connector
111 5303297842 A B Wireway,frzr
112 215277102 A B Rod-damper extn
113 5303296580 A B Cover-dmpr rod ext
114# 5303289051 A B Switch-light/lamp,white
115 215011505 A B Damper Assy,w/seal
116 215011400 A B Seal-damper,foam
125# 215334201 A B Switch-auger kill,white
137 218904602 A B Filter-water,carbon ,with o’ ring
138 218893301 A B Cup-water filter
139 218893201 A B Housing-wtr filter
140 218518700 A B Elbow-water tube
141 218832401 A B Valve-water,dual solenoid ,115 V ,w/nut
* 215290100 A B Screw-solenoid valve,hx hd-slot wshr, 12-24 x 3/4
143 218696700 A B Heater-water filter
CONTROLS

06/99 12
Publication No. FRS26ZSH
5995324331
SYSTEM

# = Fast-moving Parts 13 06/99
* = Non-Illustrated Parts
FRS26ZSH Publication No.
5995324331
A = FRS26ZSH (FRS26ZSHB0)
B = FRS26ZSH (FRS26ZSHW0)
POS. NO PART NO DESCRIPTION
1 218787900 A B Condenser
1* 5303208866 A B Spacer-cond tube,black
1* 5303289026 A B Spacer-tube
2 5303289029 A B Clip-cond mtg,(4)
3 218679603 A B Block-evap coil,styrofoam ,(2)
4 # 218541000 A B Drier-filter,R134a System
5 218646100 A B Harness-wiring,main
5* 215005200 A B Harness-wiring,refr controls
5* 218463600 A B Harness-wiring,crisper lights
5* 218646000 A B Harness-wiring,filter heater
5* 218815101 A B Harness-wiring,frzr controls
6 218925201 A B Harness-wiring,machine compt
7 215459201 A B Cord-electric power
8 218803400 A B Cover-wiring
8* 218754500 A B Screw,hex hd ser wshr ,#8-18 x 3/8
13 # 215006701 A B Heat Exchanger,suction line
14 # 218169802 A B Heater-defrost
15 # 218691301 A B Evaporator,R134a System
15* 3206414 A B Tube-inlet
16 5308000110 A B Strap-evap/heater,aluminum ,(2)
17 5303289496 A B Insulator-evap
19 218631200 A B Tube,rubber
21 # 5316269001 A B Thermostat-defrost
22 218811100 A B Base-compressor mtg,(drain pan)
23 218513300 A B Grommet-compr mtg,(4)
25 218773500 A B Screw-compressor mtg,hex washer hd, 10Bx11/4
29 # 218894802 A B Compressor,R134a ,w/o electricals
30 # 5304407494 A B Relay
31 # 5304407495 A B Overload Protector
33 218895701 A B Cover-terminal
41 5308000039 A B Screw,hex wshr hd ,8-32CA x 0.500, serrated head
43 215174700 A B Clamp-service cord, strain relief, galv steel
43 5303001199 A B Clamp-wiring harness, strain relief, galv steel
43* 5308000133 A B Clamp,nylon ,.75 OD tube
45 5303001343 A B Screw,hex wshr hd ,8-15A x .5 ,spec
45* 5300141713 A B Screw,hex wshr hd ,8-32 x .625 ,spec
49 215506900 A B Bracket-evap mtg
54 5303289027 A B Rail-cabinet base,rear
54* 215732700 A B Screw,pan head ,10-12A x 0.50
54A 5303289311 A B Rail-compr support
54B 5303289292 A B Rail-cabinet base,front
55 # 218909903 A B Capacitor-run,180 VAC ,20 microfarad, 11"wire leads
55* 218897001 A B Screw,hex washer head ,8-32 x 1/4
56 218769300 A B Insert-compressor mtg
57 218247300 A B Clip-wiring harness
58 215004600 A B Screw-cond fan mtr,hx serr wshr hd, 8-36 x 7/16,(2)
59 5303289031 A B Shroud-cond fan mtr
60 # 215501901 A B Motor-condenser fan
61 5303289032 A B Blade-cond fan
61* 215004700 A B Nut,speed
61* 215004800 A B Grommet-silencer
62 215048701 A B Trough-drain,w/shield assy & #17 insulator
64 5303289063 A B Tube-drain
65 5303289301 A B Spacer-tube
70 5303289041 A B Bracket-evap/cvr mtg
81 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625, low profile
* 5303917166 A B Hot Tube Repair Kit,Service
SYSTEM

06/99 14
Publication No. FRS26ZSH
5995324331

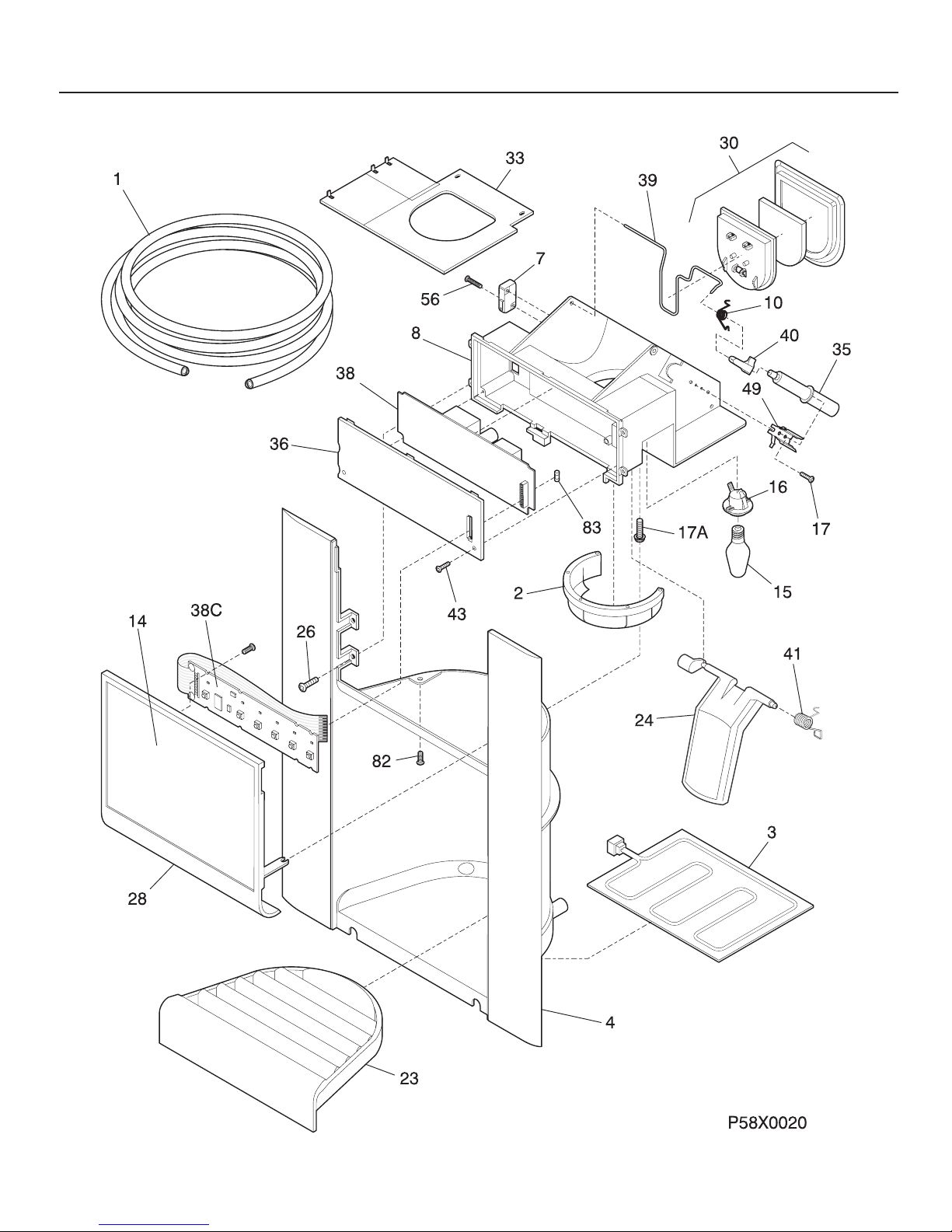

DISPENSER

# = Fast-moving Parts 15 06/99
* = Non-Illustrated Parts
FRS26ZSH Publication No.
5995324331
A = FRS26ZSH (FRS26ZSHB0)
B = FRS26ZSH (FRS26ZSHW0)
POS. NO PART NO DESCRIPTION
1 5318582501 A B Tube-water inlet, 93", plastic, cut-to-size
1* 215294101 A B Tube-water inlet, formed, plastic, dispenser
1* 218832301 A B Tube-water inlet,inlet valve ,to filter
1* 218859901 A B Tube-water inlet,inlet valve ,to filter
2 218505303 A - Deflector-ice disp,black
2 218505301 - B Deflector-ice disp,white
3 # 215484300 A B Heater-door housing
4 218852403 A - Housing-dispenser,black
4 218852401 - B Housing-dispenser,white
7 218284800 A B Switch-actuator,micro
8 218874901 A B Module-dispenser
10 218209800 A B Spring,dispenser door
14 218903715 A - Label-module cover,black
14 218903713 - B Label-module cover,white
15 218284900 A B Light Bulb/Lamp,4 W ,115 V
16 215284900 A B Socket-light/lamp
17 215794400 A B Screw,#6 x 1/4
17A 215840700 A B Screw,truss head ,6-20 x 3/8
17A* 215923400 A B Washer-flat
23 5303299660 A - Drip Tray,black
23 5303297844 - B Drip Tray,white
24 218921303 A - Actuator-dispenser,black
24 218921301 - B Actuator,white
26 215503200 A B Screw,cr pan hd ,10-16 x 0.500, spec/hi-lo
28 218891403 A - Cover-selector,black
28 218891401 - B Cover-selector,white
30 215753600 A B Door Assy-ice chute,w/gasket,insul
33 218870201 A B Heater-disp throat
35 218740004 A B Heat Motor,115 V
36 218891301 A B Cover-module
38 # 218906601 A B PC Board-power
38C 218881801 A B PC Board-control
39 218284600 A B Wire-ice door
40 218284500 A B Yoke-heat motor
41 215917800 A B Spring-actuator
43 215760300 A B Screw,#4 x 3/8
43 5303001083 A B Screw,tw hx cr pan hd ,8-16 x 0.500
49 215794000 A B Bracket-heat motor
56 218434300 A B Screw-micro switch, pan head, 4-24 x 9/16
82 215296300 A B Screw,plask h/l ,#6 x 3/8
83 5304412136 A B Fuse,7A ,125v
DISPENSER

06/99 16
Publication No. FRS26ZSH
5995324331
ICE CONTAINER

# = Fast-moving Parts 17 06/99
* = Non-Illustrated Parts
FRS26ZSH Publication No.
5995324331
A = FRS26ZSH (FRS26ZSHB0)
B = FRS26ZSH (FRS26ZSHW0)
POS. NO PART NO DESCRIPTION
2 5304404344 A B Auger-ice
3 5304404343 A B Cam-drive
4 218815300 A B Container-ice
6 5304404346 A B Drum-ice disp
7 218815400 A B Front-ice container
10 5304404337 A B Bar-drive
13 5304404359 A B Gate
15 5303001179 A B Light Bulb/Lamp,40 W
16 5303289050 A B Socket-light/lamp
17 5304404345 A B Drive Blade
18 # 5304404330 A B Motor-auger
18* 5304404335 A B Harness-wiring,auger motor
20 5304404332 A B Cover-motor
21 215285100 A B Nut-drive
23 5304404347 A B Plate-front
25 5304404362 A B Screw
26 215503200 A B Screw,cr pan hd ,10-16 x 0.500, spec/hi-lo
33 5304404351 A B Spacer
34 5304404349 A B Spacer
35A 5304404353 A B Fixed Blade,round
35B 5304404352 A B Fixed Blade,square
37A 5304404348 A B Blade-crusher,#1
37B 5304404350 A B Blade-crusher,#2
37C 5304404356 A B Blade-crusher,#3
39 5304404365 A B Screw
41 5304404358 A B Housing-crusher
44 218359200 A B Screw,pan head ,8-32 x .25
45# 5304404333 A B Solenoid Assy
45A 5304406816 A B Spring-solenoid
45B 5304406817 A B E-Ring-solenoid
45C 5304406818 A B Actuator-solenoid
45D 5304406819 A B Solenoid
46 5304404341 A B Control Rod
47 5304404342 A B Spring-control rod
48 5304404340 A B Bracket-control rod
48* 5304404364 A B Screw-bracket
49 5304404329 A B Rail Assy
50 5304404334 A B Guide-solenoid
51 5304404336 A B Rotation Stop
52 5304404354 A B Spacer-fixed blades
53 5304404355 A B Pin-spiral,fixed blades
54 5304404357 A B Nut-auger
55 5304404360 A B Washer
56 5304404361 A B E-ring
57 5304404363 A B Door-access
58 5304404331 A B Screw-solenoid
* 215781700 A B Clip-tube
* 218842802 A B Ice Container Assy
ICE CONTAINER

06/99 18
Publication No. FRS26ZSH
5995324331

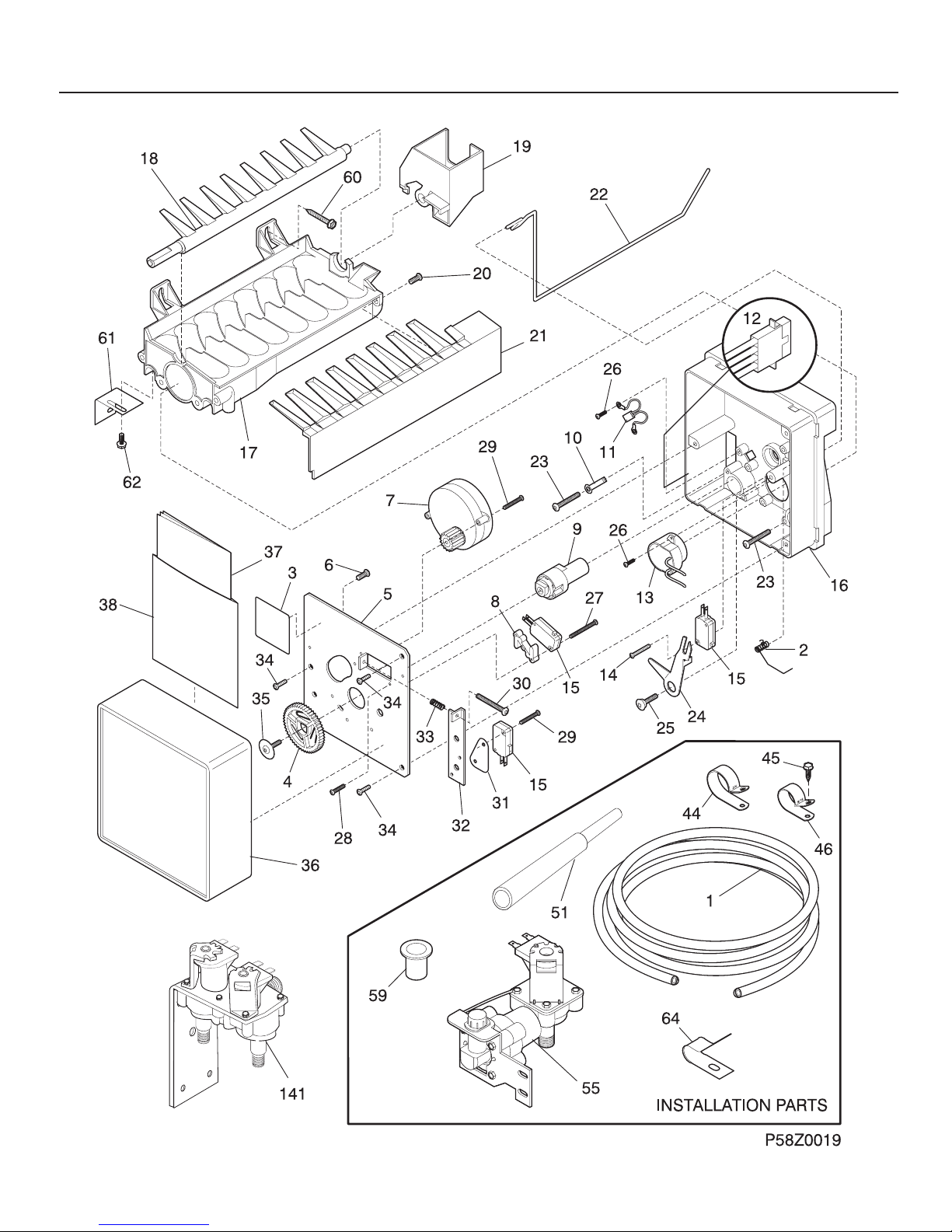

ICE MAKER

# = Fast-moving Parts 19 06/99
* = Non-Illustrated Parts
FRS26ZSH Publication No.
5995324331
A = FRS26ZSH (FRS26ZSHB0)
B = FRS26ZSH (FRS26ZSHW0)
POS. NO PART NO DESCRIPTION
1 5318582501 A B Tube-water inlet, 93", plastic, cut-to-size
1* 215294101 A B Tube-water inlet, formed, plastic, dispenser
1* 218832301 A B Tube-water inlet,inlet valve ,to filter
1* 218859901 A B Tube-water inlet,inlet valve ,to filter
2 3206348 A B Spring,shut-off arm
3 3206299 A B Plate-I.D.
4 3206301 A B Gear
5 3206303 A B Plate-mounting
6 3206305 A B Screw-ground wire,8-32 x 1/4
7 # 3206306 A B Motor-ice maker
8 3206312 A B Spacer-holding sw
9 3206313 A B Cam
10 3206315 A B Clamp
11 # 3206319 A B Thermal Cutoff,icemaker ,complete assy
12 3206321 A B Connector Plug,wiring harness
12 # 3206349 A B Harness-wiring,IM internal ,with plug
13 # 3206322 A B Thermostat Assy,ice maker
14 3206323 A B Screw-switch mtg,4-24 x ¾, sw to support,(2)
15 # 3206324 A B Switch,(3)
16 3206326 A B Support
17 # 5303320545 A B Mold-ice maker,radius cube ,with heater
18 3206328 A B Ejector
19 3206330 A B Bearing & Inlet
20 3206331 A B Screw,8-18 x 0.375 ,(2)
21 3206332 A B Ice Stripper
22 3206333 A B Arm,shut-off
23 3206334 A B Screw-sup/mold body,8-18 x 1 ,(4)
24 3206335 A B Lever-arm
25 3206336 A B Screw-arm levr/sprt,8-18 x 9/16
26 3206337 A B Screw-thermo/sprt,4-24 x 3/8 ,(4)
27 3206338 A B Screw-sw&spcr/plate,4-40 x 1
28 3206339 A B Screw-timing stop,4-40 x 3/8
29 3206340 A B Screw-mtr & sw/plate,4-40 x 3/4
30 3206341 A B Screw-timing,8-32 x 1
31 3206342 A B Insulator
32 3206343 A B Plate-valve switch
33 3206344 A B Spring
34 3206345 A B Screw-mtg plate/sprt,8-18 x 7/16
35 3206346 A B Screw-gear/cam,6-20 x 0.437
36 3206347 A B Cover-ice maker,complete
37 5303320544 A B Data Sheet,ice maker
38 5303207445 A B Envelope-data sheet
44 5308000133 A B Clamp,nylon ,.75 OD tube
45 5303001343 A B Screw,hex wshr hd ,8-15A x .5 ,spec
46 5303001193 A B Clamp-inlet tube,metal
51 215811600 A B Tube-fill
55# 218859701 A B Valve-water,single solenoid ,115 V, w/nut
55* 218873001 A B Cap-water valve
59 5303001191 A B Sleeve-tube insert
60 5303207328 A B Screw,hex wshr hd ,8-15A x 1
61 218721500 A B Bracket-leveling,ice maker
62 218737900 A B Screw-IM brkt mtg,hex hd ,#8-32 x 3/8
64 5303001549 A B Clamp-copper tube,steel
141 218832401 A B Valve-water,dual solenoid ,115 V ,w/nut
* 218699501 A B Icemaker,*
* 215290100 A B Screw-solenoid valve,hx hd-slot wshr, 12-24 x 3/4
ICE MAKER

06/99 20
Publication No. FRS26ZSH
5995324331
WIRING SCHEMATIC
