Frigidaire FRS6L7G Instruction Manual

N58L00002.eps N58FFDBBB1.eps N58RFDAAB2.eps N58BAAAAB3.eps
N58SKBCBD12.eps N58TCAAAB4.eps N58CAAAAA10.eps N58XBAAAB1.eps
N58YAAAAA4.eps N58I1151.eps W241725001.eps S241725001.eps
Product No. FRS6LF7GS0 FRS6LF7GS1
Series 134A 134A
Color stain/blk stain/blk
Volts 115 115
Wiring Diagram 241725001 241725001
Owner's Guide 241812900 241812901
Market North America North America
Energy Guide 241768172 241768172
Service Data Sheet 240389633 240389633
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995491809
07/05/30
(EN/SERVICE/KHB)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS6L7G
Copyright ©All rights reserved.

Publication No: 5995491809 FRS6L7G
05/07 2
FREEZER DOOR
22C
11
1
4A
68
4B
4B
13A
22A
21A
N58FFDBBB1
18
79
79 80
80

FRS6L7G Publication No: 5995491809
# Functional Parts 3 05/07
* Non-Illustrated Parts
FREEZER DOOR
Model Index: AFRS6LF7G (FRS6LF7GS0)
BFRS6LF7G (FRS6LF7GS1)
POS. NO PART NO. DESCRIPTION
1 # 241674806 A B Gasket-frzr door, black, magnetic
4A 240334201 A B Bin-door, frzr-upper
4B 240351601 A B Bin-door
11 241615160 A B Door, frzr, stainless steel, RH
13A 240581906 A B Door Stop, black, frzr
18 240536818 A B Handle-door, stainless steel, with insert, & set screw
18* 241601001 A B Wrench, allen
21A 240598402 A B Screw, 10-32 x 1/2
22A 240328204 A B Bearing-hinge(frz), black, closer
22C 240328404 A B Bearing-hinge, black, upper
68 241525101 A B Chute-ice
79 218755402 A B Screw-set, 10-32 x 0.375
80 218755504 A B Screw-shoulder, #10 AB, handle mounting
* 240552102 A B Harness-wiring, door
* 241806601 A B Connector-water, straight
* 5303918256 A B Dispenser heater kit

Publication No: 5995491809 FRS6L7G
05/07 4

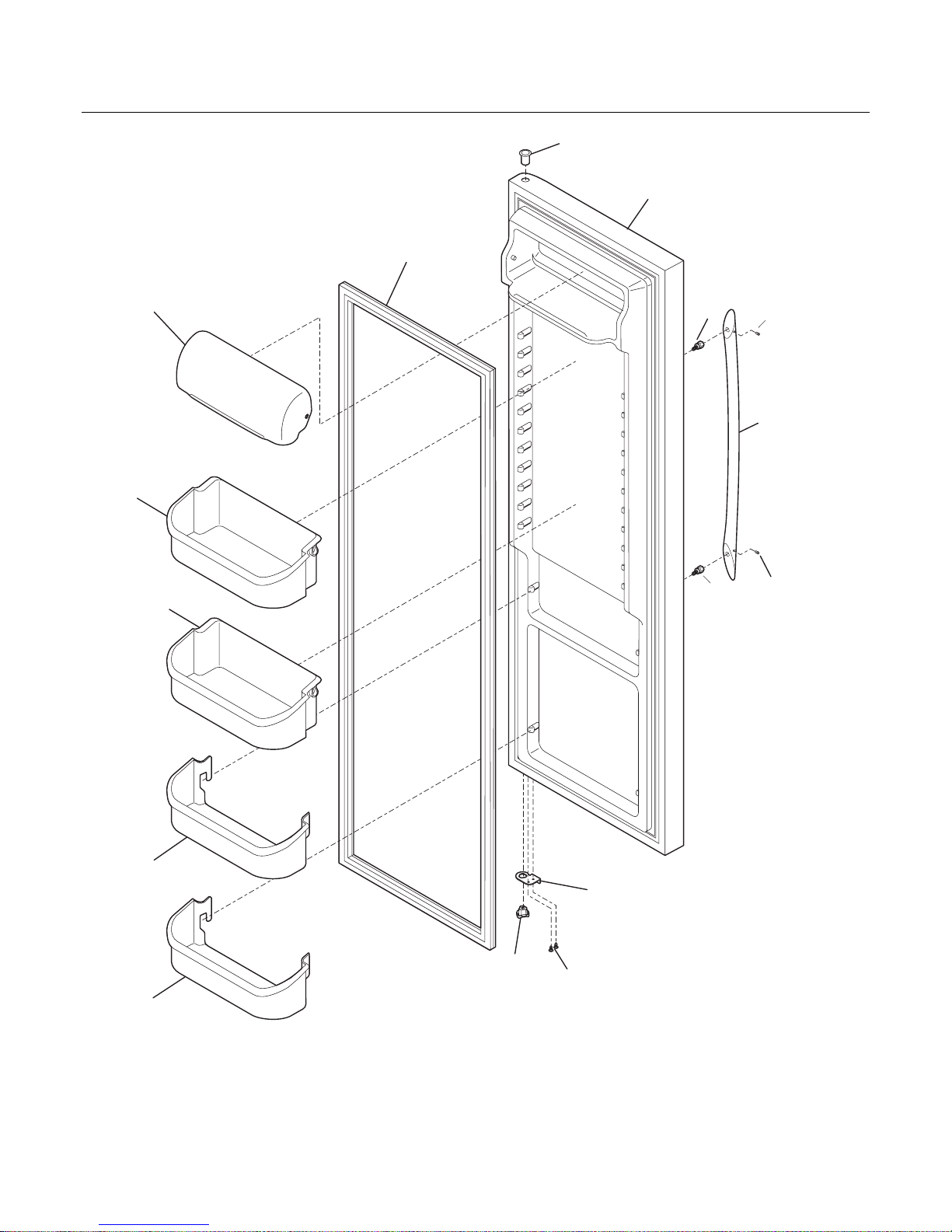

REFRIGERATOR DOOR
21A
22
13
15
22B
2
7
49
49
4
4
N58RFDAAB2
18
79
79
80
80

FRS6L7G Publication No: 5995491809
# Functional Parts 5 05/07
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AFRS6LF7G (FRS6LF7GS0)
BFRS6LF7G (FRS6LF7GS1)
POS. NO PART NO. DESCRIPTION
2 # 241674805 A B Gasket-refr door, black, magnetic
4 240323002 A B Bin-door, pseudo, bottom
7 240326203 A B Door-dairy
13 240581905 A B Door Stop, black, ref
15 241629333 A B Door-refr, stainless, complete assy
18 240536818 A B Handle-door, stainless steel, with insert, & set screw
18* 241601001 A B Wrench, allen
21A 240598402 A B Screw, 10-32 x 1/2
22 240328203 A B Bearing-hinge, black, closer
22B 240328404 A B Bearing-hinge, black, upper
49 240356402 A B Bin-door, gallon
79 218755402 A B Screw-set, 10-32 x 0.375
80 218755504 A B Screw-shoulder, #10 AB, handle mounting

Publication No: 5995491809 FRS6L7G
05/07 6
CABINET
58
58
40 66
40
92
92
38
38
37
37
14A
14
91
41
100
89
83
82
43
21C
21C
28
42
42
23
22
23
22
30A
30
72
10A
N58BAAAAB3
10
90
11
45
45
81
81
81
47

FRS6L7G Publication No: 5995491809
# Functional Parts 7 05/07
* Non-Illustrated Parts
CABINET
Model Index: AFRS6LF7G (FRS6LF7GS0)
BFRS6LF7G (FRS6LF7GS1)
POS. NO PART NO. DESCRIPTION
10 240435912 A B Cover-air duct
10A 240475911 A B Cover-evap coil, lower
11 5303208309 A B Plug-hole, factory test
14 240505801 A B Switch, light/lamp
14A 241547901 A B Switch-light/lamp, frzr door
21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 A B Plate-door closer
23 240402702 A B Screw-#10-32 x 1/4 flat hd
28 240335502 A - Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
28 241708801 - B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 A B Bracket-lower hinge, ref
30A 241603704 A B Bracket-lower hinge
37 240337610 A B Trim-cabinet corner, black, (2)
38 240327207 A B Bracket-upper hinge
40 240327007 A B Cover-upper hinge, black
41 241550801 A B Grommet-shelf mtg, 1.40" long
41* 241550701 A B Grommet-shelf mtg, .96" long
42 240578902 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335005 A - Roller Assy, adjustable, front, (2)
43 241709301 - B Roller Assy, adjustable, front, (2)
45 241500303 A B Screw, hex washer head, 8-18AB x 0.500
47 240349402 A B Channel-shelf mtg, side, (2)
58 218781101 A B Screw, pan head, 8-18 x 0.625
66 5304424968 A B Damper Cover Assy
66* 240518802 A B Pin-push, push-in, plastic
72 240324411 A B Grille/Kickplate, black
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B Roller, compressor base, rear, (2)
83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733902 A B Cover-access, w/label
90 218249808 A B Seal-coil cover
91 240380101 A B Duct-ice maker
92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B Support, crisper cover, front, (4)
100* 240350802 A B Support, crisper cover, rear, (4)
* 240396801 A B Clamp, tube/wiring, nylon, black/natural
* 240479601 A B Plug, button, cab liner holes
* 5303321321 A B Paint, touch-up, black

Publication No: 5995491809 FRS6L7G
05/07 8

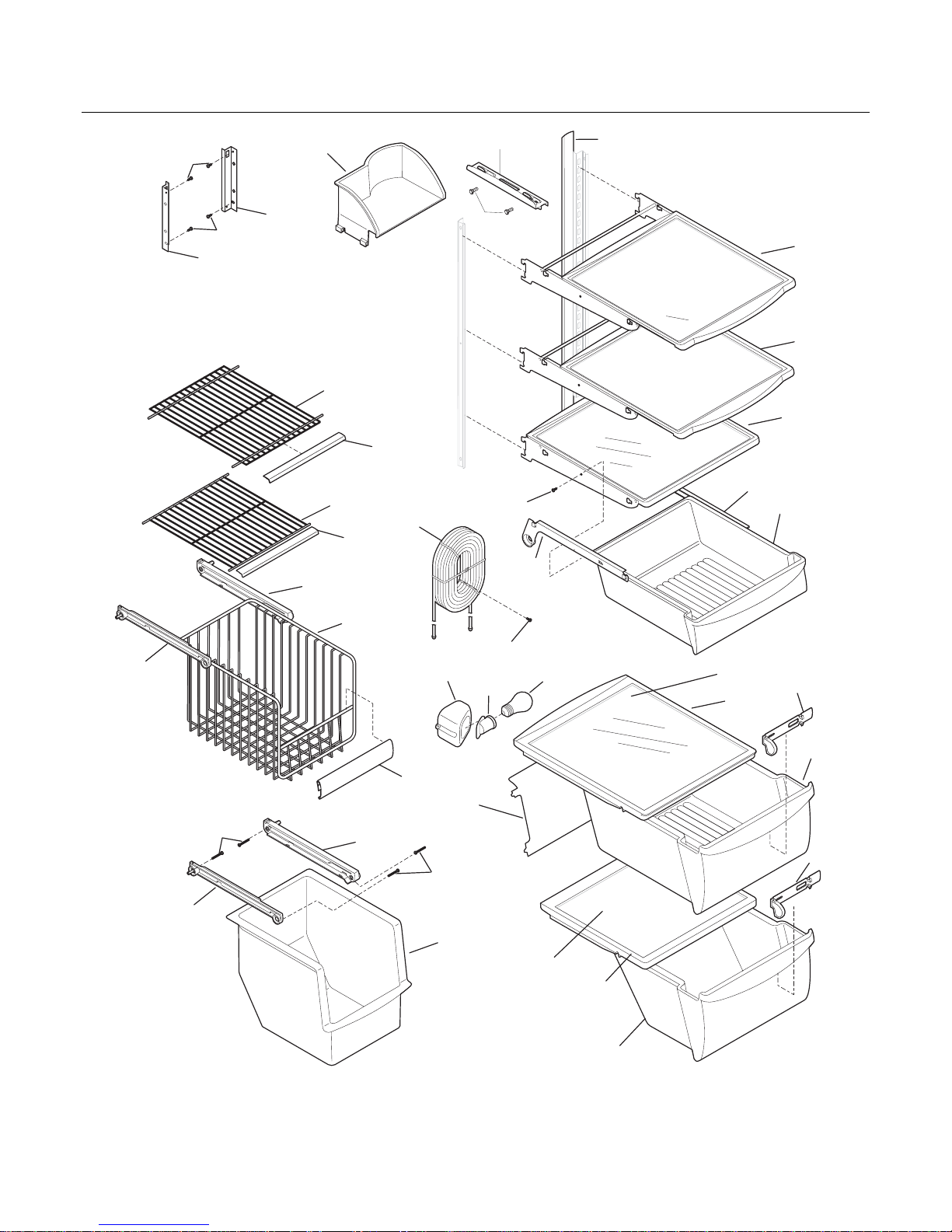

SHELVES
24B
126
81
81
126
52
51
49B
2
97
51
52
101
101
49
N58SKBCBD12
100
25A
27
47A
21
25
26
47
26A
26A
42A
62
123
42
24B
24
140
120
81
11C
11A
39A
39
11
109
16A
15A

FRS6L7G Publication No: 5995491809
# Functional Parts 9 05/07
* Non-Illustrated Parts
SHELVES
Model Index: AFRS6LF7G (FRS6LF7GS0)
BFRS6LF7G (FRS6LF7GS1)
POS. NO PART NO. DESCRIPTION
2 241510604 A B Trim-basket
11 241657602 A B Shelf, flip up, wire
11A 241657504 A B Shelf, fixed, upper, freezer
11C 240324101 A B Shelf-pizza
15A 241555401 A B Light Bulb
16A 241513901 A B Socket-light
16A* 241537603 A B Harness-wiring
21 5304455658 A B Screw, hx wshr hd sems, 8-15A x 0.625, 21
24 240355207 A B Shelf-"Spill-Safe", cantilever, half width, fixed
24B 240350108 A B Shelf-"Spill-Safe", cantilever, sliding
25 240350702 A B Cover-crisper pan, upper
25* 240362101 A B Clip-slide, cover-crisper
25A 240350902 A B Cover-crisper pan, lower
26 240351005 A B Pan-crisper, upper
26* 240349801 A B Clip-slide, pan-crisper
26* 241595202 A B Clip-slide, pan-crisper
26A 240362201 A B Control-humidity
27 240351205 A B Pan-crisper, lower
39 240430706 A B Trim-shelf, 11.21", front
39A 240430702 A B Trim-shelf, 12.39", front
42 240356501 A B Track, meat pan hanger, RH
42A 240349701 A B Hanger-meat pan, LH
42A* 240349901 A B Block-meat pan rail, LH
42A* 240350001 A B Spring-meat pan rail
42A* 240356702 A B Seal-meat pan
47 240350633 A B Insert-pan cover, glass
47A 240350603 A B Insert-pan cover, glass
49 240564401 A B Basket-sliding
49B 240530504 A B Basket-sliding, upper, full
51 240343002 A B Hanger-basket, RH
52 240343102 A B Hanger-basket, LH
62 240342805 A B Pan-meat
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
97 240545303 A B Water Tank Assy, coiled tubing, front filter
100 240326304 A B Cover-water tank
101 218493101 A B Screw, hex washer head, 8-18AB x 1-3/4
109 240351301 A B Base-crisper light socket
120 240342901 A B Shelf-ice cream
123 215005101 A B Screw, hanger/rlr mtg, 8-10 x 7/16
126 241674401 A B Channel, auger mtg, LH
126 241674402 A B Channel, auger mtg, RH
140 240430501 A B Channel, wtr tube cover
* 241768172 A B Energy Guide

Publication No: 5995491809 FRS6L7G
05/07 10
CONTROLS
149
14
13
9
8
5
139
138
198
199
137
200
151
150
21
21A
23
115
53
81
101
15
16
20
N58TCAAAB4
81
81
17
81

FRS6L7G Publication No: 5995491809
# Functional Parts 11 05/07
* Non-Illustrated Parts
CONTROLS
Model Index: AFRS6LF7G (FRS6LF7GS0)
BFRS6LF7G (FRS6LF7GS1)
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B Fan Blade, red, evaporator fan
8 215474201 A B Washer, "slinger", nylon, evap fan shaft
9 241563601 A B Bushing-motor mtg, (2)
13 240369702 A B Motor-evap fan
14 241517701 A B Clip, evap fan motor
15 241555401 A B Light Bulb
16 # 241513901 A B Socket-light
17 241608801 A B Box-control, front
17* 241663601 A - Harness-wiring, control box
17*# 241737801 - B Harness-wiring, control box
20 241603918 A B Label-control box
21 241608401 A B Thermistor-refr
21A 241608501 A B Thermistor-frzr
23 # 5304452072 A - Control, board assy
23 # 241739704 - B Control, electronic, w/housing
23* 5304455649 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
53 241608901 A B Box-control
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
101 241637202 A B Screw, #8AB x 1 3/4"
115 241600902 A - Damper Assy, w/seal
115 241600905 - B Damper Assy, w/seal
137 240396401 A B Filter, water, carbon cassette, front, with o'rings
137* 240396701 A B Bypass, water filter, Optional Part
138 240397301 A B Button-filter release
139 240396002 A B Base-water filter
139* 240526901 A B O-ring, wtr filter base
149 241563501 A B Shroud-fan orfice
149* 241528306 A B Seal, shroud
150 241505101 A B Insulation-water tube cover
151 241505001 A B Cover-water tube
198 240397401 A B Retainer
199 240397501 A B Rod
199* 240398401 A B Spring-filter release rod
200 240397601 A B Light Pipe
* 3205266 A B Edge Protector, wiring harness

Publication No: 5995491809 FRS6L7G
05/07 12
SYSTEM
N58CAAAAA10
62
70
45
45
1
34
34
83
44
41
82
83
82
22
23
23
30
32
55
4
25
6
25
29
26
45
16
15
14
3
57
84
85
21
60
59
61
58

FRS6L7G Publication No: 5995491809
# Functional Parts 13 05/07
* Non-Illustrated Parts
SYSTEM
Model Index: AFRS6LF7G (FRS6LF7GS0)
BFRS6LF7G (FRS6LF7GS1)
POS. NO PART NO. DESCRIPTION
1 240333603 A B Condenser
3 218679607 A B Block-evap coil, styrofoam, (2)
4 # 218944001 A B Drier-filter, R134a System
6 241586801 A B Harness-wiring, machine compt
6* 241651601 A B Harness-wiring
6* # 241737801 A B Harness-wiring, control box
14 # 240316107 A B Heater-defrost
15 # 5303918284 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater, aluminum, (2)
21 # 5303918214 A B Thermostat-defrost, kit
22 240330011 A B Base-compressor mtg
22* 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500
23 241659701 A B Grommet, compressor
25 240491503 A B Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697601 A B Pan-defrost
29 # 5303918329 A B Compressor, kit, w/electricals
30 # 241707701 A B Starter, PTC
32 241650901 A B Clamp, elec cont mtg, compressor
34 240405201 A B Grommet, rubber, black, cond tube/wire
41 240555002 A B Screw-#8-32 X 3/8
44 215174700 A B Clamp-service cord, strain relief, galv steel
45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 A B Capacitor, run, 220 VAC, 15 microfarad
57 240542601 A B Clip-wiring harness
58 218897004 A B Screw, hex washer head, 8-32 x 0.375
59 5304430246 A B Bracket-cond motor assy
59* 240346701 A B Tape-foam seal, shroud
59* 240359403 A B Screw-fan shroud, (2)
60 # 240525402 A B Motor, condensor fan
61 # 240524101 A B Fan Blade, galv steel, condenser fan
62 240429402 A B Trough-drain
70 218990801 A B Bracket-evap/cvr mtg
82 5304418225 A B Roller, compressor base, rear, (2)
83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B Tube-drain, lower
85 241719501 A B Tube-connector, suction
* # 5303918328 A B Heat Exchanger Kit, suction line, service
* 5303918222 A B Hot Tube Repair Kit, service

Publication No: 5995491809 FRS6L7G
05/07 14

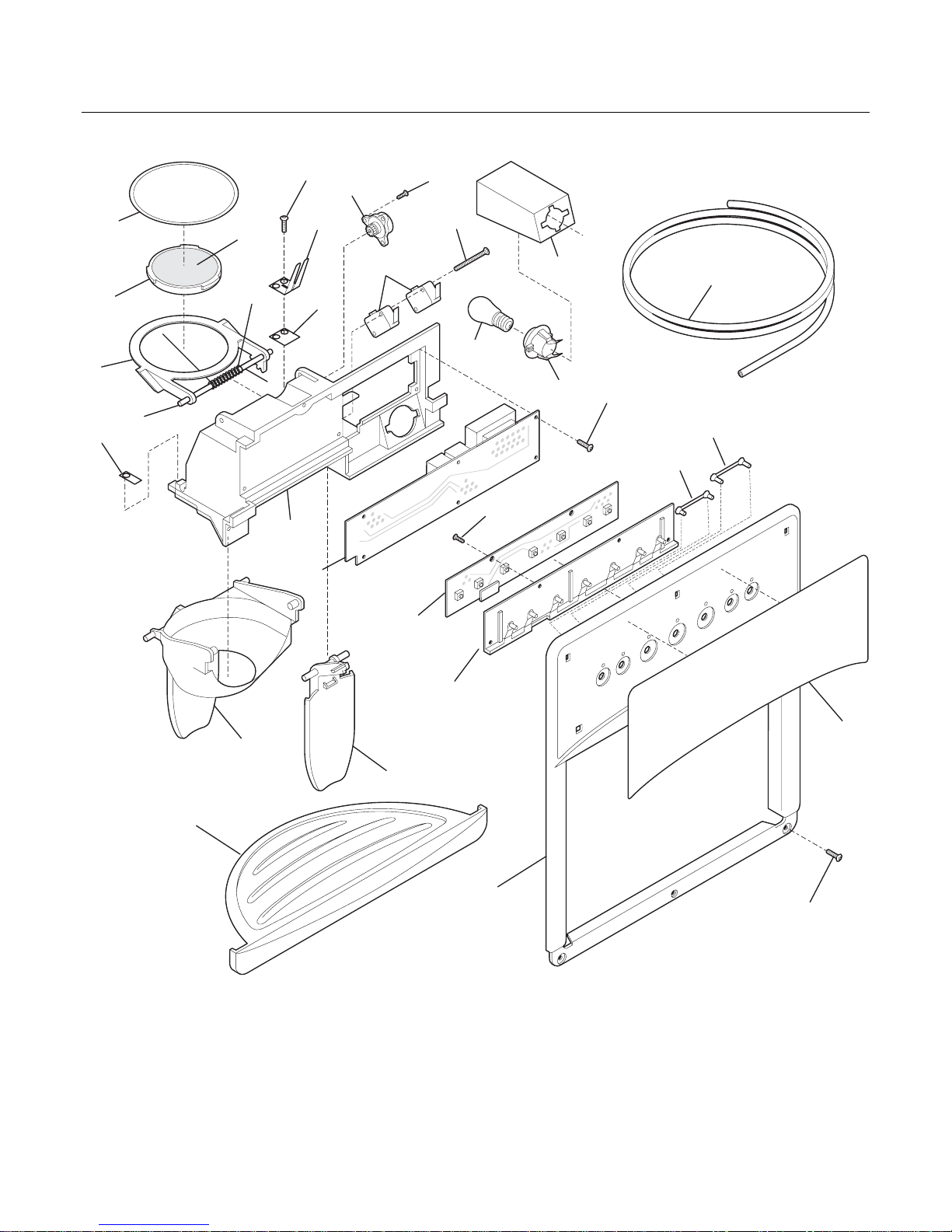

ICE & WATER DISPENSER
N58XBAAAB1
43
41
87
87A
35 17
56
38A 88
15
16 17
8
38
38C
1
17
24
24A
23
82
4
14
30
30A
30B
30C
39
10
90
91
36

FRS6L7G Publication No: 5995491809
# Functional Parts 15 05/07
* Non-Illustrated Parts
ICE & WATER DISPENSER
Model Index: AFRS6LF7G (FRS6LF7GS0)
BFRS6LF7G (FRS6LF7GS1)
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube, water, door
1* 218976901 A B Tube, water inlet, valve to IM
1* 218976903 A B Tube-water inlet, inlet valve, to filter
1* 218976907 A B Tube-water inlet, valve to door
1* 240561701 A B Seal-water inlet, inlet valve, to ice maker
4 241678703 A B Cover-module, black
8 241680507 A B Module-dispenser
10 241688901 A B Spring-torsion
14 240323998 A B Label-module cover, black
15 241689401 A B Light Bulb
16 240548901 A B Socket-light
17 241679801 A B Screw
23 241649003 A B Drip Tray, black
24 241682003 A B Actuator-water, black
24A 241681903 A B Actuator-ice, black
30 241688401 A B Door Assy-ice chute
30A 241688501 A B Door center
30B 241688601 A B Insulation-door
30C 241688701 A B Door seal
35 241689301 A B Damper-rotary
36 241680301 A B Carrier
38 # 241708202 A B Board-power
38A# 241689101 A B Switch-micro, single pole, double throw
38C# 241708309 A B Board-control
38C* 241680001 A B Harness-ribbon cable
39 241688801 A B Pin-hinge
41 241689001 A B Spring-actuator
43 215296301 A B Screw, plask h/l, #6 x 3/8
56 241689201 A B Screw-micro switch, pan head
82 240363402 A B Screw-#8-18 X 1/2, #6 hd plask
87 241688302 A B Bearing Plate
87A 241688301 A B Bearing Plate
88 241686101 A B Shield-light
90 241680201 A B Light Pipe, reflector, long
91 241680101 A B Light Pipe, reflector, short
* 218515403 A B Clip-grille
* 241686201 A B Insulator-electrical
* 5303918256 A B Dispenser heater kit

Publication No: 5995491809 FRS6L7G
05/07 16
ICE CONTAINER
45 4
45A
48
47
39
46
45B
45C
45D
50
18 20
15
16
44
44
44
51
26
26
26
26
10
26
43
43
43
49 7
N58YAAAAA4
3
2
23
39
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25

FRS6L7G Publication No: 5995491809
# Functional Parts 17 05/07
* Non-Illustrated Parts
ICE CONTAINER
Model Index: AFRS6LF7G (FRS6LF7GS0)
BFRS6LF7G (FRS6LF7GS1)
POS. NO PART NO. DESCRIPTION
2 241716101 A B Auger-ice
3 241685201 A B Cam-drive
4 241734001 A B Container-ice, bucket only
6 241685101 A B Drum-ice disp
7 241735301 A B Front-ice container
10 241624801 A B Bar-drive
13 241685301 A B Gate
15 241555401 A B Light Bulb
16 241559801 A B Socket-light
17 241684501 A B Drive Blade
18 # 241676202 A B Motor-auger, 115V
18* 240352602 A B Harness-wiring, icmkr/container
20 241734802 A B Cover-motor
23 241684001 A B Plate-front
25 241690701 A B Screw, hex washer head, 8-32T x 0.375
26 215503205 A B Screw, cr pan hd, 10-16 x 0.500
33 241684801 A B Spacer
34 241689801 A B Spacer
35A 241684301 A B Fixed Blade, round
35B 241684201 A B Fixed Blade, square
37A 241684101 A B Blade, crusher #1
37B 241684102 A B Blade, crusher #2
37C 241684103 A B Blade, crusher #3
39 241690501 A B Screw
41 241685601 A B Housing-crusher
43 215005101 A B Screw, hanger/rlr mtg, 8-10 x 7/16
44 218359202 A B Screw, pan head, 8-32 x 0.250
45 # 241675701 A B Solenoid Assy, 115V
45A 241675901 A B Spring-solenoid
45B 241676001 A B E-Ring-solenoid
45C 241676101 A B Actuator-solenoid
45D# 241675801 A B Solenoid, 115V
46 241716002 A B Control Rod
47 241731801 A B Spring-control rod
48 241684602 A B Bracket-control rod
49 241734501 A B Rail Assy
50 241675601 A B Guide-solenoid
51 241676301 A B Rotation Stop
52 241684901 A B Spacer-fixed blades
53 241690402 A B Pin-spiral, fixed blades
54 241685001 A B Nut-auger
55 241690301 A B Washer
56 241690201 A B E-ring
* 240323811 A B Ice Container Assy, w/moving parts

Publication No: 5995491809 FRS6L7G
05/07 18

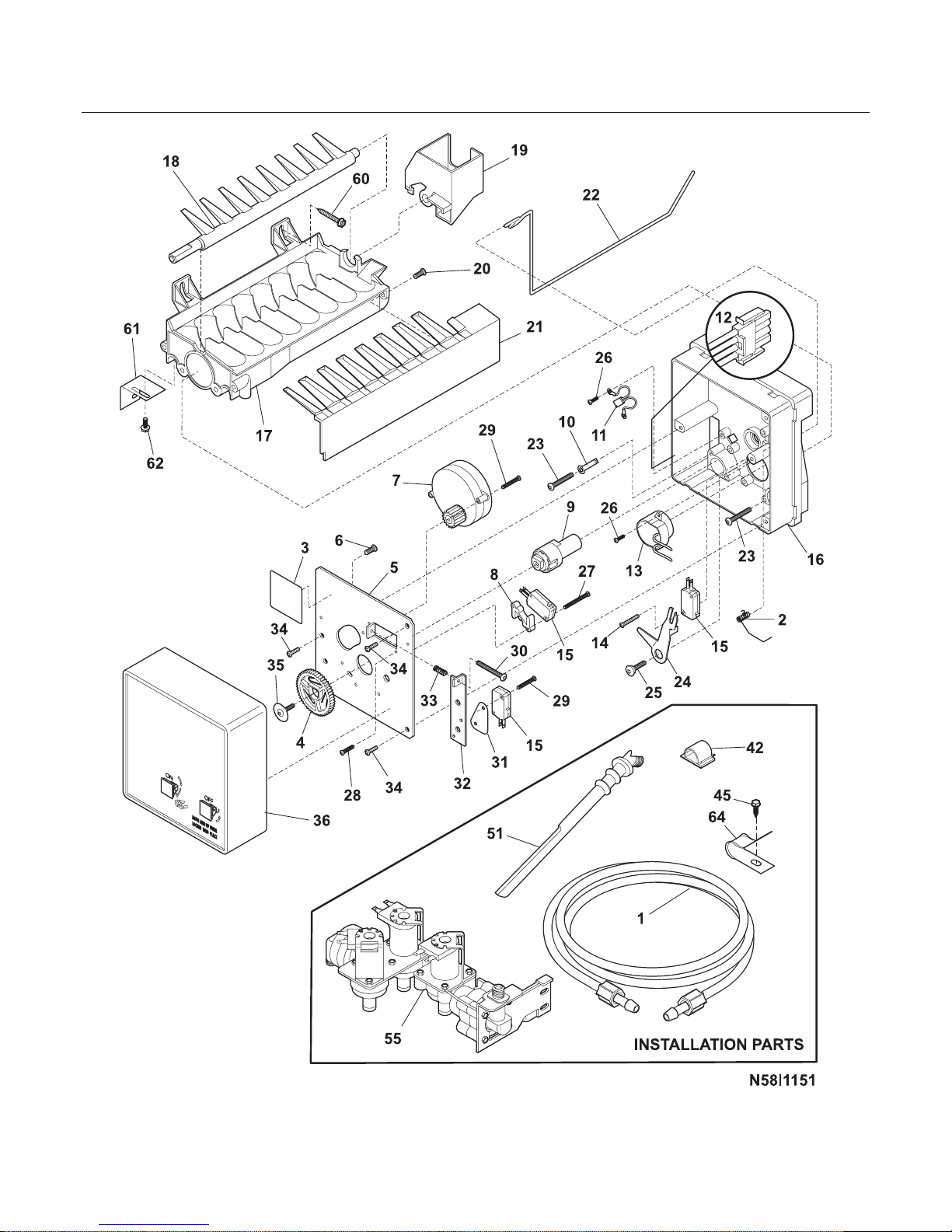

ICE MAKER

FRS6L7G Publication No: 5995491809
# Functional Parts 19 05/07
* Non-Illustrated Parts
ICE MAKER
Model Index: AFRS6LF7G (FRS6LF7GS0)
BFRS6LF7G (FRS6LF7GS1)
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube, water, door
1* 218976901 A B Tube, water inlet, valve to IM
1* 218976903 A B Tube-water inlet, inlet valve, to filter
1* 218976907 A B Tube-water inlet, valve to door
1* 240561701 A B Seal-water inlet, inlet valve, to ice maker
2 5304456650 A B Spring-shutoff arm, ICE MAKER
3 5304456657 A B Nameplate
4 5304456658 A B Gear
5 5304456659 A B Plate-mounting
6 5304456691 A B Screw, M 3x20 #3, valve plate
7 # 5304445222 A B Motor-ice maker Svo
7* 5304445223 A B Spring Beam
8 5304456661 A B Spacer-hold switch
9 5304456662 A B Cam
10 5304456689 A B Retainer
11 # 5304456663 A B Thermal Cutoff, ICE MAKER
12 5304456664 A B Harness-wiring
13 5304456665 A B Thermostat, ICE MAKER
14 5304455676 A B Screw, plask, 4x14x3/4
15 # 5304456667 A B Switch-micro, (3)
16 5304456668 A B Support
17 5304456669 A B Mold-ice maker, w/therm cut off
18 5304456670 A B Ejector-ice
18* 240352602 A B Harness-wiring, icmkr/container
19 5304456671 A B Bearing & Inlet, fill cup
20 5304455677 A B Screw, 8-32 x 3/8
21 5304456672 A B Ice Stripper
22 5304456673 A B Shut-off Arm
23 5304456674 A B Screw, M 4x25 #2, mold-to-support, (2)
24 5304456675 A B Lever Arm
25 5304456676 A B Screw, M 4x12.8 #2, lever arm/sprt
26 5304455680 A B Screw, plask, 4-14 x 3/8
27 5304456677 A B Screw, M 3x25 #3, hold switch mtg, (2)
28 5304456660 A B Screw, M 4x6 #2
29 5304456678 A B Screw, M 3x12 #3, (2)
30 5304456679 A B Screw-timing adj, M 4x25 #3
31 5304456680 A B Insulator
32 5304456681 A B Plate-valve switch
33 5304456682 A B Spring, shut-off arm
34 5304456683 A B Screw, M 4x12 #2, (3)
35 5304456684 A B Screw
36 5304456685 A B Cover-ice maker
36* 5304456690 A B Label, on/off
42 218515403 A B Clip-grille
45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
51 241796401 A B Tube-water fill, extension
55 # 240531101 A B Valve-water, triple solenoid
55* 218709101 A B Screw, hex head, 10-32 x 0.500
55* 240363602 A B Screw-shoulder

Publication No: 5995491809 FRS6L7G
05/07 20
ICE MAKER
