Frigidaire FRT21FR6A User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRT21FR6AB0 FRT21FR6A R134a black 115
FRT21FR6AB1 FRT21FR6A R134a black 115
FRT21FR6AQ0 FRT21FR6A R134a bisque 115
FRT21FR6AQ1 FRT21FR6A R134a bisque 115
FRT21FR6AW0 FRT21FR6A R134a white 115
FRT21FR6AW1 FRT21FR6A R134a white 115
MARKET
North America
Publication No.
5995352845
010424
-EN/SERVICE/KHB
357
TOP MOUNT
REFRIGERATOR
Model No.
FRT21FR6A
©2001 White Consolidated Industries, Inc.
All rights reserved
FACTORY
PARTS CATALOG
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. Box 212378, Augusta, GA 30917
WIRING DIAGRAM - # 240398801
OWNER’S GUIDE - # 240400102
SERVICE DATA SHEET - # 240379005

04/01 2
Publication No. FRT21FR6A
5995352845
DOOR

# = Fast-moving Parts 3 04/01
* = Non-Illustrated Parts
FRT21FR6A Publication No.
5995352845
A = FRT21FR6A (FRT21FR6AB0)
B = FRT21FR6A (FRT21FR6AB1)
C = FRT21FR6A (FRT21FR6AQ0)
D = FRT21FR6A (FRT21FR6AQ1)
E = FRT21FR6A (FRT21FR6AW0)
F = FRT21FR6A (FRT21FR6AW1)
POS. NO PART NO DESCRIPTION

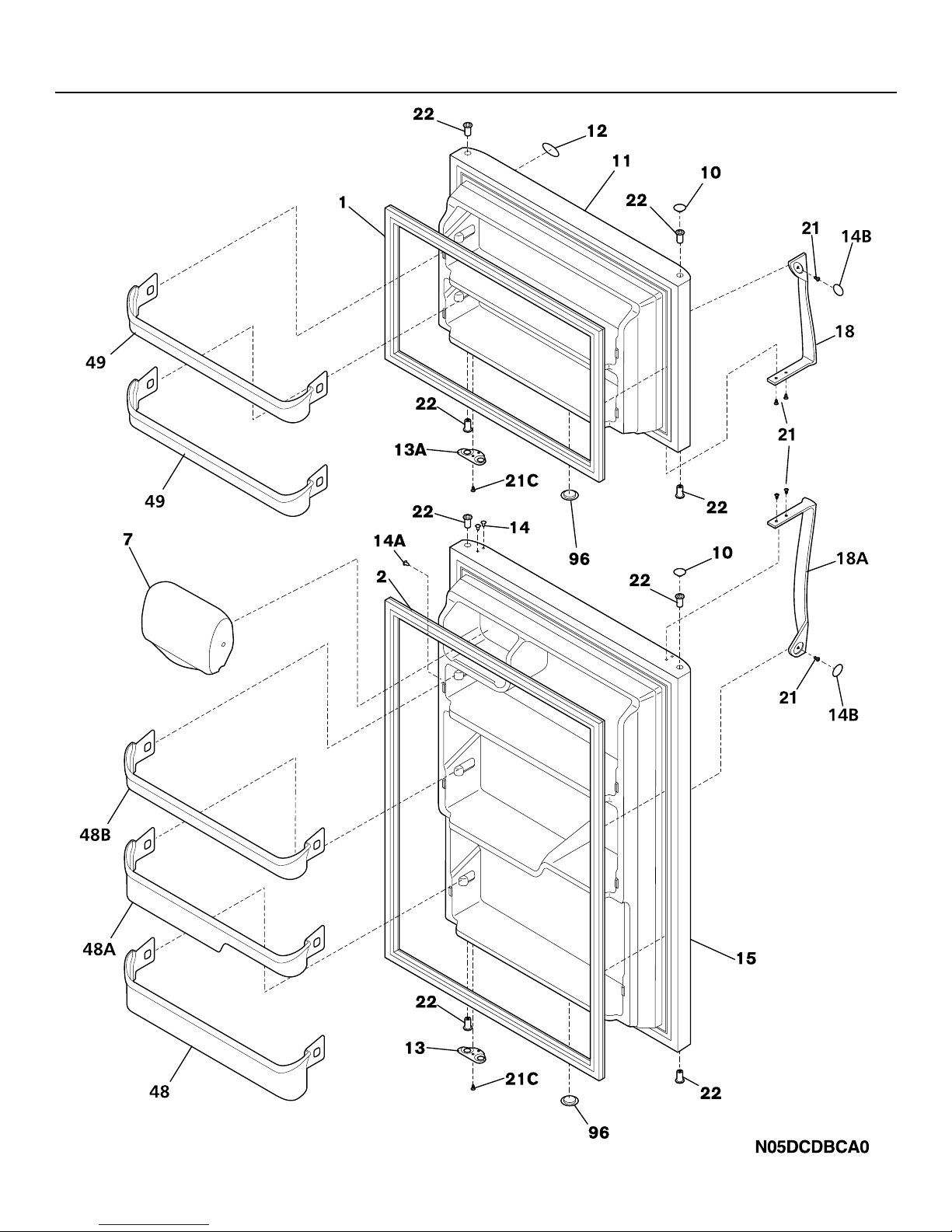

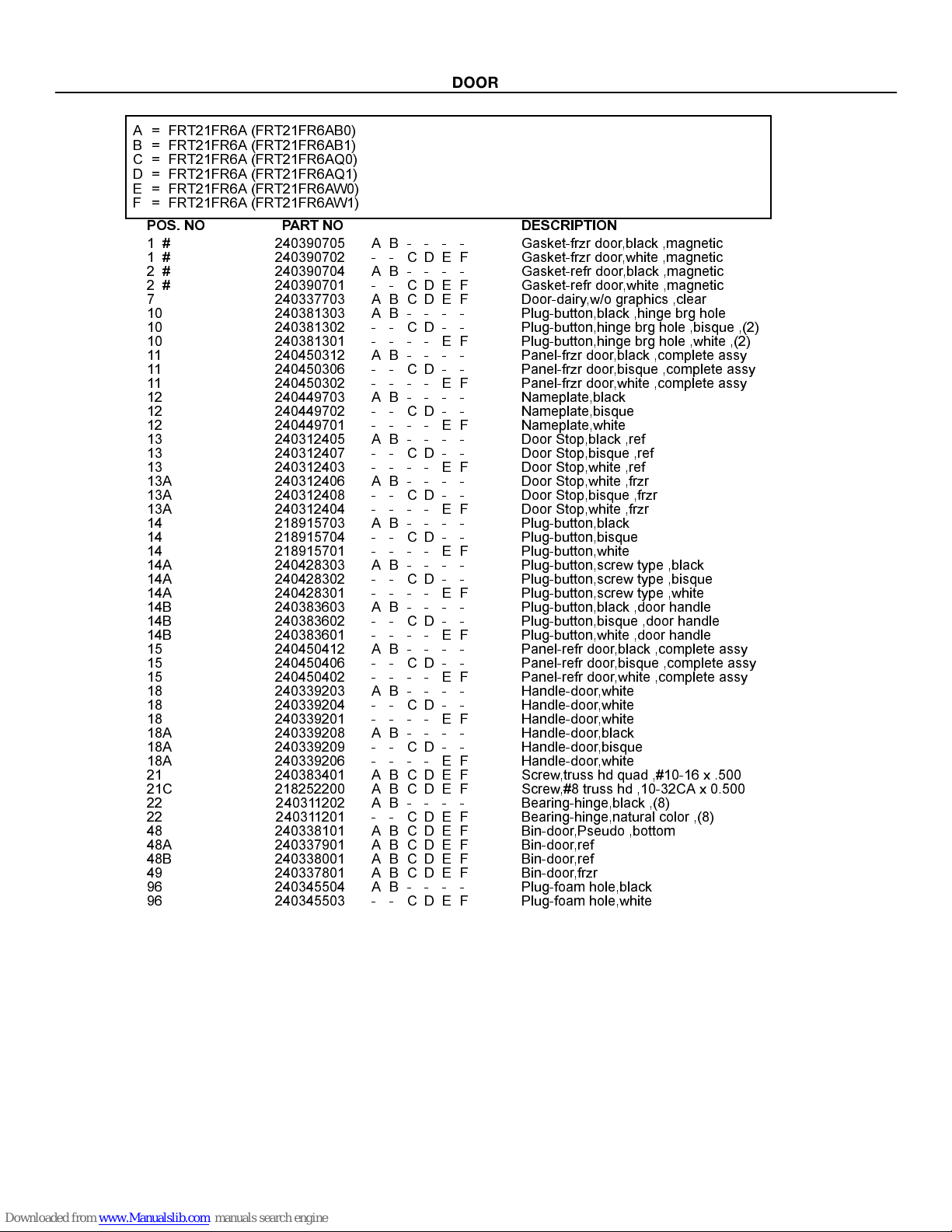

1 # 240390705 A B - - - - Gasket-frzr door,black ,magnetic
1 # 240390702 - - C D E F Gasket-frzr door,white ,magnetic
2 # 240390704 A B - - - - Gasket-refr door,black ,magnetic
2 # 240390701 - - C D E F Gasket-refr door,white ,magnetic
7 240337703 A B C D E F Door-dairy,w/o graphics ,clear
10 240381303 A B - - - - Plug-button,black ,hinge brg hole
10 240381302 - - C D - - Plug-button,hinge brg hole ,bisque ,(2)
10 240381301 - - - - E F Plug-button,hinge brg hole ,white ,(2)
11 240450312 A B - - - - Panel-frzr door,black ,complete assy
11 240450306 - - C D - - Panel-frzr door,bisque ,complete assy
11 240450302 - - - - E F Panel-frzr door,white ,complete assy
12 240449703 A B - - - - Nameplate,black
12 240449702 - - C D - - Nameplate,bisque
12 240449701 - - - - E F Nameplate,white
13 240312405 A B - - - - Door Stop,black ,ref
13 240312407 - - C D - - Door Stop,bisque ,ref
13 240312403 - - - - E F Door Stop,white ,ref
13A 240312406 A B - - - - Door Stop,white ,frzr
13A 240312408 - - C D - - Door Stop,bisque ,frzr
13A 240312404 - - - - E F Door Stop,white ,frzr
14 218915703 A B - - - - Plug-button,black
14 218915704 - - C D - - Plug-button,bisque
14 218915701 - - - - E F Plug-button,white
14A 240428303 A B - - - - Plug-button,screw type ,black
14A 240428302 - - C D - - Plug-button,screw type ,bisque
14A 240428301 - - - - E F Plug-button,screw type ,white
14B 240383603 A B - - - - Plug-button,black ,door handle
14B 240383602 - - C D - - Plug-button,bisque ,door handle
14B 240383601 - - - - E F Plug-button,white ,door handle
15 240450412 A B - - - - Panel-refr door,black ,complete assy
15 240450406 - - C D - - Panel-refr door,bisque ,complete assy
15 240450402 - - - - E F Panel-refr door,white ,complete assy
18 240339203 A B - - - - Handle-door,white
18 240339204 - - C D - - Handle-door,white
18 240339201 - - - - E F Handle-door,white
18A 240339208 A B - - - - Handle-door,black
18A 240339209 - - C D - - Handle-door,bisque
18A 240339206 - - - - E F Handle-door,white
21 240383401 A B C D E F Screw,truss hd quad ,#10-16 x .500
21C 218252200 A B C D E F Screw,#8 truss hd ,10-32CA x 0.500
22 240311202 A B - - - - Bearing-hinge,black ,(8)
22 240311201 - - C D E F Bearing-hinge,natural color ,(8)
48 240338101 A B C D E F Bin-door,Pseudo ,bottom
48A 240337901 A B C D E F Bin-door,ref
48B 240338001 A B C D E F Bin-door,ref
49 240337801 A B C D E F Bin-door,frzr
96 240345504 A B - - - - Plug-foam hole,black
96 240345503 - - C D E F Plug-foam hole,white
DOOR

04/01 4
Publication No. FRT21FR6A
5995352845
CABINET

# = Fast-moving Parts 5 04/01
* = Non-Illustrated Parts
FRT21FR6A Publication No.
5995352845
A = FRT21FR6A (FRT21FR6AB0)
B = FRT21FR6A (FRT21FR6AB1)
C = FRT21FR6A (FRT21FR6AQ0)
D = FRT21FR6A (FRT21FR6AQ1)
E = FRT21FR6A (FRT21FR6AW0)
F = FRT21FR6A (FRT21FR6AW1)
POS. NO PART NO DESCRIPTION

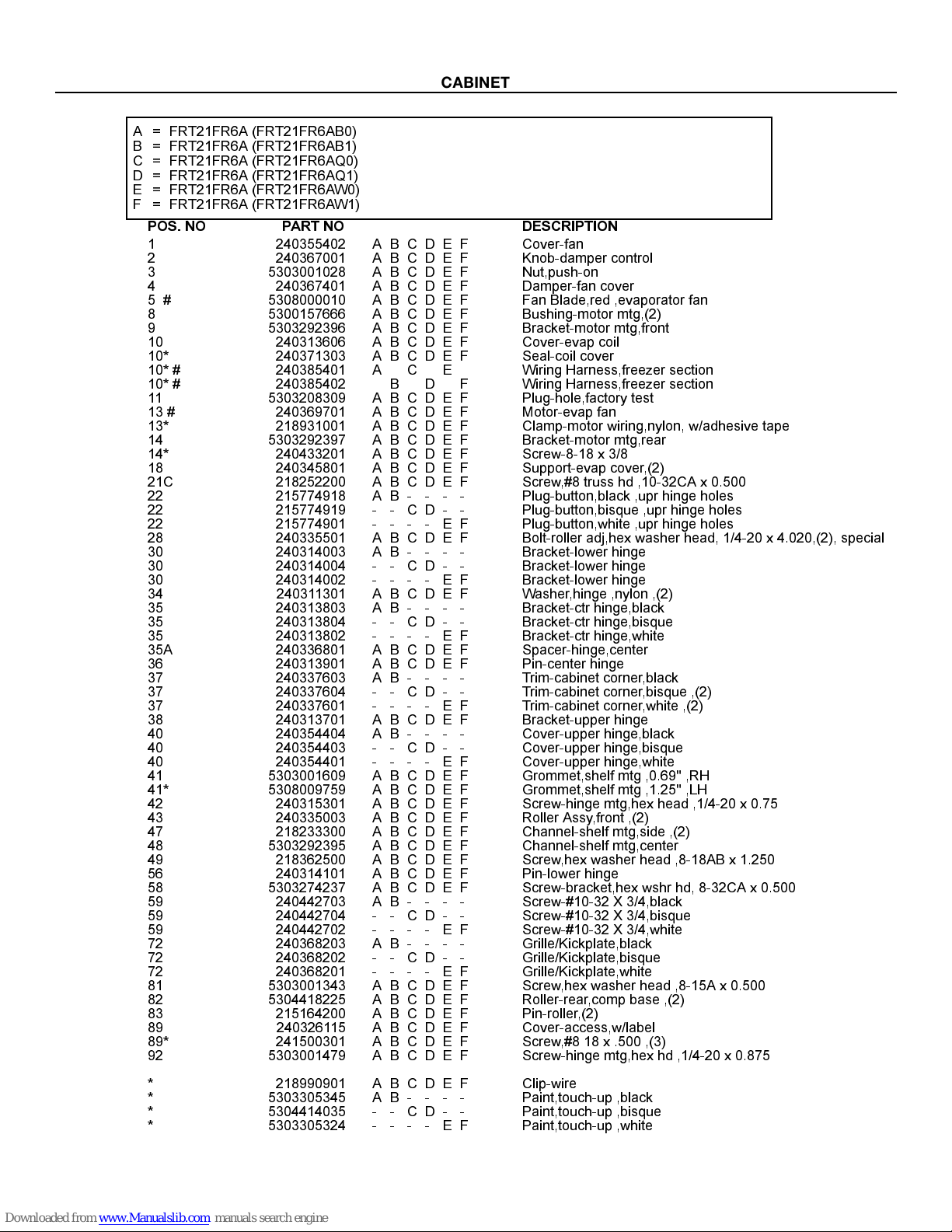

1 240355402 A B C D E F Cover-fan
2 240367001 A B C D E F Knob-damper control
3 5303001028 A B C D E F Nut,push-on
4 240367401 A B C D E F Damper-fan cover
5 # 5308000010 A B C D E F Fan Blade,red ,evaporator fan
8 5300157666 A B C D E F Bushing-motor mtg,(2)
9 5303292396 A B C D E F Bracket-motor mtg,front
10 240313606 A B C D E F Cover-evap coil
10* 240371303 A B C D E F Seal-coil cover
10* # 240385401 A C E Wiring Harness,freezer section
10* # 240385402 B D F Wiring Harness,freezer section
11 5303208309 A B C D E F Plug-hole,factory test
13 # 240369701 A B C D E F Motor-evap fan
13* 218931001 A B C D E F Clamp-motor wiring,nylon, w/adhesive tape
14 5303292397 A B C D E F Bracket-motor mtg,rear
14* 240433201 A B C D E F Screw-8-18 x 3/8
18 240345801 A B C D E F Support-evap cover,(2)
21C 218252200 A B C D E F Screw,#8 truss hd ,10-32CA x 0.500
22 215774918 A B - - - - Plug-button,black ,upr hinge holes
22 215774919 - - C D - - Plug-button,bisque ,upr hinge holes
22 215774901 - - - - E F Plug-button,white ,upr hinge holes
28 240335501 A B C D E F Bolt-roller adj,hex washer head, 1/4-20 x 4.020,(2), special
30 240314003 A B - - - - Bracket-lower hinge
30 240314004 - - C D - - Bracket-lower hinge
30 240314002 - - - - E F Bracket-lower hinge
34 240311301 A B C D E F Washer,hinge ,nylon ,(2)
35 240313803 A B - - - - Bracket-ctr hinge,black
35 240313804 - - C D - - Bracket-ctr hinge,bisque
35 240313802 - - - - E F Bracket-ctr hinge,white
35A 240336801 A B C D E F Spacer-hinge,center
36 240313901 A B C D E F Pin-center hinge
37 240337603 A B - - - - Trim-cabinet corner,black
37 240337604 - - C D - - Trim-cabinet corner,bisque ,(2)
37 240337601 - - - - E F Trim-cabinet corner,white ,(2)
38 240313701 A B C D E F Bracket-upper hinge
40 240354404 A B - - - - Cover-upper hinge,black
40 240354403 - - C D - - Cover-upper hinge,bisque
40 240354401 - - - - E F Cover-upper hinge,white
41 5303001609 A B C D E F Grommet,shelf mtg ,0.69" ,RH
41* 5308009759 A B C D E F Grommet,shelf mtg ,1.25" ,LH
42 240315301 A B C D E F Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B C D E F Roller Assy,front ,(2)
47 218233300 A B C D E F Channel-shelf mtg,side ,(2)
48 5303292395 A B C D E F Channel-shelf mtg,center
49 218362500 A B C D E F Screw,hex washer head ,8-18AB x 1.250
56 240314101 A B C D E F Pin-lower hinge
58 5303274237 A B C D E F Screw-bracket,hex wshr hd, 8-32CA x 0.500
59 240442703 A B - - - - Screw-#10-32 X 3/4,black
59 240442704 - - C D - - Screw-#10-32 X 3/4,bisque
59 240442702 - - - - E F Screw-#10-32 X 3/4,white
72 240368203 A B - - - - Grille/Kickplate,black
72 240368202 - - C D - - Grille/Kickplate,bisque
72 240368201 - - - - E F Grille/Kickplate,white
81 5303001343 A B C D E F Screw,hex washer head ,8-15A x 0.500
82 5304418225 A B C D E F Roller-rear,comp base ,(2)
83 215164200 A B C D E F Pin-roller,(2)
89 240326115 A B C D E F Cover-access,w/label
89* 241500301 A B C D E F Screw,#8 18 x .500 ,(3)
92 5303001479 A B C D E F Screw-hinge mtg,hex hd ,1/4-20 x 0.875
* 218990901 A B C D E F Clip-wire
* 5303305345 A B - - - - Paint,touch-up ,black
* 5304414035 - - C D - - Paint,touch-up ,bisque
* 5303305324 - - - - E F Paint,touch-up ,white
CABINET

04/01 6
Publication No. FRT21FR6A
5995352845
SHELVES

# = Fast-moving Parts 7 04/01
* = Non-Illustrated Parts
FRT21FR6A Publication No.
5995352845
A = FRT21FR6A (FRT21FR6AB0)
B = FRT21FR6A (FRT21FR6AB1)
C = FRT21FR6A (FRT21FR6AQ0)
D = FRT21FR6A (FRT21FR6AQ1)
E = FRT21FR6A (FRT21FR6AW0)
F = FRT21FR6A (FRT21FR6AW1)
POS. NO PART NO DESCRIPTION
11 240358003 A B C D E F Shelf-freezer
11* 5303299664 A B C D E F Spacer-shelf
12 240380201 A - C - E - Diffuser-air,top
12 240380202 - B - D - F Diffuser-air,top
13 240362601 A B C D E F Diffuser-air,bottom
13* 240392601 A B C D E F Seal-diffuser
14 # 240413601 A B C D E F Switch-light/lamp
15 5303001179 A - C - E - Light Bulb/Lamp,40 W
15 240436701 - B - D - F Light Bulb/Lamp, A-15, 40 W, 120 V, miniature
16 241500701 A B C D E F Socket-light/lamp
17 240368101 A B C D E F Box-control
17*# 240388701 A B C D E F Wiring Harness,control box
18 240360801 A B C D E F Knob-control
21 5304418228 A - C - E - Control-temperature
21 # 5304421256 - B - D - F Control-temperature
22A 5303916855 A B C D E F Tube,sensor sleeve ,plastic ,clear
22B 218731105 A B C D E F Tube, PVC, white, @ air diffuser, insulator
23 # 215846606 A B C D E F Timer-defrost, 60 Hz, 120 V, 10 hr/30 min
23* 5303001259 A B C D E F Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 240355228 A B C D E F Shelf-"Spill-Safe", cantilever, half width, fixed
25 240364718 A B C D E F Cover-crisper pan
25B 240361201 A B C D E F Control-humidity
25C 240361301 A B C D E F Damper-humidity control
26 240343803 A B C D E F Pan-crisper,(2)
28 3201150 A B C D E F End Cap-shelf,protector ,frzr shelf
31 240371403 A B C D E F Pan-meat
34 240385201 A B C D E F Container-ice
42 240356501 A B C D E F Hanger-meat pan,RH
42 240365401 A B C D E F Hanger-meat pan,white ,LH
47 240443301 A B C D E F Insert-pan cover,glass
81 5308016566 A B C D E F Screw, hex wshr hd, 8-15A x 0.625, low profile
123 215005100 A B C D E F Screw-roller/hanger,8-10 x 0.438
SHELVES

04/01 8
Publication No. FRT21FR6A
5995352845
SYSTEM

# = Fast-moving Parts 9 04/01
* = Non-Illustrated Parts
FRT21FR6A Publication No.
5995352845
A = FRT21FR6A (FRT21FR6AB0)
B = FRT21FR6A (FRT21FR6AB1)
C = FRT21FR6A (FRT21FR6AQ0)
D = FRT21FR6A (FRT21FR6AQ1)
E = FRT21FR6A (FRT21FR6AW0)
F = FRT21FR6A (FRT21FR6AW1)
POS. NO PART NO DESCRIPTION

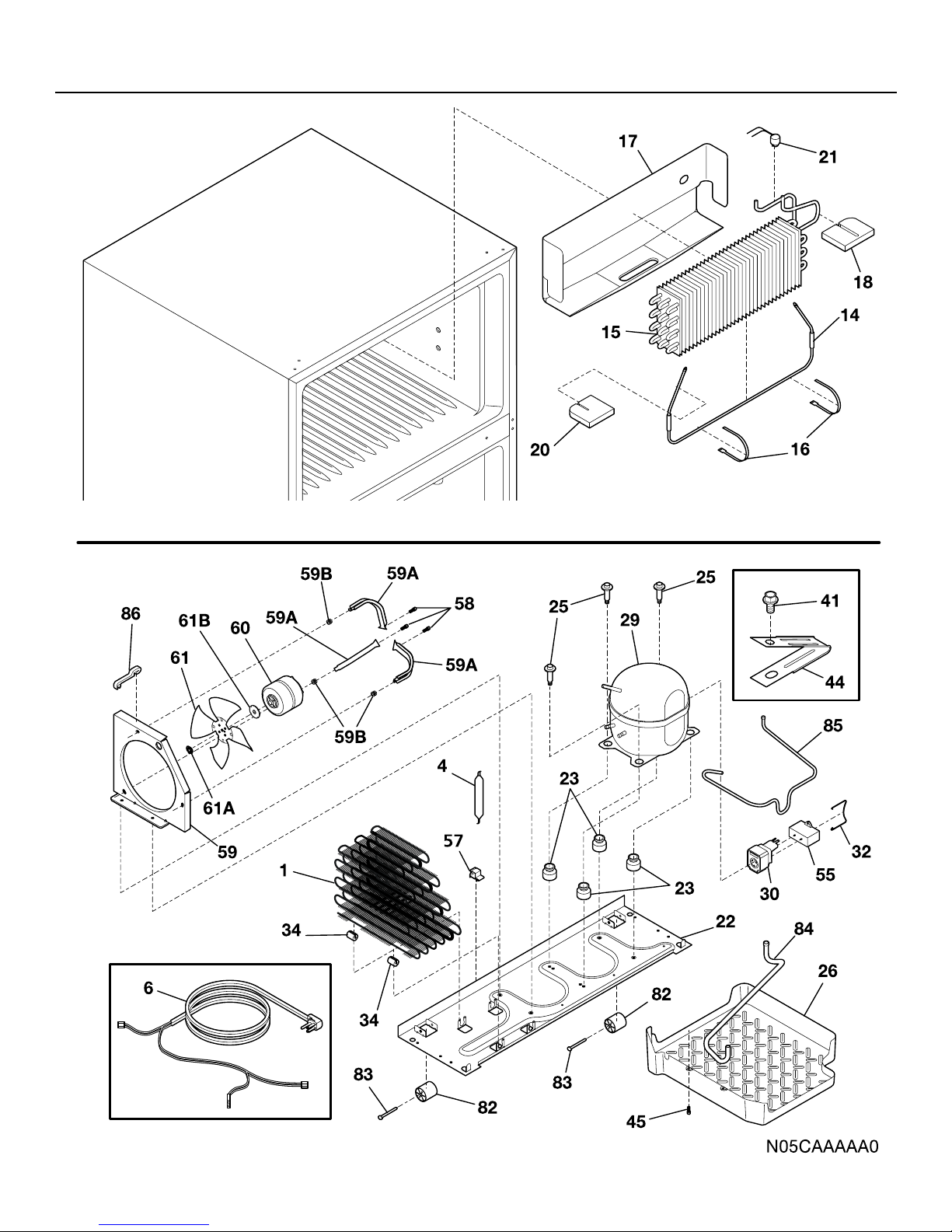

1 # 240345601 A B C D E F Condenser,dynamic
4 # 218944001 A B C D E F Drier-filter,R134a System
6 # 240375301 A B C D E F Wiring Harness,machine compt, w/service cord
6* # 240385401 A - C - E - Wiring Harness,freezer section
6* # 240385402 - B - D - F Wiring Harness,freezer section
6* # 240388701 A B C D E F Wiring Harness,control box
14 # 5303918247 A B C D E F Defrost Heater Kit
15 # 5303918250 A B C D E F Evaporator Kit
16 5308000110 A B C D E F Strap-evap/heater,aluminum ,(2)
17 240434002 A B C D E F Trough-drain
18 240362301 A B C D E F Insulation Block,RH
20 240362401 A B C D E F Insulation Block,LH
21 # 5303918202 A B C D E F Thermostat-defrost,kit
22 240330001 A B C D E F Plate-compr mtg
22* 218252200 A B C D E F Screw,#8 truss hd ,10-32CA x 0.500
23 218513300 A B C D E F Grommet-compr mtg,(4)
25 240420302 A B C D E F Screw-compr mtg,hex hd ,1/4-28 shoulder
26 240332602 A B C D E F Pan-defrost drain
29 # 5303918249 A B C D E F Compressor,w/electricals
30 # 218721113 A B C D E F Starter-PTC
32 218740800 A B C D E F Clamp,elec cont mtg ,compressor
34 240405201 A B C D E F Grommet-cond mtg,(4)
41 218897001 A B C D E F Screw,hex washer head ,8-32 x 1/4
41* 5308000039 A B C D E F Screw,hex wshr hd,8-32CA x 0.500, (7),serrated hd
44 5303001199 A B C D E F Clamp-wiring harness, strain relief, galv steel
45 5308016566 A B C D E F Screw, hex wshr hd, 8-15A x 0.625, low profile
55 # 218909901 A B C D E F Capacitor-run,220 VAC ,15 microfarad
57 240403601 A B C D E F Clip-wiring harness
58 215004600 A B C D E F Screw-cond fan mtr,hx serr wshr hd, 8-36 x 7/16,(2)
59 240315501 A B C D E F Shroud-cond fan
59* 240346701 A B C D E F Tape-foam seal,shroud
59* 240359401 A B C D E F Screw-fan shroud,(2)
59A 240346501 A B C D E F Bracket-support,cond mtr ,(3)
59B 240346601 A B C D E F Grommet-bracket,(3)
60 # 240334001 A B C D E F Motor-condenser fan
61 # 240315401 A B C D E F Fan Blade,galv steel ,condenser fan
61A 215004700 A B C D E F Nut,speed
61B 215004800 A B C D E F Grommet-silencer
82 5304418225 A B C D E F Roller-rear,comp base ,(2)
83 215164200 A B C D E F Pin-roller,(2)
84 240359601 A B C D E F Tube-drain,lower
85 240346201 A B C D E F Tube-connector,suction
86 240409301 A B C D E F Spacer-cond tube,black
* # 5303918210 A B C D E F Heat Exchanger Kit,suction line
* 5304421289 A B C D E F Hot Tube Repair Kit,Service
SYSTEM

04/01 10
Publication No. FRT21FR6A
5995352845
ICE MAKER

# = Fast-moving Parts 11 04/01
* = Non-Illustrated Parts
FRT21FR6A Publication No.
5995352845
A = FRT21FR6A (FRT21FR6AB0)
B = FRT21FR6A (FRT21FR6AB1)
C = FRT21FR6A (FRT21FR6AQ0)
D = FRT21FR6A (FRT21FR6AQ1)
E = FRT21FR6A (FRT21FR6AW0)
F = FRT21FR6A (FRT21FR6AW1)

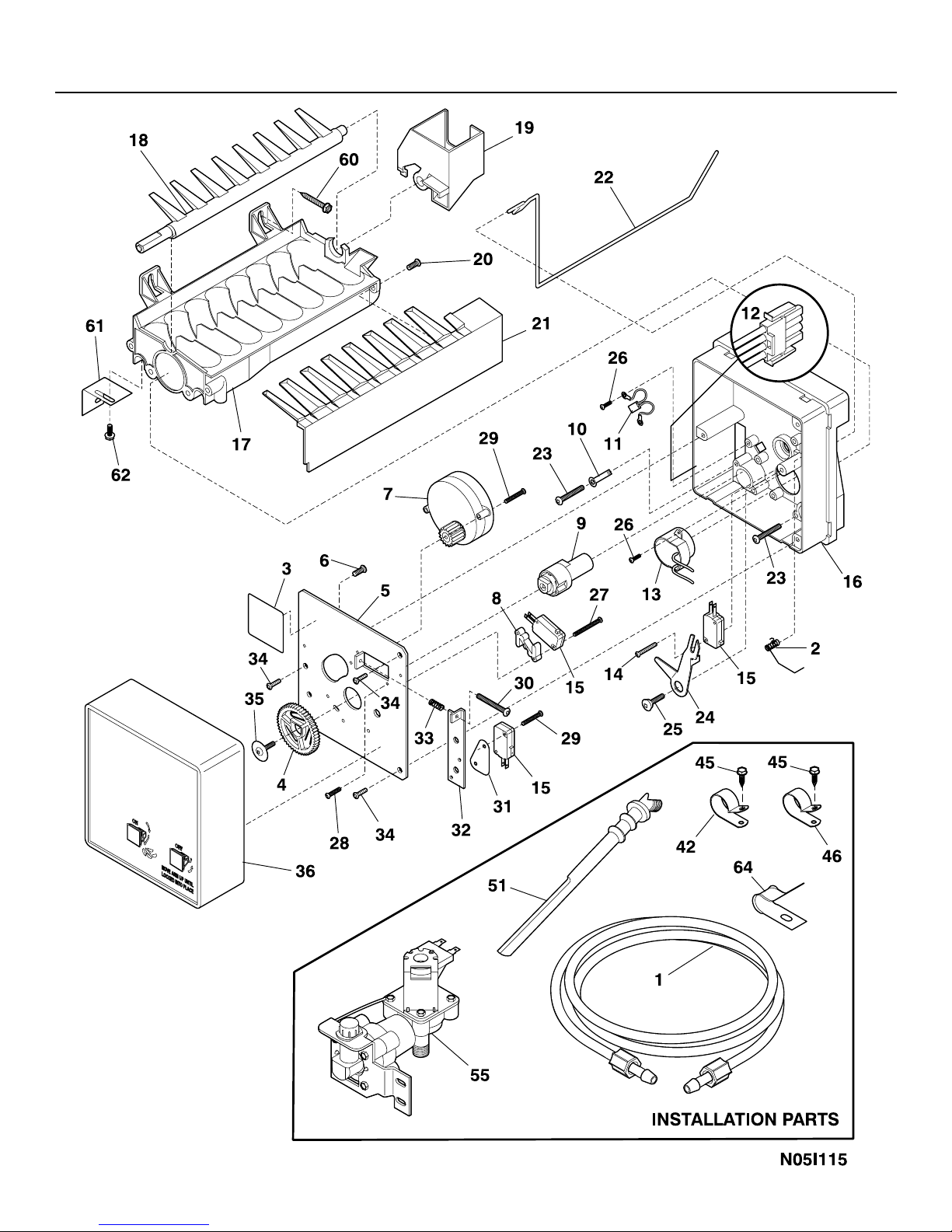

POS. NO PART NO DESCRIPTION
1 218976901 A B C D E F Tube-water inlet,inlet valve to ice maker
2 5304420650 A B C D E F Spring,shut-off arm
3 3206299 A B C D E F Label,ID plate
4 3206301 A B C D E F Gear
5 3206303 A B C D E F Plate-mounting
6 3206305 A B C D E F Screw-ground wire,8-32 x 0.250
7 # 3206306 A B C D E F Motor-ice maker
8 3206312 A B C D E F Spacer-hold switch
9 3206313 A B C D E F Cam
10 3206315 A B C D E F Clamp
11 # 3206319 A B C D E F Thermal Cutoff, ice maker, complete assy
12 # 5304420651 A B C D E F Wiring Harness, ice maker, internal, with plug
13 # 3206322 A B C D E F Thermostat Assy,ice maker
14 5304420652 A B C D E F Screw,4 x 3/4 ,switch mtg.
15 # 3206324 A B C D E F Switch,(3)
16 5304420653 A B C D E F Support,phenolic
17 # 5303320545 A B C D E F Mold-ice maker,Radius Cube ,with heater
18 3206328 A B C D E F Ejector-ice
19 3206330 A B C D E F Bearing & Inlet
20 5304408581 A B C D E F Screw,8-32 x 0.375
21 3206332 A B C D E F Ice Stripper
22 3206333 A B C D E F Shut-off Arm
23 5304408582 A B C D E F Screw,8-32 x 0.875, mold-to-support, (3)
24 3206335 A B C D E F Lever Arm
25 3206336 A B C D E F Screw,8-18 x 0.562 ,lever arm/sprt
26 5304420654 A B C D E F Screw-thermo/sprt,4-24 x 0.375 ,(4)
27 3206338 A B C D E F Screw,4-40 x 1.000 ,hold switch mtg, (2)
28 3206339 A B C D E F Screw-timing stop,4-40 x 0.375
29 3206323 A B C D E F Screw,4-24 x 0.750 ,(6)
30 3206341 A B C D E F Screw-timing adj,8-32 x 1.000
31 3206342 A B C D E F Insulator
32 3206343 A B C D E F Plate-valve switch
33 5304408583 A B C D E F Spring-timing adj
34 5304420655 A B C D E F Screw,plazcrew ,8-10 ,(3)
35 5304408585 A B C D E F Screw
36 3206347 A B C D E F Cover-ice maker
42 5303001199 A B C D E F Clamp-wiring harness,strain relief, galv steel
45 5308016566 A B C D E F Screw, hex wshr hd, 8-15A x 0.625, low profile
46 5303001193 A B C D E F Clamp,.50 ID ,steel ,water tube
51 240387101 A B C D E F Tube-water,ice mold fill ,extension
55 # 240380301 A B C D E F Valve-water, single solenoid, 50/60 Hz, 105/120 V
60 218362500 A B C D E F Screw,hex washer head ,8-18AB x 1.250
61 218721500 A B C D E F Bracket-leveling,ice maker
62 218737900 A B C D E F Screw-IM brkt mtg, hex wshr hd, 8-32D x 0.375
64 5303001549 A B C D E F Clamp,0.31 ID ,steel ,copper wtr line
* 240352403 A B C D E F Ice Maker, Radius Cube, 115 V, no instl parts
ICE MAKER

04/01 12
Publication No. FRT21FR6A
5995352845
WIRING SCHEMATIC

# = Fast-moving Parts 13 04/01
* = Non-Illustrated Parts
FRT21FR6A Publication No.
5995352845
WIRING DIAGRAM
