Frigidaire FSC23BBDS User manual

Product No. FSC23BBDSB2 FSC23BBDSB3 FSC23BBDSB5
Series counter depth counter depth counter depth
Color stain/blk stain/blk stain/blk
Volts 115 115 115

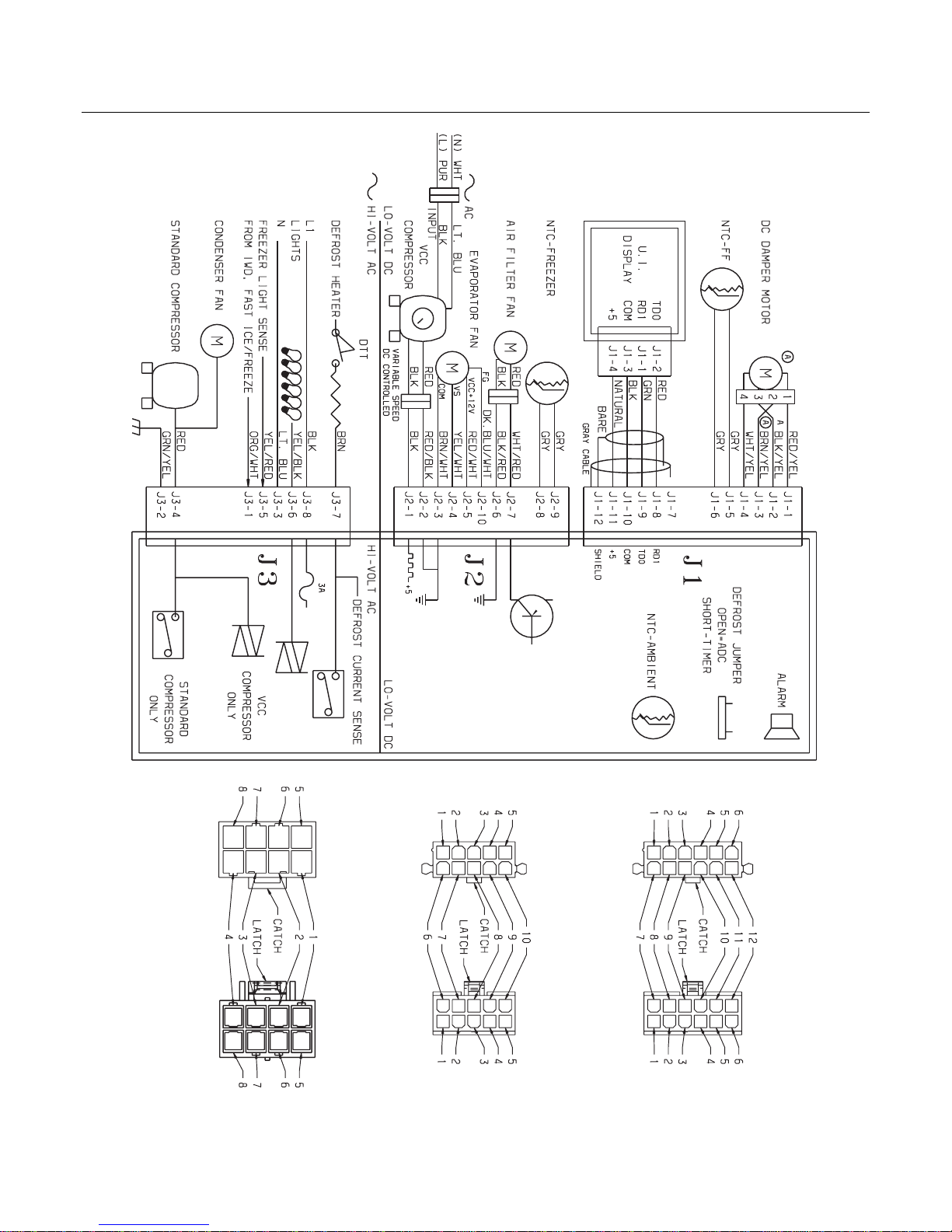

Wiring Diagram 241516401A 241516401A 241516401A
Owner's Guide 241540301 241540301 241540301
Market North America North America North America
Energy Guide 241538782 241538782 241538782
Service Data Sheet 241532603 241532603 241532603
E23CS75DSS0.eps N58FFDCFA0.eps N58RFDCIA0.eps N58BABAAD0.eps
N58SEDLBI1.eps N58TBAAAB1.eps N58CACBAA0.eps N58XEAAAA0.eps
N58YDAAAC0.eps N58I115T.eps W241516401A.eps S241516401A.eps
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995426979
05/01/18
(EN/SERVICE/KHB)
357
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FSC23BBDS
Copyright ©All rights reserved.

Publication No: 5995426979 FSC23BBDS
01/05 2

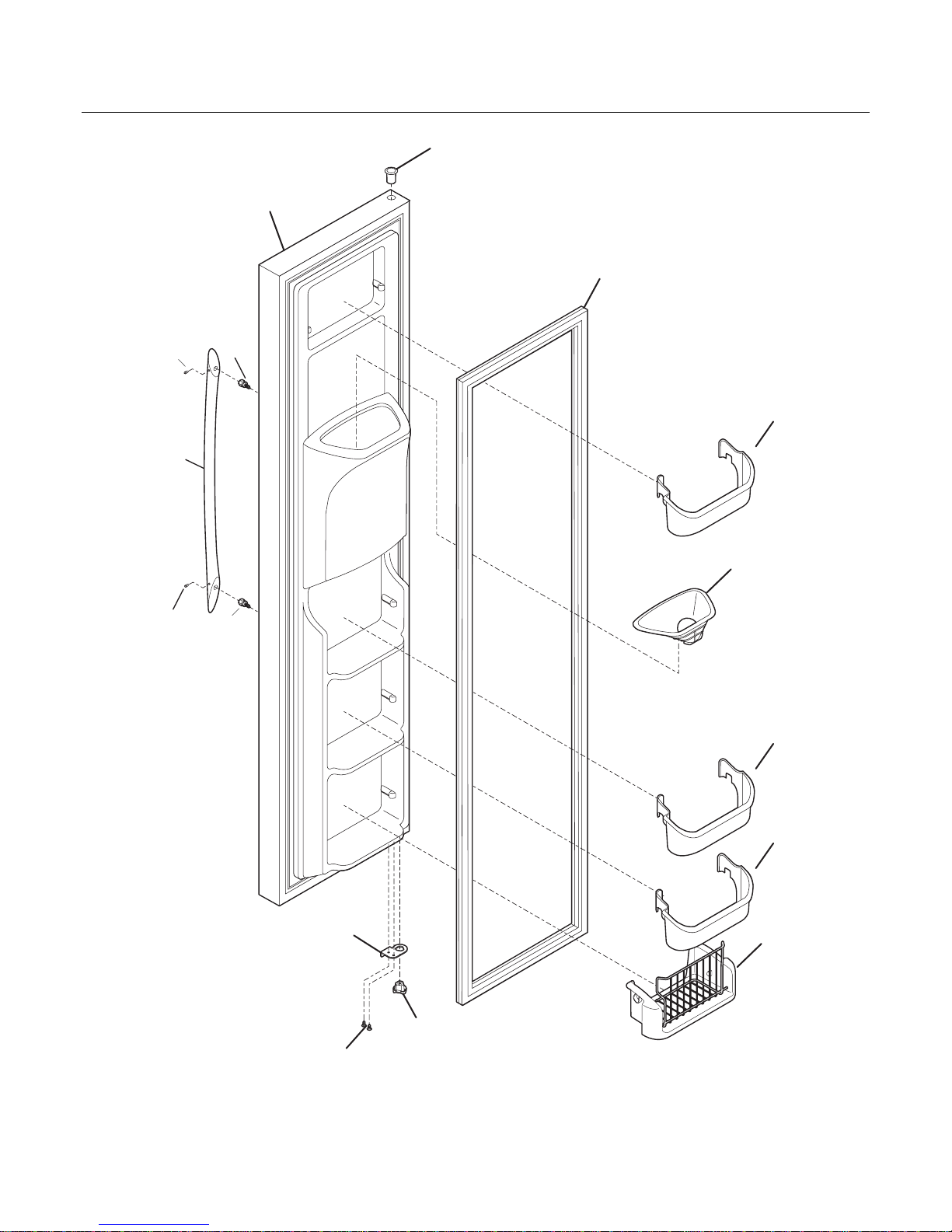

FREEZER DOOR
68
5
22C
22A
21A
13A
11
4B
4B
4B
N58FFDCFA0
1
18
79
79 80
80

FSC23BBDS Publication No: 5995426979
# Functional Parts 3 01/05
* Non-Illustrated Parts
FREEZER DOOR
Model Index: AFSC23BBDS (FSC23BBDSB2)
BFSC23BBDS (FSC23BBDSB3)
CFSC23BBDS (FSC23BBDSB5)
POS. NO PART NO. DESCRIPTION
1 # 241510204 A B C Gasket-frzr door, black, magnetic
4B 241511602 A B C Bin-door
5 241545001 A B C Bin-tilt out, tilt-out
11 241615113 A - C Door-frzr, stainless, complete assy
11 240554279 - B - Door-frzr, stainless, complete assy
13A 240581906 A B C Door Stop, black, frzr
18 240536801 A B C Handle-door, stainless steel, with insert
21A 240598401 A B C Screw, 10-32 x 1/2
22A 240328204 A B C Bearing-hinge(frz), black, closer
22C 240328404 A B C Bearing-hinge, black, upper
68 241525101 A B C Chute-ice
79 218755402 A B C Screw-set, 10-32 x 0.375
80 218755503 A B C Screw-shoulder, #10 AB, handle mounting
* 240388601 A B C Elbow-water tube
* 240552102 A B C Harness-wiring, door
* 5303918256 A B C Dispenser heater kit

Publication No: 5995426979 FSC23BBDS
01/05 4

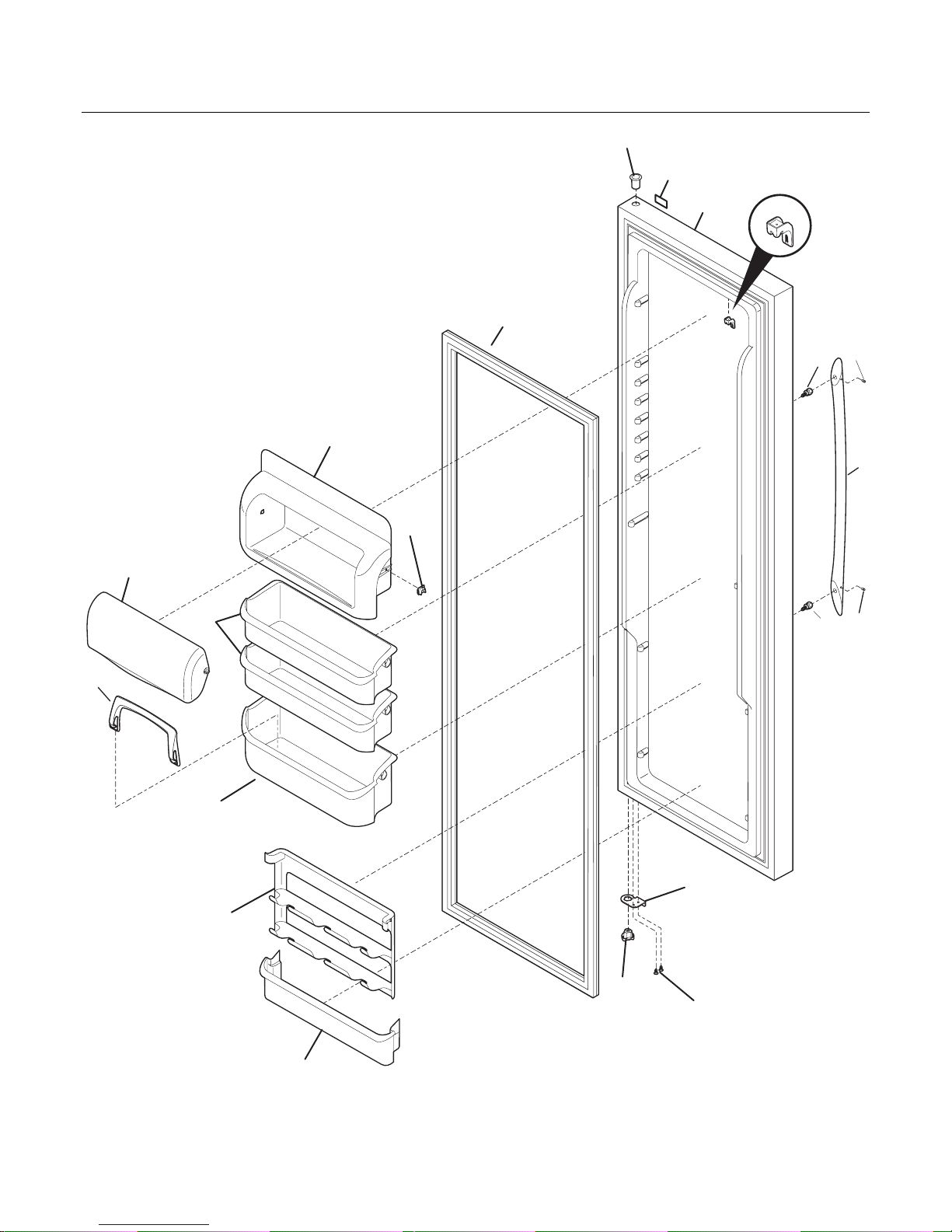

REFRIGERATOR DOOR
N58RFDCIA0
70
50
49A
49
48
22B
22
21A
15
12
13
7
6
2
27A
18
79
79
80
80
5

FSC23BBDS Publication No: 5995426979
# Functional Parts 5 01/05
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AFSC23BBDS (FSC23BBDSB2)
BFSC23BBDS (FSC23BBDSB3)
CFSC23BBDS (FSC23BBDSB5)
POS. NO PART NO. DESCRIPTION
2 # 241510203 A B C Gasket-refr door, black, magnetic
5 241516102 A B C Rack-can
6 241515901 A B C Lug-dairy compartment
7 241515601 A B C Door-dairy
12 240572601 A B C Label-nameplate
13 240581905 A B C Door Stop, black, ref
15 241534533 A - C Door-refr, stainless, complete assy
15 241534509 - B - Door-refr, stainless, complete assy
18 240536801 A B C Handle-door, stainless steel, with insert
21A 240598401 A B C Screw, 10-32 x 1/2
22 240328203 A B C Bearing-hinge, black, closer
22B 240328404 A B C Bearing-hinge, black, upper
27A 240396102 A B C Retainer, tall bottle
48 241511701 A B C Bin-door, ref
49 241505301 A B C Bin-door, 2-liter
49A 241505501 A B C Bin-door, gallon
50 241508401 A B C Cover-magnet
70 241515801 A B C Compartment-dairy, removable
79 218755402 A B C Screw-set, 10-32 x 0.375
80 218755503 A B C Screw-shoulder, #10 AB, handle mounting

Publication No: 5995426979 FSC23BBDS
01/05 6

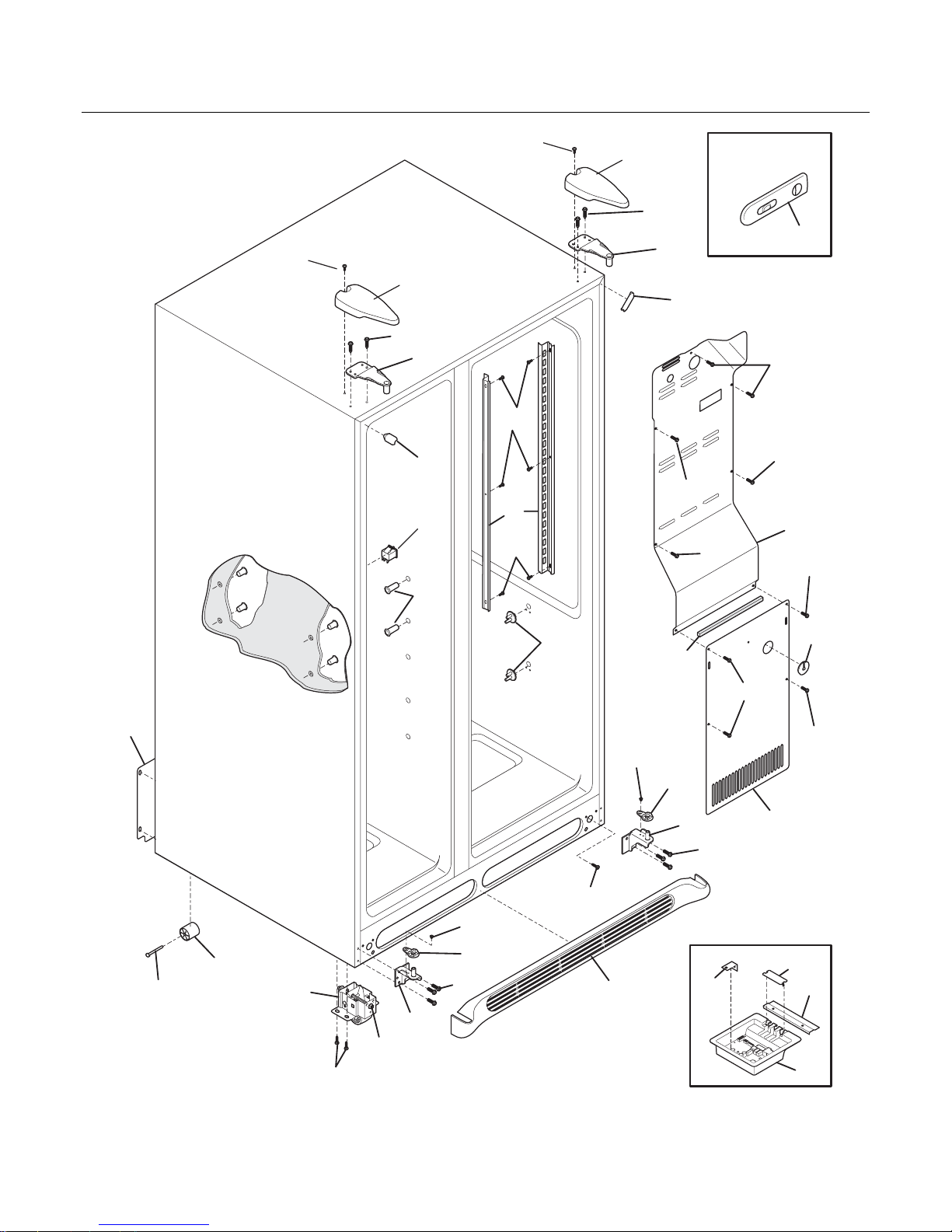

CABINET
100
92
92
90
89
83
82
81
81
72
66
54
53
52
50
47
45
45
45
45
45
45
45
43
42
42
41
38
38
37
37
28
30A
30
23
23
22
22
21C
21C
11
10A
10
N58BABAAD0
14A
58
58
40
40

FSC23BBDS Publication No: 5995426979
# Functional Parts 7 01/05
* Non-Illustrated Parts
CABINET
Model Index: AFSC23BBDS (FSC23BBDSB2)
BFSC23BBDS (FSC23BBDSB3)
CFSC23BBDS (FSC23BBDSB5)
POS. NO PART NO. DESCRIPTION
10 241509802 A B C Cover-air duct
10A 240475907 A B C Cover-evap coil, lower
11 241529301 A B C Plug-hole, factory test
14A 241547901 A B C Switch-light/lamp, frzr door
21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 A B C Plate-door closer
23 240402701 A B C Screw-#10-32 x 1/4 flat hd
28 240335501 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 240419101 A B C Bracket-lower hinge, ref
30A 240419102 A B C Bracket-lower hinge
37 240337603 A B C Trim-cabinet corner, black, (2)
38 240327201 A B C Bracket-upper hinge
40 240327007 A B C Cover-upper hinge, black
41 241550801 A B C Grommet-shelf mtg, 1.40" long
41* 241550701 A B C Grommet-shelf mtg, .96" long
42 240578901 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 A B C Roller Assy, front, (2)
45 241500301 A B C Screw, hex washer head, 8-18AB x 0.500
47 241513001 A B C Channel-shelf mtg, side, (2)
50 241511102 A B C Board-main power
50* 241524801 A B C Seal-Mother Board Housing
50* 241532501 A B C Clip-harness
52 241524802 A B C Seal, housing
53 241509101 A B C Bracket
54 241532401 A B C Channel
58 218781100 A B C Screw, pan head, 8-18 x 0.625
66 241513601 A B C Damper Assy
72 241521610 A B C Grille/Kickplate, black
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574602 A B C Cover access
90 218249808 A B C Seal-coil cover
92 216850900 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B C Support, crisper cover, front, (4)
100* 240350802 A B C Support, crisper cover, rear, (4)
* 240479601 A B C Plug, button, cab liner holes, (2)
* 241591701 A B C Louver
* 5303305345 A B C Paint, touch-up, black

Publication No: 5995426979 FSC23BBDS
01/05 8
SHELVES
51A
140
136
126
126
122
121
120
109
108
107
101
101
100
97
81
81
62
52A
52
52
51
51
49B
49
47B
47A
47
26A
27
26A
26
25B
25A
25
24
24
24
81
16
16
15
15
15
15
2
2
N58SEDLBI1
39
11
41
11A
39
11A
39

FSC23BBDS Publication No: 5995426979
# Functional Parts 9 01/05
* Non-Illustrated Parts
SHELVES
Model Index: AFSC23BBDS (FSC23BBDSB2)
BFSC23BBDS (FSC23BBDSB3)
CFSC23BBDS (FSC23BBDSB5)
POS. NO PART NO. DESCRIPTION
2 241510605 A B C Trim-basket
11 240443357 A B C Shelf-freezer, glass, lower
11A 240443358 A B C Shelf-freezer, glass, upper
15 241552801 A B C Light Bulb
16 241507803 A B C Socket-light
16* 241513101 A B C Harness-wiring
24 240350129 A B C Shelf-"Spill-Safe", cantilever, sliding
25 240599301 A B C Cover-crisper pan, upper
25* 240362101 A B C Clip-slide, cover-crisper
25A 240350902 A B C Cover-crisper pan, lower
25B 240599801 A B C Cover-meat pan
26 240351020 A B C Pan-crisper, upper
26* 240349801 A B C Clip-slide, pan-crisper
26A 240362201 A B C Control-humidity
27 240351218 A B C Pan-crisper, lower
39 240367603 A B C Trim-shelf, 11.65", front
41 241571201 A B C Trim-shelf, rear
47 240350633 A B C Insert-pan cover, glass
47A 240350603 A B C Insert-pan cover, glass
47B 240443360 A B C Insert-pan cover, glass
49 241515001 A B C Basket-sliding
49B 241514901 A B C Basket-sliding, upper, full
51 241514501 A B C Hanger-basket, RH
51A 241514701 A B C Hanger-shelf glass, RH
52 241514601 A B C Hanger-basket, LH
52A 241514801 A B C Hanger-shelf glass, LH
62 240599704 A B C Pan-meat
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
97 241532002 A B C Water Tank
100 241549901 A B C Cover-water tank
101 218493100 A B C Screw, hex washer head, 8-18AB x 1-3/4
107 241513401 A B C Shield-light, crisper
108 241513301 A B C Cover-wiring, crisper light
109 241513202 A B C Base-crisper light socket
120 241504501 A B C Shelf-ice cream
121 241504701 A B C Rail-ice cream shelf, LH
122 241504702 A B C Rail-ice cream shelf, RH
126 218867405 A B C Channel, auger mtg, LH
126 218867406 A B C Channel, auger mtg, RH
136 240424502 A B C Dispenser-can, clear
140 240430505 A B C Channel, wtr tube cover

Publication No: 5995426979 FSC23BBDS
01/05 10

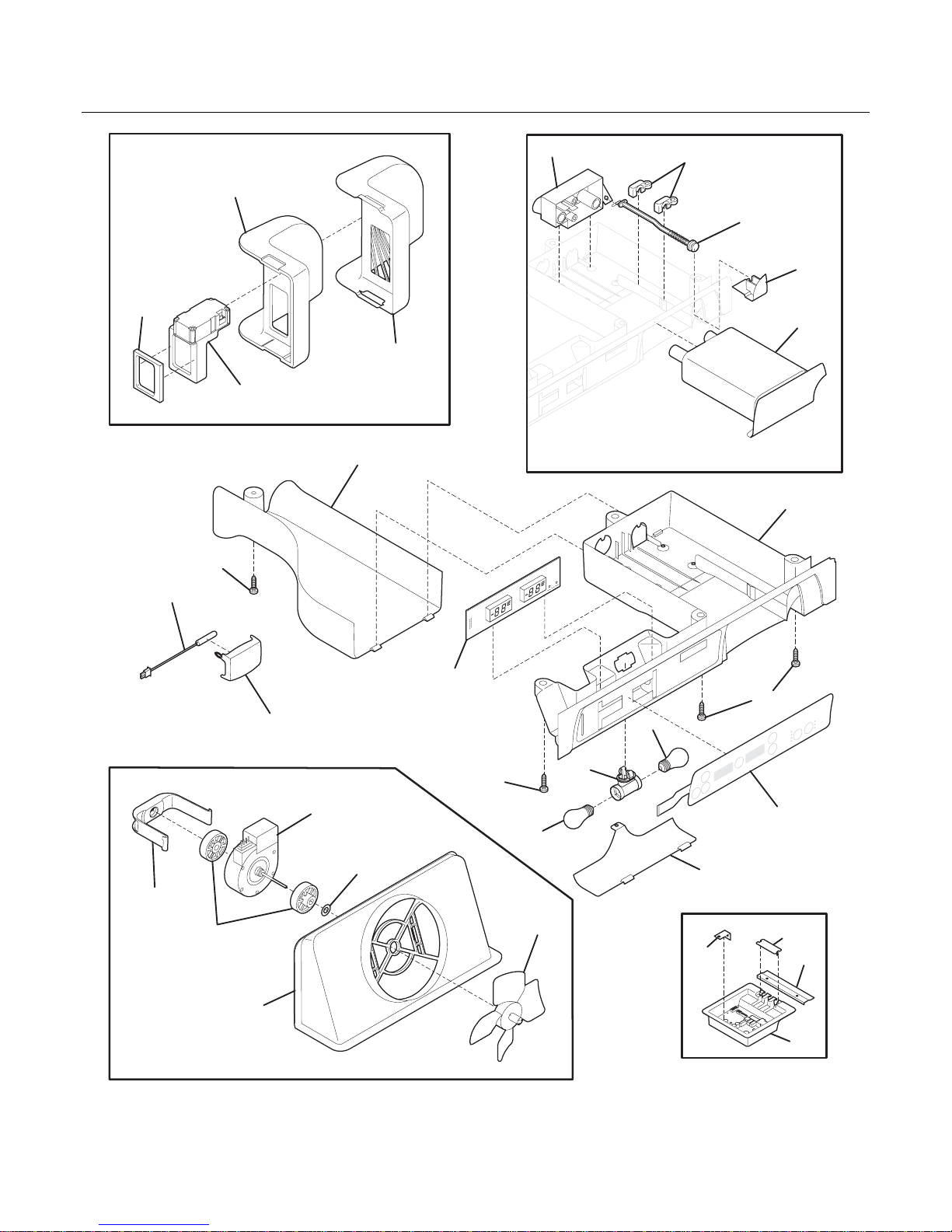

CONTROLS
201
199
198
151
149
139
138
137
116
115
81
81
81
75
61
60
23
22
21
17
16
15
15
14
13
9
8
5
N58TBAAAB1
54
53
52
50
