Frigidaire FSC23R5DS Instruction Manual

Product No. FSC23R5DSBN FSC23R5DSB9
Series counter depth counter depth
Color stainless stainless
Volts 115 115
Wiring Diagram 241516401A 241516401A
Owner's Guide 241553001 241553001
Market North America North America
Energy Guide 241585940 241585940
Service Data Sheet 241532603 241532603
E23CS75DSS0.eps N58FCCBBB3.eps N58RCFCHA1.eps N58BABAAD3.eps
N58SACKBB1.eps N58TAAAAD2.eps N58CAAAAC1.eps N58XDAAAA1.eps
N58YDAAAC0.eps N58I115T.eps W241516401A.eps S241516401A.eps
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995445771
05/08/23
(EN/SERVICE/WC)
357
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FSC23R5DS
Copyright ©All rights reserved.

Publication No: 5995445771 FSC23R5DS
08/05 2

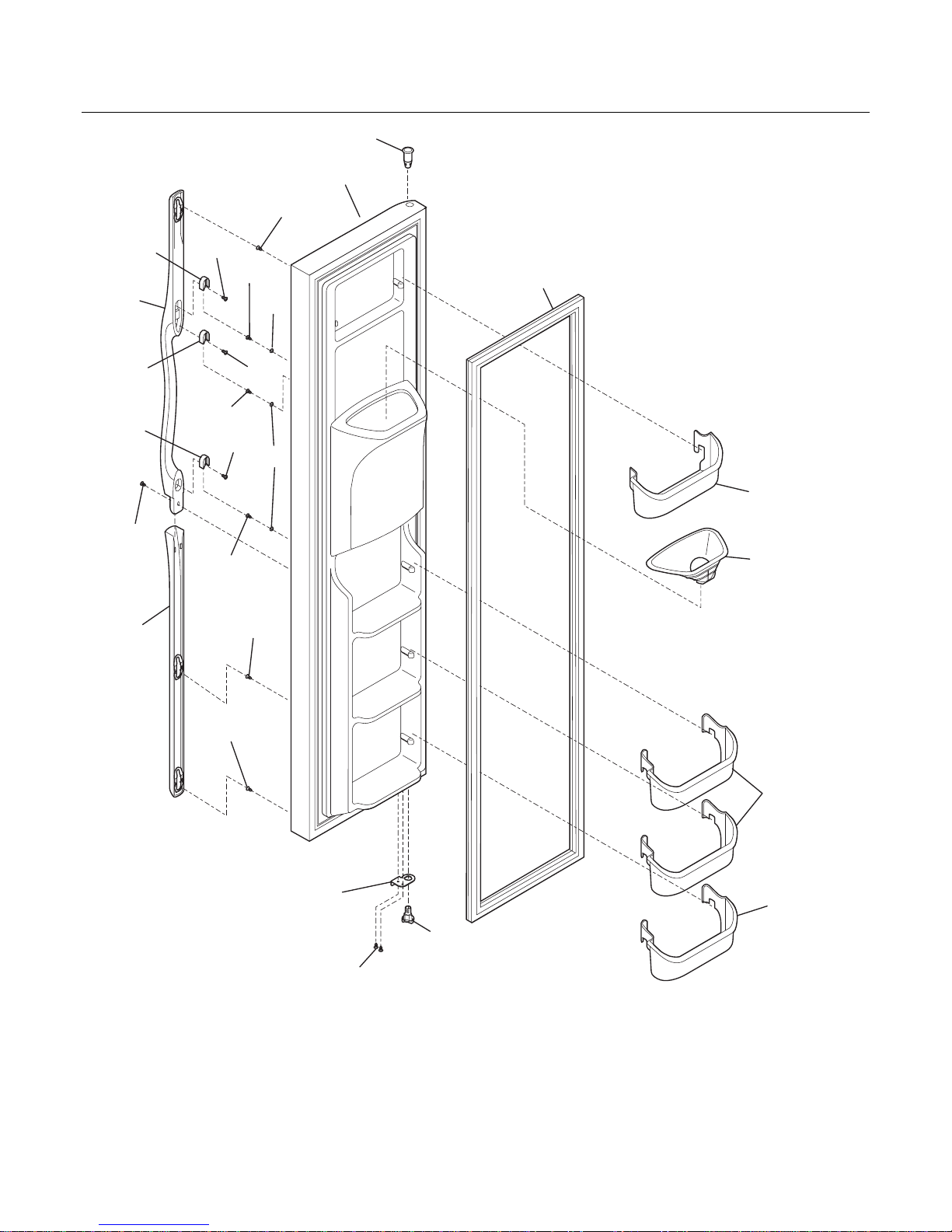

FREEZER DOOR
21C
21
21
21
21C
21C
21
74
74
74
72
72
73
73
73
18
37
22C
11
1
4B
68
4B
4B
13A
22A
21A
N58FCCBBB3

FSC23R5DS Publication No: 5995445771
# Functional Parts 3 08/05
* Non-Illustrated Parts
FREEZER DOOR
Model Index: AFSC23R5DS (FSC23R5DSBN)
BFSC23R5DS (FSC23R5DSB9)
POS. NO PART NO. DESCRIPTION
1 # 241510204 A B Gasket-frzr door, black, magnetic
4B 241511601 A B Bin-door
11 241668178 A - Door-frzr, stainless, complete assy
11 241526734 - B Door-frzr, stainless, complete assy
13A 240581906 A B Door Stop, black, frzr
18 240359108 A B Handle-door, black, LH
21 218781100 A B Screw, pan head, 8-18 x 0.625
21A 240598401 A B Screw, 10-32 x 1/2
21C 240521302 A B Screw, #8-18 x 3/4
22A 240328204 A B Bearing-hinge(frz), black, closer
22C 240328404 A B Bearing-hinge, black, upper
37 240359203 A B Trim-handle, 30.13", black, lower
68 241525101 A B Chute-ice
72 240421701 A B Button-handle mtg, dovetail
73 218396700 A B Block-handle mtg, dovetail
74 215503200 A B Screw, cr pan hd, 10-16 x 0.500
* 218490901 A B Cleaner, stainless steel
* 240352102 A B Connector-water, straight
* 240388601 A B Elbow-water tube
* 240552101 A B Harness-wiring, door
* 5303918256 A B Dispenser heater kit

Publication No: 5995445771 FSC23R5DS
08/05 4
REFRIGERATOR DOOR
70
49A
49
48
7
6
5
21A
22
13
15
22B
2
N58RCFCHA1
50
21
21
21
21C
21C
21
74
74
74
72
72
73
73
73
18
37

FSC23R5DS Publication No: 5995445771
# Functional Parts 5 08/05
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AFSC23R5DS (FSC23R5DSBN)
BFSC23R5DS (FSC23R5DSB9)
POS. NO PART NO. DESCRIPTION
2 # 241510203 A B Gasket-refr door, black, magnetic
5 241516101 A B Rack-can
6 241515901 A B Lug-dairy compartment
7 241515601 A B Door-dairy
13 240581905 A B Door Stop, black, ref
15 241534525 A - Door-refr, stainless, complete assy
15 241534524 - B Door-refr, stainless, complete assy
18 240359103 A B Handle-door, black, RH
21 218781100 A B Screw, pan head, 8-18 x 0.625
21A 240598401 A B Screw, 10-32 x 1/2
21C 240521302 A B Screw, #8-18 x 3/4
22 240328203 A B Bearing-hinge, black, closer
22B 240328403 A B Bearing-hinge, black, upper
37 240359203 A B Trim-handle, 30.13", black, lower
48 241511706 A B Bin-door, ref
49 241505306 A B Bin-door, 2-liter
49A 241505506 A B Bin-door
50 241508401 A B Cover-magnet
70 241515801 A B Compartment-dairy, removable
72 240421701 A B Button-handle mtg, dovetail
73 218396700 A B Block-handle mtg, dovetail
74 215503200 A B Screw, cr pan hd, 10-16 x 0.500
* 218490901 A B Cleaner, stainless steel

Publication No: 5995445771 FSC23R5DS
08/05 6

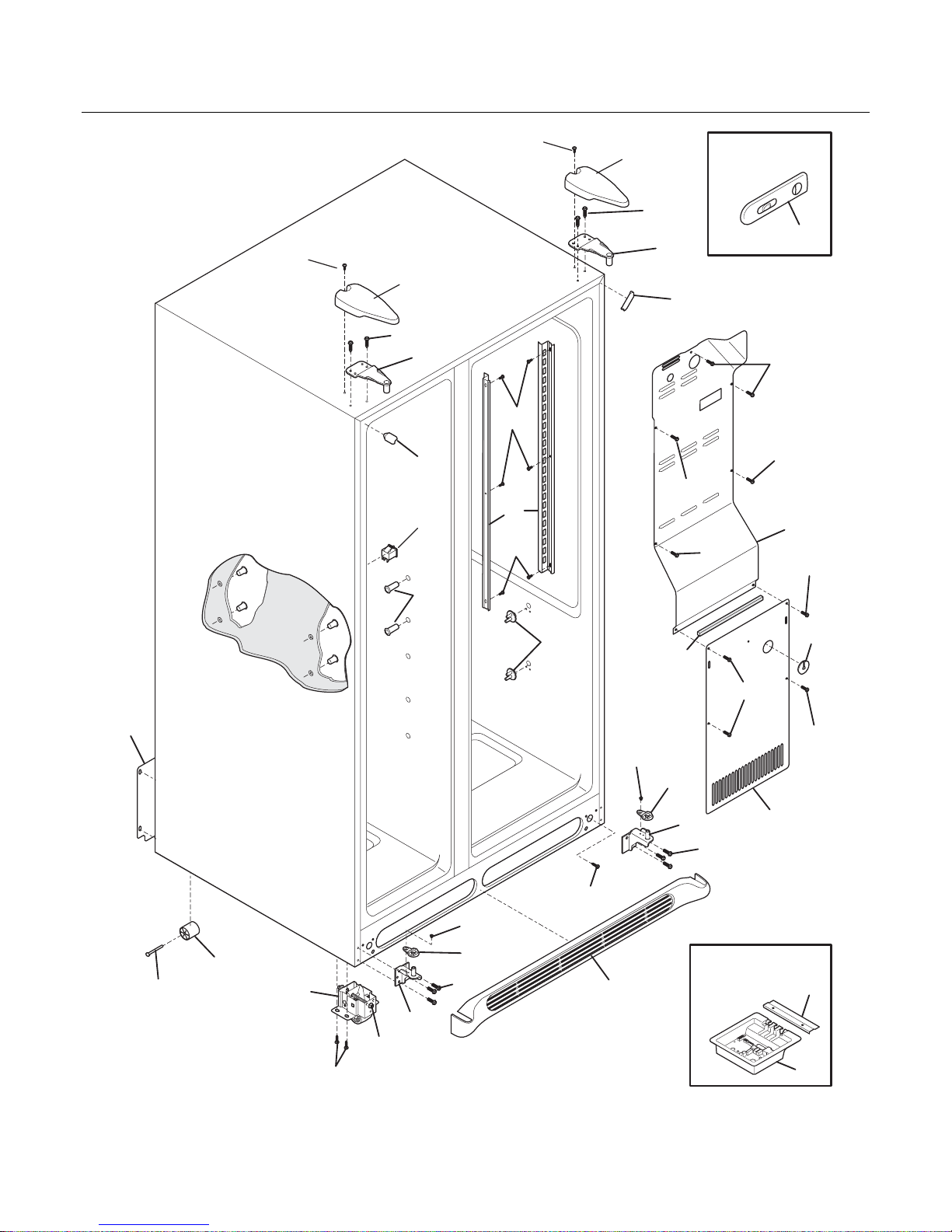

CABINET
100
92
92
90
89
83
82
81
81
72
66
54
50
47
45
45
45
45
45
45
45
43
42
42
41
38
38
37
37
28
30A
30
23
23
22
22
21C
21C
11
10A
10
N58BABAAD3
14A
58
58
40
40

FSC23R5DS Publication No: 5995445771
# Functional Parts 7 08/05
* Non-Illustrated Parts
CABINET
Model Index: AFSC23R5DS (FSC23R5DSBN)
BFSC23R5DS (FSC23R5DSB9)
POS. NO PART NO. DESCRIPTION
10 241509802 A B Cover-air duct
10A 240475907 A B Cover-evap coil, lower
11 5303208309 A B Plug-hole, factory test
14A# 241547901 A B Switch-light/lamp, frzr door
21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 A B Plate-door closer
23 240402701 A B Screw-#10-32 x 1/4 flat hd
28 240335501 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603701 A B Bracket-lower hinge, ref
30A 241603702 A B Bracket-lower hinge
37 240337603 A B Trim-cabinet corner, black, (2)
38 240327201 A B Bracket-upper hinge
40 240327007 A B Cover-upper hinge, black
41 241550801 A B Grommet-shelf mtg, 1.40" long
41* 241550701 A B Grommet-shelf mtg, .96" long
42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 A B Roller Assy, adjustable, front, (2)
45 241500301 A B Screw, hex washer head, 8-18AB x 0.500
47 241513001 A B Channel-shelf mtg, side, (2)
50 241511101 A B Board-main power
50* 241524801 A B Seal-Mother Board Housing
50* 241532501 A B Clip-harness
54 241532401 A B Channel
58 218781100 A B Screw, pan head, 8-18 x 0.625
66 241513601 A B Damper Assy
72 241521610 A B Grille/Kickplate, black
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B Roller, compressor base, rear, (2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574602 A B Cover access
90 218249808 A B Seal-coil cover
92 216850900 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B Support, crisper cover, front, (4)
100* 240350802 A B Support, crisper cover, rear, (4)
* 240479601 A B Plug, button, cab liner holes, (2)
* 241591701 A B Louver
* 5303305345 A B Paint, touch-up, black

Publication No: 5995445771 FSC23R5DS
08/05 8

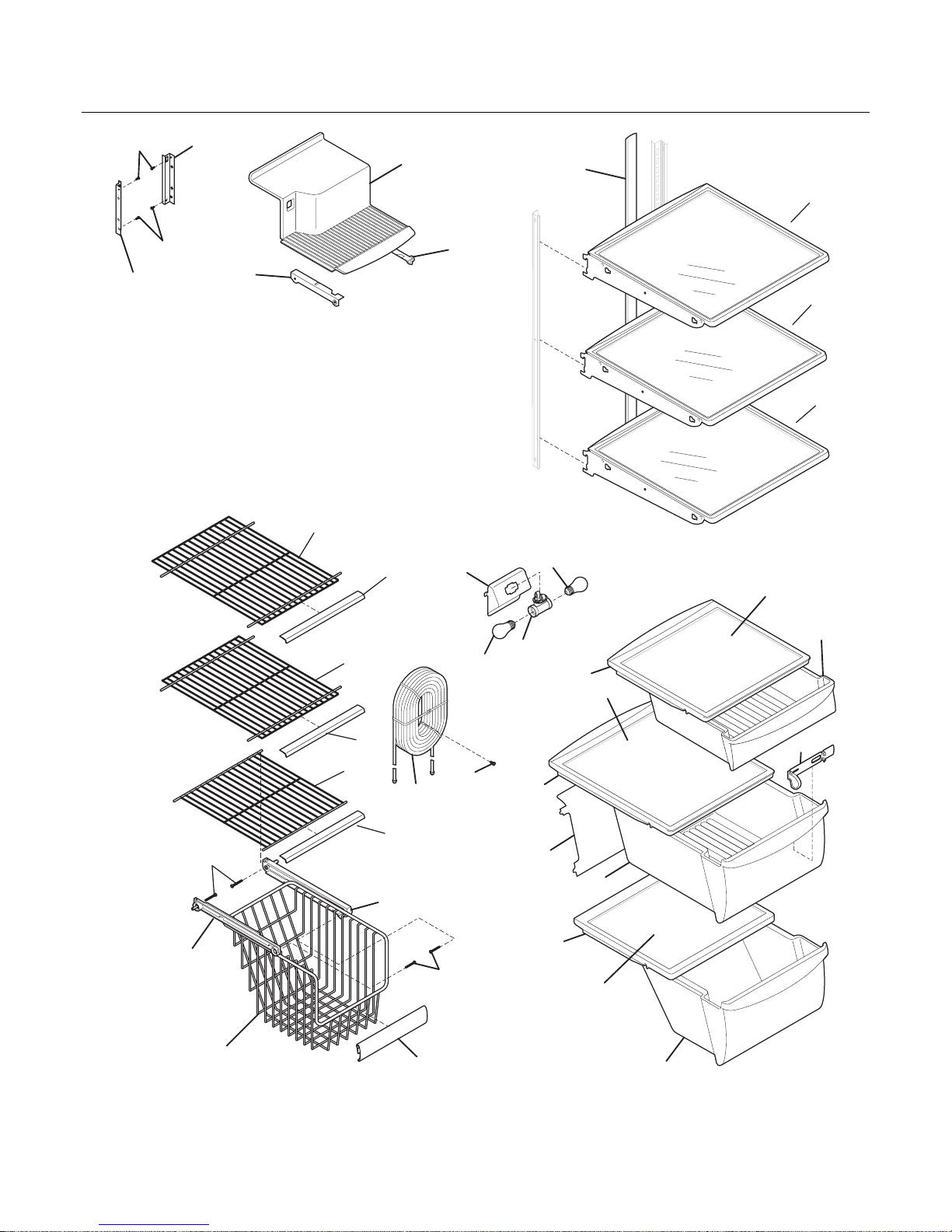

SHELVES
140
126
126
122
121
120
109
101
100
97
81
81
62
52
51
49
47B
47A
47
27
26A
26
25B
25A
25
21
16
15
15
2
N58SACKBB1
24
24
24
11B
11A
11
39A
39A
39
101

FSC23R5DS Publication No: 5995445771
# Functional Parts 9 08/05
* Non-Illustrated Parts
SHELVES
Model Index: AFSC23R5DS (FSC23R5DSBN)
BFSC23R5DS (FSC23R5DSB9)
POS. NO PART NO. DESCRIPTION
2 241510605 A B Trim-basket
11 241657605 A B Shelf-freezer, flip-up
11A 241657505 A B Shelf-freezer, fixed wire
11B 241657506 A B Shelf-freezer, fixed wire
15 241552801 A B Light Bulb
16 241622802 A B Socket-light
16* 241523201 A B Harness-wiring
21 5303001001 A B Screw, hx wshr hd sems, 8-15A x 0.625
24 240355240 A B Shelf-"Spill-Safe", fixed, (3)
25 240599301 A B Cover-crisper pan, upper
25* 240362101 A B Clip-slide, cover-crisper
25A 240350902 A B Cover-crisper pan, lower
25B 240599801 A B Cover-meat pan
26 240351005 A B Pan-crisper, upper
26* 240349801 A B Clip-slide, pan-crisper
26A 240362201 A B Control-humidity
27 240351206 A B Pan-crisper, lower
39 240430709 A B Trim-shelf, 11.60", front
39A 240430710 A B Trim-shelf, 12.86", front
47 240350633 A B Insert-pan cover, glass
47A 240350603 A B Insert-pan cover, glass
47B 240443360 A B Insert-pan cover, glass
49 241515001 A B Basket-sliding
51 241514501 A B Hanger-basket, RH
52 241514601 A B Hanger-basket, LH
62 240599701 A B Pan-meat
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
97 241532003 A B Water Tank
100 241549901 A B Cover-water tank
101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4
109 241513202 A B Base-crisper light socket
120 241504501 A B Shelf-ice cream
121 241504701 A B Rail-ice cream shelf, LH
122 241504702 A B Rail-ice cream shelf, RH
126 241630701 A B Channel, auger mtg, LH
126 241630702 A B Channel, auger mtg, RH
140 240430504 A B Channel, wtr tube cover

Publication No: 5995445771 FSC23R5DS
08/05 10
CONTROLS
140
139
81
138
137
81
151
150
201
149
116
115
81
81
75
61
60
23
22
21
17
16
15
15
14
13
9
8
5
N58TAAAAD2
54
50

FSC23R5DS Publication No: 5995445771
# Functional Parts 11 08/05
* Non-Illustrated Parts
CONTROLS
Model Index: AFSC23R5DS (FSC23R5DSBN)
BFSC23R5DS (FSC23R5DSB9)
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B Fan Blade, red, evaporator fan
8 215474201 A B Washer, "slinger", nylon, evap fan shaft
9 241518301 A B Bushing, motor mounting
13 241509401 A B Motor, evaporator fan
13* 241510501 A B Seal-diffuser
14 241517701 A B Clip, evap fan motor
15 241552801 A B Light Bulb
16 241507803 A B Socket-light
17 241522801 A B Box-control, front
17* 241510801 A B Harness-wiring
21 # 240596801 A B Control, electronic
22 240597201 A B Sensor
23 241512901 A B Cover-sensor
50 241511101 A B Board-main power
50* 241524801 A B Seal-Mother Board Housing
50* 241532501 A B Clip-harness
54 241532401 A B Channel
60 241510401 A B Diffuser-air, top
61 241511201 A B Cover
75 241517801 A B Shield-light
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
115 241518501 A B Damper, motorized
116 241518601 A B Seal-damper, foam
137 240389101 A B Filter, water, carbon canister, rear, with o'rings
137* 218710300 A B Wrench-filter
138 240434401 A B Cup-water filter
138* 218904301 A B O-ring, wtr filter cup
139 240434301 A B Housing-water filtr
140 240545201 A B Elbow-water tube
149 241517601 A B Shroud-evap fan mtg
149* 241528304 A B Seal, foam, evap fan assy
150 240394102 A B Insulation-water filter cover
151 240376002 A B Cover-water filter
201 240598701 A B Switch-membrane
* 240388601 A B Elbow-water tube

Publication No: 5995445771 FSC23R5DS
08/05 12

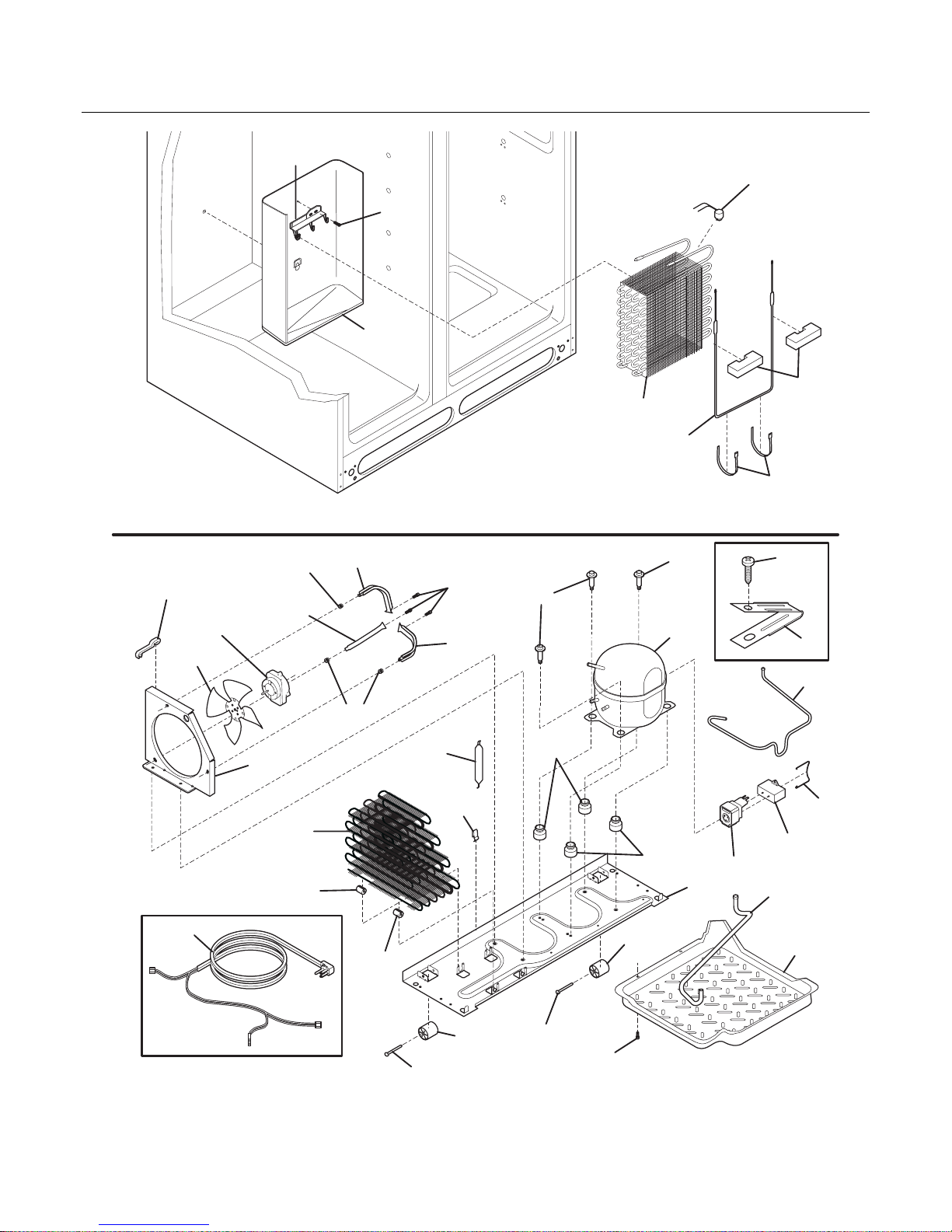

SYSTEM
86
85
84
83
83
82
82
70
62
61
60
59B
59B
59A
59A
59A
59
58
57
55
45
45
44
41
34
34
32
30
29
26
N58CAAAAC1
25
25
23
23
22
21
16
15
14
6
4
3
1

FSC23R5DS Publication No: 5995445771
# Functional Parts 13 08/05
* Non-Illustrated Parts
SYSTEM
Model Index: AFSC23R5DS (FSC23R5DSBN)
BFSC23R5DS (FSC23R5DSB9)
POS. NO PART NO. DESCRIPTION
1 240333603 A B Condenser
3 218679607 A B Block-evap coil, styrofoam, (2)
4 # 218944001 A B Drier-filter, R134a System
6 # 241516901 A B Cord-service
6* 241510801 A B Harness-wiring
6* 241519901 A B Harness-wiring
6* 241635601 A B Harness-wiring, machine compt
14 # 240316107 A B Heater-defrost
15 # 5303918284 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater, aluminum, (2)
21 5303918214 A B Thermostat-defrost, kit
22 240330008 A B Base-compressor mtg
22* 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B Grommet-compr mtg, (4)
25 240491501 A B Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 241637301 A B Pan-defrost drain
29 5303918314 A B Compressor, w/o electricals
30 241527803 A B Starter-TSD
32 241544101 A - Clamp, elec cont mtg, compressor, bale wire
32 241527901 - B Clamp, elec cont mtg, compressor
34 240405201 A B Grommet, rubber, black, cond tube/wire
41 240555001 A B Screw-#8-32 X 3/8
44 215174700 A B Clamp-service cord, strain relief, galv steel
45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
55 218909915 A B Capacitor, run, 220 VAC, 15 microfarad
57 240542601 A B Clip-wiring harness
58 240433201 A B Screw, hex washer head, 8-18 x 0.375
59 240315502 A B Shroud-cond fan
59* 240346701 A B Tape-foam seal, shroud
59* 240359401 A B Screw-fan shroud, (2)
59A 240346501 A B Bracket-support, cond mtr, (3)
59B 240346601 A B Grommet-bracket, (3)
60 # 241584301 A B Motor-condenser fan
61 241639501 A B Blade-condenser fan
62 240429402 A B Trough-drain
70 218990801 A B Bracket-evap/cvr mtg
82 5304418225 A B Roller, compressor base, rear, (2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B Tube-drain, lower
85 240553501 A B Tube-connector, suction
86 240409302 A B Spacer-cond tube, black
* # 5303918300 A B Heat Exchanger Kit, suction line
* 5303918222 A B Hot Tube Repair Kit, service

Publication No: 5995445771 FSC23R5DS
08/05 14
ICE & WATER DISPENSER

FSC23R5DS Publication No: 5995445771
# Functional Parts 15 08/05
* Non-Illustrated Parts
ICE & WATER DISPENSER
Model Index: AFSC23R5DS (FSC23R5DSBN)
BFSC23R5DS (FSC23R5DSB9)
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube-water-DOOR
1* 218976901 A B Tube-water inlet, inlet valve, to ice maker
1* 218976904 A B Tube-water inlet, valve to filter
1* 218976912 A B Tube-water inlet, valve to door
1* 240561701 A B Seal-water inlet, inlet valve, to ice maker
4 5304433186 A B Cover-module, black
8 5304422013 A B Module-dispenser
10 5304426649 A B Spring-torsion
14 240570206 A B Label-module cover, black
15 5304421616 A B Light Bulb
16 240548901 A B Socket-light
17 5304421619 A B Screw
17A 5304433185 A B Screw, switch mtg.
23 241649003 A B Drip Tray, black
24 5304422026 A B Actuator-water, black
24A 5304422025 A B Actuator-ice, black
30 5304421628 A B Door Assy-ice chute
30A 5304421624 A B Door center
30B 5304421625 A B Insulation-door
30C 5304421629 A B Door seal
35 5304421620 A B Damper-rotary
38A# 5304421617 A B Switch-micro, single pole, double throw
38A* 5304430839 A B Harness-wiring
38C 5304436275 A B Switch
38C* 5304430837 A B Harness-wiring
39 5304421627 A B Pin-hinge
41 5304421829 A B Spring-actuator
43 215296300 A B Screw, plask h/l, #6 x 3/8
56 5304421830 A B Screw-micro switch, pan head
74 215503200 A B Screw, cr pan hd, 10-16 x 0.500
82 240363401 A B Screw-#8-18 X 1/2, #6 hd plask
87 5304421622 A B Bearing Plate
87A 5304421621 A B Bearing Plate
88 5304421615 A B Shield-light
* 218515401 A B Clip
* 5303918256 A B Dispenser heater kit

Publication No: 5995445771 FSC23R5DS
08/05 16
ICE CONTAINER
45
4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
58
51
26
26
26
26
10
21
26
44
44
44
49
7
3
2
23
39
70
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
22
N58YDAAAC0

FSC23R5DS Publication No: 5995445771
# Functional Parts 17 08/05
* Non-Illustrated Parts
ICE CONTAINER
Model Index: AFSC23R5DS (FSC23R5DSBN)
BFSC23R5DS (FSC23R5DSB9)
POS. NO PART NO. DESCRIPTION
2 5304436634 A B Auger-ice
3 5304404343 A B Cam-drive
4 241515201 A B Container-ice, bucket only
6 5304404346 A B Drum-ice disp
7 241515301 A B Front-ice container
10 241624801 A B Bar-drive
13 5304404359 A B Gate
15 241555401 A B Light Bulb
16 241559801 A B Socket-light
17 5304404345 A B Drive Blade
18 # 5304440392 A B Motor-auger
18* 241522901 A B Harness-wiring, icmkr/container
20 5304404332 A B Cover-motor
21 215285100 A B Nut-drive
22 240597201 A B Sensor
22* 241519401 A B Clip, sensor
23 5304404347 A B Plate-front
25 5304404362 A B Screw, hex washer head, 8-32T x 0.375
26 215503200 A B Screw, cr pan hd, 10-16 x 0.500
33 5304404351 A B Spacer
34 5304404349 A B Spacer
35A 5304404353 A B Fixed Blade, round
35B 5304404352 A B Fixed Blade, square
37A 5304404348 A B Blade, crusher #1
37B 5304404350 A B Blade, crusher #2
37C 5304404356 A B Blade, crusher #3
39 5304404365 A B Screw
41 5304404358 A B Housing-crusher
44 218359200 A B Screw, pan head, 8-32 x 0.250
45 # 5304404333 A B Solenoid Assy
45A 5304406816 A B Spring-solenoid
45B 5304406817 A B E-Ring-solenoid
45C 5304406818 A B Actuator-solenoid
45D 5304406819 A B Solenoid
46 5304436635 A B Control Rod
47 5304404342 A B Spring-control rod
48 5304404340 A B Bracket-control rod
48* 5304404364 A B Screw-bracket
49 5304436702 A B Rail Assy
50 5304404334 A B Guide-solenoid
51 5304404336 A B Rotation Stop
52 5304404354 A B Spacer-fixed blades
53 5304404355 A B Pin-spiral, fixed blades
54 5304404357 A B Nut-auger
55 5304404360 A B Washer
56 5304404361 A B E-ring
58 5304404331 A B Screw-solenoid
70 241504601 A B Plate-mounting
70* 215005100 A B Screw, hanger/rlr mtg, 8-10 x 0.438
70* 241551601 A B Screw, hex head, 8-18B x 0.875
* 241504301 A B Ice Container Assy, w/moving parts

Publication No: 5995445771 FSC23R5DS
08/05 18
ICE MAKER
45 45
42
51
46
64
29
7
6
16
67
20
21
19
22 66
60
18
17
9
10
23
23
34
28
34
34
11
29
14
30
27 13
26
26
15 15
2
15
31
32
36
4
35
5
33
8
24
25
12
1
55 INSTALLATION PARTS
N58I115T

FSC23R5DS Publication No: 5995445771
# Functional Parts 19 08/05
* Non-Illustrated Parts
ICE MAKER
Model Index: AFSC23R5DS (FSC23R5DSBN)
BFSC23R5DS (FSC23R5DSB9)
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube-water-DOOR
1* 218976901 A B Tube-water inlet, inlet valve, to ice maker
1* 218976904 A B Tube-water inlet, valve to filter
1* 218976912 A B Tube-water inlet, valve to door
1* 240561701 A B Seal-water inlet, inlet valve, to ice maker
1* 241604801 A B Seal-water inlet, inlet valve, to ice maker
2 5304436616 A B Spring, torsion
4 3206301 A B Gear
5 5304436604 A B Plate-mounting
6 3206305 A B Screw-ground wire, 8-32 x 0.250
7 # 5304436619 A B Motor-ice maker
8 3206312 A B Spacer-hold switch
9 5304436610 A B Detent
10 3206315 A B Clamp
11 # 5304436618 A B Thermal Cutoff, ICE MAKER, complete assy
12 5304436614 A B Harness-wiring
13 5304436613 A B Thermostat, ICE MAKER
14 5304420652 A B Screw, 4 x 0.750, switch mtg.
15 # 3206324 A B Switch, (3)
16 5304436609 A B Housing, control
17 # 5304436617 A B Mold-ice maker, with heater
18 5304436607 A B Ejector-ice
18*# 240352601 A B Wiring Harness, internal, with plug
19 5304436606 A B Cup-water inlet
20 5304408581 A B Screw, 8-32 x 0.375
21 5304436608 A B Ice Stripper
22 5304436602 A B Shut-off Arm
23 5304408582 A B Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B Lever Arm
25 5304404362 A B Screw, hex washer head, 8-32T x 0.375
26 5304420654 A B Screw-thermo/sprt, 4-24 x 0.375, (4)
27 3206338 A B Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B Screw-timing stop, 4-40 x 0.375
29 3206323 A B Screw, 4-24 x 0.750, (6)
30 3206341 A B Screw-timing adj, 8-32 x 1.000
31 3206342 A B Insulator
32 3206343 A B Plate-valve switch
33 5304436615 A B Spring-thermostat
34 5304420655 A B Screw, plazscrew, 8-10, (3)
35 5304408585 A B Screw
36 5304436605 A B Cover-ice maker
42 5303001199 A B Clamp-wiring harness, strain relief, galv steel
42* 218515402 A B Clip, (2), tube mtg.
45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
46 5303001193 A B Clamp, .50 ID, steel, water tube
51 241523502 A B Tube-water fill, extension
55 # 240531101 A B Valve-water, triple solenoid
55* 218709100 A B Screw, hex head, 10-32 x 0.500
55* 240363601 A B Screw-shoulder

Publication No: 5995445771 FSC23R5DS
08/05 20
ICE MAKER
45 45
42
51
46
64
29
7
6
16
67
20
21
19
22 66
60
18
17
9
10
23
23
34
28
34
34
11
29
14
30
27 13
26
26
15 15
2
15
31
32
36
4
35
5
33
8
24
25
12
1
55 INSTALLATION PARTS
N58I115T
