Frigidaire FSC23F7H Instruction Manual

E23CS75DSS0.eps N58FCFEFA1.eps N58RCFCHA5.eps N58BABAAD5.eps
N58SEHLBC13.eps N58TBAAAB4.eps N58CAAAAC10.eps N58XEAAAA1.eps
N58YDAAAC4.eps N58I115TServo.eps W241516401A.eps S241516401A.eps
Product No. FSC23F7HB1 FSC23F7HW1 FSC23F7HSB1
Series counter depth counter depth counter depth
Color black white stainless
Volts 115 115 115
Wiring Diagram 241516401A 241516401A 241516401A
Owner's Guide 241814800 241814800 241814800
Market North America North America North America
Energy Guide 241615434 241615434 241615435
Service Data Sheet 241532603 241532603 241532603
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995489829
07/05/01
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FSC23F7H
Copyright ©All rights reserved.

Publication No: 5995489829 FSC23F7H
05/07 2

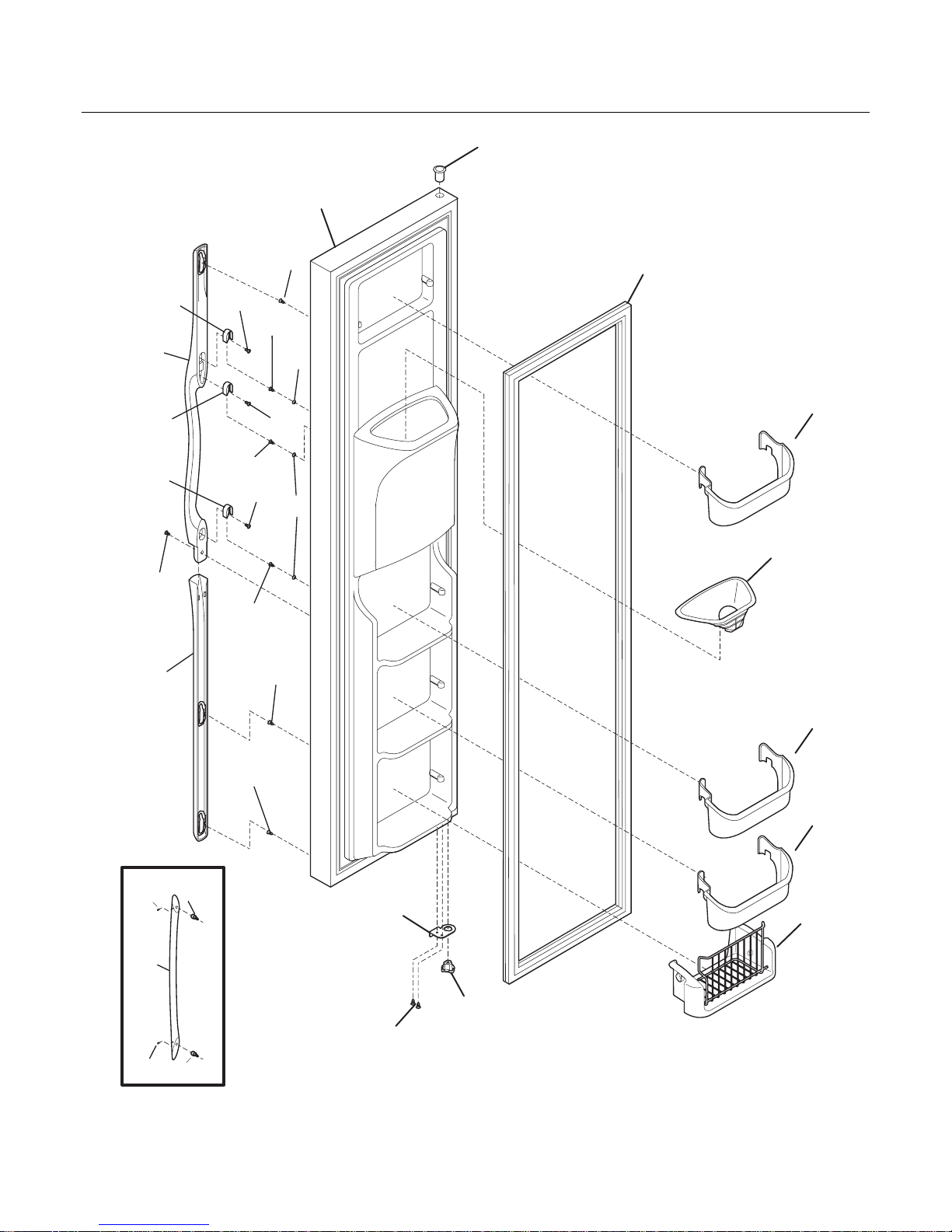

FREEZER DOOR
Stainless Handle
68
5
22C
22A
21A
13A
11
4B
4B
4B
N58FCFEFA1
1
21C
21
21
21
21C
21C
21
74
74
74
72
72
73
73
73
18
37
18
79
79 80
80

FSC23F7H Publication No: 5995489829
# Functional Parts 3 05/07
* Non-Illustrated Parts
FREEZER DOOR
Model Index: AFSC23F7H (FSC23F7HB1)
BFSC23F7H (FSC23F7HW1)
CFSC23F7HS (FSC23F7HSB1)
POS. NO PART NO. DESCRIPTION
1 # 241510204 A - C Gasket-frzr door, black, magnetic
1 # 241510202 - B - Gasket-frzr door, white, magnetic
4B 241511602 A B C Bin-door
5 241545001 A B C Bin-tilt out, tilt-out
11 241668172 A - - Door-frzr, black, complete assy
11 241668123 - B - Door-frzr, white, complete assy
11 241668503 - - C Door-frzr, stainless, complete assy
13A 240581906 A - C Door Stop, black, frzr
13A 240581902 - B - Door Stop, white, frzr
18 241711705 A - - Handle-door, black
18 241711704 - B - Handle-door, white, frzr
18 240536818 - - C Handle-door, stainless steel, with insert, & set screw
21 218781101 A B - Screw, pan head, 8-18 x 0.625
21A 240598402 A B C Screw, 10-32 x 1/2
21C 240521304 A B - Screw, #8-18 x 3/4
22A 240328204 A - C Bearing-hinge(frz), black, closer
22A 240328202 - B - Bearing-hinge(frz), closer
22C 240328404 A - C Bearing-hinge, black, upper
22C 240328402 - B - Bearing-hinge, natural, upper
37 241711602 A - - Trim-handle, 30.13", black, lower
37 241711601 - B - Trim-handle, 30.13", white, lower
68 241525101 A B C Chute-ice
72 240421701 A B - Button-handle mtg, dovetail
73 218396700 A B - Block-handle mtg, dovetail
74 215503204 A B - Screw, cr pan hd, 10-16
79 218755402 - - C Screw-set, 10-32 x 0.375
80 218755504 - - C Screw-shoulder, #10 AB, handle mounting
* 240552102 A B C Harness-wiring, door
* 241806601 A B C Connector-water, straight
* 5303918256 A B C Dispenser heater kit

Publication No: 5995489829 FSC23F7H
05/07 4
REFRIGERATOR DOOR
Stainless Handle
18
79
79
80
80
70
49A
49
48
7
6
5
21A
22
13
15
22B
2
N58RCFCHA5
50
21
21
21
21C
21C
21
74
74
74
72
72
73
73
73
18
37

FSC23F7H Publication No: 5995489829
# Functional Parts 5 05/07
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AFSC23F7H (FSC23F7HB1)
BFSC23F7H (FSC23F7HW1)
CFSC23F7HS (FSC23F7HSB1)
POS. NO PART NO. DESCRIPTION
2 # 241510203 A - C Gasket-refr door, black, magnetic
2 # 241510201 - B - Gasket-refr door, white, magnetic
5 241516102 A B C Rack-can
6 241515901 A B C Lug-dairy compartment
7 241515601 A B C Door-dairy
13 240581905 A - C Door Stop, black, ref
13 240581901 - B - Door Stop, white, refr
15 241534505 A - - Door-refr, black, complete assy
15 241534504 - B - Door-refr, white, complete assy
15 241534533 - - C Door-refr, stainless, complete assy
18 241711702 A - - Handle-door, black
18 241711701 - B - Handle-door, white, refr
18 240536818 - - C Handle-door, stainless steel, with insert, & set screw
21 218781101 A B - Screw, pan head, 8-18 x 0.625
21A 240598402 A B C Screw, 10-32 x 1/2
21C 240521304 A B - Screw, #8-18 x 3/4
22 240328203 A - C Bearing-hinge, black, closer
22 240328201 - B - Bearing-hinge(ref), closer
22B 240328404 A - C Bearing-hinge, black, upper
22B 240328402 - B - Bearing-hinge, natural, upper
37 241711602 A - - Trim-handle, 30.13", black, lower
37 241711601 - B - Trim-handle, 30.13", white, lower
48 241511701 A B C Bin-door, ref
49 241505301 A B C Bin-door, 2-liter
49* 241779901 A B C Liner, bin, 2 liter
49A 241505501 A B C Bin-door, gallon
49A* 241780001 A B C Liner, bin, gallon
50 241508401 A B C Cover-magnet
70 241515801 A B C Compartment-dairy, removable
72 240421701 A B - Button-handle mtg, dovetail
73 218396700 A B - Block-handle mtg, dovetail
74 215503204 A B - Screw, cr pan hd, 10-16
79 218755402 - - C Screw-set, 10-32 x 0.375
80 218755504 - - C Screw-shoulder, #10 AB, handle mounting

Publication No: 5995489829 FSC23F7H
05/07 6
CABINET
66
92
92
38
38
37
37
14A
41
100
89
83
82
43
21C
21C
28
42
42
23
22
23
22
30A
30
72
10A
N58BABAAD5
10
90
11
45
45
45
45
45
81
81
81
47
58
58
40
54
50

FSC23F7H Publication No: 5995489829
# Functional Parts 7 05/07
* Non-Illustrated Parts
CABINET
Model Index: AFSC23F7H (FSC23F7HB1)
BFSC23F7H (FSC23F7HW1)
CFSC23F7HS (FSC23F7HSB1)
POS. NO PART NO. DESCRIPTION
10 241509804 A B C Cover-air duct
10A 240475911 A B C Cover-evap coil, lower
11 5303208309 A B C Plug-hole, factory test
14A 241547901 A B C Switch-light/lamp, frzr door
21C 218252201 A B C Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 A - C Plate-door closer
22 240457701 - B - Plate-door closer
23 240402702 A B C Screw-#10-32 x 1/4 flat hd
28 240335502 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 A B C Bracket-lower hinge, ref
30A 241603704 A B C Bracket-lower hinge
37 240337610 A - C Trim-cabinet corner, black, (2)
37 240337608 - B - Trim-cabinet corner, white, (2)
38 240327207 A B C Bracket-upper hinge
40 241555103 A - C Cover-hinge, black
40 241555101 - B - Cover-hinge
41 241550801 A B C Grommet-shelf mtg, 1.40" long
41* 241550701 A B C Grommet-shelf mtg, .96" long
42 240578902 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335005 A B C Roller Assy, adjustable, front, (2)
45 241500303 A B C Screw, hex washer head, 8-18AB x 0.500
47 241513001 A B C Channel-shelf mtg, side, (2)
50 241511101 A B C Board-main power
50* 241524801 A B C Seal-Mother Board Housing
50* 241532501 A B C Clip-harness
54 241532401 A B C Channel
58 241595402 A B C Screw-#10-32 X 3/4
66 241513601 A B C Damper Assy
72 241521619 A - C Grille/Kickplate, black
72 241521617 - B - Grille/Kickplate, white
81 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5304455655 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733902 A B C Cover-access, w/label
90 218249808 A B C Seal-coil cover
92 241710601 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B C Support, crisper cover, front, (4)
100* 240350802 A B C Support, crisper cover, rear, (4)
* 240479601 A B C Plug, button, cab liner holes
* 241591701 A B C Louver
* 5303321321 A - C Paint, touch-up, black
* 5303321319 - B - Paint, touch-up, white

Publication No: 5995489829 FSC23F7H
05/07 8
SHELVES
52A
11A
51A
39
52
49B
51
2
N58SEHLBC13
24B
24
140
25B
26
47B
25
27
47A
25A
47
49
2
26A
26A
52
101
101
51
100
21
109 15A
15A 16A
97
126
81
81
126
120
24B
122
121
136
62
39
41
11

FSC23F7H Publication No: 5995489829
# Functional Parts 9 05/07
* Non-Illustrated Parts
SHELVES
Model Index: AFSC23F7H (FSC23F7HB1)
BFSC23F7H (FSC23F7HW1)
CFSC23F7HS (FSC23F7HSB1)
POS. NO PART NO. DESCRIPTION
2 241510605 A B C Trim-basket
11 240443357 A B C Shelf-freezer, glass, lower
11A 240443358 A B C Shelf-freezer, glass, upper
15A 241552801 A B C Light Bulb
16A 241622802 A B C Socket-light
16A* 241523202 A B C Harness-wiring
21 5304455658 A B C Screw, hx wshr hd sems, 8-15A x 0.625, 21
24 240355240 A B C Shelf-"Spill-Safe", fixed, (3)
24B 240350129 A B C Shelf-"Spill-Safe", cantilever, sliding
25 240599301 A B C Cover-crisper pan, upper
25* 240362101 A B C Clip-slide, cover-crisper
25A 240350902 A B C Cover-crisper pan, lower
25B 240599801 A B C Cover-meat pan
26 240351005 A B C Pan-crisper, upper
26* 240349801 A B C Clip-slide, pan-crisper
26A 240362201 A B C Control-humidity
27 240351205 A B C Pan-crisper, lower
39 240367603 A B C Trim-shelf, 11.65", front
41 241637601 A B C Baffle-air
47 240350633 A B C Insert-pan cover, glass
47A 240350603 A B C Insert-pan cover, glass
47B 240443360 A B C Insert-pan cover, glass
49 241515001 A B C Basket-sliding
49B 241514901 A B C Basket-sliding, upper, full
51 241514501 A B C Hanger-basket, RH
51A 241514701 A B C Hanger-shelf glass, RH
52 241514601 A B C Hanger-basket, LH
52A 241514801 A B C Hanger-shelf glass, LH
62 240599701 A B C Pan-meat
81 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile
97 241532002 A B C Water Tank
100 240326304 A B C Cover-water tank
101 218493101 A B C Screw, hex washer head, 8-18AB x 1-3/4
109 241513202 A B C Base-crisper light socket
120 241691701 A B C Shelf-ice cream
121 241504701 A B C Rail-ice cream shelf, LH
122 241504702 A B C Rail-ice cream shelf, RH
126 241674401 A B C Channel, auger mtg, LH
126 241674402 A B C Channel, auger mtg, RH
136 241657702 A B C Dispenser-can, clear
140 240430504 A B C Channel, wtr tube cover
* 241615434 A B - Energy Guide
* 241615435 - - C Energy Guide

Publication No: 5995489829 FSC23F7H
05/07 10
CONTROLS
201
199
198
151
149
139
138
137
116
115
81
81
75A
75
75A
60
23
22
21
17
16
15
15
14
13
9
8
5
N58TBAAAB4
54
50

FSC23F7H Publication No: 5995489829
# Functional Parts 11 05/07
* Non-Illustrated Parts
CONTROLS
Model Index: AFSC23F7H (FSC23F7HB1)
BFSC23F7H (FSC23F7HW1)
CFSC23F7HS (FSC23F7HSB1)
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B C Fan Blade, red, evaporator fan
8 215474201 A B C Washer, "slinger", nylon, evap fan shaft
9 241518301 A B C Bushing, motor mounting
13 241509402 A B C Motor, evaporator fan
13* 241510501 A B C Seal-diffuser
14 241517701 A B C Clip, evap fan motor
15 241552801 A B C Light Bulb
16 241622802 A B C Socket-light
17 241516201 A B C Box-control, front
17* 241510801 A B C Harness-wiring
21 # 240596701 A B C Control, electronic
22 240597203 A B C Sensor
23 241512901 A B C Cover-sensor
23* 5304455649 A B C Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
50 241511101 A B C Board-main power
50* 241524802 A B C Seal, housing
50* 241532501 A B C Clip-harness
54 241532401 A B C Channel
60 # 241510301 A B C Diffuser-air
75 241517802 A B C Shield-light
75A 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile
81 5304455658 A B C Screw, hx wshr hd sems, 8-15A x 0.625, 21
115 241518501 A B C Damper, motorized
116 241518601 A B C Seal-damper, foam
137 240396401 A B C Filter, water, carbon cassette, front, with o'rings
137* 240396701 A B C Bypass, water filter, Optional Part
138 240397301 A B C Button-filter release
139 240396002 A B C Base-water filter
139* 240526901 A B C O-ring, wtr filter base
149 241517601 A B C Shroud-evap fan mtg
149* 241528304 A B C Seal, foam, evap fan assy
151 241505001 A B C Cover-water tube
198 240397401 A B C Retainer
199 240397501 A B C Rod
199* 240398401 A B C Spring-filter release rod
201 241504102 A B C Switch-membrane

Publication No: 5995489829 FSC23F7H
05/07 12

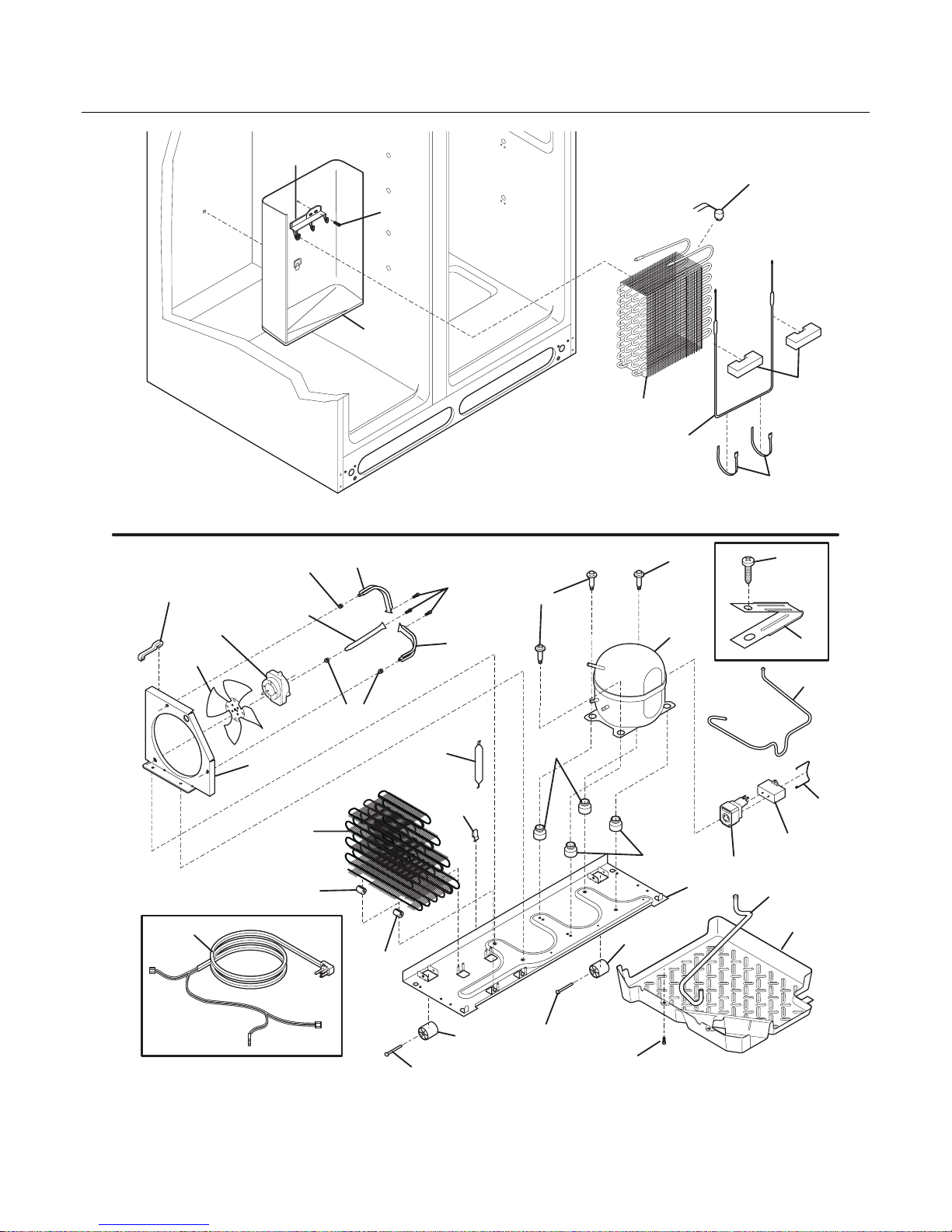

SYSTEM
85
84
83
83
82
82
70
62
61
60
59B
59B
59A
59A
59A
59
58
57
55
45
45
44
41
34
34
32
30
29
26
N58CAAAAC10
25
25
23
23
22
21
16
15
14
6
4
3
1
86

FSC23F7H Publication No: 5995489829
# Functional Parts 13 05/07
* Non-Illustrated Parts
SYSTEM
Model Index: AFSC23F7H (FSC23F7HB1)
BFSC23F7H (FSC23F7HW1)
CFSC23F7HS (FSC23F7HSB1)
POS. NO PART NO. DESCRIPTION
1 240333603 A B C Condenser
3 218679607 A B C Block-evap coil, styrofoam, (2)
4 # 218944001 A B C Drier-filter, R134a System
6 # 241516901 A B C Cord-service
6* # 241519902 A B C Harness-wiring
6* # 241635603 A B C Harness-wiring, machine compt
6* 241510801 A B C Harness-wiring
14 # 240316107 A B C Heater-defrost
15 # 5303918284 A B C Evaporator Kit
16 5308000110 A B C Strap-evap/heater, aluminum, (2)
21 5303918214 A B C Thermostat-defrost, kit
22 240330011 A B C Base-compressor mtg
22* 218252201 A B C Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B C Grommet-compr mtg, (4)
25 240491503 A B C Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697501 A B C Pan-defrost drain
29 # 5303918314 A B C Compressor, w/o electricals
30 # 241527803 A B C Starter-TSD
32 241544101 A B C Clamp, elec cont mtg, compressor, bale wire
34 240405201 A B C Grommet, rubber, black, cond tube/wire
41 240555002 A B C Screw-#8-32 X 3/8
44 215174700 A B C Clamp-service cord, strain relief, galv steel
45 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile
55 218909915 A B C Capacitor, run, 220 VAC, 15 microfarad
57 240542601 A B C Clip-wiring harness
58 240433203 A B C Screw, hex washer head, 8-18 x 3/8
59 240315502 A B C Shroud-cond fan
59* 240346701 A B C Tape-foam seal, shroud
59* 240359403 A B C Screw-fan shroud, (2)
59A 240346501 A B C Bracket-support, cond mtr, (3)
59B 240346601 A B C Grommet-bracket, (3)
60 # 241584301 A B C Motor-condenser fan
61 241639501 A B C Blade-condenser fan
62 240429402 A B C Trough-drain
70 218990801 A B C Bracket-evap/cvr mtg
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5304455655 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B C Tube-drain, lower
85 241719501 A B C Tube-connector, suction
86 240409302 A B C Spacer-cond tube, black
* 5303918222 A B C Hot Tube Repair Kit, service
* # 5303918327 A B C Heat Exchanger Kit, suction line

Publication No: 5995489829 FSC23F7H
05/07 14
ICE & WATER DISPENSER
N58XEAAAA1
43
41
87
87A
35 17
56
38A
17
8
38
38C
1
17
24
24A
23
82
4
14
30
30A
30B
30C
39
10
90
91
36

FSC23F7H Publication No: 5995489829
# Functional Parts 15 05/07
* Non-Illustrated Parts
ICE & WATER DISPENSER
Model Index: AFSC23F7H (FSC23F7HB1)
BFSC23F7H (FSC23F7HW1)
CFSC23F7HS (FSC23F7HSB1)
POS. NO PART NO. DESCRIPTION
1 218976409 A B C Tube, water, door
1* 218976901 A B C Tube, water inlet, valve to IM
1* 218976903 A B C Tube-water inlet, inlet valve, to filter
1* 218976917 A B C Tube-water inlet, valve to door
1* 240561702 A B C Seal-water inlet, inlet valve, to ice maker
4 241678703 A - C Cover-module, black
4 241678701 - B - Cover-module, white
8 241680503 A - C Module-dispenser, black
8 241680501 - B - Module-dispenser, white
10 241688901 A B C Spring-torsion
14 240323957 A - C Label-module cover, black
14 240323955 - B - Label-module cover, white
17 241679801 A B C Screw
23 241649003 A - C Drip Tray, black
23 241649001 - B - Drip Tray, white
24 241685703 A - C Actuator-water, black
24 241685701 - B - Actuator-water, white
24A 241682303 A - C Actuator-ice, black
24A 241682301 - B - Actuator-ice, white
30 241688401 A B C Door Assy-ice chute
30A 241688501 A B C Door center
30B 241688601 A B C Insulation-door
30C 241688701 A B C Door seal
35 241689301 A B C Damper-rotary
36 241680301 A B C Carrier
38 # 241708102 A B C Board-power
38A# 241689101 A B C Switch-micro, single pole, double throw
38C# 241708306 A B C Board-control
38C* 241680001 A B C Harness-ribbon cable
39 241688801 A B C Pin-hinge
41 241689001 A B C Spring-actuator
43 215296301 A B C Screw, plask h/l, #6 x 3/8
56 241689201 A B C Screw-micro switch, pan head
82 240363402 A B C Screw-#8-18 X 1/2, #6 hd plask
87 241688302 A B C Bearing Plate
87A 241688301 A B C Bearing Plate
90 241680201 A B C Light Pipe, reflector, long
91 241680101 A B C Light Pipe, reflector, short
* 218515403 A B C Clip-grille
* 241686201 A B C Insulator-electrical
* 5303918256 A B C Dispenser heater kit

Publication No: 5995489829 FSC23F7H
05/07 16
ICE CONTAINER
45
4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
44
51
26
26
26
26
10
26
43
43
43
49
7
3
2
23
39
70
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
22
N58YDAAAC4
39

FSC23F7H Publication No: 5995489829
# Functional Parts 17 05/07
* Non-Illustrated Parts
ICE CONTAINER
Model Index: AFSC23F7H (FSC23F7HB1)
BFSC23F7H (FSC23F7HW1)
CFSC23F7HS (FSC23F7HSB1)
POS. NO PART NO. DESCRIPTION
2 241684701 A B C Auger-ice
3 241685201 A B C Cam-drive
4 241515202 A B C Ice Bucket Assy
6 241685101 A B C Drum-ice disp
7 241515301 A B C Front-ice container
10 241726501 A B C Bar-drive
13 241685301 A B C Gate
15 241555401 A B C Light Bulb
16 241559801 A B C Socket-light
17 241684501 A B C Drive Blade
18 # 241676202 A B C Motor-auger, 115V
18* 241522901 A B C Harness-wiring, icmkr/container
20 241675502 A B C Cover-motor
22 240597203 A B C Sensor
22* 241519401 A B C Clip, sensor
23 241684001 A B C Plate-front
25 241690701 A B C Screw, hex washer head, 8-32T x 0.375
26 215503205 A B C Screw, cr pan hd, 10-16 x 0.500
33 241684801 A B C Spacer
34 241689801 A B C Spacer
35A 241684301 A B C Fixed Blade, round
35B 241684201 A B C Fixed Blade, square
37A 241684101 A B C Blade, crusher #1
37B 241684102 A B C Blade, crusher #2
37C 241684103 A B C Blade, crusher #3
39 241690501 A B C Screw
41 241685601 A B C Housing-crusher
43 215005101 A B C Screw, hanger/rlr mtg, 8-10 x 7/16
44 218359202 A B C Screw, pan head, 8-32 x 0.250
45 # 241675701 A B C Solenoid Assy, 115V
45A 241675901 A B C Spring-solenoid
45B 241676001 A B C E-Ring-solenoid
45C 241676101 A B C Actuator-solenoid
45D# 241675801 A B C Solenoid, 115V
46 241684402 A B C Control Rod
47 241731801 A B C Spring-control rod
48 241684602 A B C Bracket-control rod
49 241676501 A B C RailAssy
50 241675601 A B C Guide-solenoid
51 241676301 A B C Rotation Stop
52 241684901 A B C Spacer-fixed blades
53 241690402 A B C Pin-spiral, fixed blades
54 241685001 A B C Nut-auger
55 241690306 A B C Washer
56 241690201 A B C E-ring
70 241504601 A B C Plate-mounting
70* 241716801 A B C Clip
70* 241551602 A B C Screw, hex head, 8-18B x 0.875
* 241504303 A B C Ice Container Assy, w/moving parts

Publication No: 5995489829 FSC23F7H
05/07 18

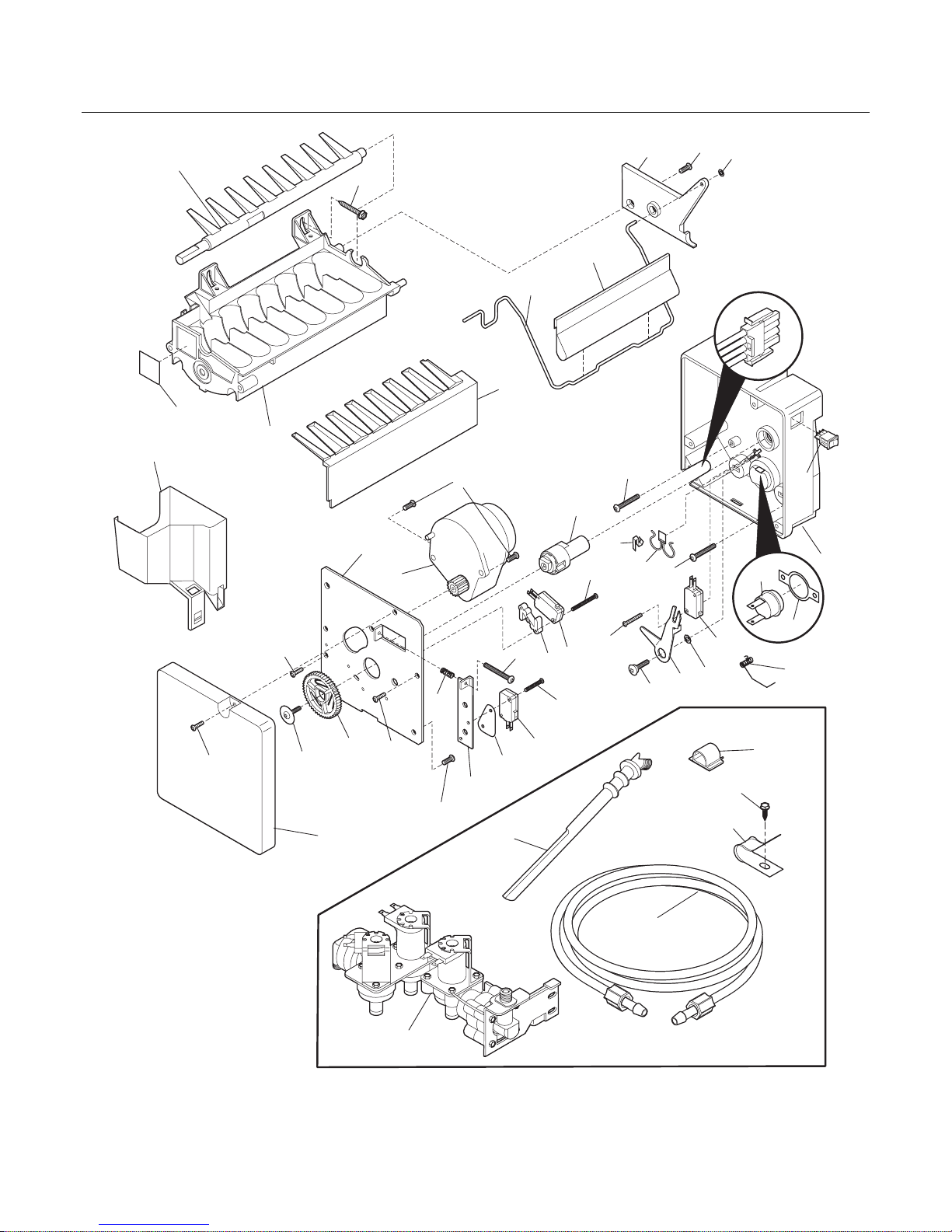

ICE MAKER
14 15
2
41
24
25
51
64
6
640
43
7
6
16
67
21
19
22
66
60
18
17
39
23
23
34
34
34
11
38
29
30
27
9
15
15
31
32
36
4
35
5
37
8
1
55 INSTALLATION PARTS
N58I115TServo
12
33
13
45
42

FSC23F7H Publication No: 5995489829
# Functional Parts 19 05/07
* Non-Illustrated Parts
ICE MAKER
Model Index: AFSC23F7H (FSC23F7HB1)
BFSC23F7H (FSC23F7HW1)
CFSC23F7HS (FSC23F7HSB1)
POS. NO PART NO. DESCRIPTION
1 218976409 A B C Tube, water, door
1* 218976901 A B C Tube, water inlet, valve to IM
1* 218976903 A B C Tube-water inlet, inlet valve, to filter
1* 218976917 A B C Tube-water inlet, valve to door
1* 240561702 A B C Seal-water inlet, inlet valve, to ice maker
2 5304456650 A B C Spring-shutoff arm, ICE MAKER
4 5304458380 A B C Gear
5 5304458383 A B C Plate-mounting
6 5304458386 A B C Screw
7 # 5304458382 A B C Motor-ice maker Svo
8 5304458388 A B C Spacer-hold switch
9 5304456662 A B C Cam
11 # 5304458400 A B C Thermal Cutoff, ICE MAKER
12 5304458379 A B C Harness-wiring
13 5304456665 A B C Thermostat, ICE MAKER
14 5304458384 A B C Screw
15 # 5304456667 A B C Switch-micro, (3)
16 5304458395 A B C Housing, control
17 5304456669 A B C Mold-ice maker, w/therm cut off
18 5304458377 A B C Ejector-ice
19 5304458378 A B C Cup-water inlet
21 5304458390 A B C Ice Stripper
22 5304458375 A B C Shut-off Arm
23 5304458394 A B C Screw
24 5304458391 A B C Lever Arm
25 5304456676 A B C Screw, M 4x12.8 #2, lever arm/sprt
27 5304458385 A B C Screw
29 5304458393 A B C Screw
30 5304458387 A B C Screw
31 5304458381 A B C Insulator
32 5304456681 A B C Plate-valve switch
33 5304458403 A B C Retainer-thermostat
34 5304456678 A B C Screw, M 3x12 #3, (2)
35 5304456684 A B C Screw
36 5304458376 A B C Cover-ice maker
37 5304456682 A B C Spring, shut-off arm
38 5304458398 A B C Clip
39 5304458399 A B C Conductor-heat
40 5304458401 A B C Clip-retainer
41 5304458389 A B C Washer
42 218515403 A B C Clip-grille
43 241720601 A B C Extension
45 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile
51 241796402 A B C Tube-water fill, extension
55 # 240531101 A B C Valve-water, triple solenoid
55* 218709101 A B C Screw, hex head, 10-32 x 0.500
55* 240363602 A B C Screw-shoulder
55* 240542901 A B C Cap-water valve

Publication No: 5995489829 FSC23F7H
05/07 20
ICE MAKER
14 15
2
41
24
25
51
64
6
640
43
7
6
16
67
21
19
22
66
60
18
17
39
23
23
34
34
34
11
38
29
30
27
9
15
15
31
32
36
4
35
5
37
8
1
55 INSTALLATION PARTS
N58I115TServo
12
33
13
45
42
