Frigidaire GLRS237ZD User manual

N58L00001.eps N58FCCBBC2.eps N58RCCBBB13.eps N58BAAAAB1.eps
N58SKDKBD1.eps N58TAAAAB3.eps N58CAAAAA4.eps N58XEAAAA0.eps
N58YDAAACO.eps n58I115T.eps W241526901A.eps S241526901A.eps
Product No. GLRS237ZDB0 GLRS237ZDQ0 GLRS237ZDW0
Series R134a R134a R134a
Color black bisque white
Volts 115 115 115
Wiring Diagram 241526901 241526901 241526901
Owner's Guide 241572800 241572800 241572800
Market North America North America North America
Energy Guide 240598688 240598688 240598688
Service Data Sheet 240389618 240389618 240389618
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995413688
04/07/23
(EN/SERVICE/DCS)
357
SIDE-BY-SIDE
REFRIGERATOR
Model No.
GLRS237ZD
Copyright ©2004 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995413688 GLRS237ZD
07/04 2
FREEZER DOOR

GLRS237ZD Publication No: 5995413688
# Functional Parts 3 07/04
* Non-Illustrated Parts
FREEZER DOOR
Model Index: AGLRS237ZD (GLRS237ZDB0)
BGLRS237ZD (GLRS237ZDQ0)
CGLRS237ZD (GLRS237ZDW0)
POS. NO PART NO. DESCRIPTION
1 # 240390608 A - - Gasket-frzr door, black, magnetic
1 240390604 - B C Gasket-frzr door, white
4A 240367301 A B C Bin-door, frzr-upper
4B 240359001 A B C Bin-door
4C 240358401 A B C Bin-door, frzr-dispenser
11 240451833 A - - Panel-frzr door, black, complete assy
11 240451831 - B - Panel-frzr door, bisque, complete assy
11 240451823 - - C Panel-frzr door, white, complete assy
13A 240537106 A - - Door Stop, black, frzr
13A 240537104 - B - Door Stop, bisque, frzr
13A 240537102 - - C Door Stop, white, frzr
18 240359108 A - - Handle-door, black, LH
18 240359109 - B - Handle-door, bisque
18 240359106 - - C Handle-door, white
21 218781100 A B C Screw, pan head, 8-18 x 0.625
21A 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
21C 240521302 A B C Screw, #8-18 x 3/4
22A 240328204 A - - Bearing-hinge, closer
22A 240328202 - B C Bearing-hinge, closer
22C 240328404 A - - Bearing-hinge, black, upper
22C 240328402 - B C Bearing-hinge, upper
37 240359203 A - - Trim-handle, 30.13", black, lower
37 240359204 - B - Trim-handle, 30.13", bisque, lower
37 240359201 - - C Trim-handle, 30.13", white, lower
68 241525101 A B C Chute-ice
72 240421701 A B C Button-handle mtg, dovetail
73 218396700 A B C Block-handle mtg, dovetail
74 215503200 A B C Screw, cr pan hd, 10-16 x 0.500
* 240352102 A B C Connector-water, straight
* 240470401 A B C Connector-amp
* 240552102 A B C Harness-wiring, door
* 5303918256 A B C Dispenser heater kit

Publication No: 5995413688 GLRS237ZD
07/04 4
REFRIGERATOR DOOR
21C
21
21
21
21C
21C
21
74
74
74
21A
22
13
72
72
73
73
73
18
37
15
22B
2
7
49
49
49
4
4
N58RCCBBB13
12

GLRS237ZD Publication No: 5995413688
# Functional Parts 5 07/04
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AGLRS237ZD (GLRS237ZDB0)
BGLRS237ZD (GLRS237ZDQ0)
CGLRS237ZD (GLRS237ZDW0)
POS. NO PART NO. DESCRIPTION
2 # 240390607 A - - Gasket-refr door, black, magnetic
2 # 240390603 - B C Gasket-refr door, white, magnetic
4 240363702 A B C Bin-door, 2-liter
7 240338303 A B C Door, dairy, clear
12 240449703 A - - Nameplate, black
12 240449702 - B - Nameplate, bisque
12 240449701 - - C Nameplate, white
13 240537105 A - - Door Stop, black, ref
13 240537103 - B - Door Stop, bisque, ref
13 240537101 - - C Door Stop, white, ref
15 240451919 A - - Door-refr, black, complete assy
15 240451917 - B - Door-refr, bisque, complete assy
15 240451913 - - C Door-refr, white, complete assy
18 240359103 A - - Handle-door, black, RH
18 240359104 - B - Handle-door, bisque
18 240359101 - - C Handle-door, white
21 218781100 A B C Screw, pan head, 8-18 x 0.625
21A 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
21C 240521302 A B C Screw, #8-18 x 3/4
22 240328203 A - - Bearing-hinge, closer
22 240328201 - B C Bearing-hinge, closer
22B 240328403 A - - Bearing-hinge, upper
22B 240328401 - B C Bearing-hinge, upper
37 240359203 A - - Trim-handle, 30.13", black, lower
37 240359204 - B - Trim-handle, 30.13", bisque, lower
37 240359201 - - C Trim-handle, 30.13", white, lower
49 240430303 A B C Bin-door, gallon
72 240421701 A B C Button-handle mtg, dovetail
73 218396700 A B C Block-handle mtg, dovetail
74 215503200 A B C Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995413688 GLRS237ZD
07/04 6
CABINET
58
58
40 66
40
92
92
38
38
37
37
14A
14
91
41
100
89
83
82
43
21C
21C
28
42
42
23
22
23
22
30A
30
72
10A
N58BAAAAB1
10
90
11
45
45
150
81
81
81
47

GLRS237ZD Publication No: 5995413688
# Functional Parts 7 07/04
* Non-Illustrated Parts
CABINET
Model Index: AGLRS237ZD (GLRS237ZDB0)
BGLRS237ZD (GLRS237ZDQ0)
CGLRS237ZD (GLRS237ZDW0)
POS. NO PART NO. DESCRIPTION
10 240435907 A B C Cover-air duct
10A 240475906 A B C Cover-evap coil, lower
11 5303208309 A B C Plug-hole, factory test
14 # 240505801 A B C Switch, light/lamp
14A# 215486600 A B C Switch-light/lamp
21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 A - - Plate-door closer
22 240457701 - B C Plate-door closer
23 240402701 A B C Screw-#10-32 x 1/4 flat hd
28 240335501 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 240419101 A B C Bracket-lower hinge, ref
30A 240419102 A B C Bracket-lower hinge
37 240337603 A - - Trim-cabinet corner, black, (2)
37 240337604 - B - Trim-cabinet corner, bisque, (2)
37 240337601 - - C Trim-cabinet corner, white, (2)
38 240327201 A B C Bracket-upper hinge
40 240327007 A - - Cover-upper hinge, black
40 240327006 - B - Cover-upper hinge, bisque
40 240327005 - - C Cover-upper hinge, white
41 241550801 A B C Grommet-shelf mtg, 1.40" long
41* 241550701 A B C Grommet-shelf mtg, .96" long
42 240578901 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 A B C Roller Assy, front, (2)
45 241500301 A B C Screw, hex washer head, 8-18AB x 0.500
47 240349402 A B C Channel-shelf mtg, side, (2)
58 218781100 A B C Screw, pan head, 8-18 x 0.625
66 5304424968 A B C Damper Cover Assy
66* 240518802 A B C Pin-push, push-in, plastic
72 240324405 A - - Grille/Kickplate, black
72 240324403 - B - Grille/Kickplate, bisque
72 240324401 - - C Grille/Kickplate, white
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 240326103 A B C Cover, access, system compt, with label
90 218249807 A B C Seal-coil cover
91 240380101 A B C Duct-ice maker
92 216850900 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B C Support, crisper cover, front, (4)
100* 240350802 A B C Support, crisper cover, rear, (4)
150 240368701 A B C Guide-control bulb
* 240396801 A B C Clamp, tube/wiring, nylon, black/natural
* 240479601 A B C Plug, button, cab liner holes, (2)
* 240481601 A B C Shim-lower hinge
* 5303305345 A - - Paint, touch-up, black
* 5304414035 - B - Paint, touch-up, bisque
* 5303305324 - - C Paint, touch-up, white

Publication No: 5995413688 GLRS237ZD
07/04 8

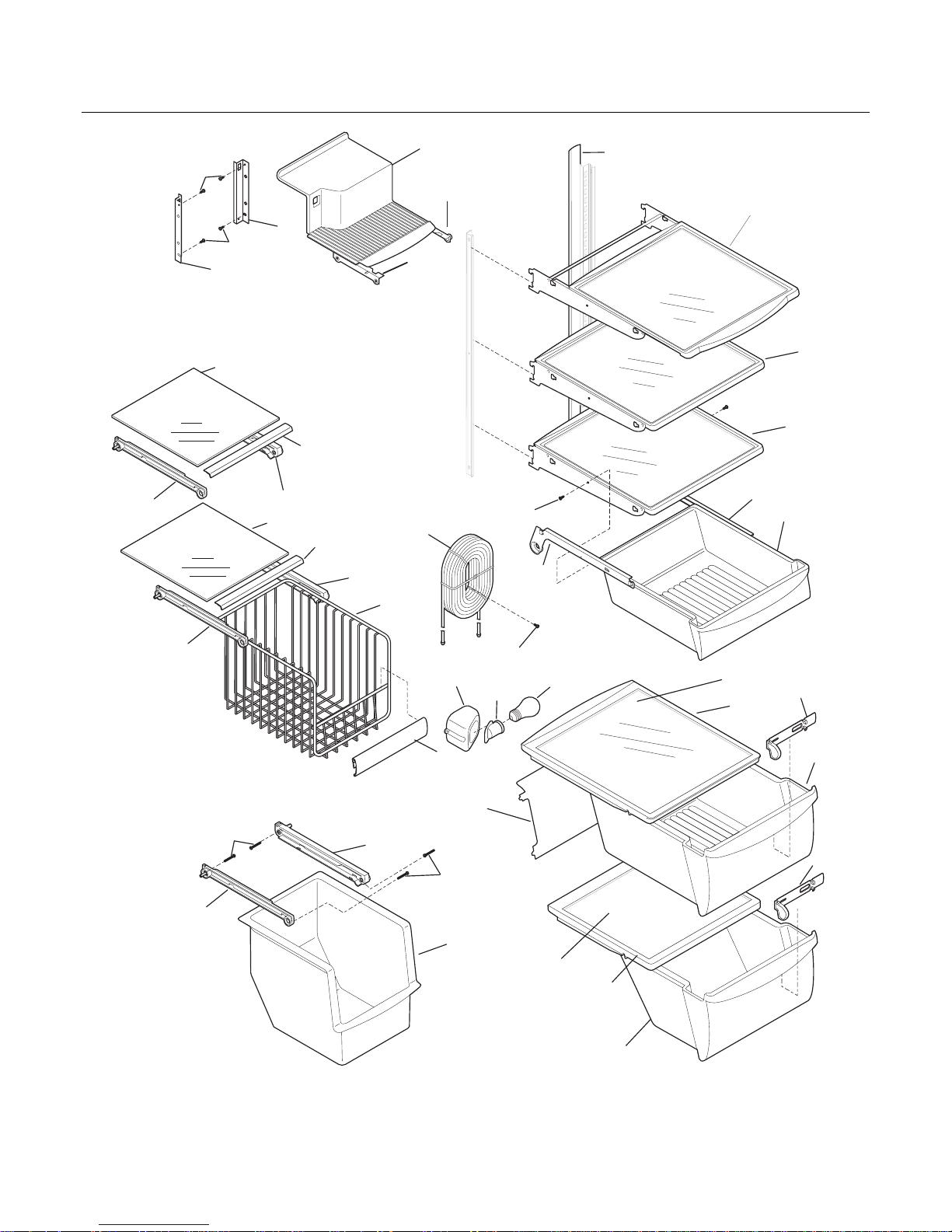

SHELVES
11
39
11A
39
126
81
81
126
52
52A
109
51
51A
49B
2
97
51
52
101
101
49
N58SKDKBD1
100
25A
27
47A
15A
16A
81
25
26
47
26A
26A
42A
62
123
42
24A
24
140
24B
120
122
121

GLRS237ZD Publication No: 5995413688
# Functional Parts 9 07/04
* Non-Illustrated Parts
SHELVES
Model Index: AGLRS237ZD (GLRS237ZDB0)
BGLRS237ZD (GLRS237ZDQ0)
CGLRS237ZD (GLRS237ZDW0)
POS. NO PART NO. DESCRIPTION
2 241510603 A B C Trim-basket
11 240350648 A B C Shelf-freezer, glass, lower
11A 240350647 A B C Shelf-freezer, glass, upper
15A 241555401 A B C Light Bulb
16A 241513901 A B C Socket-light
16A* 241537602 A B C Harness-wiring
24 240355201 A B C Shelf-"Spill-Safe", fixed, (1)
24A 240355204 A B C Shelf-"Spill-Safe", fixed, (3)
24B 240350103 A B C Shelf-"Spill-Safe", sliding, (2)
25 240354502 A B C Cover-crisper pan, upper
25* 240362101 A B C Clip-slide, cover-crisper
25A 240354602 A B C Cover-crisper pan, lower
26 240354705 A B C Pan-crisper, upper
26* 240349801 A B C Clip-slide, pan-crisper
26A 240351101 A B C Control-humidity
27 240354805 A B C Pan-crisper, lower
39 240367601 A B C Trim-shelf, front
42 240356501 A B C Track, meat pan hanger, RH
42A 240349701 A B C Hanger-meat pan, LH
42A* 240349901 A B C Block-meat pan rail, LH
42A* 240350001 A B C Spring-meat pan rail
47 240350613 A B C Insert-pan cover, glass
47A 240350614 A B C Insert-pan cover, glass
49 240564301 A B C Basket-sliding
49B 240530503 A B C Basket-sliding, upper, full
51 240343002 A B C Hanger-basket, RH
51A 240395502 A B C Hanger-basket, RH
52 240343102 A B C Hanger-basket, LH
52A 240395602 A B C Hanger-basket, LH
62 240355505 A B C Pan-meat
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
97 240545303 A B C Water Tank Assy, coiled tubing, front filter
100 240326301 A B C Cover-water tank
101 218493100 A B C Screw, hex washer head, 8-18AB x 1-3/4
109 240351301 A B C Base-crisper light socket
120 241558901 A B C Shelf-ice cream
121 241561001 A B C Rail-ice cream shelf, LH
122 241561101 A B C Rail-ice cream shelf, RH
123 215005100 A B C Screw, hanger/rlr mtg, 8-10 x 0.438
126 218867405 A B C Channel, auger mtg, LH
126 218867406 A B C Channel, auger mtg, RH
140 240430501 A B C Channel, wtr tube cover
* 240598688 A B C Label-energy

Publication No: 5995413688 GLRS237ZD
07/04 10

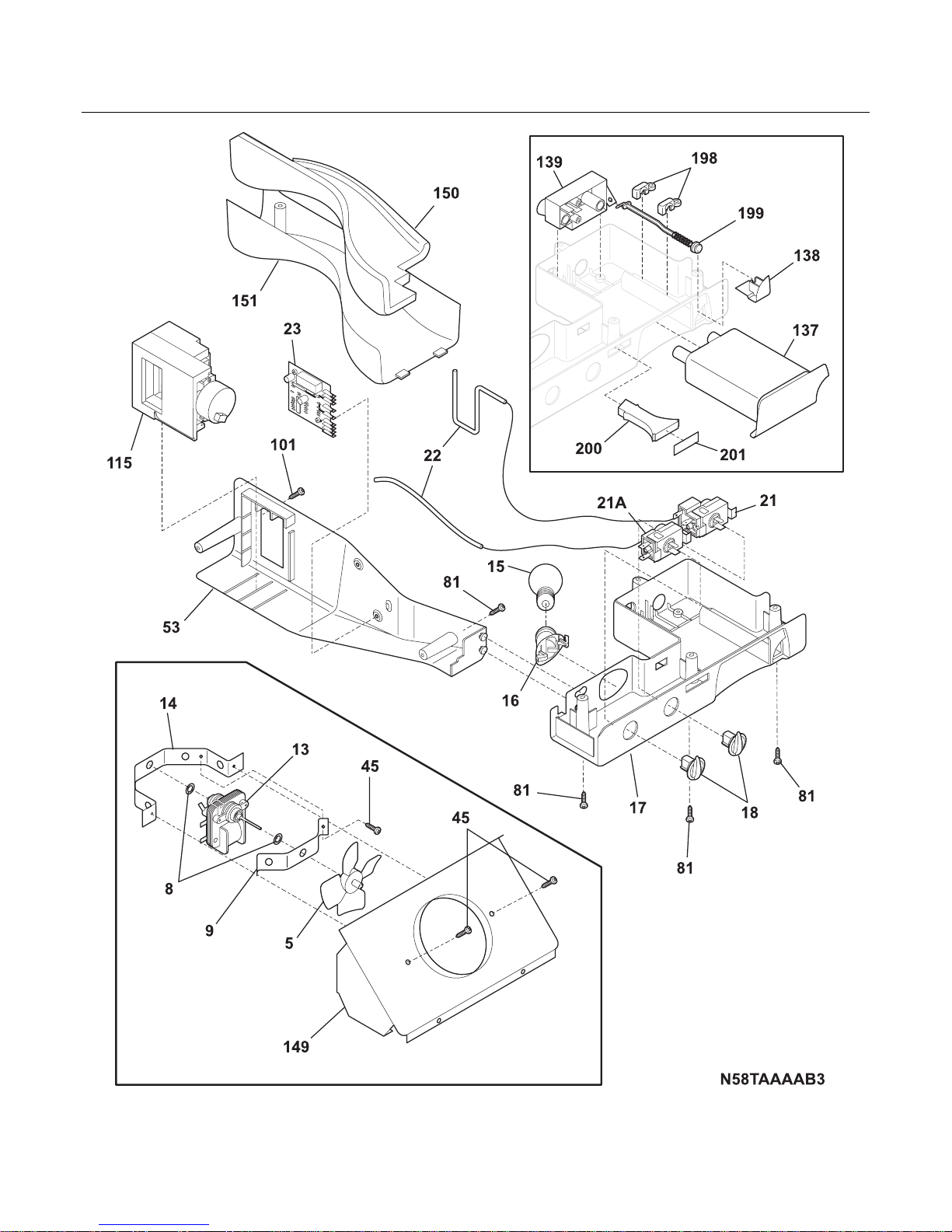

CONTROLS

GLRS237ZD Publication No: 5995413688
# Functional Parts 11 07/04
* Non-Illustrated Parts
CONTROLS
Model Index: AGLRS237ZD (GLRS237ZDB0)
BGLRS237ZD (GLRS237ZDQ0)
CGLRS237ZD (GLRS237ZDW0)
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B C Fan Blade, red, evaporator fan
8 5300157666 A B C Bushing-motor mtg, (2)
9 5303292396 A B C Bracket-motor mtg, front
13 # 240369701 A B C Motor-evap fan
13* 215474201 A B C Washer, "slinger", nylon, evap fan shaft
14 5303292397 A B C Bracket-motor mtg, rear
15 241555401 A B C Light Bulb
16 # 241513901 A B C Socket-light
17 240374901 A B C Box-control, front
17* 241537801 A B C Harness-wiring, control box
18 240360801 A B C Knob, temp control
21 # 241586501 A B C Control-temperature
21A 5304421067 A B C Control-temperature, frzr section
22 218660702 A B C Tube-insulator
23 # 241508001 A B C Control-defrost, adaptive timer, PC board
23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
45 5303001343 A B C Screw, hex washer head, 8-15A x 0.500
53 240369501 A B C Box-control
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
101 218493100 A B C Screw, hex washer head, 8-18AB x 1-3/4
115 241546902 A B C Damper Assy, w/seal
137 240396401 A B C Filter, water, front, cassette
137* 240396701 A B C Bypass, water filter, Optional Part
138 240397301 A B C Button-filter release
139 240396001 A B C Base-water filter
139* 240526901 A B C O-ring, wtr filter base
149 240331607 A B C Shroud-fan orfice
150 240394203 A B C Insulation-water tube cover
151 240373805 A B C Cover-water tube
198 240397401 A B C Retainer
199 240397501 A B C Rod
199* 240398401 A B C Spring-filter release rod
200 240397601 A B C Light Pipe
201 240398509 A B C Label-control box
* 240427201 A B C Heater-freezer control
* 240470401 A B C Connector-amp

Publication No: 5995413688 GLRS237ZD
07/04 12
SYSTEM
N58CAAAAA4
62
70
45
45
1
34
34
83
44
41
82
83
82
22
23
23
30
32
55
4
25
6
25
29
26
45
16
15
14
3
57
84
85
21
86
60
59
61
58

GLRS237ZD Publication No: 5995413688
# Functional Parts 13 07/04
* Non-Illustrated Parts
SYSTEM
Model Index: AGLRS237ZD (GLRS237ZDB0)
BGLRS237ZD (GLRS237ZDQ0)
CGLRS237ZD (GLRS237ZDW0)
POS. NO PART NO. DESCRIPTION
1 240333602 A B C Condenser
3 218679606 A B C Block-evap coil, styrofoam, (2)
4 # 218944001 A B C Drier-filter, R134a System
6 241527401 A B C Harness-wiring, machine compt
6* 240449601 A B C Harness-wiring
6* 241537801 A B C Harness-wiring, control box
14 # 5303918253 A B C Defrost Heater Kit
15 # 5303918286 A B C Evaporator Kit
16 5308000110 A B C Strap-evap/heater, aluminum, (2)
21 # 5303918214 A B C Thermostat-defrost, kit
22 240330007 A B C Base-compressor mtg
22* 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B C Grommet-compr mtg, (4)
25 240491501 A B C Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 240332602 A B C Pan-defrost drain
29 # 5303918303 A B C Compressor, w/electricals
30 # 241524604 A B C Starter-PTC
32 240553401 A B C Clamp, elec cont mtg, compressor
34 240405201 A B C Grommet, rubber, black, cond tube/wire
41 240555001 A B C Screw-#8-32 X 3/8
44 215174700 A B C Clamp-service cord, strain relief, galv steel
45 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 A B C Capacitor-run, 220 VAC, 15 microfarad
57 240542601 A B C Clip-wiring harness
58 218897002 A B C Screw, hex washer head, 8-32 x 0.375
59 5304430246 A B C Bracket-cond motor assy
59* 240346701 A B C Tape-foam seal, shroud
59* 240359401 A B C Screw-fan shroud, (2)
60 # 240525401 A B C Motor-condenser fan
61 # 240524101 A B C Fan Blade, galv steel, condenser fan
62 240429401 A B C Trough-drain
70 218990801 A B C Bracket-evap/cvr mtg
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B C Tube-drain, lower
85 240553501 A B C Tube-connector, suction
86 240409302 A B C Spacer-cond tube, black
* 5303918222 A B C Hot Tube Repair Kit, Service
* # 5303918213 A B C Heat Exchanger Kit, suction line

Publication No: 5995413688 GLRS237ZD
07/04 14
ICE & WATER DISPENSER

GLRS237ZD Publication No: 5995413688
# Functional Parts 15 07/04
* Non-Illustrated Parts
ICE & WATER DISPENSER
Model Index: AGLRS237ZD (GLRS237ZDB0)
BGLRS237ZD (GLRS237ZDQ0)
CGLRS237ZD (GLRS237ZDW0)
POS. NO PART NO. DESCRIPTION
1 218976409 A B C Tube-water
1* 218976901 A B C Tube-water inlet, inlet valve, to ice maker
1* 218976903 A B C Tube-water inlet, inlet valve, to filter
1* 218976907 A B C Tube-water inlet, valve to door
1* 240561701 A B C Seal-water inlet, inlet valve, to ice maker
4 5304422012 A - - Cover-module, black
4 5304421848 - B - Cover-module, bisque
4 5304421822 - - C Cover-module, white
8 5304424549 A - - Module-dispenser
8 5304422144 - B - Module-dispenser, bisque
8 5304421823 - - C Module-dispenser, white
10 5304426649 A B C Spring-torsion
14 240323976 A - - Label-module cover, black
14 240323975 - B - Label-module cover, bisque
14 240323974 - - C Label-module cover, white
17 5304421619 A B C Screw
23 240323603 A - - Drip Tray, black
23 240323602 - B - Drip Tray, bisque
23 240323601 - - C Drip Tray, white
24 5304433613 A - - Actuator-water, black
24 5304433614 - B - Actuator-water, bisque
24 5304433615 - - C Actuator-water, white
24A 5304433610 A - - Actuator-ice, black
24A 5304433611 - B - Actuator-ice, bisque
24A 5304433612 - - C Actuator-ice, white
30 5304421628 A B C Door Assy-ice chute
30A 5304421624 A B C Door center
30B 5304421625 A B C Insulation-door
30C 5304421629 A B C Door seal
35 5304421620 A B C Damper-rotary
36 5304421824 A B C Carrier
38 5304433619 A B C Board-power
38A# 5304421617 A B C Switch-micro, single pole, double throw
38C 5304441058 A B C Board-control
38C* 5304430811 A B C Harness-ribbon cable
39 5304421627 A B C Pin-hinge
41 5304421829 A B C Spring-actuator
43 215296300 A B C Screw, plask h/l, #6 x 3/8
56 5304421830 A B C Screw-micro switch, pan head
87 5304421622 A B C Bearing Plate
87A 5304421621 A B C Bearing Plate
90 5304421831 A B C Light Pipe, reflector
91 5304421850 A B C Light Pipe, reflector, short
* 5303918256 A B C Dispenser heater kit
* 5304426535 A B C Insulator-electrical

Publication No: 5995413688 GLRS237ZD
07/04 16
ICE CONTAINER
45
4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
58
51
26
26
26
26
10
21
26
44
44
44
49
7
3
2
23
39
70
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
22
N58YDAAAC0

GLRS237ZD Publication No: 5995413688
# Functional Parts 17 07/04
* Non-Illustrated Parts
ICE CONTAINER
Model Index: AGLRS237ZD (GLRS237ZDB0)
BGLRS237ZD (GLRS237ZDQ0)
CGLRS237ZD (GLRS237ZDW0)
POS. NO PART NO. DESCRIPTION
2 5304428402 A B C Auger-ice
3 5304404343 A B C Cam-drive
4 241561301 A B C Container-ice, bucket only
6 5304404346 A B C Drum-ice disp
7 241561401 A B C Front-ice container
10 5304404337 A B C Bar-drive
13 5304404359 A B C Gate
15 241555401 A B C Light Bulb
16 241559801 A B C Socket-light
17 5304404345 A B C Drive Blade
18 # 5304440392 A B C Motor-auger
18* 241578401 A B C Wiring Harness, auger motor
20 5304404332 A B C Cover-motor
21 215285100 A B C Nut-drive
22 240597201 A B C Sensor
23 5304404347 A B C Plate-front
25 5304404362 A B C Screw, hex washer head, 8-32T x 0.375
26 5304420654 A B C Screw-thermo/sprt, 4-24 x 0.375, (4)
33 5304404351 A B C Spacer
34 5304404349 A B C Spacer
35A 5304404353 A B C Fixed Blade, round
35B 5304404352 A B C Fixed Blade, square
37A 5304404348 A B C Blade, crusher #1
37B 5304404350 A B C Blade, crusher #2
37C 5304404356 A B C Blade, crusher #3
39 5304404365 A B C Screw
41 5304404358 A B C Housing-crusher
44 218359200 A B C Screw, pan head, 8-32 x 0.250
45 # 5304404333 A B C Solenoid Assy
45A 5304406816 A B C Spring-solenoid
45B 5304406817 A B C E-Ring-solenoid
45C 5304406818 A B C Actuator-solenoid
45D 5304406819 A B C Solenoid
46 5304404341 A B C Control Rod
47 5304404342 A B C Spring-control rod
48 5304404340 A B C Bracket-control rod
48* 5304404364 A B C Screw-bracket
49 5304404880 A B C Rail Assy
50 5304404334 A B C Guide-solenoid
51 5304404336 A B C Rotation Stop
52 5304404354 A B C Spacer-fixed blades
53 5304404355 A B C Pin-spiral, fixed blades
54 5304404357 A B C Nut-auger
55 5304404360 A B C Washer
56 5304404361 A B C E-ring
58 5304404331 A B C Screw-solenoid
70 241561501 A B C Plate-mounting
70* 215005100 A B C Screw, hanger/rlr mtg, 8-10 x 0.438
70* 241551601 A B C Screw, hex head, 8-18B x 0.875
* 240562101 A B C Insulator
* 241561601 A B C Ice Container Assy, w/moving parts

Publication No: 5995413688 GLRS237ZD
07/04 18
ICE MAKER
45 45
42
51
46
64
29
7
6
16
67
20
21
19
22 66
60
18
17
9
10
23
23
34
28
34
34
11
29
14
30
27 13
26
26
15 15
2
15
31
32
36
4
35
5
33
8
24
25
12
1
55 INSTALLATION PARTS
N58I115T

GLRS237ZD Publication No: 5995413688
# Functional Parts 19 07/04
* Non-Illustrated Parts
ICE MAKER
Model Index: AGLRS237ZD (GLRS237ZDB0)
BGLRS237ZD (GLRS237ZDQ0)
CGLRS237ZD (GLRS237ZDW0)
POS. NO PART NO. DESCRIPTION
1 218976409 A B C Tube-water
1* 218976901 A B C Tube-water inlet, inlet valve, to ice maker
1* 218976903 A B C Tube-water inlet, inlet valve, to filter
1* 218976907 A B C Tube-water inlet, valve to door
1* 240561701 A B C Seal-water inlet, inlet valve, to ice maker
2 5304436616 A B C Spring, torsion
4 3206301 A B C Gear
5 5304436604 A B C Plate-mounting
6 3206305 A B C Screw-ground wire, 8-32 x 0.250
7 # 5304436619 A B C Motor-ice maker
8 3206312 A B C Spacer-hold switch
9 5304436610 A B C Detent
10 3206315 A B C Clamp
11 # 5304436618 A B C Thermal Cutoff, ICE MAKER, complete assy
12 5304436614 A B C Harness-wiring
13 5304436613 A B C Thermostat, ICE MAKER
14 5304420652 A B C Screw, 4 x 0.750, switch mtg.
15 # 3206324 A B C Switch, (3)
16 5304436609 A B C Housing, control
17 # 5304436617 A B C Mold-ice maker, with heater
18 5304436607 A B C Ejector-ice
18*# 240352601 A B C Wiring Harness, internal, with plug
19 5304436606 A B C Cup-water inlet
20 5304408581 A B C Screw, 8-32 x 0.375
21 5304436608 A B C Ice Stripper
22 5304436602 A B C Shut-off Arm
23 5304408582 A B C Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B C Lever Arm
25 3206336 A B C Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 A B C Screw-thermo/sprt, 4-24 x 0.375, (4)
27 3206338 A B C Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B C Screw-timing stop, 4-40 x 0.375
29 3206323 A B C Screw, 4-24 x 0.750, (6)
30 3206341 A B C Screw-timing adj, 8-32 x 1.000
31 3206342 A B C Insulator
32 3206343 A B C Plate-valve switch
33 5304436615 A B C Spring-thermostat
34 5304420655 A B C Screw, plazscrew, 8-10, (3)
35 5304408585 A B C Screw
36 5304436605 A B C Cover-ice maker
42 5303001199 A B C Clamp-wiring harness, strain relief, galv steel
42* 218515402 A B C Clip, (2), tube mtg.
45 5303001343 A B C Screw, hex washer head, 8-15A x 0.500
46 5303001193 A B C Clamp, .50 ID, steel, water tube
46* 5308000133 A B C Clamp, nylon, .625 ID
51 241523503 A B C Tube-water fill, extension
55 # 240531101 A B C Valve-water, triple solenoid
55* 218709100 A B C Screw, hex head, 10-32 x 0.500

Publication No: 5995413688 GLRS237ZD
07/04 20
ICE MAKER
45 45
42
51
46
64
29
7
6
16
67
20
21
19
22 66
60
18
17
9
10
23
23
34
28
34
34
11
29
14
30
27 13
26
26
15 15
2
15
31
32
36
4
35
5
33
8
24
25
12
1
55 INSTALLATION PARTS
N58I115T
