Frigidaire GLRT188WD User manual

Branded WTD.eps N05DCDBBA12.eps N05BAAAAC4.eps N05SACAFX14.eps
N05CABBAB13.eps 115-2.eps W241582400.eps S241582801.eps
Product No. GLRT188WDS0 GLRT188WDW0 GLRT188WDZ0
Series Gallery Gallery Gallery
Color stainless white(RH) white(LH)
Volts 115 115 115

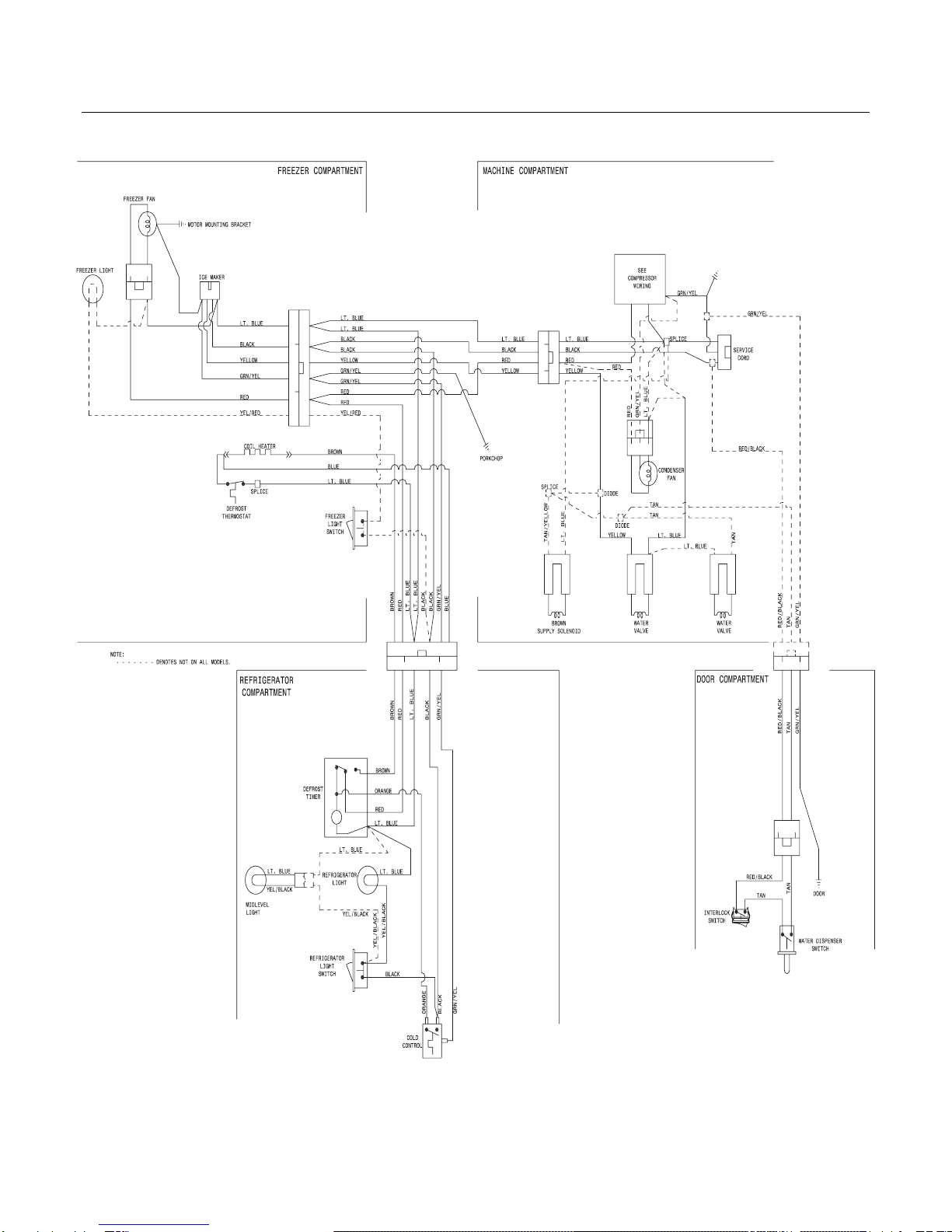

Wiring Diagram 241582401 241582401 241582401
Owner's Guide 241567602 241567602 241567602
Market North America North America North America
Energy Guide 240598662 240598662 240598662
Service Data Sheet 241588200 241588200 241588200
Installation Instructions 241567800 241567800 241567800
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378
Augusta, GA 30917
Publication No.
5995430310
05/02/28
(EN/SERVICE/KHB)
390
TOP-MOUNT
REFRIGERATOR WITH
ICE-MAKER
Model No.
GLRT188WD
Copyright ©2005 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995430310 GLRT188WD
02/05 2
DOOR
97
38A
50 44
23 81
81
24
22
11
12
21 14B
21
14B
18
21
22
22C
13A
13
48A
48A
48A
21C
21C
18A
22
1
7
2
N05DCDBBA12
15
48
49
49

GLRT188WD Publication No: 5995430310
# Functional Parts 3 02/05
* Non-Illustrated Parts
DOOR
Model Index: AGLRT188WD (GLRT188WDS0)
BGLRT188WD (GLRT188WDW0)
CGLRT188WD (GLRT188WDZ0)
POS. NO PART NO. DESCRIPTION
1 # 240542109 A - - Gasket-frzr door, black, magnetic
1 # 240542103 - B C Gasket-frzr door, white, magnetic
2 # 240542112 A - - Gasket-refr door, black, magnetic
2 # 240542106 - B C Gasket-refr door, white, magnetic
7 240338303 A B C Door, dairy, clear
11 240409913 A - - Door-frzr, stainless, complete assy
11 240409911 - B - Door-frzr, white, complete assy
11 240409915 - - C Door-frzr, white, complete assy
12 240449704 A - - Nameplate, satin nickel
12 240449701 - B C Nameplate, white
13 240312405 A - - Door Stop, black, refr
13 240312403 - B C Door Stop, white, ref
13A 240312406 A - - Door Stop, black, frzr
13A 240312404 - B C Door Stop, white, frzr
14B 240383603 A - - Plug-button, black, door handle
14B 240383601 - B C Plug-button, white, door handle
15 240410117 A - - Door-refr, stainless steel, complete assy
15 240410115 - B - Door-refr, white, complete assy
15 240410119 - - C Door-refr, white, complete assy
18 240339203 A - - Handle-door, black
18 240339201 - B C Handle-door, white
18A 240339208 A - - Handle-door, black
18A 240339206 - B C Handle-door, white
21 240383401 A B C Screw, truss hd quad, #10-16 x .500
21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500
22 240527102 A - - Bearing-hinge, black
22 240527101 - B C Bearing-hinge, natural color
22C 240328402 A B C Bearing-hinge, natural, upper
23 241553301 A B C Drip Tray, white
23 241553303 A - - Drip Tray, black
24 241553601 - B C Actuator-water, white
24 241553603 A - - Actuator-water, black
38A 241610101 A B C Switch-actuator
44 241553403 A - - Cover-module, black
44 241553401 - B C Cover-module, white
48 240338101 A B C Bin-door, pseudo, bottom
48A 240338202 A B C Bin-door, gallon
49 240495804 A B C Bin-door, pseudo, frzr
50 241611102 A - - Switch-rocker, black
50 241611101 - B C Switch-rocker, white
81 240363401 A B C Screw-#8-18 X 1/2, #6 hd plask
97 241603401 A B C Valve-check
* 218490901 A - - Cleaner, stainless steel
* 240352102 A B C Connector-water, straight
* 241609901 A B C Harness-wiring
* 241623001 A B C Harness-wiring
* 241623201 A B C Harness-wiring, door

Publication No: 5995430310 GLRT188WD
02/05 4

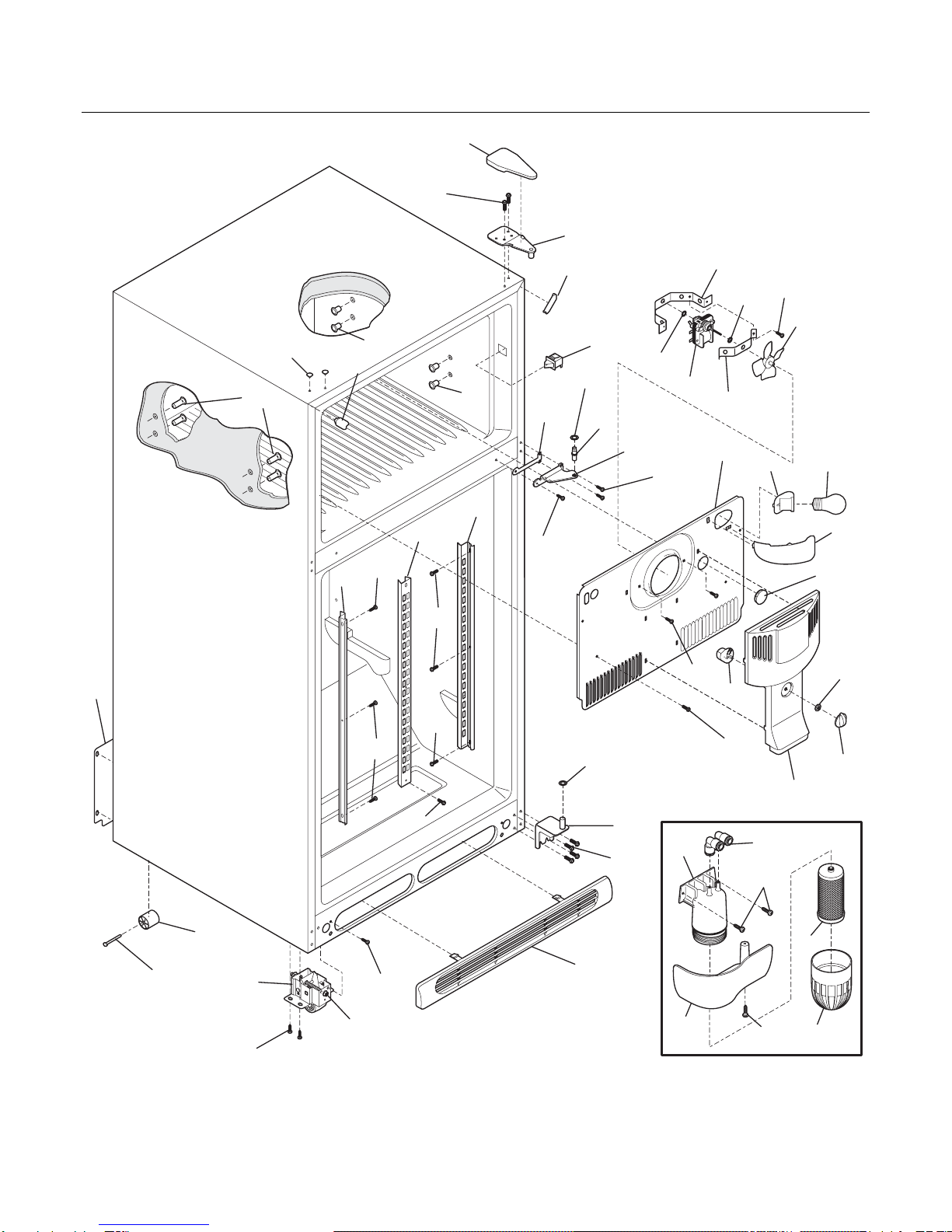

CABINET
49
49
49
49
49
47
47
48
114
83
82
89
11
10
81
58
40
92
38
37
37
13
5
58
35A 36
34
35
59
59
42 139
138
137
151
140
81
81
30
72
N05BAAAAC4
43
28
21C
21C
41
41
22
41
8
8
9
14
34A
15
16
74
1
4
2
3

GLRT188WD Publication No: 5995430310
# Functional Parts 5 02/05
* Non-Illustrated Parts
CABINET
Model Index: AGLRT188WD (GLRT188WDS0)
BGLRT188WD (GLRT188WDW0)
CGLRT188WD (GLRT188WDZ0)
POS. NO PART NO. DESCRIPTION
1 240355401 A B C Cover-fan
2 240367001 A B C Knob-damper control
3 5303001028 A B C Nut, push-on
4 241523701 A B C Damper-fan cover
5 # 5308000010 A B C Fan Blade, red, evaporator fan
8 5300157666 A B C Bushing-motor mtg, (2)
9 5303292396 A B C Bracket-motor mtg, front
10 240462009 A B C Cover-evap coil
10* 240568601 A B C Seal-coil cover
10* 241537701 A B C Wiring Harness, freezer section, with light
11 5303208309 A B C Plug-hole, factory test
13 240369702 A B C Motor-evap fan
13* 215474201 A B C Washer, "slinger", nylon, evap fan shaft
13* 218931001 A B C Clamp-motor wiring, nylon, w/adhesive tape
14 5303292397 A B C Bracket-motor mtg, rear
14* 5303274237 A B C Screw, hex washer head, 8-32CA x 0.500, motor bracket
15 241560701 A B C Light Bulb
16 241513901 A B C Socket-light
21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500
22 215774918 A - - Plug-button, black, upr hinge holes
22 215774901 - B C Plug-button, white, upr hinge holes
28 240335501 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241625005 A - - Bracket-lower hinge, black
30 241625001 - B C Bracket-lower hinge, zinc
30* 241614401 A B C Cover, lower hinge
34 240311303 A B C Washer, hinge, nylon, (2)
34A 241555701 A B C Washer-nylon
35 240313803 A - - Bracket-ctr hinge, black
35 240313801 - B C Bracket-ctr hinge, zinc
35A 240336802 A B C Spacer-hinge, center
36 240516401 A B C Pin-center hinge
37 241611303 A - - Trim-cabinet corner, black, (2)
37 241611301 - B C Trim-cabinet corner, white, (2)
38 240313701 A B C Bracket-upper hinge
40 240354404 A - - Cover-upper hinge, black
40 240354401 - B C Cover-upper hinge, white
41 5308009759 A B C Grommet, shelf mtg, 1.25", LH, (4)
42 240578901 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 A B C Roller Assy, front, (2)
47 218233300 A B C Channel-shelf mtg, side, (2)
48 241566901 A B C Channel-shelf mtg, center (mll)
49 218362500 A B C Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
58 218897002 A B C Screw, hex washer head, 8-32 x 0.375
59 240442703 A - - Screw-#10-32 X 3/4, black
59 240442701 - B C Screw-#10-32 X 3/4, zinc
72 241560101 A - - Grille/Kickplate, black
72 241560102 - B C Grille/Kickplate, white
74 240354301 A B C Shield-light, frzr

Publication No: 5995430310 GLRT188WD
02/05 6
CABINET
49
49
49
49
49
47
47
48
114
83
82
89
11
10
81
58
40
92
38
37
37
13
5
58
35A 36
34
35
59
59
42 139
138
137
151
140
81
81
30
72
N05BAAAAC4
43
28
21C
21C
41
41
22
41
8
8
9
14
34A
15
16
74
1
4
2
3

GLRT188WD Publication No: 5995430310
# Functional Parts 7 02/05
* Non-Illustrated Parts
CABINET
Model Index: AGLRT188WD (GLRT188WDS0)
BGLRT188WD (GLRT188WDW0)
CGLRT188WD (GLRT188WDZ0)
POS. NO PART NO. DESCRIPTION
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574607 A B C Cover-access, w/label
89* 241500302 A B C Screw, hex washer head, 8-18AB x 0.625
92 5303001479 A B C Screw-hinge mtg, hex hd, 1/4-20 x 0.875
114 241554901 A B C Switch-light/lamp
137 240394501 A B C Filter-water, carbon
137* 218710300 A B C Wrench-filter
138 240434401 A B C Cup-water filter
138* 218904301 A B C O-ring, wtr filter cup
139 240434301 A B C Housing-water filtr
140 240545201 A B C Elbow-water tube
151 241555001 A B C Cover-water filter
* 5303321321 A - - Paint, touch-up, black
* 5303305324 - B C Paint, touch-up, white

Publication No: 5995430310 GLRT188WD
02/05 8
SHELVES
25
25B
25B
25C
25C
26
47
N05SACAFX14
26
11
31
24A
42
42
123
123
24
24A
81
81
23
21
22A
13
12
14
15
18
17
15
16
34
141
142
15A
16A
15A
140

GLRT188WD Publication No: 5995430310
# Functional Parts 9 02/05
* Non-Illustrated Parts
SHELVES
Model Index: AGLRT188WD (GLRT188WDS0)
BGLRT188WD (GLRT188WDW0)
CGLRT188WD (GLRT188WDZ0)
POS. NO PART NO. DESCRIPTION
11 240358002 A B C Shelf-freezer, full width
12 240545001 A B C Diffuser, air, top
13 240362601 A B C Diffuser, air, bottom
14 # 241554901 A B C Switch-light/lamp
15 241555401 A B C Light Bulb
15A 241552802 A B C Light Bulb
16 240364201 A B C Socket-light/lamp, dual
16A 241507803 A B C Socket-light
16A* 241593901 A B C Harness-wiring
17 240352701 A B C Control Box
17* 241566801 A B C Harness-wiring, c/box M/Level
18 240360801 A B C Knob, temp control
21 5304421256 A B C Control, temperature
22A 240468201 A B C Tube, sensor sleeve, 31 inch, plastic, white
23 # 240371001 A B C Timer-defrost
23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 241616604 A B C Shelf, fixed, Spill Safe
24A 241616704 A B C Shelf-"Spill-Safe", cantilever, sliding
25 241572503 A B C Cover-crisper pan
25B 240361202 A B C Knob, humidity cont.
25C 240361301 A B C Damper, humidity cont.
26 240337107 A B C Pan-crisper, clear, (2), no graphics
31 240530810 A B C Pan, meat bin
34 240385201 A B C Container, ice bin
42 240356501 A B C Track, meat pan hanger, RH
42 240365401 A B C Track, meat pan hanger, LH
47 240350650 A B C Insert-pan cover, glass
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
123 215005100 A B C Screw, hanger/rlr mtg, 8-10 x 0.438
140 240430506 A B C Channel, wtr tube cover
141 241562101 A B C Shield-heat, Mid Level
142 241562201 A B C Shield-light Mid Level

Publication No: 5995430310 GLRT188WD
02/05 10

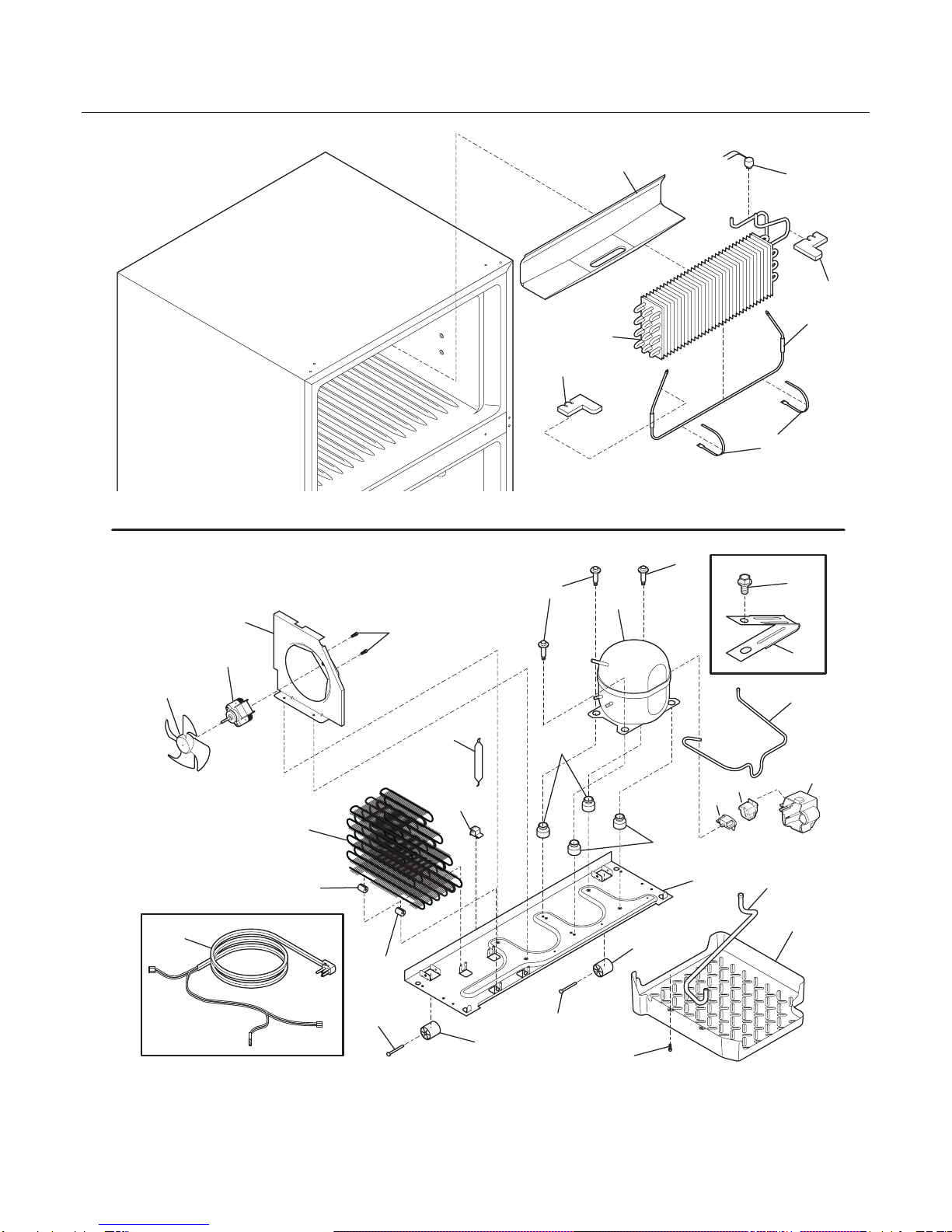

SYSTEM
17
21
15
20
14
20
16
60
59
61
58
1
34
34
83
44
41
82
83
82
N05CABBAB13
22
23
23
85
4
6
29
26
56
45
57
25
25
30
31
84

GLRT188WD Publication No: 5995430310
# Functional Parts 11 02/05
* Non-Illustrated Parts
SYSTEM
Model Index: AGLRT188WD (GLRT188WDS0)
BGLRT188WD (GLRT188WDW0)
CGLRT188WD (GLRT188WDZ0)
POS. NO PART NO. DESCRIPTION
1 # 240444401 A B C Condenser, dynamic
4 # 218944001 A B C Drier-filter, R134a System
6 241563301 A B C Harness-wiring, machine compt
6* 240581801 A B C Harness-wiring, compressor
6* 241566801 A B C Harness-wiring, c/box M/Level
6* # 241537701 A B C Wiring Harness, freezer section, with light
14 # 5303918208 A B C Defrost Heater Kit
15 # 5303918274 A B C Evaporator Kit
16 5308000110 A B C Strap-evap/heater, aluminum, (2)
17 241551801 A B C Trough-drain
20 241551901 A B C Insulation Block
21 # 5303918202 A B C Thermostat-defrost, kit
22 241602001 A B C Base-compressor
22* 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B C Grommet-compr mtg, (4)
25 240491501 A B C Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 240332608 A B C Pan-defrost drain
29 # 5303918297 A B C Compressor, w/electricals
30 # 5304433579 A B C Relay
31 # 5304433578 A B C Overload Protector
34 240405201 A B C Grommet, rubber, black, cond tube/wire
41 240433202 A B C Screw, hex washer head, 8-18 x 5/16
44 5303001199 A B C Clamp-wiring harness, strain relief, galv steel
45 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
56 240582001 A B C Cover-terminal
57 240542601 A B C Clip-wiring harness
58 218897002 A B C Screw, hex washer head, 8-32 x 0.375
59 5304430246 A B C Bracket-cond motor assy
59* 240346701 A B C Tape-foam seal, shroud
59* 240359401 A B C Screw-fan shroud, (2)
60 # 240525402 A B C Motor, condensor fan
61 # 240524101 A B C Fan Blade, galv steel, condenser fan
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 240500801 A B C Tube-drain, rubber, lower
85 240493101 A B C Tube-connector, suction
* 5303918263 A B C Heat Exchanger Kit, suction line
* 5303918222 A B C Hot Tube Repair Kit, service

Publication No: 5995430310 GLRT188WD
02/05 12

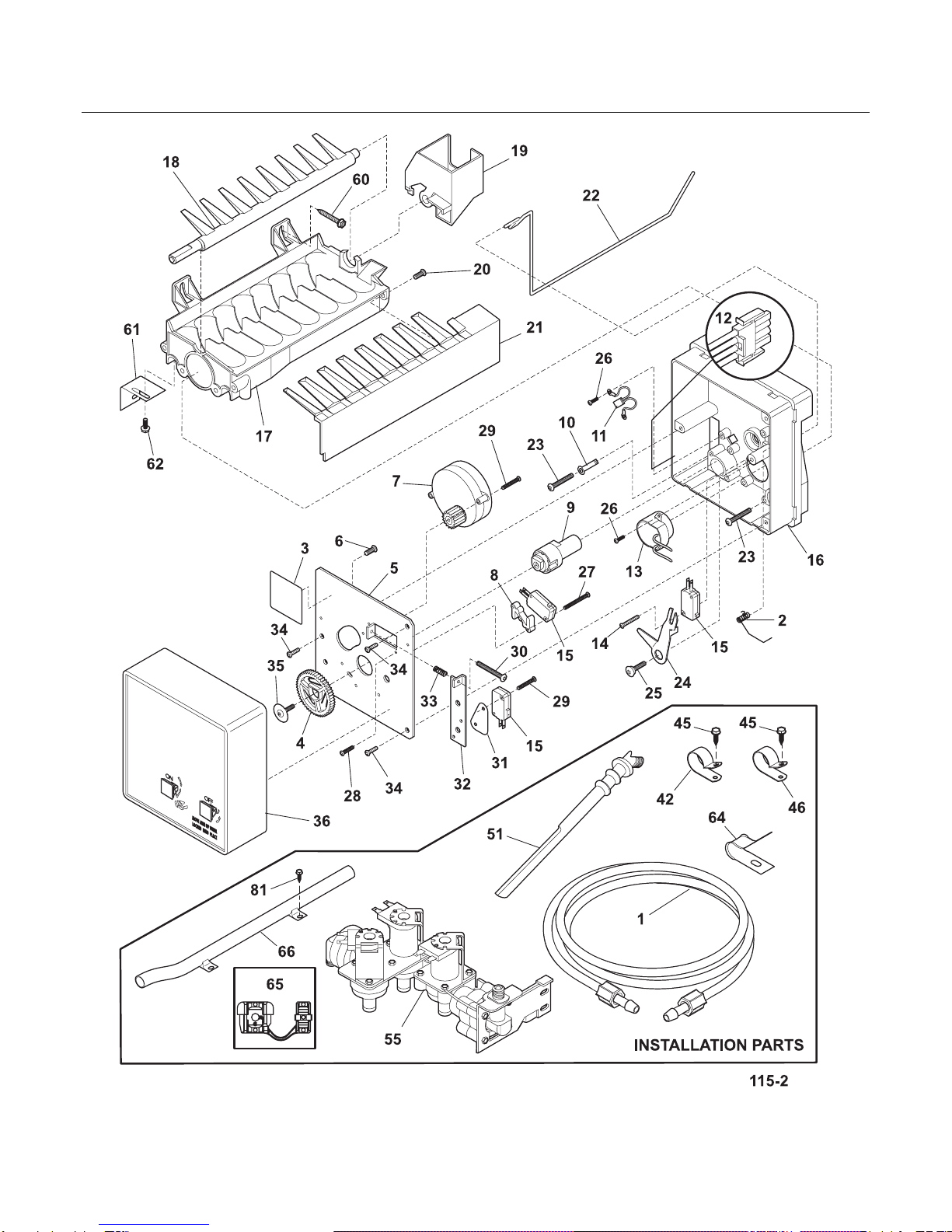

ICE MAKER

GLRT188WD Publication No: 5995430310
# Functional Parts 13 02/05
* Non-Illustrated Parts
ICE MAKER
Model Index: AGLRT188WD (GLRT188WDS0)
BGLRT188WD (GLRT188WDW0)
CGLRT188WD (GLRT188WDZ0)
POS. NO PART NO. DESCRIPTION
1 218976901 A B C Tube-water inlet, inlet valve, to ice maker
1* 240561701 A B C Seal-water inlet, inlet valve, to ice maker
1* 241566501 A B C Tube-water inlet, valve to I.M.
1* 241566502 A B C Tube-water inlet, valve to tank
1* 241566503 A B C Tube-water inlet, inlet valve, to filter
2 5304420650 A B C Spring, shut-off arm
3 3206299 A B C Label, ID plate
4 3206301 A B C Gear
5 3206303 A B C Plate-mounting
6 3206305 A B C Screw-ground wire, 8-32 x 0.250
7 # 3206306 A B C Motor-ice maker
8 3206312 A B C Spacer-hold switch
9 3206313 A B C Cam
10 3206315 A B C Clamp
11 # 3206319 A B C Thermal Cutoff, ICE MAKER, complete assy
12 # 5304420651 A B C Wiring Harness, ICE MAKER, internal, with plug
12* 218843800 A B C Screw, hex wshr hd, 8-15A x 0.500
13 # 3206322 A B C Thermostat Assy, ICE MAKER
14 5304420652 A B C Screw, 4 x 0.750, switch mtg.
15 # 3206324 A B C Switch, (3)
16 5304420653 A B C Support, phenolic
17 # 5303320545 A B C Mold-ice maker, Radius Cube, with heater
18 3206328 A B C Ejector-ice
19 3206330 A B C Bearing & Inlet
20 5304408581 A B C Screw, 8-32 x 0.375
21 3206332 A B C Ice Stripper
22 3206333 A B C Shut-off Arm
23 5304408582 A B C Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B C Lever Arm
25 3206336 A B C Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 A B C Screw-thermo/sprt, 4-24 x 0.375, (4)
27 3206338 A B C Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B C Screw-timing stop, 4-40 x 0.375
29 3206323 A B C Screw, 4-24 x 0.750, (6)
30 3206341 A B C Screw-timing adj, 8-32 x 1.000
31 3206342 A B C Insulator
32 3206343 A B C Plate-valve switch
33 5304408583 A B C Spring-timing adj
34 5304420655 A B C Screw, plazscrew, 8-10, (3)
35 5304408585 A B C Screw
36 3206347 A B C Cover-ice maker
42 5303001199 A B C Clamp-wiring harness, strain relief, galv steel
45 5303001343 A B C Screw, hex washer head, 8-15A x 0.500
46 5308000133 A B C Clamp, nylon, .625 ID
51 241523501 A B C Tube-water, ice mold fill, extension
55 # 240531101 A B C Valve-water, triple solenoid
55* 240363601 A B C Screw-shoulder
60 218362500 A B C Screw, hex washer head, 8-18AB x 1.250, spacer, (2)

Publication No: 5995430310 GLRT188WD
02/05 14
ICE MAKER

GLRT188WD Publication No: 5995430310
# Functional Parts 15 02/05
* Non-Illustrated Parts
ICE MAKER
Model Index: AGLRT188WD (GLRT188WDS0)
BGLRT188WD (GLRT188WDW0)
CGLRT188WD (GLRT188WDZ0)
POS. NO PART NO. DESCRIPTION
61 218721500 A B C Bracket-leveling, ICE MAKER
62 218737900 A B C Screw-IM brkt mtg, hex washer head, 8-32D x 0.375
64 5303001549 A B C Clamp, 0.31 ID, steel, copper wtr line
65 241603501 A B C Clamp-strain relief
66 241606201 A B C Conduit
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
* 218888001 A B C Adapter-water supply, nut & sleeve, compression ftg
* 240352409 A B C Ice Maker, Radius Cube, 115 V, no instl parts

Publication No: 5995430310 GLRT188WD
02/05 16
WIRING SCHEMATIC

GLRT188WD Publication No: 5995430310
# Functional Parts 17 02/05
* Non-Illustrated Parts
WIRING DIAGRAM
