Frigidaire PHS39EJSS - 23CF SxS SS DISP ProStyle F-G User guide

N58L00002.eps N58FFDEEA2.eps N58RFCBBC12.eps N58BAAAAB5.eps
N58SLDLBE12.eps N58TCBAAB0.eps N58CAAAAC8.eps N58XEAAAA1.eps
N58YDAAAC7.eps N58I115TServo.eps W241725001.eps S241725001.eps
Product No. PHS39EJSS0
Series R134a
Color stainless
Volts 115

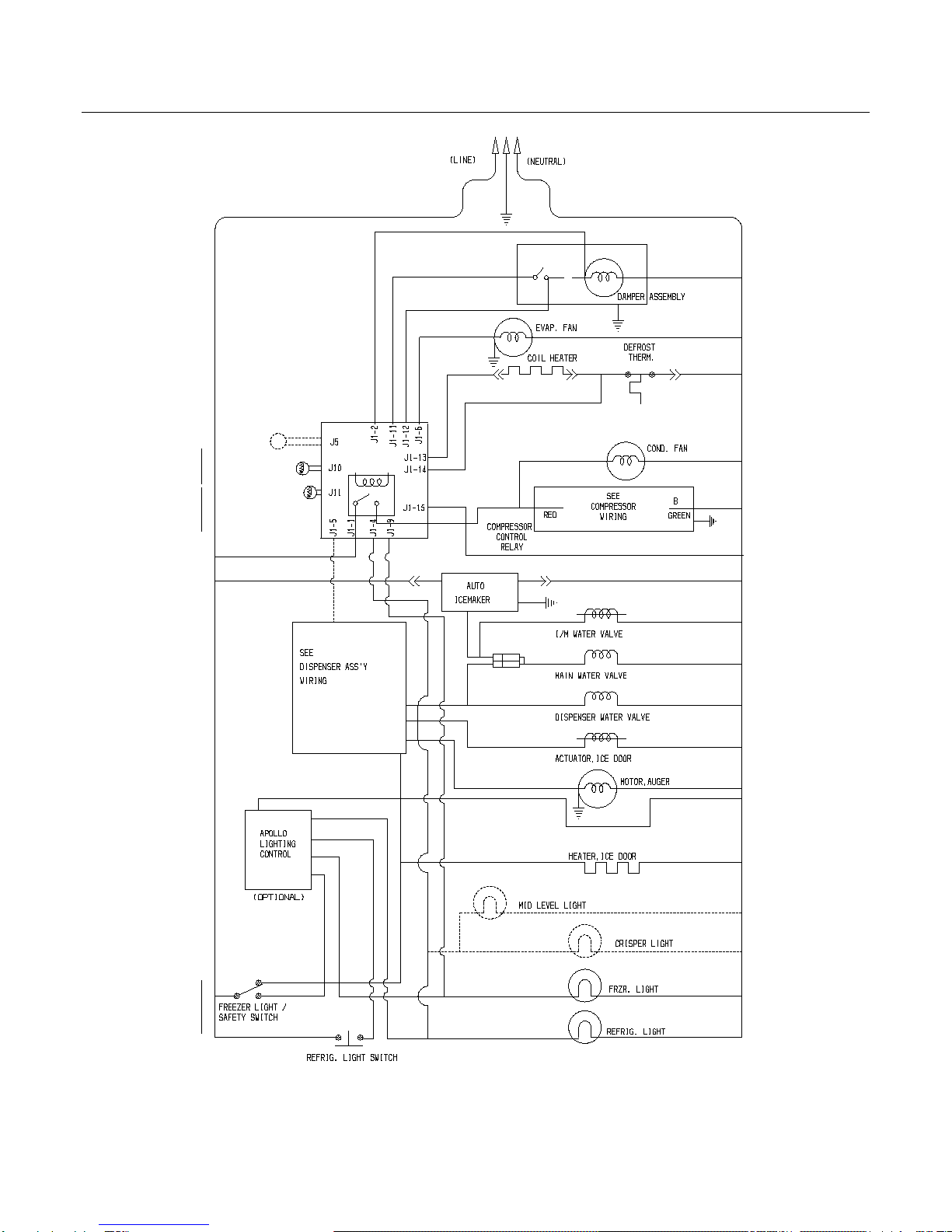

Wiring Diagram 241725001
Owner's Guide 241856000
Market North America
Energy Guide 241868079
Service Data Sheet 241636604
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995511267
08/04/08
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
PHS39EJ
Copyright ©2008 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995511267 PHS39EJSS0
04/08 2
FREEZER DOOR
68
55
5
5
22C
22A
21A
13A
11
4B
N58FFDEEA2
1
18
79
79 80
80
4C

PHS39EJSS0 Publication No: 5995511267
# Functional Parts 3 04/08
* Non-Illustrated Parts
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 241786004 Gasket-frzr door, white, magnetic
4B 240367302 Bin-door, frzr-upper
4C 240358402 Bin-door, frzr-dispenser
5 241545004 Bin-tilt out, tilt-out
11 241615188 Door-frzr, stainless, complete assy
13A 240581906 Door Stop, black, frzr
18 240536818 Handle-door, stainless steel, with insert, & set screw
21A 240598402 Screw, 10-32 x 1/2
22A 240328204 Bearing-hinge(frz), black, closer
22C 240328404 Bearing-hinge, black, upper
68 241525101 Chute-ice
79 218755402 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting
* 240451503 Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
* 240552102 Harness-wiring, door
* 241806601 Connector-water, straight
* 5303918256 Dispenser heater kit

Publication No: 5995511267 PHS39EJSS0
04/08 4
REFRIGERATOR DOOR
21A
22
13
15
12
22B
2
7
49
49
49
4
4
N58RFCBBC12
18
79
79
80
80

PHS39EJSS0 Publication No: 5995511267
# Functional Parts 5 04/08
* Non-Illustrated Parts
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 241786003 Gasket-refr door, white, magnetic
4 240363702 Bin-door, 2-liter
7 240338303 Door, dairy, clear
12 241808801 Label-nameplate
13 240581905 Door Stop, black, ref
15 241534542 Door-refr, stainless, complete assy
18 240536818 Handle-door, stainless steel, with insert, & set screw
21A 240598402 Screw, 10-32 x 1/2
22 240328203 Bearing-hinge, black, closer
22B 240328404 Bearing-hinge, black, upper
49 241808204 Bin-door, gallon, w/trim
49* 241780301 Liner, bin
79 218755402 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995511267 PHS39EJSS0
04/08 6
CABINET
66
92
92
38
38
37
37
14A
14
41
100
89
83
82
43
21C
21C
28
42
42
23
22
23
22
30A
30
72
10A
N58BAAAAB5
10
90
11
45
45
45
45
45
81
81
81
47
58
58
40

PHS39EJSS0 Publication No: 5995511267
# Functional Parts 7 04/08
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
10 240435913 Cover-air duct
10A 240475910 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14 # 240505801 Switch, light/lamp
14A 241547901 Switch-light/lamp, frzr door
21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 Plate-door closer
23 240402702 Screw-#10-32 x 1/4 flat hd
28 241708801 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 Bracket-lower hinge, ref
30A 241603704 Bracket-lower hinge
37 240337612 Trim-cabinet corner, nickeloid, (2)
38 240327207 Bracket-upper hinge
40 241816004 Cover-upper hinge, eyebrow, silver metallic
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578902 Screw, hex head, 1/4-20 x 5/8
43 241882901 Roller Assy, adjustable, front, (2)
45 241500303 Screw, hex washer head, 8-18AB x 0.500
47 240349402 Channel-shelf mtg, side, (2)
58 218781101 Screw, pan head, 8-18 x 0.625
66 5304424968 Damper Cover Assy
66* 240518802 Pin-push, push-in, plastic
72 240324415 Grille/Kickplate, silver mist
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733904 Cover-access, w/label
90 218249807 Seal-coil cover
92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
* 240396801 Clamp, tube/wiring, nylon, black/natural
* 240479601 Plug, button, cab liner holes

Publication No: 5995511267 PHS39EJSS0
04/08 8
SHELVES
120
121
11
39
11A
16
15
141
142
140A
15
39
126
81
81
126
52
52A
109
51
51A
49B
49A
52B
51B
2
97
51
52
101
101
49
N58SLDLBE12
100
25A
27
47A
15A
16A
21
25
26
47
26A
26A
42A
62
123
42
24A
24
140
24B
136
2
122

PHS39EJSS0 Publication No: 5995511267
# Functional Parts 9 04/08
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
2 241510603 Trim-basket
11 240350648 Shelf-freezer, glass, lower
11A 240350647 Shelf-freezer, glass, upper
15 241552801 Light Bulb
15A 241555401 Light Bulb
16 240590401 Socket-light
16*# 241537504 Harness-wiring
16A 241513901 Socket-light
21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625
24 240355201 Shelf-"Spill-Safe", fixed, (1)
24A 240350103 Shelf-"Spill-Safe", sliding, (2)
24B 240424603 Shelf-"Spill-Safe", sliding, "Aspect", complete
25 240354502 Cover-crisper pan, upper
25* 240362101 Clip-slide, cover-crisper
25A 240354602 Cover-crisper pan, lower
26 240354717 Pan-crisper, upper
26* 240349801 Clip-slide, pan-crisper
26A 240351101 Control-humidity
27 240354818 Pan-crisper, lower
39 240367601 Trim-shelf, front
42 240356501 Track, meat pan hanger, RH
42A 240349701 Hanger-meat pan, LH
42A* 240349901 Block-meat pan rail, LH
42A* 240350001 Spring-meat pan rail
47 240350613 Insert-pan cover, glass
47A 240350614 Insert-pan cover, glass
49 240564301 Basket-sliding
49A 240530501 Basket-sliding, upper, half
49B 240530503 Basket-sliding, upper, full
51 240343002 Hanger-basket, RH
51A 240395502 Hanger-basket, RH
51B 240579801 Hanger-basket, RH
52 240343102 Hanger-basket, LH
52A 240395602 Hanger-basket, LH
52B 240579802 Hanger-basket, LH
62 240355518 Pan-meat
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
97 240545307 Water Tank
100 240326303 Cover-water tank
101 218493101 Screw, hex washer head, 8-18AB x 1-3/4
109 240351301 Base-crisper light socket
120 241691801 Shelf-ice cream
121 241561001 Rail-ice cream shelf, LH
122 241561101 Rail-ice cream shelf, RH
123 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16
126 241674401 Channel, auger mtg, LH
126 241674402 Channel, auger mtg, RH
136 241657701 Dispenser-can, white
140 240430501 Channel, wtr tube cover
140A 240430503 Channel, wtr tube cover
141 240585403 Bracket-light socket
142 240582703 Shield-light Mid Level
* 241868079 Energy Guide

Publication No: 5995511267 PHS39EJSS0
04/08 10
CONTROLS
149
14
13
9
8
5
139
138
198
199
137
200
21
21A
23
115
53
81
101
15
16
20
N58TCBAAB0
81
81
17
81
151
155
154
206
81
205

PHS39EJSS0 Publication No: 5995511267
# Functional Parts 11 04/08
* Non-Illustrated Parts
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 Fan Blade, red, evaporator fan
8 215474201 Washer, "slinger", nylon, evap fan shaft
9 241563601 Bushing-motor mtg, (2)
13 240369702 Motor-evap fan
14 241517701 Clip, evap fan motor
15 241555401 Light Bulb
16 # 241513901 Socket-light
17 241633401 Box-control, front
17*# 241737801 Harness-wiring, control box
20 241603923 Label-control box
21 # 241608401 Thermistor-refr
21A# 241608501 Thermistor-frzr
23 # 241739703 Control, electronic, w/housing
23* 5304455649 Screw, pan hd, 6-20 x 0.438
53 241608901 Box-control
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
101 241637202 Screw, #8AB x 1 3/4"
115 241600905 Damper Assy, w/seal
137 240396401 Filter, water, carbon cassette, front, with o'rings
137* 240396701 Bypass, water filter, Optional Part
138 240397301 Button-filter release
139 240396002 Base-water filter
139* 240526901 O-ring, wtr filter base
149 241563401 Shroud-fan orfice
149* 241528305 Seal, shroud
151 241526001 Filter housing
154 241525801 Duct-air
155 241526102 Motor-air filter
155* 241611901 Harness-wiring, filter fan
198 240397401 Retainer
199 240397501 Rod
199* 240398401 Spring-filter release rod
200 240397601 Light Pipe
205 241525901 Air Filter Door
206 241504902 Filter-air
* 3205266 Edge Protector, wiring harness

Publication No: 5995511267 PHS39EJSS0
04/08 12
SYSTEM
85
84
83
83
82
82
70
62
57
55
45
45
44
41
34
34
32
30
29
26
N58CAAAAC8
25
25
23
23
22
21
16
15
14
6
86
61
60
59B
59B
59A
59A
59A
59
58
4
3
1
50

PHS39EJSS0 Publication No: 5995511267
# Functional Parts 13 04/08
* Non-Illustrated Parts
SYSTEM
POS. NO PART NO. DESCRIPTION
1 240333602 Condenser
3 218679606 Block-evap coil, styrofoam, (2)
4 # 218944001 Drier-filter, R134a System
6 # 241641401 Harness-wiring, machine compt
6* 241611901 Harness-wiring, filter fan
6* # 241651601 Harness-wiring, evaporator
6* # 241737801 Harness-wiring, control box
14 # 240316107 Heater-defrost
15 # 5303918286 Evaporator Kit
16 5308000110 Strap-evap/heater, aluminum, (2)
21 5303918214 Thermostat-defrost, kit
22 240330010 Base-compressor
22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 Grommet-compr mtg, (4)
25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697601 Pan-defrost
29 # 5303918376 Compressor Kit
30 # 241713502 Starter
32 241715901 Strap-cover
34 240405201 Grommet, rubber, black, cond tube/wire
41 240555002 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
50 241635501 Housing-control, apollo lighting
50* 241641501 Screw
55 218909913 Capacitor, run, 220 VAC, 15 microfarad
57 240542601 Clip-wiring harness
58 240433203 Screw, hex washer head, 8-18 x 3/8
59 240315502 Shroud-cond fan
59* 240346701 Tape-foam seal, shroud
59* 240359403 Screw-fan shroud, (2)
59A 240346501 Bracket-support, cond mtr, (3)
59B 240346601 Grommet-bracket, (3)
60 241584301 Motor-condenser fan
61 241639501 Blade-condenser fan
62 240429401 Trough-drain
70 218990801 Bracket-evap/cvr mtg
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 Tube-drain, lower
85 241844801 Tube-connector, suction
86 240409302 Spacer-cond tube, black
* 5303918222 Hot Tube Repair Kit, service
* # 5303918328 Heat Exchanger Kit, suction line, service

Publication No: 5995511267 PHS39EJSS0
04/08 14
ICE & WATER DISPENSER
N58XEAAAA1
43
41
87
87A
35 17
56
38A
17
8
38
38C
1
17
24
24A
23
82
4
14
30
30A
30B
30C
39
10
90
91
36

PHS39EJSS0 Publication No: 5995511267
# Functional Parts 15 04/08
* Non-Illustrated Parts
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube, water, door
1 218976915 Tube-water inlet, inlet valve, to filter
1* 218976418 Tube-water inlet, inlet valve, to filter
1* 218976419 Tube-water inlet, valve to door
1* 240561703 Seal-water inlet, inlet valve, to ice maker
4 241678710 Cover-module, silver metallic
8 241680504 Module-dispenser
10 241688901 Spring-torsion
14 241611218 Label-module cover, silver metallic
17 241679801 Screw
23 241649005 Drip Tray, silver metallic
24 241685704 Actuator, stainless
24A 241682304 Actuator-ice, stainless
30 241688401 Door Assy-ice chute
30A 241688501 Door center
30B 241688601 Insulation-door
30C 241688701 Door seal
35 241689301 Damper-rotary
36 241680301 Carrier
38 241527601 Board-power
38A# 241689101 Switch-micro, single pole, double throw
38C# 241708307 Board-control
38C* 241680001 Harness-ribbon cable
39 241688801 Pin-hinge
41 241689001 Spring-actuator
43 215296301 Screw, plask h/l, #6 x 3/8
56 241689201 Screw-micro switch, pan head
82 240363402 Screw-#8-18 X 1/2, #6 hd plask
87 241688302 Bearing Plate
87A 241688301 Bearing Plate
90 241680201 Light Pipe, reflector, long
91 241680101 Light Pipe, reflector, short
* 218515403 Clip-grille
* 241686201 Insulator-electrical
* 5303918256 Dispenser heater kit

Publication No: 5995511267 PHS39EJSS0
04/08 16

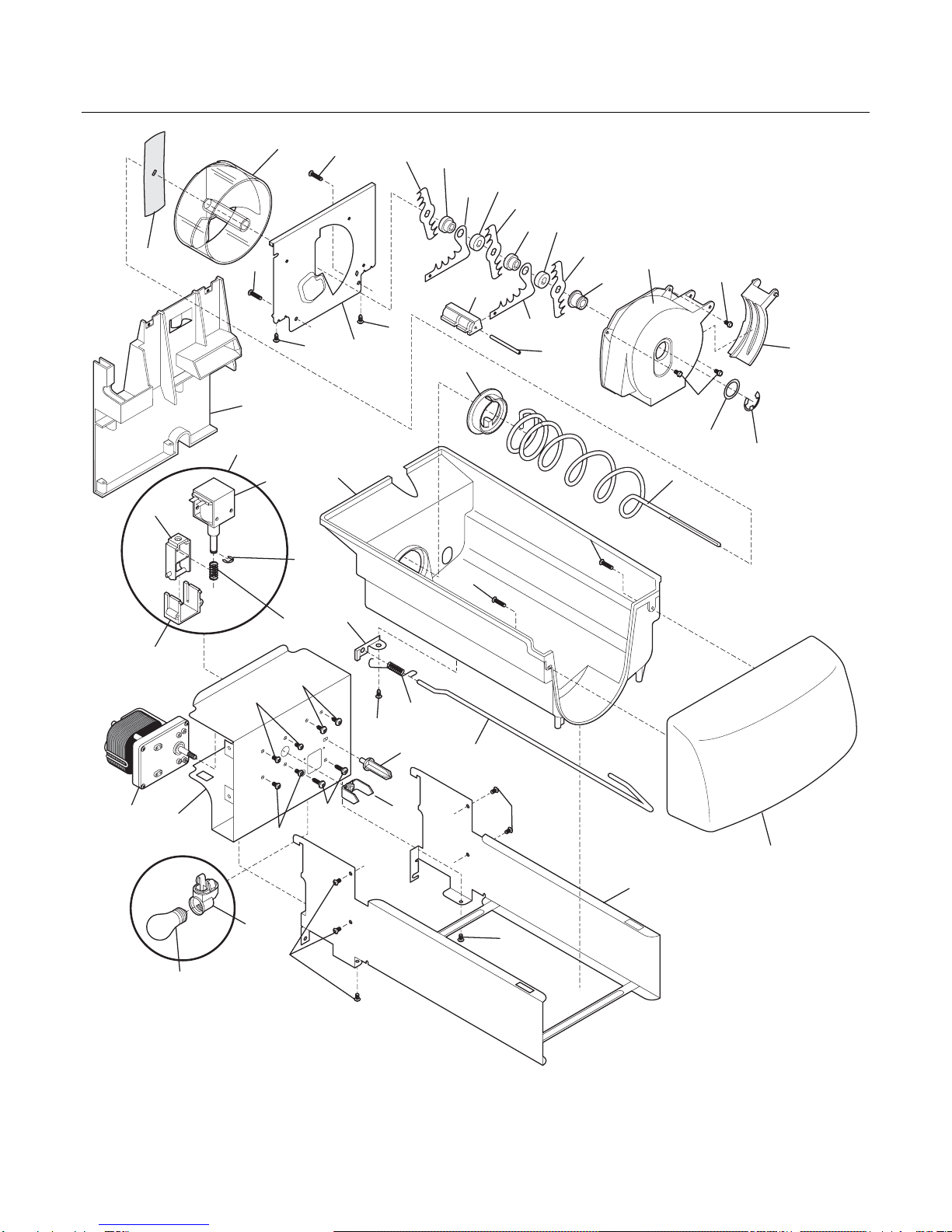

ICE CONTAINER
45
4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
58
51
26
26
26
26
10
26
43
43
43
49
7
3
2
23
39
70
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
N58YDAAAC7
39

PHS39EJSS0 Publication No: 5995511267
# Functional Parts 17 04/08
* Non-Illustrated Parts
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 241716101 Auger-ice
3 241685201 Cam-drive
4 241561302 Container-ice, bucket only
6 241685101 Drum-ice disp
7 241561401 Front-ice container
10 241726501 Bar-drive
13 241685301 Gate
15 241555401 Light Bulb
16 # 241559801 Socket-light
17 241684501 Drive Blade
18 # 241676202 Motor-auger, 115V
18* 241578401 Wiring Harness, auger motor
20 241734702 Cover-motor
23 241684001 Plate-front
25 241690701 Screw, hex washer head, 8-32T x 0.375
26 215503205 Screw, cr pan hd, 10-16 x 0.500
33 241684801 Spacer
34 241689801 Spacer
35A 241684301 Fixed Blade, round
35B 241684201 Fixed Blade, square
37A 241684101 Blade, crusher #1
37B 241684102 Blade, crusher #2
37C 241684103 Blade, crusher #3
39 241690501 Screw
41 241685601 Housing-crusher
43 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16
44 241842101 Screw, 8-32 x 1/4
45 241675701 Solenoid Assy, 115V
45A 241675901 Spring-solenoid
45B 241676001 E-Ring-solenoid
45C 241676101 Actuator-solenoid
45D 241675801 Solenoid, 115V
46 241716002 Control Rod
47 241731801 Spring-control rod
48 241684602 Bracket-control rod
49 241734401 Rail Assy
50 241675601 Guide-solenoid
51 241676301 Rotation Stop
52 241684901 Spacer-fixed blades
53 241690402 Pin-spiral, fixed blades
54 241685001 Nut-auger
55 241690306 Washer
56 241690201 E-ring
58 218359202 Screw, pan head, 8-32 x 0.250
70 241561501 Plate-mounting
70* 241551602 Screw, hex head, 8-18B x 0.875
70* 241716801 Clip
* 241860804 Ice Container Assy, w/moving parts

Publication No: 5995511267 PHS39EJSS0
04/08 18

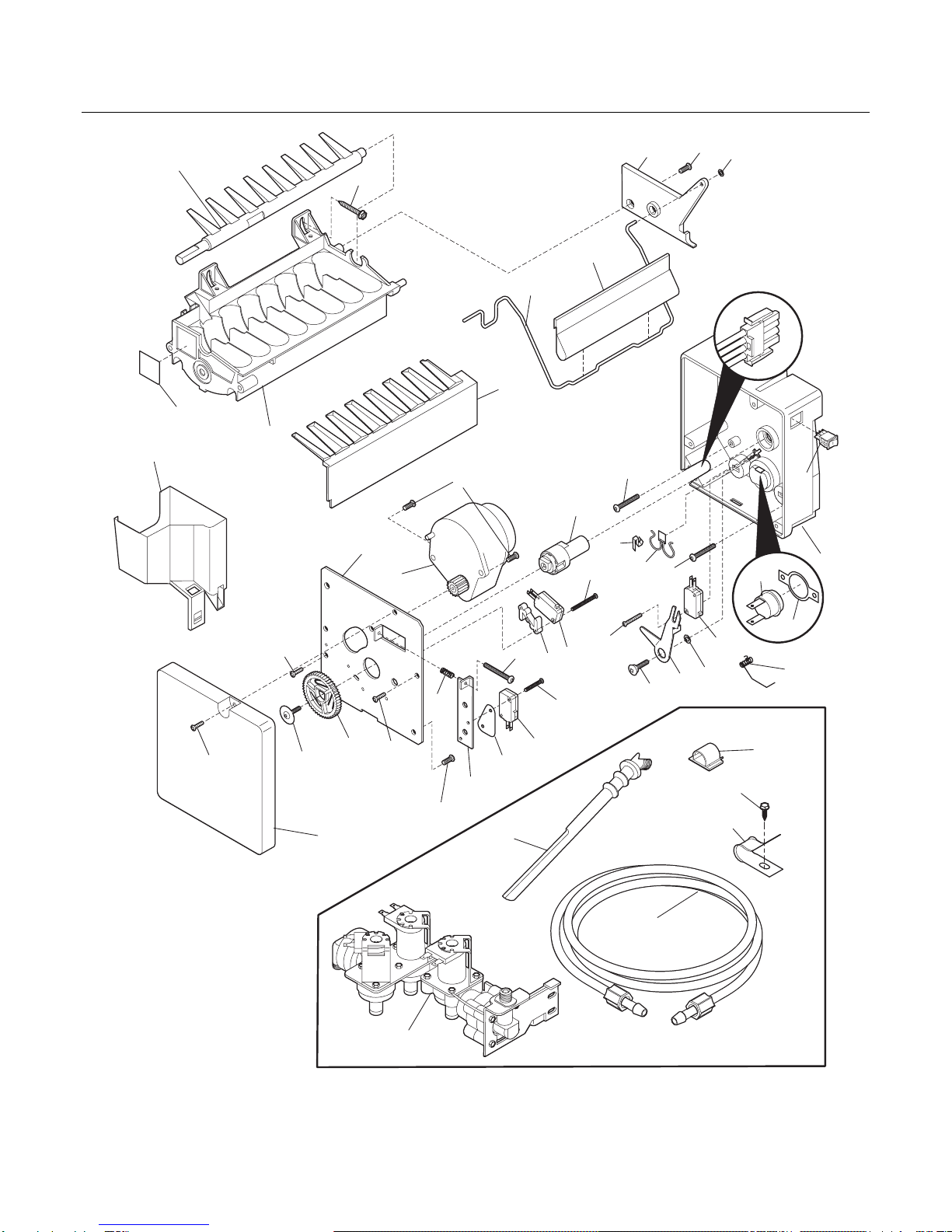

ICE MAKER
14 15
2
41
24
25
51
64
6
640
43
7
6
16
67
21
19
22
66
60
18
17
39
23
23
34
34
34
11
38
29
30
27
9
15
15
31
32
36
4
35
5
37
8
1
55 INSTALLATION PARTS
N58I115TServo
12
33
13
45
42

PHS39EJSS0 Publication No: 5995511267
# Functional Parts 19 04/08
* Non-Illustrated Parts
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube, water, door
1* 218976418 Tube-water inlet, inlet valve, to filter
1* 218976419 Tube-water inlet, valve to door
1* 218976915 Tube-water inlet, inlet valve, to filter
1* 240561703 Seal-water inlet, inlet valve, to ice maker
2 5304459922 Spring, shut-off arm
4 5304458380 Gear
5 5304458383 Plate-mounting
6 5304458386 Screw
7 # 5304458382 Motor-ice maker Svo
8 5304458388 Spacer-hold switch
9 5304456662 Cam
11 # 5304458400 Thermal Cutoff, ice maker
12 5304458379 Harness-wiring
13 5304456665 Thermostat, ice maker
14 5304458384 Screw
15 # 5304456667 Switch-micro, (3)
16 5304458395 Housing, control
17 5304456669 Mold-ice maker, w/therm cut off
18 5304458377 Ejector-ice
18*# 240352601 Wiring Harness, internal, with plug
19 5304458378 Cup-water inlet
21 5304458390 Ice Stripper
22 5304458375 Shut-off Arm
23 5304458394 Screw
24 5304458391 Lever Arm
25 5304456676 Screw, M 4x12.8 #2, lever arm/sprt
27 5304458385 Screw
29 5304458393 Screw
30 5304458387 Screw
31 5304458381 Insulator
32 5304456681 Plate-valve switch
33 5304458403 Retainer-thermostat
34 5304456678 Screw, M 3x12 #3, (2)
35 5304456684 Screw
36 5304458376 Cover-ice maker
37 5304456682 Spring, timing adjust
38 5304458398 Clip
39 5304458399 Conductor-heat
40 5304458401 Clip-retainer
41 5304458389 Screw
42 218515403 Clip-grille
43 241720601 Extension
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
51 241796403 Tube-water fill, extension
55 # 241734301 Valve-water, triple solenoid
55* 218709101 Screw, hex head, 10-32 x 0.500
55* 240363602 Screw-shoulder
55* 240542901 Cap-water valve
60 218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
64 5304455846 Clamp, .31 ID, steel, water tube
66 5304458374 Bracket-ice maker
67 5304458392 Switch-on/off
* 241583301 Deflector-air, ice maker
* 241806601 Connector-water, straight
* 5304456660 Screw, M 4x6 #2
* 5304456689 Washer, nylon
* # 241709801 Ice Maker, radius cube, 115 V, no instl parts

Publication No: 5995511267 PHS39EJSS0
04/08 20
WIRING SCHEMATIC
BETA
CONTROL
FAST ICE/FRZ
2
1
2
1
FF THERMISTOR
FRZ THERMISTOR
M
1
2
AIR FILTER
FAN
