Frossvt EM3205 User manual

Made in China
Frossvt Espresso Coffee Machine
User Manual
Item
EM3205
Voltage
120 V
Frequency
60 Hz
Power
1350 W
Water tank
1.8 L
Pump
Pressure
20 Bar

1
Before the First Use （Important）
1. Move the coffee maker from the package, and check the accessories
according to the list；
2. Remove the tank cover and remove the tank, then remove the red silicone
from the water tank before using the coffee maker （Note: If the red silicone
piece is not removed, the machine will be unable to pump water）
3. Clean all the detachable components;
4. Pour water into water tank and the water level should not exceed the "max"
mark. Put back the water tank and close the water cover;
5. Connect power plug, all indicator lamp will light on about 1s, touch Power
button,then coffee lamps are flashing, machine start preheating, preheating will
be finished after 1min, power lamp and coffee indicator lamp will always light on
white, steam indicator lamp light off ;
6. After finished preheat, touch the double cup coffee button, the
electromagnetic pump works, and immediately open the steam knob to the
maximum position counter clockwise until the steam tube has a continuous
outflow of hot water, close the steam knob (the process may be repeated 1-3
times);
7. Rotate counter clockwise to install the portafilter into water outlet of the
machine, press the "double cup coffee switch" to let hot water come out to clean
the coffee filter and cup.

2
How to Make a Good Cup of Coffee
Grinding coffee bean and grinding quality largely determines the quality of
coffee, if the powder is too coarse, coffee extract inadequate, the taste is
light, and color is lighter, the cream also will be very thin, and color is white;
if the powder is too fine, coffee over extraction, it will be too dark, and no
cream. A good cup of coffee should use freshly ground coffee beans (use
burr coffee grinder), and use appropriate amount of coffee beans. Each
time when you making coffee with coffee powder, the freshness of the
beans is very important, long time storage will make coffee bean oil
decomposition.
1. Use the bean grinder to adjust the appropriate grinding thickness, and
then pour the fresh coffee beans into the grinding chamber for grinding. Use
the bean grinder to adjust the appropriate grinding thickness, and then pour
the fresh coffee beans into the grinding chamber for grinding.
2. It is recommended to weigh each time you make coffee to ensure the
amount of coffee powder added single cup: approx. 9-9.5g; double cup:

3
approx. 16-16.5g, and tamp down firmly with a powder press;
3. The surface of pressed coffee powder should be about 3mm away from
the edge of the filter cup (important indicator). Too high or too low will affect
the extraction pressure and effect of coffee, please reduce or increase the
amount of coffee powder;
4. Make coffee liquid: single cup of coffee: approx. 30ml; double cup of
coffee:approx. 60ml, this can be adjusted by the thickness of the ground
coffee.

4

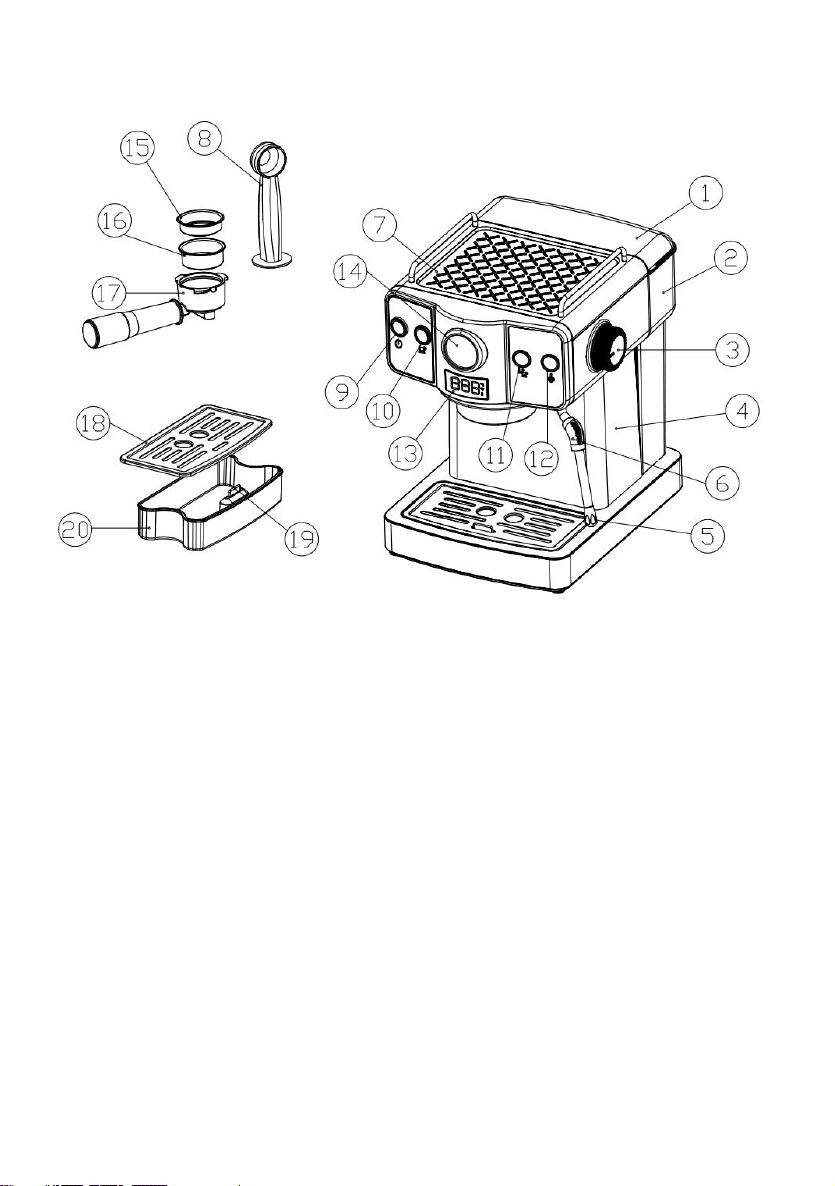

Accessories：
1.Water tank cover 2.Water tank 3.Steam knob
4.Main body 5.Steam pipe and nozzle 6.Steam pipe handle
7.Warm cup board 8.Spoon & Tamper 9.ON/OFF switch/ indicator
10.Single-cup coffee switch / indicator 11.Double-cup coffee switch / indicator
12.Steam warm-up switch / indicator 13.Display screen
14.Piezometer 15.Single-cup coffee filter 16.Double-cup coffee filter
17.Portafilter 18.Drip tray cover 19.Buoy 20. Drip tray
Warning: The machine must use a grinding Coffee powder and just make coffee,
coffee drink(ex: Cappuccino, Latte and so on), heating milk, and other irregular
use may cause danger.

5
Instructions：
“ ”Power button, after the machine is powered on, the indicator light is
steady on, touch the power button once to start preheating---the " "
button indicator light is always on during the preheating process, “ ”
“ ” button indicator is flashing; after preheating, “ ”“ ”“ ”
lights are always on white ,“ ”lights are always on red. Press again to
shut down during the warm-up process or after completion.
“ ” Single cup of coffee function button, touch it to start extracting
coffee after preheating, automatically extract until the machine stops
working or press the button again to stop working during the extraction
process. (During the extraction process, " " breath flashes(white), and
the buzzer beeps when the extraction is over, and the indicator light turns to
steady on white)
“ ” Double cup of coffee function button, touch it to start extracting
Steam/Water knob

6
coffee after preheating, Automatically extract until the machine stops
working or press the button again to stop working during the extraction
process. (During the extraction process, " " breath flashes(white), and
the buzzer beeps when the extraction is over, and the indicator light turns to
steady on white)
“ ”Steam preheat button: touch this button and the indicator blinks in
red to preheat steam. After the preheat is complete, the button （“ ”
“ ”）indicator is steady on white ,the button（“ ”“ ”） indicator
is steady on red.
The steam knob: The steam knob is closed when the knob is pointing
“ ”. There are two working states when the steam knob is turned on.
When the machine is in coffee mode, the knob is turned on and the steam
pipe gives hot water. When the machine is in steam mode, turn the knob,
steam tube steam out.
Note: when the power is turned on, the steam preheating indicator keeps
flashing fast (E-1 on the screen), which means that the steam knob is not
closed, and you can turn the steam knob to the closed position .

7
MAKE ESPRESSO COFFEE（Double-cup
Coffee for example）
1. Open the lid, take out water tank, and fill the water tank with up to 1.8 liters of
cold, preferably filtered water. Do not exceed the MAX capacity;
2. Put back the water tank and close the lid;
3. Plug in the power plug, the machine self-checks, the control panel is all on
and then goes out. Press the power switch, the single-cup coffee indicator,
double-cup coffee indicator flashes , the steam switch indicator is off, and the
machine starts to warm up. After about 1 minute, the single-cup coffee indicator
and double-cup coffee indicator are always light on , and the preheating is
completed;
4. Take out portafilter, pour appropriate coffee powder(16-16.5g) into the coffee
filter with coffee spoon, then tamp down firmly, clean the extra coffee powder
overflow the edge of holder, to avoid damage the seal ring of brew head.
Note: If too much coffee powder remaining in the edge of the filter, will easily
to cause poor sealing and water leakage.
5. Turn handle counter-clockwise (to the right) from position " " to position
" " LOCK. Make sure the portafilter is sealed and locked securely into the
brew head;

8
6. Put cup(s) under coffee outlet;
7. Touch the coffee double-cup coffee switch, the machine starts pumping water,
and coffee flows out of the coffee nozzle;
8. The coffee machine automatically stops working (the light from Flashing to
a constant light), and the coffee is made at this time, then remove the coffee
cup;
Warning: Do not leave the coffee machine unattended during the coffee
making process, as it sometimes requires manual operation.
9. After the coffee is made, turn the handle clockwise (to the left) to UNLOCK.
The portafilter will drop down from the brew head. Clean the coffee grounds
in the filter in time, and rinse it with hot water. Touch the single-cup or
double-cup coffee button, flush the outlet with water, install the clean
high-pressure portafilter assembly on the outlet, and wait for the next use.
10. When making a single cup of coffee, use a single-cup coffee filter, touch the
single-cup coffee switch when making, and the other steps are the same as
double-cup coffee making.
Warning: Do not touch the hot surfaces of the machine with hands to avoid
scald, especially brewing outlet, steam nozzle when use machine. Always run
water through the brew head and purge the steam wand after each use.

9
MAKE CAPPUCCINO (How to texture Milk)
1. Prepare espresso first with a large enough cup according to part “B”;
2. Take a steel frothing jug (IMPORTANT: Make sure the frothing jug is cold
before texturing milk. Refrigerate or run cold water into the jug before use),
pour into about 8℃cold full fat pure milk no more than one-third (1/3)；
Note: When selecting a jug size, it is recommended that the diameter of the cup
be no less than 70±5mm. As the volume of milk will increase after foaming,
make sure that the cup has enough height.
3. Touch the steam button to start the steam preheating, the single and double
cup coffee indicator light is off, and the steam indicator light starts to flash .
After the steam light is steady white, the steam preheating is completed;
4. Position the steam wand tip over the drip tray, turn the "steam knob" counter
clockwise to the maximum position, release a little water in the steam wand.
As temperature is achieved and once steam is emitted from the wand (not
water), the steam wand is ready for use. There are two phases to texturing
milk. The first is stretching the milk to aerate it and the second is swirling the
milk to make it silky smooth. These two operations should blend into one.
5. Before inserting the steam wand into the milk, pause the steam by returning
the STEAM knob back. Quickly insert the steam wand tip float below the
surface of the milk, close to the right hand side of the jug at the 3 o’clock
position;
6. Then quickly turn the STEAM knob back to the the maximum position to
frothing milk ;
7. Keep the tip just under the surface of the milk until the milk is spinning
clockwise, producing a visible vortex.
8. With the milk spinning, slowly lower the jug. This will bring the steam tip to the
surface of the milk & start to introduce air into the milk. You may have to gently
break the surface of the milk with the tip to get the milk spinning fast enough.

10
9. Texture the milk until sufficient volume is obtained.
10. When the milk temperature reaches between 60-65℃, it is finished.
11. Turn off steam BEFORE taking the tip out of the milk. Wipe the steam wand
with a clean wet towel.
12. Tap the frothing jug on the counter until the milk appears shiny and few
bubbles remain.
13. Pour textured milk as soon as possible into espresso, before the milk begins
to separate. Now Cappuccino is ready, you can add some sugar or coco
powder if you like it.
Note:
1. After the steam stops spraying, please clean the steam pipe assembly
immediately and discharge the milk in the pipe to prevent the milk froth from
scaling on the pipe wall. During the operation, due to the high surface
temperature of the steam pipe, be sure not to be scalded.
2. When the machine creates steam, a pumping noise can be heard. This is
normal, but if it makes a very loud (sizzling) noise, it means that the position of
the steam wand in the milk jug is not accurate(Note: It should not be inserted
into the milk, just float the steam hole on the surface of the milk), please watch
the tutorial or contact us to learn how to use it correctly.

11
Making Hot Water
1. Put a container under hot water outlet;
2. When the single and double cup coffee indicator light is on, turn on the steam
knob switch, hot water flows out of the steam nozzle, and the single cup
coffee indicator and double cup coffee indicator flashes during the process of
making hot water;
3. When the hot water reaches the required amount, turn the "steam knob"
clockwise to the off position, and the hot water stops flowing out.
Reminder: The hot water function can also be used to quickly cool down
the coffee machine.
Note: When using, be careful of the hot parts of the machine. Especially the
water outlet (portafilter), hot water nozzle and steam pipe. When operating,
please do not put your hands on the above parts for any reason.
Heating Liquid (Steam Function)
1. Use a stainless steel cup, pour cold liquid to 1/2 cup;
Note: Cup diameter should not less than 70 ± 5mm. Because it is heated by
steam to avoid liquid overflows or spills when steam is released.
2. Press the steam switch to start steam preheating. The indicator light for
single and double coffee cups is off, and the steam indicator light starts to
flash. After the steam light is steady white, the preheating-steam is
completed;
3. Put a cup under steam nozzle, let steam nozzle insert into the liquid;
4. Turn on steam knob, release steam.
5. Turn off the steam knob when desired temperature is reached, now steam
is stopped.
Note: Clean steam nozzle immediately after use, to prevent milk scaling.
Caution high temperature of hot water outlet when in use.

12
Indicator Tips
ON/OFF
Indicator
Single-
cup
Coffee
Indicator
Double-
cup
Coffee
Indicator
Steam
Indicator
Cause
Solution
Lights off
Lights
off
Lights
off
Lights
off
Power on
/
Lights on
Flashing
Flashing
Lights off
Coffee and
hot water is
pre-heating
/
Lights on
Lights on
Lights
on
Lights off
Coffee
and hot
water
pre-heating
finished
/
Lights on
Flashing
Lights
off
Lights
off
Making
single cup
coffee or
water
/
Lights on
Lights
off
Flashing
Lights
off
Making
double
Cup
coffee
/
Lights on
Lights off
Lights
off
Flashing
Steam is
pre-heating
/
Lights on
Lights off
Lights
off
Lights on
Steam
Pre-heating
finished
/
Lights on
Lights
off
Lights
off
Flashing
Making
steam
/
Lights on
Lights off
Lights
off
Lights on
Steam
finished
/
Lights
on(white)
Flashing
Quickly
Flashing
Quickly
Lights off
After
making the
steam,
touch the
steam
switch (the
Wait
temperat
ure
naturally
fall or
open

13
temperature
is too high)
steam
button to
making
hot water
quick
cooling
Lights off
Lights
off
Lights
off
Lights
off
Standby for
more than
30 minutes
Touch
display
switch
Lights on
Lights off
Lights
off
Flashing
Quickly
The steam
knob is not
closed
tightly when
turning on
Tighten
the steam
knob
Lights
off
Lights
off
Lights
off
Lights
off
The
temperature
sensor is
short or
open, the
temperature
fuse is
open, or the
cable
between the
power
board and
the display
board is in
poor contact
Please
contact
with the
authorize
d service

14
Troulbe Shooting
Problem
Cause/Result
Solution
No water
comes out
Water tank is empty
Pour water in water tank
The input voltage or
frequency is inconsistent
with nameplate
Make sure the voltage and
frequency is consistent with
the nameplate
Machine malfunctions
Please contact with the
authorized service
No steam is
generated
Steam nozzle clogged
Clean steam nozzle
Water tank is empty
Pour water in water tank
Machine malfunctions
Please contact with the
authorized service
Coffee runs
out around
the edge of
the
portafilter
Too much powder in the
filter
Turn off the machine and wait
for it cool down, clean the
filter, then pour appropriate
coffee powder
There is powder in the seal
ring under group head
Implementation of the
above operation problems
still exist
Please contact with the
authorized service
Coffee
comes out
too slow or
no coffee
comes out
coffee powder is too fine,
and clogged filter
With thicker coffee powder
Filter holes are blocked
Brush / clean the filter
Water tank is not inserted
Insert the water tank in place
Water
leakage on
the bottom
of machine
Drip tray is filled up
Please clean the drip tray
Machine malfunctions
Please contact with the
authorized service
Machine is
not working
The power cord is not
plugged well.
Plug the power cord into a
wall outlet correctly,
NTC is short circuit
Please contact with the
authorized service
Machine malfunctions
The steam
cannot froth.
Steam indicator not light on
Wait steam indicator lights
on.
The container is too big or
the shape is not fit
Use high and narrow cup or
garland cup

15
Used skimmed milk
Use whole milk
*If you have not been able to solve the problem,
please contact us via E-mail : [e-mail] or Amazon
message.
Content of hazardous substances in the product
Accessory
Hazardous Substances
(Pb)
(Hg)
(Cd)
(Cr(VI))
(PBBs)
(PBDEs)
Plastic
○
○
○
○
○
○
Hardware
○
○
○
○
○
○
Power
Cord
×
○
○
○
○
○
Electrical
device
×
○
○
○
○
○
Silicone
parts
○
○
○
○
○
○
Package
○
○
○
○
○
○
This form is compiled in accordance with the provisions of SJ/T 11364.
○：Indicates that the content of the hazardous substance in all homogeneous
materials of the part is within the limit requirement of GB/T 26572.
×：It means that the content of the hazardous substance in at least one of the
homogeneous materials of the part exceeds the limit requirement of GB/T
26572.

16
Cleaning Mineral Deposits
1. The machine builds up lime scale deposits over time, and you
need descale the machine 2-3 months;
2. Pour water and descale in water tank up to MAX capacity (water
and descale ratio is 4:1, follow the instruction of descale. Please use
“household descale”, or you can use the citric acid replace descale
(water and citric acid ratio is 100:3);
3. Lock the portafilter (no coffee powder) into the group head.
According to part “B” MAKE E ESPRESSO COFFEE;
4. Touch coffee button, make about 150ml coffee(or Make 3 cups
of coffee). Then touch Steam warm-up switch, it starts preheating ,
open steam knob after steam indicator always lights on, release
steam about 2min and turn off the knob, then make descales
deposit in the machine at least 15min;
5. Repeat the steps 4 for 3 times;
6. Touch double coffee button to brew coffee and repeat the steps
until there is no descale left;
7. Make coffee again(no coffee powder), repeat the steps 4 for 3
times (no need wait for 15 min), then repeat brewing until no water is
left in the boiler;
8. Repeat the step 7 at least 3 times to make sure the piping is
cleanly.

17
Clean and Maintenance
1. The machine has to be switched off and cooled down;
2. Use a clean damp cloth to clean the stainless steel surface;
Note: Do not use abrasive sponges and alcohol or solvents.
Do not immerse the machine into water.
3. Clean the outlet and the seal ring under the group head with
professional brush;
4. Clean steam outlet, confirm there is no blockage
5. Detach the metal portafilter through turn it clockwise; get rid of
coffee residue inside, then you can clean it with cleanser, but at last
you must rinse with clear water.
6. Clean all the attachments in the water and dry thoroughly.
7. Clean drip tray and removable shelf regularly then dry them.
8. Clean water tank regularly.

18
Cleaning Mineral Deposits
9. The machine builds up lime scale deposits over time, and you
need descale the machine 2-3 months;
10. Pour water and descale in water tank up to MAX capacity
(water and descale ratio is 4:1, follow the instruction of descale.
Please use “household descale”, or you can use the citric acid
replace descale (water and citric acid ratio is 100:3);
11. Lock the portafilter (no coffee powder) into the group head.
According to part “B” MAKE E ESPRESSO COFFEE;
12. Touch coffee button, make about 150ml coffee(or Make 3 cups
of coffee). Then touch Steam warm-up switch, it starts preheating ,
open steam knob after steam indicator always lights on, release
steam about 2min and turn off the knob, then make descales
deposit in the machine at least 15min;
13. Repeat the steps 4 for 3 times;
14. Touch double coffee button to brew coffee and repeat the steps
until there is no descale left;
15. Make coffee again(no coffee powder), repeat the steps 4 for 3
times (no need wait for 15 min), then repeat brewing until no water is
left in the boiler;
16. Repeat the step 7 at least 3 times to make sure the piping is
cleanly.
