Fuho AP-460 User manual

2008 APR. Ver 1.0
4 C H DV R L A N C a r d
M A N UA L

空白頁

I. LAN Card SPECIFICATIONS............ 1
II.LAN Card........................................... 2
................16
..................... 18
III. USER GUIDE of AVPlayer
IV. MOBILE PHONE VIEW
CONTENT

-1-
I. LAN Card SPECIFICATIONS
Compression
Resolution /
Transmission Speed
Network Protocol
File Format
Recorded format
Motion Detection
Controller Interface
Video Setup via IE
Memory
Network
I/O Ports
Dimensions
Weight
Power Supply
Power Consumption
Operation Temperature
Storage Temperature
Operating Humidity
TCP/UDP/IP, DHCP, SMTP, HTTP,
DDNS, NTP, PPPoE
MPEG-4 video stream
MPEG-4 video stream
Movement on image
Internet Explorer 5.0 or above
Mobile Monitor System (Option)
Support statistic and dynamic IP address
Compression rate (5~16)
2M Byte Flash ROM / 8M Byte SDRAM / 32MB DDR
10/100 Ethernet
RJ-45 network port、System Reset
134mm (L)× 78mm(W)× 17mm(H)
62g
DC +12V
260mA
0°C ~ 45°C
0°C ~ 70°C
10% ~ 80%
MPEG4
D1
CIF
HALF D1
QCIF
720X480
360X240
720X240
180X120
30
30
30
30

II.LAN Card
-2-
PIN#
1. Use a cross-over cable to connect DVR and PC.
Definition of cross-over cable:
Brown
Brown/White
Green
Blue/White
Blue
Green/White
Orange
Orange/White
8
7
6
5
4
3
2
1
Green/White
Green
Orange/White
Blue
Blue/White
Orange
Brown/White
Brown
1
2
3
4
5
6
7
8
COLOR
Network Status
Enternet MAC Address 00-16-55-00-00-3F
LAN Address 192.168.1.126
LAN Netmask Address 255.255.255.0
LAN Getway Address 192.168.1.1
2. LAN Card default setup as follows:
a.Select “My Network Places” by
Clicking mouse on the right.
Click “Properties” accordingly.
3. PC IP address setting manually:
Set PC & LAN Card in the same
network (intranet). In condition of
Windowns-2000/XP OS:

-3-

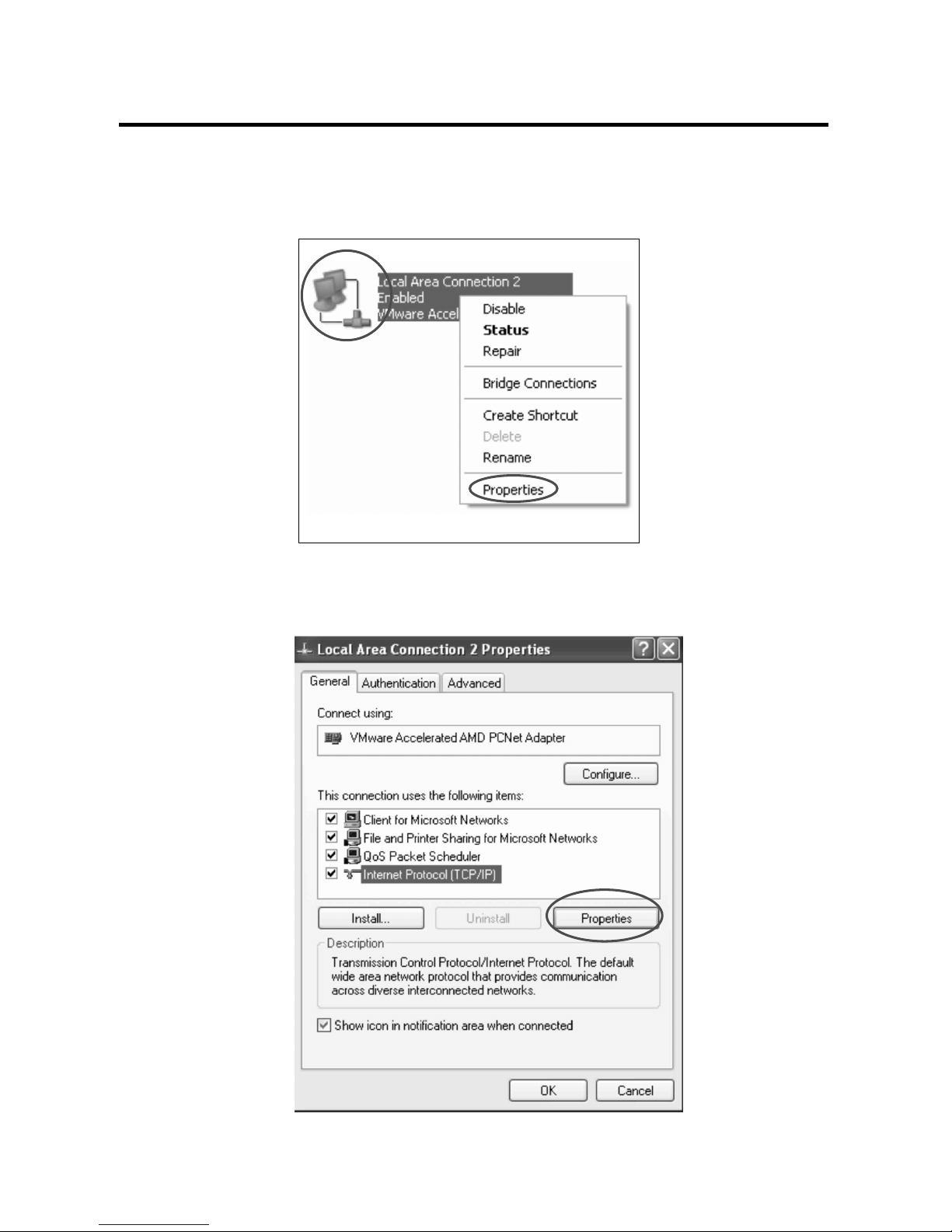

b. Select “Local Area Connection” by clicking mouse on the right.
Click “Properties” accordingly.
c.Select “TCP/IP” and click “Properties.”

-4-

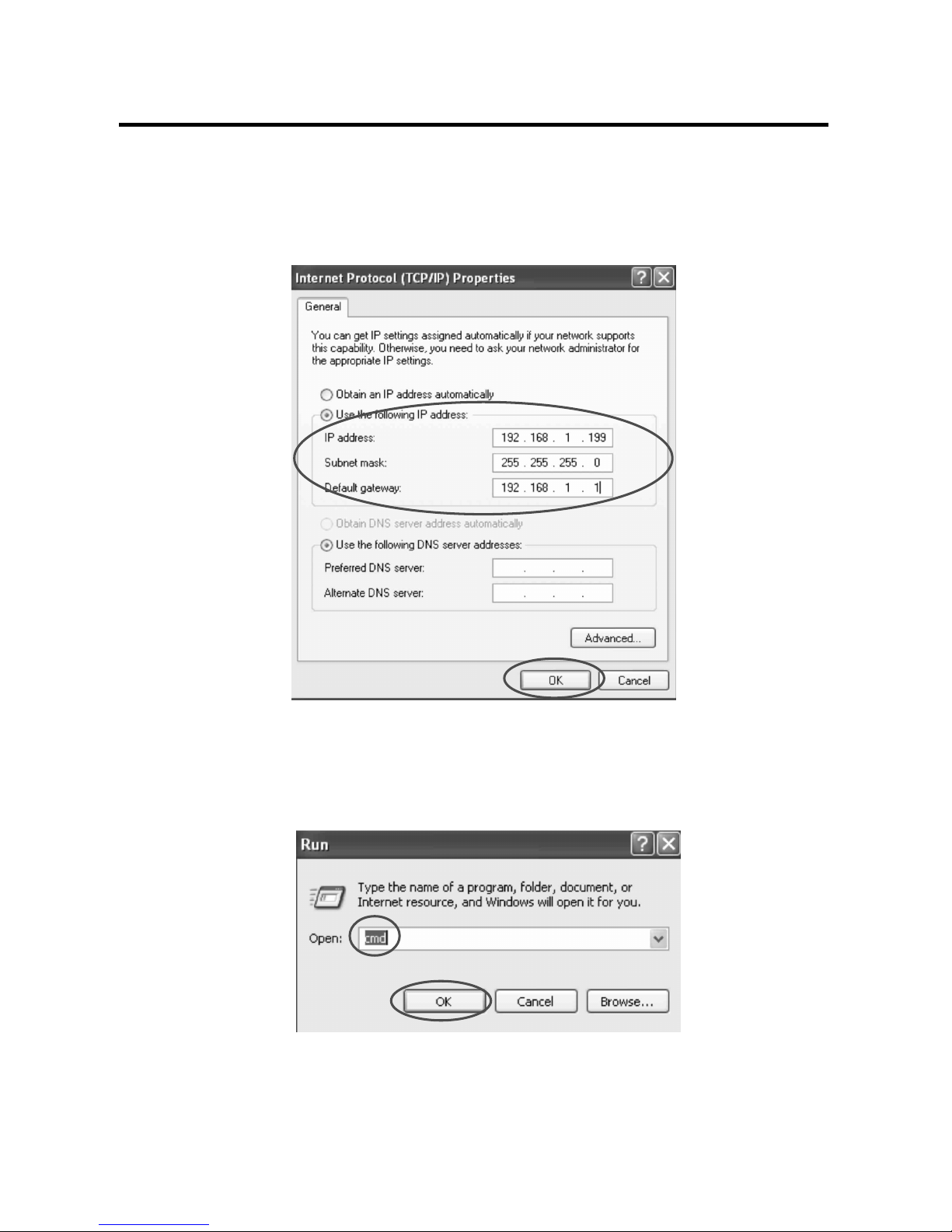

d.Select “Use the following IP address” to input IP address, Subnet mask
and Default gateway. Click ”OK” accordingly.
4. Follow the following procedure to make sure IP address correct.
a. Click “Start” “Run” and input “cmd” Click “OK”.

■ IP SET
-5-
b.Enter DOS and input “ipconfig”. Click “enter” to inspect IP address,
Subnet mask and Default gateway.
(1) Run IPCameraSearcher program
Run IPCameraSearcher.exe program, the setup window will appear
on your computer
(2).
1.Search(S): Search all the LAN Card in the network. Click one of the
LAN Card address to login.
2.Config IE(C): IE Security Setup.
* Inappropriate setting might cause the browsing in accessible.
3.Apply(A): Search all LAN Card address automatically.
4.After setting an IP address, the following IP addresses will each
automatically add up by one accordingly.
IPCameraSearcher Instruction

-6-
5.Update IP(I): Set the IP address of the indicated LAN Card,
then press “OK” to reboot the LAN Card.
7.Update Port P : Set the port of the indicated and press
“OK”to reboot the LAN Card.
()LAN Card
8.Default : Restore the default value of the indicated ,
then press “OK” to reboot the LAN Card.
(D)LAN Card
6.Update Name(N): Change user name of the indicated LAN Card, then
press “OK” to reboot the LAN Card.

-7-
★USERNAME:admin
★PASSWORD: ( N/A)
(3). IE LOGIN
To Login:
1. In IPCameraSearcher, click the IP address of the indicated .
2. In IE, type the IP address of the indicated IP address.
LAN Card
(4). Internet Homepage Interface Operation Guide
If login succeeded, the viewer will be appeared as below:
1.PLAY/PAUSE：Play/Stop view。
2.REC：record the file in AV format (Please refer to below Video & Audio Settings
to set the file saving path)。
3.SNAPSHOT：Snapshot the picture on screen in a JPG file. (Refer to below Video
& Audio Settings to set a path to save JPG file.)
＊If the path is ending by a “\”, it is a directory path.
＊If the path is ending without a “\”, the path will link to a prefixed file name.
4.SETUP：Set system value. For futher value setup, please refer to System Setup.
5.The Language displayed is assigned by the system
6.Remote Controller: Please refer to Remote controller Guide.
7.By mouse clicking the picture, the picture size can be adjusted by the size of
browsing window.

-8-

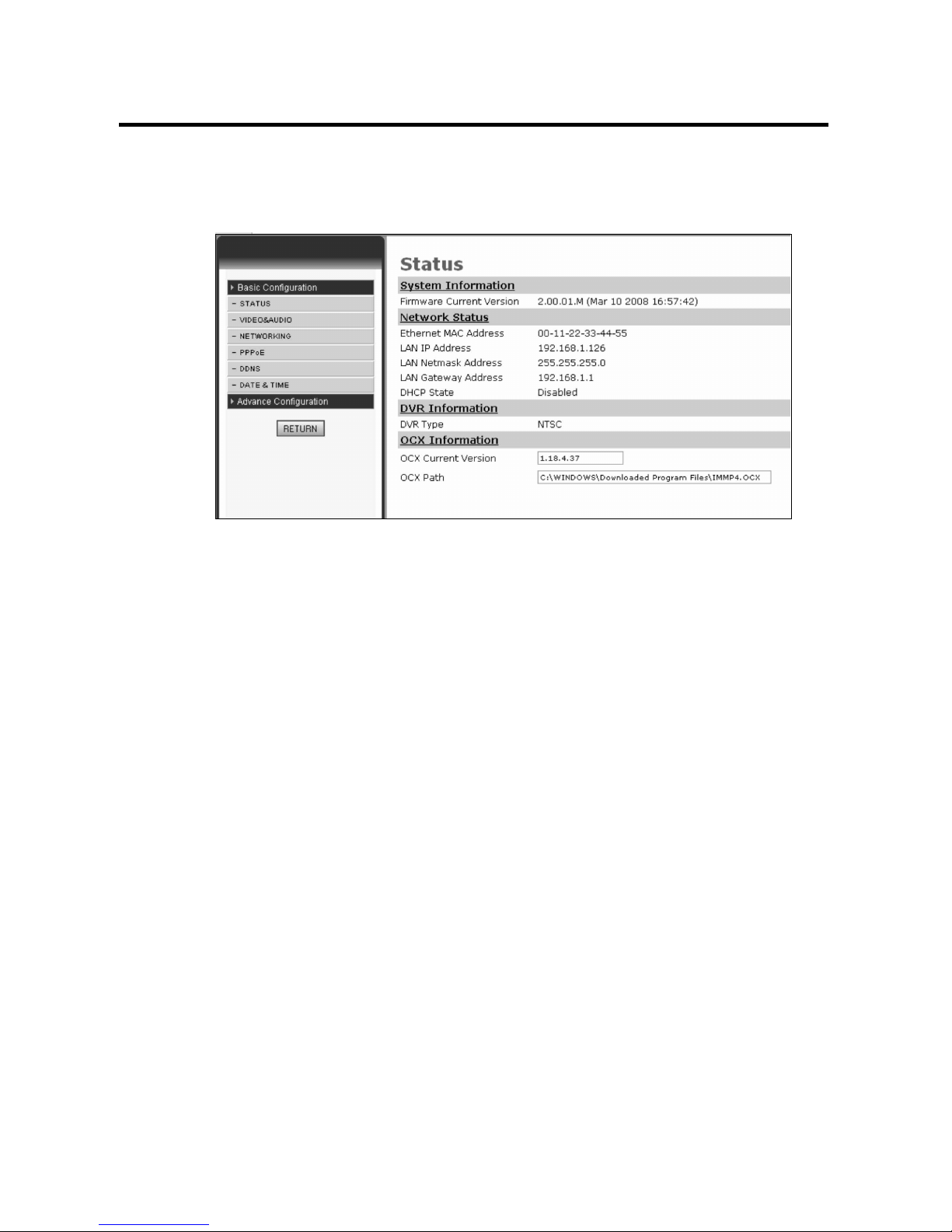

SYSTEM SETUP
1. STATUS
■
(1).Sysetm Version
Software version：Upgrade function by firmware update.
(2).Network Status:
▲MAC address：MAC address of LAN Card.
▲IP address：IP address of AN Card.
▲Subnet Mask：Subnet Mask of LAN Card.
▲Default Gateway：Default Gateway of LAN Card.
▲DHCP State: Dynamic Host Configuration Protocol.
When using static IP, the status will show“Disable,
”the opposite will be “Enabled.”
(3).DVR Status:
▲DVR system：NTSC/PAL
(4). OCX INFORMATION
▲OCX Current Version：Current OCX version
▲OCX Path：The path accesses to OCX
L

-9-
2. VIDEO & AUDIO SETTINGS
2.1 VIDEO SETTINGS
˙CBR Set the Constant Bit Rate of Video
˙Resolution：Picture resolution. Four levels of resolution are provided for
selection.
˙Limit Frame Rate to: Frame rate transmitting per second is defined by the
internet connection speed. Higher value brings smoother picture performance.
2.2 SNAP SHOT
˙Path & File Namer: Set the path to save still picture taken by snapshot.
˙If the path is ending by a “\”, it is a directory path.
˙If the path is ending without a “\”, the path will link to a prefixed file name.
˙Time Label：Enable or disable Time Label function.
2.3 OSD
˙OSD Text: Text showing on top of the picture. Maximum byte: 32.
˙OSD Font size: Size of the font.
˙OSD Enabled: Enable or disable OSD.
2.4 REC
˙REC File: Set the path to save recorded picture.
★ If the path is ending by a it is a directory path“\”, .
★ If the path is ending without a “\”, the path will link to a prefixed file name.
˙REC Duration Time：Time duration of recording.
˙REC Time Label: Enable or disable REC Time Label.
˙REC File Time Label: Enable or disable REC File Time Label.
2.5 AUDIO SETTING
˙Audio Volume: Set audio volume.
˙LAN Card Audio Enable Enable or disable audio function on LAN Card .
˙PC Audio Enable Enable or disable audio function of PC : .
：
：

- 01 -
3. NetWorking
3.1 IP Address Configuration
˙There are two ways to set the IP address
˙Obtain IP address via DHCP: Obtain IP address via Dynamic Host
Configuration Protocol.
˙Use the following IP Address: Set the static IP address manually.
3.2 DNS configuration
˙Two DNS IP addresses are allowed within this model.
˙Primary DNS Server: Primary DNS IP address.
˙Secondary DNS Server: Secondary DNS IP address.
3.3 HTTP
˙Prefixed port: 80
˙If the port is to be changed, the IP address should be changed
accordingly. Ex: Original IP address is 192.168.1.126, prefixed
port is 80. If the port is changed to 1000, the IP address should
become: 192.168.1.126:1000.
：

- 11 -
4. PPPoE
4.1. PPPoE CONFIGURATION
Enable PPPoE：Enable or disable PPPoE.
˙User Name：Insert the user name from by ISP provider.
˙Password: Insert password from ISP provider.
˙MTU (128~1492): Maximum Transmission Unit, the largest packet
that can pass onwards in communication protocol, is calculated in
bytes of the size. MTU is usually for transmission.
If the MTU packets are too large, it will block up a slow interface for
some time, increasing the lag on other packets. Reducing the packet
size will help the smoothness of transmission. Prefixed size is 1492.
4.2 STATUS
˙By clicking “Refresh,” the IP status from ISP provider will be displayed.
˙
set in 1500 bytes

- 21 -
5. DDNS
Signing up at DynDNS, PeanutHull, or perfecteyes before setting
DDNS is required.
5.1 DYNAMIC DNS
˙Choose Server: Choose the DDNS server that provided by DynDNS,
PeanutHull, and perfecteyes.
˙DNS Account: Account number provided by DDNS server, ex. test.
dyndns.org.
˙User Name: Account user name.
˙Password: Account password.
˙Manual_Update: Update manually the IP address of current
LAN Card to indicated DDNS Server.
˙Status: Insert the response from the DDNS server.
˙Save: Save above mentioned setting.
˙Reset: Reset all settings.

- 31 -

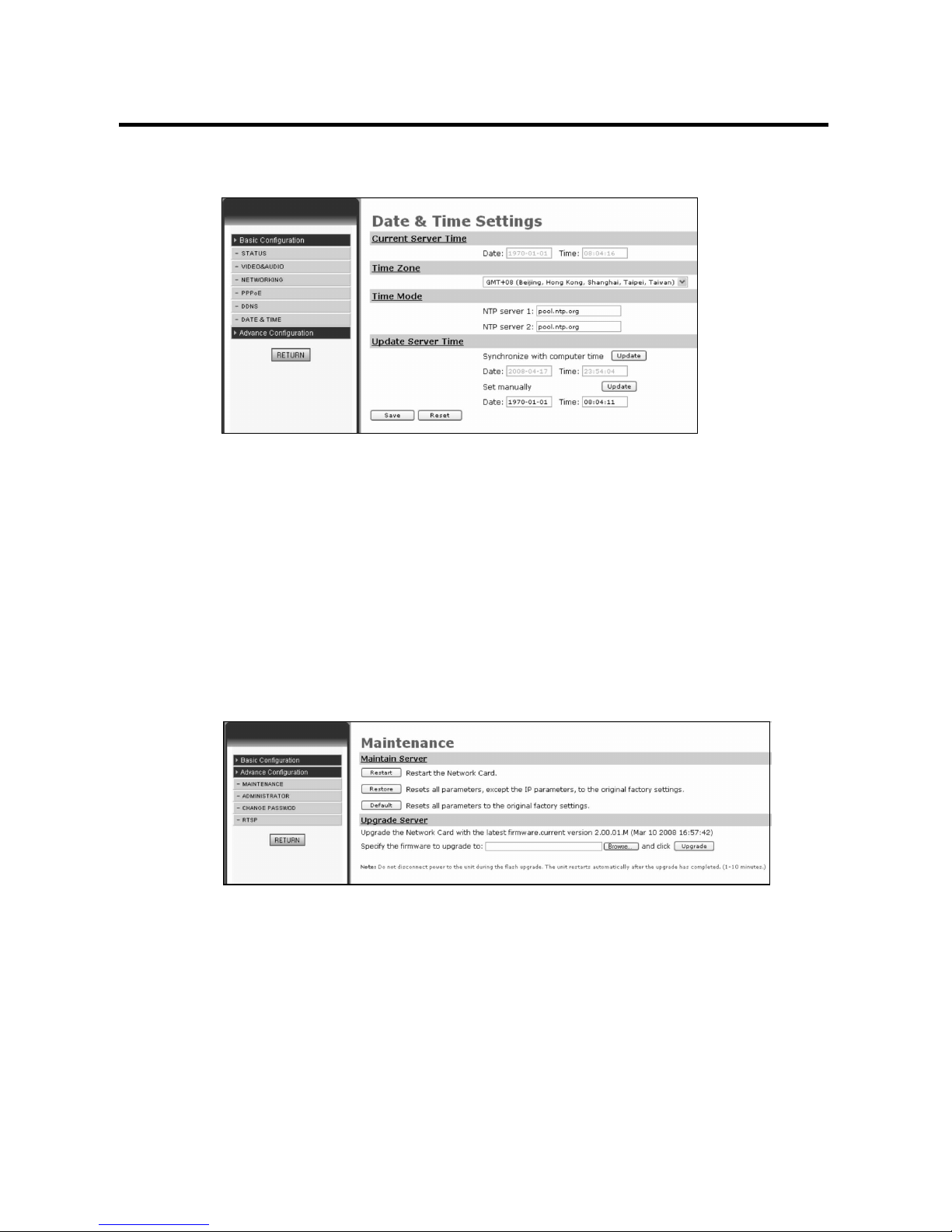

6. DATE & TIME
1.Current Server Time
Show current time at the LAN Card.
2. Time Zone
Choose the time zone where the system is at.
3. Time Mode
When network is functioning, the time can be set according to the server.
4. Update Time
Time update can be done in this section either automatically for the
LAN Card current time or manually for the new time.
■
1. MAINTENANCE
ADVANCE CONFIGURATION
1.1 MAINTAIN SERVER
˙Restart Restart the LAN Card.
˙Restore: Restore all settings except IP address.
˙Default: Restore all settings.
1.2 UPGRADE SERVER
˙Click “browse” and choose .IMG FIRMWARE FILE, Click “upgrade”
to upgrade the firmware. Once the process is completed, click
“Restore” to confirm the upgrading.
：

- 41 -
2. ADMINISTRATOR
In this section, the user can add, delete, enable/disable anonymous
user, and set the LAN Card name.
2.1 USER LIST
˙Add or remove users.
˙Add: Click to add new users.
˙Remove: Select a user name then click “remove” to remove the user.
2.2 ANONYMOUS USER SETTINGS
˙Yes: Users can view the picture without user name and password.
2.3 DVR NAME SETTING
˙DVR Name can be set with a name that is easier to remember.
The name will appear on IP address list when IPCameraSearcher
is scanning.

- 51 -

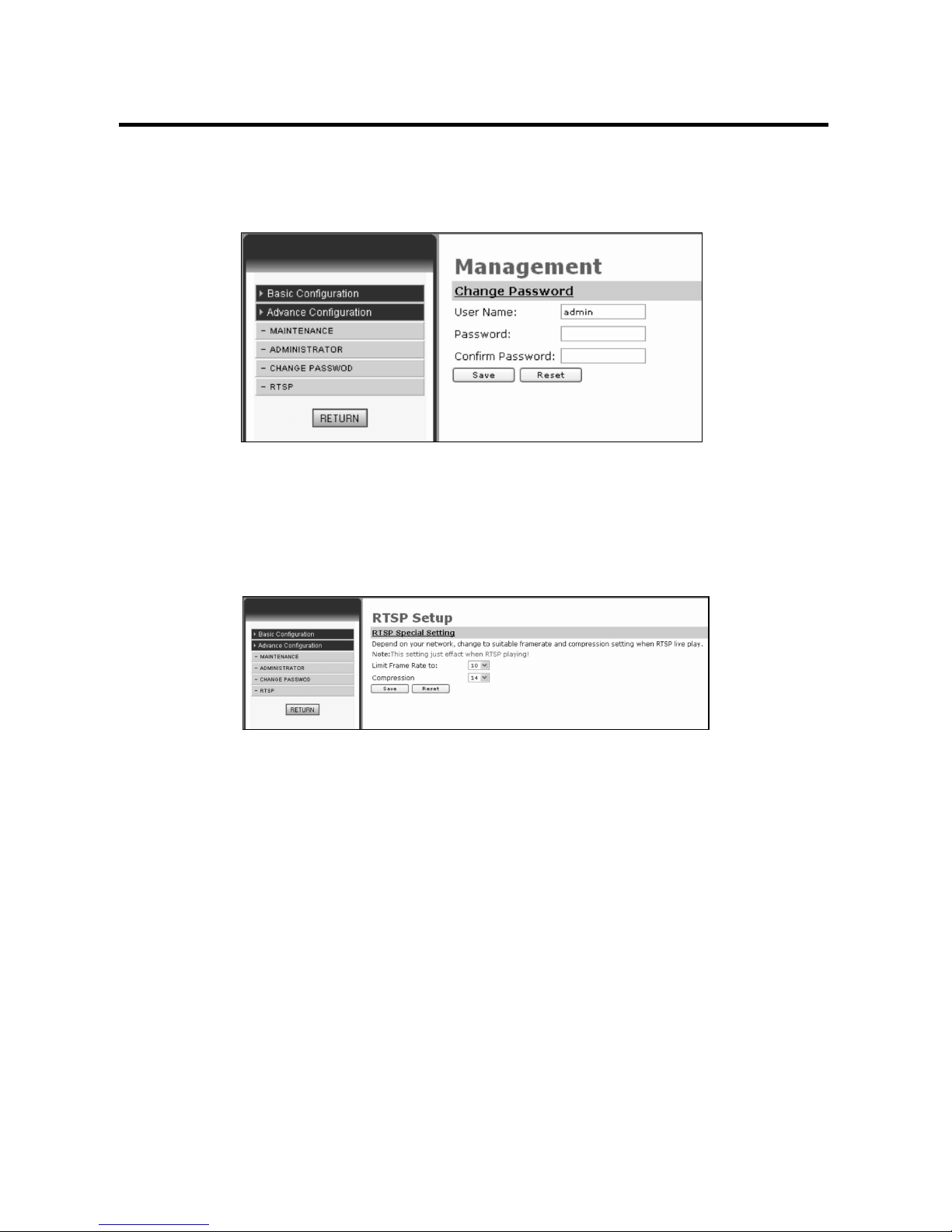

3 Management
3.1 Change Password
˙
˙Password: Insert new password.
˙Confirm Password: Insert again the password to confirm.
User Name: Insert user name.
4 RTSP Settings
1.RTSP Settings
˙Frame Rate the rate of P frame and I frame
The higher the number is, the fewer the quantity be transmitted,
and the picture is not accurate.
˙Compression ratio：The Compression of Video
：
★

- 61 -
III. USER GUIDE of AVPlayer
This software AVPlayer can play the recorded files with an *.av extension and
also can convert an *av file to an *.avi file
1.1 THE MAIN FUNCTION OF AVPlayer
˙Play the recorded file with an av extension
˙Supports the file conversion from *.av to *.avi.
*. .
1.2 SYSTEM REQUIREMENTS
Operating System
DirectX
CPU
Memory
Windows 2000(SP4)、Windows XP or later
DirectX 7.0 version or above
More than 1.5 Ghz clock
512MB above
1.3 SYSTEM INSTALLATION
Perform the intallation with the enclosed AVPlayer Disc and follow
the on-screen instructions to complete the installation process .
1.4 USER INTERFACE
Play Frame
File information
Open File Play Control
Snapshot
Volume Control

- 71 -

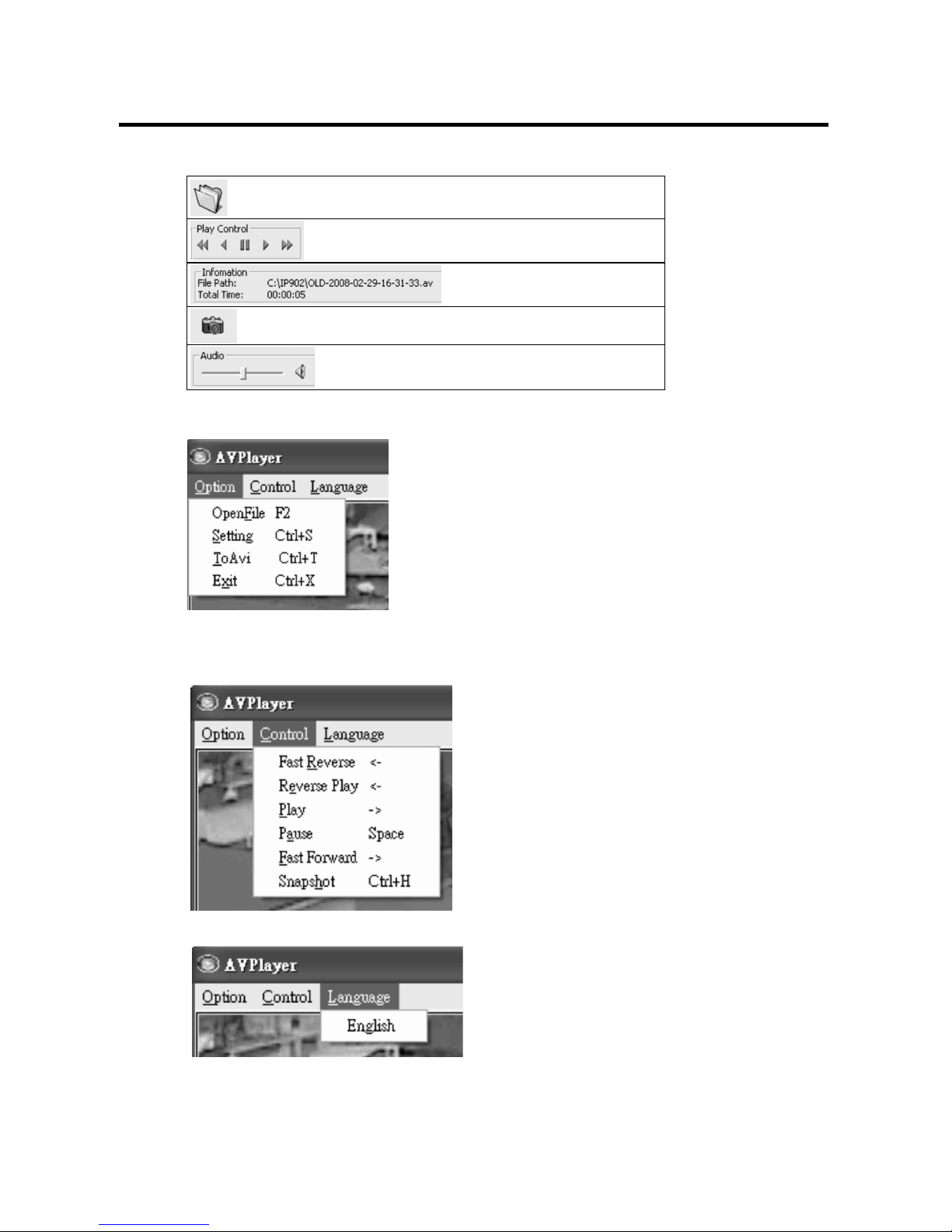

OpenFile：Open the *.av recorded file.
File information：Location of the File Path and
Total Time for the video length
Play Control：Fast Reverse Reverse Play
Pause Play Fast Forward
Fast Reverse/Forward: 2X、4X 8X 16X 32X
、 、
、 、
、 、 、
Snapshot：one click can capture one JPG image.
Volume Control: Adjust or mute the volume.
Setting：Specify the path to save the snapshot image.˙
˙OpenFile：Open the *.av recorded file.
˙
˙Reverse Play
˙Play
˙Pause
˙Fast Forward：2X、4X、8X、16X、32X
˙Snapshot：Click the “Snapshot” to capture
JPG images and one click for one image.
Fast Reverse：2X、4X、8X、16X、32X
Language：You can choose the language
