FUJIDENZO INR-82S Installation instructions

FUJIDENGDS)
User Instruction
No-Frost
Refrigerator Freezer
INR-82S
Content
1. Safety Information i Page 1~5
2. Overview ‘ Page 6
|
3. Installation [ Page 7~11
4. Daily Use ‘ Page 12~16

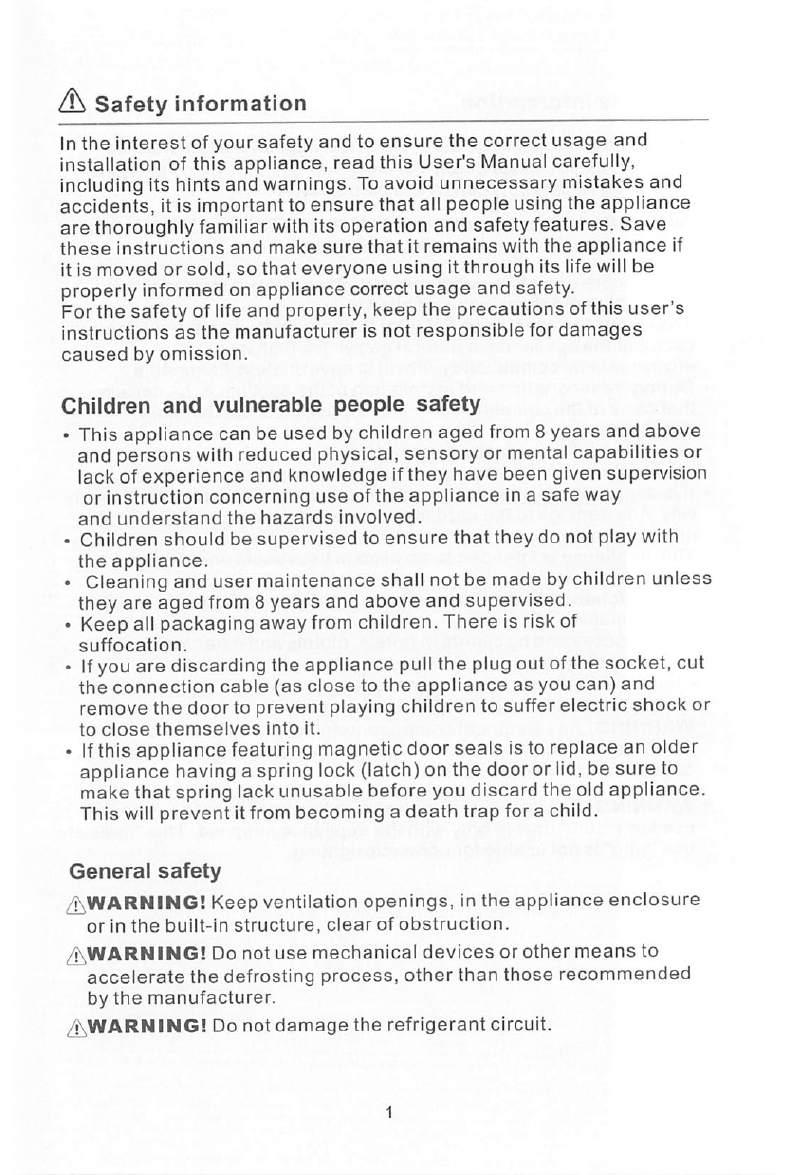

o Safety information
In the interest of your safety and to ensure the correct usage and
installation of this appliance, read this User's Manual carefully,
including its hints and warnings. To avoid unnecessary mistakes and
accidents, it is important to ensure that all people using the appliance
are thoroughly familiar with its operation and safety features. Save
these instructions and make sure that it remains with the appliance if
itis moved or sold, so that everyone using it through its life will be
properly informed on appliance correct usage and safety.
For
the
safety
of
life
and
property,
keep
the
precautions
of
this
user’s
instructions as the manufacturer is not responsible for damages
caused by omission.
Children and vulnerable people safety
This appliance can be used by children aged from 8 years and above
and
persons
with
reduced
physical,
sensory
or
mental
capabilities
or
lack
of
experience
and
knowledge
if
they
have
been
given
supervision
orinstruction concerning use of the appliance in a safe way
and understand the hazards involved.
Children should be supervised to ensure that they do not play with
the appliance.
Cleaning and user maintenance shall not be made by children unless
they are aged from 8 years and above and supervised.
Keep all packaging away from children. There is risk of
suffocation.
If
you
are
discarding
the
appliance
pull
the
plug
out
of
the
socket,
cut
the connection cable (as close to the appliance as you can) and
remove
the
door
to
prevent
playing
children
to
suffer
electric
shock
or
to close themselves into it.
If
this
appliance
featuring
magnetic
door
seals
is
to
replace
an
older
appliance having a spring lock (latch) on the door or lid, be sure to
make that spring lack unusable before you discard the old appliance.
This will prevent it from becoming a death trap for a child.
General safety
AWARNING!
Keep
ventilation
openings,
in
the
appliance
enclosure
orin the built-in structure, clear of obstruction.
/AWARNING!
Do
not
use
mechanical
devices
or
other
means
to
accelerate
the
defrosting
process,
other
than
those
recommended
by
the
manufacturer.
AWARNING! Do not damage the refrigerant circuit.

AN Safety information
/AWARNING!
Do
not
use
other
electrical
appliances
(such
as
ice
cream
makers)
inside
of
refrigerating
appliances,
unless
they
are
approved
for
this
purpose
by
the
manufacture.
AWARNING!
Do
not
touch
the
light
bulb
if it
has
been
ON
for
a
long
period
of
time
because
it
could
be
very
hot."
-
Do
not
store
explosive
substances
such
as
aerosol
cans
with
a
flammable
propellant
in
this
appliance.
«
Therefrigerantisobutane
(R600a)
is
contained
within
the
refrigerant
circuit
of
the
appliance,
a
natural
gas
with
a
high
level
of
environmental
compatibility,
which
is
nevertheless
flammable.
«
During
transportation
and
installation
of
the
appliance,
be
certain
that
none
of
the
components
of
the
refrigerant
circuit
become
damaged.
-avoid
open
flames
and
sources
of
ignition
-
thoroughly
ventilate
the
room
in
which
the
appliance
is
situated
«
Itis
dangerous
to
alter
the
specifications
or
modify
this
product
in
any
way.
Any
damage
to
the
cord
may
cause
a
short
circuit,
fire
and/or
electric
shock.
This
appliance
is
intended
to
be
used
in
household
and
similar
applications
such
as:
-
staff
kitchen
areas
in
shops,
offices
and
other
working
environments;
-
farm
houses
and
by
clients
in
hotels,
motels
and
other
residential
type
environments;
-
bed
and
breakfast
type
environments;
-
catering
and
similar
non-retail
applications.
WARNING!
Any
electrical
components(plug,
power
cord,
compressor
and
etc.)
must
be
replaced
by
a
certified
service
agent
or
qualified
service
personnel.
/\WARNING!
The
light
bulb
supplied
with
this
appliance
is
a
“special
use
lamp
bulb”
usable
only
with
the
appliance
supplied.
This
“special
use
lamp”
is
not
usable
for
domestic
lighting.”
1)1 thoro is a gt in the compartment.

A Safety information
Power cord must not be lengthened.
Make sure that the power plug is not squashed or damaged by the
back of the appliance. A squashed or damaged power plug may
overheat and cause a fire.
Make sure that you can come to the mains plug of the appliance.
Do not pull the mains cable.
If the power plug socket is loose, do not insert the power plug. There
is a risk of electric shock or fire.
You must not operate the appliance without the lamp.
This appliance is heavy. Care should be taken when moving it.
Do not remove nor touch items from the freezer compartment if you
hands are damp/wet, as this could cause skin abrasions or
frost/freezer burns.
Avoid prolonged exposure of the appliance to direct sunlight.
Daily use
Do not put hot item on the plastic parts in the appliance.
Do not place food products directly against the rear wall.
Frozen food must not be re-frozen once it has been thawed out.”
Store pre-packed frozen food in accordance with the frozen food
manufacture’s instructions.”
Appliance manufacture's storage recommendations should be
strictly adhered to. Refer to relevant instructions.
Do not place carbonated fizzy drinks in the freezer compartment as
it creates pressure on the container, which may cause it to explode,
resulting damage to the appliance.
Ice lollies can cause frost burns if consumed straight from the
appliance."”
Care and cleaning
« Before maintenance, switch off the appliance and disconnect the
mains plug from the mains socket.
« Do not clean the appliance with metal objects.
- Do not use sharp objects to remove frost from the appliance. Use a
plastic scraper.”
« Regularly examine the drain in the refrigerator for defrosted water. If
necessary, clean the drain. If the drain is blocked, water will collect in
the bottom of the appliance?
1) fnere is freozor compartment
2)1ftnere s afrosh-food Storags compartment

VN Safety information
Installation
Important! For electrical connection carefully follow the instructions
given in specific paragraphs.
= Unpack the appliance and check if there are damages on it. Do not
connect the appliance if itis damaged. Report possible damages
immediately to the place you bought it. In that case retain packing.
« Itis advisable to wait at least four hours before connecting the
appliance to allow the oil to flow back in the compressor.
+ Adequate air circulation should be around the appliance, lacking this
leads to overheating. To achieve sufficient ventilation follow the
instructions relevant to installation.
« Wherever possible, the spacers of the product should be against a
wall to avoid touching or catching warm parts (compressor, con-
denser) to prevent possible burn.
- The appliance must not be located close to radiators or cookers.
« Make sure that the mains plug is accessible after the installation of
the appliance.
Service
« Any electrical work required to do the servicing of the appliance
should be carried out by a qualified electrician or competent person.
« This product must be serviced by an authorized Service Center, and
only genuine spare parts must be used.
Energy saving
= Don’t put hot food in the appliance;
+ Don't pack food close together as this prevents air circulating;
» Make sure food don’t touch the back of the compartment(s);
« If electricity goes off, don’t open the door(s);
« Don’topen the door(s) frequently;
» Don'tkeep the door(s) open fortoo long;
« Don't set the thermostat on exceeding cold temperatures;
- Some accessories, such as drawers, can be removed to get larger
storage volume and lower energy consumption.

AN Safety information
Environment Protection
& This appliance does not contain gasses which could damage the
ozone layer, in either its refrigerant circuit or insulation materials. The
appliance shall not be discarded together with the urban refuse and
rubbish. The insulation foam contains flammable gases: the appliance
shall be disposed according to the appliance regulations to obtain from
your local authorities. Avoid damaging the cooling unit, especially the
heat exchanger. The materials used on this appliance marked by the
symbol & are recyclable.
The symbol on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it
=== should be taken to the appropriate collection point for the
recycling of electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this
product. For more detailed information about recycling of this product,
please contact your local council, your household waste disposal
service or the shop where you purchased the product.
Packaging materials
The materials with the symbol are recyclable. Dispose the packaging in
a suitable collection containers to recycle it.
Disposal of the appliance
1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

Overview
Shelf
{—— Balconies
Temperature
control knob
Chiller box —
Temperature
control knob
=
Shelves—|
I Balconies
Crisper
"
Leveling Feet
Note: Above pictureis for reference only. Tho actual appliance maybe slightlydiferent.
6

Installation

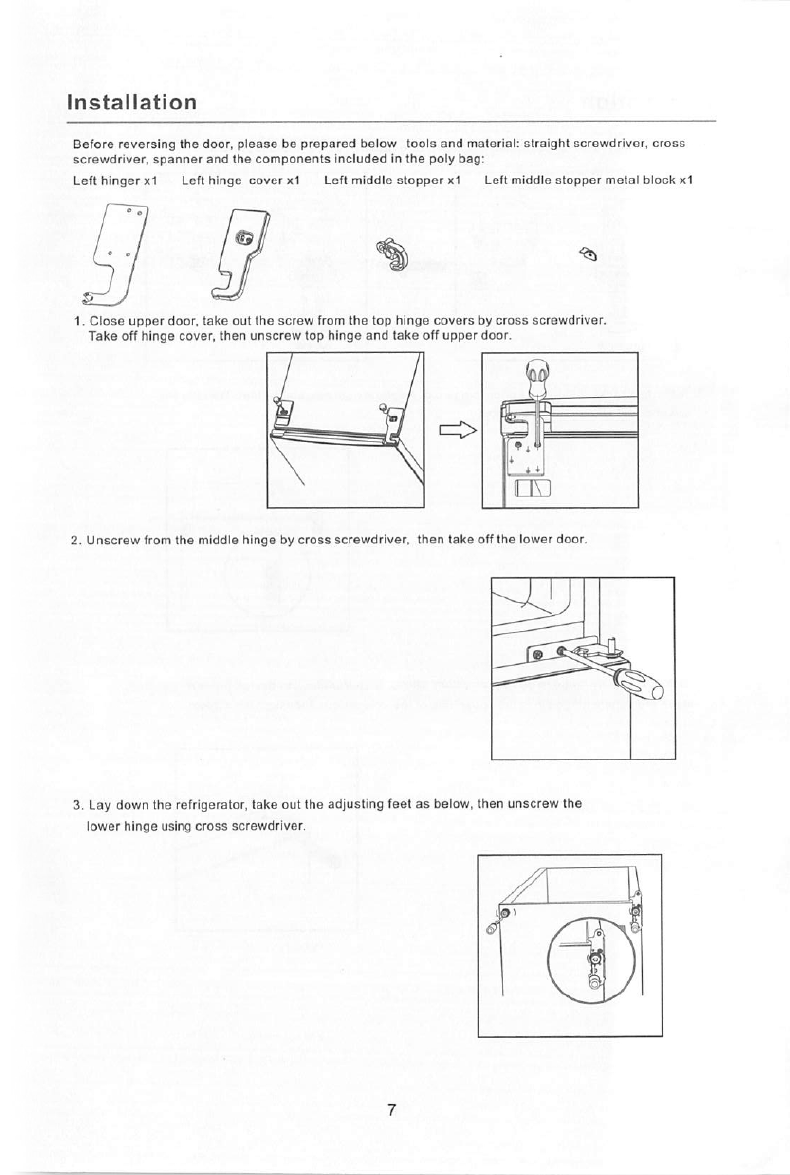

Before reversing the door, please be prepared below lools and material: straight screwdriver, cross
screwdriver, spanner and the components included in the poly bag:
Lefthinger x1 Lefthinge coverx1 Left middle stopper x1 Leit middle stopper metal block x1
1. Close upper door, take out the screw from the top hinge covers by cross scrawdriver.
Take off hinge cover, then unscrew top hinge and take off upper door.
2. Unscrew from the middle hinge by cross screwdriver, then take off the lower door.
&
3. Lay down the refrigerator, take out the adjusting feet as below, then unscrew the
lower hinge using cross screwdriver.

Installation

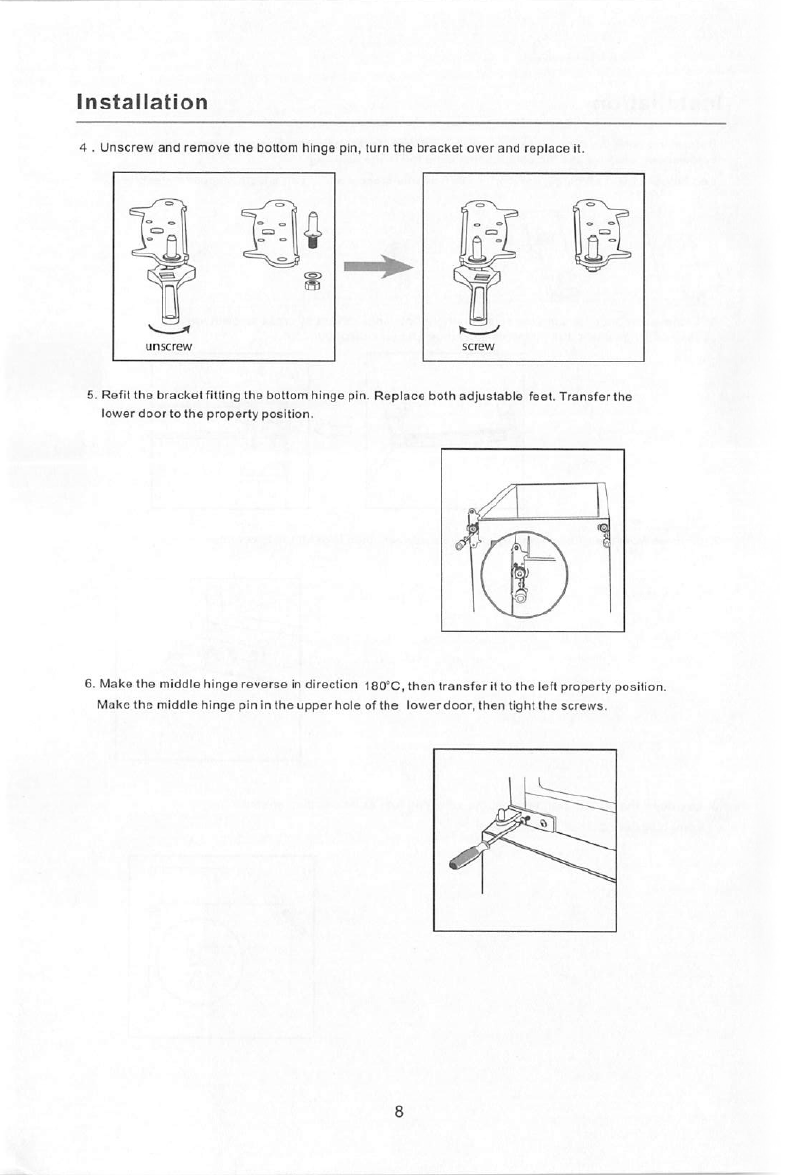

4 . Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.
5. Refit the bracket ftting the bottom hinge pin. Replace both adjustable feet. Transfer the
lower door to the property position.
6. Make the middle hinge reverse in direction 180°C, then transfer it to the left property position.
Make the middle hinge pin in the upper hole of the lower door, then tight the screws.

Installation
7. Unsorew right middle stopper with metal block from bottom of upper door. And then install left middle
stopper and metal block in left side of bottom of upper door.
8 Install the upper door, fix the upper door hinge onto the cabine:
9. Take left hinge cover from accessory bag and install it with top hinge. Then install hole
cover at right side.
N

Installation
Space Requirement
- Select alocation without direct exposure to sunlight;
- Select a location with enough space for the refrigerator doors to open
easily;
« Select a location with level (or nearly level) flooring;
- Allow sufficient space to install the refrigerator on a flat surface;
« Allow clearance to the right, left, back and top when installing. This
will help reduce power consumption and keep your energy bills lower.
¥
|
|
Atleast
50mm
’-M
least
50mm
= ]
980mm
910mm
Levelling the unit
To do this adjust the two levelling feet at front of the unit
If the unitis not level, the doors and magnetic seal
alignments will not be covered properly.
10

Installation
Positioning
Install this appliance ata location where the ambient temperature corresponds to the climate class
indicated on the rating plate of the appliance:
Climate class Ambient temperature
SN +10°C 0 +32°C
TS +16'Clo+32°C
ST +16°C 10 +38°C
T +16°Cto +43°C
Location
The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight
etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the
appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabi-
netand the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned
below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of
the cabinet.
&W:minnl It must be possible to disconnect the appliance from the mains power supply; the plug must
therefore be easily accessible after installation.
Electrical connection
Before plugging in, ensure that the vollage and frequency shown on the rating plate correspond to your
domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a
contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a
separate earth in compliance with current regulations, consulting a qualified electrician.
The manufacturer declines all responsibility if the above safety precautions are not observed.
This appliance complies with the E.E.C. Directives.

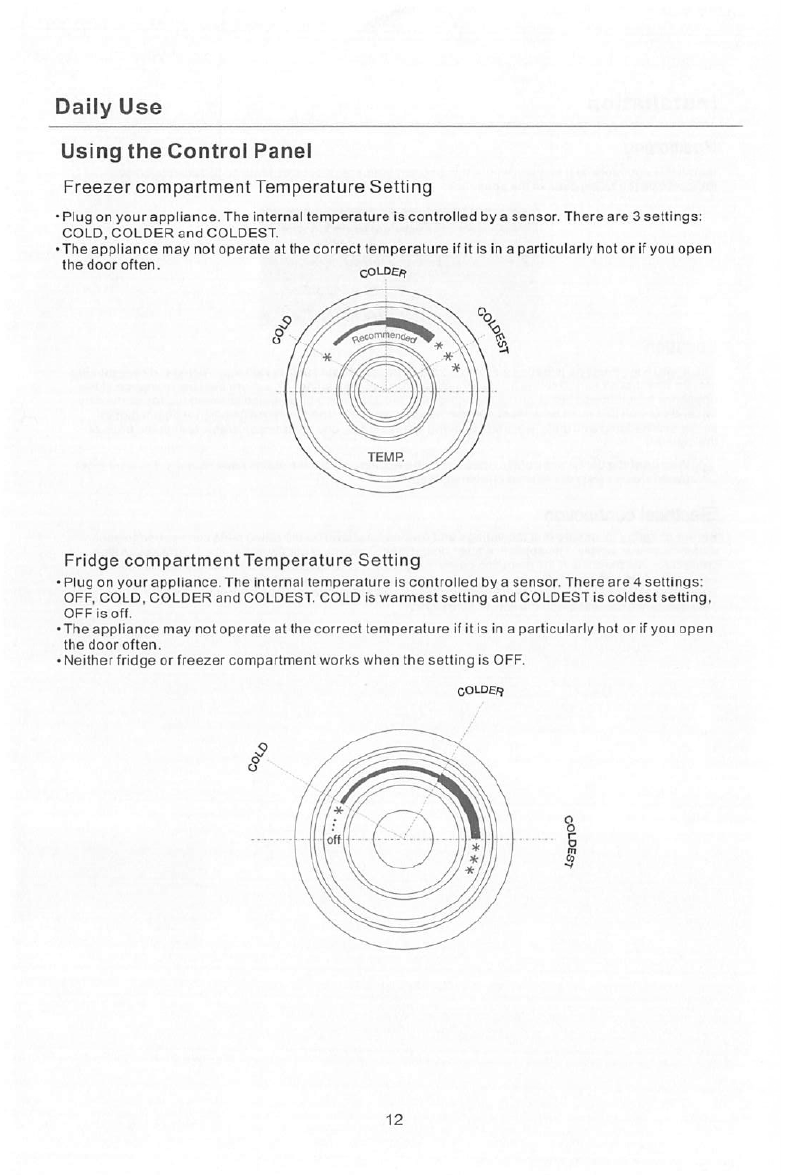

Daily Use
Using the Control Panel
Freezer compartment Temperature Setting
+Plug on your appliance. The internal temperature is controlled by a sensor. There are 3 settings:
COLD, COLDER and COLDEST.
+The appliance may not operate at the correct temperature if itis in a particularly hot or if you open
the door often.
cOLDER.
Fridge compartment Temperature Setting
+Plug on your appliance. The internal temperature is controlled by a sensor. There are 4 settings:
OFF, COLD, COLDER and COLDEST. COLD is warmest setting and COLDEST is coldest setting,
OFF s of.
*The appliance may not operate at the correct temperalure if itis in a particularly hot or if you open
the door often.
+Neither fridge or freezer compartment works when the setting is OFF.
GOLDER
4s3010°
12

Daily Use
First use
Cleaning the interior
Before using the appliance for the first time, wash the interior and all internal acoessories with lukewarm
water and some neutral soap 50 as o remove the typical smell of a brand new product, then dry thoroughly.
Important! Do not use detergents or abrasive powders, as these will damage the finish,
Daily use
Freezing fresh food
« The freezer compartment s suitable for freezing fresh food and storing frozen and deep-frozen food for
along time.
Place the fresh food to be frozen in the bottom compartment.
The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
The freezing process lasts 24 hours: during this period do not add other food to be frozen.
Storing frozen food
‘When first starting-up o after a period out of use, before putting the product in the compariment let the
‘appliance run al least 2 hours on the higher seftings
Important! In the event of accidental defrosting, for example the power has been off for longer than the
value shown in the technical characteristics chart under “rising time”, the defrosted food must be
consumed quickly or cooked immediately and then re-frozen (after cooked).
Thawing
Deep-frozen or frozen food, prior (o be used, can be thawed in the fridge compartment or at room
temperature, depending on the time availabi for this operation
Small pieces may even be cooked stillfrozen, directly from the freezer. In this case, cooking will take
longer.
Accessories
Movable shelves
The walls of the refrigerator are equipped with a series of runners so
that the shelves can be positioned as desired.
Positioning the door balconies
To permit storage of food packages of various sizes, the door
balconies can be placed at different heights. To make these
adjustments proceed as follows: gradually pull the balcony in the
direction of the arrows until it comes free, then reposition as required.
13

Daily Use
Helpful hints and tips
Hints for freezing
To help you make the most of the freezing process, here are some important
« the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
+ the freezing process takes 24 hours. No further food to be frozen should be added during this period;
« onlyfreeze top quality, fresh and thoroughly cleaned, foodstuffs:
« prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible
subsequently to thaw only the quantity required;
« wrap up the food in aluminium foil or polythene and make sure that the packages are airtigh
+ donotallow fresh, unfrozen foad to touch food which is already frozen, thus avoiding arise in
temperature of the latter;
« lean foods store better and longer than fatly ones; salt reduces the storage life of food;
water ices, if consumed immediately after removal from the freezer compartment, can possibly cause
the skin to be freeze burnt;
itis advisable to show the freezing in date on each individual pack to enable you to keep tab of the
storage time.
Hints for storage of frozen food
To obtain the best performance from this appliance, you should
make sure that the commercially frozen foodstuffs were adequately stared by the retailar;
be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible
time;
notopen the door frequently or leave it open longer than absolutely necessary.
Once defrosted, food deteriorates rapidly and cannot be refrozen.
Do not exceed the storage period indicated by the food manufacture.
Hints for fresh food refrigeration
To obtain the best performance:
- Donot store warm food or evaporating liquids in the refrigerator
+ Do cover or wrap the food, particularly if ithas a strong flavour
Hints for refrigeration
Useful hints:
- Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
For safety, store in this way only one or two days at the most.
Cooked foods, cold dishes, etc...; these should be covered and may be placed on any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided
Bulter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or
polythene bags to exclude as much air as possible
Milk bottle: these should have a cap and should be stored in the balconies on the door.
Bananas, potatoes, onions and garlic. if not packed, must not be kept in the fridge.
14

Daily Use
Cleaning
For
hygienic
reasons
the
appliance
interior,
including
interior
accessories,
should
be
cleaned
regularly.
/A\
Gaution!
The
appliance
must
not
be
connected
to
the
mains
during
cleaning.
Danger
of
sloctrical
shock!
Before
cleaning
switch
the
appliance
off
and
remove
the
plug
from
the
mains,
or
switch
off or
tum
out
the circuit
breaker
or
fuse.
Never
clean
the
appliance
with
a
steam
cleaner.
Moisture
could
accumulate
in
electrical
components,
danger
of
electrical
shock!
Hot
vapors
canlead
to
the
damage
of
plastic
parts.
The
appliance
must
be
dry
before
itis
placed
back
into
service.
Important!
-
Ethereal
oils
and
organic
solvents
can
attack
plastic
parts,
e.g.
lemon
juice
or
the
juice
form
orange
peel,
bulyric
acid,
cleanser
that
contain
acetic
acid
Do
not
allow
such
substances
to
come
into
contact
the
appliance
parts.
Do
not
use
any
abrasive cleaners
Remove
the
food
from
the
freezer.
Store
them
in
a
cool
place,
well
covered.
Switch
the
appliance
off
and
remove
the
plug
from
the
mains,
or
switch
off
or
turn
out the
circuit
breaker
of
fuse
Clean
the
appliance
and
the
interior
accessories
with
a
cloth
and
lukewarm
water.
After
cleaning
wipe
with
fresh
water
and
rub
dry.
After
everything
is
dry
place
appliance
back
into
service.
Setting the humidity in the Crisper:
+Low humidity: move the regulator (o the left
+Hight humidity: move the regulator to the right
Fruits
Vegetables

Daily Use
Troubleshooting
A\
Sautiont
Bsfore
traubloshooting,
disconnect
the
power
supply.
Only
a
qualified
electrician
OF
competent
person
must
do the
troubleshooting
that
is
not
in
this
manual.
Important!
There
wil
bo
some
sound/noise
during
normal
operation
(compressor
or
rofrigerant
circulation).
Problem
Appliance doesnot
work
Possible cause
Mains plug is not plugged in
oris loose
Solution
Insert mains plug.
Fuse has blown or is defective
Check fuse, replace if necessary.
Socket is defective
Mains malfunctions are to be
corrected by an electrician.
Appliance freozes or
cools too much
Temperature is set to COIDEST
setiing
Turn the temperature regulator to a
warmer setting temporarily.
The food is not frozen
enough.
Temperature is not properly
adjusted.
Please ook in the initial Temperature
Setting saction.
Door was open for an extended
period.
Qpen the door only as long as
necessary.
Alarge quantity of warm food
was placed in the appliance
within the last 24 hours.
Turn the temperature regulation to
a colder setting temporarily.
The appliance is near a heat
source.
Please look in the installation
location section.
Heavy build up of
frost on the door
seal
Door seal is not air tight.
Carefully warm the leaking sections of
the door seal with a hair dryer (on a cool
setting). At the same time shape the
warmed door seal by hand such that it
sits correctly.
Unusual noises
Appliance is notlevel.
Re-adjust the feet.
The appliance is touching the
wall or other objects.
Move the appliance slightly.
Acomponent, e.g. a pipe, on
the rear of the appliance is
touching another part of the
appliance or the wall.
If necessary, carefully bend the
component out of the way.
Ifthe malfunction shows again, contact the Service Center.

CKFUZ-G01-A
