Fujidenzo 菲律宾 ISR-24SS
(CE-BCD640WE-JT)说明书
16131000A37456

Instruction Manual
REFRIGERATOR
Model: ISR-24SS

1 Safety warnings
1.1 1-2Warning
Warnings for energy
··········
1.2 Meanings of safety warning symbols· · · · · · · · · · · · · · · · · · · · · · · · · · 3
1.3 Electricity related warnings······························3
1.4 Warnings for using·······························4
1.5 Warnings for placement · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4-5
1.6 · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 5
1.7 Warnings for disposal· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 5
2.1 Placement· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 6
2.2 Levelling feet· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 7
2.3 Levelling door(Optional) ···································7
2.4 Changing the Light· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 8
2.5 Starting· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 8
2.6 Energy saving tips···································8

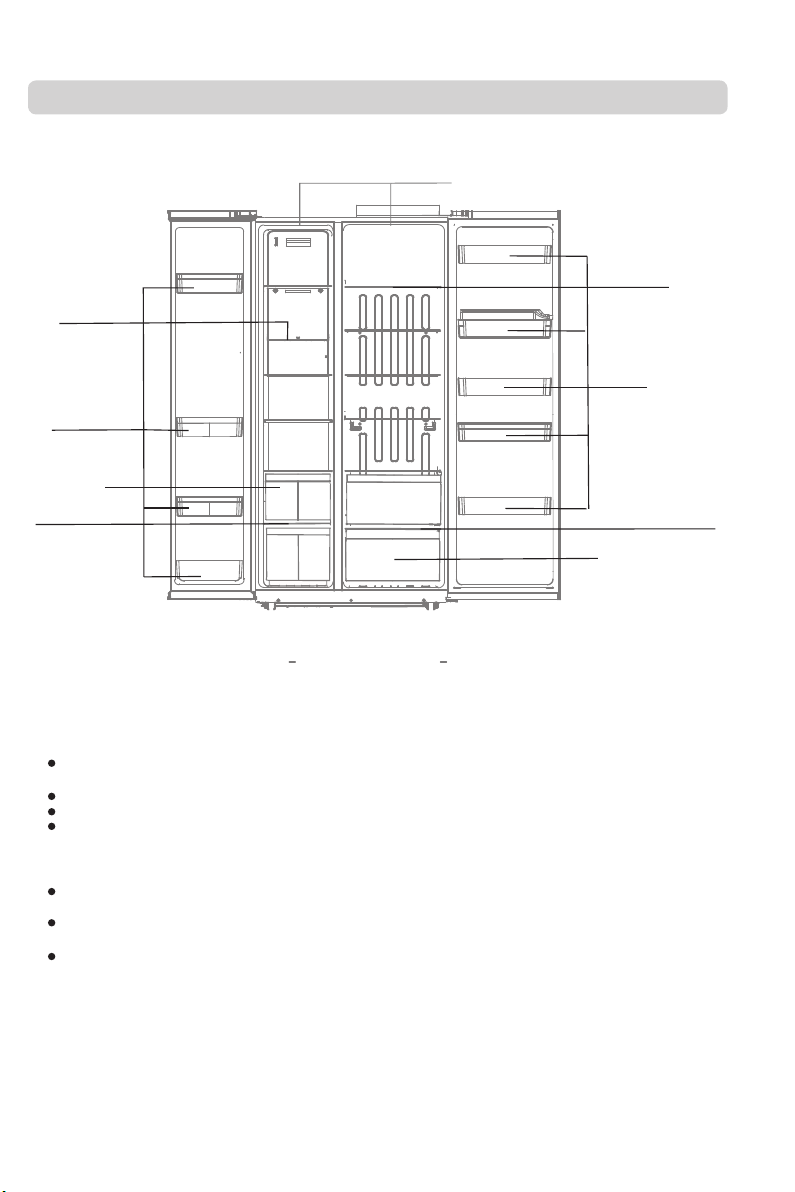

3.1 Key components· · · · · · · · · · · · · · · · · · · · · · · · · · · · · 9
3.2 Functions···································10-11
4.1 Overall cleaning·······························12
4.2 · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 13
4.3 Defrosting· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 13
4.4 Out of operation· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 13
· · · · · · · · · · · · · · · · · · · · · · · · · ·
Cleaning of door tray
2 Proper use of the refrigerator
3 Structure and functions
4 Maintenance and care of the refrigerator
5 Trouble shooting··································14
CONTENTS

dispose regulations as it uses
two-prong
accessories

2
TO avoid contamination of food, store your food using the following guidelines:
– Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
– Regularly clean surfaces that can come in contact with food and accessible drainage systems.
– Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been
drawn for 5 days. （note 1）
– Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
– Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and
making ice cubes. （note 2）
– One -,two -and three-star compartments are not suitable for the freezing of fresh food. （note 3）
– If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent
mould developing within the appliance.
Note 1,2,3：Please confirm whether it is applicable according to your product compartment type.

1 2. Meaning of safety warning symbols
Prohibition symbol
Warning symbol
Note symbol
1 3 Electricity related war nings.
3
This is a prohibition symbol.
Non-compliance with the instructions marked with this
symbol may result in damage to the product or endanger the
personal safety of the user.
This is a warning symbol.
It is required to op erate in str i ct observance of
instructions marked with this symbol; or otherwise
damage to the product or personal injury may be caused.
This is a cautioning symbol.
Instructions marked with this symbol require special
caution. Insufficient caution may result in slight or
moderate injury, or damage to the product.
This manual contains important safety information which shall
be observed by the users.
When cutting off the the power of the refrigerator, do not pull the power plug
by the cord. Please firmly grasp the plug and pull it out directly from the
socket.
To ensure safe use, do not damage the power cord or use the power
cord when it is damaged or worn.
A dedicated power outlet must be used for this appliance. Its power outlet
should not be shared with other appliances. The power plug should be firmly
plugged in with the socket as loose sockets can cause friction that may
eventually lead to fire.
Please ensure that the grounding electrode of the power socket is
equipped with a reliable grounding line.
Please turn off the valve of the leaking gas and then open the doors
and windows in case of leakage of gas and other flammable gases. Do not
unplug the refrigerator and other electrical appliances , the spark coming
from unplugging them may become a source of ignition.
Do not use electrical appliances on the top of the appliance, unless
they are of the type recommended by the manufacturer.

1.5 War nings for placement
1 4 War nings for using.
4
Do not randomly disassemble or reconstruct the refrigerator, nor
damage the refrigerant circuit; maintenance of the appliance must be
conducted by authorized technician.
Damaged power cord must be replaced by the manufacturer, its
maintenance department or related professionals in order to avoid
danger.
The gaps between refrigerator doors and between doors and
refrigerator body are small, be noted not to put your hand in these
areas to prevent from squeezing the finger. Please be gentle when
closing the refrigerator door to avoid falling of loads placed on the door.
Do not pick foods or containers with wet hands in the freezing
chamber when the refrigerator is running, especially metal
containers in order to avoid frostbite.
Do not allow children to get into or climb the refrigerator; otherwise
suffocation or falling injury of the child may be caused.
Do not place heavy objects on the top of the refrigerator considering that
objects may fall when closing or opening the door, and accidental injuries
might be caused.
Please pull out the plug in case of power failure or cleaning. Do not
connect the refrigerator to power supply within five minutes to
prevent damages to the compressor due to successive starts.
Do not put flammable, explosive, volatile and highly corrosive items
in the refrigerator to prevent damages to the product or fire
accidents.
Do not place flammable items near the refrigerator to avoid fires.
The refrigerator is intended for household use, such as storage of
foods; it shall not be used for other purposes, such as storage of
blood, drugs or biological products, etc.

1.6 War nings for ener gy
Freezing chamber
1.7 War nings for disposal
5
Do not store beer, beverage or other fluid contained in bottles or
enclosed containers in the freezing chamber of the refrigerator; or
otherwise the bottles or enclosed containers may crack due to freezing
which may cause damages.
Warning for energy
1)Refrigerating appliances might not operate consistently (possibility of defrosting of contents or
temperature becoming too warm in the frozen food compartment) when sited for an extended period
of time below the cold end of the range of temperatures for which the refrigerating appliance is
designed.
2)The fact that carbonated drinks should not be stored in freezer compartments or cabinets or
in low-temperature compartments or cabinets, and that some products such as water ices should not
be consumed too cold;
3)The need to not exceed the storage time(s) recommended by the food manufacturers for any kind
of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage
compartments or cabinets;
4)The precautions necessary to prevent an undue rise in the temperature of the frozen food while
defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of
newspaper.
5)The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or
cleaning could shorten the storage life.
6)The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of
children and not in the vicinity of the refrigerating appliance, in order to prevent children from being
locked inside.
Refrigerant and cyclopentane foaming material used for the refrigerator are
flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from
any fire source and be recovered by a special recovering company with
corresponding qualification other than be disposed by combustion, so as to prevent
damage to the environment or any other harm.
When the refrigerator is scrapped, disassemble the doors, and remove gasket of
door and shelves; put the doors and shelves in a proper place, so as to prevent
trapping of any child.
Correct Disposal of this product：
This marking indicates that this product should not be disposed with other
household wastes. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to promote the sustainable
reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased. They
can take this product for environmental safe recycling.

2 1 Placement.
2 Proper use of refrigerator
6
Before use, remove all packing materials, including bottom cushions,
foam pads and tapes inside of the refrigerator; tear off the protective
film on the doors and the refrigerator body.
Keep away from heat and avoid direct sunlight. Do not place the
freezer in moist or watery places to prevent rust or reduction of
insulating effect.
Do not spray or wash the refrigerator; do not put the refrigerator in
moist places easy to be splashed with water so as not to affect the
electrical insulation properties of the refrigerator.
The refrigerator is placed in a well-ventilated indoor place; the
ground shall be flat, and sturdy (rotate left or right to adjust the wheel
for levelling if unstable).
The top space of the refrigerator shall be greater than 30cm, and the
refrigerator should be placed against a wall with a free distance more
than 10cm to facilitate heat dissipation.
Precautions before installation:
Before installation or adjusting of accessories, it shall be ensured that the refrigerator is
disconnected from power.
Precautions shall be taken to prevent fall of the handle from causing any personal injury.
10cm
30cm
10cm

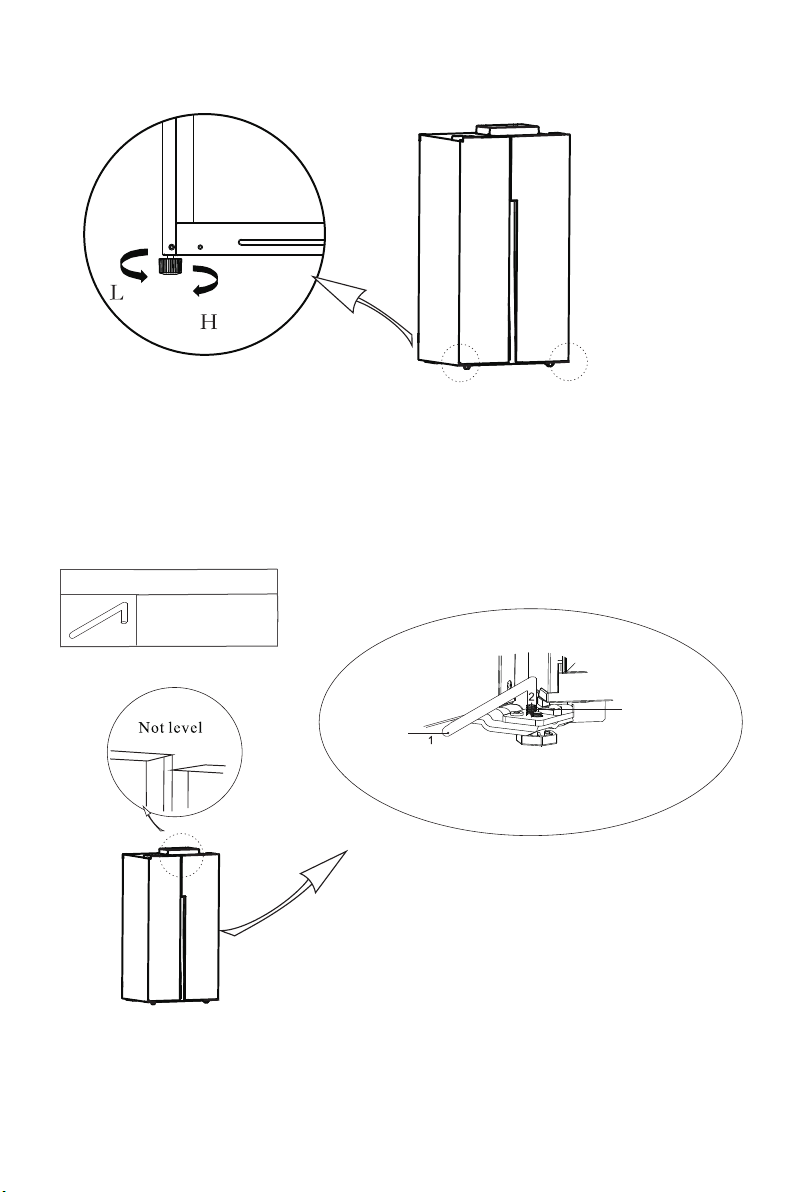

2.2 Level ing feetl
Adjusting procedures:
a. Turn the feet clockwise to the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.
raise
2.3 Levelling door
(Optional)
(The picture above is only for reference.The actual configuration will depend on the physical product
or statement by the distributor)
7
(The picture above is only for reference.The actual configuration will depend on the physical product
or statement by the distributor)
1) Raise the lower door up to the level of the higher door.
2) Adjust the height of the door with an inner hexagon wrench, rotate the adjustment screws
clockwise or counterclockwise to achieve the purpose of the door rising or falling.
inner hexagon wrench
List of tools to be provided by the user
inner hexagon
wrench
inner hexagon
nut

905mm
663mm
1091mm
1542mm
135°
135°
2 4 the Light. Changing
2.6 Energy saving tips
2 5. Starting
The appliance should be located in the coolest area of the room, away from heat producing
appliances or heating ducts, and out of the direct sunlight.
Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance
forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance.This
cuts down on frost build-up inside the appliance.
Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners
interfere with cold air circulation, making the appliance less efficient.
Organize and label food to reduce door openings and extended searches. Remove as many items
as needed at one time, and close the door as soon as possible.
Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its
service agent or similar qualified person.
Before putting any fresh or frozen foods, the refrigerator shall have run for
2-3 hours, or for above 4 hours in summer when the ambient temperature
is high.
Spare enough space for convenient opening of the doors and drawers The
picture is only for reference. The actual configuration will depend on the physical
product or statement from the distributor.
Before initial start, keep the refrigerator still for two hours before connecting it to
power supply.
8

3.1 Key components
3 Structure and functions
9
(The picture above is only for reference.The actual configuration will depend on the physical
product or statement by the distributor)
Refrigerating chamber
Freezing chamber
T he low temperature freezing chamber may keep food fresh for a long time and it is mainly used to
store frozen foods and making ice.
The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be
consumed in short term.
Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted that
food shall be consumed within the shelf time.
The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and
other food consumed in the short term.
Cooked foods shall not be put in the refrigerating chamber until cooled to a room temperature. Foods are
recommended to be sealed up before putting into the refrigerator.
The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy
use.
LED Light
Fruits and
vegetables
box
Glass shelf
Draws partition
board
Freezing
chamber
door tray
Glass shelf
Drawer
Refrigerating
chamber
door tray
Drawer partition
board

10
3.2 Functions
(The picture above is only for reference.The actual configuration will depend on the physical product
or statement by the distributor)
2. Button:
A. Refrigerator Temperature Adjustment Button D. Vacation Mode Button
B. Freezer Temperature Adjustment Button E. Lock / Unlock Button
C. Super Cool / Super Freeze Adjustment Button
1. Display screen:
1. Ref icon 5. Freezer icon
2. OFF icon 6. Lock/Unlock icon
3. Temperature display area 7. Vacation Mode icon
4. Super Cool icon 8. Super Freezing icon
3.
icon
icon
Operation
Lock /unlock
In the unlocked state, long press the lock button for 3 seconds, to enter the locked state.
The lights up, it means the display panel is locked, at this time, button operation cannot
be implemented;
In the locked state, long press the lock button for 3 seconds, to enter the unlocked state.
The goes out , it means the display panel is unlocked, at this time, button operation can be
implemented; The refrigerator automatically enters the lock state after 30 seconds without pressing any button.
1)
2) mode
Press the button to enter the vacation mode. Icon lights up, the vacation mode will
start after locking.
3) mode
Press the button to enter the mode. Icon lights up, the mode
will start after locking.
4) mode
Press the button to enter the mode. Icon lights up, the
mode will start after locking.
Vacation
Super cooling
Super cool Super cool
Super freezing
Super freeze Super freeze
A
B
C
D
E
①
③
②
④
⑤
⑥
⑦
⑧

11
5）Temperature setting of refrigerating chamber
, refrigerator chamber display
Press refrigerator temperature adjustment button
will make flashing indication. Then press the button again to set the temperature,
and you will hear one beep. Setting scope is between 2°C and8°C. Every time you press the button, the
temperature will change 1°C. After adjusting, the digital display will keep flashing for 5 seconds. New
temperature will take effect after locking.
6）
Press freezer temperature adjustment button , freezer chamber display will make
flashing indication. Then press the button again to set the temperature, and you will hear one
beep. Setting scope is between -16°C and -24°C. Every time you press the button, the temperature will change
1°C. After adjusting, the digital display will keep flashing for 5 seconds. New temperature setting will take effect
after locking.
Temperature setting of freezing chamber
Fault Code
E1
E2
E5
Fault Description
E7
E6 Communication error
Ambient temperature sensor error
Freezer defrost sensor error
Refrigerator Temperature
sensor error
Freezer Temperature
sensor error
7） Storage upon power failure
In case of power failure, the instant working state will be locked and maintained till re-electrification.
8）Opening warning and alarm control
When the refrigerator doors get open, the opening tone will play. If the door is not
closed in two minutes, the buzzer will sound once every second till the door is closed. Press any button
to stop the buzzer alarm.
9） Fault indication
The following warnings appearing on the display indicate corresponding faults of the refrigerator. Though
the refrigerator may still have cold storage function with the following faults, the user shall contact
a maintenance specialist for maintenance, so as to ensure optimized operation of the appliance.

4. Maintenance and care of the refrigerator
12
4.2 Cleaning of door tray
(The picture above is only for reference.The actual configuration will depend on the physical product
or statement by the distributor)
Cleaning steps：
a in order to conveniently take off tray, punch the bottom of right part of tray for several times and
punch again the bottom of left part of tray for several times, as shown in the figure;
b、tray can be smoothly taken off after it has been loosened;
、
4.1 Overall cleaning
Please unplug the refrigerator for defrost and cleaning.
Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and
energy saving.
Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth
dampened with soapy water or diluted detergent.
The interior of the refrigerator should be cleaned regularly to avoid odor.
Please turn off the power before cleaning interior, remove all foods, drinks ,shelves, drawers, etc.
Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and
a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry
naturally before turning on the power.
For areas that are difficult to clean in the refrigerator (such as narrow, gaps or corners), it is recommended
to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary
tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.
Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of
the refrigerator or contaminate food.
Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted
detergent. Dry with a soft cloth or dry naturally.
Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and
then wipe dry.
Do not use hard brushes, clean steel balls, wire brushes, abrasives
(such as toothpastes), organic solvents (such as alcohol, acetone,
banana oil, etc.), boiling water, acid or alkaline items, which may
damage the fridge surface and interior. Boiling water and organic
solvents such as benzene may deform or damage plastic parts.
Do not rinse directly with water or other liquids during cleaning to
avoid short circuits or affect electrical insulation after immersion.
det er gen t

4 Defrosting.3
The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function.
Frost formed due to change of season or temperature may also be manually removed by disconnecting the
appliance from power supply or by wiping with a dry towel.
4 Out of operation.4
The appliance shall run continuously once it is started. Generally, the operation of
the appliance shall not be interrupted;otherwise the service life may be impaired.
Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be
kept for several hours; during the power failure, the times of door opening shall be reduced, and no
more fresh food shall be put into the appliance.
Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left
open to prevent odor.
Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions,
vegetable holder, freezing chamber drawers, etc. with tape, and tighten the levelling feet; close the doors
and fix them with tape. During moving, the appliance shall not be laid upside down or horizontally, or
be vibrated; the inclination during movement shall be no more than 45°.
13

5 Trouble shooting
You may try to solve the following simple problems by yourself. If problem cannot be solved,
please contact the after-sales department.
Water pan overflows
There is too much food in the chamber or food stored contains
too much water,resulting in heavy defrosting.
The doors are not closed properly, resulting in frosting due to entry
of air and increased water due to defrosting.
Failed operation
Check whether the appliance is connected to power or whether the plug
is in well contact .
Check whether the voltage is too low.
Check whether there is a power failure or partial circuits have tripped.
Door seal fails to
be tight
Remove foreign objects on the door seal.
Heat the door seal and then cool it for restoration (or blow it with an
electrical drier or use a hot towel for heating).
Hot housing
Abnormal noise
Long operation of the refrigerator is normal in summer when the ambient
temperature is high.
It is not recommended having too much food in the appliance at the same time.
Food shall get cool before being put into the appliance.
The doors are opened too frequently.
Long-time operation
of the compressor
The door is stuck by food packages.
The refrigerator is tilted.
Doors cannot be
properly closed
Surface condensation
Condensation on the exterior surface and door seals of the refrigerator is
normal when the ambient humidity is too high. Just wipe the condensate
with a clean towel.
Buzz: The compressor may produce buzzes during operation, and the buzzes
are loud particularly upon start or stop. This is normal.
Creak: Refrigerant flowing inside of the appliance may produce creak, which
is normal.
Heat dissipation of the built-in condenser via the housing, which is normal.
When housing becomes hot due to high ambient temperature and
storage of too much food,it is recommended to provide sound ventilation
to facilitate heat dissipation.
Odor
Odorous foods shall be tightly wrapped.
Check whether there is any rotten food.
Clean the inside of the refrigerator.
Check whether the refrigerator is connected to power supply and whether
the illuminating light is damaged.
Light fails to get lit
Loud noise
Check whether the floor is level and whether the refrigerator is placed stably.
Check whether accessories are placed at proper locations.
14
