FUJII 913MRA3-Ai User manual

SNOWROTARY
OPERATION MANUAL
Safe work with correct operation
・Be sure to read this manual before using the machine.
・Keep this manual securely so that you can read whenever you need.
FUJII CORPORATION

Be sure to repeat followings every time you
use the machine.
◆When working, I pay attention to
rotating parts such as augers, blowers, etc.
◆When moving the machine, I make sure
all the covers are in correct place securely.
◆When moving the machine backward,
I pay attention to the back and move it slowly.
◆
Before inspection and service of the machine,
I will be sure to stop the engine.
◆When working with an assistant,
we give verbal signals to each other for safety.
These above are important precautions to be kept in mind to ensure safety during
operation.
In addition to them, this manual has some points indicated with , which should
also be followed to ensure safety.
Please be sure to read them carefully and follow them.
IMPORTANT SAFETY POINTS FOR SNOW ROTARY
-Ⅰ-

●This manual mainly explains safety instruction that must be observed and technical matters
on the right operation, adjustment and maintenance to ensure the best performance of the
machine.
●This machine is for snow removal work.
Never use it or modify it for any other purpose.
●Read this manual carefully and understand the contents well to ensure safe and secure operation
not only when using it for the first time but also before every time using and handling the machine.
●Keep this manual so that you can read it anytime.
●When lending or transferring the machine to someone else, let him/her read and fully
understand this manual, and attach this manual to the machine.
●If this manual is lost or damaged, order new one from the dealer from which you purchased
the machine.
●If this manual has missing pages or disarranged pages, inform the dealer from which you
purchased the machine. We exchange it for new one.
●Some components of the machine are subject to change for quality/performance improvement
or safety reasons. Some contents and illustrations of this manual may not correspond to
the actual components.
●Marks in this manual indicate important points for safety and handling as follows.
Read them carefully and be sure to follow them.
Serious injury or death is likely to occur if these warnings
are not observed.
Serious injury or death may occur if these warnings are not
observed.
Injury may occur if these warnings are not observed.
Equipment damage or malfunction may occur if these
precautions are not observed.
Level of importance
Thank you for purchasing
FUJII SNOW ROTARY.
INTRODUCTION
This mark indicates other supplementary information for use.
-Ⅱ-
Mark
DANGER
WARNING
CAUTION
IMPORTANT
SUPPLEMENT

IMPORTANT SAFETY POINTS FOR SNOW ROTARY
･･･････････ Ⅰ
INTRODUCTION ････････････････････････････････････････････････････ Ⅱ
PART Ⅰ FOR SAFE WORK
･･････ １
FOR SAFE WORK ･･･････････････････････････････････････････ 1～
●GENERAL SAFETY PRECAUTIONS ･･････････････････････････････････ 2
●SAFETY PRECAUTIONS BEFORE/AFTER USE ････････････････････････ 3
●PRECAUTIONS FOR TRANSPORT ･･････････････････････････････････ 7
●PRECAUTIONS FOR TRAVEL AND WORK ････････････････････････････ 9
●PRECAUTIONS FOR POST-WORK AND STORAGE ･･･････････････････ 14
●SAFETY LABEL ･･･････････････････････････････････････････････････ 15
PART Ⅱ OPERATION ････････････ 17
BEFORE USING THE MACHINE
･･･････････････････････････ 18 ～
1．GUARANTEE AND SERVICE ････････････････････････････････････････ 18
2．NAME OF PARTS ･･････････････････････････････････････････････････ 19
3．NAME AND WORK ･･････････････････････････････････････････ 21
4．INSPECTION AND PREPARATION BEFORE WORK ･･････････････････ 25
HOW TO OPERATE ･････････････････････････････････････････････ 30 ～
1．START THE ENGINE ･･････････････････････････････････････････････ 30
2．STOP THE ENGINE ･･････････････････････････････････････････････ 31
3．HOW TO START MOVING ･･････････････････････････････････････････ 32
4．HOW TO STOP MOVING
･･････････････････････････････････････････ 33
5．HOW TO TURN ････････････････････････････････････････････････ 33
6．LOADING, UNLOADING, TRANSPORTATION BY TRUCK ･･･････････ 34
HOW TO REMOVE SNOW
･････････････････････････････････ 35 ～
1．OPERATING CONDITION ･･･････････････････････････････････････････ 35
2．HOW TO REMOVE SNOW ･･･････････････････････････････････････････ 35
3．STOP SNOW REMOVAL WORK ･････････････････････････････････････ 38
4．KEY POINTS FOR WORK ････････････････････････････････ 38
5．MAINTENANCE AFTER WORK
･････････････････････････････････････ 41
"EASY" BUTTON (MRA/MR only) ････････････････････････ 42 ～
1．"EASY" BUTTON ･････････････････････････････････････････ 42
2．OPERATION OF "EASY" BUTTON ･････････････････････････････････ 42
CONTENTS
-Ⅲ-

SNOWMATIC plus (MRA-Ai only)
･････････････････････････････ 43 ～
1．SNOWMATIC plus ･････････････････････････････････････ 43
2．OPERATION OF SNOWMATIC plus ･･･････････････････････････････････ 43
3．STOP SNOWMATIC plus
･･･････････････････････････････････ 45
Ａi BACK AUTO LIFT (MRA-Ai only) ･･････････････････････････ 46 ～
1．Ai BACK AUTO LIFT ･･････････････････････････････････････････････ 46
2．OPERATION OF Ai BACK AUTO LIFT ･･･････････････････････････････ 46
AUTOMATIC SPEED CONTROL (MRA-Ai/MRA only)
･･･ 47 ～
1．AUTOMATIC SPEED CONTROL ･･････････････････････････････････････ 47
2．OPERATION OF AUTOMATIC SPEED CONTROL ･････････････････････ 47
PART Ⅲ INSPECTION AND SERVICE･･････ 48
INSPECTION AND SERVICE ････････････････････････････････ 49 ～
1．LIST OF INSPECTION AND SERVICE ･･･････････････････････････････ 49
2．INSPECTION AND EXCHANGE OF OIL ･･･････････････････････････････ 52
3．LUBRICATION ････････････････････････････････････････････････ 53
4．GREASING ････････････････････････････････････････････････ 53
5．EXCHANGE OF SHEAR BOLT ･･･････････････････････････････････････ 54
6．INSPECTION AND HANDLING OF ELECTRICAL PART ･･･････････ 55
MAINTENANCE FOR LONG-TERM STORAGE ････････ 57
TROUBLE SHOOTING ････････････････････････････････････････ 58 ～
1．FUSE ････････････････････････････････････････････････････ 58
2．TROUBLE SHOOTING ････････････････････････････････････････････ 58
PART Ⅳ SERVICE DATA ･･････ 61
1．SPECIFICATIONS ･･････････････････････････････････････････････････ 61
2．LIST OF OIL AND BELT ････････････････････････････････････････ 62
3．ATTACHMENT
･････････････････････････････････････････････････････ 63
4．OPTIONAL PARTS
･･････････････････････････････････････････････････ 63
5．CONSUMABLE PARTS ･･･････････････････････････････････････････････ 63
-Ⅳ-

●This chapter describes points that must be observed to use the snow blower safely.
●Failure to comply with the contents may result in death, serious injury, injury, fire,
poisoning. It is extremely dangerous.
●Some of the contents may not be applicable depending on the purchased product.
●Thoroughly read and understand "Engine Manual" as well before using the machine.
CAUTION
Thoroughly read and understand this manual before using the
machine.
Failure to comply with the precautions manual may result in injury
including death, accident, and machine damage.
01-01
PART Ⅰ FOR SAFE WORK
FOR SAFE WORK
- 1 -

PART Ⅰ FOR SAFE WORK
● GENERAL SAFETY PRECAUTIONS
WARNING Do not operate the machine under following conditions.
• Unable to concentrate due to fatigue,
illness, medication, or other reason
• Under the effects of alcohol
• During pregnancy
• Under the age of 18
• Inexperienced in operation
[Results of failure to comply]
Inability to make appropriate decisions and operation may result in machine damage and injury.
WARNING Always keep in mind to wear suitable clothing for work,
such as non-slip shoes and winter gloves.
Wearing towels around the head, neck, or waist
is prohibited.
Wear clothes which are easy to work in, and which
are not baggy. Wear non-slip boots and winter gloves.
[Results of failure to comply]
The clothes may be caught in the machine, causing
slip and falls, and injury.
WARNING Work other than snow removing is strictly prohibited.
This machine is a snow blower .
Do not use this machine except for snow removing
purpose.
[Results of failure to comply]
Serious injury and machine damage may
occur.
WARNING When lending the machine to other people.
Thoroughly explain how to use the machine.
Instruct the borrower to read this manual
and labels affixed to the machine before use.
[Results of failure to comply]
Failure to provide proper instruction may result in
machine damage, injury, or even death.
- 2 -

PART Ⅰ FOR SAFE WORK
WARNING Do not modify the machine nor use unapproved attachments.
Do not modify nor use attachments other than
specified ones by any means.
[Results of failure to comply]
Machine damage, accident, and injury may occur.
WARNING Do not insert hands under covered areas.
There are rotating parts and moving parts under the cover.
Never insert hands as it is extremely dangerous.
[Results of failure to comply]
Hands may be caught in rotating parts and moving
parts causing injury.
● SAFETY PRECAUTIONS BEFORE/AFTER USE
DANGER Lubricate and refuel after the engine has cooled down.
Do not lubricate or refuel while the engine is running or
while the engine is still hot.
[Results of failure to comply]
Failure to comply may result in fire caused by ignition of
fuel.
DANGER Add fuel only after stopping the engine.
Add fuel outdoors. Be sure to stop the engine and
make sure the engine has cooled sufficiently to handle
before adding fuel.
[Results of failure to comply]
Failure to comply may result in fire caused by ignition
of fuel.
DANGER Fire is strictly prohibited when adding fuel.
Keep away everything that could cause a fire such as smoking
or open flame lighting when adding fuel. Also, since there is
a possibility of igniting from static electricity, touch a metal etc.
to eliminate static electricity before adding fuel.
[Results of failure to comply]
Failure to comply may result in fire caused by ignition of fuel.
- 3 ‐

PART Ⅰ FOR SAFE WORK
WARNING Fire is strictly prohibited when inspecting battery.
Fire is strictly prohibited when inspecting
the battery or opening the vent plug.
[Results of failure to comply]
Failure to comply may result in fire caused by
ignition of gas from battery.
DANGER Do not get under the machine nor place your feet under the machine.
Do not get under the machine nor place your feet
under the machine.
[Results of failure to comply]
Failure to comply may result in injury if the machine
moves for some reason.
WARNING Be cautious of exhaust gas.
Do not start the engine indoors, except when moving
the machine from inside the building. Ensure sufficient
ventilation even when moving the machine.
[Results of failure to comply]
Failure to comply may cause exhaust gas poisoning
or even death.
DANGER Be cautious of fuel leakage.
If the fuel pipe is broken, it may cause fuel leakage.
Be sure to inspect it before work.
[Results of failure to comply]
Failure to comply may result in fire caused by ignition
of fuel.
DANGER Shut fuel cap and wipe off any spilled fuel.
After adding fuel, be sure to shut the fuel cap securely
and wipe off any spilled fuel.
[Results of failure to comply]
Failure to comply may result in fire caused by ignition of fuel.
Harmful gas
- 4 -

PART Ⅰ FOR SAFE WORK
WARNING Do not let battery fluid come in contact with your body.
Do not let the skin come into contact with battery fluid.
If the skin comes into contact with battery fluid,
wash it off immediately with water.
[Results of failure to comply]
Failure to comply may result in burns and damage to
clothes.
WARNING Install and remove battery in the correct sequence.
Connect the positive (+) side first when connecting
battery. Disconnect the negative (-) side first when
disconnecting battery.
[Results of failure to comply]
Failure to comply may result in short-circuit, burns,
and fire.
WARNING Make sure the battery terminals are properly connected.
Do not connect the positive (+) side of the battery
terminal with the negative (-) side.
Do not let the positive (+) side contact with the machine.
[Results of failure to comply]
Failure to comply may result in short-circuit, burns,
and fire.
WARNING Use specified battery only.
When exchanging battery, be sure to use a battery
of the capacity specified in this manual.
[Results of failure to comply]
Failure to comply may result in fire.
WARNING Be sure to inspect electrical parts and cords.
Check before daily use to ensure that wiring cords
do not contact with other parts and that insulation is not
peeling off and there is no loose connection.
[Results of failure to comply]
Failure to comply may result in short-circuit and fire.
- 5 -

PART Ⅰ FOR SAFE WORK
WARNING Remove foreign objects from work area beforehand.
Remove pieces of wood, plastics, bottles, hoses,
ropes, clothes, and all other foreign objects from work
area before starting to remove snow.
[Results of failure to comply]
Foreign objects which are taken in during snow removal work
may fly out causing unexpected injury and machine damage.
WARNING Remove debris from muffler and engine.
Check if there is debris or fuel adhering to muffler
and engine before work. Remove if debris or fuel is
adhering.
[Results of failure to comply]
Failure to comply may cause fire or overheat.
WARNING Carry out inspection and service in a flat and stable area.
Carry out inspection and service in a flat and stable
area where there is no danger of traffic nor risk of
machine falling or moving around.
[Results of failure to comply]
Failure to comply may result in unexpected accident
such as machine falling over.
WARNING Be sure to inspect safety devices before work.
Before work, be sure to inspect safety
devices such as back emergency stop device,
emergency stop button, interlock, dead-man clutch
etc. to ensure these devices function correctly.
[Results of failure to comply]
Safety devices may not function in case of emergency
resulting in death or serious accident.
WARNING Be sure to inspect the machine before and after work.
Be sure to inspect the machine before and after work.
In particular, make sure that safety devices and clutch
levers function correctly. When operation failure occurs,
stop using the machine until repair is done.
[Results of failure to comply]
Failure to perform proper maintenance may cause
accident and machine damage.
- 6 -

PART Ⅰ FOR SAFE WORK
WARNING Be sure to fix covers to the machine.
Any covers which are detached for inspections and
service must be correctly fixed to their original positions.
[Results of failure to comply]
Operator may be caught in the machine
causing injury.
CAUTION Carry out inspection and service after heating parts
have sufficiently cooled down.
Carry out inspection and service only after heating parts
such as muffler and engine have sufficiently cooled
down.
[Results of failure to comply]
Failure to comply may result in burns.
DANGER Be sure to stop the engine when inspecting, servicing, cleaning or
refueling the machine.
Be sure to stop the engine when inspecting, servicing,
cleaning or refueling the machine. Set travel and work
clutch at "Off", and make sure that each part has stopped
its operation completely. Carry out inspection only after
heating parts have cooled down.
[Results of failure to comply]
Failure to comply may result in fire and serious injury such as getting caught in the
machine.

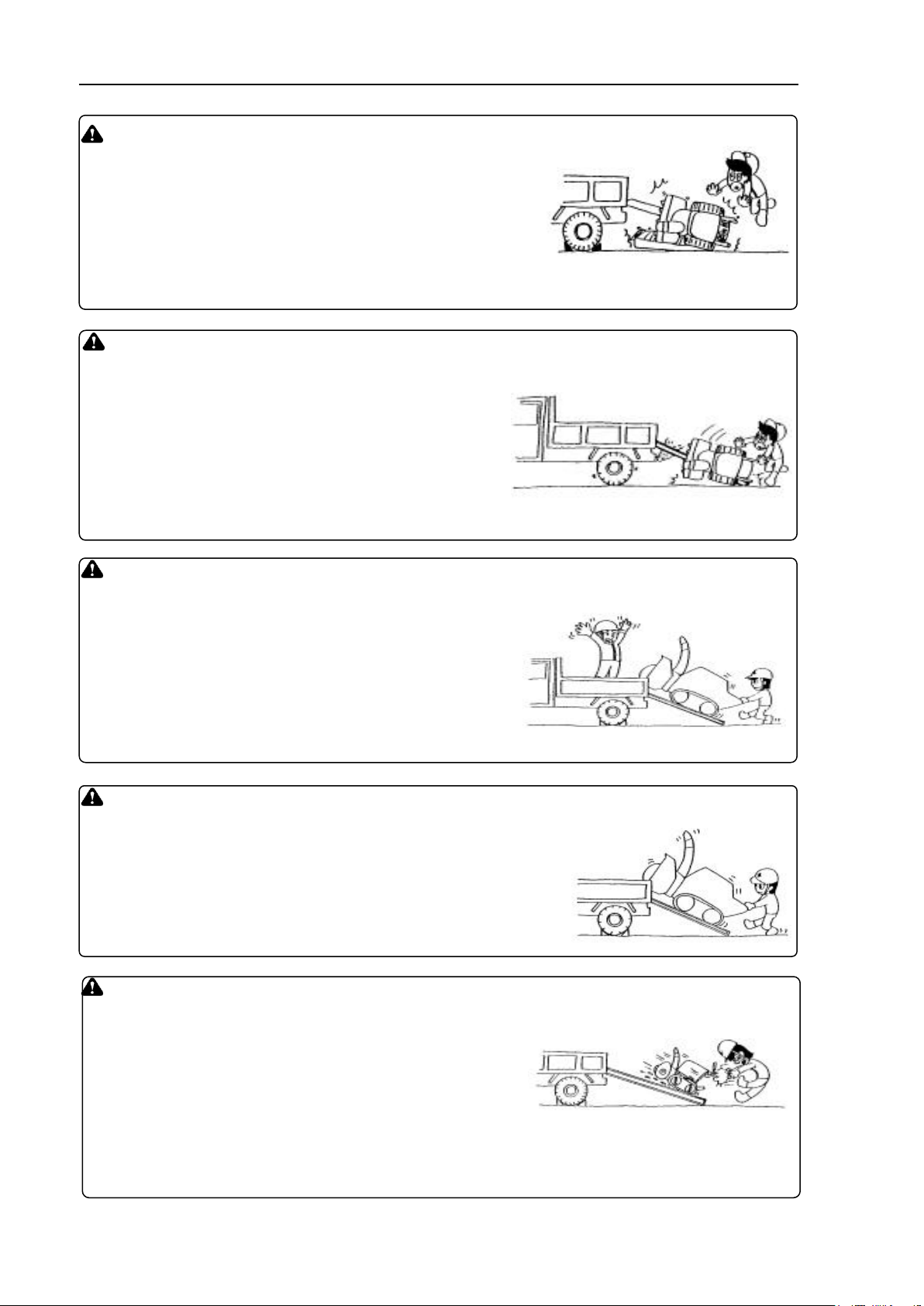

●PRECAUTIONS FOR TRANSPORT
WARNING When transporting the machine by public road, transport it by truck.
When transporting the machine by public road, load it
on a truck, and transport it by truck.
[Results of failure to comply]
Failure to comply may result in traffic accident and injury.
WARNING Use gangplanks of sufficient length, strength, and width when
loading and unloading the machine on and from a truck.
Use sturdy and non-slip gangplanks that meet
the standard when loading and unloading the
machine on and from a truck.
[Results of failure to comply]
Failure to comply may result in broken gangplanks,
machine tumbling or falling over, and injury.
Standard of gangplanks
Strength: Enough to resist
the weight of the machine
Width : More than
1.2 x crawler width
Length : More than
4 x carrier height
With non-slip surface
and hooks
- 7 -

PART Ⅰ FOR SAFE WORK
WARNING Fix gangplanks securely.
Make sure the gangplanks are fixed securely so that
they will not move or come off truck carrier when
loading and unloading the machine on and from
a truck.
[Results of failure to comply]
Failure to comply may result in machine falling over.
WARNING Be sure to put wheel chocks under the truck.
When loading and unloading the machine on and from
a truck, stop the engine and set the transmission
at "Parking", "1 Low" or "Reverse", engage
parking brake, and put wheel chocks in place.
[Results of failure to comply]
The truck may move causing accident
such as machine falling over.
WARNING Have another person to guide you when loading and
unloading the machine.
Carefully check the safety of the surroundings and
have another person to guide you when loading
and unloading the machine on and from a truck.
[Results of failure to comply]
Failure to comply may result in machine falling
over causing injury.
WARNING Load the machine in forward. Unload the machine in reverse.
When loading the machine on a truck, move it forward.
When unloading the machine from a truck, move in reverse.
[Results of failure to comply]
The machine may lose its balance resulting in
in accident such as falling over.
WARNING Never operate side clutch lever
when traveling over gangplanks.
Decide on the direction of machine movement in
advance and move at low speed so that the travel
direction does not need to be changed on
gangplanks. Never operate travel clutch lever and
side clutch lever.
[Results of failure to comply]
Failure to comply may cause accident such as falling over.
- 8 -

PART Ⅰ FOR SAFE WORK
WARNING Fix the machine to truck securely with rope.
When loading the machine on a truck for transportation,
ground auger housing on the truck, disengage work
clutch, and securely fix the machine to the truck
carrier with strong rope.
[Results of failure to comply]
Failure to comply may result in the machine falling out
of the truck causing accident.
CAUTION Be sure to disengage work clutch and raise auger housing when
loading and unloading.
Make sure to disengage work clutch and
raise auger housing when loading and unloading
the machine on and from a truck.
[Results of failure to comply]
Failure to comply may result in injury.

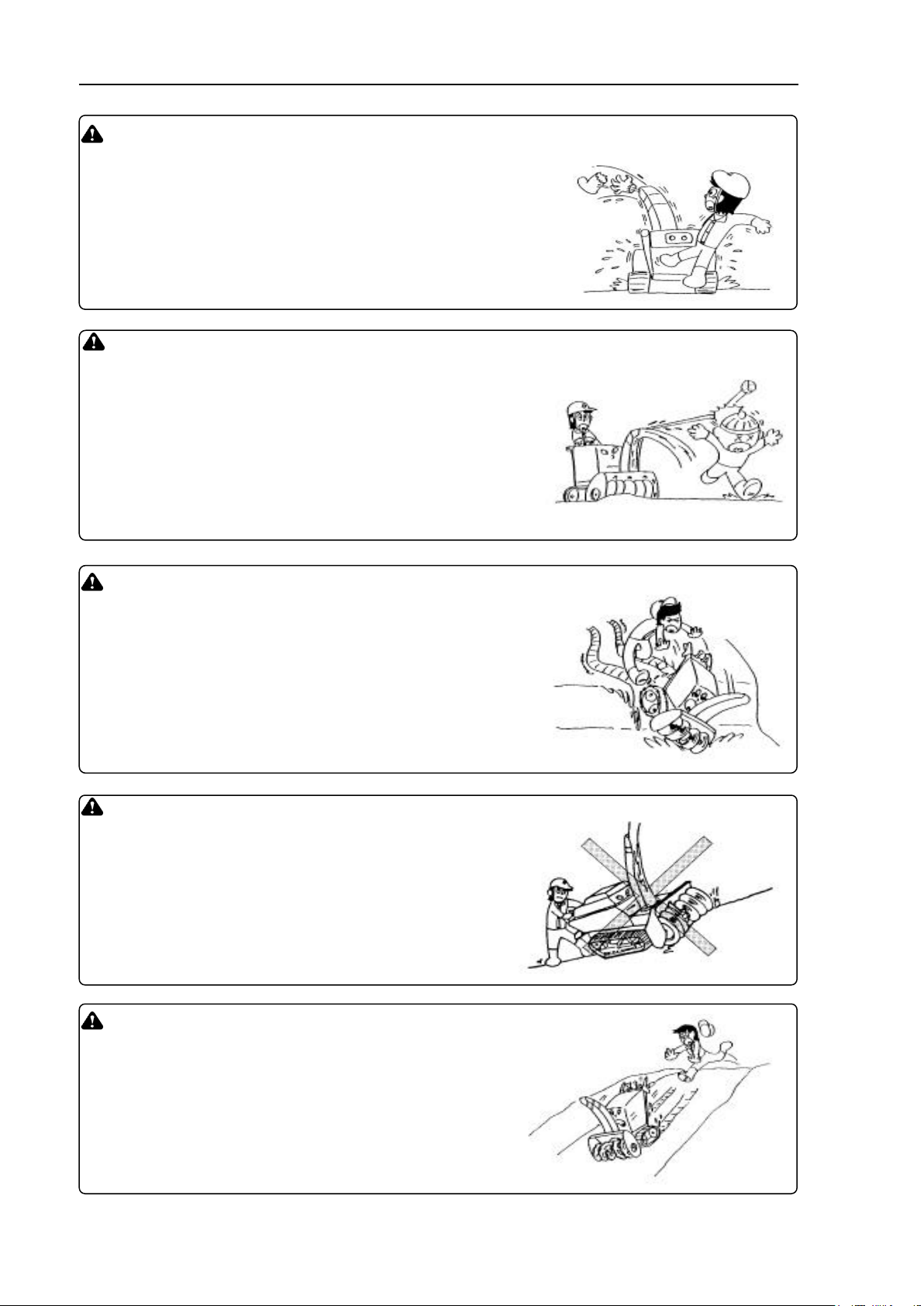

● PRECAUTIONS FOR TRAVEL AND WORK
DANGER Pay attention to obstacles and move at low speed when moving
the machine backward.
Move at low speed when moving the machine backward.
Pay attention to your footing not to fall. Make sure there
is no obstacle behind and be careful not to be caught
between obstacle and the machine.
[Results of failure to comply]
Failure to comply may result in serious accidents such as
being caught in the machine or falling over.
DANGER Stop the engine and use provided unclogging stick when removing
clogging snow or foreign objects.
Stop the engine and make sure each part has completely
stopped moving when removing clogging snow.
Make sure to use provided unclogging stick.
Never insert your hands.
[Results of failure to comply]
Failure to comply may result in getting caught in the machine
and serious injury.
- 9 -

PART Ⅰ FOR SAFE WORK
WARNING Be sure to disengage travel clutch and work clutch before
starting the engine.
Disengage travel clutch and work clutch, and set change
lever at "N.Neutral" when starting the engine.
[Results of failure to comply]
Machine may move at the time of engine start,
which may cause unexpected accident.
WARNING Keep people and animals away from the snow removing area
during work.
Be especially careful of children and keep them away.
[Results of failure to comply]
Failure to comply may cause an unexpected accident.
WARNING Be careful when traveling on slope.
Do not travel on steep slope.
Be careful of a slip and fall when traveling on slope.
Move the machine slowly at the lowest speed.
[Results of failure to comply]
The machine may move to unexpected direction,
which may result in falling over and unexpected
accident.
WARNING Do not operate across slope.
Do not travel nor remove snow across slope.
[Results of failure to comply]
Failure to comply may cause accident
such as falling over.
WARNING Never park on slope.
When parking, stop the machine in a flat area, and
lower auger housing to the ground.
[Results of failure to comply]
Failure to comply may result in the machine moving,
which may lead to accident.
- 10 -

PART Ⅰ FOR SAFE WORK
WARNING Do not change travel speed nor operate side clutch on slope.
Never set change lever at "N.Neutral" nor operate
side clutch lever on slope.
[Results of failure to comply]
Failure to comply may cause accident such as
slipping and falling over.
WARNING Be very careful on frozen road. Move at low speed.
Be very careful on slippery surfaces such as frozen
road. Move the machine at low speed.
[Results of failure to comply]
Failure to comply may result in falling over.
WARNING Place the machine in a flat area and stop the engine when
stepping away from the machine.
When stepping away from the machine, place it in a flat
and stable place, lower auger housing to the ground,
disengage travel clutch and work clutch, stop the
engine, and remove engine key.
[Results of failure to comply]
The machine may start moving causing accident.
WARNING Turn on head light and work light
when working at night and when snow falls.
Make sure to turn on head light and work light when
working at night and when snow falls. Do not use the
machine without headlight at night, if there is no
light secured.
[Results of failure to comply]
Failure to comply may result in accident caused by loss of visibility.
WARNING Be very careful of snow throwing direction.
Be very careful of people, vehicles, buildings etc.
and throw snow to a safe place. Especially gravel
road is dangerous because stones can be scattered.
[Results of failure to comply]
Failure to comply may result in accident such as injury
and machine damage caused by scattered objects.
- 11 -

PART Ⅰ FOR SAFE WORK
WARNING Stop the engine when exchanging shear bolt.
Disengage travel clutch and work clutch, stop the
engine, and make sure auger and blower have stopped
their operation completely before exchanging shear bolt.
[Results of failure to comply]
The machine may move, or auger and blower may
rotate causing serious accident.
DANGER Auger is dangerous while it is rotating. Stay away!
Never let anyone come close to auger housing. Pay
attention to safety of the surroundings when work
clutch is set at "On" or auger is rotating.
[Results of failure to comply]
Failure to comply may result in getting caught
in auger causing injury.
WARNING Speeding and sudden acceleration, stopping, turning are prohibited.
Make sure the surrounding area is safe. Accelerate,
stop, or turn the machine slowly. Reduce the speed
sufficiently when traveling over slope, bumpy roads,
or roads with many curves.
[Results of failure to comply]
Failure to comply may cause machine damage and
accident.
WARNING Immediately stop the engine when abnormality of the machine
is found.
Stop the engine immediately if you notice foreign objects
caught in the machine or abnormal vibration,
sounds, and smell. Carry out inspection after heating
parts have cooled down, and rotating parts have stopped
moving. Stop using the machine until repair is done
if any abnormality is found.
[Results of failure to comply]
Failure to comply may result in machine damage, accident, and injury.
WARNING Never bring hands, feet and face close to the rotating parts.
Never bring hands, feet and face close to the rotating
parts nor look into chute.
[Results of failure to comply]
Failure to comply may result in getting caught in the rotating
parts or accident. Unexpected accident may be caused by
scattered objects.
- 12 -

PART Ⅰ FOR SAFE WORK
WARNING Work and travel near fire are prohibited.
Do not travel nor remove snow near fire.
[Results of failure to comply]
Failure to comply may result in fire due to ignition
of fuel or oil.
WARNING Pay attention to the shoulder of road while moving the machine.
If there are ditches or slope around the road, pay
attention to the shoulder.
[Results of failure to comply]
Failure to comply may result in the machine falling
over.
WARNING Be sure to disengage work clutch and raise auger housing when
moving the machine.
Be sure to set work clutch at "Off"
and raise auger housing when transporting the
machine.
[Results of failure to comply]
Failure to comply may result in getting caught in
the rotating parts or hitting with foreign objects
causing unexpected accident.
WARNING Do not activate work clutch except for snow removal work.
Do not set work clutch at "On" except for
snow removal work or inspection.
If auger rotates, it is dangerous.
[Results of failure to comply]
Failure to comply may result in getting caught
in auger causing injury.
- 13 -

PART Ⅰ FOR SAFE WORK
● PRECAUTIONS FOR POST-WORK AND STORAGE.
DANGER Cover the machine with sheet cover only after the machine
has sufficiently cooled down.
When covering the machine with sheet cover or
storing the machine indoors, make sure heating parts
have cooled sufficiently.
[Results of failure to comply]
Failure to comply may result in fire.
WARNING Remove fuel and detach battery before long-term storage.
When storing the machine for long-term period,
remove fuel from fuel tank and carburetor,
and disconnect and detach battery.
[Results of failure to comply]
Failure to comply may result in fuel deterioration
causing engine failure or fire.
DANGER Stop the engine when cleaning or inspecting the machine.
Be sure to stop the engine when inspecting or
cleaning the machine after work. Disengage travel and
work clutches, make sure each part has stopped
moving completely. Make sure heating parts have
cooled down.
[Results of failure to comply]
Failure to comply may result in getting caught in the
rotating parts causing serious injury.
CAUTION Have regular inspection and service.
Have yearly periodic inspection and carry out
service on each part. In particular, exchange
fuel pipe every 2 years.
[Results of failure to comply]
Failure to carry out proper service may result in
accident and malfunction of the machine.
- 14 -

PART Ⅰ FOR SAFE WORK
●SAFETY LABEL
■SAFETY LABEL
●
Safety labels are attached on the machine for safe work.
Check them carefully and be sure to follow the instructions.
●In case mud is on the labels, wipe it completely so that the labels are always visible.
●
In case the labels are damaged, lost, or difficult to understand, replace them with
new labels.
●When exchanging parts to which safety labels are attached, contact your dealer
and order the labels also.
●
When ordering safety labels, refer to "Location and meaning" below, and tell your
dealer the code and quantity of necessary label.
●If high pressured water is sprayed over the labels, they may fall off.
Do not spray the labels with high pressured water.

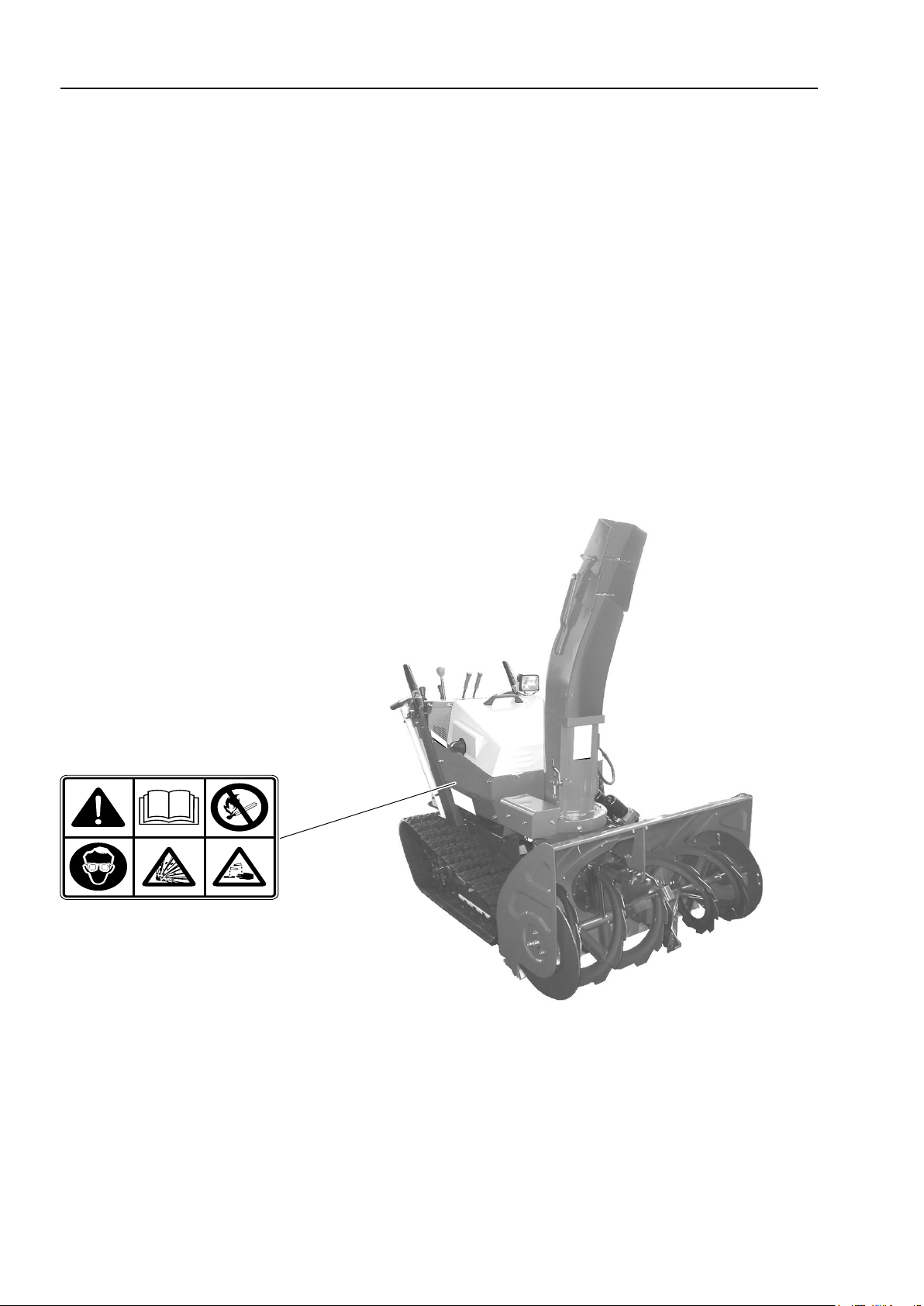

■LOCATION AND MEANING
※Safety labels on the engine
are explained in "Engine manual".
Read it well.
A. WARNING! Pay attention to safety. Do not cause short-circuit and spark with tools. Recharge the
battery in a well-ventilated place. Refer to the manual for use of booster cable.
B. WARNING! Read the operation manual carefully.
C. DANGER! When handling battery, do not keep fire such as short-circuit, spark, and cigarette near
the machine.
D. DANGER! When handling battery, be sure to wear safety glasses and protective gear.
E. DANGER! The battery may explode if it is handled inappropriately. Do not use when fluid level is under
the lower limit. Using the battery with fluid lever under the lower limit may cause explosion.
F. DANGER! Eyesight may be lost or a burn may occur because of battery fluid. If battery fluid comes into
contact, flush out with a large quantity of water immediately. If it comes into eye, see a doctor.
8600-13-75-0
MARK/CAUTION D/ISO
SH1-02
A B C
D E F
- 15 -
