FUJISOUND TM-M1 User manual
TM-M1
MUSIC / VIDEO PLAYER
Thank you for purchasing this product. R
For safe use, please read this manual carefully and use it accordingly.
Contents
1. Preparation for use
Precaution
Product characteristics
Product components
Name of each part
Screen composition and caution when operating the touch button
Button function description
System requirement and charging
Connecting to the computer
Disconnecting the USB cable
2. Basic functionality
Turning power on/off and lock function
Menu switching
Listening to music
Viewing video
Viewing photo
Listening to FM radio
Viewing Text
Recording
Product information
3. Setting
Sound setting
Play back setting
Display setting
Time setting
Recording setting
General setting
4. Customer support
Installing USB drive
System reset and storage/management
Menu structure
Checklist before requesting for service
Product specification
Quality warranty
Preparation for use
Precaution
These details are intended to protect the safety of the user and to prevent property
damage. Please read carefully and use the product accordingly.
Do not leave the product near heating device of 35℃ degrees or higher,
location of high temperature or inside a parked car.
Do not disassemble, repair or redesign the product arbitrarily.
Do not soak the product in water or wet the product.
Do not leave the product in humid, dusty or smoky areas.
When using the product on a necklace, be careful not to make the
necklace have too much pressure.
Save important data separately.
Our company will not be responsible for damage from loss of recorded data and stored
data due to problem, repair or other reasons.
Preparation for use
Precaution
Note the following details on the battery.
It can cause fire and damage to the product.
The battery used in this product is a Lithium-Polymer battery.
Do not use other batteries by disassembling the main unit.
Be careful not to have any dust or alien particle get inside the product.
Do not leave the product close to objects with strong magnetic force such
as a magnet.
Do not drop to product to give serious impact to the product or put heavy
objects on top of the product.
Do not spray water on the product or wipe the product with chemicals
such as benzene or thinner.
For traffic safety, do not use the ear phones while driving a bicycle, car or motor cycle
etc.
Be careful of the ear phone lines so that it does not get caught by your arm or other
devices while working out or walking etc. To protect your hearing capabilities, do not
use the ear phones in loud volume for a long period of time. If you hear resonating
sounds in your ear, reduce the volume or stop using the ear phones.
Preparation for use
Product characteristics
Slim design and touch button By adopting the slim and simple design and using
the touch button, you can lightly touch and access various menus and functions with
your fingers.
Full Color OLED By adopting a 38.1cm(1.5”) full color OLED, you can enjoy
intuitive menu and MP3 play screen in wider and fancier screen.
Various additional functions Various functions are provided including Hold,
various Play Mode, EQ of 8 types of sound, Power Save (Auto off function), Screen
Saver, Time Setting, Reservation sound recording, Alram Setting etc.
Various audio file playbacks It supports MP3, WMA, MP3 (32kbps ~ 384kpbs,
32kHz, 44.1kHz, 48kHz), WMA (8kpbs ~ 192kpgs, 8kHz-44.1kHz)
Intuitive menu composition It provides intuitive menu composition through
graphic image realization.
USB2.0 By providing speed of USB 2.0, it enables fast upload/download
without having to wait during data transmission with the PC.
Recorder By providing voice recording and FM Radio recording function, you
can use the recording function any where you want.
Video playback and image viewer function By supporting the video and photo
file, you can use the photo and music video files. You can use a small video player
function of your own.(Use Convertor Program)
Firmware Update Through the product website of
http://www.mpmaneurope.com, you can always use the latest version of the firmware
function.
Excellent quality It shows 90dB of audio quality not possible in MP3 players in
same price range and shows 10mW of wide output performance. Also through 8
equalizers (Normal, Classic, Rock, Jazz, Live, Pop, Dance, User), you can enjoy the
music in various colors.
Playlist function You can just listen to the songs you want . whenever you want.
You can check the songs you want during the MP3 navigation to create your own
playlist.
Preparation for use

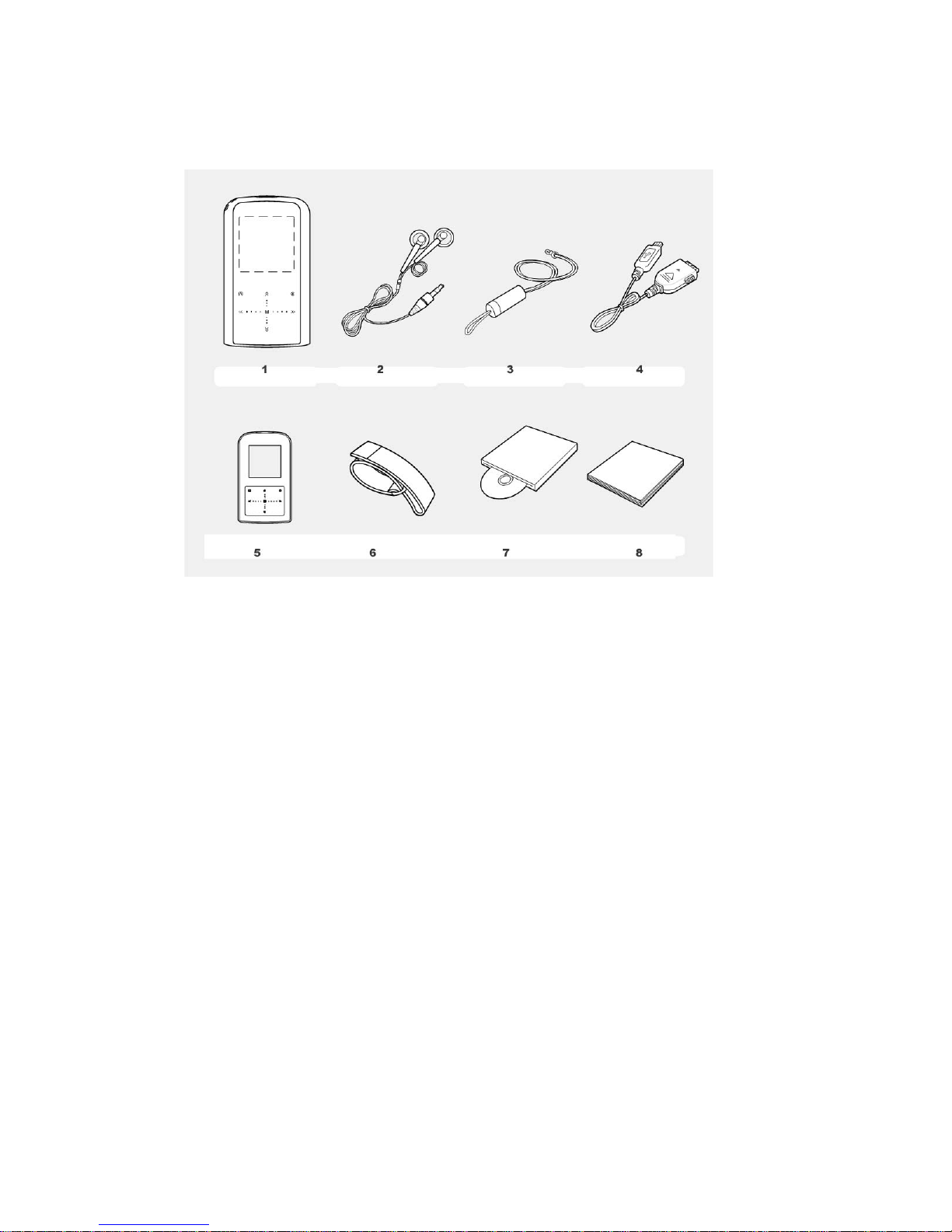

Product components
Components can change without prior notice for performance improvement.
Windows98SE users must install a separate driver program included in the CD.
1 / XXS player 5/ silicon case (option)
2/ earphones 6/ arm band (option)
3/ necklace strap 7/ CDROM
4/ USB cable 8/ manual
Preparation for use
Name of each part
1/ reset hole 8/ play / pause / select
2/ Select music : backward / move left 9/ select music : forward / move right
3/ Repeat / start / stop recording 10/ Menu / previous menu
4/ Necklace strap hole 11/ Volume / Move up / down
5/ Power ON/OFF / hold 12/ USB connection
6/ Display OLED 13/ earphone connection
7/ Microphone
Preparation for use
Name of each part
Preparation for use
Screen composition
OLED screen composition
1/ Current time 7/ Graphic EQ
2/ Volume 8/ Singer / file name / File type
3/ Alarm and reserving to record FM 9/ Current music time length
4/ Lock 10/ Play bar
5/ Battery 11/ Play time of current music
6/ Current music / total number of music 12/ Play status
13/ EQ setting
14/ Play mode
Caution when operating the touch button
Use the finger to operate the touch button. A sharp object
may damage the touch button. Do not operate the touch
button with a dirty figure. A gloved finger cannot operate
the touch button.
Correctly touch on the touch surface. Touching two
buttons at once does not operate.
Do not let the magnet close to the touch button, which
may make the touch button operate incorrectly.
Preparation for use
Button function description
Button Function and how to operate
Slide right to turn on power
Slide right and hold one second or longer to turn off
Slide left to hold the button operation
Slide center to release the hold button
Shortly press to play/pause, select and set
Shortly press M button while playing to go to “file search” or “main
screen”
Shortly press M button at the main screen to go to the previous
screen
Move up/down/left/right
Press “down/up” buttons to move down/up one row
Press “down/up” buttons and hold to repeatedly move down/up.
Press “left/right” buttons to move left/right one column (picture)
Press “left/right” buttons and hold to repeatedly move left/right.
Playing music and video
Shortly press “left” button to move to the beginning of the current
music or the previous music.
Press “left” button and hold to rewind
Shortly press “right” button to move to the beginning of the current
music or the next music.
Press “right” button and hold to fast forward
Press ”down/up” button to decrease or increase volume
Set the repeat, press this button by the order of [start the repeat] –
[play the repeat] – [cancel the repeat]. When recording press the
button to start and stop recording
Preparation for use
System requirement
200MHz Pentium processor or higher version
- Windows 98SE/ME/2000/XP
- Mac OS X (Support ver 9.2 or higher version)
USB port
SVGA graphic card
Memory of 64MB or above
Mouse
CD-ROM drive (X2 or faster)
HDD 100MB or more free space
Charging
- Use the PC USB cable supplied with the product to connect the main body to the PC
for charging. It takes one hour and 20~30 minutes to fully charge the battery of the
product.
-‘Charging’ icon is displayed while charging the battery and ‘Battery icon’ is displayed
to show that the battery is fully charged.
- When the battery is completely discharged, the screen display of the product may not
turn on during the initial charging.
※ The using time of the product and the time required to fully charge may differ by the
using condition or environment.
Preparation for use

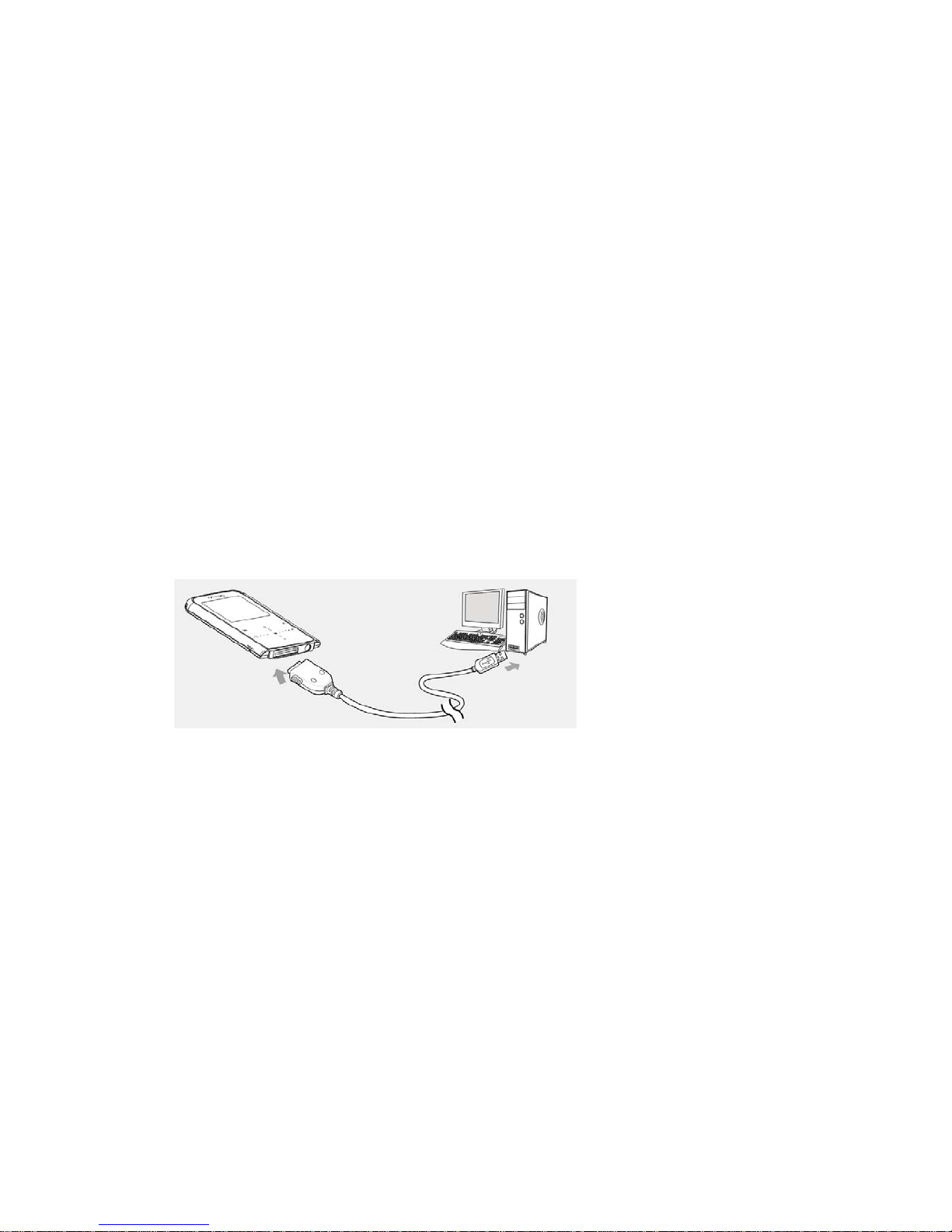

Connecting to the computer
By utilizing the PC USB cable included with the product, you can charge the main unit
by connecting it to the PC.
1. Connect the USB cable to the USB port of the computer.
2. Connect the other side of the USB cable to the connecting terminal on the bottom of
XXS.
3. With a message saying a new device is found, the USB driver will be installed.
The installation screen might not be shown.
Check whether it has been properly installed by checking the Device Manager.
4. When the USB driver is installed, you will see the [XXS USB Device] in [Device
Manager].
※ If you disconnect the USB cable while installing the USB driver initially or while
executing a command, it might cause an error in the PC.
Windows 98SE users must first install the USB driver before connecting the MP3player
Preparation for use
Connecting to the computer
Using as removable disk
1. By using the USB cable included in the product, connect the main unit to the PC.
2. Run Windows Explorer (or My Computer).
3. Check whether there is a removable disk(XXS).
4. After selecting the file to save, copy it to the removable disk.
※ The saved files will be played back in the copied order.
Preparation for use
Disconnecting the USB cable
After sending a file is completed, disconnect the cable as shown at the below.
Disconnecting the cable arbitrarily may cause the incorrect file copy or the malfunction
at some system.
1. Double click on the green arrow on the system tray on the bottom right side of the
window screen.
2. Press the [Stop] button after selecting the USB device.
If you see the [Stop hardware device] screen, press [OK] and then disconnect the
USB cable.
Basic functionality

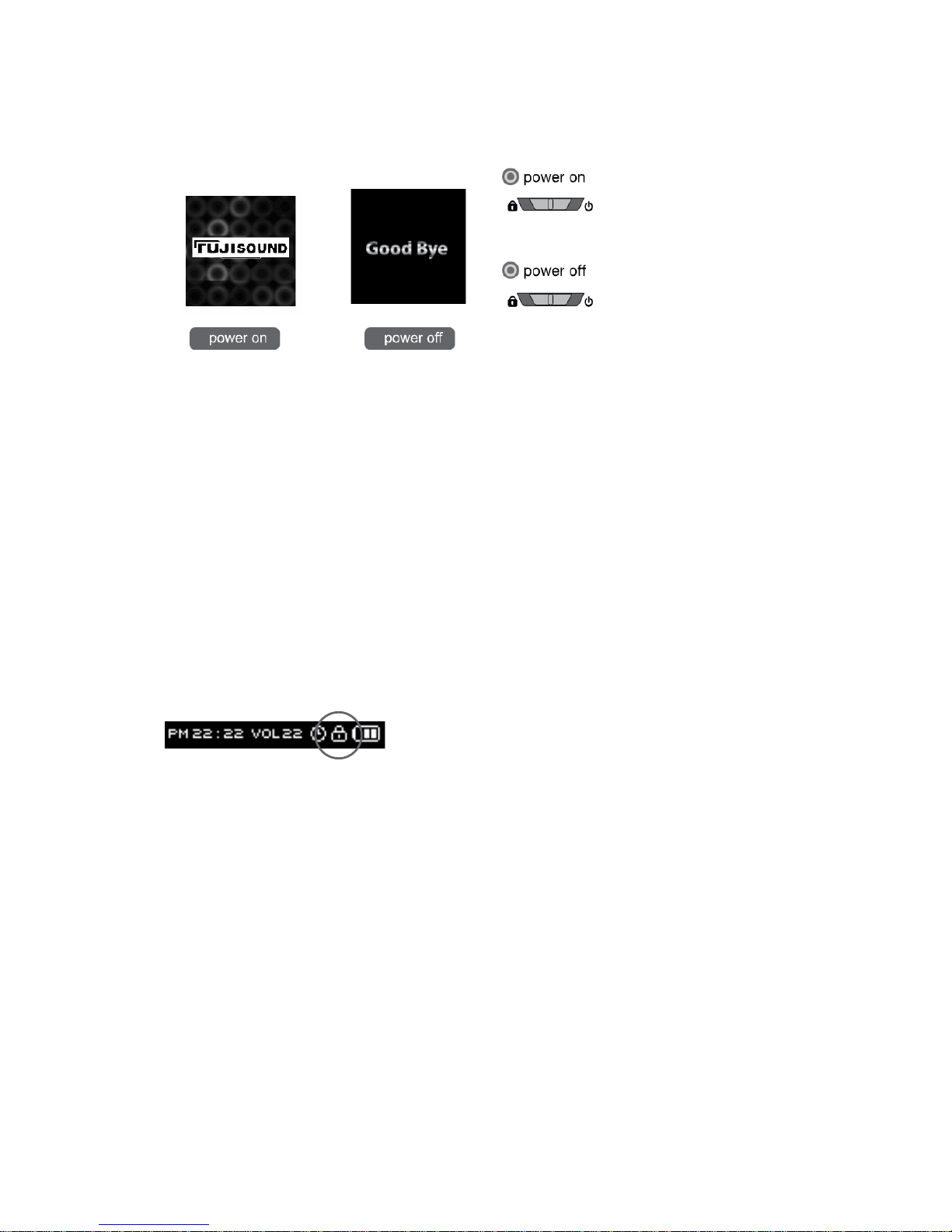

Turning power on/off
Power on : Slide right to turn on the power
Power off : Slide right and hold for one second or longer to turn off
※ If there is no button operation in paused condition for a set period of time, the power
will automatically be turned off. You can adjust the time the power is turned off. ▶
Page 32
Lock function
Slide left to the lock icon. The lock icon is displayed as shown at the below figure and
any button press does not operate.
Slide the button to the center to release the lock condition.
The lock icon disappears from the screen and the lock function is released.
Basic functionality
Menu switching
Press [∧∨<>] button at the main menu to go to the desired menu, and then [>|] button
to go to the related menu.
Press [M] button while listening to music, viewing video, photo or text file to move by
the order of [File search] - [Main menu] - [Current menu].
Basic functionality

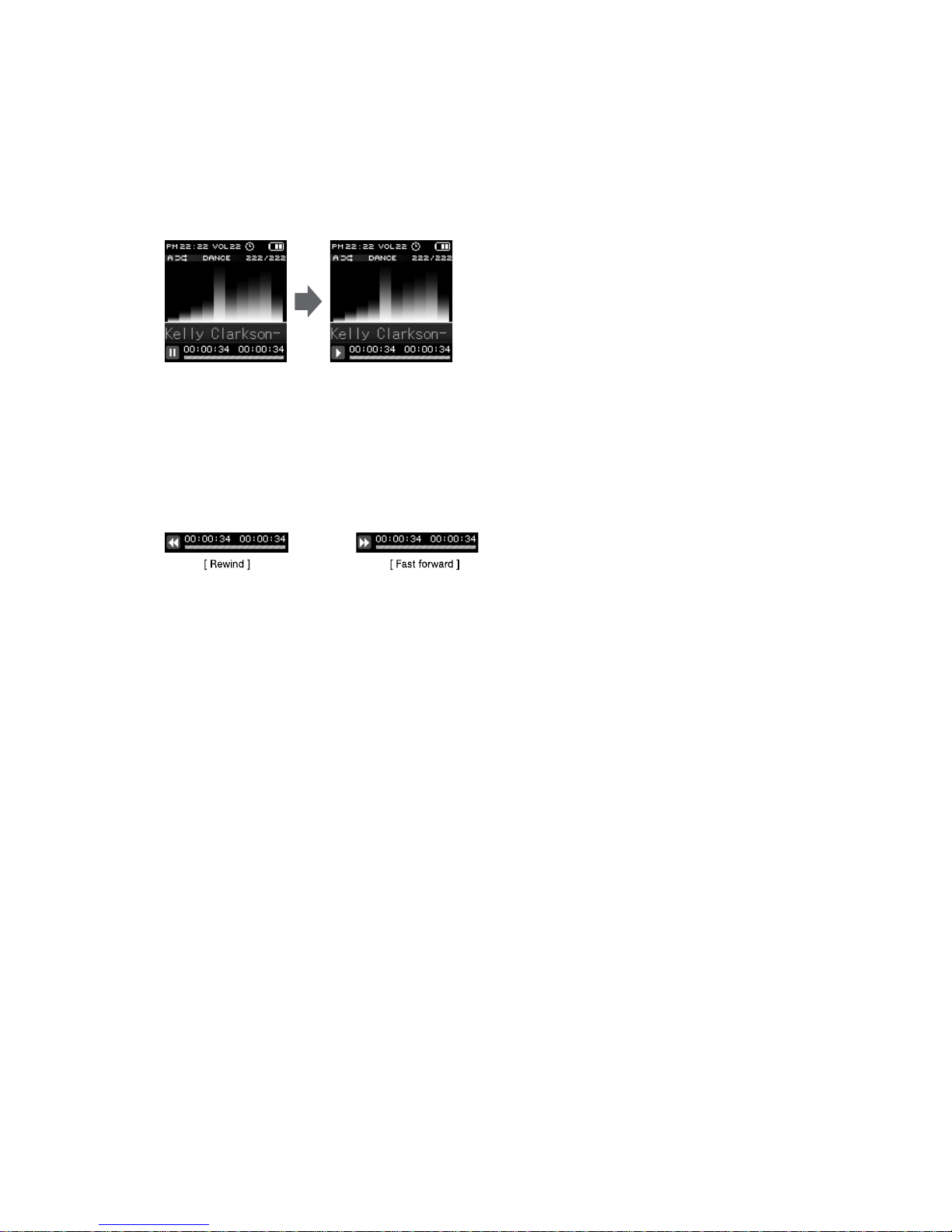

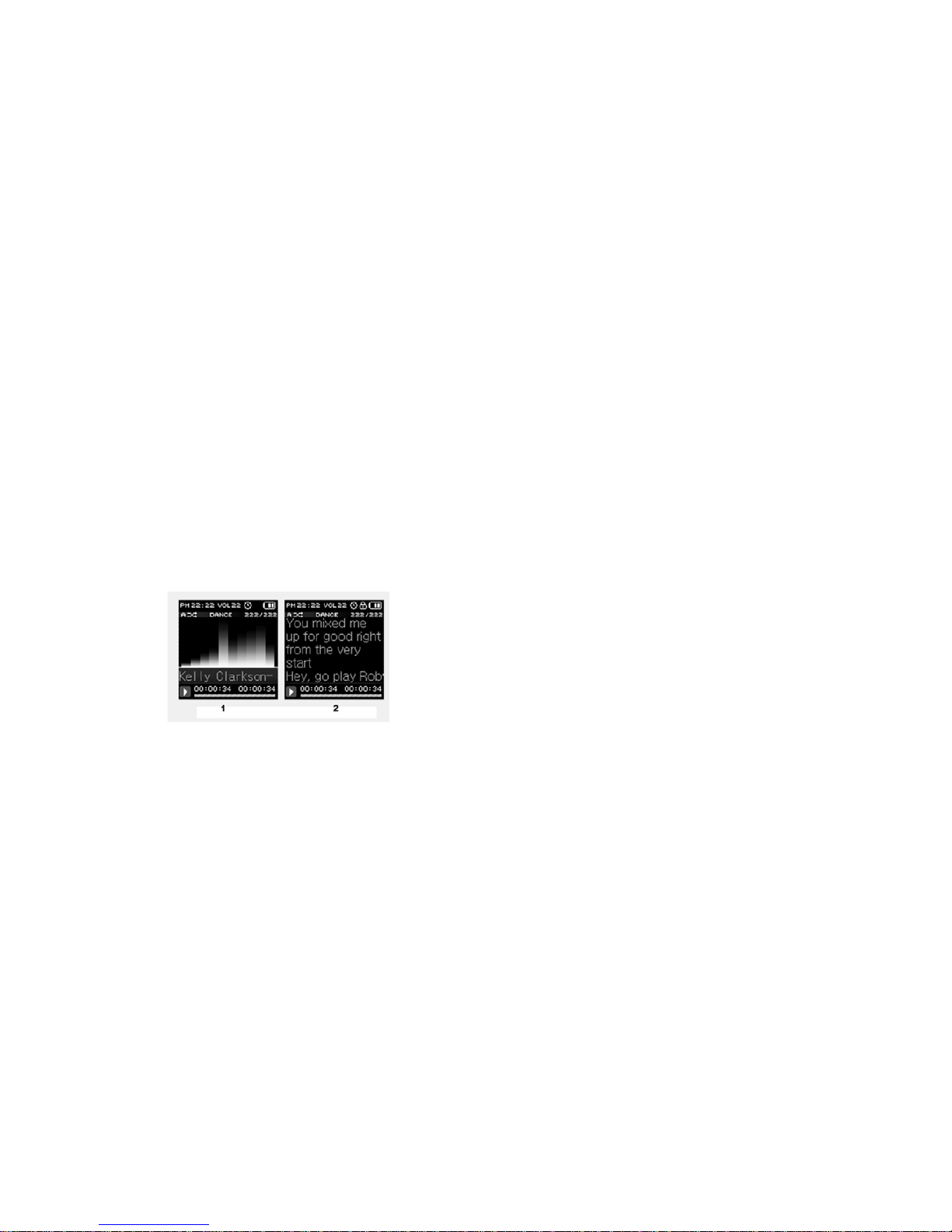

Listening to music
Playing
Press [>|] button while playing music to pause.
Press [>|] button again to play music.
Fast forward/Rewind
When you press and hold [<>] button while the current music is playing, the status icon
is changed and it quickly moves to the beginning/end of the music. (Normally resumed
at the point where the button is released)
When the beginning or the end of the music is passed while searching, it moves to the
previous/next music.
Moving to the previous/next music
When you press [<] button 5 seconds after the current music starts playing, it again
plays from the beginning of the music.
When you press [<] button 5 seconds within the current music starts playing, it moves
to the previous music to play.
Press [>] button to moves to the next music to play.
Basic functionality
Listening to music
Playing the repeat
It is used to repeat the desired section while playing.
- When you press [A-B] button at the point to repeat, [A-] is displayed at the play
icon of the top.
When you shortly press [A-B] button at the end point to repeat, the play icon at the
top is switched to [A-B].
At this time, the set section is repeated.
- With the repeat set, press [A-B] button to release the repeat.
Play list
You can select desired music to make My play list.
- When you press [A-B] button at File search mode, the file icon is changed and the
file is added to the play list.
- Press and hold [>] button to switch to the play list mode.
- After selecting a file from the play list, press [A-B] button to delete it.
- Press and hold [ >] button to switch to the File search mode.
1/ normal file
2/ file with lyric
When music starts playing, the album name of the file with the lyrics disappears and the
music lyric is displayed. Only lrc files are supported as lyric files.
Basic functionality
Viewing video
OLED screen composition
1/ Play status
2/ Play time of current video
3/ Play bar
4/ Current video time lenght
Playing
Press [>|] button at Video mode to play the video.
When you press [>|] button again, the status icon is displayed and playing is paused.
