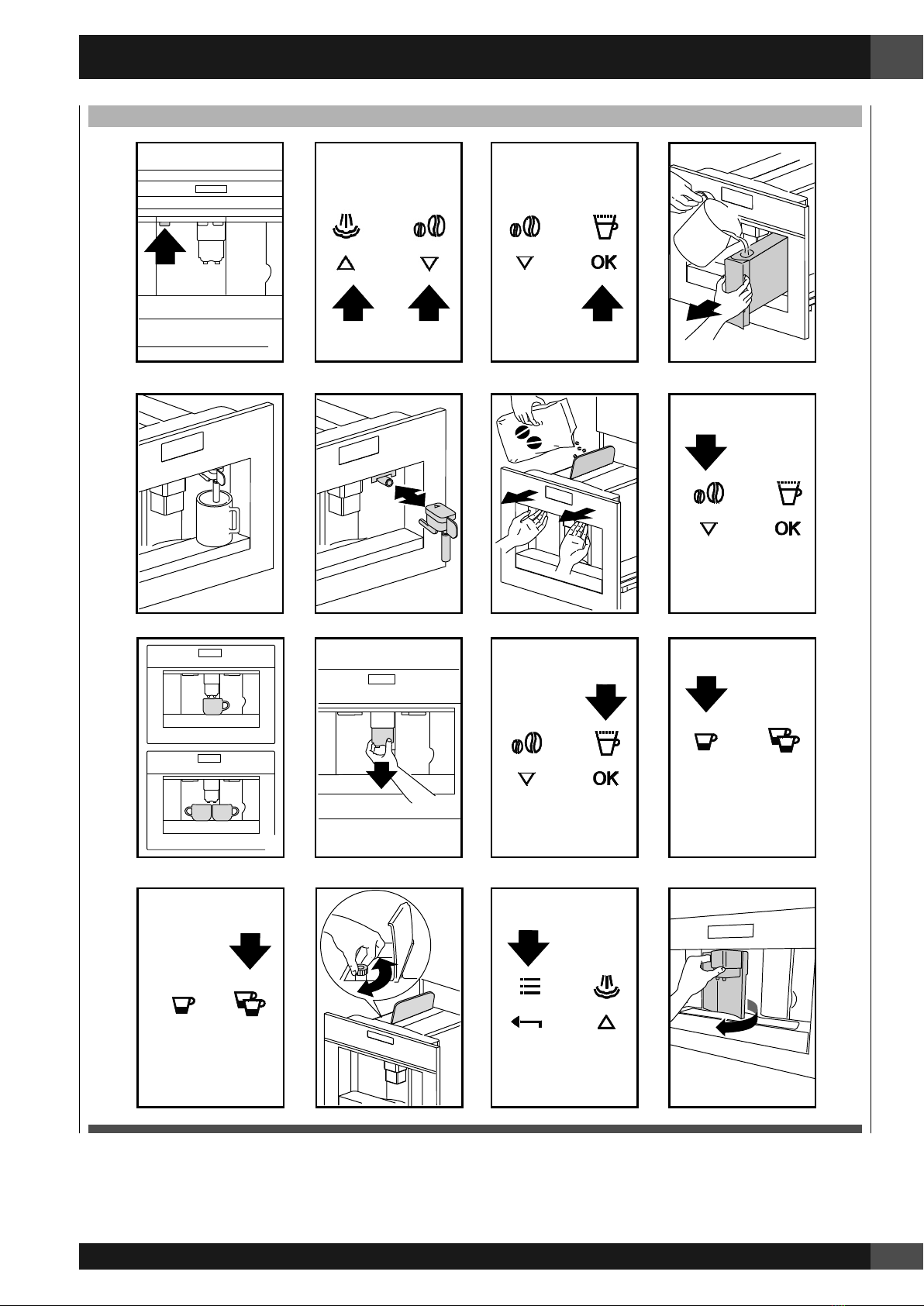

Fulgor Milano SOFIA PRO F7BC24 1 Series Quick start guide

F7BC24*1
EN INSTALLATION, USE & MAINTENANCE MANUAL
FR MANUEL D’INSTALLATION, UTILISATION ET
ENTRETIEN
ES MANUAL DE INSTALACIÓN, USO Y MANTENIMIENTO
AUTOMATIC ESPRESSO
COFFEE MAKER
MACHINE A CAFÉ
ESPRESSO AUTOMATIQUE
CAFETERA EXPRÉS
AUTOMÁTICA

EN
1
INDEX PAG.
1 - Introduction 2
Symbols used in these instructions 2
Letters in brackets 2
Troubleshooting and repairs 2
2 - Safety 3
Fundamental safety warnings 3
Important safeguards 3
Save these instructions 5
Designated use 6
Instructions 6
Cleaning and maintenance of materials in
contact with food 6
Installing the appliance 6
Connecting the appliance 6
3 - Built-in installation 7
4 - Description 9
Description of the appliance 10
Description of the control panel 10
Description of milk container and
accessories 10
5 - Using the appliance for the first time 13
6 - Turning on and heating up 14
7 - Making coffee using coffee beans 15
8 - Changing the quantity of coffee in the cup 16
9 - Adjusting the coffee mill 16
10 - Preparing coffee with pre-ground coffee
(instead of beans) 17
11 - Delivering hot water 17
12 - Rinse function 17
13 - Changing the quantity of hot water 17
14 - Making cappuccino 18
INDEX PAG.
15 - Changing the quantity of coffee and milk for
cappuccino 19
Changing the quantity of milk 19
Changing the quantity of coffee 19
16 - Cleaning 20
Cleaning the coffee maker 20
Cleaning the waste coffee container 20
Cleaning the drip tray 20
Cleaning the water tank 20
Cleaning the spouts 20
Cleaning the pre-ground coffee funnel 20
Cleaning the inside of the coffee maker 20
Cleaning the brewing unit 21
Cleaning the milk container 21
17 - Changing and setting menu parameters 23
Setting the language 23
Changing the length of time the appliance
remains on 23
Setting the clock 23
Setting auto-start time 23
Changing coffee temperature 23
Setting water hardness 24
Programming coffee 24
Programming cappuccino 24
Programming water 24
Descaling 24
Resetting default values (reset) 25
Statistics 25
Buzzer 25
Adjusting contrast 25
18 - Turning the appliance off 26
19 - Technical specification 26
20 - Displayed Messages 27
21 - Turning the appliance off 28

EN
2
1 - Introduction
Symbols used in these instructions
Important warnings are identified by these symbols. It
is vital to respect these warnings. Failure to observe the
instructions could result in electric shock, serious injury,
burns, fire or damage to the appliance.
DANGER!
Failure to observe the warning could result in possibly life
threatening injury from electric shock.
IMPORTANT!
Failure to observe the warning could result in injury or
damage to the appliance.
DANGER OF BURNS!
Failure to observe the warning could result in scalds or
burns.
N.B.!
This symbol identifies important advice or information for
the user.
Letters in brackets
The letters in brackets refer to the legend in the Description
of the Appliance.
Troubleshooting and repairs
In the event of problems, follow the information given in the
sections “Displayed messages” and “Troubleshooting”.
If this does not resolve the problem, you should consult
Customer Services. For repairs, contact Customer Services
only.

EN
3
2 - Safety
Fundamental safety warnings
The appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
Designated use: this appliance is designed and
made to prepare coffee and milk based beverages
and hot water. Any other use is considered improper
and thus dangerous. The manufacturer is not liable
for damage deriving from improper use of the
appliance.
The surface of the heating element remains hot after
use and the outside of the appliance may retain the
heat for several minutes depending on use.
Clean all the components thoroughly, taking
particular care with parts in contact with the coffee
and milk.
Cleaning and user maintenance shall not be made
by children without supervision.
Never immerse the appliance in water.
CAUTION!
To prevent damage to the appliance do not use
alkaline cleaning agents when cleaning, use a
soft cloth and a mild detergent.
This is an household appliance only. It is not intended
to be used in: staff kitchen areas in shops, offices
and other working environments; farm houses; by
clients in hotels, motels and other residential type
environments; bed and breakfast type environments.
If the plug or power cable is damaged, it must be
replaced by customer services only to avoid all risk.
Appliances with removable cord: avoid splashes of
water on the power cord connector or socket at the
back of the appliance.
WARNING!
Models with glass surfaces: do not use the
appliance if the surface is cracked.
Important safeguards
When using electrical appliances, basic safety
precautions should always be followed, including
the following.
Read all instructions before installation or use of the
coffee system.
Please read these instructions carefully to prevent
accidents and machine damage.
This appliances is for household use only, to
prepare espresso, cappuccino and coffee. Do not
use appliance other than for its intended use. Any
other use could be dangerous. The manufacturer
cannot be held responsible for damage caused by
improrer use of the appliance.
Electrical safety
• Before connecting the appliance to the electrical
supply make sure that the voltage and frequency
listed on the data plate correspond with the
household electrical supply. If in doubt, consult a
qualified technician.
• The appliance must be properly installed before
operation to ensure that no electrical components
are accessible. Ensure that power is not supplied
to the appliance while installation work, repairs
or maintenance is performed.
• Be certain your appliance is properly installed and
grounded by a qualified technician. To guarantee
the electrical safety of this appliance, continuity
must exist between the appliance and effective
grounding system. It is imperative that this basic
safety requirement be met. If there is any doubt,
have the electrical system of the house checked by
a qualified electrician. The manufacturer cannot
be held responsible for damages caused by the
lack, or inadequacy, of an effective grounding
system.
• Do not use an extension cord to connect the
appliance to electricity. Extension cord doesn’t
guarantee the required safety of the appliance
(danger of overheating).
• Before service or maintenance disconnect the
power supply by either switching off the main
swich and unplugging the unit.
• Install or locate this appliance only in accordance
with the provided installation instructions.
• Installation work and repairs must be only
performed by a trained technician in accordance
with national and local safety regulations. Repairs
and other work by unauthorized persons could be
dangerous and may void the warranty.

EN
4
• Only use original spare parts. Only then can the
manufacturer guarantee the safety of this machine.
• Never open the outer casing of the appliance.
Tampering with electrical connections or
components and mechanical parts is dangerous
and may cause machine damage.
• If the machine is installed in combination with
other appliances, a protective base should be
installed between the appliance and the unit.
• Do not install or use outdoors even if installed in
the display cabinet.
• To protect against fire, electric shock and injury
to persons do not submerge the cord or plugs in
water or other liquids.
• To reduce the risk of injury, do not drape cord over
the counter top or table top where it can be pulled
on by children or tripped over unintentionally.
• Do not let the cord hang over the edge of a table
or counter, or touch hot surfaces.
• Do not operate any appliance with a damaged
cord or plug, or after the appliance malfunctions
or has been damaged in any manner.
• Return appliance to an authorized service faciliy
for examination, repair or adjustement.
• To disconnect turn the machine off, switch off the
main switch then remove the plug from the wall
outlet.
Use
The coffee system must be maintained daily to
prevent the growth of harmful bacteria and mold.
Please read the Cleaning section of the booklet.
IMPORTANT!
Do not look directly or with an optical instrument
into the lighting.
DANGER OF BURNS!
Risk of burns when dispensing hot beverages,
they are extremely hot.
• Persons which lack physical, sensory or mental
abilities or experience with the machine should
not use it without supervision or instruction by a
responsible person.
• Close supervision is necessary when any
appliance is used by or near children.
• Do not touch hot surfaces. Use handles or knobs.
• To avoid injuries allow the coffee system to cool
before cleaning or putting on and taking off parts.
Turn the machine off at the main switch when not
in use and before cleaning.
• Only fill the water tank with cold, fresh tap water.
Warm or hot water, or any other liquids may
damage the machine.
• The water should be changed daily to prevent
bacteria or mold growth.
• Do not use mineral water. Mineral water leads to
heavy calcium buildup in the machine that can
damage the unit.
• Do not fill anything but coffee beans into the beans
container. Do not fill ground coffee in the beans
container, it will damage the grinding unit.
• Sugar can damage the appliance! Caramelized
or otherwise pre-treated coffee beans or other
sugar containing beverages must not be put in the
machine.
• Never place a cup with an alcohol-coffee mixture
underneath the coffee dispenser. Plastic parts of
the unit could catch fire!
• The hot water and steam dispensed could cause
scalding. These functions must be used carefully.
Never hold any parts of the body under the steam
nozzle or the hot water dispenser. The machine
must never be used to clean objects.
• Never use a steam cleaner to clean the appliance.
Pressurized steam could damage electrical
components and cause a short circuit.
• The appliances must be descaled regularly with
the supplied descaling tablets. In areas with very
hard water the machine may need to be descaled
more often. The manufacturer cannot be held
responsible for damages resulting from insufficient
descaling.
• Only use the descaling tablets. Take care to use the
correct mixture of water and descaler, otherwise it
may cause damage.
• Never make coffee, hot water or steam when the
appliance is extracted. Always make sure the
appliance is inactive before extracting it. Failure
to observe this precaution could lead to damage to
the appliance! The only exception is adjusting the
coffee mill which must be done with the machine
out (see the section “Adjusting the coffee mill”).
• Do not place on or near a hot gas or electric
burner, or in a heated oven.

EN
5
Save these instructions
THIS APPLIANCES IS FOR HOUSEHOLD USE ONLY
IMPORTANT!
Do not allow children and animals to stop or
linger near the appliance when it is pulled out of
the cabinet.
Do not leave the machine pulled out of the cabinet
when it is being used.
Do not leave the machine pulled out of the cabinet
when it is not needed.
Install the machine according to the instructions
in the handbook to guarantee there are no spills
when it is pulled out from the cabinet.
The rail fixing panel must have a thickness suited to
the fixing screws provided.
The panel material must be suited to the machine
weight of approximately 55lb (25kg).
WARNING!
Surfaces marked with this symbol become hot
during use (the symbol is present in certain models
only).
DANGER!
This is an electrical appliance, it is therefore
important to respect the following safety warnings:
• Never touch the appliance with damp hands.
• Never touch the plug with damp hands.
• Make sure the socket used is freely accessible
at all times, enabling the appliance to be
unplugged when necessary.
• Unplug directly from the plug only.
• Never pull the power cable as you could
damage it.
• To disconnect the appliance completely, place
the main switch (A23) on the side of the
appliance in the 0 position.
• If the appliance is faulty, do not attempt to repair.
Turn it off using the main switch (A23), unplug
from the mains socket and contact Customer
Services.
IMPORTANT!
Keep all packaging (plastic bags, polystyrene
foam) away from children.
CHOKING HAZARD
The appliance might contain small parts.
Some of those small parts might be required to get
disassembled during cleaning and maintenance
operations. Handle with care and keep small
parts out of reach of children.
DANGER OF BURNS!
This appliance produces hot water and steam
may form while it is in operation.
Avoid contact with splashes of water or hot steam.
Use knobs and handles.
IMPORTANT!
Do not grasp the coffee maker when it is out of
the cabinet.
Do not rest recipients containing liquids or
inflammable or corrosive materials on top of the
appliance. Place the accessories required to make
the coffee (the measure for example) in the special
holder.
Do not rest large objects which could obstruct
movement or unstable objects on the appliance.
Do not allow children and animals to stop or
linger near the appliance when it is pulled out of
the cabinet.
Do not leave the machine pulled out of the cabinet
when it is being used.
Do not leave the machine pulled out of the cabinet
when it is not needed.
Install the machine according to the instructions
in the handbook to guarantee there are no spills
when it is pulled out from the cabinet.
IMPORTANT!
Do not use the appliance when extracted. Make
sure the appliance is inactive before extracting it.
The only exception is adjusting the coffee mill
which must be done with the machine out (see the
section “Adjusting the coffee mill”).

EN
6
N.B.:
Use original or manufacturer recommended
accessories and spare parts only.
Designated use
This appliance is designed and made to prepare
coffee and heat drinks.
All other use is considered improper.
This appliance is not suitable for commercial use.
The manufacturer is not liable for damage deriving
from improper use of the appliance. This appliance
can be installed over a built-in oven if the latter
is fitted with a cooling fan at the rear (maximum
microwave power: 3 kW).
Instructions
Read these instructions carefully before using the
appliance.
• Keep these instructions
• Failure to respect these instructions may result
in burns or damage to the appliance. The
manufacturer is not liable for damage deriving
from failure to respect these instructions.
N.B.!
The appliance has a cooling fan.
This comes on whenever coffee, steam or hot
water is delivered.
Afterseveralminutes,thefangoesoffautomatically.
Cleaningandmaintenanceofmaterialsincontact
with food
• The first time you use the appliance, or if it is not
used for more than 3 or 4 days, rinse all removable
accessories which may come into contact with
water or milk with hot water.
• If the appliance is not used for more than 3 or
4 days, before making the first beverage, rinse
the water circuit as described in this Instruction
for Use.
• You should carry out automatic cleaning and
guided maintenance scrupulously when proposed
by the appliance through the display or the lights
described in the manual.
Installing the appliance
IMPORTANT!
• Installationmustbe performed by a qualified professional
in compliance with legislation in force in the country of
installation (see section “Built-in installation”).
• The packing elements (plastic bags, polystyrene foam,
etc.) should be kept out of reach of children.
• Never install the appliance in rooms where the
temperature may drop to 0°C or lower.
• Customise the water hardness as soon as possible
following the instructions in the “Water hardness”
section.
Connecting the appliance
DANGER!
Check that the mains power supply voltage corresponds
to the value indicated on the rating plate on the side of
the appliance.
Connect the appliance to an efficiently earthed and
correctly installed socket with a minimum current rating
of 10A only.
If the power socket does not match the plug on the
appliance, have the socket replaced with a suitable
type by a qualified professional. To comply with safety
directives, an omnipolar switch with a minimum contact
distance of 3 mm must be installed.
Do not use multiple sockets or extensions.
IMPORTANT!
Safety cutout devices must be included in the mains power
supply in compliance with the installation regulations in
the country concerned.

EN
7
3 - Built-in installation
Verify the minimum measurements required for correct
installation of the appliance. The coffee machine must be
installed in a column and the column must be firmly fixed to
the wall with commercially available brackets.
IMPORTANT!
• Important: all installation or maintenance operations
must be performed with the appliance disconnected
from the mains electricity supply.
• Kitchen furniture in direct contact with the appliance
must be heat resistant (65°C min).
• To guarantee correct ventilation, leave a gap at the
bottom of the cabinet (see measurements in figure 1).
• Position the rails on the sides of the cabinet as shown in
the figure 2. Fix with the screws provided, then extract
them completely. If the coffee machine is installed over
a warmer drawer, use the top surface of this as a
reference to position the rails. In this case, there will be
no surface to rest the rails on.
IMPORTANT!
• Fix the power cable with the clip (fig. 3). The power
cable must be long enough to allow the appliance
to be extracted from the cabinet to fill the coffee
bean container. The appliance must be earthed in
compliance with legislation. Electrical connections must
be performed by a qualified electrician following the
instructions.
• Position the appliance on the rails, making sure the pins
are correctly inserted in the housings, then fix it with the
screws supplied (fig. 4). If the height of the appliance
requires adjusting, use the spacer disks provided.
• If necessary, correct alignment of the appliance by
positioning the spacers supplied under or at the sides of
the support (fig. 5).
• The rail fixing panel must have a thickness suited to the
fixing screws provided.
• The panel material must be suited to the machine weight
of approximately 25kg.

EN
8
Figure 1
mm554-054
17.7-17.9 in
594-597 mm
23.3-23.5 in
19-22 mm
0.7-0.8 in
361 mm
17.7 in
528 mm
21.4 in
mm273
16.8 in
45 mm
1.7 in
1.7 in
1.7 in
1.7 in
45 mm
45 mm
45 mm
niMmm058
33.4 in Min
500 mm
19.6 in
545 mm Min.
21.4 in Min.
560 + 8 mm
22 + 0.3 in
mm2+054
17.7+0.07 in
Figure 2
x 16 x 2
Figure 3
approx. 350 mm
x 1
Figure 4
x 4 x 8
Figure 5
x 4
560 + 1 mm
min. 5 mm

EN
9
4 - Description
A
A18
A20
A17
A16
A15
A19
A21
A22
A23
A1A2
A3 A4 A5
A12
A13
A14
A8 A10A7 A6
A9
B
B1
B2 B3 B4 B5
B6 B7 B8 B9
B10 B11 B12 B13
C
C7
C6
C1
C3
C2
C5
C4

EN
10
Description of the appliance
(page 9 - A)
A1. Cup tray
A2. Service door
A3. Coffee guide
A4. Waste coffee container
A5. Brewing unit
A6. Cup tray lights
A7. On/OFF/stand-by button
A8. Control panel
A9. Tray
A10. Hot water and steam nozzle
A12. Water tank
A13. Coffee spout (adjustable height)
A14. Drip tray
A15. Bean container lid
A16. Bean container
A17. Grinding adjustment knob
A18. Pre-ground coffee funnel door
A19. Measure
A20. Compartment for measure
A21. Pre-ground coffee funnel
A22. Power cable
A23. Main switch
Description of the control panel
N.B.!
A light touch is enough to activate the icon.
B1. Display: guides the user in using the appliance.
B2. icon to activate or deactivate menu parameter
setting mode
B3. “Rinse” function
B4.
icon to select the coffee taste
B5. icon to select the type of coffee (espresso, small
cup, medium cup, large cup, mug)
B6. icon to exit the selected mode
B7-B8. icons to scroll forwards or backwards through
the menu and display the various modes
B9. OK icon to confirm the selected function
B10. icon to deliver a cup of coffee
B11. icon to deliver two cups of coffee
B12. icon to deliver cappuccino
B13. icon to deliver hot water
Description of milk container and accessories
(page 9 - C)
C1. Frothed milk regulator
C2. Milk container handle
C3. CLEAN button
C4. Milk intake tube
C5. Frothed milk spout
C6. Milk frother
C7. Hot water spout

EN
11
Figures
1 4
5678
23
2
1
01112
13 14 16
15
91

EN
12
Figures
17 1 8
22
19 20
24
21 23
22
1
27 28
25 26
3129 30

EN
13
5 - Using the appliance for the first time
• Coffee has been used to factory test the appliance and
it is therefore completely normal for there to be traces of
coffee in the mill.
• Customise water hardness as soon as possible following
the instructions in the “Setting water hardness” section.
1 Connect the appliance to the mains supply.
Set the required language.
2 To set the language, use the icons (B7 and B8) to
choose the required language (fig. 2). When the message
“PRESS OK TO CHOOSE ENGLISH” is displayed, press
the OK icon (B9) (fig. 3) for 3 seconds until “ENGLISH
INSTALLED” is displayed. If you set the wrong language,
follow the instructions in the “Setting the language”
section.
If your language is not available, select one from those
displayed. The instructions refer to the English version.
Then follow the instructions displayed:
3 After 5 seconds, the appliance displays “FILL TANK”.
Extract the water tank (fig. 4), rinse and fill with fresh
water without exceeding the MAX line. Replace and push
as far as it will go.
4 Place a cup under the hot water spout (fig. 5). (If the
hot water spout is not inserted, the appliance displays
“INSERT WATER SPOUT”. Attach it as shown in figure 6.
The appliance displays: “HOT WATER PRESS OK”.
Press the OK icon (B9) (fig. 3) and after a few seconds a
little water comes out of the spout.
5 The machine now displays “TURNING OFF... PLEASE
WAIT” and goes off.
6 Extract the appliance by pulling it out using the handles
(fig. 7). Open the lid and fill the container with coffee
beans, then close the lid and push the appliance in.
The coffee maker is now ready for normal use.
IMPORTANT!
Never introduce pre-ground coffee, freeze dried coffee,
caramelised beans or anything else which could damage
the appliance.
N.B.!
When using the appliance for the first time, you need to
make 4-5 cups of coffee and 4-5 cappuccinos before the
appliance gives satisfactory results.
N.B.!
Each time you turn the coffee maker on by the ON/OFF
switch (A23), it performs a SELF-DIAGNOSIS cycle and
then goes off. To turn it on again, press the ON/OFF/
STAND BY button (A7) (fig. 1)

EN
14
6 - Turning on and heating up
Each time the appliance is turned on, it performs an automatic
preheat and rinse cycle which cannot be interrupted. The
appliance is ready for use only after completion of this cycle.
DANGER OF BURNS!
During rinsing, a little hot water flows from the coffee
spouts.
To turn the appliance on, press the ON/OFF/stand-by
button (A7) (fig. 1). The message “HEATING UP... PLEASE
WAIT” is displayed.
When heating is complete, the message changes to
“RINSING”;
The appliance is at temperature when the message
“MEDIUM CUP NORMAL TASTE” is displayed.
If no icon is pressed within about 2 minutes, the time (if set,
see the “Setting the clock” section) is displayed.
If the time has not been set, the appliance displays the last
functions set.
When any icon is pressed, “MEDIUM CUP NORMAL
TASTE” is displayed again. The appliance is ready to make
coffee again.

EN
15
7 - Making coffee using coffee beans
1 The appliance is preset to make coffee with a normal
taste. You can also choose coffee with an extra-mild,
mild, strong or extra-strong taste. There is also a pre-
ground coffee option. To choose the required taste, press
the icon (B4) (fig. 8) a number of times. The required
coffee taste is displayed.
2 Place 1 cup under the spouts to make 1 coffee (fig. 9) or
2 cups for 2 coffees (fig. 9). Lower the spouts as near as
possible to the cup for a creamier coffee (fig. 10).
3 Press the (B5) icon (B5) (fig. 11) to select the type of
coffee: espresso, small cup, medium cup, large cup, mug.
Now press the (icon (B10) (fig. 12) if you want to make
a coffee and the icon (B11) (fig. 13) if you want to
make 2 coffees. The appliance now grinds the beans and
starts delivering the coffee into the cup.
Once the set amount of coffee has been delivered, the
machine stops delivery automatically and expels the
exhausted waste coffee into the waste coffee container.
4 After a few seconds, the appliance is ready for use again.
5 To turn the appliance off, press the ON/OFF/stand-by
button (A7) (fig. 1). (Before going off, the appliance
performs an automatic rinse cycle. Take care to avoid
scalds).
NOTE 1: If the coffee is delivered a drop at a time or not at
all, see the “Adjusting the coffee mill” section.
NOTE 2: If the coffee is delivered too fast and the cream
is not satisfactory, see the “Adjusting the coffee
mill” section.
NOTE 3: Tips for a hotter coffee:
• Proceed as described in the section “Changing and
setting menu parameters”, “Rinse” function.
• Unless preheated, do not use excessively thick cups as
they will absorb too much heat.
• Preheat the cups by rinsing them with hot water.
NOTE 4: Coffee delivery can be interrupted at any moment
by re-pressing the previously selected icon which
remains lit during the operation.
NOTE 5: As soon as delivery is finished, to increase the
quantity of coffee in the cup, just keep pressing
the previously selected icon within 3 seconds
after delivery has finished.
NOTE 6: When the appliance displays “FILL TANK”, fill the
tank with water or the appliance will not deliver
coffee. (It is normal for there to be a little water
left in the tank).
NOTE 7: After about 14 single (or 7 double) coffees, the
appliance displays “EMPTY WASTE COFFEE
CONTAINER”.
Even if not full, the empty waste coffee container message is
displayed 72 hours after the first coffee has been delivered.
For the 72 hours to be calculated correctly, the machine must
never be turned off with the main switch in the 0 position.
To clean, open the service door on the front of the appliance
by pulling the spout (fig. 16), extract the drip tray (fig. 17)
and clean.
When cleaning, always extract the drip tray completely.
IMPORTANT!
When extracting the drip tray, the waste coffee container
MUST always be emptied.
If this is not done, the machine may be clogged.
NOTE 8: Never extract the water tank while the machine is
delivering coffee.
If it is removed, it will not be possible to make the
coffee and the appliance will display “GROUND
TOO FINE ADJUST MILL AND PRESS OK” and
then “FILL TANK”. Check the level of water in the
tank and replace in the appliance.
To turn the appliance back on, insert the water
spout if not already in place (fig. 6), then press
the OK icon (B9). “HOT WATER PRESS OK” is
displayed.
Press the OK icon (B9) within a few seconds
and deliver water from the spout for about 30
seconds. When delivery stops, the basic modes
are displayed again.
N.B.:
The coffee maker may request the operation to be repeated
a number of times until the air is completely elminated
from the hydraulic circuit.
N.B.:
if this operation is not performed correctly or if the machine
is turned off, the basic modes may be displayed, although
the problem is in fact still present.

EN
16
8 - Changing the quantity of coffee in the cup
9 - Adjusting the coffee mill
The appliance is set by default to automatically make the
following types of coffee:
• espresso
• small cup
• medium cup
• large cup
• mug
To change the quantity, proceed as follows:
• Press the icon (B2) to enter the menu (fig. 15). Press
the icons (B7) and (B8) (fig. 2) until “PROGRAM
COFFEE” is displayed.
• Press the OK icon (B9).
• Select the type of coffee you want to change by pressing
the icons (B7) and (B8).
• Press the OK icon (B9) to confirm the type of coffee you
want to make.
• Use the icons (B7) and (B8) to change the quantity
of coffee. The progress bar shows the quantity of coffee
selected.
• Press the OK icon (B9) again to confirm (or the icon (B6)
to cancel the operation).
• Press the (B6) icon (B6) (fig. 18) twice to exit the menu.
The appliance is now reprogrammed with the new settings
and is ready.
The coffee mill is preset in the factory and should not require
adjusting. However, if after making the first few coffees you
find that delivery is either too fast or too slow (a drop at
a time), this can be corrected by adjusting the grinding
adjustment knob (fig. 14).
IMPORTANT!
The grinding adjustment knob must only be turned when
the coffee mill is in operation. For slower delivery and creamier coffee, turn one click
anticlockwise (finer pre-ground coffee).
For faster delivery (not a drop at a time), turn one click
clockwise (coarser pre-ground coffee).

EN
17
10 - Preparing coffee with pre-ground coffee (instead of beans)
11 - Delivering hot water
12 - Rinse function
13 - Changing the quantity of hot water
• Press the (B4) icon (B4) (fig. 8) and select the pre-
ground coffee function.
• Extract the machine by pulling it outwards using the
handles (fig. 7).
• Lift the central lid, place one measure of pre-ground coffee
in the funnel (fig. 19), push the appliance in then proceed
as described in the section “Making coffee using coffee
beans”.
N.B.: You can make just one coffee at a time by pressing
the icon (B10) (fig. 12).
• After using the machine with pre-ground coffee, to go
back to making coffee using beans, deactivate the pre-
ground coffee function by pressing the icon (B4) (fig.
8).
NOTE 1: Never introduce pre-ground coffee when the
machine is off or it could spread through the
inside of the appliance.
NOTE 2: Never add more than 1 measure, otherwise the
appliance will not make the coffee.
NOTE 3: Use the measure provided only.
NOTE 4: Introduce only pre-ground coffee for espresso
coffee machines into the funnel.
NOTE 5: If more than one measure of pre-ground coffee is
used and the funnel clogs, push the coffee down
with a knife (fig. 21) then remove and clean the
brewing unit and machine as described in the
“Cleaning the brewing unit” section.
• Always make sure the appliance is ready.
• Place a container under the hot water spout (fig. 5).
• Press the icon (B13) (fig. 20). The appliance displays:
“HOT WATER PRESS OK”. Press the OK icon (B9) again
and hot water is delivered from the cappuccino maker
into the container underneath. (You should not deliver hot
water for more than 2 minutes at a time). To interrupt,
press the icon (B13) or the icon (B6).
The appliance stops delivery once the set quantity is
reached.
Press the button (B3) to start the “rinse” function. Press the
key (B6) to cancel the function at any time.
The machine is set by default to automatically delivery 200
ml of hot water.
To change these quantities, proceed as follows:
• Place a container underneath the cappuccino maker (fig.
5).
• Press the (B2) to enter the menu (fig. 15) or press the
icons (B7) and (B8) (fig. 2) until “PROGRAM HOT
WATER” is displayed.
• Press the OK icon (B9) to confirm.
• Select the required quantity of water by pressing the
icons (B7) and (B8). The progress bar shows the quantity
of water selected.
• Press the OK icon (B9) to confirm (or the icon (B6) to
cancel the operation.
• Press the (B6) icon (B6) (fig. 18) twice to exit the
menu.
• The appliance is now reprogrammed with the new settings
and is ready.

EN
18
14 - Making cappuccino
N.B.:
Set the quantity of coffee you want to use to make the
cappuccino in the “Program cappuccino” function in the
menu.
• Select the taste of the coffee you want to use to make the
cappuccino by pressing the icon (B4).
• Remove the lid of the milk container.
• Fill the container with about 100 grams of milk for each
cappuccino to be prepared (fig. 23). Never exceed the
MAX level (corresponding to about 750 ml) marked on
the container. You should ideally use skimmed or semi-
skimmed milk at refrigerator temperature (about 5°C).
• Make sure the intake tube is correctly inserted in the
rubber washer (fig. 24) then replace the milk container
lid.
• Position the frothed milk regulator (C1) between the words
CAPPUCCINO and CAFFELATTE printed on the milk
container lid. The quantity of froth can be adjusted by
moving the regulator towards the word CAFFELATTE for a
denser froth. Moving it towards the word CAPPUCCINO
obtains a less dense froth.
NO froth
“Denser”froth
frothed milk regulator
“Less dense”froth
• Remove the hot water spout (fig 6) and attach the milk
container to the nozzle (fig. 25).
• Position the milk spout as shown in fig. 26 and then place
a sufficiently large cup under the coffee and milk spouts.
• Press the icon (fig. B12). “CAPPUCCINO...” is
displayed and after a few seconds, frothed milk flows
out of the milk spout into the cup below. (La fuoriuscita
del latte si interrompe automaticamente). (Delivery stops
automatically).
• The appliance delivers coffee.
• The cappuccino is now ready. Sweeten to taste and, if
desired, sprinkle the froth with a little cocoa powder.
NOTE 1: While making cappuccino, the flow of frothed
milk or coffee can be interrupted by pressing the
icon (B12).
NOTE 2: If the milk in the container finishes while delivering
frothed milk, remove the container and add milk.
Reattach and press the (B12) to request a
cappuccino again.
NOTE 3: To ensure the complete cleanliness and hygiene
of the milk frother, always clean the circuits in the
milk container lid after making cappuccino.
“PRESS CLEAN!” flashes on the display.
• Place a recipient under the milk spout (fig. 26).
• Press the CLEAN button on the lid (C3) and hold down for
at least 5 seconds (fig. 26) to start the cleaning function.
The appliance displays the message “CLEANING!” above
a progressive bar. You should not release the CLEAN
button until the bar is complete indicating that cleaning
is concluded. When the CLEAN button is released, the
function stops. After cleaning, remove the milk container
and place in the refrigerator. The milk should not be left
out of the refrigerator for more than 15 minutes.
NOTE 4: To change the quantity of coffee or frothed milk
the appliance delivers automatically into the cup,
proceed as described in the section “Changing
the quantity of coffee and milk for cappuccino”.
