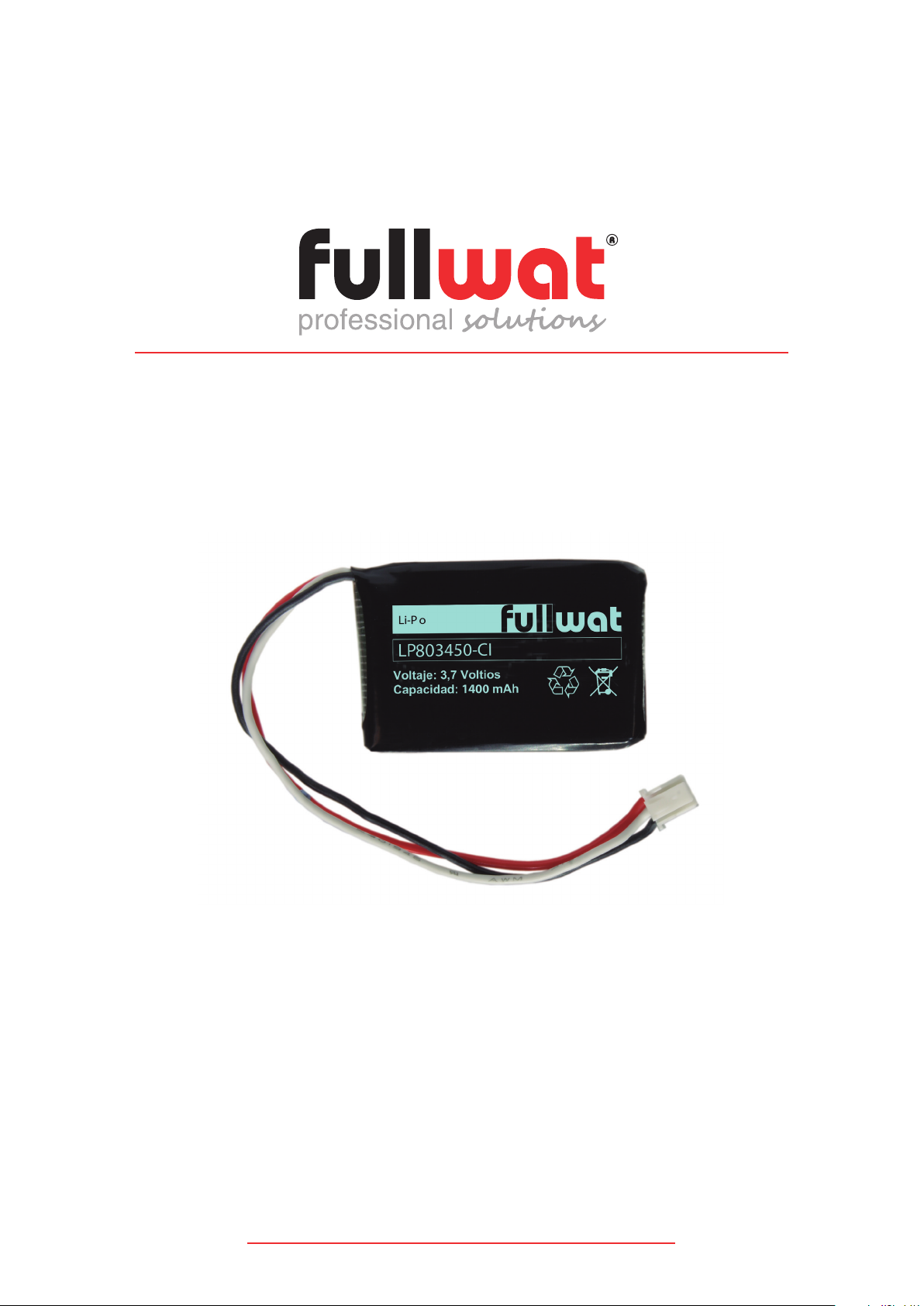

LP803450-CI • Lithium soft bag prismatic cell

www.fullwat.com
LP803450-CI •Polymer Lithium-ion battery
1. Scope
This specication governs the performance of the following FULLWAT Lithium soft bag prismatic cell.
 2.Batteryspecication
Item Parameter Remark
Nominal capacity 1400mAh 0.2C5A discharge, 25°C
Nominal Voltage 3.7V Average Voltage at 0.2C5A discharge
Standard Charge Current 280mA Working Temperature: 0~45°C
Max Charge Current 1400mA Working Temperature: 0~45°C
Charge cut-off Voltage 4.20 ± 0.05V CC/CV
Constant discharge
current
280mA Working Temperature: -10~60°C
Maximum discharge
current
2800mA Working Temperature: -10~60°C
Discharge cut-off Voltage 2.75V
Cell Voltage 3.76~3.9V When leave factory
Impedance ≤35mΩ AC 1KHz after 50% charge 25°C
Weight Approx: 34g
Storage
Temperature
≤1 month -10~45°C
Best 20±5°C for long-time storage
≤3 month 0~30°C
≤6 month 20±5°C
Storage Humidity 65±20% RH

www.fullwat.com
LP803450-CI •Polymer Lithium-ion battery
 3.PCMspecications
Item Item Parameter
Over charge protection Over charge detection voltage 4.325 ± 0.05V
Over charge detection delay time 0.96 ~ 1.4S
Over charge release voltage 4.075 ± 0.025V
Maximum charge current ≤2.5A
Over discharge protection Over discharge detection voltage 2.5 ± 0.05V
Over discharge detection delay time 144 ± 29mS
Over discharge release voltage 2.9 ± 0.05V
Over current protection Over current detection voltage 0.15 ± 0.015V
Over current detection current 2.5 ~ 4.0A
Detection delay time 7.2 ~ 11mS
Relase condition Cut load
Maximum continuous current ≤ 2.5A
Short protection Detection condition Exterior short circuit
Detection delay time 220 ~ 380uS
Relase condition Cut short circuit
Interior resistance Main loop electrify resistance Vc=4.2V; Rss≤70mΩ
Current consuption Current consume in normal
operation
3.5μ A Type 7.0μ A Max
NTC Resistance 10KΩ ± 5%
ß 3435
 4.Generalperformance
Denitionofstandardchargingmethod: At 20±5°C, charging the cell initially with constant current 280mA till
voltage 4.2V, then with constant voltage 4.2V till current declines to 70mA.
Item Testmethods Performance
0.2C Capacity After standard charging, laying the battery 0.5h, then discharging at
0.2C5A to voltage 2.75V, recording the discharging time.
≥300min
1.0 Capacity After standard charging, laying the battery 0.5h, then discharging at
1C5A to voltage 2.75V, recording the discharging time.
≥54min
Cycle life Constant current 1C5A charge to 4.2V, then constant voltage charge
to current declines to 0.05 C5A, stay 5min, constant current 1C5A
discharge to 2.75V, stay 5 min.
Repeat above steps till continuously discharging time less than
36min.
≥300min
Capability
of keeping
electricity
20±5°C, After standard charging, laying the battery 28 days,
discharging at 0.2 C5A to voltage 2.75V, recording the discharging
time.
≥240min

www.fullwat.com
LP803450-CI •Polymer Lithium-ion battery
 5.Safetytest
Testconditions: The following tests must be measured air and safety protection conditions. All batteries must
standard charge and lay 24h.
Item Testmethods Performance
Over charge At 20±5°C, charging batteries with constant current 3C5A to voltage
5V then with constant voltage 5V till current decline to 0. Stop test
till batteries temperature 10°C lower than max temperature.
No explosion
or re
Over
discharge
At 20±5°C, discharge battery with 0.2C5A continuously 12.5h. No explosion
or re
Short circuit At 20±5°C, connect batteries anode and cathode by wire which
impedance less than 50m Ω, keep 6h.
No explosion
or re
Extrusion 20±5°C, put the battery in two parallel steal broad, add pressure
13kN.
No explosion
or re
Thermal
shock
Put the battery in the oven. The temperature of the ovenis to be
raised at 5±1°C per minute to a temperature of 130±2°C and
remains 60 minutes.
No explosion
or re
 6.Schematicbattery
53.5±1
120±1
34±0.5 7.8±0.5
LP603450-CI--DDPP
Voltaje: 3,7 Voltios Capacidad: 1050 mAh
Li-Po
NTC
P
C
M
+
--
+
JST connector
PAP-03V-S
units:mm

www.fullwat.com
LP803450-CI •Polymer Lithium-ion battery
 7.Cautions
Cautionsofbatteriesoperation
The batteries must be careful of proceed the operation for it is soft package.
Aluminumpackingmaterials
The aluminum packing material was easily damaged by the sharp edge part, such as nickel-tabs.
1. Forbid to use the sharp part touching the battery.
2. Should cleaning working condition, avoiding the sharp edge part existence.
3. Forbid to pierce the battery with nail and other sharp items.
4. The battery was forbidden with metal, such as necklace, hairpin etc in transportation and storage.
Sealededge
1. Sealed edge is very easily damaged and don’t bend it.
2. The aluminum interlayer of package has good electric performance. It’s forbidden to connect with exterior
component for preventing short-circuits. (Short the anode and the aluminum interlayer of package will cause
corrosion or swollen of the cell).
Foldingedge
1. The folding edge is formed in batteries processes and passed all hermetic test, don’t open or deform it.
2. The aluminum interlayer of package has good electric performance. It’s forbidden to connect with exterior
component for preventing short-circuits. (Short the anode and the aluminum interlayer of package will cause
corrosion or swollen of the cell).
Tab:ThecathodeisaluminumtabandtheanodeisNickeltab
1. The batteries tabs are not so stubborn specially for aluminum tab. Don’t bend tabs.
2. The tab-tapes are used to isolute. The anode/cathode tabs from aluminum packing materials to prevent short
circuit, so prohibit manicuring of the tab-tapes.
Mechanicalshock
1. Don’t fall, hit, bent the batteries body.
2. Don’t knock on by sinker or trample the batteries.
3. Don’t sling the batteries.
Shortcircuit
Short circuit is strictly prohibited. It should damage batteries badly.
1. Don’t connect the anode and cathode of the batteries to avoid short-circuit.
2. Prohibit short-circuit of the anode (or cathode) and aluminum layer of aluminum packing materials.
Standardtestenvironmentforpolymerlithium-ionbatteries
Environmenttemperature
1 20±5°C
Humidity
1 45~85%

www.fullwat.com
LP803450-CI •Polymer Lithium-ion battery
Cautionsofchargeanddischarge
Charge
Charging current should be lower than values that recommended below. Higher current and voltage charging
may cause damage to cell electrical, mechanical, safety performance and could lead heat generation or leakage.
1. Batteries charger should charging with co n s tant current and constant voltage mode.
2. Charging current should be lower than (or equal to) 1C5A.
3. Temperature 0~45ºC is preferred when charging.
4. Charging voltage must be lower than 4.25V.
Discharge
1. Discharging current must be lower than (or equal to) 2C5A.
2. Temperature -10~60ºC is preferred when discharging.
3. Discharging voltage must not be lower than 2.75V.
Overdischarge
It should be noted than the cell would be at an over-discharge state by its shelf-discharge. In order to prevent over-
discharge, the cell shall be charged periodically to keeping voltage between 3.6-3.9V. Overdischarge may cause
loss of the cell performance. It should be noted that the cell would not discharge till voltage lower than 2.75V.
Storageofpolymerlithium-ionbatteries
• The battery should be stored with 40-60% charge state.
• The environment of-long time storage.
• Temperature: 20±5°C.
• Humidity: 45-85%.
• Batteries were 40~60% charged.
• The battery had better charge a time per three month during its storage for avoiding over discharge.
• Please charge the battery with constant current 0.5C5A for 1 hour once every three month when is storage so
that it has some storage of charge for properly using.
• Charge and discharge afresh to active and renew battery energy after storage above 1 year.
Transportationofpolymerlithium-ionbatteries
The batteries must be transported with 10~50% charged states.
Others
Please note cautions bellow to prevent cells leakage, heat generation and explosion.
1. Prohibit disassembled cells.
2. Prohibit immerse cells into liquid such as water or seawater.
3. Prohibit dumping the battery into re.
4. Prohibit soldering directly the battery.
5. Prohibit charging the battery near re or in the hot circumstance.
6. Prohibit place the battery in a micro w ave oven or pressurized container.
7. Prohibit use or store the battery where is exposed to extremely hot, such as under window of a car in directly
sunlight in a hot day. Otherwise, the battery may be overheated. This can also reduce battery performance and/
or shorten service life.
8. If the battery leaks and electrolyte gets in your eyes, don’t rub them. Instead, rinse them with clean running water
and immediately seek medical attention. If left as is, electrolyte can cause eye injury.
9. Prohibit using the battery if it gives off an odor, generates heat, becomes discolored or reformed, or appears
abnormal in any way. If the battery is in use or being recharged, remove it from the device or charger immediately
and discontinue use. If the battery leaks or gives off an odor, move it away from a re source to avoid re or explosion.

www.fullwat.com
LP803450-CI •Polymer Lithium-ion battery
 8.Cellpackingandxing
Noticeofdesigningbatterypack: Battery pack should have sufcient strength and battery should be protected
from mechanical shock. No sharp edge components should be inside the pack contain the battery.
PCMdesign
The overcharge threshold voltage should not be exceed 4.25V.
The over-discharge threshold voltage should not be lower than 2.3V.
The PCM should have short protection function built inside.
Cellconnection
Ultrasonic welding or spot welding is recommended to connect battery with PCM or other parts.
If apply manual solder method to connect tab with PCM, the notice bellow is very important to ensure battery
performance.
1. The electric iron should be temperature controlled and ESD safe.
2. Soldering temperature should not exceed 350ºC.
3. Soldering time should not be longer than 3 s, keep battery tab cold down before next soldering.
4. Soldering times should not exceed 5 times.
5. Soldering spot location should be away from the t a b lm to ensure the sealing of the tab lm.
6. The soldering spot should be smooth should be no acumination.
Cellxing
The battery should be xed to the battery pack by its large surface area. No cell movement in the battery pack
should be allowed.
Cellreplacement
The cell replacement should be done by professional people.
 9.Warranty
The warranty is specied in our warranties section of Terms of Sales. If the product is to be stored for more than
three months it is necessary to perform the appropriate maintenance to ensure the good condition of the batteries.
Consult our annex to the Terms of Sales on the recommended maintenance.
•
