FUNAI 100FD714 User manual

If you need help, please contact us.
Funai India Pvt Ltd
Toll free telephone :[phone]
Web site :www.funai-india.com
Email ID :customer[email protected]
LCD LED TELEVISION
INSTRUCTION MANUAL
100FD714
080FD514 047FL514
FULL HD Television
HD Television
OM_Cover.fm Page 1 Friday, July 18, 2014 6:53 PM

2
SAFETY INFORMATION ........................................ 2
START UP GUIDE .................................................. 4
1. Supplied Accessories........................................ 4
2. Attaching the Base ............................................ 5
3. Mounting the Unit on Your Furniture ................... 5
4. Connections for Antenna and the Power........... 6
5. Installing the Batteries....................................... 6

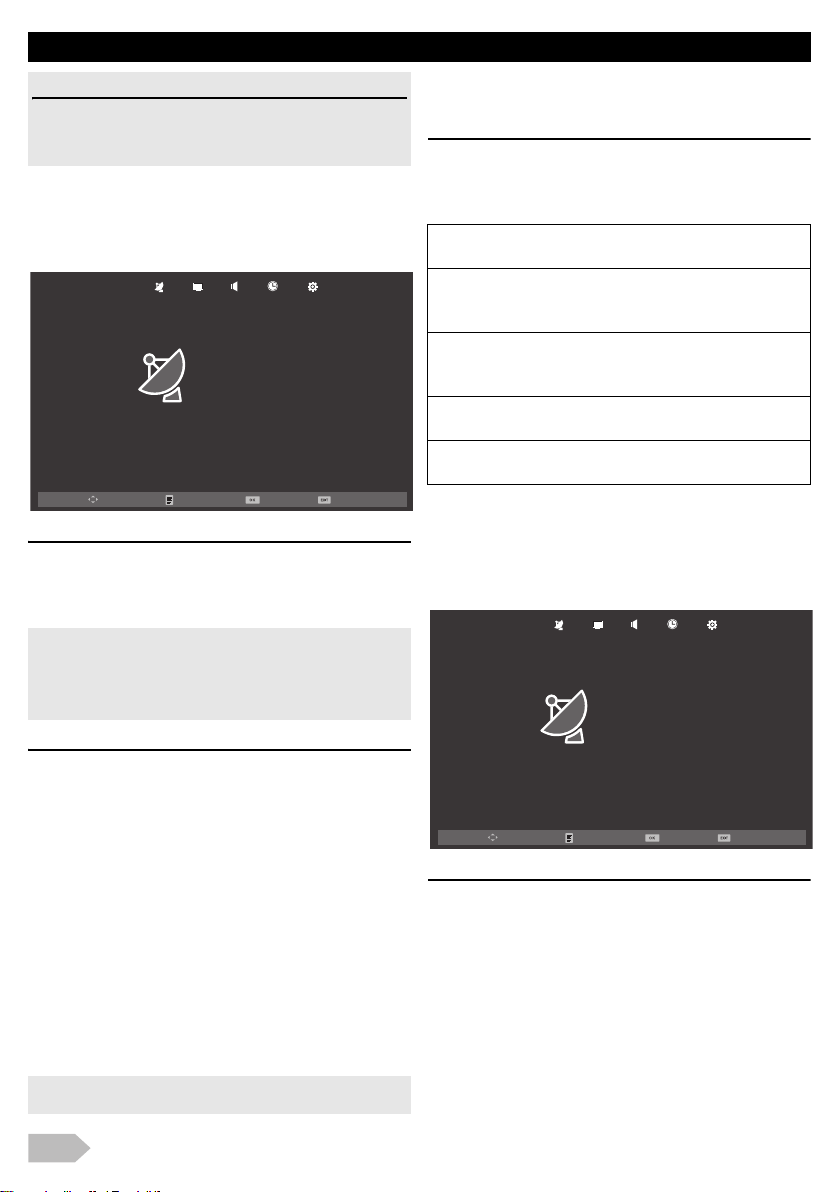

6. Initial Setup........................................................ 7
UNIT INFORMATION .............................................. 8
Remote Control and Front Panel........................... 8

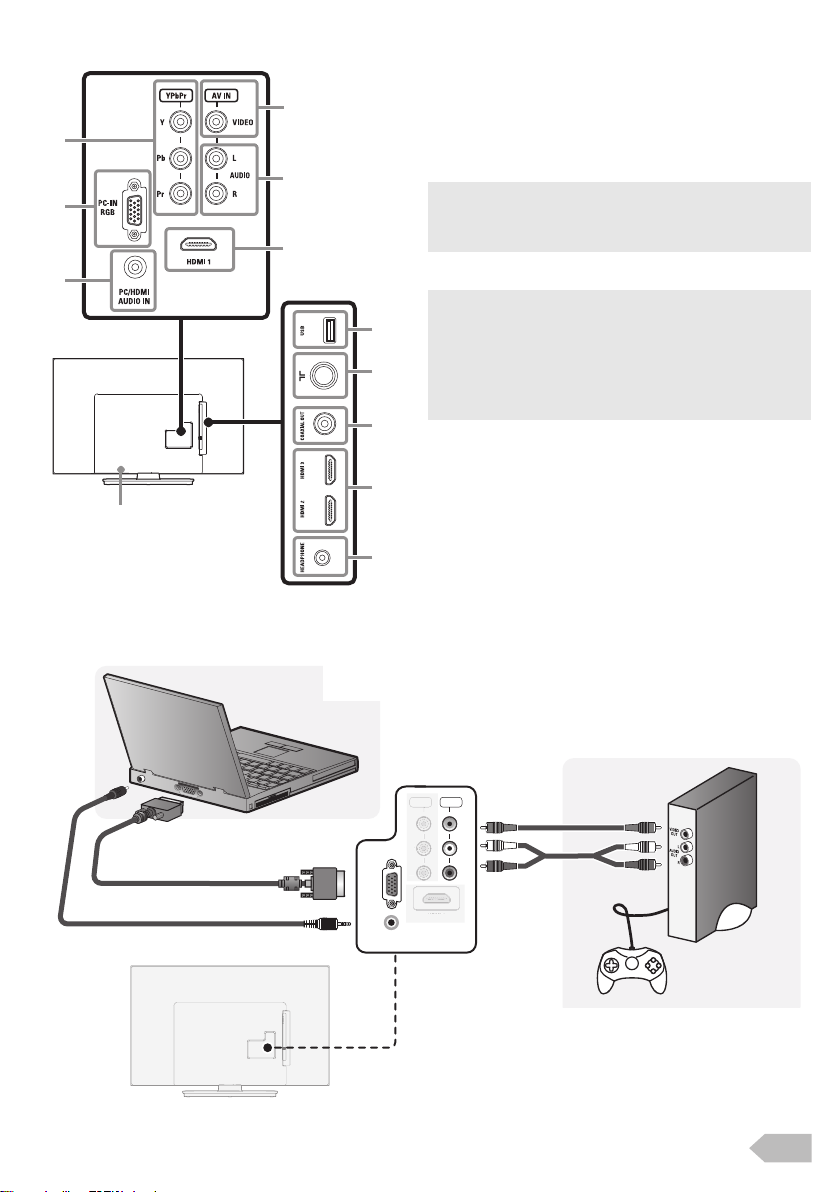

Rear Panel ............................................................ 9

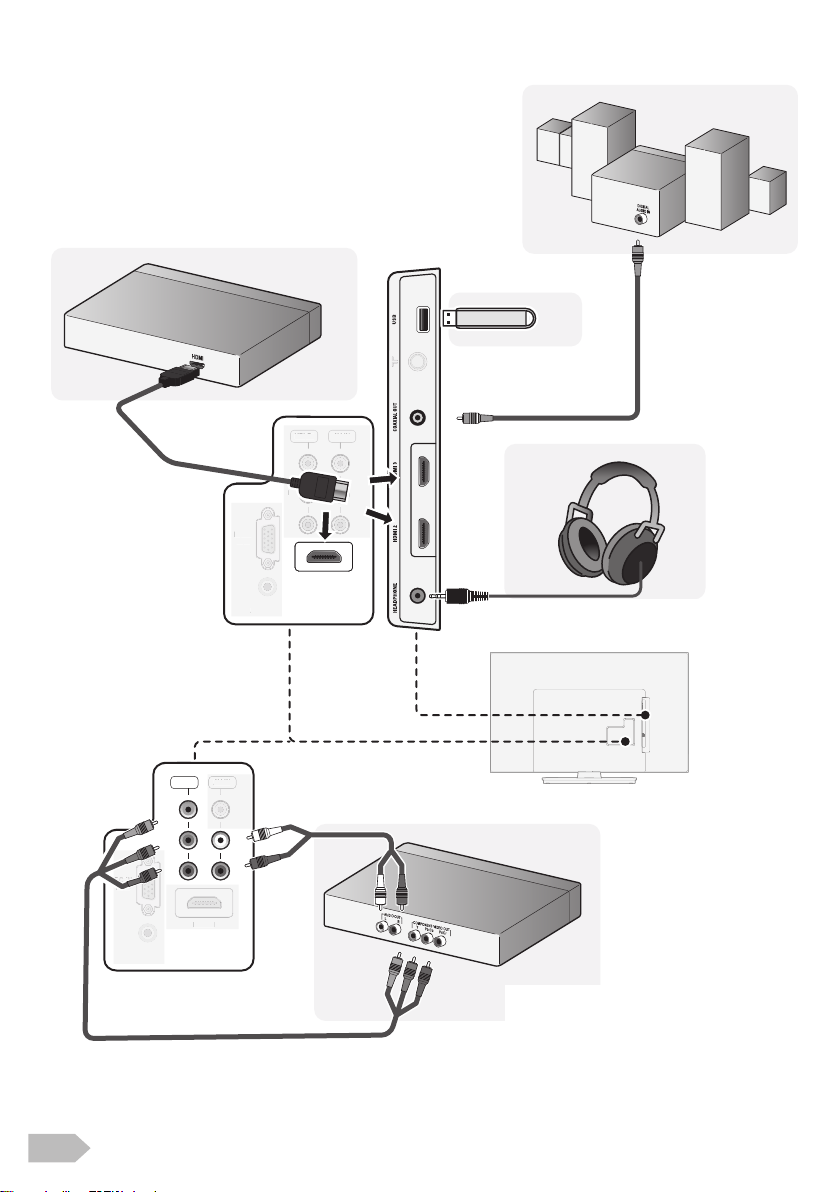

Hook-Up ................................................................ 9
OPERATIONS ....................................................... 11
Watching a TV Programme ................................. 11
[Sleep Timer]....................................................... 11
Freeze Mode ....................................................... 11
Teletext................................................................ 11
Favourite ............................................................. 11
Switching the Input Source Mode........................ 12
Sound Select....................................................... 12

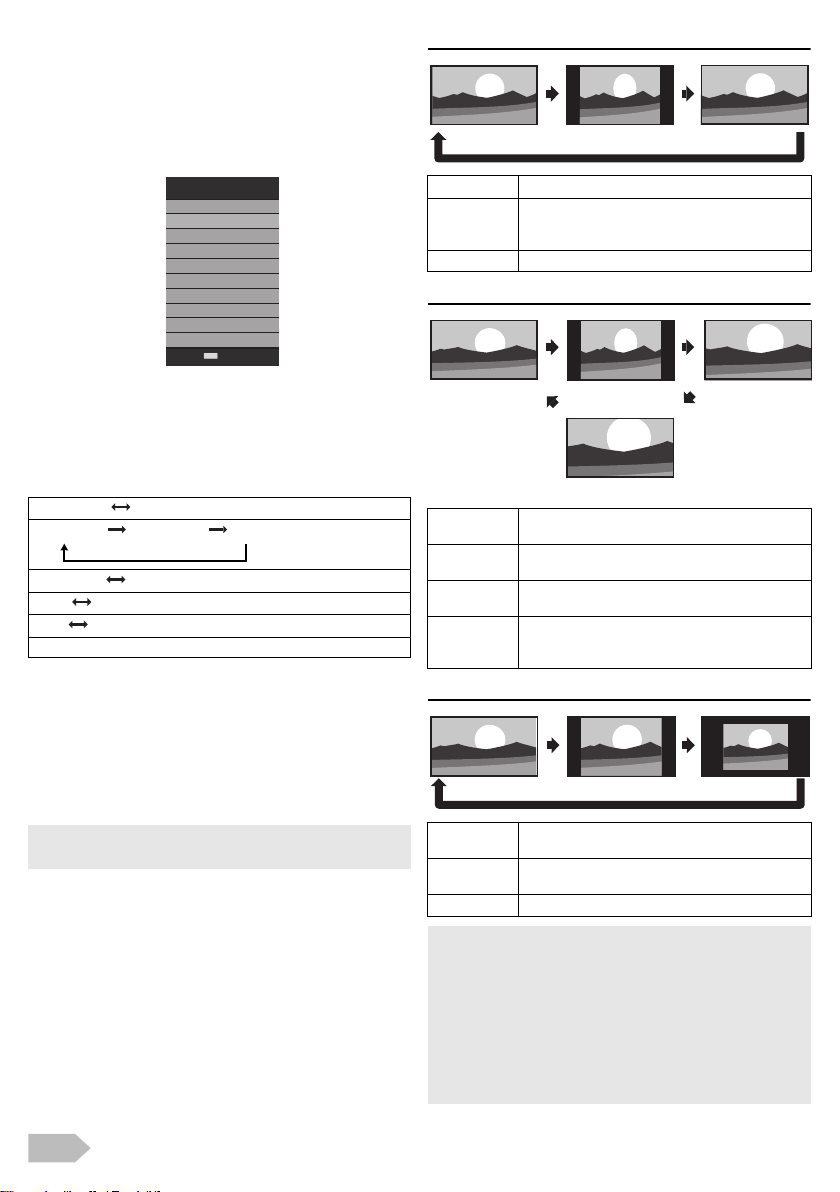

Picture Format..................................................... 12

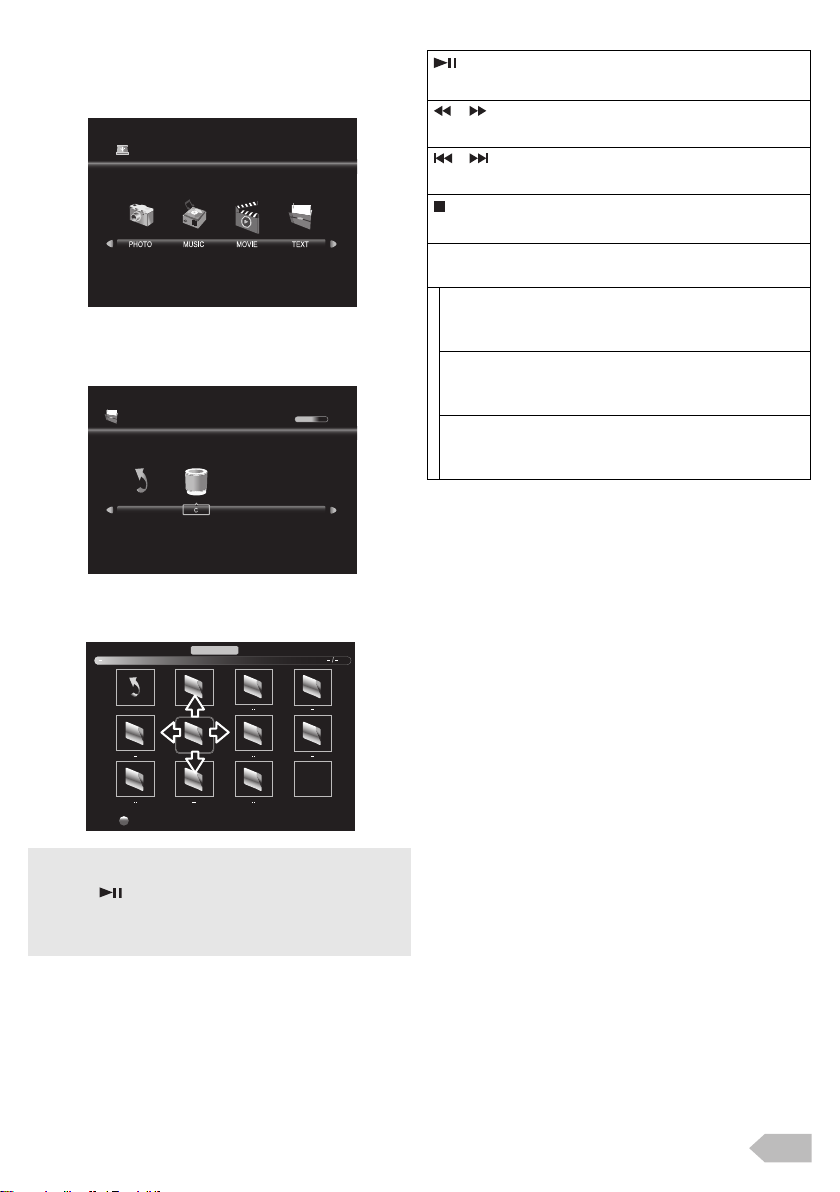

PLAYBACK MODE ............................................... 13

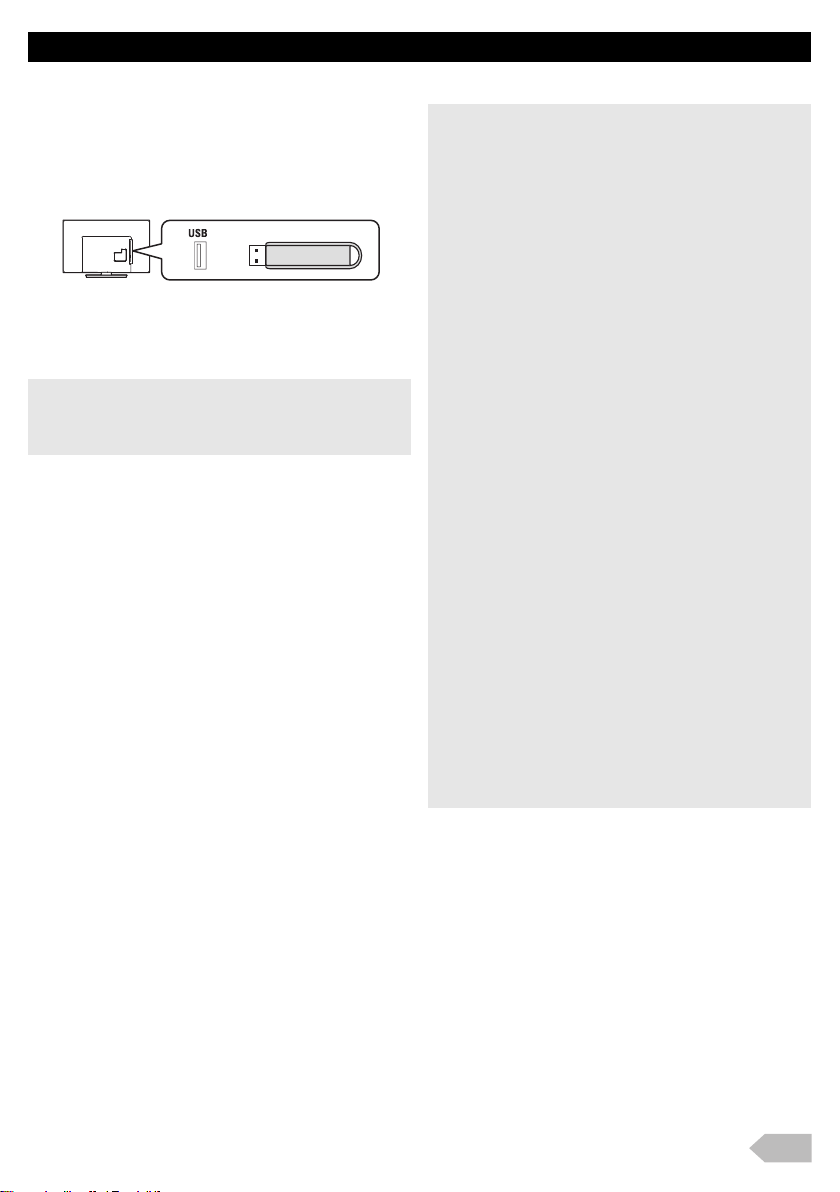

Setup for Playback .............................................. 13
Note for Playback ................................................ 13
[PHOTO].............................................................. 14
[MUSIC]............................................................... 15
[MOVIE]............................................................... 16
[TEXT] ................................................................ 17
DETAIL SETTINGS ............................................... 18
Channel Settings ................................................. 18
Screen Settings ................................................... 18
Picture Adjustment .............................................. 19

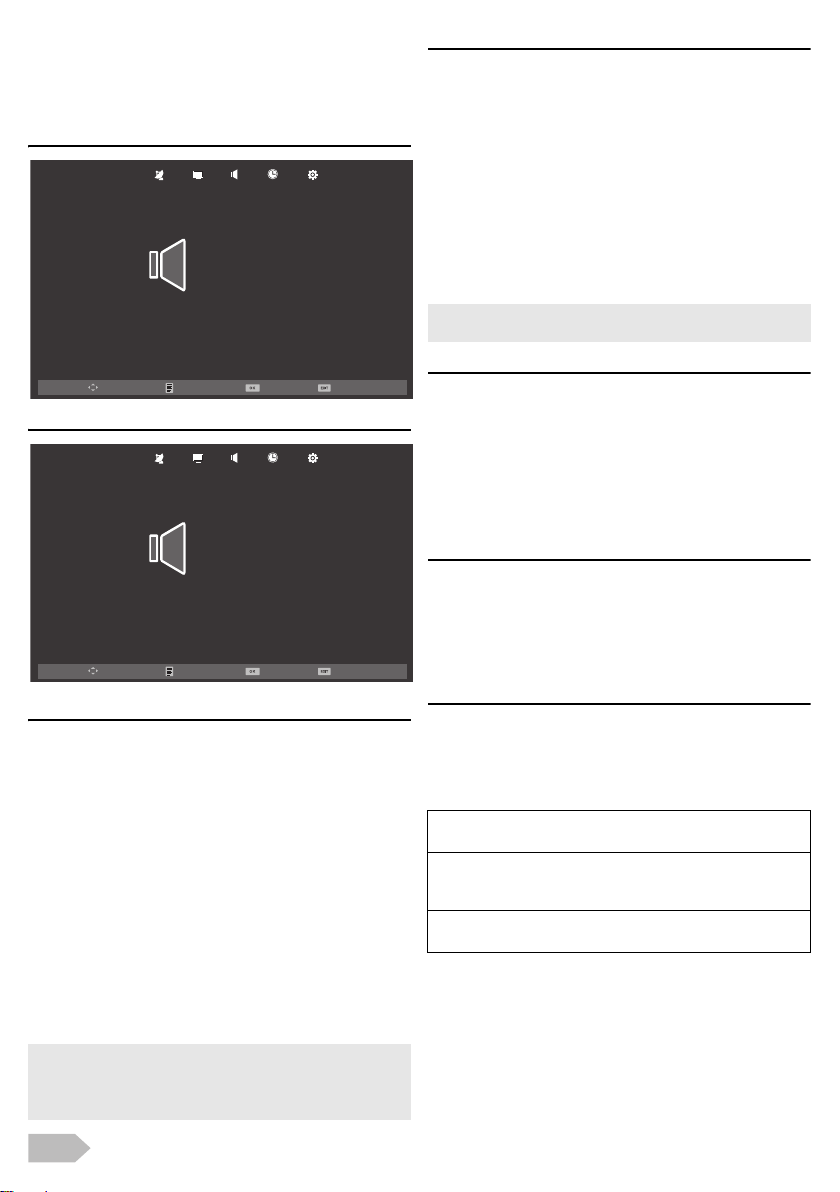

Sound Adjustment ............................................... 20
Timer Settings ..................................................... 21
Option Settings.................................................... 21
OTHER INFORMATION ........................................ 22
Trademark Information ........................................ 22
Cabinet Cleaning................................................. 22
Panel Cleaning .................................................... 22
Servicing.............................................................. 22
TROUBLESHOOTING GUIDE .............................. 23
SPECIFICATIONS................................................. 25
Dimensions.......................................................... 26
Input Resolution .................................................. 26
Multimedia Format............................................... 27
INDEX
SAFETY INFORMATION
WARNING: To prevent the
spread of fire, keep candles
or other open flames away
from this product at all times
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the
user to the presence of uninsulated “dangerous
voltage” within the apparatus’s enclosure that
may be of sufficient magnitude to constitute a risk
of electric shock to persons
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the apparatus.
WHEN CARRYING THIS UNIT
• At least 2 people are required when carrying
this unit.
• Make sure to hold the upper and bottom
frames of the unit firmly as illustrated.
OM_Body-EN.fm Page 2 Friday, July 11, 2014 11:49 AM

3
CAUTION
1. Do not attempt to open the cabinet. There are no user
serviceable parts inside. Refer all servicing to qualified
service personnel.
2. Slots and openings in the cabinet and the sides or bottom
are provided for ventilation. To ensure reliable operation
and to protect the unit from overheating, these openings
must not be blocked or covered. Avoid installation in
enclosed spaces such as bookcases unless proper
ventilation is provided.
3. Keep the unit away from radiators and other heat sources.
4. Do not push objects of any kind into the unit through the
cabinet slots or openings as they could touch electrically
live parts or short circuit parts resulting in a fire or electric
shock.
5. To prevent fire or shock hazard, do not expose this unit to
dripping or splashing, no objects filled with liquids, such
as vases, should be placed on the unit.
6. Use the unit on a horizontal (flat) surface only.
7. Do not place any combustible objects on the unit
(candles, etc.).
8. The LCD panel used in this unit is made of glass.
Therefore, it can break when the unit is dropped or
applied with impact. Be careful not to be injured by broken
glass pieces in case the LCD panel breaks. The LCD
panel is a very high technology product with 921,600 thin
film transistors, giving you fine picture details.
Occasionally, a few non-active pixels may appear on the
TV screen as a fixed point of blue, green or red. Please
note that this does not affect the performance of your unit.
9. Disconnect the mains plug to switch off when the unit
becomes faulty or not in use.
10. The mains plug shall remain readily operable.
11. Read the manual instructions to ensure correct and safe
installation and interconnection of the unit in multimedia
systems.
12. Keep a distance of 20cm around the ventilation openings
of the unit.
13. Batteries (battery pack or batteries installed) shall not be
exposed to excessive heat such as sunshine, fire or the
like.
POWER SUPPLY
The main power supply is engaged when the main plug is
plugged in a 110-240 V~, 50Hz/60Hz AC outlet. To operate
the unit, press (power) to turn on the unit.
WARNING:
• Never use a gas duster on this TV. The gas trapped inside of
this unit may cause ignition and explosion.
• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
• Do not place the unit on the furniture that is capable of being
tilted by a child or an adult leaning, pulling, standing or climbing
on it. A falling unit can cause serious injury or even death.
• LIVE PARTS INSIDE. DO NOT REMOVE ANY SCREWS.
Battery Precautions
• Be sure to follow the correct polarity as indicated in the
battery compartment. Reversed batteries may cause
damage to the device.
• Do not mix different types of batteries together (e.g. Alkaline
and Carbon-Zinc or rechargeable batteries like ni-cad, ni-
mh, etc.) or old batteries with fresh ones.
• If the device is not to be used for a long period of time,
remove the batteries to prevent damage or injury from
possible battery leakage.
•
Do not try to recharge batteries; they can overheat and rupture.

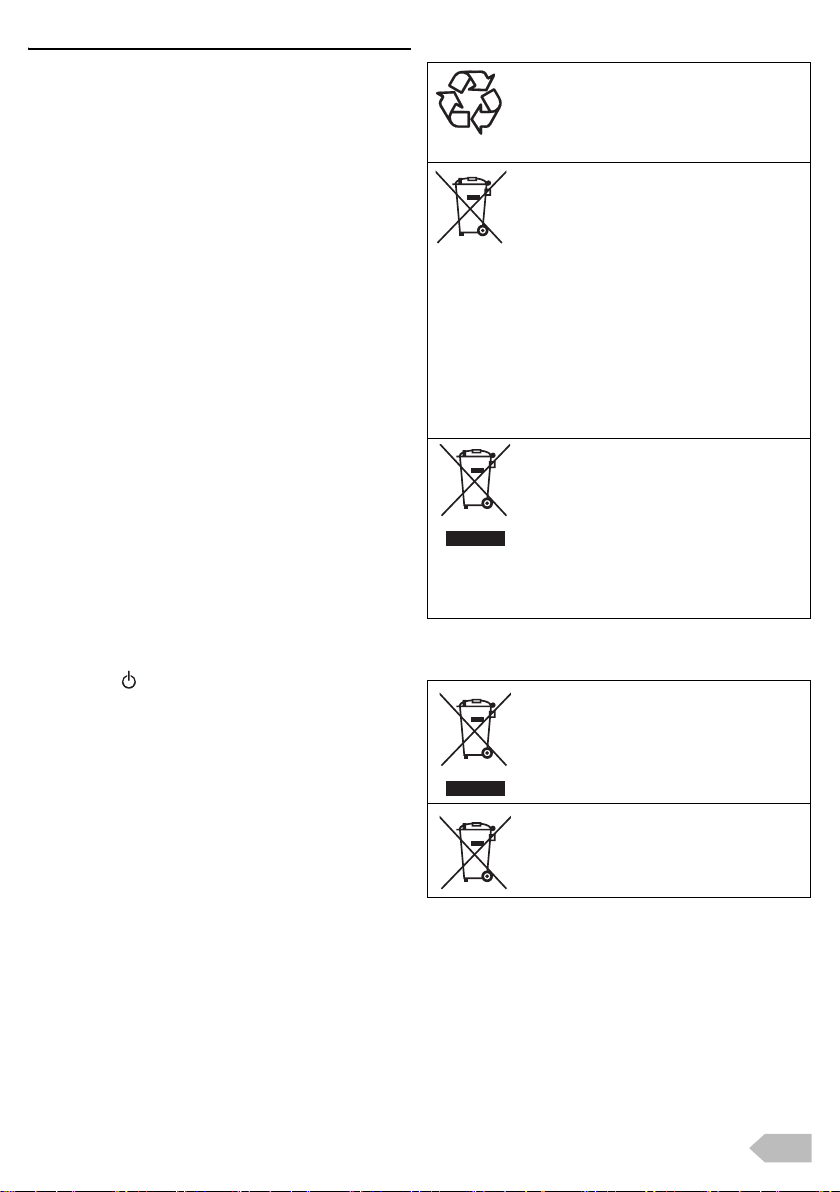

A Note about Recycling
Notice for customers
This unit’s packaging materials are recyclable
and can be reused. Please dispose of any
materials in accordance with your local
recycling regulations. This product consists of
materials which can be recycled and reused if
disassembled by a specialised company.
The crossed out wheeled dust bin symbol
indicates that batteries and/or accumulators
must be collected and disposed of separately
from household waste. If the battery or
accumulator contains more than the specified
values of lead (Pb), mercury (Hg), and/or
cadmium (Cd) defined in the Battery Directive
(2006/66/EC), then the chemical symbols for lead (Pb),
mercury (Hg) and/or cadmium (Cd) will appear below the
crossed out wheeled dust bin symbol. By participating in
separate collection of batteries, you will help to assure the
proper disposal of products and batteries and thus help to
prevent potential negative consequences for the environment
and human health. For more detailed information about the
collection and recycling programmes available in your country,
please contact your local city office or the shop where you
purchased the product.
The use of the symbol indicates that this
product may not be treated as household waste.
By ensuring this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling of this product.
For more detailed information about recycling of
this product, please contact your local city office, your
household waste disposal service or the shop where you
purchased the product.
Disposal of the TV set
Disposal of Old Electrical & Electronic
Equipment (Applicable in the European Union
and other European countries with separate
collection system)
Disposal of the TV set
Disposal of Old Electrical & Electronic
Equipment (Applicable in the Republic of India)
Pb, Hg, Cd
OM.book Page 3 Friday, July 11, 2014 11:42 AM

4
1. Supplied Accessories
START UP GUIDE
Installation of Wall Mount (Optional)
The Wall Mount Kit can help install the TV on the wall.
For more information about wall mounting, please
refer to the instructions provided along with the Wall
Mount Kit.
CAUTION
When wall mounting the product, please contact
qualified personnel. If users choose to install the TV
on their own, the producer is not responsible for any
damages caused either to the product or to the
persons.
Length of holes distances(H/V) Recommended screw thread type
100FD714 200 mm/ 200 mm M4
080FD514 100 mm/ 100 mm M4
047FL514 75 mm/ 75 mm M4

Batteries for remote control
• 2 x AAA Drycell
Remote control Manual
Base
(for 100FD714 /
080FD514)
Screws for attaching the base
Base
(for 047FL514)
vertical length
Holes for installation of
Wall Mount bracket
horizontal length
OM_Body-EN.fm Page 4 Tuesday, July 15, 2014 11:12 AM

5

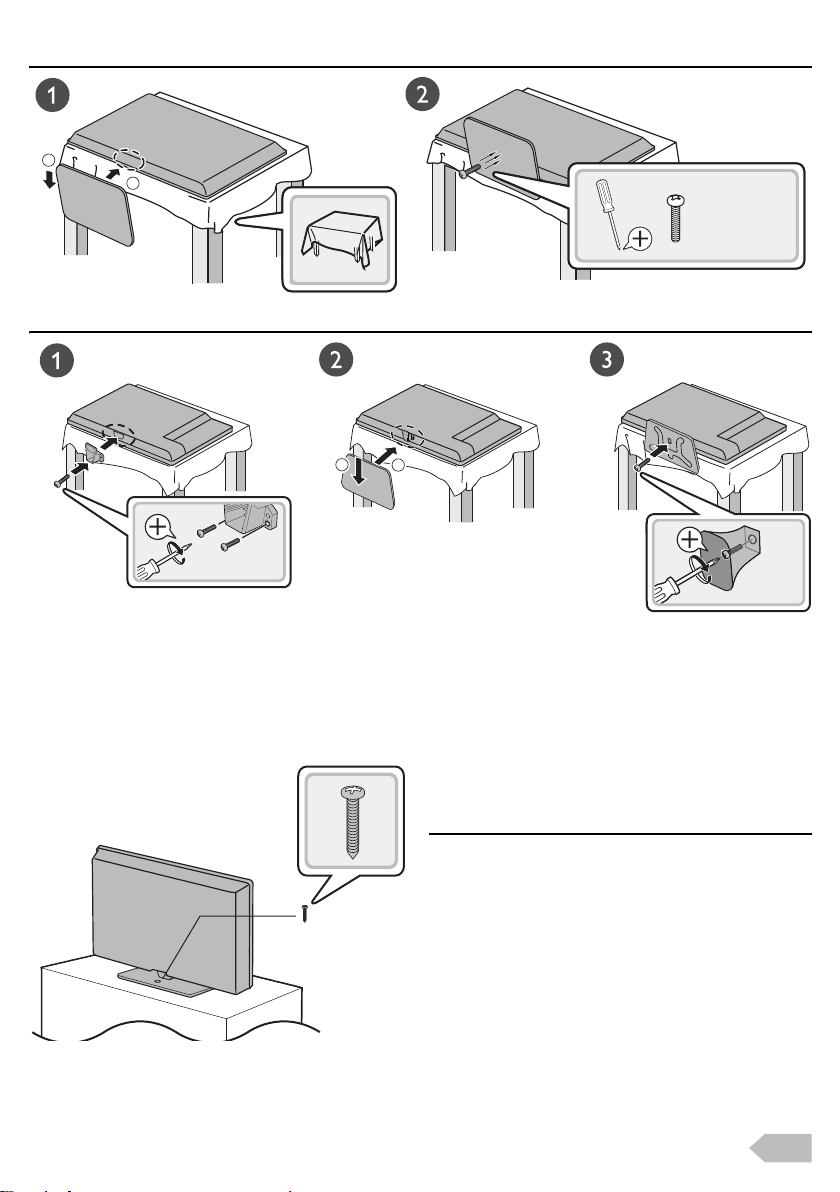

2. Attaching the Base
100FD714 / 080FD514
047FL514
3. Mounting the Unit on Your Furniture
WARNING
only 100FD714 / 080FD514
Screw this television on your furniture tightly using
wood screw (not supplied) in the hole at the back of
the base as shown.
• Recommended dimension : 5.1 x 20 mm
• When attaching the base, ensure that all screws are tightly fastened. If the base is not properly attached, it
could cause the unit to fall, resulting in injuries as well as damage to the unit.
• Make sure the table is in a stable location.
1
2
x 3
21
× 1
× 2
OM.book Page 5 Friday, July 11, 2014 11:42 AM

6

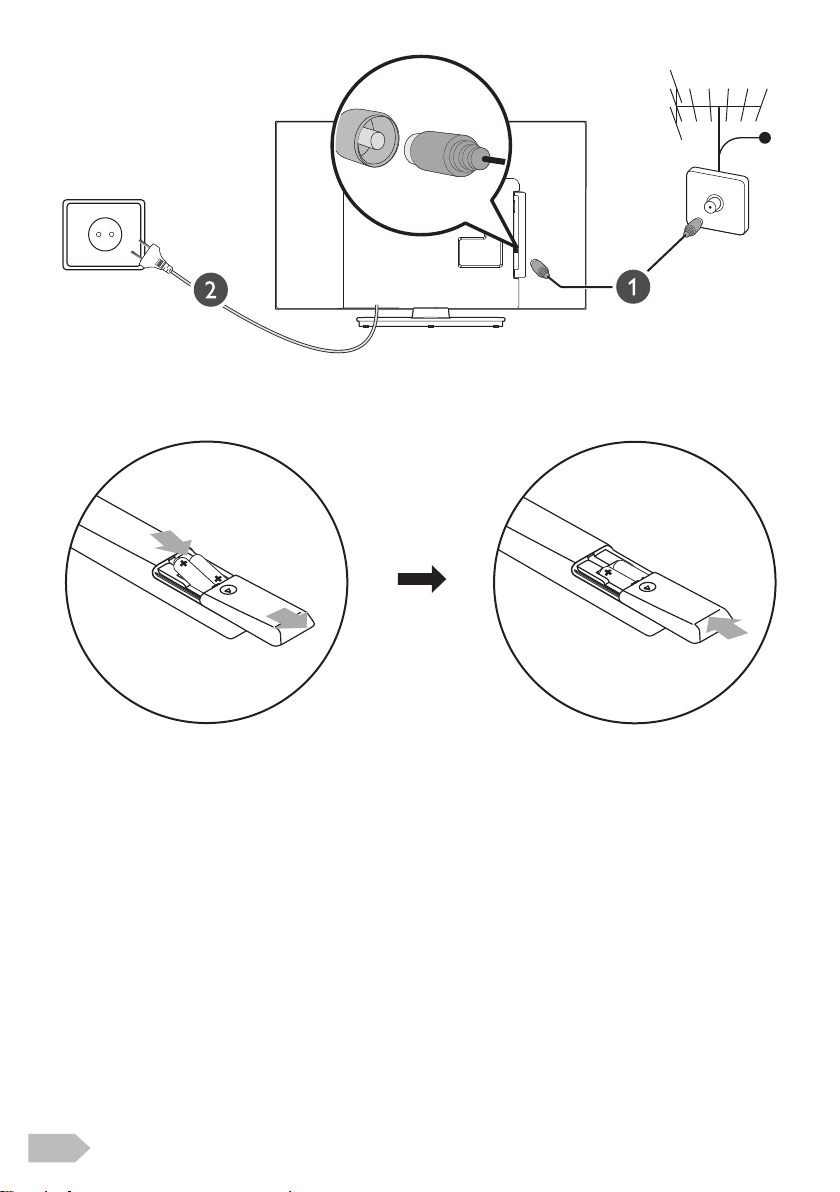

4. Connections for Antenna and the Power
5. Installing the Batteries
• You can also connect cable as substitute of antenna.
• 2 x AAA Drycell
OM.book Page 6 Friday, July 11, 2014 11:42 AM

7
6. Initial Setup
Turn on the Unit
After plugging in the unit and power indicator lights up red, just press on the remote or the TV to turn it on.
Language Selection
You can select the preferred on screen language.
1Press MENU to display the setup menu and use ◄/ ►to select [OPTION] in the setup menu.
2 Use ▲/ ▼ to select [OSD Language] in the option menu and then select the language you want using ◄/ ► .
[Auto Tuning]
You have to setup channels to watch TV.
1Press MENU to display the setup menu and use ◄/ ►to select [CHANNEL] in the setup menu.
2Use ▲/ ▼to select [Auto Tuning] in the channel menu, and press OK to start tuning to setup channels.
• For detailed operation procedure, refer to “Channel Settings” (p. 18).
100FD714 / 080FD514
047FL514
Move EnterMenu Exit
TT Language
Aspect Ratio
Blue Screen
Key Lock
Reset
Software Update(USB)
West Europe
16:9
Off
Off
OPTION
OSD Language English
Move EnterMenu Exit
ATV Manual Tuning
Programme Edit
CHANNEL
Auto Tuning
OM.book Page 7 Friday, July 11, 2014 11:42 AM

8
Remote Control and Front Panel 1. (Power) (p. 7)
Press once to turn the unit on and press it once
more to put the unit into standby mode.
2. S MODE “[Sound Mode]” (p. 20)
3. P MODE “[Picture Mode]” (p. 19)
4. FREEZE “Freeze Mode” (p. 11)
5. AUDIO “Sound Select” (p. 12)
Display and change the current Audio mode.
6. Number buttons (p. 11)
7. PREV.P
Change channel to previous one.
8. (p. 11)
To adjust the volume.
9. (Mute) (p. 11)
10. RED / GREEN / YELLOW / BLUE
“Teletext” (p. 11)/“[Programme Edit]” (p. 18)
11. EXIT (p. 11)
Exit the menu.
12. MENU (p. 18)
13. SOURCE
“Switching the Input Source Mode” (p. 12)
14. SLEEP “[Sleep Timer]” (p. 11)
15. ASPECT “Picture Format” (p. 12)
16. Playback function buttons (p. 13) / Teletext
function buttons (p. 11)
(Skip backward) / (Index)
(Skip forward) / (Expand)
(Rewind) / (Reveal)
(Fast-forward) / (Subpage)
(Stop) / (Hold)
(Play/Pause) / (Text)
17. FAV “Favourite” (p. 11)
18. (p. 11)
To browse a channel.
19. DISPLAY
Display the channel number or input source.
20. ▲/ ▼/ ◄/ ►(Cursor) (p. 11)
21. OK
22. Remote Control Sensor
23. Standby / Power indicator
(Power on : no light, Standby : red)
UNIT INFORMATION
17
18
19
20
21
16
15
1
2
3
4
5
7
6
8
10
9
11
12
13
14
100FD714 / 080FD514
047FL514
8
18
12
13
1
23
22
818 12 13 1
23 22
•VOL ◄/►(Front panel) works same function as ◄/
►(cursor) on the menu.
•SOURCE (Front panel) works same function as OK to
determine the setting menu.
•PROG ▲/ ▼(Front panel) works same function as ▲/
▼(cursor) on the menu.
OM.book Page 8 Friday, July 11, 2014 11:42 AM

9
Rear Panel 24. YPbPr (Component video) input jacks (p. 10)
25. PC (VGA) input jack (p. 9)
26. Audio input jack for PC / HDMI (DVI) connection
(p. 9)
27. Composite video input jack (p. 9)
28. Audio (L/R) input jacks (p. 9, p. 10)
29. HDMI (HDMI 1) input jack (p. 10)
30. USB terminal (p. 10)
31. Antenna input jack (p. 6)
32. Coaxial digital audio output(SPDIF) jack (p. 10)
33. HDMI (HDMI 2 /HDMI 3) input jack (p. 10)
34. Headphone audio output jack
35. AC power cord
Hook-Up
24
32
31
33
26
35
34
25
29
28
27
30
•The HDMI socket is guaranteed to be used for single source
only. It does not guarantee any adaptor, switches or other
connecting device for the purpose of multiple sources. The
usage of such device even if it is capable is at customer risk.
•Data input from USB flash memory only.
•User should not connect any devices to the USB terminal
such as digital camera, keyboard, mouse, etc. (because
these will not work.)
•The software update is, in most cases, handled by an
authorised service person or in some circumstances the
user may be asked to do the software update themselves.
R
L
Pr
Pb
AUDIO
VIDEO
HDMI 1
Y
PC-IN
RGB
PC/HDMI
AUDIO IN
YPbPr AV IN
P
r
Pb
Y
Y
P
b
P
r
H
DMI
1
PC (VGA) input jack /
Audio input jack for PC / HDMI (DVI) connection
Composite video input jack /
Audio (L/R) input jacks
OM.book Page 9 Friday, July 11, 2014 11:42 AM

10
R
L
Pr
Pb
AUDIO
VIDEO
HDMI 1
Y
PC-IN
RGB
PC/HDMI
AUDIO IN
YPbPr AV IN
R
L
Pr
Pb
AUDIO
VIDEO
HDMI 1
Y
PC-IN
RGB
PC/HDMI
AUDIO IN
YPbPr AV IN
R
L
Pr
Pb
A
UDI
O
VIDE
O
Y
YPbPr
AV
IN
P
C
-I
N
R
G
B
PC/
HDM
I
AUDI
O
I
N
H
DMI
1
P
C
-I
N
R
G
B
PC/
HDM
I
A
U
DI
O
I
N
V
IDE
O
AV
IN
Coaxial digital audio output jack
HDMI input jack
USB terminal
YPbPr (Component video) input jacks /
Audio (L/R) input jacks
Headphone audio output jack
OM.book Page 10 Friday, July 11, 2014 11:42 AM

11
Watching a TV Programme
To select a channel
Use repeatedly to select your desired
channel, or use the Number buttons to enter a
specific channel number, then press OK for quicker
access.
(e.g.) If you want to select the channel 24 without
pressing OK, press 2first, then press 4within 3
seconds.
To adjust the volume
Use to increase / decrease the audio
volume.
Press to turn the sound on / off temporarily.
[Sleep Timer]
The sleep timer can be set for the unit to go to the
standby mode after an incremental period of time.
1Press SLEEP repeatedly to change the sleep
time period.
Freeze Mode
Freeze Mode can freeze the image shown on the TV
screen for 5 minutes.
1Press FREEZE to freeze the image.
Teletext
1Press to turn on the teletext decoder and
display Teletext information.
2Press repeatedly to show the teletext in
transparent mode or picture and teletext mode.
3Press EXIT to exit.
Favourite
You can easily locate a favourite channel.
1Press FAV while watching a programme to show
the favourite channel list.
2Use ▲/ ▼to select the channel you want, then
press OK.
3Press EXIT to exit.
OPERATIONS
Read this first
These operations are accessible by remote control.
Some may also be accessible by controls on the main
unit.
•You can recover the original volume by pressing again
or .
•Each time you press SLEEP, the timer increases from
10 minutes up to 240 minutes.
•Press SLEEP repeatedly until [Off] appears to cancel the
sleep timer.
•If the unit goes into standby mode, the sleep timer will be
cancelled.
•The sound output will not be paused.
•To cancel freeze mode, press any buttons except .
•If you want to select other pages, use the Number buttons
or ▲/ ▼.
•To enlarge fonts, press .
•To select the teletext subpages, press .
•To directly select the page numbers shown at the bottom of
the TV screen, use RED / GREEN / YELLOW / BLUE.
•To call up the hidden information, press .
•To hold the current page, press .
•To go back to the start page, press .
•You can set favourite channel at “[Programme Edit]” (p. 18).
•Use to move to the previous or next page.
•This unit need few seconds to memorise the favourite
setting.
•If you unplug the AC power cord immediately after the
setting, it will not be registered in the memory.
1 TF1 HD
2 FR 2 HD
6 M6HD
Favorite List
ATV
ATV
ATV
ENTER
OM.book Page 11 Friday, July 11, 2014 11:42 AM

12
Switching the Input Source Mode
You can select a desired input source mode from
available sources.
1Press SOURCE.
2Use ▲/ ▼to select the input source mode you
want, then press OK.
Sound Select
Press AUDIO to display currently selected audio mode
and press repeatedly to cycle through the available
audio mode.
Picture Format
Display modes can be selected when your TV
receives a 16:9 or 4:3 video signal. Three types of
display modes can be selected for a PC Input signal.
1Press ASPECT button repeatedly to switch the
TV screen display mode.
For 16:9 video signal
For 4:3 video signal
For PC Input signal
Nicam Stereo Mono
Nicam Dual1 Nicam Dual2 Mono
Nicam Mono Mono
Stereo Mono
Dual1 Dual2
Mono
•You cannot set screen display mode in playback mode.
•You can set another way at “[Aspect Ratio]” (p. 21).
Media
PC
HDMI 3
HDMI 2
HDMI 1
ATV
AV
YPbPr
Input Source
OK Enter
[16:9]
Displays a 16:9 picture at its original size.
[4:3]
Displays a 16:9 picture at a 4:3 size; the picture is
shortened horizontally. Sidebars appear on both
edge of the TV screen.
[Just Scan]
Displays a proportionally stretched picture.
[16:9]
Displays a 4:3 picture at a 16:9 size. This crops out
the top and bottom of the picture.
[4:3]
Displays a 4:3 picture at its original size. Sidebars
appear on both edge of the TV screen.
[Zoom1]
Displays a 4:3 picture at a 16:9 size; at its enlarged
size without changing its horizontal and vertical ratio.
[Zoom2]
Displays a 4:3 picture at a 16:9 size; at its enlarged
size bigger than
[Zoom1] without changing its
horizontal and vertical ratio
.
[16:9]
Displays a proportionally stretched picture. This
crops out the top and bottom of the picture.
[4:3]
Displays a proportionally stretched picture. Mainly
sidebars appear on both edges of the TV screen.
[Dot by Dot]
Displays a picture at its original size.
•This unit can also be connected to your PC that has a DVI
terminal. Use an HDMI-DVI conversion cable for this video
connection and it requires stereo mini plug conversion
cable for analog audio signal as well.
•Refer to 16:9 video signal on this page if PC has HDMI
Output.
•PC resolution standards: 100FD714 - 1920 x 1080
080FD514/047FL514
- 1360 x 768
For details, refer to “Input Resolution” (p. 26)
[4:3] [Just Scan]
[16:9]
[4:3] [Zoom1][16:9]
[Zoom2]
[4:3] [Dot by Dot][16:9]
OM.book Page 12 Friday, July 11, 2014 11:42 AM

13
You can play picture, music, video and watch text files
from USB flash drive.
Setup for Playback
You must connect the USB flash memory to USB
terminal of this unit (shown below).
1Press SOURCE to display the input source mode
and use ▲/ ▼to select [Media], and then press
OK.
Note for Playback
PLAYBACK MODE
•If you want to exit this mode, select any other input source
mode. Refer to “Switching the Input Source Mode” (p. 12).
•You can check Multimedia Specification. Refer to
“Multimedia Format” (p. 27).
•The USB flash memory is not supplied with this unit.
•The unit recognises a USB flash memory only.
Do not use a USB hub and an extension cord between the
USB flash memory and the unit.
Always connect the USB flash memory to this unit directly.
•It is not guaranteed that all USB flash memory can be
supported on this unit.
•FUNAI cannot be held responsible if your USB flash
memory is not supported, nor will FUNAI accept any liability
for damage or loss of stored data.
•A USB flash memory that required its own driver or the
device with a special system such as fingerprint recognition
are not supported.
•Be sure to keep a backup copy of the original files on your
device before you play them back on this unit. We have no
responsibilities for damage or loss of your stored data.
•To avoid damaging the USB flash memory and the unit
always turn off the unit before you remove the USB flash
memory.
•This unit is not allowed to use the USB flash memory which
requires external power supply (500 mA or more).
•The unit can recognise up to 198 files including directories
under one directory, and it can recognise the depth of
directory up to 30.
•This unit may not be recognised if the length of the file
names is too long. Only English characters can be
recognised.
•This unit does not support NTFS or the file other than
FAT16 and FAT32 file system. If the file is not supported, an
error message appears.
•When the unit does not recognise the USB flash memory,
try reconnecting it.
•Playing the files recorded with high bit rates, the images can
be interrupted in some occasions.
•This unit does not support external subtitles.
•This unit cannot play back a file which goes over the limit of
file restriction.
•For USB input the maximum resolution display is 1080p.
OM.book Page 13 Friday, July 11, 2014 11:42 AM

14
[PHOTO]
2Use ◄/ ►to select [PHOTO] and press OK to
enter.
3Use ◄/ ►to select [C] and press OK to enter
your file.
4Use ▲/ ▼/ ◄/ ►to select the desired file, then
press OK.
Operation in Slideshow
•The check box is displayed at the right bottom by pressing
the OK. The files having the check box are played by
pressing . If they are not selected, then all playable files
in the folder are played.
•If you put audio files into same folder of picture files, you can
play music during the slideshow.
USB2.0
1 / 1
Return
Delete
Return
:
Press to play or pause the slideshow.
/ :
Press to skip the file backward or forward.
:
Press to stop the slideshow.
OK / DISPLAY :
Press to display the menu.
[Repeat] :
Use ◄/ ►and press OK to select the repeat mode;
[Repeat None], [Repeat 1] or [Repeat All] in order.
[Music] :
Use ◄/ ►to select [Music] and press OK to play,
then the music file in the same folder play
automatically.
[Playlist] :
Use ◄/ ►and press OK to select [Playlist] to
show the playlist.
[Info.] :
Use ◄/ ►and press OK to select [Info.] to show
the details.
[Rotate] :
Use ◄/ ► to select right-handed or left-handed rotate
and press
OK to turn the picture by 90 degrees.
[Zoom In] :
Use ◄/ ►to select [Zoom In] and press OK to
zoom in the display.
[Zoom Out] :
Use ◄/ ►to select [Zoom Out] and press OK to
zoom out the display.
Move View:
Use ◄/ ►and press OK to select [Move Vi..] to
move viewing location during zoom in the display.
OM.book Page 14 Friday, July 11, 2014 11:42 AM

15
[MUSIC]
2Use ◄/ ►to select [MUSIC] and press OK to
enter.
3Use ◄/ ►to select [C] and press OK to enter
your file.
4Use ▲/ ▼/ ◄/ ►to select the desired file, then
press OK.
Operation in Playback
•The check box is displayed at the right bottom by pressing
the OK. The files having the check box are played by
pressing . If they are not selected, then all playable files
in the folder are played.
USB2.0
1 / 1
MUSIC
Return
Delete
MUSIC
:
Press to play or pause the playback.
/ :
Press to rewind or fast-forward the playback.
/ :
Press to skip backward or forward the current file.
:
Press to stop the playback.
OK / DISPLAY :
Press to display the menu.
[Repeat] :
Use ◄/ ►and press OK to select the repeat mode;
[Repeat None], [Repeat 1] or [Repeat All] in order.
[MUTE] :
Use ◄/ ►and press OK to select [MUTE] to mute.
[Playlist] :
Use ◄/ ►and press OK to select [Playlist] to
show the playlist.
[Info.] :
Use ◄/ ►and press OK to select [Info.] to show
the details.
Goto Time :
Use ◄/ ►and press OK to select [Goto Ti..] to
move the time you want in the playback.
OM.book Page 15 Friday, July 11, 2014 11:42 AM

16
[MOVIE]
2Use ◄/ ►to select [MOVIE] and press OK to
enter.
3Use ◄/ ►to select [C] and press OK to enter
your file.
4Use ▲/ ▼/ ◄/ ►to select the desired file, then
press OK.
Operation in Playback
•The check box is displayed at the right bottom by pressing
the OK. The files having the check box are played by
pressing . If they are not selected, then all playable files
in the folder are played.
USB2.0
1 / 1
MOVIE
Return
Delete
MOVIE
:
Press to play or pause the playback.
/ :
Press to rewind or fast-forward the playback.
/ :
Press to skip backward or forward the current file.
:
Press to stop the playback.
OK / DISPLAY :
Press to display the menu.
[Repeat] :
Use ◄/ ►and press OK to select the repeat mode;
[Repeat None], [Repeat 1] or [Repeat All] in order.
A-B Repeat :
Use ◄/ ►and press OK to select the limited repeat
mode; [Set A], [Set B] or [None] in order.
[Playlist] :
Use ◄/ ►and press OK to select [Playlist] to
show the playlist.
[Info.] :
Use ◄/ ►and press OK to select [Info.] to show
the details.
Slow Forward :
Use ◄/ ►and press OK to select [Slow F..] to play
slow.
Step Forward :
Use ◄/ ►and press OK to select [Step Fo..] to
play frame-by-frame playback.
Goto Time :
Use ◄/ ►and press OK to select [Goto Ti..] to
move the time you want in the playback.
[Zoom In] :
Use ◄/ ►to select [Zoom In] and press OK to
zoom in the display.
• This function is not supported for resolution
1080p.
[Zoom Out] :
Use ◄/ ►to select [Zoom Out] and press OK to
zoom out the display.
• This function is not supported for resolution
1080p.
[Aspect] :
Use ◄/ ►to select [Aspect] and press OK to
change the view format.: [Zoom1] / [Zoom2] / [4:3]
/ [16:9].
• This function is not supported for resolution
1080p.
Move View:
Use ◄/ ►and press OK to select [Move Vi..] to
move viewing location during zoom in the display.
OM.book Page 16 Friday, July 11, 2014 11:42 AM

17
[TEXT]
2Use ◄/ ►to select [TEXT] and press OK to
enter.
3Use ◄/ ►to select [C] and press OK to enter
your file.
4Use ▲/ ▼/ ◄/ ►to select the desired file, then
press OK.
Operation in Playback
•The check box is displayed at the right bottom by pressing
the OK. The files having the check box are played by
pressing . If they are not selected, then all playable files
in the folder are played.
•If you put audio files into same folder of text files, you can
play music during the playback.
USB2.0
1 / 1
TEXT
Return
Delete
Return
TEXT
:
Press to play or pause the playback.
/ :
Press to move previous or next page in the file.
/ :
Press to skip backward or forward the file.
:
Press to stop the playback.
OK / DISPLAY :
Press to display the menu.
[Music] :
Use ◄/ ►and press OK to select [Music], then the
music file in the same folder play automatically.
[Playlist] :
Use ◄/ ►and press OK to select [Playlist] to
show the playlist.
[Info.] :
Use ◄/ ►and press OK to select [Info.] to show
the details.
OM.book Page 17 Friday, July 11, 2014 11:42 AM

18
Channel Settings
You can edit the channel settings.
1Use ◄/ ►to select [CHANNEL].
[Auto Tuning]
You can scan the channels in your area automatically.
2Use ▲/ ▼to select [Auto Tuning], then press
OK to start scanning.
[ATV Manual Tuning]
You can search channels manually in your area.
2Use ▲/ ▼to select [ATV Manual Tuning], then
press OK.
3Use ▲/ ▼to select [Current CH], then use ◄/
►to select the channel you want.
4Use ▲/ ▼to select [Color System], then use ◄
/ ►to select the system you want.
5Use ▲/ ▼to select [Sound System], then use
◄/ ►to select the system you want.
6Use ▲/ ▼to select [Fine Tune], then use ◄/ ►
to adjust the setting.
7Use ▲/ ▼to select [AFC], then use ◄/ ►to
select [On] or [Off].
8Use ▲/ ▼to select [Search], then use ◄/ ►to
search a channel.
[Programme Edit]
You can edit the programme settings.
2Use ▲/ ▼to select [Programme Edit], then
press OK to enter Programme Edit list.
Screen Settings
If your PC is connected with this unit, you can edit the
screen settings.
1Use ◄/ ►to select [SCREEN].
[Auto Adjust]
You can change the screen settings automatically.
2Use ▲/ ▼to select [Auto Adjust], then press
OK.
DETAIL SETTINGS
Read this first
Before adjust each setting, press MENU to display the
menu.
To exit the menu, press EXIT.
•When the scanning is completed, the lowest memorised
channel will be displayed.
•If you press MENU during the scanning, this operation will
be stopped and a confirmation display will appear, then you
can cancel scanning.
•If you set to [On], this unit searches a near channel
automatically.
Move EnterMenu Exit
Auto Tuning
ATV Manual Tuning
Programme Edit
CHANNEL
[Delete] (RED) :
Press RED to delete the current channel.
[Rename] (GREEN) :
Press GREEN and use ▲/ ▼/ ◄/ ►to change the
current channel name.
[Move] (YELLOW) :
Press YELLOW and use ▲/ ▼to move the current
channel.
[Skip] (BLUE) :
Press BLUE to skip the current channel.
[FAV] (FAV) :
Press FAV to register the current channel.
Move EnterMenu Exit
Auto Adjust
H-Offset
V-Offset
Clock
Phase
SCREEN
30
30
30
0
OM.book Page 18 Friday, July 11, 2014 11:42 AM

19
[H-Offset] / [V-Offset] / [Clock] / [Phase]
You can change the screen settings manually.
2Use ▲/ ▼to select the item you want, then
press OK, and then appear the setting display,
adjust the setting using ◄/ ►.
Picture Adjustment
You can adjust the picture settings according to your
personal preference. These settings are automatically
stored after exiting the picture menu.
1Use ◄/ ►to select [PICTURE].
[Picture Mode]
You can change the picture adjustment style.
2Use ▲/ ▼to select [Picture Mode], then press
OK.
3Use ▲/ ▼to select [Dynamic], [Standard],
[Mild] or [Personal], then press OK.
[Contrast] / [Brightness] / [Color] / [Tint] /
[Sharpness]
You can change the screen settings manually.
While adjusting each setting, you can change the
setting item using ▲/ ▼.
2Use ▲/ ▼to select the item you want. Then
press OK, and the setting display will appear.
3Adjust the setting using ◄/ ►.
[Color Temperature]
You can change the color tone of the picture.
2Use ▲/ ▼to select [Color Temperature], then
press OK.
3Use ▲/ ▼to select [Cool], [Medium] or
[Warm], then press OK.
[Noise Reduction]
You can reduce picture noise.
2Use ▲/ ▼to select [Noise Reduction], then
press OK or ►.
3Use ▲/ ▼to select [Off], [Low], [Middle] or
[High], then press OK.
[Dynamic Contrast]
You can set the dynamic contrast mode.
2Use ▲/ ▼to select [Dynamic Contrast], then
press OK.
3Use ▲/ ▼to select [On] or [Off], then press OK.
[H-Offset] : horizontal picture adjustment
[V-Offset] : vertical picture adjustment
[Clock] : clock adjustment
[Phase] : phase adjustment
•While adjusting each setting, you can change the setting
item using ▲/ ▼.
[Dynamic] : higher contrast
[Standard] : standard
[Mild] : lower contrast
[Personal] : manual setting
•You can change picture mode easily using P MODE on the
Remote Control. Press P MODE repeatedly to select the
picture mode you want. In this function, you can also assign
the picture mode individually to each input mode.
Move EnterMenu Exit
Picture Mode
Contrast
Brightness
Color
Tint
Sharpness
Color Temperature
Noise Reduction
Medium
Middle
Standard
50
50
50
50
30
Dynamic Contrast Off
[Contrast] : contrast adjustment
[Brightness] : brightness adjustment
[Color] : colorfulness adjustment
[Tint] : redness/greenness adjustment
[Sharpness] : sharpness adjustment
•You can adjust the settings, if you set [Personal] in
[Picture Mode].
[Cool] : bluer tone
[Medium] : average tone
[Warm] : redder tone
OM.book Page 19 Friday, July 11, 2014 11:42 AM

20
Sound Adjustment
You can adjust the sound settings according to your
personal preferences.
1Use ◄/ ►to select [SOUND].
100FD714
080FD514/ 047FL514
[Sound Mode]
You can change the sound setting style.
While adjusting each setting, you can change the
setting item using ▲/ ▼.
2Use ▲/ ▼to select [Sound Mode], then press
OK.
3Use ▲/ ▼to select [Standard], [Music],
[Movie], [Sports] or [Personal], then press OK.
[Treble] / [Bass] / [Balance]
You can set left / right speaker setting.
While adjusting each setting, you can change the
setting item using ▲/ ▼.
2Use ▲/ ▼to select the item you want. Then
press OK, and the setting display will appear.
3Adjust the setting using ◄/ ►.
[Auto Volume]
If set to [On], sudden changes in volume will be
reduced automatically, for example, during
commercials or when switching channels.
2Use ▲/ ▼to select [Auto Volume], and then
select [On] or [Off] using ◄/ ►.
[DTS TruSurround] (for 100FD714) /
[SRS TruSurround XT]
(for 080FD514/ 047FL514)
You can set to the sound modes for more spatial or
surround sound reproduction.
2Use ▲/ ▼to select [DTS TruSurround] or
[SRS TruSurround XT], and then select [On] or
[Off] using ◄/ ►.
[SPDIF Mode]
If this unit is connected with coaxial digital audio output
jack to your device, you can set this mode.
2Use ▲/ ▼to select [SPDIF Mode] and then
select [PCM], [Auto] or [Off] using ◄/ ►.
[Standard] : standard
[Music] : appropriate for listening to music
[Movie] : appropriate for watching a movie
[Sports] : appropriate for watching a sport
programme
[Personal] : manual setting
•You can change sound mode easily using S MODE on the
Remote Control.
•Press S MODE repeatedly to select the sound mode you
want.
Move EnterMenu Exit
Sound Mode
Treble
Bass
Balance
DTS TruSurround
SPDIF Mode
On
PCM
Auto Volume
Standard
50
50
0
Off
SOUND
Move EnterMenu Exit
Sound Mode
Treble
Bass
Balance
SRS TruSurround XT
SPDIF Mode
On
PCM
Auto Volume
Standard
50
50
0
Off
SOUND
[Treble] : high pitched tone adjustment
[Bass] : low pitched tone adjustment
[Balance] : volume balance setting for left and right
speakers
•You can adjust [Treble] and [Bass] settings, if you set
[Personal] in [Sound Mode].
AUTO:
The SPDIF output is the same with the input sound format.
PCM:
The SPDIF output is PCM format, regardless of the input
sound format.
OFF:
Turn OFF the SPDIF output.
OM.book Page 20 Friday, July 11, 2014 11:42 AM
