Furuno GP-330B User manual

GPS RECEIVER
GP-330B
OPERATOR'S MANUAL
www.furuno.co.jp
MODEL

i
IMPORTANT NOTICES
• The descriptions in this manual are intended for readers with a solid knowledge
of English.
• No part of this manual may be copied or reproduced without written permission.
• If this manual is lost or worn, contact your dealer about replacement.
• The contents of this manual and equipment specifications are subject to change
without notice.
• Store this manual in a convenient place for future reference.
• FURUNO will assume no responsibility for the damage caused by improper use
or modification of the equipment (including software) by an unauthorized agent
or a third party.
• When it is time to discard this product it must be done according to local regula-
tions for disposal of industrial waste. For disposal in the USA, refer to the Elec-
tronics Industries Alliance (http://www.eiae.org/).
• The serial number for this equipment is recorded on the underside of the GPS
receiver, which may not be visible depending on installation method. Record the
serial number below for future use.
Serial No.

ii
The input voltage must be 12 VDC.
Any other input voltage will damage the
equipment.
Always wear safety goggles and a
dust mask when installing to avoid
personal injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
Warning, Caution Mandatory Action
Prohibitive Action
WARNING
CAUTION
GPS position and velocity accuracies
are controlled by the U.S. Department
of Defense. Therefore, the position
accuracy described in the specifi-
cations cannot be guaranteed.
No one navigation device should ever
be solely replied upon for the navi-
gation of a vessel.
Always confirm position against all
available aids to navigation, for safety of
vessel and crew.
The compass safe distance for
standard and steering compasses is
0.30 m.
Observe this distance to prevent
inteference to a magnetic compass.
Do not disassemble the unit.
Disasembling the unit will damage
the waterproof seal. Further, there are
no user-serviceable parts inside.
SAFETY INSTRUCTIONS
The operator of this equipment must read these safety instructions before attempting to
operate the equipment.

iii
TABLE OF CONTENTS
FOREWORD...............................................................................................iv
SYSTEM CONFIGURATION.......................................................................v
1. INSTALLATION.......................................................................................1
1.1 Equipment Lists ...........................................................................................1
1.2 Tools & Materials.........................................................................................1
1.3 Choosing the Mounting Location .................................................................2
1.4 Mounting......................................................................................................3
1.4.1 Pole/Rail (Pipe) Mount ........................................................................3
1.4.2 Deck Mount .........................................................................................4
1.4.3 Flush Mount.........................................................................................5
2. WIRING, SETTINGS................................................................................6
2.1 NMEA 2000® Connection.............................................................................6
2.1.1 Direct Connection................................................................................6
2.1.2 Network Connection............................................................................7
2.1.3 Routing and Connecting the Cable Assembly.....................................8
2.2 NMEA 0183 Connection ..............................................................................9
2.3 Settings for NavNet vx2.............................................................................10
3. MAINTENANCE, TROUBLESHOOTING..............................................11
3.1 Maintenance ..............................................................................................11
3.2 Troubleshooting.........................................................................................11
4. TECHNICAL INFORMATION................................................................12
4.1 NMEA 0183 Sentences..............................................................................12
4.2 NMEA2000®PGN Commands..................................................................13
SPECIFICATIONS.................................................................................SP-1
PACKING LIST........................................................................................A-1
OUTLINE DRAWINGS.............................................................................D-1
INTERCONNECTION DIAGRAM............................................................ S-1
Declaration of Conformity

iv
FOREWORD
A Word to the Owner of the GP-330B
Congratulations on your choice of the FURUNO GP-330B GPS Receiver. We are
confident you will see why the FURUNO name has become synonymous with qual-
ity and reliability.
For 60 years FURUNO Electric Company has enjoyed an enviable reputation for
quality marine electronics equipment. This dedication to excellence is furthered by
our extensive global network of agents and dealers.
This equipment is designed and constructed to meet the rigorous demands of the
marine environment. However, no machine can perform its intended function un-
less installed, operated and maintained properly. Please carefully read and follow
the recommended procedures for installation and maintenance.
Thank you for considering and purchasing FURUNO equipment.
Features
The GP-330B is a high performance GPS Receiver designed for any type of ves-
sel. This compact and cost-effective receiver offers extremely accurate position fix-
es, within 3 meters with the WAAS mode activated.
• 12 channels for receiving 12 satellites simultaneously
• Output in NMEA 2000®or NMEA 0183 format
• Position fixed within approx. 60 seconds after start up
• Position updated every second
• Space-saving installation
• Ideal position-fixing sensor for NavNet®3D series

v

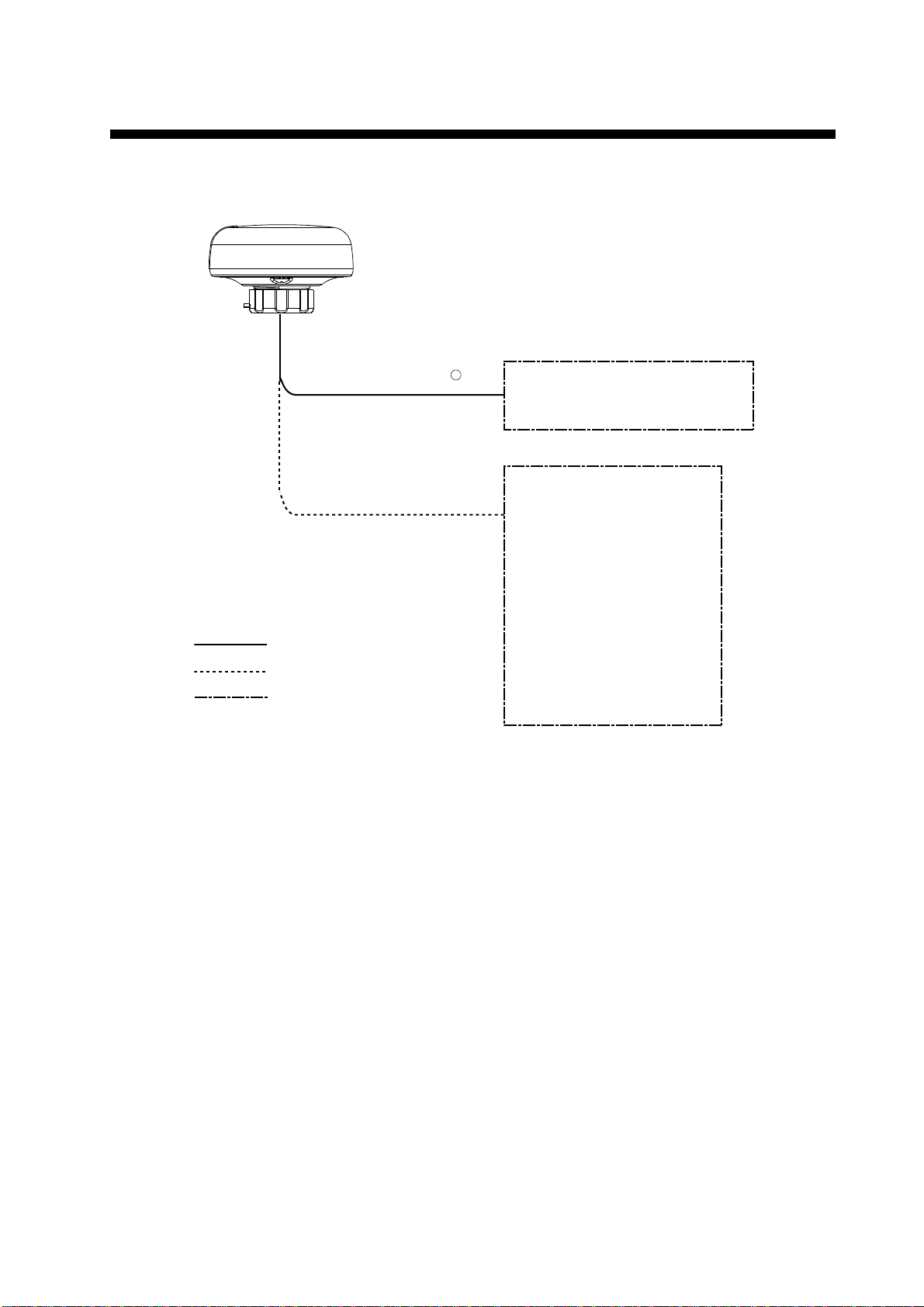

SYSTEM CONFIGURATION
: Standard supply
: Optional supply
: Local supply
NMEA 2000
NMEA 0183
NavNet 3D Series
FI-50 Series Instruments
AIS
Autopilot
Current Indicator
ECDIS
Remote Display Unit
NavNet vx2 Series
Radar
Scanning Sonar
Video Plotter
GP-330B
R

1
1. INSTALLATION
1.1 Equipment Lists
1.2 Tools & Materials
• Mounting hardware with standard 1-14" UNS (Pole/Rail Mount installation)
threads
• Safety goggles
•Dustmask
• Screwdrivers (Pole/Rail Mount or Deck Mount installation)
• Teflon pipe thread tape, 1/2" wide (some installations)
• Pencil (some installations)
• Electric drill (some installations)
• Drill bits (some installations):
• Pilot hole - 3 mm or 1/8"
• Deck mount screw holes - 5.1 mm or #7
• Deck mount cable hole - 25 mm or 1"
• Flush mount stud holes - 6 mm or 1/4"
• Flush mount cable hole - 38 mm or 1-1/2"
• Loctite®242®or other removable thread locker (Flush Mount installation)
• Cable ties (some installations)
Name Type Code No. Qty Remarks
Standard Supply
GPS
Receiver GP-330B 1
Installation
Materials
CP20-03200 000-012-581 1 set With NMEA
2000 cable (6 m)
See packing
list at back of
manual.
CP20-03210 000-012-582 1 set No cable
Optional Supply
Cable Assy. 22-1025-02
000-168-883-10 16 m, for NMEA 2000®
Cable Assy. 22-1025-06 000-168-884-10 110 m, for NMEA 2000®
Cable Assy. 22-910-03 000-168-885-10 1 10 m, for NMEA 0183
Cable Assy. MJ-A7SPF/
SRMD-100
000-144-534 1 10 m, straight, MJ7P(P)-
MJ7P(J), for NMEA 0183
Flush Mount
Kit
- 001-037-630 1
DeckMount
Kit -
001-037-640 1

2
1.3 Choosing the Mounting Location
For a reliable GPS signal, selecting the best location for the receiver is very impor-
tant. It can be mounted on a pole, rail, or flat surface. Choose a location that bal-
ances the requirements below.
• The GPS receiver must have a clear view of the sky to the horizon in all direc-
tions. Note that frozen water spray may degrade reception.
• Referring to the figure below for distances, mount away from any VHF radio, sat-
ellite communications equipment, radar, or other antennas to avoid mutual inter-
ference.
• Mount above or below any radar beam. Do not mount within a radar beam.
• Mount reasonably level with the earth’s surface—not tilted to one side.
•Do not mount on top of a sailboat mast. The sway will cause jitter in the data.
•Do not mount where the GPS receiver could be a tripping hazard or tread upon.
not within
INMARSAT beam
VHF antenna
or RX MF/HF
whip antenna Loop
antenna
GPS receiver
TX whip
antenna
(MF/HF)
INMARSAT
antenna
Long-wire
TX MF/HF
antenna
Min. 3 m
not within
radar beam
Min. 1 m Min. 4 m
Min. 1 m
Min. 5 m
Min. 1.5 m
Min. 5 m
Radar
Min. 4 m
B-, F-type: 25°
C-type: 15°
Antenna
insulator

3
1.4 Mounting
1.4.1 Pole/Rail (Pipe) Mount
The nut assembly supplied has standard 1-14" UNS threads that can be screwed
to a standard marine antenna mount, extension pole, or rail-mount bracket. Before
beginning the installation, plan for securing the pole/rail bracket to the boat and
purchase locally all the necessary hardware. It may be helpful to fasten the
pole/rail bracket to the boat before proceeding.
1. Unscrew the mount base (part C) from the surface bracket (part E). (The sur-
face bracket is not used in this installation. See the next page for part (E)).
2. Remove the label from the GPS receiver’s socket (underside of receiver). The
label may be discarded.
Fasten the mount base (part C) to the GPS receiver (part A) with the supplied
two panhead screws, flat washers and spring washers. The torque for the
screws is 1.35 NQm.
3. Decide if you want the cable to exit through the center or along the side of the
pole/rail bracket. Slide the nut assembly (captive nut and adaptor) onto the
cable at the 9-pin GPS connector end. Do not connect the GPS receiver at this
time.
1)Center exit—Pass the instrument connector end of the cable down through
the center of the pole. Be sure to leave several inches of cable extending
beyond the nut assembly.
2)Side exit—Place the cable side-exit adaptor (part D) over the cable. Being
sure the cable is passing through the slot in the side, screw the nut assembly
onto the adaptor. Hand-tighten only. Do not over tighten.
Note: Use the adaptor supplied as it has smooth edges that will not chafe the
cable. Do not use a purchased part.
CAUTION: If you use a thread locker, use teflon pipe thread tape. Do not use a
liquid thread locker as it may weaken the plastic, causing it to swell and crack.
4. Screw the extension pole/rail bracket onto the nut assembly / cable side-exit
adaptor. Hand-tighten only. Do not over tighten.
GPS receiver (part A)
Mount base (part C)
Panhead screw (2 pcs.)
GPS connector
Cable side-exit
adaptor (part D)
Alignment tab
Captive nut
Slot for cable exit
1)
2)
Flat washer (2 pcs.)
Spring washer (2 pcs.)
Adaptor
Nut
Assembly

4
5. Remove the protective cap from the GPS connector on the cable. (Save the
cap to protect the connector, when the receiver is removed.) Plug the cable
firmly into the GPS receiver.
6. With the alignment tab on the GPS receiver facing forward, slide the captive nut
upward and screw it onto the mount base. Hand-tighten only. Do not over
tighten.

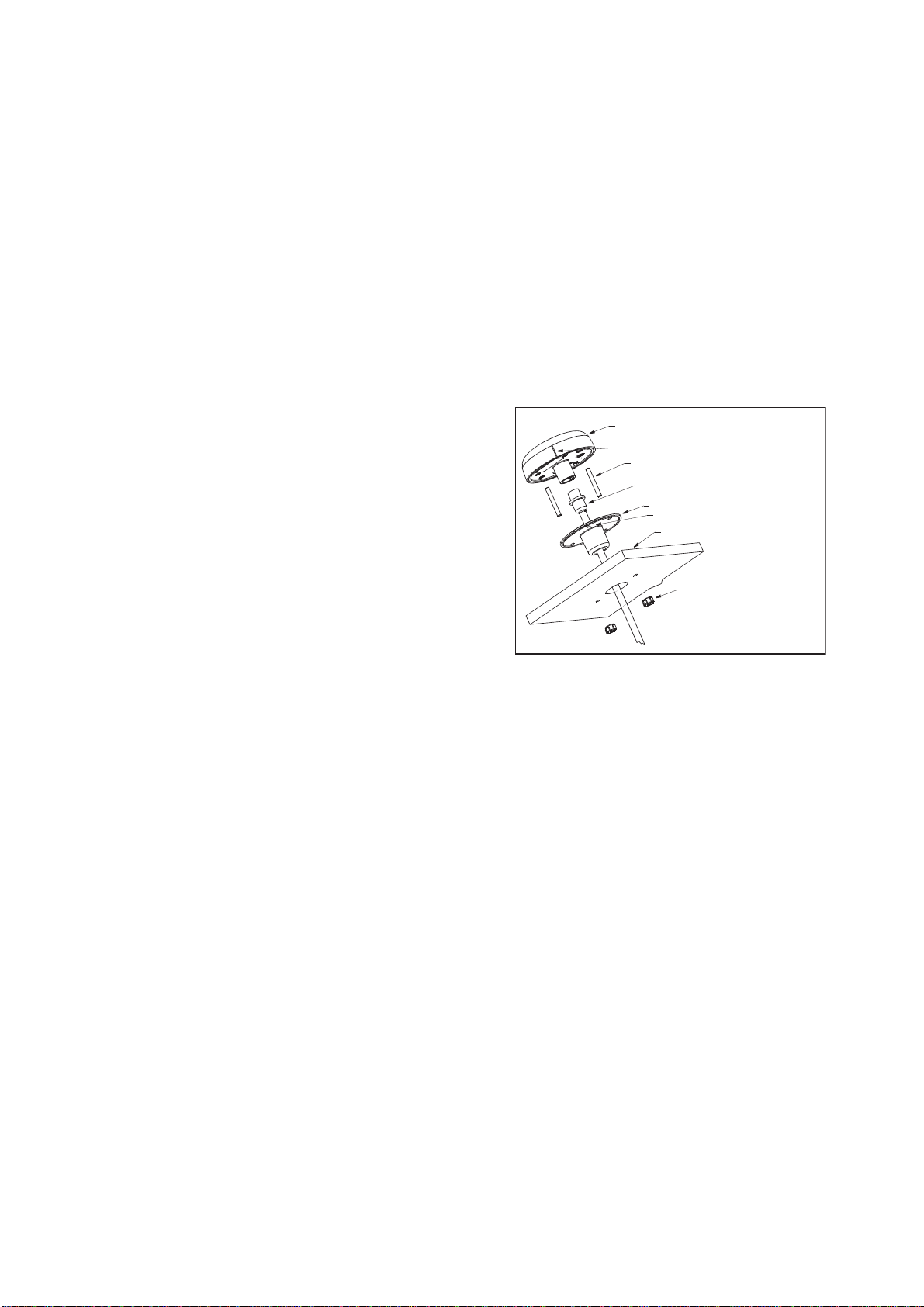

1.4.2 Deck Mount
See the outline drawing for mounting hole dimensions and fixing instructions.
1. Unscrew the mount base (part C) from the surface bracket (part E) (see figure
above). Remove the label from over the GPS receiver’s socket. (The label may
be discarded.) Fasten the mount base (part C) to the GPS receiver (part A) with
the supplied panhead screws, flat washers and spring washers. The torque for
the screws is 1.35 NQm.
2. Screw the surface bracket (part E) onto the mount base of the assembled GPS
receiver. Use a pencil to extend the alignment tab onto the surface bracket.
Unscrew the surface bracket.
3. At the selected location, position the surface bracket with the pencil mark facing
forward. Using it as a template, mark the position for the three mounting screws
and the center hole for the cable.
4. Using a 3 mm or 1/8" bit, drill the pilot holes. Using 5.1 mm or #7 bit, drill the
three mounting holes. Drill the cable hole with a 25 mm or 1" bit.
Fiberglass—Minimize surface cracking by running the drill in reverse until the
gelcoat is penetrated.
5. At the location shown in the figure above, coat the surface bracket (part E) with
silicone sealant.
6. Apply silicone sealant to the three #10 x 1/2" self-tapping screws to seal the
deck. With the pencil mark facing forward, fasten the surface bracket in place.
Do not block the drain slots. They will allow any water that accumulates inside
the surface bracket to escape. CAUTION: Do not use a liquid thread locker as it
may weaken the plastic, causing it to swell and crack.
Aligment tab
GPS receiver (part A)
Mount base (part C)
Panhead screw (2 pcs.)
GPS connector
Self-tapping screw (3 pcs.)
#10x1/2"
Surface bracket (part E)
Silicone sealant
Silicone sealant
Flat washer (2 pcs.)
Spring washer (2 pcs.)
Drain slot (6)
