1. RC18xx Console Introduction
1-1
1.1 Introduction
• The FURUNO USA GMDSS Console is an integrated package designed to meet
the requirements for Sea Area A3.
While other configurations are available, and much of the information is similar, this
manual was compiled for use with the A3 configuration.
Much of this information is taken from the manuals provided with this equipment. It has
been placed in this format to ease installation and technical service.
• As with the installation of any communications equipment, careful planning is necessary.
Some of the most important points are:
1) Type and Location of Antennas.
2) Grounding for the Antenna Systems and for all associated equipment.
• These points are repeated in several sections to emphasize their importance. Many
installation problems are related to these points, and close attention to the entire installation
will lead to years of trouble free service for the customer.

2. Mechanical Installation
2-1
2.1 Mounting of the Console
Refer to Furuno USA GMDSS Console Drawing
The RC18xx Console is designed to be mounted in two distinct positions:
• The first is to fasten the unit to a desk or base. Ten 3/8” holes have been
provided to ensure a secure mounting to the selected surface.
• The second is bulkhead mounting. Four 3/8” holes are provided through the back
panel of the console to facilitate this mounting scheme.
Both are acceptable and are properly reinforced to provide a secure mounting.
2.2 Grounding
Refer to RC1815/RC1825 and RC1840 Mechanical Layout
A welded 3/8” stud has been attached to the console for grounding purposes. This
grounding stud is located inside the back cover and should not be visible in a completed
installation. This is provided to assist in properly grounding the console, and is the
console’s connection to the electrical and RF grounding of the ship.
The grounding should be a copper ground strap, such as used in the antenna grounding
system. To produce a good RF ground connection, brazing the ground strap to the steel
console is highly recommended. Improper grounding will cause many problems in the
system operation.
2.3 Power Supplies, Batteries and Battery Charger
• Mount PR850A and PR300 (if supplied).
• Mount batteries in appropriate container or rack (see manufacturers recommendations).
Console current requirements can be found on RC18xx Battery Requirements.
• Mount battery charger (see manufacturers recommendations).

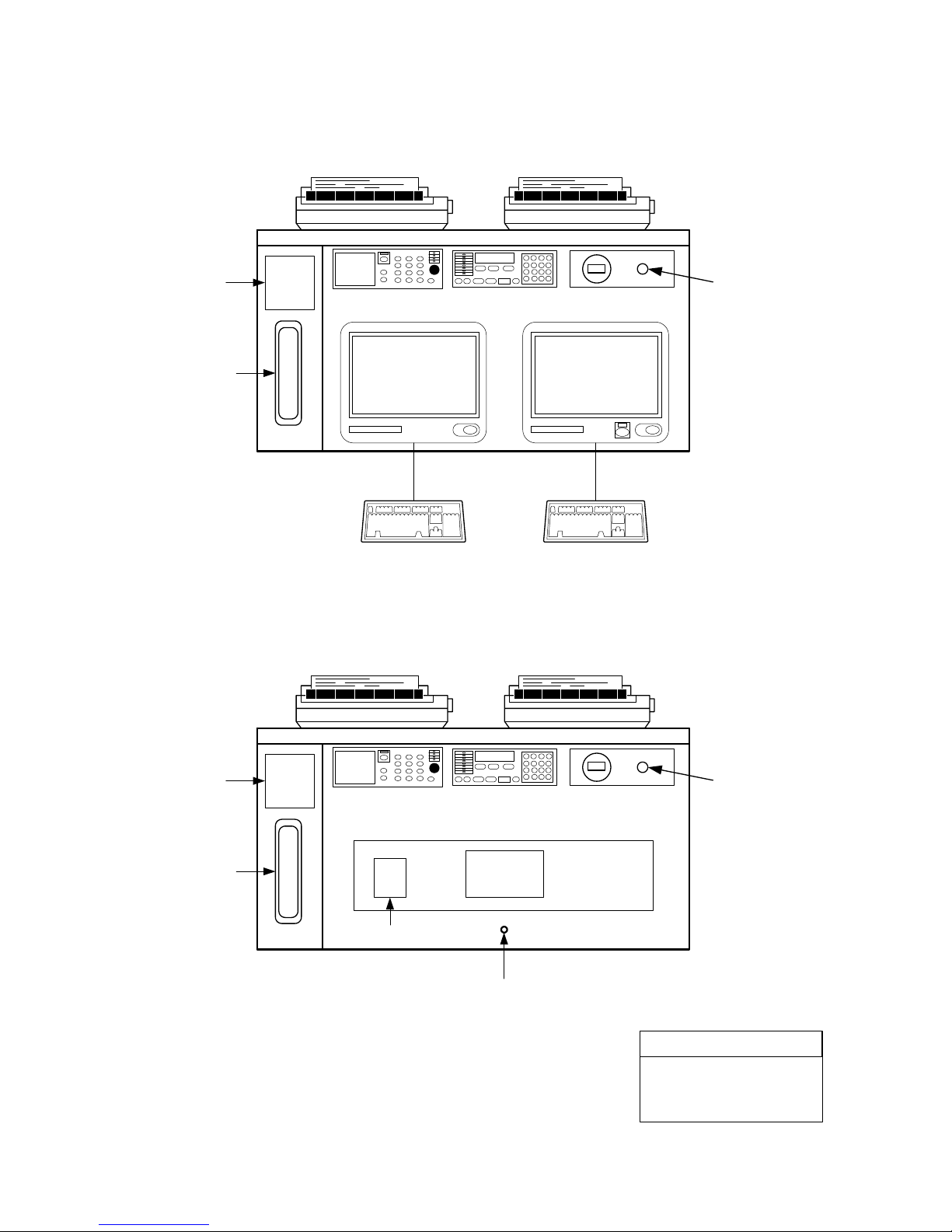

FURUNO USA GMDSS
DESCRIPTION
RC1815 and RC1825
Mechanical Layout
FURUNO
Felcom 15
IC-215
Keyboard
AC Failure
Light
Meter
Handset
FM-8500FS-2570C
PP-510 for
Felcom 15
PP-510 for FS-2570C
and IB-583
Label
FURUNO
IB-583
Keyboard
FURUNO
USA
AC Failure
Light
Meter
Handset
FM-8500FS-2570C
PP-510 for
Felcom 15
PP-510 for FS-2570C
and IB-583
Label
IB-315
Junction Box
Printer Switch for
FS-2570C and IB-583
FURUNO
USA
Console Ground
Connection

FURUNO USA GMDSS
DESCRIPTION
RC1840
Mechanical Layout
FURUNO
Felcom 15
IC-215
Keyboard
AC Failure
Light
Meter
Handset
FM-8500DSC-60
PP-510 for
Felcom 15
PP-510 for DSC-60
and DP-6
Label
AC Failure
Light
Meter
Handset
FM-8500DSC-60
PP-510 for
Felcom 15
PP-510 for DSC-60
and DP-6
Label
IB-315
Junction Box
Printer Switch for
DSC-60 and DP-6
FURUNO
DP-6
Keyboard
FURUNO
USA
FURUNO
USA
Console Ground
Connection

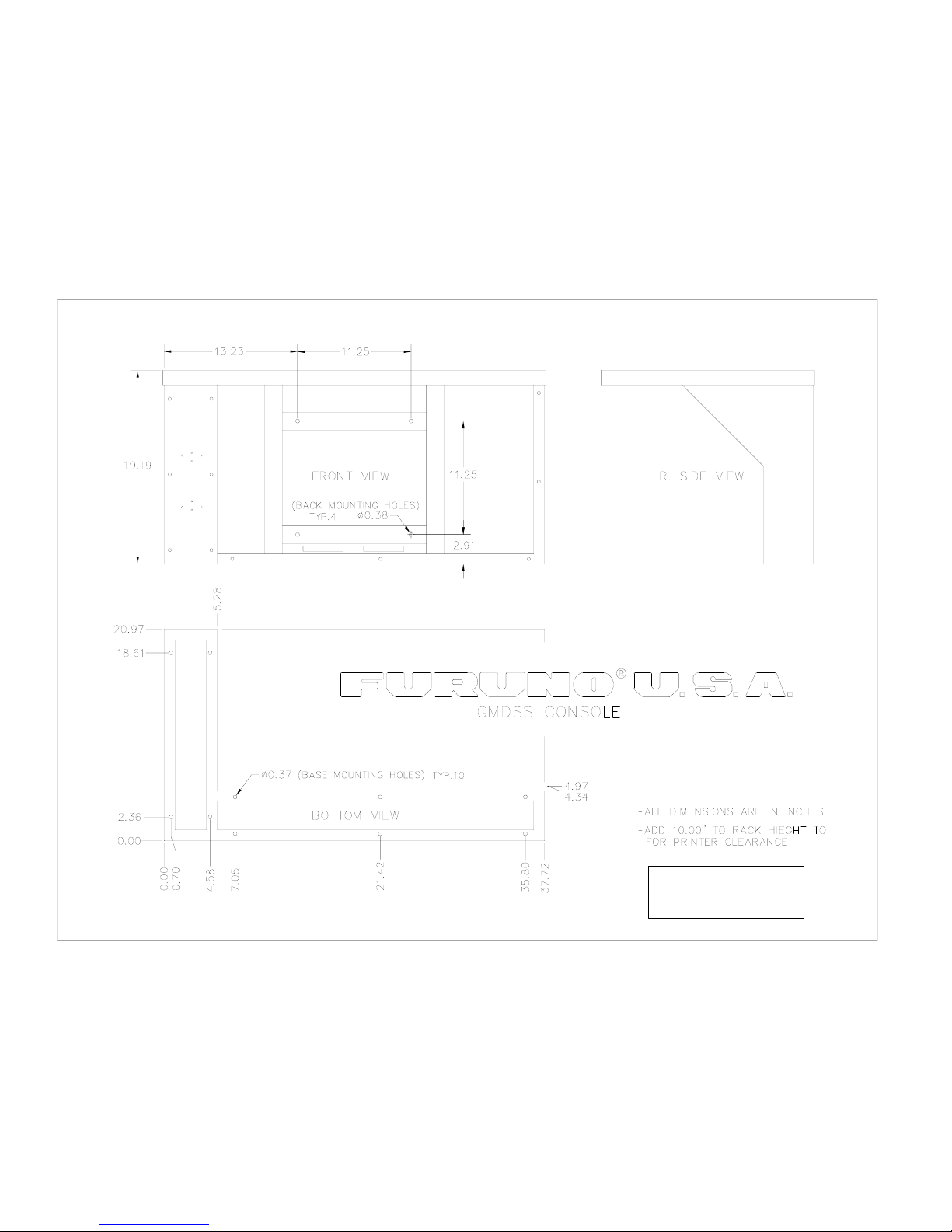

A3 GMDSS Console
Mechanical Drawing
2-4

3. RC18xx Console Wiring
3-1
3.1 Electrical Connections
RefertoRC1815/RC1825 and RC1840 Meter Box Assembly Drawing
3.1.1 Meter Box
All power connections to the RC18xx series console are made to the Meter Box.
Access to the Meter Box is made by removing four, countersunk phillips, screws
from the bottom and sliding the cover back and down. On the inside of the cover is a
mechanical layout of the box, to assist with installation.
3.1.2 Batteries
Connect the battery system using the appropriate wire size to handle the current
capacity of the console
(Refer to Pg. 3-3, RC18xx Battery Requirements).
Batteries => Meter Box Assembly
1) Battery Negative => TB1-1 in the Meter Box Assembly
2) Battery Positive => TB1-2 in the Meter Box Assembly
3.1.3 Battery Charger
The Battery Charger, which is Dealer supplied, attaches to TB1 in the Meter Box
Assembly.
Battery Charger => Meter Box Assembly
1) Negative Output => TB1-3 in the Meter Box Assembly
2) Positive Output => TB1-4 in the Meter Box Assembly
3.1.4 PR-300 Power Supply (RC1840)
Determine the AC Input to be used with the PR-300 (Factory setting is for
220 VAC). Using the diagram supplied with the PR-300, open the supply and set
the transformer taps for the correct voltage. Reassemble the supply.
PR-300 (RC1840)
1) AC IN => AC Input from Ships Mains (100 to 220 VAC)
2) DC IN (Negative) => TB1-5 Meter Box Assembly
3) DC IN (Positive) => TB1-6 Meter Box Assembly
4) 24V DC OUT (Negative) => TB1-9 Meter Box Assembly
5) 24V DC OUT (Positive) => TB1-10 Meter Box Assembly

3. RC18xx Console Wiring
3-2
3.1 Electrical Connections (Continued)
RefertoRC1815/RC1825 and RC1840 Meter Box Assembly Drawing
3.1.5 PR-850A Power Supply
Determine the AC Input to be used with the PR-850A (Factory setting is for
220 VAC). Using the diagram supplied with the PR-850A, open the supply and set
the transformer taps for the correct voltage. Reassemble the supply.
PR-850A => Console and Outside Connections
PR-850A Front Connections
1) AC IN => AC Input from Ships Mains (100 to 240 VAC)
2) 24 VDC Output => Not Used
PR-850A Rear Connections (RC1815 and RC1825)
1) Battery IN (Negative) => TB1-5 Meter Box Assembly
2) Battery IN (Positive) => TB1-6 Meter Box Assembly
3) AC Fail (Positive) => TB1-7 Meter Box Assembly
4) AC Fail (Negative) => TB1-8 Meter Box Assembly
5) 24 VDC OUT (Negative) => TB1-9 Meter Box Assembly
=> TB2 FS-1570/ FS-2570 Transceiver
6) 24 VDC OUT (Positive) => TB1-10 Meter Box Assembly
=> TB1 FS-1570/ FS-2570 Transceiver
PR-850A when used with the RC1840
24 VDC OUT (Neg. and Pos.) => To FS-5000 Transceiver.
* The FS-5000 requires 60 Amps peak current.*
3.1.6 NMEA/IEC-61162 Connections
Refer to Pg. S-6, Felcom 15, IC-315 Junction Box Connections drawing.

RC18xx
Battery Requirements
Current / RC1815 RC1825 RC1840
Equipment Calculation Amps Amps Amps
PP510 0.4A x 2 = 0.8 0.8 0.8
DSC-60 1.0A = 1
DP-6 1.6A = 1.6
AC Fail Lamp 0.3A = 0.3 0.3 0.3
Emer. Lamp 0.3A = 0.3 0.3 0.3
Felcom 15 RX 0.9A = 0.9 0.9 0.9
Felcom 15 TX 5A/2 = 2.5 2.5 2.5
IB-583 0.6A = 0.6 0.6
FS-1570 RX 0.8A = 0.8
FS-1570 TX 20A/2 = 10
FS-2570 RX 1.5A = 1.5
FS-2570 TX 35A/2 = 17.5
FS-5000 RX 3A = 3
FS-5000 TX 60A/2 = 30
FM-8500 RX 0.5A x 2 = 1 1 1
FM-8500 TX (6.25A/2) x 2 = 6.25 6.25 6.25
Amps Per Hour 23.45 31.65 47.65
* Method used for calculation: 1/2 of the current consumption necessary for
transmission + the current necessary for reception + current consumption of
any additional loads
3-3

4. RC1815/RC1825 Equipment Installations
4-1
4.1 DMC-5 (Optional Equipment)
Refer to the Operator’s/Installation Manual, DMC-5 and the RC1815/RC1825,
DMC-5 Interconnect Drawing
4.1.1 Mounting
1) Mount the DMC-5 in an accessible area on the bridge.
(RefertotheOperator’s/Installation Manual, DMC-5, Section 6)
4.1.2 Power Connections
1) Connect 24 VDC to the DMC-5 (Junction Board, TB10). The 24-volt supply
should be from TB2(-) and TB3(+) in the Meter Box Assembly. This cable
should be at least 16 gauge, and the wire size should be increased
for cable runs longer than 25 feet. Always install inline fuses in this power cable.
A two (2) amp fuse is more than sufficient for these circumstances.
4.1.3 External Equipment Connections
1) Install the dealer supplied control cables from the following equipment to the
DMC-5 (Junction Board).
(Refer to Pg. S-7, the RC1815/RC1825, DMC-5 Interconnect Drawing)
a) VHF #1 (FM-8500)
b) VHF #2 (FM-8500)
c) FS-1570/FS-2570
d) Felcom 15, IC-315 Junction Box
The FS-1570/FS-2570 and FM-8500’s require a cable with two twisted pairs with
an overall shield. The Felcom 15 requires a cable with three twisted pairs with an
overall shield. These cables should be 18 to 20 gauge, and the wire size should be
increased for cable runs longer than 35 feet. This cabling should be equivalent to,
or better than, Belden 85164.
2) Connect the VHF’s (FM-8500) using the supplied connector (000-116-185).
Attach the cable between the DMC-5 (Junction Board), VHF #1 and VHF #2,
and the DMC port on the FM-8500’s.
3) Install cabling between the DMC-5 (Junction Board, TB6) and TB in the
FS-1570/FS-2570 Transceiver using the recommended cable.
4) Connect the Felcom 15 Junction Box and the DMC-5 (Junction Box, TB5)
using the recommended cable. When the DMC-5 is used, a Distress Alert Unit
is not needed at the navigation position.

4. RC1815/RC1825 Equipment Installations
4-2
4.2 Felcom 15 Installation
RefertoInstallation Manual, Felcom 15
4.2.1 IC-215 Communications Unit/Display
1) Mount the IC-215 in the front, desktop area, of the console on the right side.
Using the four tapping screws provided.
(Refer to the Pg. 2-2, the RC1815 and RC1825 Mechanical Layout and
Pg. 8 of the Installation Manual)
2) Connect the cables for the Felcom 15 Printer, Keyboard,
Felcom 15 Junction Box and Felcom 15 Power. These cables have
been installed and labeled within the console.
3) Install the IC-305, Distress Alert/Received Call Unit, on the bridge.
Wire this to the IC-315 Junction box using Belden 85164 or equivalent.
(Refer to Pg. S-6, the Felcom 15, IC-315 Junction Box Connections)
4) Install the IC-306, Alarm Unit, near the console. Wire this to the IC-315
Junction box using Belden 85164 or equivalent.
(Refer to Pg. S-6, the Felcom 15, IC-315 Junction Box Connections)
4.2.2 IC-115 Antenna Unit
1) Install Antenna Unit, IC-115, (refer to the Installation Manual). Make sure
that the Antenna Unit is properly grounded and that all connections are properly
sealed. Route the antenna cable to the IC-215 and connect it to the ANT port.
(Refer to Pgs. 1 through 7 in the Installation Manual, Felcom 15)

4. RC1815/RC1825 Equipment Installations
4-3
4.3 FM-8500 Installation
RefertoInstallation Manual, FM-8500
4.3.1 Transceiver
There are two FM-8500’s in the standard console configurations. One unit is
mounted in the console, and will not require installation of a NMEA cable or
power cable. The handset and hanger, for the console mounted FM-8500, must
be mounted in a location that is convenient for the user. The second unit is
remotely mounted on the bridge, and will require the installation procedure
listed below.
1) Mount the transceiver bracket. (Refer to Pg. 10 of the Installation Manual)
2) Screw the knob bolts with washers into the transceiver unit.
3) Set the transceiver unit into the mounting bracket and tighten the knob bolts.
4) Make a power cable using the supplied connector (000-503-281). Install from the
transceiver, 24VDC port to TB2(-) and TB3(+) in the Meter Box Assembly.
All power connections outside the console must be protected with inline fuses.
The FM-8500, which draws 7 amps, will require a 10-gauge wire for up to
40 feet separation from the Meter Box Assembly.
5) Make a NMEA cable using the supplied connector (000-111-537). Connect
fromtheNMEA port on the transceiver to the IC-315 Junction Box.
Use Belden 8302 or equivalent cable.
(Refer to Pg. S-6, the Felcom 15, IC-315 Junction Box Connections)
6) Attach a ground strap from the transceiver ground stud to the ship’s hull or
ground system.
7) Mount the handset hanger and connect to the HANDSET port on the transceiver.
4.3.2 Antennas
Two standard marine VHF antennas are necessary for both FM-8500’s. One antenna
is the main TX/RX antenna while the second is the channel 70 RX antenna for the
DSC receiver.
1) Mount both VHF antennas. Make sure that they are separated vertically to
prevent the TX antenna from interfering with the channel 70 RX antenna.
2) Install the cables and connect the transmit antenna to the ANT port and the
receive antenna to the CH 70 ANT port on the transceiver.

4. RC1815/RC1825 Equipment Installations
4-4
4.4 FS-1570/FS-2570 Installation
RefertoInstallation Manual, FS-1570 (150W) / FS-2570 (250W)
4.4.1 Control Unit
1) The FS-2570C (Control Unit) and HS2001 (Handset) have been mounted and
wired into the console.
4.4.2 Transceiver Unit
1) The Transceiver is designed for bulkhead mounting using six tapping
screws or bolts. Select a location that can support the weight of the unit,
(FS-1570: 25 lbs., FS-2570: 31 lbs.), under the operating conditions encountered
onboard the ship. If necessary, reinforce the mounting location.
2) Connect the 24 VDC, Rear Connections: PR850A, to TB1(+) and TB2(-) of the
transceiver, through a set of inline breakers or fuses. When installing the power
cable in the transceiver, use a razor knife to cut an opening in the grommet.
The FS-1570, which draws 20 amps, will require an 8-gauge wire for up to
40 feet separation from the PR850A power supply.
The FS-2570, which draws 35 amps, will require a 6-gauge wire for up to
40 feet separation from the PR850A power supply.
3) Connect the cable Controller 1, connected to the FS-2570C, to the
transceiver port Controller 1.
4.4.3 Antenna
1) The antenna is to be provided by the Dealer. This antenna should be 7 to 30
meters in length and be mounted as clear of obstructions as possible. When
considering the mounting location of the antenna, be sure to allow space for
mounting the antenna coupler.
4.4.4 Antenna Coupler AT-1560-15 or AT-1560-25
1) Mount the antenna coupler as close to the antenna as possible. The provided
coupler can be mounted horizontally or vertically depending on the location.
(Refer to Pgs. 2-1 through 2-3 of the Installation Manual)
2) Connect the antenna wire from the antenna to the insulator at the top of the
coupler. Keeping the length as short as possible.
3) Fasten the supplied ground strap to the connection provided at the base of the
antenna coupler. Make certain this connection is brazed or welded to the ship’s
hull or ground system. The exposed ground strap should be painted or coated with
a material to prevent rust.

4. RC1815/RC1825 Equipment Installations
4-5
4.4 FS-1570/FS-2570 Installation (Continued)
RefertoInstallation Manual, FS-1570 (150W) / FS-2570 (250W)
4.4.4 Antenna Coupler AT-1560-15 or AT-1560-25 (Continued)
4) Remove the antenna coupler top housing by removing the 8 housing screws.
5) Install the control cable (000-130-484) from the antenna coupler to the
transceiver. Cut the connector from the cable and attach the control cable
from TB3, in the antenna coupler, and TB, terminals 1-8, in the transceiver.
When installing the coupler cable in the transceiver, use a razor knife to
cut an opening in the grommet.
(Refer to Pgs. 2-3 through 2-4 of the Installation Manual)
6) Install the coax cable (000-113-360) from the antenna coupler to the transceiver.
Attach the coax cable from TB1, in the antenna coupler, and the T/R ANT port
on the FS-1570/FS-2570 transceiver.
(Refer to Pgs. 2-3 through 2-4 of the Installation Manual)
7) Reinstall the antenna coupler housing using only a couple of the provided screws.
This will allow easier access when testing the unit later in the installation.
4.4.5 DSC/Watch Receiver Antenna
The DSC/Watch Receiver has been incorporated into the FS-1570/FS-2570.
This antenna connection is made to the D.ANT (W/R 1) port. The unit is shipped
for use with a passive antenna.
(Refer to Pgs. 2-4 and 3-10 of the Installation Manual)
Passive Antenna
1) When a passive antenna is used, the impedance must be matched to a 50 ohm
cable, for connection to the FS-1570/FS-2570.
Active Antenna
1) Install the preamp (FAX-5 coupler). Connect a 2.6m whip or 2 to 3 meter long
wire antenna to the preamp.
(Refer to Pgs. 1-11 and 1-12 of the Installation Manual)
2) Ground the preamp to the mounting mast.
(Refer to Pgs. 1-11 and 1-12 of the Installation Manual)
3) Open the transceiver and remove the cover from the W/R (Watch Receiver).
ChangeJ3 from passive to active.
(Refer to Pg. 3-10 of the Installation Manual and the diagram on the inside
cover of the Transceiver.)

4. RC1815/RC1825 Equipment Installations
4-6
4.4 FS-1570/FS-2570 Installation (Continued)
RefertoInstallation Manual, FS-1570 (150W) / FS-2570 (250W)
4.4.5 DSC/Watch Receiver Antenna (Continued)
4) Reassemble the transceiver.
4.4.6 NMEA/IEC-61162 Connection
1) Install a cable, Belden 8302 or equivalent, from the Felcom 15 Junction Box
to the FS-1570/FS-2570 transceiver. Connect this cable per the notations on
Pg. S-6, the Felcom 15, IC-315 Junction Box Connections.
(Refer to Pg. 2-2, the RC1815 and RC1825 Mechanical Layout for the location of
the IC-315 Junction Box)

4. RC1815/RC1825 Equipment Installations
4-7
4.5 IB-583 NBDP Terminal
RefertoInstallation Manual, FS-1570 (150W) / FS-2570 (250W)
4.5.1 Mounting
1) Mount the IB-583 in the front, desktop area, of the console on the left side.
Using the four tapping screws provided.
(Refer to Pg. 2-2, the RC1815 and RC1825 Mechanical Layout and
Pg. 4-4 of the Installation Manual)
4.5.2 Power Connections
1) Connect power cable, IB-583 Power, to the IB-583 display.
4.5.3 Additional Connections
1) Connect the printer cable, IB-583 Printer, to the printer port.
2) Connect control cable, IB-583 DTE, to the DTE port.
3) Connect the keyboard to the Keyboard port on the IB-583.

5. RC1815/RC1825 Equipment Setup
5-1
5.1 General
• When the installations are completed, proceed through the setup procedures.
• The MMSI number and INMARSAT number will be needed to complete
the setup and testing procedures.
5.1.1 Powering Up Equipment
1) Power on the PR850A. Power on the battery charger.
2) Install the printer paper and turn on the printers.
3) Turn on all of the following equipment before starting the setup procedures:
a) FS-1570/FS-2570 (RC1815 and RC1825)
b) IB-583
c) Felcom 15
d) FM-8500’s (VHF1 and VHF2)
e) DMC-5 (optional)
4) Each piece of equipment goes through a self-test on start up and will show
any errors discovered during this process. Record any errors for future reference.
5.1.2 E Meter
1) The E Meter should be displaying the battery voltage.
Pressthe[SEL] key and the battery charge current should be displayed.
2) The battery Amp/Hour rating is set at the factory for 200 Amp/Hour.
If your batteries are a different rating, this setting must be changed to match
your batteries. The Amp/Hour settings are in increments of 20 Amp/Hours.
Example: A setting of 200 would be sufficient for 210 Amp/Hour.
Never set the rating higher than the rating of the batteries.
(Refer to Pg. 21 of the E Meter Owners Manual)
