Fusion F-3500 User manual

•owners manual
• f-3500
f-3500f-3500
Vehicle Security System
New Zealand ph 0800 387 466 Australia ph 1800 143 873 United Kingdom ph 0800 169 8891 USA/Canada ph 1877 333 7944

introduction
Thank you and congratulations for choosing FUSION Car Security for your alarm requirements. FUSION alarms have been
significantly improved throughout the years to assure quality and reliability. The latest in technology has been incorporated
into every security product providing you with incredible security and unparalleled performance. Our simple yet highly
developed circuitry, contributes to the ultimate in circuit stability. This is why we are sure that your new FUSION security
system will provide you with peace of mind for years to come.
Manufacturing quality vehicle security is not all FUSION has accomplished. Check out our full line up of head units, signal
processors, component speakers, full range speakers, amplifiers and of course, our wide range of high performance
subwoofers. Explore the potential of FUSION Car Audio and Security and most of all, enjoy the experience!
CAR ALARM FEATURES
CODE LEARNING TRANSMITTER
a. With the Ignition ON, press the valet switch 10 times within 8 seconds, the siren will chirp 3 times to enter code learning mode.
(3 transmitters maximum).
b. Press any button on the transmitter within 8 seconds. If over 8 seconds or the ignition is turned OFF, the system will exit code
learning mode automatically.
c. The siren will chirp for confirmation as soon as a new code is learned. For example, when the first transmitter is learnt, the
siren will chirp once. When the second transmitter is learnt, the siren will chirp twice and so on.
d. If one of the transmitters is to be programmed, all other transmitters must be reprogrammed at the same time.
ARMING
a. Press button 1.
b. Siren will chirp once for ARM indication or no chirp if the function is disabled (Programmable Function 6).
c. Park lights will flash once.
d. Doors will lock (if central locking installed).
e. LED will flash slowly. If door is not closed, the siren will chirp 6 times for warning and LED flashes quickly.
f. Disables the engine if the engine disable Interrupt Relays are connected.
g. After 3 seconds, the system is ARMED. If the alarm is triggered within 3 sec, the siren will chirp twice and the circuit is by-passed
until the triggering source is stable.
DISARMING
a. Press button 2.
b. Park lights will flash 2 times, siren will chirp 2 times or no chirp if function disabled (Programmable Function 6).
c. If siren chirps 3 times, the alarm has been triggered in your absence (See LED Status reporting below).
d. Doors will UNLOCK (if central locking installed). Some vehicles UNLOCK the drivers door first on the first press of the UNLOCK
button. If this is the case then when DISARMING the alarm you will need to press and hold the UNLOCK button for 2 seconds.
This should trigger the remaining doors to UNLOCK.
LED STATUS REPORTING
a. On DISARMING if the siren chirps 3 times the alarm has been triggered in your absence.
b. The parking lights will flash the number times according to the ZONE triggered your absence.
c. With the ignition OFF the LED will be flashing a report code to tell you which ZONE triggered in your absence. The flashing
sequence will remain to flash for 30 seconds and will be reset by turning on the ignition, codes are spaced by 1.5 seconds.
Zone 4 - SHOCK SENSOR port trigger, 3 Siren chirps, 4 Light flashes and the LED flashes 4 times per cycle
Zone 5 - AUX SENSOR port trigger, 3 Siren chirps, 5 Light flashes and the LED flashes 5 times per cycle
Zone 6 - DOOR trigger, 3 Siren chirps, 6 Light flashes and the LED flashes 6 times per cycle
Zone 7 - TRUNK trigger, 3 Siren chirps, 7 Light flashes and the LED flashes 7 times per cycle
Zone 8 - IGNITION trigger, 3 Siren chirps, 8 Light flashes and the LED flashes 8 times per cycle.
d. To reset the LED status reporting feature, turn the ignition ON.
REMOTE CONTROL
Functions Conditions
a. ARMS alarm and locks doors (if installed) Alarm is DISARMED
b. Car finder with sound Alarm is ARMED
c. Temporarily stops alarm from sounding Alarm is sounding
d. Locks doors (if central locking is installed) While Driving
e. Pressing for 2 seconds will trigger the window While DISARMED
Closure module (if installed)
a. DISARMS alarm Alarm is ARMED
b. Unlocks doors (if central locking installed) While Driving
c. Stops alarm from sounding Alarm is sounding
d. Press and hold for 2 seconds to activate While Disarming
2ND Unlock (if selected see page 4)
a. ARMS alarm silently Alarm is DISARMED
b. Car finder without sound Alarm is ARMED
c. Anti-car-jack (see page 4) While driving
d. Temporary Last Door Arming and Before turning off vehicle
Automatic Immobiliser Bypass
Activates Channel 2 Output to Open trunk, Ignition OFF
window roll up or even Auto Start Modules. Alarm is DISARMED
Activates PANIC MODE
Anytime
Button #
1
2
3
2 + 3
1 + 2
Note: Please refer the above table and operating instructions for all alarm functions.
f-3500
Vehicle Security SystemVehicle Security System
1
Button 1 Button 2
Button 3
The F-3500 vehicle security system is approved by FCC.
FCC ID:QRNF3500
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference and (2) This device must accept any interference received, including interference that may
cause undesired operation.

PANIC MODE
a. P ress + The siren will sound, and park lights will flash for 30 seconds or until reset.
b. Press or to reset the panic.
SILENT ARMING
a. Press button 3.
b. Park lights will flash once.
c. Doors will lock (if central locking installed).
d. LED will flash slowly. If a door is not closed properly, the siren will chirp 6 times for warning and the LED flashes quickly.
e. The onboard engine immobiliser relays if connected will be ARMED.
f. Once silently ARMED if you DISARM the alarm using the button the alarm will DISARM silently.
SENSOR BYPASS DURING SILENT ARMING MODE
a. While DISARMED Press button 3 the first time, system enters SILENT ARMING mode.
b. Park lights will flash once.
c. Doors will lock (if central locking installed).
d. Within 3 seconds press button 3 a second time, the park lights will flash 3 times to confirm that the sensor ports
have been by-passed. The park lights will then flash an additional 10 times.
e. While ARMED if you press button 1 to commence Car Finder with Sound mode. The siren will sound once and the
park lights will flash 10 times and at this stage all sensor ports are REARMED.
EMERGENCY DISARMING
Every unit comes with 5 as the DEFAULT override code. For the emergency DISARM procedure follow the instructions below.
While the system is ARMED
a. Open the drivers door (the alarm will sound).
b. Turn the ignition ON.
c. Press the VALET button 5 times (if default) within 8 seconds. Wait 3 seconds for the verification process then if the
correct code was entered, the system will chirp the siren 4 times and DISARM the system. If the value is incorrect or
you did not enter the correct code within 8 seconds you will need to turn off the ignition and start again at step b.
To replace the override code with a new value please follow the steps below.
a. DISARM the security system.
b. Turn the ignition ON
c . Press the VALET switch 5 times within 8 seconds. The siren will chirp 4 times to indicate the system is in the
emergency code replace mode.
d. Enter a number from (1-15) within 8 seconds, when finished the siren will replay the new code by chirping the amount
of times equal to the new code.
e. Now turn off the ignition key to exit. If the number is over 15 the system will reset this value to the DEFAULT of 5.
AUTOMATIC DOOR UNLOCK
When the ignition turns from ON to OFF, the doors will automatically unlock (if central locking has been installed).
AUTOMATIC DOOR LOCK (PROGRAMMABLE FUNCTION 4)
a. With all doors closed, turn the ignition from OFF to ON, after 17 seconds the doors will lock (if locking installed).
b. If a door is opened before you turn the ignition from OFF to ON will cancel the automatic lock procedure.
f-3500
Vehicle Security SystemVehicle Security System
3
VALET MODE (PROGRAMMABLE FUNCTION 12)
a. Turn ignition ON, within 8 seconds press and hold the valet switch for 3 seconds then release and turn off the ignition.
b. The LED should light continuously, if it does not then start this procedure again and hold for longer.
c. In Valet mode press LOCK, the siren will chirp twice and LOCK the doors (if installed), and the park lights will flash twice.
d. Press UNLOCK, the siren will chirp three times to confirm UNLOCKING (if installed), and the park lights flash three times.
e. To exit Valet Mode, turn the ignition ON, press and hold valet switch for 3 seconds once then release and turn the ignition OFF.
f. In Valet mode the alarm operates as a keyless entry system (if central locking installed) also all optional functions operate as
normal except automatic immobilisation and alarm functions. Trunk release and window closure outputs function if installed.
CAR FINDER MODE
a. With the alarm ARMED.
b. Press button 1 the siren will sound once and park lights will flash 10 times.
c. Press button 3 the siren has no sound and the park lights will flash 10 times
d. Press button 2 to stop the car finder mode and DISARM the alarm.
ANTI-CARJACKING MODE (PROGRAMMABLE FUNCTION 7)
a. With the ignition ON and the doors closed, press twice and then open the door within 8 seconds to activate anti-
carjacking mode. (If the door is not opened within 8 sec, this mode will automatically exit).
b. Close the door to start the 30 second count down, during this time the LED will flash quickly.
c. When the 30 sec is up, the siren will chirp every 2 seconds. After 20 seconds, the siren sounds continuously and the park
lights will flash continuously. As soon as the Ignition is turned OFF the engine will now be DISABLED and after 30 seconds the
siren will stop. If the ignition key is turned back ON the siren will sound again and park lights will flash until the ignition is
turned off or is reset with the remote.
d. To DISARM the anti-carjacking, press for two seconds while the ignition is ON. The park lights will flash once to confirm.
e. Press and hold for two seconds, this will exit the anti car jacking mode
CHANNEL 1 (-) 300mA TRUNK RELEASE/AUTOSTART FUNCTION
a. Press buttons 2 + 3 for channel 1 output, this output can be used to open a trunk or engine starter module (optional).
b. The trunk trigger and sensor ports are bypassed until the trunk is closed. After 3seconds the system is in ARM mode again.
MANUAL OR AUTOMATIC PARKING LIGHTS ON DISARM (PROGRAMMABLE FUNCTION 16)
a. If this function is set to DEFAULT pressing once will DISARM the alarm, then pressing again within 3 seconds will
turn on the park l ights for 30 seconds. Turn the ignition ON or ARM the alarm to reset.
b. If this function is not the DEFAULT setting then pressing once will DISARM the alarm and the park lights will turn ON
automatically for 30 seconds. Turn the ignition ON or ARM the alarm to reset.
CHANNEL 2 (-) 300mA WINDOW CLOSURE OUTPUT (PROGRAMMABLE FUNCTION 14)
a. If your car has a window closure module installed you can press and hold button 1 for more than 2 seconds to roll
up the windows, the window closure output will work for as long as you keep button 1 held.
b. This function can be selected to give a 30 second pulse for window closure from just one press.
CHANNEL 3(-) 300mA PAGER OR 2ND UNLOCK OUTPUT (PROGRAMMABLE FUNCTION 3)
a. In PAGER MODE if the alarm is ARMED and then triggered this output will be active. In PANIC MODE this output is also active.
b. In 2ND UNLOCK MODE if you press and hold button 2 this output will be active for a 1 second duration.

DOOR LOCK CONTROL
a. While driving, press button 1 to LOCK doors. The doors can be locked automatically.
b. While driving, press button 2 to UNLOCK doors. The doors can be unlocked automatically.
LAST DOOR ARMING WITH LOCK (PROGRAMMABLE FUNCTION 8 & 9)
a. Turn ignition OFF and close the last door. After 30 sec, the system will ARM with or without locking the doors (See
function selections 8 and 9). If function 9 is required ensure that function 8 is turned on also.
b. If one of the doors is opened during the above 30 sec, the system will reset the arming timer until the last door is closed.
AUTOMATIC REARMING WITH LOCK (PROGRAMMABLE FUNCTION 11)
a. After DISARM, the system will REARM automatically in 30 seconds with the doors relocking (see function 11). If a
door is opened within this 30 seconds, this will stop this REARM process.
AUTOMATIC 2 POINT ENGINE IMMOBILISATION (PROGRAMMABLE FUNCTION 10)
a. After turning OFF the ignition or DISARMING the alarm, 30 sec later regardless of whether you ARM the alarm or not the
system will automatically engage the 2 independent engine immobilisation relays and illuminate the dash LED solid.
b. If while the LED is solid you turn the ignition ON the siren will sound a chirp to tell the owner to press to reset.
c. The LED will turn off and the engine immobilisation circuits will be restored and allow the vehicle to be started.
TEMPORARY 2 POINT ENGINE DISABLE AND LAST DOOR ARMING BYPASS
To temporarily BYPASS the Automatic 2 point engine immobilliser and last door arming features (if selected).
a. With the ignition ON press button 3 once, the dash LED will flash once to acknowledge temporary bypass ready.
b. Turn OFF the ignition, the alarm will sit with all automatic features BYPASSED. To reset this bypass turn the ignition ON
or ARM the alarm system.
MEMORY FUNCTION
The alarm will memorize the last mode of operation in case of a power cut, all programmable settings are NON-VOLATILE
and are stores in a EEPROM including the remote transmitter codes. No settings can be lost.
AUTOMATIC ZONE BYPASS IF INPUT CONTINUOUSLY TRIGGERED
a. When ARMED if a door, hood or trunk input is continuously triggered e.g. a door is left open.
b. The siren and park lights will activate for a duration of 30 seconds and then reset to an ARMED state.
c. If the door remains open then step b. would repeat for a second time and then a third time making a total of 90
seconds then that ZONE will be bypassed until the circuit becomes stable.
DURATION OF AN ALARM ACTIVATION
In ARMED mode, the park lights will flash and siren or horn will sound for 30 seconds if the alarm is triggered.
2-STAGE SHOCK SENSOR
a. If the vehicle is lightly impacted, the siren will sound 5 short chirps.
b. If the vehicle receives a heavy impact, the siren will sound for 30 seconds and parking lights will flash for 30 seconds.
f-3500
Vehicle Security SystemVehicle Security System
5
USER PROGRAMMABLE FUNCTIONS
To change a function selection please follow the steps below.
a. DISARM the system.
b. Turn the ignition from OFF to ON.
c. Press the valet switch 7 times within 10 sec, then turn the ignition OFF.
d. The LED should now flash once per second indicating that the alarm is in FUNCTION PROGRAMMING MODE.
e. Press the valet switch the number of times for the function you would like to change within 20 second. Every press will
have one siren chirp for pressing confirmation.
f. Turn the ignition from OFF to ON. You'll hear the siren chirp to indicate the new mode of operation, 1 chirp for DEFAULT
and 2 chirps for OPTION setting. You can now turn the ignition to OFF, now go back to step e. to change another setting or
to exit programming mode turn the ignition key from OFF to ON. The LED will stop flashing and you have exited.
EXAMPLE: To turn the ARM/DISARM chirps OFF, carry out steps a - d above, press the valet switch 6 times. After every press
of the valet switch the siren will chirp. After the 6th press then turn the ignition ON, you will hear two chirps which indicates
that you have set this option to OFF. This procedure needs to be completed within 20 seconds.
FUNCTION DESCRIPTION DEFAULT VALUE OPTION SET-UP
( 1 CHIRP) (2 CHIRPS)
1 LOCK/UNLOCK TIMER 0.5 SEC 3.5 SEC
2 UNLOCK PULSE 12
3 SECOND UNLOCK OR PAGER OUTPUT SELECTION PAGER SECOND UNLOCK
4 IGNITION ON WITH DOOR LOCK ON OFF
5 SECOND UNLOCK BOTH 2ND ULNOCK PULSE
6 ARM/DISARM WITH CHIRP ON OFF
7 ANTI-CARJACKING ON OFF
8 LAST DOOR ARMING OFF ON
9 LAST DOOR ARMING WITH LOCK OFF ON
10 AUTO IMMOBILISATION ON OFF
11 AUTO RE-ARM WITH LOCK ON OFF
12 VALET ON OFF
13 IMMOBILISER RELAY FUNCTION NORMALLY OPEN NORMALLY CLOSED
14 WINDOW CLOSURE OUTPUT PRESS AND HOLD 30 SECOND PULSE
15 SOUND SIREN CAR HORN
16 PARK LIGHT ON DISARM 2ND UNLOCK PRESS ALWAYS
25 DEFAULT YES
FUNC
#
Specifications:
Power Supply............................................... 8V-15V
Siren Type.................................................... 123dB 1 Tone
Power Consumption:
DISARMED................................................... 12mA
ARMED........................................................ 20mA
Effective Range:...........................................30ft-100ft*
The F-3500 vehicle security system, is approved by FCC. FCC ID:QRNF3500
This device complies with part 15 of the FCC rules. Operations is subject to the following two conditions: (1) This device may not cause
harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation.
Transmission type:
TX and RX.......................................................Code Hopping
TX frequency USA FCC....................................315MHz
EUROPE CE............................... 433.92MHz
Park Light Flash Output..................................10A
Siren Output...................................................3A
Main Fuse.......................................................15A
*Range is dependent on weather conditions and alarm installation

10. AUTOMATIC 2 POINT IMMOBILISATION
DEFAULT: Automatic 2 point immobilisation is ON - After turning the ignition OFF, 30 seconds later the 2 points of
immobilisation will be active preventing the vehicle from being started. Refer to Page 5for more details
OPTION: This function is OFF.
11. AUTOMATIC REARM WITH LOCK
DEFAULT: Automatic REARM with lock is ON - When DISARMING the alarm system, if no vehicle door is opened within 30
seconds then the alarm will REARM and lock the vehicle (if central locking installed). This function is designed to
operate
in case the vehicle owner accidentally DISARMS the system. The alarm will automatically re-protect the vehicle.
OPTION: delete this feature.
12. VALET MODE
DEFAULT: Valet Mode ON - This allows the owner to place the alarm system into valet mode. Refer to Page 4.
OPTION: This function is OFF.
13. ONBOARD IMMOBILISATION RELAYS 40A
DEFAULT: The onboard immobilisation relays are set to NORMALLY OPEN operation - This means the engine circuits are
disconnected continuously and will only connect when the alarm system verifies the correct user remote has
been used to DISARM the system and the ignition has been successfully turned ON.
OPTION: The onboard immobilisation relays are set to NORMALLY CLOSED - This means the engine circuits are
connected continuously and will only disconnect when the alarm system has been triggered.
14. WINDOW CLOSURE OUTPUT (-)300mA PINK/BLACK
DEFAULT: Press and hold button 1 for 2 seconds, the alarm system will ARM and the window closure output
will be active for as long as you hold your finger on the button. (PINK/BLACK in the 5 pin connector)
OPTION: Press and hold button 1 for 2 seconds, the alarm system will ARM then trigger the window closure output
with a 30 second pulse the button can then be released. Pressing button 1 again during this 30 seconds will
stop the output.
NOTE: This window closure function will require installation of additional components to function. See your dealer.
15. SIREN OUTPUT (+) 3A WHITE/RED
DEFAULT: The siren output (WHITE/RED in the 12 pin connector) will be continuous during an alarm activation.
OPTION: The siren output (WHITE/RED in the 12 pin connector) will be pulsed during an alarm activation.
16. PARKING LIGHT WHEN DISARMING
DEFAULT: Pressing DISARM once will DISARM the alarm, the park lights will flash to confirm. Pressing twice
time within 3 seconds will turn the park lights on for 30 seconds. Turn the ignition ON or ARM to reset.
OPTION: Pressing DISARM 1 time will DISARM the alarm, the park lights will flash to confirm and then remain on for
30 seconds. Turn the ignition ON or ARM to reset.
25. FACTORY RESET
DEFAULT: All settings with return to DEFAULT
f-3500
Vehicle Security SystemVehicle Security System
7
1. LOCK AND UNLOCK PULSE TIME
DEFAULT: Central locking pulse time is set to 0.5 seconds.
OPTION: Central locking pulse time is set to 3 seconds.
2. NUMBER OF UNLOCK PULSES
DEFAULT: The GREEN/WHITE unlock wire will pulse once whilst pressing button 2.
OPTION: The GREEN/WHITE unlock wire will pulse twice whilst pressing button 2.
3. SECOND UNLOCK OR PAGER OUTPUT (-) 300mA
DEFAULT: The WHITE/PURPLE in the 12 PIN connector will operate as a PAGER output.
This output will only activate the PAGER during an alarm activation or in panic mode.
OPTION: The WHITE/PURPLE in the 12 PIN connector will operate as a SECOND UNLOCK output (negative 300mA)
To activate the SECOND UNLOCK pulse, you will need to press and hold button 2 when DISARMING.
4. IGNITION ON WITH DOORS LOCKING
DEFAULT: 17 Seconds after the ignition is turned ON the doors will automatically LOCK. The instant the ignition is
turned OFF the doors will UNLOCK. If a door is open before you turn the Ignition ON this feature
OPTION: The doors will NOT automatically LOCK after 17 seconds.
5. SECOND UNLOCK PULSE (-) 300mA
DEFAULT: BOTH the GREEN/WHITE unlock wire and the WHITE/PURPLE wire (if to SECOND UNLOCK PULSE see
function 3) will operate at the same time with the same number of pulses as set in function 2 above.
OPTION: Only the WHITE/PURPLE wire will have 2 pulses on the wire.
6. ARM/DISARM WITH CHIRP
DEFAULT: ARM and DISARM chirps are ON.
OPTION: This function is OFF.
7. ANTI-CARJACKING
DEFAULT: Anti-carjacking ON refer to activation instructions on page 4
OPTION: This function is OFF.
8. LAST DOOR ARMING
DEFAULT: This function is OFF.
OPTION: Last door arming ON - After the ignition is turned off and the last door is closed, 30 seconds later the alarm
will automatically ARM without locking the doors (if central locking installed).
9. LAST DOOR ARMING WITH LOCK
DEFAULT: This function is OFF.
OPTION: Last door arming with lock ON - After the ignition is turned off and the last door is closed 30 seconds later
the alarm will automatically ARM and LOCK the doors (if central locking installed). For this function to work
you must also have function 8 ON.
WARNING Do not leave the ignition keys in the vehicle or they could be locked inside when ARMING.

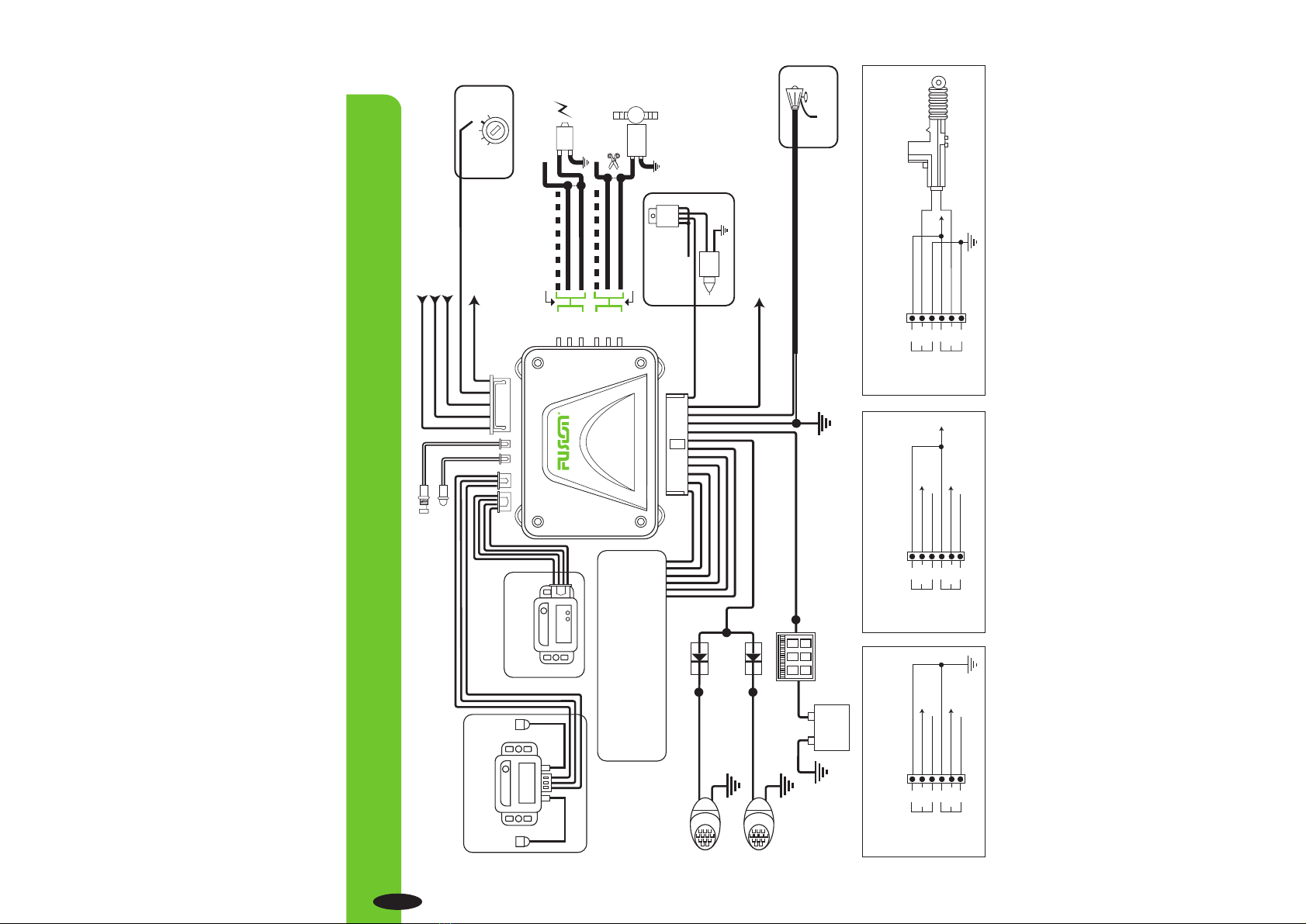

USER PROGRAMMABLE FUNCTIONS

Orange/Green Green/White Brown/Green Orange/Blue Blue/White Brown/Blue
2 wire door motor
LOCK (-) Lock
Output
(-) Unlock
Output
UNLOCK
NO
COM
NC NO
COM
NC Orange/Green
Green/White Brown/Green Orange/Blue Blue/White Brown/Blue
LOCK (-) Lock
Output
(-) Unlock
Output
UNLOCK
NO
COM
NC NO
COM
NC
x x12V+ 12V+
x x
For factory installed Central Locking
System with (-) Pulse Control
For factory installed Central Locking
System with (+) Pulse Control Directly Connected to a 2 wire door motor
HIGH VOLTAGE COIL
IGNITION ON IGNITION ON
FUEL PUMP
12V(+) FUSE BOX
VALET S.W BROWN
NC NO COM NC NO COM
WHITE BROWN/WHITE YELLOW PINK/BLACK
WHITE/PURPLE - SECOND UNLOCK or PAGER OUTPUT (-) 300mA MAX PURPLE - TRUNK OUTPUT (-) 300mA
ORANGE (+) INDICATOR OUTPUT 10A
WHITE/RED (+) 3A MAX SIREN OUTPUT
RED 12v+ MAIN POWER INPUT 15A
DOOR INPUT (-) DOOR INPUT (+) TRUNK INPUT (-) IGNITION ON INPUT (+)
SEE NOTES ON IMMOBILISATION USE NORMALLY OPEN (DEFAULT) ORNORMALLY CLOSED CONNECTIONS
ONLY. CHECK PROGRAMMING ALSO.
WINDOW CLOSER OUTPUT (-) 300mA MAX
RED WHITE
LED
TXRX
OPTIONAL F-US ULTRASONIC SENSOR (not included)
INCLUDED F-SHOCK 2-STAGE SHOCK SENSOR
OFF
LOCK
ACC ON
START
SEE CENTRAL LOCKING
DIAGRAMS BELOW
CENTRAL LOCKING DIAGRAMS
RELAY
OPTIONAL
TRUNK
+12V
86
85
30
87
RED - CONNECTSWITHWHITE/RED
BLACK - CONNECTTO GROUND BLUE - EXTRAWIRE FOR HOOD/BONNET PIN CONNECTTO BROWN/WHITE (-) TRUNK INPUT
SIREN
Orange/Green Green/White Brown/Green Orange/Blue Blue/White Brown/Blue
LOCK
UNLOCK
NO
COM
NC NO
COM
NC
BLUE - CONNECT TO HOOD/BONNET PIN
IMMOBILISER 1 IMMOBILISER 2
f-3500
Vehicle Security SystemVehicle Security System
9
