Futon YOKOHAMA User manual

ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS
Before assembling your Yokohama, please read through these
instructions carefully, familiarising yourself with the different parts.
YOKOHAMA FRAME
Page 1 of 5
YOKOHAMA FRAME
Thank you for choosing our product.
This practical design offers the utmost in versatility.
HARDWARE
A
M6 x 50 mm Allen Bolts - 4 pcs
C
Please note that you will require an Allen Key.
Assembling by Adult
Allen Key
READYREADY

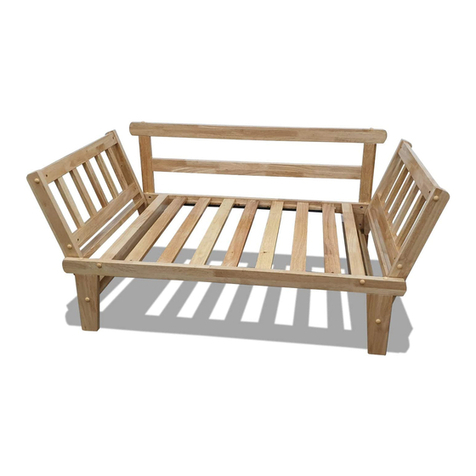

YOKOHAMA FRAME SHOWN COMPLETED ASSEMBLED
YOKOHAMA FRAME
BED POSITION
YOKOHAMA FRAME
SOFA POSITION
B
M6 x 35 mm Allen Bolts - 8 pcs
M6 Allen Key - 1 pc
D
M8 Allen Key - 1 pc
E
M8 x 50 mm Allen Bolts - 4 pcs

01
02
03
04
05
06
07
08
Hardware
Front Leg
1 BOX 2
Seat Deck
Back Leg
Back Deck
Storage Rail
Back Deck Panel
Leg Support
01
Page 2 of 5
YOKOHAMA FRAME
NOTE: BOX TWO IS DRAWER PART.
02
04
08
03
06
07
05
PARTS LISTPARTS LIST

Page 3 of 5
STEP 2
Attach the Storage Rails (06) to the Back Leg (04), using 50 mm Allen Bolt (A) and Allen Key (C).
Guide the Back panel Carefully so it would not jump out from groove.
Attach the Front Leg (02) and Leg Support (08) to the Back Leg (04), using M6x55 mm Allen Bolt (E)
and Allen Key (D).
A
A
C
C
Assembling by Adult
Assembling by Adult
50 mm Allen Bolt
M6x50 mm Allen Bolt
Allen Key
M6 Allen Key
YOKOHAMA FRAME
STEP 1
A
E
04
02
02
08
08
06
07
04
A
A
A
C
D
ED
E
E
D
M8 Allen Key
E
M8x50 mm Allen Bolt

STEP 3
Page 4 of 5
YOKOHAMA FRAME
STEP 4
Fix the Back Deck (05) to the Back Leg with pre-inserted Nut (04) using 35 mm Allen bolt (B) and Allen Key (C)
Fix the Seat Deck (03) to the Front Leg with pre-inserted Nut (02) using 35 mm Allen bolt (B) and Allen Key (C)
B
B
C
C
Assembling by Adult
Assembling by Adult
M6x35 mm Allen Bolt
M6x35 mm Allen Bolt
M6 Allen Key
M6 Allen Key
B
B
B
B
B
B
05
03
04
C
C
02
B
B
CONGRATULATIONS!
Your Yokohama Bed now
is ready for use.

OPERATION INSTRUCTIONSOPERATION INSTRUCTIONS
YOKOHAMA FRAME
READYREADY
After all Part assembly, Yokohama in bed position
Lift the Back deck up
Push
Unfold
Until the Seat Deck fully down on the floor
Yokohama in Sofa Position. Fold Leg Support to lock the
Back Deck and Seat Deck as shown. Push the Drawer in.
Unfold Leg Support to unlock the
Back Deck and Seat Deck as shown.
Pull the Back Deck down until lay on the floor.
Back Deck Seat Deck Drawer
Lift Up
Fold
Lift Up
Sofa Position Complete
Page 5 of 5
YOKOHAMA FRAME
