FXA 502296337 User manual

1
Gasoline snow thrower 60 cm
502296337
Instruction manual (Original instructions) GB 3-32
Käyttöohje (Alkuperäisten ohjeiden käännös) FI 33-63
Bruksanvisning (Översättning av originalinstruktionerna) SE 64-93
Bruksanvisning (Oversettelse av de opprinnelige instruksjonene) NO 94-124
Kasutusjuhend (originaaljuhend) EE 125-155

2
IMPORTANT: Read and understand this manual before assembling or operating this
Gasoline Snow thrower. Improper use of Snow thrower can cause severe injury. Keep this
manual for future reference.
TÄRKEÄÄ! Lue ja ymmärrä tämä käyttöohje ennen bensiinikäyttöisen lumilingon
kokoonpanoa tai käyttöä. Lumilingon väärä käyttö voi aiheuttaa vakavan loukkaantumisen.
Säilytä tämä ohje tulevaa tarvetta varten.
VIKTIGT: Läs och förstå denna bruksanvisning innan montering eller användning av
denna bensindrivna snöslunga. Felaktig användning av snöslungan kan orsaka allvarliga
personskador. Förvara dessa instruktioner för framtida referens.
VIKTIG: Les og forstå denne håndboken før du monterer eller bruker denne bensindrevne
snøfreseren. Feil bruk av snøfreseren kan forårsake alvorlig skade. Ta vare på denne håndboken for
fremtidig bruk
TÄHTIS! Enne bensiinimootoriga lumepuhuri kokkupanekut või kasutuselevõttu lugege juhend hoolikalt
läbi ja tehke see endale selgeks. Lumepuhuri väär kasutamine võib tekitada raskeid vigastusi. Hoidke
juhend edaspidiseks kasutamiseks alles.

3
Gasoline snow thrower 60CM
502296337/DB7109-24
Instruction manual
TABLE OF CONTENTS
I- Important Safe Operation Practices
II-Knowing Your Snow Thrower
III-Assembling Your Snow Thrower
IV-Snow Thrower Prepration
V- Operating Your Snow Thrower
VI-Maintaining You Snow Thrower
VII-Storge Your Snow Thrower
VIII-Troubleshooting
IX-EU Declaration of Conformity

4
I- IMPORTANT SAFE OPERATION PRACTICES
This symbolpoints out important safetyinstructions which, if notfollowed, could endanger the personal
safety and or property of yourself and others. Read and follow all instructions in this manual before
attempting to operate this machine. Failure tocomply with these instructions mayresult in personal injury.
WARNING! This machine was built to be operated according to the safe operation practices in this manual.
As with any type of power equipment, carelessness or error on the part of the operator can result in serious
injury. This machine is capable of amputating fingers, hands, toes and feet and throwing foreign objects.
Failure to observe the following safety instructions could result inserious injuryor death.
Safety Symbol
This page depicts and describes safety symbols that may appear on this product. Read, understand and
follow all instructions on the machine before attempting to assemble and operate.
READ THE OPERATOR'S MANUAL(S)
Read, understand and follow allinstructions in themanual(s) before attempting toassemble and operate.
Thefollowing warning symbols are to remind you of the safety precautions you should take when operatingthesnow
thrower.
Use ear protection
Use eye protection
Keep childen and pets a safe distance away from the machine.
WARNING-ROTATING AUGER
Do not put hands or feet near rotating parts, in the auger/impeller housing or chute assembly, Contact with the
rotating parts can amputate hands and feet.
WARNING-ROTATING BLADES
Keep hands out of inlet and discharge openings while machine is running ,There are rotating blades inside
WEARING-THROWN OBJECTS
This machine may pick up and throw and objects which can cause serious personal injury
Do not touch any rotating part before machine stops.
WARNING- ROTATING BLADES
Keep hands out of inlet and discharge openings while machine is running ,There are rotating blades inside
Waste electrical products should notbe disposed ofwith household waste. Please recycle where facilities exist. Check
with your local authority or retailer for recycling advice
WARNING-GASOLINE IS FLAMMABLE
Allow the engine to cool at least two minutes before refueling.
WARNING-CARBON MONOXIDE
Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless
and deadly gas.
WARNING-ELECTRICAL SHOCK ( for engine with electric starter) Do not use the engine's electric starter in the rain.

5
TRAINING
Read, understand, and follow all instructions on the machine and in the manual(s) before
attempting to assemble and operate. Keep this manual in a safe place for future and regular
reference.
• Be familiar with all controls and their proper operation. Know how to stop the machine and
disengage them quickly.
• .Never allow children under 18 years old to operate this machine. Children 18 years old and
over should read and understand the operation instruction and safety rules in this manual
and should be trained and supervised by a parent.
• Never allow “non-trained” adult personnel to operate this machine without proper instruction.
• Thrown objects can cause serious personal injury. Plan and map out your snow-throwing
pattern to avoid discharge of material toward roads, bystanders and the like.
• Keep bystanders, pets and children at least 75 feet from the machine while it is in
operation. Stop machine if anyone enters the area.
• Exercise caution to avoid slipping or falling, especially when operating in reverse.
PREPARATION
Thoroughly inspect the area where the equipment is to be used. Remove all doormats,
newspapers, sleds, boards, wires, branches and other foreign objects, which could be
hazardous and damage the auger system.
• Always wear safety glasses or eye shields during operation and while performing an
adjustment or repair to protect your eyes, as thrown objects can ricochet and cause
serious injury to the eyes.
• Do not operate without wearing adequate, winter outer garments. Do not wear jewelry, long
scarves or other loose clothing, which could become entangled in moving parts, and wear
footwear that will improve footing on slippery surfaces.
• Use a grounded “three-wire” extension cord and receptacle for all machines with
electric start engines.
• Adjust skid shoe and/or housing height to clear gravel or crushed rock surfaces.
• Disengage all control levers before starting the engine.
• Never attempt to make any adjustments while engine is running, except where
specifically recommended in the instruction manual.
• Let engine and machine adjust to outdoor temperature before starting to clear snow.

6
PERSONAL SAFETY
• Engine exhaust, and certain vehicle components contain or emit chemicals known to
cause cancer, birth defects or other reproductive harm.
• Read, understand and follow all instructions on your snow thrower unit and in this instruction
manual before attempting to assemble and operate your machine.
• Keep this instruction manual in a safe place for future and regular reference.
• Stay alert, watch what you are doing and use common sense when operating your snow
thrower unit.
• Do not use your snow thrower unit while you are tired or under the influence of drugs,
alcohol, medication. A moment of inattention while operating the snow thrower may result
in severe bodily injury.
• NEVER LEAVE YOUR RUNNING SNOW THROWER UNATTENDED. Stop the engine!
• Do not leave your snow thrower unit until it has come to a complete stop.
• When stepping backwards, be cautious about any obstacles beneath your feet or behind
you avoid falling.
SERVICE
• Stop the engine before making any adjustments. Check for misalignment, breakage or
binding of moving parts, and any other conditions that may affect operation.
• If damaged, have the snow thrower unit serviced by an authorized service center using only
specified, manufactured replacement parts. This will ensure that the safety of the snow
thrower unit is maintained.
SAFE HANDLING OF GASOLINE
To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline
is extremely flammable and the vapors are explosive. Serious personal injury can occur when
gasoline is spilled on yourself or your clothes which can ignite, therefore wash your skin and
change clothes immediately.
• Use only an approved gasoline container.
• Extinguish all cigarettes, cigars, pipes and other sources of ignition.
• Never fuel snow thrower unit’s engine indoors.
• Never remove gas cap or add fuel while the engine is hot or running.
• Allow engine to cool at least two minutes before refueling.

7
• Never over fill fuel tank.
• Replace gasoline cap and tighten securely.
• If gasoline is spilled, wipe it off the engine and equipment. Move machine to another area.
Wait 5 minutes before starting the engine.
• Never store the machine or fuel container inside where there is an open flame, spark or pilot
light (e.g. furnace, water heats, space heater, clothes dryer etc.).
• Allow machine to cool at least 5 minutes before storing.
• Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always
place containers on the ground away from your vehicle before filling.
• If possible, remove gas-powered equipment from the truck or trailer and refuel it on the
ground.
• If this is not possible, then refuel such equipment on a trailer with a portable container,
rather than from a gasoline dispenser nozzle.
• Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until
fueling is complete. Do not use a nozzle lock open device.
OPERATION
• Do not put hands or feet near rotating parts, in the auger impeller housing or chute
assembly. Contact with the rotating parts can amputate hands and feet.
• The auger (impeller) control lever is a safety device. Never bypass its operation. Doing so
makes the machine unsafe and may cause personal injury.
• The control levers must operate easily in both directions and automatically return to the
disengaged (vertical) position when released.
• Never operate with a missing or damaged chute assembly. Keep all safety devices in
place and working.
• Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon
monoxide, an odorless and deadly gas.
• Do not operate machine while under the influence of alcohol or drugs.
• Muffler and engine become hot and can cause burning. Do not touch. Keep children away.
• Exercise extreme caution when operating on or crossing gravel surfaces. Stay alert for
hidden hazards or traffic.
• Exercise caution when changing direction and while operating on slopes.

8
• Plan your snow-throwing pattern to avoid snow discharge towards windows, walls, cars
etc., thus avoiding possible property damage or personal injury caused by a ricocheting
debris.
• Never direct discharge at children, bystanders and pets or allow anyone in front of the
machine.
• Do not overload machine capacity by attempting to clear snow at too fast of a rate….
Remember! Slow and steady operation is best to avoid clogs of snow being
impelled too rapidly.
• Never operate this machine without good visibility or light. Always be sure of your footing
and keep a firm hold on the handles. Walk, never run.
• Disengage power to the auger system (auger/impeller) by releasing the auger control
(lever) when transporting or not in use.
• Never operate machine at high transport speeds on slippery surfaces. Look down and
behind and use care when backing up.
• If the machine should start to vibrate abnormally, stop the engine, disconnect the spark plug
wire and ground it against the engine. Inspect thoroughly for damage. Repair any damage
before starting and operating.
• Disengage all (drive and auger) control levers and stop engine before you leave the
operation position (behind the handles).
• Wait until the auger /impeller comes to a complete stop before unclogging the chute
assembly, making any adjustments or inspections.
• Never put your hand in the discharge or collector openings. Always use the clean-out tool
provided to unclog the discharge opening. Do not unclog chute assembly while engine is
running. Shut off engine and remain behind handles until all moving parts have stopped
before unclogging.
• Use only attachments and accessories approved by the manufacturer (e.g. wheel weights,
tire chains, cabs etc.).
• When staring engine, pull cord slowly until resistance is felt, then pull rapidly, Rapid
retraction of starter cord (kickback) will pull hand and arm toward engine faster then you can
let go. Broken bones, fractures, bruises or sprains could result.
• If situations occur which are not covered in this manual, use care and good judgment
contact customer support for assistance.
MAINTENANCE & STORAGE
• Never tamper with safety devices. Check their proper operation regularly. Refer to the
maintenance and adjustment sections of manual.

9
• Before cleaning, repairing, or inspecting machine disengage all control levers and stop the
engine.
• Wait until the auger impeller comes to a complete stop. Disconnect the spark plug wire to
prevent unintended starting.
• Check bolts and screws for proper tightness (EVERYTIME before & after use) as engine
vibration could cause hardware to loosen…consider using a Loc-Tite product to keep
hardware secure. This process will keep the machine in safe working condition. Also, visually
inspect machine for any damage.
• Verify that the auger gearbox, located between your right and left auger blades, has
substantial lubricant in the casing.
The gearbox fill and drain plugs (bolts) are the only “vertical” plugs (bolts) on the gearbox
assembly when viewed in the standing position. The top plug (bolt) is used for filling…the
bottom plug (bolt) is for draining. Simply remove the top plug (bolt) for verification of
lubricant, as it should be inside. To drain, simply remove bottom plug (bolt).
• Do not change the engine governor setting or overspeed the engine. The governor
controls the maximum safe operating speed of the engine.
• Snow thrower auger belts, shave plates, shear pins and skid shoes are
subject to wear and damage, therefore it is expected that the owner
assume personal responsibility for the maintenance (removal &
installation) of these items.
• For your safety protection, frequently check all components and replace with original
equipment manufacturers (OEM) parts only. Use of parts which do not meet the original
equipment specifications may lead to improper performance and compromise safety.
• Check (drive & auger) control lever (handles) and cables periodically to verify they engage
and disengage properly and adjust, if necessary. Refer to the adjustment section in this
operator's manual for instructions.
• Maintain or replace safety and instruction labels, as necessary.
• Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment.
• Prior to storing, run machine a few minutes to clear snow from machine and prevent
freeze up of auger impeller and completely wipe down unit, while inspecting for frozen
components.
• Never store the machine or fuel container inside where there is an open flame, spark or
pilot light such as water heater, furnace, clothes dryer etc.
• Always refer to the operator's manual for proper instructions on off-season storage.
• Check fuel line, tank, cap and fittings frequently for cracks or leaks. Replace if necessary.
• Do not crank engine with spark plug removed.
• Have the machine inspected annually by an authorized service dealer to ensure that all
mechanical and safety systems are working properly and have not worn excessively*.
Failure to do so can result in accidents, injuries or death.
DO NOT MODIFY THE ENGINE
To avoid serious injury or death, do not modify engine in any way. Tampering with the
governor setting can lead to a runaway engine and cause it to operate at unsafe speeds.
Never tamper with factory setting of engine governor.

10
II- KNOWING YOUR SNOW THROWER
DB7109 Technical Specification
Gasoline Snowthrower
Displacement: 196 cm3
Power:4.2kW
Clearing Width: 600mm;
Clearing thickness:
Approx.500mm;
Throwing distance: about 10m;
Throwing Operation: two stage;
Speed: 6 forward 2 reverse;
Discharge Chute: 180 Degree;
Chute Deflector: 70 degree;
LWA:100dB(A)
4.32 m/s2,k=1,5m/s2

11

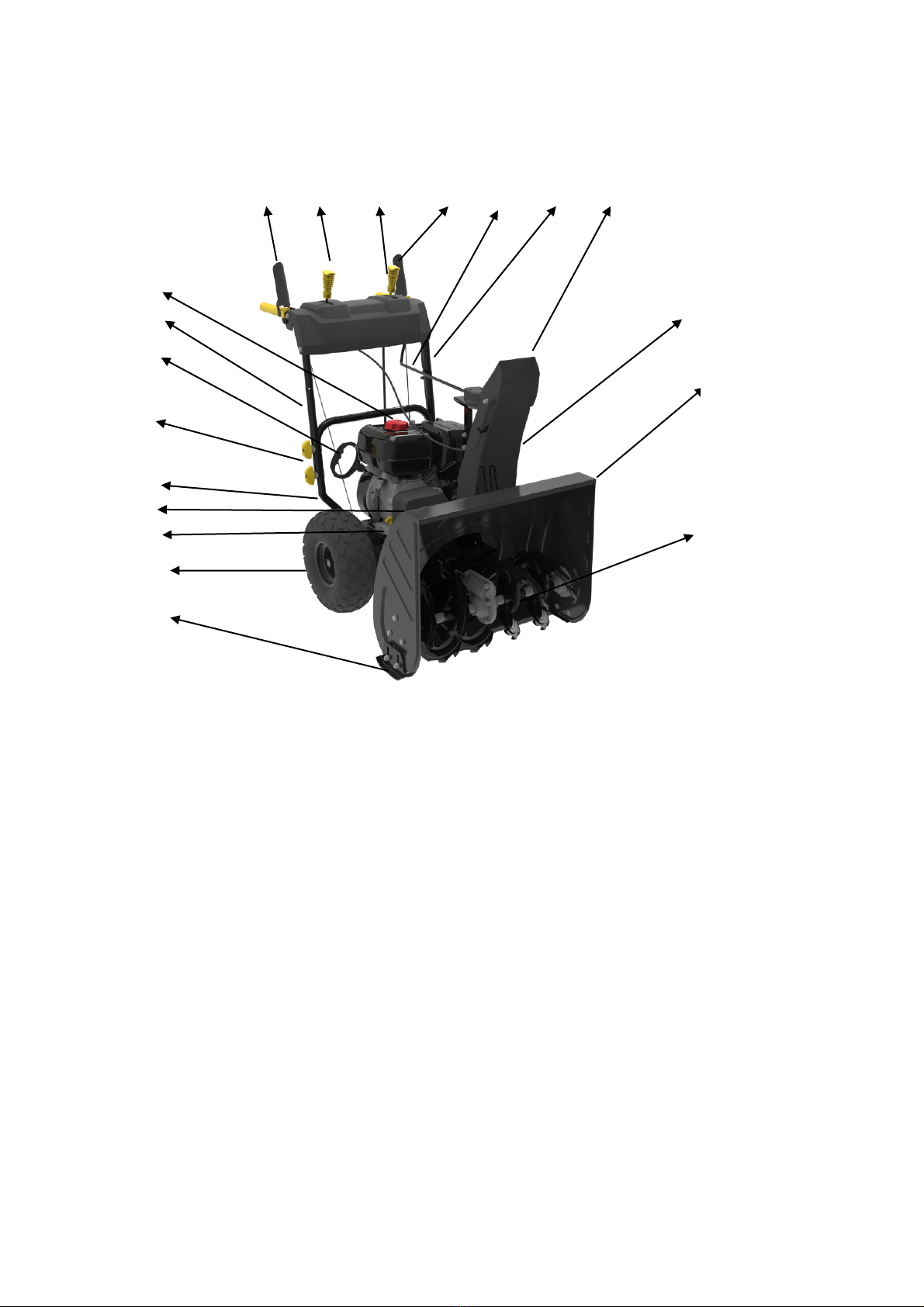

Use the illustrations below to become familiar with the locations and functions of the various
components and controls of this snow thrower.
1 2 3 4 5 6 7
19
18
17
16
15
14
13
12
11
1
Drive Control Lever
10
Auger Blade
2
Chute Deflector Control
11
Skid Shoe
3
Drive Speed/Gear Control
12
Tire
4
Auger Control Lever
13
Oil Dipstick
5
Chute Rotation Handle
14
Belt Cover
6
Clean Out Tool
15
Lower Handle
7
Discharge Chute Deflector
16
Knob
8
Discharge Chute
17
Recoil Start Handle
9
Auger Housing
18
Upper Handle
19
Fuel Cap
10
9
8

12
Drive Control Lever
Located on the right side of the upper handle, the Drive Control Handle is used to engage and
disengage the drive wheels. Squeeze the Drive Control Handle against the upper handle to
engage the wheels; release to disengage.
Drive Speed/Gear Control
The Speed/Gear Control is located on the center of the panel and is used to set the drive speed
and direction of travel. It can be moved into any of eight positions (six forward and two reverse
gear settings)
Auger Control Lever
Located on the left side of the upper handle, the Auger Control Handle is used to engage and
disengage the augers. Squeeze the Auger Control Handle to engage the augers; release to
disengage the augers.
Chute Rotation Handle
To adjust snow discharge direction, rotate the handle clockwise or counter-clockwise….should
rotate 180 degrees.
Skid Shoe
Position the shoes based on the surface conditions. Adjust upward for hard-packed snow.
Adjust downward when operating on gravel or crushed rock surfaces.
Auger Blade and Impeller
When engaged, the auger blades rotate to cut snow and direct it into the auger/impeller housing
to be discharged out the chute.
Clean-out Tool
The chute Clean-out Tool is conveniently fastened to the rear of the auger housing with a
mounting clip. It is used to clean the chute assembly and chute opening when snow and ice
become lodged.
WARNING! Never use your hands to clear a clogged chute assembly. Shut off engine and
remain behind handles until all moving parts have stopped before unclogging.

13
III- Assembling and adjusting Your Snow Thrower
Unpacking
Unpack the snow thrower and all its parts, and compare against the list below.
1. Snow Thrower
2. Discharge Chute Assembly
3. Chute Rotation Handle
4. (Qty. 2) one set of Skid Shoes with attaching hardware
5. (Qty. 4) extra M6 Shear Pins and M6 Locknuts
6. Speed control connection Rod.
ASSEMBLY
Your Snow Thrower will require some assembly. Please complete the following steps before using
your Snow Thrower.
WARNING: This snow thrower is heavy. Assembly procedures may require lifting
equipment utilizing two people.

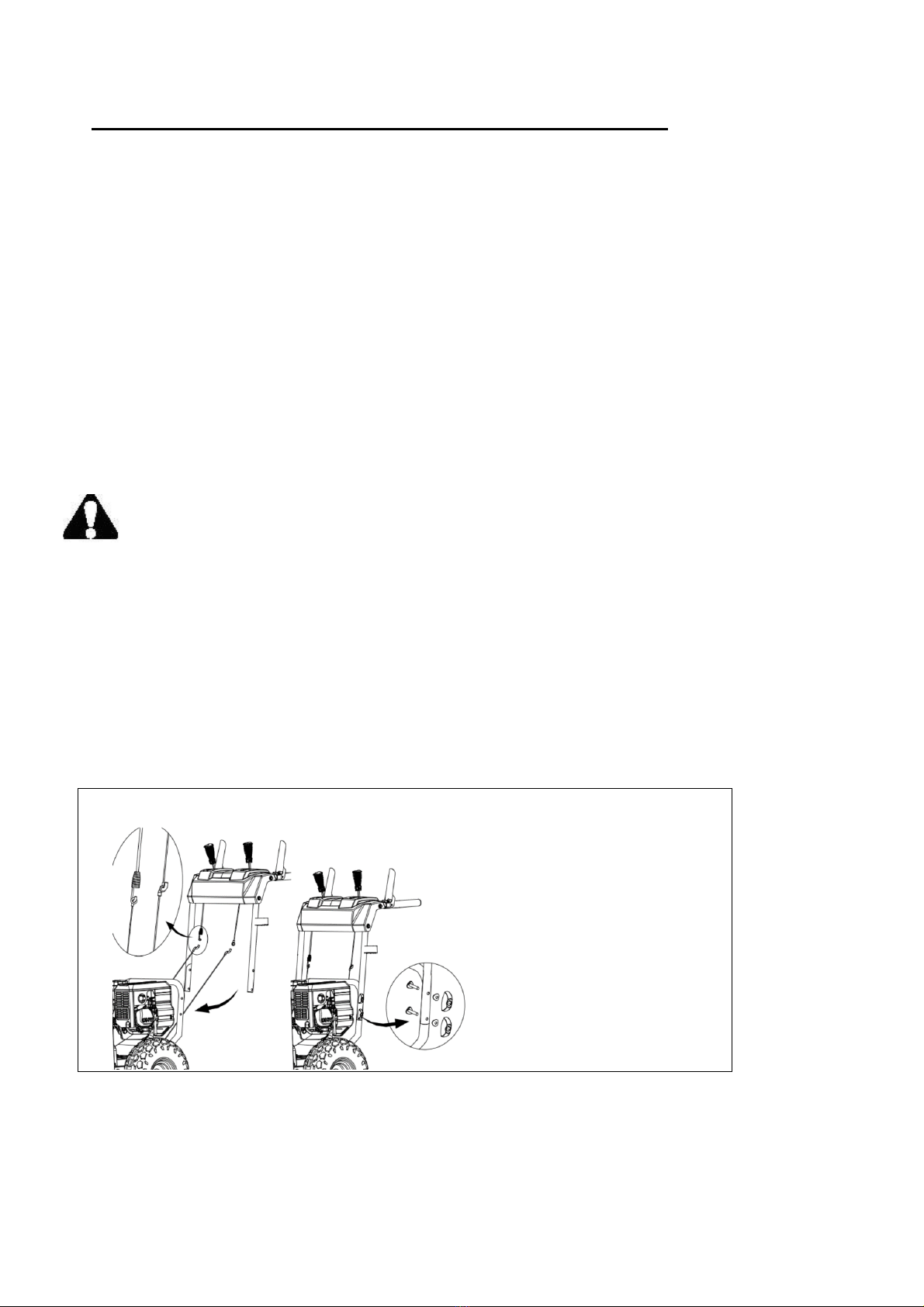

Step 1: Installing the Upper Handle
1. When installing the Upper Handle, please note that the Drive & Auger Cables will already
be pre-attached to Upper Handle.
2. Attach Upper Handle using the Frame Handle Assembly Hardware (4 sets /Knob, Saddle
Washer, M8 Nut, T-Screw) for your Upper & Lower Handle connection.
3. When attaching Assembly Hardware, make sure ALL cables are underneath the Frame
(Upper & Lower) Handles after installation as indicated in Figure 3. VERY
IMPORTANT!!!***
***Assembling Drive & Auger Cables over the top of the Frame
Handle will cause unnecessary tension in the cables, resulting in the Snow blower
Figure 1

14
propelling forwardwhen startingtheengine and may cause damage to the drive &
augercontrol (levers) when trying to engage them.
4. Cut and remove all tie wraps that are on Cables, Frame Handles, Drive Control (Lever) &
Auger Control (Lever).
5. Verify that the connection for the Upper & Lower Drive/Auger Cables is accurate. (See
Figure 1)
Step 2: Installing Speed Control Connection Rod
1. Install the connection rod to the hole in the Frame as indicated on Figure 2 -1.
2. Install another side of connection rod to the hole in the trigger as indicated on Figure 2-2.

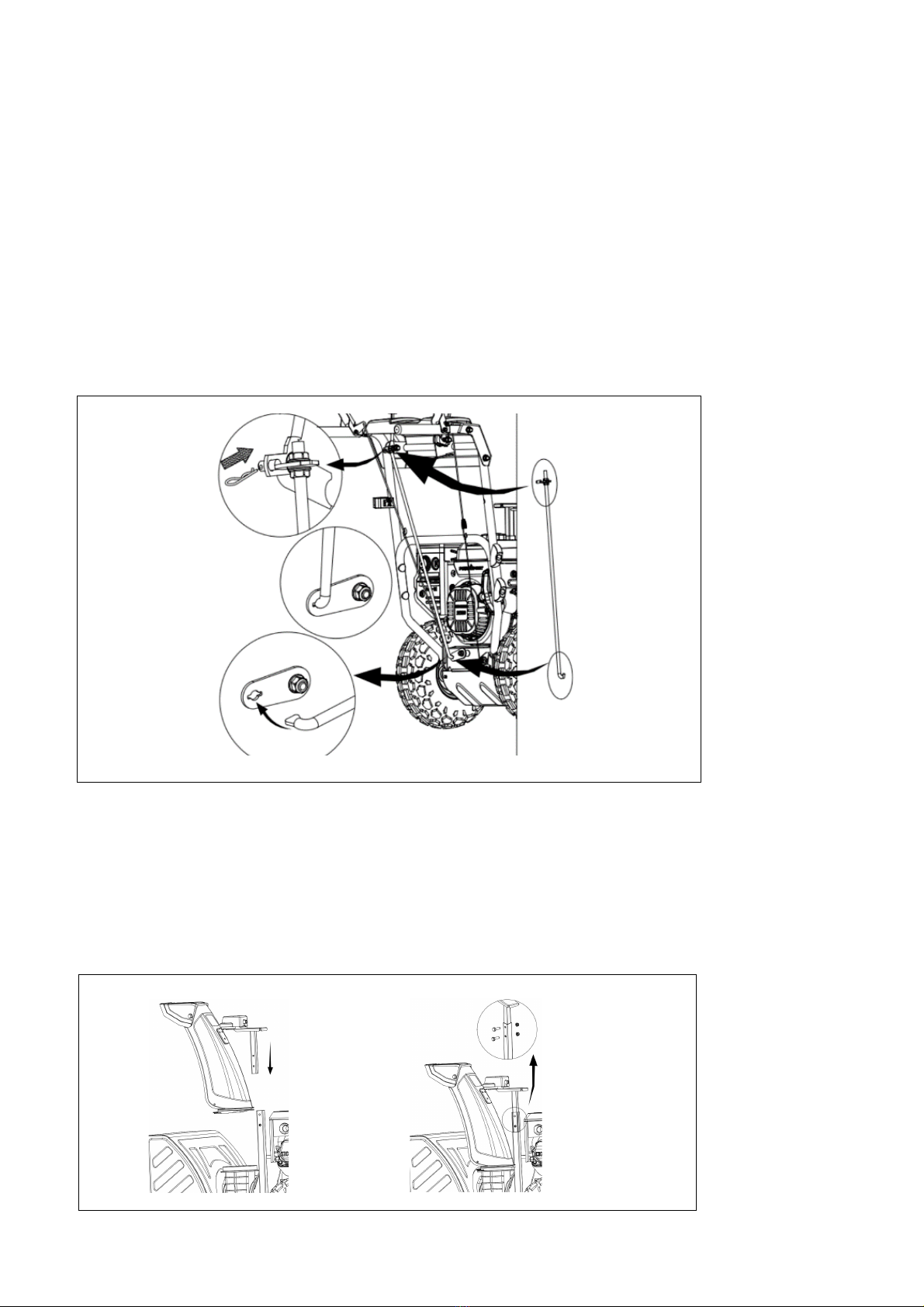

Step 3: Installing The Chute Assembly
1. Insert Lower Discharge Chute/Support Tube Assembly into the designated Chute opening
for the Lower Discharge Chute, while inserting the Support Tube into the designated base of
the Frame. (See Figure 3).
2. Secure Support Tube to base with (2) Screws and nuts provided.
1 2
3
Fig.2-2
Fig.2-1
Fig.3

15
Step 4: Installing the Chute Handle
1. Slide Chute Handle through Chute Handle Guide near the Upper Panel, as indicated on Figure 6.
2. Attach Chute Handle to base of Chute Gear Connection and secure with Cotter Pin, as
indicated on Figure 4.
3. Verify that ALL cables are clear and not obstructing the Chute Handle operation of
your snow thrower unit. Clip the cable into the hook. (See Figure 5)

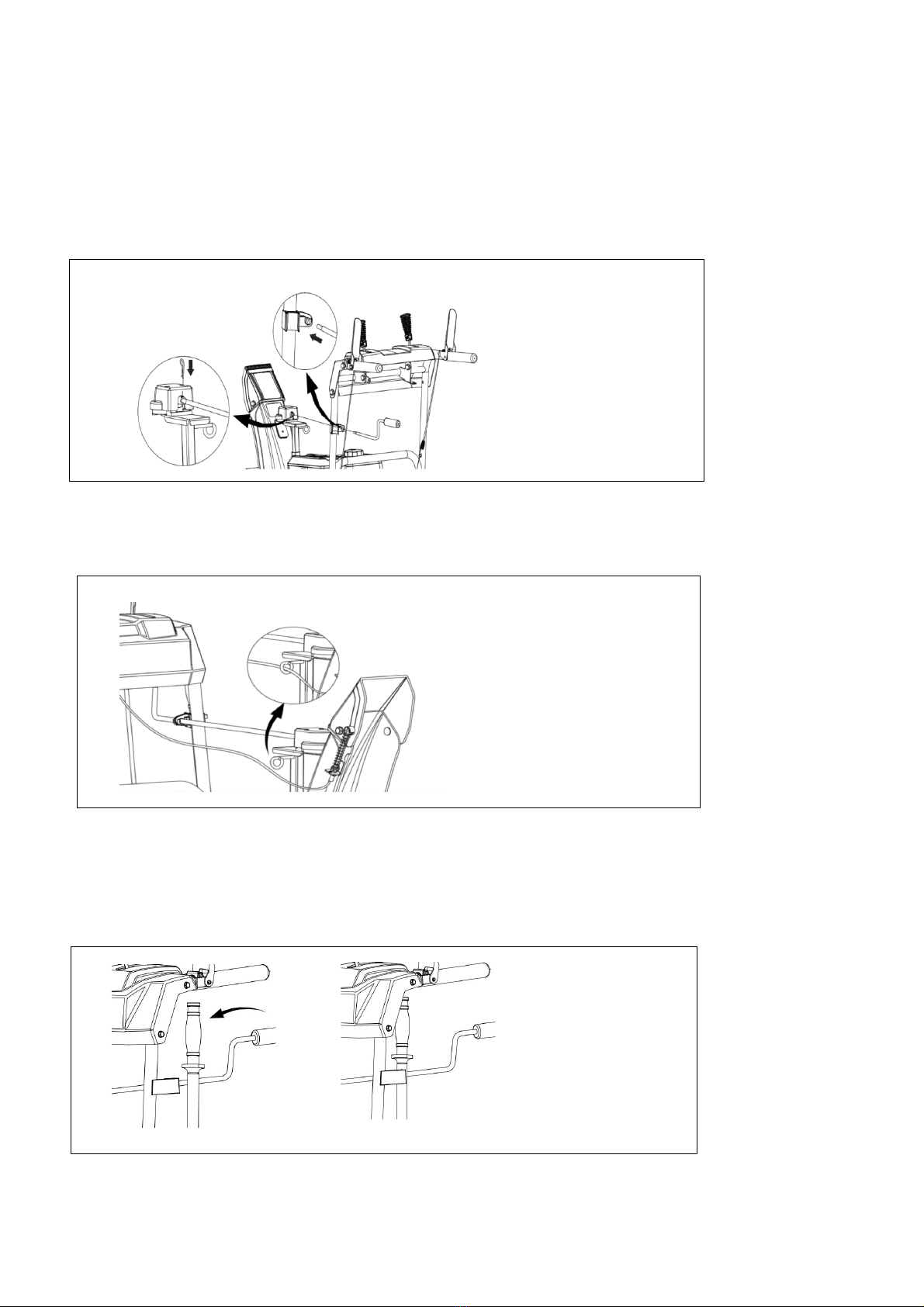

Step 5-Installing Clean Out Tool
1. Insert the clean out tool into the lower handle bracket
Figure 4
Figure 5
Figure 6

16
Step 6 – Skid shoes installation and adjustments
1. Locate the set of skid shoes from parts bag and remove the bolts.
2. Loosely install the skid shoes using the bolts and hex nuts as shown on each side of the
auger housing. Make sure the skid shoe tip faces out.
Adjustment of the skid shoes sets the height above the ground at which the auger shave plate
operates.
For clearing snow from concrete, asphalt, and other smooth surfaces, set the auger shave plate so
that the bottom of the plate is just above the ground.
For clearing snow from gravel, dirt, and other rough surfaces set the auger shave plate slightly above
the ground to avoid dirt and gravel from entering the auger.
The optimal height of the plate will vary depending on the type of surface being cleared. Surfaces
with larger gravel or stones require a higher shave plate setting.
3. Move the snow thrower to a solid, smooth, and level surface.
4. Place a spacer board on the ground underneath the auger shave plate between the skid
shoes. The thickness of the board should be the same as the height above the ground you
wish to raise the auger shave plate. The skid shoes should not touch the board.
5. With the two nuts loose allow the skid shoe to slide to the ground then tighten the nuts to
secure the skid shoe.

17
IV-Snow ThrowerPreparation
ADD OIL
The snow thrower is shipped without oil. User must add the proper amount of oil before operating
the snow blower for the first time. The oil capacity of the engine crankcase is 0.6 L. For general use,
we recommend 5W-30, 4-stroke engine oil.

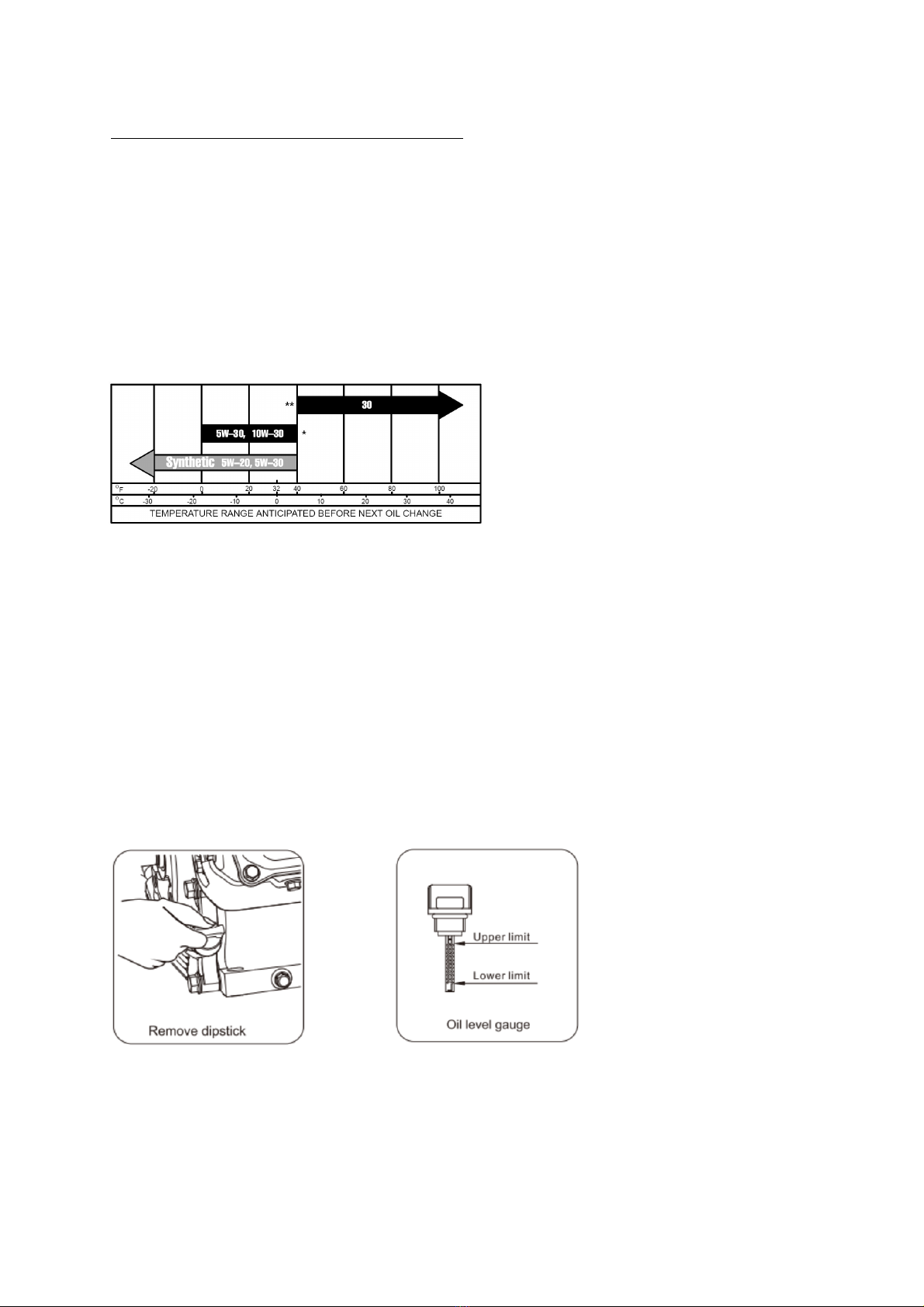

ENGINE OIL RECOMMENDATIONS
Select good quality detergent oil bearing the American Petroleum Institute (API) service
classifications SJ, SL, or SM (synthetic oils may be used). Use the ASE viscosity grade of oil from
the following chart that matches the starting temperature anticipated before the next oil changes.
To add oil, follow these steps:
1. Make sure the snow thrower is on a level surface. Tilting the snow thrower to assist in filling
will cause oil to flow into engine areas and will cause damage. Keep snow thrower level!
2. Remove the dipstick from the engine.
3. Add oil slowly as to not overflow the unit.Figure 7
4. To check the oil level, wipe the dipstick with a clean rag. Insert
the dipstick into the oil fill opening without screwing it in.
Remove the dipstick to check the oil mark.
5. Slowly add more oil and repeat step 4 until the oil mark reaches
to the top of the dipstick. Do not overfill the crankcase.
6. Check for oil leaks. Tighten dipstick firmly.
Figure 7

18
ADD GASOLINE
Use fresh (within 30 days from purchase), lead-free gasoline with a minimum of 87 octane rating. Do
not mix oil with gasoline.
To add gasoline, follow these steps:
1. Make sure the snow thrower is on a level surface.
2. Unscrew fuel tank cap and set aside. NOTE: The fuel cap may be tight and hard to unscrew.
3. Slowly add unleaded gasoline to the fuel tank. Be careful not to overfill. The capacity of the fuel
tank is 2.6 L. NOTE: Do not fill the fuel tank to the very top. Gasoline will expand and spill over
during use even with the fuel cap in place.
4. Reinstall fuel cap and wipe clean any spilled gasoline with a dry cloth.
IMPORTANT:
• Never use an oil/gasoline mixture.
• Never use old gasoline.
• Avoid getting dirt or water into the fuel tank.
• Gasoline can age in the tank and make starting difficult. Never store snow thrower for
extended periods of time with fuel in the tank or the carburetor.
NOTE: After completing the above preparation, the engine is ready to be started.
WARNING! Keep the area of operation free from foreign objects that can be thrown by the auger
and/or impeller blades. Perform a thorough inspection of the area since some objects may be
hidden from view by surrounding snow. If the snow thrower hits an obstruction or picks up a foreign
object during use, stop the snow thrower immediately, remove the obstruction, and inspect it for
damage. Repair or replace any damaged parts before restarting and operating you snow thrower.
• Keep children, pets, and bystanders away from the area of operation. Be aware that the normal
noise of the snow thrower when turned on may make it difficult for you to hear approaching
people.
• Start your clearing path by throwing snow in a back and forth motion. To clear in the opposite
direction, stop your snow thrower and pivot it on its’ wheels to face the opposite direction. Make
sure to overlap clearing paths.
• Determine the direction of the wind. If possible, move in the same direction as the wind so that
the snow is not thrown against the wind, back into your face and on the just cleared path.
WARNING! DO NOT USE YOUR HANDS TO UNCLOG CHUTE. Stop the motor before
removing debris. Use the supplied Clean-out tool to unclog the chute. Do not walk in front of your
running snow thrower. Do not direct discharged snow towards bystanders.
• Do not apply additional man-made load to the engine since this may damage the engine.
• Some parts of your snow thrower may freeze under extreme temperature conditions. Do not
attempt to operate your snow thrower with frozen parts. If the parts freeze while your snow
thrower is in use, stop the unit and inspect it for frozen parts. Thaw all parts before restarting
and operating your snow thrower. Never force parts or controls that are frozen. Never use an
open flame of any sort to thaw frozen parts.
Pre-Operation Inspection - IMPORTANT!!!
Before using your snow thrower for the first time, check the following:
• Have you read and followed all setup and operation procedures for the engine as outlined?
• Has the engine been filled with oil and gasoline to the proper level?
• Are all snow thrower components properly attached and assembled?
• Are there any broken or damaged parts?
• Are all fasteners tight?
• Are the tires inflated to the proper pressure?

19
AUGER AND DRIVE CONTROLS
1. To engage the auger (blades), press down on the auger control lever (left side handle).
2. To engage the drive, press down on the drive control lever (right side handle). The
machine should start moving in the direction and speed for the respective setting on the
speed/gear control.
3. When finished clearing a snow path, release the auger control lever (handle) and the
drive control lever (handle).
Auger Control
L
Lever (Handle)
Drive Control
Lever (Handle) R
Attention: Release (disengage) the auger and drive control lever (handles) before adjusting
the drive speed control lever. NEVER change the drive/gear speed while your snow
thrower is in motion, as it will damage the drive mechanism and void the warranty.
DRIVE SPEED/GEAR CONTROL
Move the drive speed control lever to the desired speed. There are
eight (8) settings: six (6) forward speeds and two (2) reverse speeds.
1 is the slowest forward speed and 6 is the fastest forward speed. R1
is the slowest reverse speed and R2 is the fastest reverse speed.
Note: There is no neutral drive setting since the drive control
handle must be engaged for movement. Neutral is achieved
when the drive control handle is disengaged.
CHUTE DISCHARGE DIRECTION ADJUSTMENT
WARNING - Never direct the snow discharge chute at the operator, bystanders,
vehicles or nearby windows. Discharged snow and foreign objects accidentally
picked up by the Snow Thrower can cause serious damage and severe bodily injury.
Always point the discharge chute in the opposite direction from potential hazards.
The discharge chute can be adjusted 180º by rotating the chute rotation handle.
Rotate the chute rotation handle clockwise to move the discharge chute to the right;
counterclockwise to move the chute to the left.

20
V- Operating Your Snow Thrower
MAUNAL START THE ENGINE
To manual start the engine, perform the following steps:
1. To start a cold engine, move the choke lever to the CLOSE position.
To restart a warm engine, leave the choke lever in the OPEN position.
2. Inset safety key.
3. If the engine is cold, block the ventilation hole on the primer bulb and press 3-5 times.
4. Pull the starter grip lightly until you feel resistance, then pull briskly. Return the starter grip
gently.
5. If the choke lever has been moved to the CLOSE position to start the engine, gradually
move it to the OPEN position as the engine warms up.
CLEARING SNOW
Start the engine once your snow thrower has been running outside for several minutes, it is
now ready for use. Make sure the path in front of your Snow Thrower is free from people,
animals, objects, and all other obstructions except for snow.
Adjust the chute outlet to the desired direction.
Turn the chute rotation handle clockwise or counter-clockwise until the desired position is
reached.
WARNING! Never direct the chute outlet toward people or animals. While snow may seem
harmless, it can contain rocks or other debris that can cause serious injury when projected
through the chute.
1. Engage/depress the auger control lever (handle) to start the augers and impeller turning.
2. Set the desired direction and spee using the speed/gear control lever.
3. Engage/depress the drive control lever (handle) and direct the snow thrower into
the snow to be cleared.
NOTICE: NEVER change speed/gear positions while the drive control lever (handle) is
engaged.
Disengage the drive control handle BEFORE changing speeds or directions. If the snow is
deeper than the height of the auger, remove it in several steps taking narrower swaths.
Make several passes with the auger overlapping the cleared areas and reduce forward
speed.
For the best clearing efficiency, clear snow before it melts, refreezes and hardens.
Hard packed and wet snow can be very difficult to clear.
Clearing wet heavy snow can be a challenge, depending on ambient temperature, humidity
levels, and overall climate conditions including actual snow conditions, there may be no 100%
solution as snow may be too wet or compacted to move or throw. Wet snow will tend to clog
and stick more to the augers and chute. Keep the auger engaged as much as possible when
clearing wet snow to help prevent clogging.
