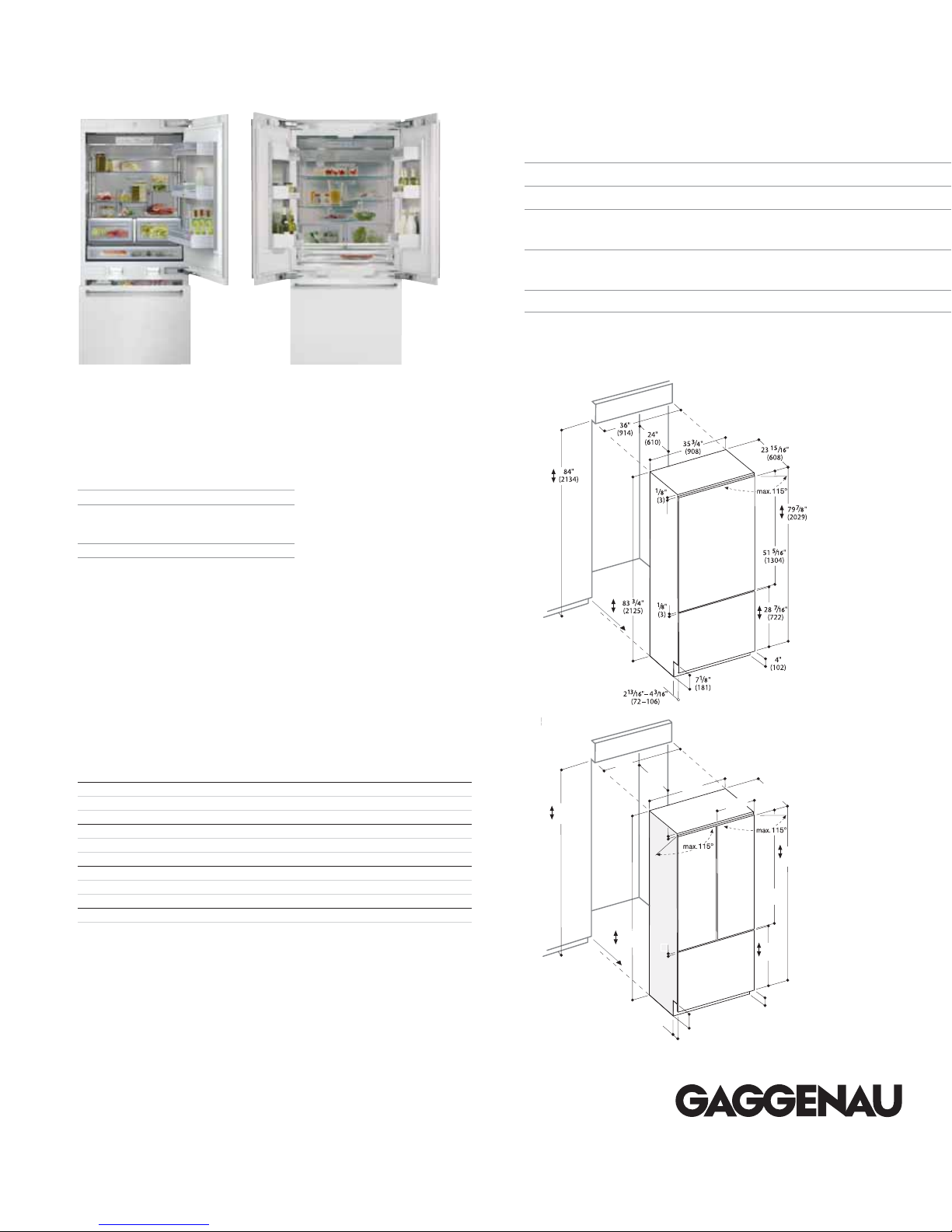

Gaggenau RB/RY 491-700 User manual

RB/RY 491-700: Bottom Freezer
Electronic temperature control with digital temperature display,
Dynamic cool air distribution with Multi-Flow Air System
Activated charcoal filter
Energy-saving vacation mode
Two continuous safety glass shelves with aluminum profiles,
one of which is motorized
Bright interior lighting with two ceiling spotlights and two
halogen light pillars on the side
Integrated automatic ice maker in the freezer compartment, with ice bin
Installation
Appliance dimensions (H X W x D) in inches (mm)
79 7⁄8" (2029) x 35 3⁄4" (908) x 23 15⁄16" (608)
Cut-out dimensions (H X W x D) in inches (mm)
84" (2134) x 36" (914) x 24" (610)
Total rating
0.57 kW (120 V / 60 Hz)
Total Amps
15 Amps
Bottom Freezer
With integrated ice maker
Width: 36" (90 cm)
RB 491-700
Two-door bottom freezer
RY 491-700
Three-door bottom freezer
SAP#2800001337??
6407-0030 OO Litho Date: 1/08
©2008 BSH Home Appliances Corporation. All rights reserved.
Warranty: “BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time,
without notice. Consult the product’s installation instructions for final dimensional data and other details. Applicable product
warranty can be found in accompanying product literature (or you may contact your account manager for further details).”
Phone: 877.4GAGG ENAU Fax: [phone] www.gaggenau-usa.com [e-mail]
36"
(914) 24"
(610) 353
/4"
(908) 2315
/1616"
(608)
173 /4"
(451)
1
/8"
(3)
797
/8"
(2029)
51 5
/1616"
(1304)
287
/1616"
(722)
4"
(102)
71
/8"
(181)
213/1616"−43/1616"
(72−106)
1
/8"
(3)
83 3
/4"
(2125)
84"
(2134)
RB 491-700
RY 491-700
Planning notes: Flat hinge. Door hinge right, reversible (for R B491).
Numbers indicated inside parenthesis ( ) = mm
