Gaggenau RF463704 User manual

*DJJHQDX
en Instruction manual . . . . . . . . . . . . . . . . . 2
fr Notice d'utilisation. . . . . . . . . . . . . . . . 35
es Instrucciones de uso . . . . . . . . . . . . . . 69
RF463704
RF463705
Freezer
Congélateur
Congelador

2
en-us
en Table of contents
en Instruction manual
( Important safety instructions 4
Definitions 4
About these instructions 4
Introduction 4
Risk of explosion 4
Risk of electric shock 5
Risk of cold burns 5
Risk of injury 5
Risk of fire 5
Avoiding placing children and vulnerable people
at risk 6
Damage 6
Weight 6
State of California Proposition 65 Warnings 6
8 Intended use 7
7 Environmental protection 7
Packaging 7
Old appliances 7
5 Installation and connection 8
Contents of package 8
Technical data 8
Installing the appliance 8
Check built-in cut-out 8
Side-by-side installation 8
Saving energy 9
Before using for the first time 10
Water connection 10
Electrical connection 10
* Getting to know your appliance 11
Appliance 11
Operating controls 11
Ice and water dispenser 12
Equipment 13
1 Operating the appliance 15
Switching the appliance on 15
Switching off and disconnecting the appliance 15
Setting the temperature 15
Fast freezing 15
Display lock for cleaning 16
Switching ice cube production on or off 16
Eco mode 16
Reset water filter counter 16
Self-test 16
Setting the brightness of the control panel 16
Setting the display screen 17
Setting the touch field color 17
Setting the touch field tone type. 17
Setting the touch field tone volume 17
Setting the signal tone volume 17
Switching the water filter counter on and off 18
Dimming when door is opened and closed 18
Ice and water dispenser light 18
Ice and water dispenser proximity sensor 18
Setting the temperature unit 18
Setting the language 19
Resetting to the factory settings 19
Switching demo mode on or off 19
Rest mode 19
Automatic door opening 20
Home network 20
Automatic display lock for cleaning 20
M Alarm 21
Door alarm 21
Temperature alarm 21
o Home Connect 22
Setting up Home Connect 22
Connecting the refrigerator to the Home
Connect app 23
Installing updates for the Home Connect
software 23
Customer Service access 24
Deleting network settings 24
Information on data protection 24
W Freezer compartment 25
Fully utilizing the freezer volume 25
Purchasing frozen food 25
When loading products 25
Freezing fresh food 25
Thawing frozen food 26
; Ice and water dispenser 27
Before using for the first time 27
Observing drinking water quality 27
Information on operation of the ice maker 27
Dispensing ice and water 27
= Defrosting 28
Freezer compartment 28

3
en-us
D Cleaning 28
Care instructions for stainless steel surfaces 28
Cleaning the display 28
Cleaning the equipment 29
> Noises 30
Normal noises 30
Preventing noises 30
9 Lighting 30
3 Faults – what to do? 31
Appliance 31
Dispenser 32
4 Customer service 34
Appliance self-test 34
Repair order and advice on faults 34

9Important safety instructions
READ INSTRUCTIONS - DO NOT DISCARD!
4
( Important safety instructions
Important safetyinstructionsREADINSTRUCTIONS- DONOTDISCARD! Definitions
9WARNING
Non-observance of this warning
could result in death or serious
injuries.
9CAUTION
Non-observance of this warning
could result in slight or moderately
serious injuries.
NOTICE
Non-observance of this information could
damage the appliance.
Note: This indicates important
information and/or tips.
About these instructions
▯Read and follow the operating and
installation instructions. They contain
important information on how to install,
use and maintain the appliance.
▯The manufacturer is not liable if you
disregard the instructions and
warnings in the operating and
installation instructions.
▯Retain all documents for subsequent
use or for the next owner.
Introduction
▯This appliance complies with the
relevant safety regulations for electrical
appliances.
▯The refrigeration circuit has been
checked for leaks.
Risk of explosion
▯Never use electric devices inside the
appliance (e.g. heaters or electric ice
makers).
▯Do not store products which contain
flammable propellants (e.g. spray cans)
or explosive substances in the
appliance.
▯Only store high-proof alcohol tightly
closed and standing up.
▯Do not use other means to accelerate
the defrosting process other than
those recommended by the
manufacturer.

5
9Important safety instructions
READ INSTRUCTIONS - DO NOT DISCARD!
Risk of electric shock
Improper installations or repairs may put
the user at considerable risk.
▯When installing the appliance, make
sure that the power cord does not get
jammed or damaged.
▯In order to avoid danger, if the power
cord is damaged, disconnect the
appliance from the power source
immediately. Have the power cord
replaced by the manufacturer,
customer service or a similarly
qualified person.
▯Do not use multiple outlets, extension
cords, or adapters.
▯Before servicing the appliance or
carrying out installation work,
disconnect the appliance from the
power source or switch off the fuse.
Before cleaning the appliance, press
the main On/Off switch to switch the
appliance off.
Glass shelves and other fittings can be
moved without any risk while the
appliance is switched on.
▯Never cut through or remove the power
cord's third conductor (grounding
conductor).
▯Never defrost or clean the appliance
using a steam cleaner. The steam may
penetrate electrical parts and cause a
short circuit.
▯The appliance, cord and accessories
should only be repaired or replaced by
the manufacturer or an authorized
service provider.
▯Only use original parts supplied by the
manufacturer.
These parts come with a warranty from
the manufacturer that they satisfy the
safety requirements.
Risk of cold burns
▯Never put frozen food straight from the
freezer compartment into your mouth.
▯Avoid prolonged skin contact with
frozen food, ice or any other surface
inside the freezer compartment.
Risk of injury
Containers with carbonated drinks may
burst.
Do not store containers which contain
carbonated drinks in the freezer
compartment.
Risk of fire
Portable multi-outlet power strips
and portable power supplies may
overheat, causing a fire.
Never leave portable multi-outlet power
strips or portable power supplies behind
the appliance.

9Important safety instructions
READ INSTRUCTIONS - DO NOT DISCARD!
6
Avoiding placing children and
vulnerable people at risk
At risk are:
▯Children,
▯People who have limited physical,
mental or sensory abilities,
▯People who have inadequate
knowledge concerning safe operation
of the appliance.
Measures:
▯Never allow children to play with the
appliance.
▯Ensure that children and vulnerable
people have understood the hazards.
▯Supervise children who are cleaning
and maintaining the appliance.
Risk of suffocation
▯If the appliance features a door lock:
keep the key out of the reach of
children.
▯Keep children away from the packaging
and its parts.
Damage
To avoid damage:
▯Do not stand or lean on the base,
runners or doors.
▯Keep plastic parts and door seals free
of oil and grease.
▯Pull the power plug – not the power
cord.
Weight
The appliance is very heavy. The
appliance should always be transported
and set up by at least 2 people.
~"Installing the appliance"
on page 8

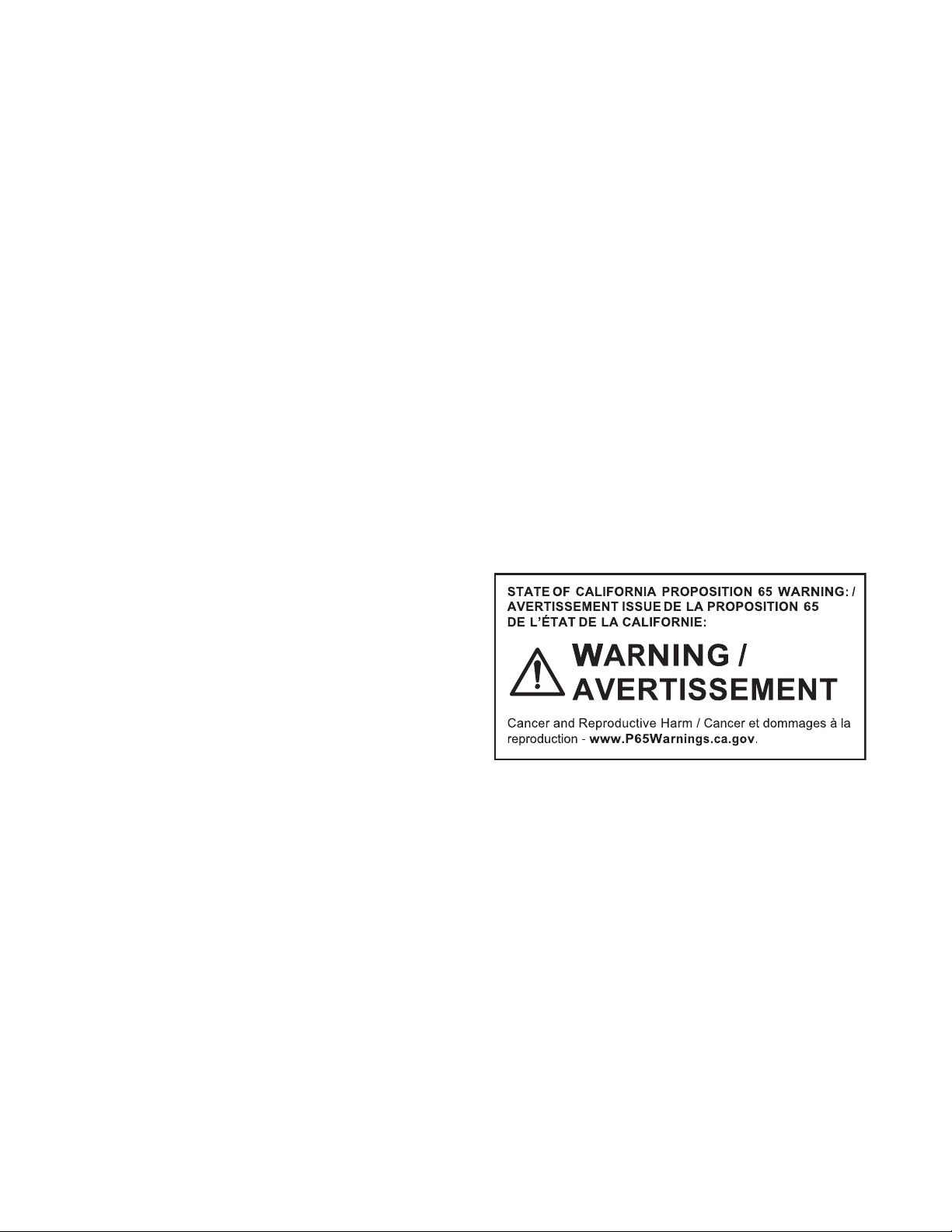

State of California Proposition 65
Warnings
This product may contain a chemical
known to the State of California, which
can cause cancer or reproductive harm.
Therefore, the packaging of your product
may bear the following label as required
by California:

7
Intended use en-us
8 Intended use
Intendeduse Use this appliance
▯only for freezing food, making ice and dispensing
drinking water.
▯only in the home and in the home environment.
▯only according to these operating instructions.
This appliance is intended for use at an elevation of no
more than 2000 meters above sea level.
7 Environmental protection
Environmentalprotection Packaging
All materials are environmentally safe and recyclable:
▯Dispose of packaging in an environmentally
responsible manner.
▯Please ask your dealer or inquire at your local
authority about current means of disposal.
Old appliances
Valuable raw materials can be reclaimed by recycling old
appliances.
9WARNING
Children may become locked in the appliance
and suffocate!
Before disposing of your old appliance:
▯Remove the door.
▯Leave shelves and bins in the appliance to
prevent children from climbing in.
▯Keep children away from the discarded
appliance.
9CAUTION
Refrigerant and harmful gases may escape.
Do not damage the tubes of the refrigeration
circuit and insulation.
1. Pull out the power plug.
2. Cut through the power cord.
3. Have the appliance disposed of properly.

8
en-us Installation and connection
5 Installation and connection
Installationandconnection Contents of package
After unpacking all parts, check for any damage during
transport.
If you have any complaints, please contact the dealer
from whom you purchased the appliance or our customer
service.
~"Customer service" on page 34
The delivery consists of the following parts:
▯Built-in appliance
▯Equipment (depending on model)
▯Installation material
▯Instruction manual
▯Installation instructions
▯Customer service booklet
▯Warranty enclosure
▯Information on the energy consumption and noises
Technical data
Refrigerant, cubic capacity and further technical
specifications can be found on the rating plate.
~"Getting to know your appliance" on page 11
Installing the appliance
Installation location
The weight of the appliance may be up to 460 kg
depending on the model. The base must be sufficiently
stable and should not give. If necessary, reinforce the
floor.
Check built-in cut-out
The cut-out must fulfill these criteria:
▯Anti-tilt bracket must be fitted
▯Cut-out depth min. 24” (610 mm), for flush installation
25” (635 mm)
▯rectangular
▯stable – the side panels and the top must be min. 5/8"
(16 mm) thick and securely attached to the floor or
wall
▯Depth of shortest side panels min. 4” (100 mm)
Side-by-side installation
Observe the specifications in the installation instructions
for a side-by-side installation.
If a partition wall is required between the appliances it
must be at least 5/8" (16 mm) wide.

9
Installation and connection en-us
Saving energy
If you follow the instructions below, your appliance will use less power.
Note: The arrangement of the equipment does not affect the energy consumption of the appliance.
--------
Installing the appliance
Keep the appliance out of direct sunlight. The appliance needs to cool less frequently at low
ambient temperatures and therefore consumes less
power.
Install the appliance as far away as possible from heat-
ing elements, cooker and other heat sources:
At least 1¼” (3 cm) from electric or gas cookers.
At least 11¾" (30 cm) from oil or solid-fuel cookers.
Select an installation location at a room temperature of
approx. 68 °F (20 °C).
Do not cover or block the ventilation openings. The appliance needs to cool less frequently if the warm
air can escape and therefore consumes less power.
Ventilate the room daily.
Using the appliance
Open the appliance door only briefly. The air in the appliance does not warm up so intensely.
The appliance needs to cool less frequently and there-
fore consumes less power.
Transport purchased food in a cool bag and place in
the appliance quickly.
Allow warm food and drink to cool down before placing
in the appliance.
Thaw frozen food in the refrigerator compartment to
utilize the low temperature of the frozen food.
Always leave a space between the food and the back
panel.
The air can circulate and the humidity will remain con-
stant.The appliance needs to cool less frequently and
therefore consumes less power.
Pack food airtight.
Do not cover or block the ventilation openings. The appliance consumes less power if the warm air
can escape.
Vacuum the ventilation openings once a year.

10
en-us Installation and connection
Before using for the first time
1. Remove information material, adhesive tape and
protective foil.
2. Clean the appliance.
~"Cleaning" on page 28
Water connection
9CAUTION
Installation and connection of the appliance must
be carried out by authorized technicians according
to the installation instructions supplied.
9CAUTION
To avoid damage to the appliance and to ensure its
proper functioning, it should only be connected to
a drinking water system.
9CAUTION
To avoid water damage, a shut-off valve must be
installed.
Water pressure of drinking water system
9CAUTION
To avoid damage to the appliance, a pressure
relief valve must be installed between the drinking
water connection and the tubing, should the water
pressure exceed the maximum value.
Note: If the water pressure is too low, this will impair the
relevant functions of the appliance.
▯Min. 0.2 Mpa (2 bar / 29 psi)
▯Max. 0.8 Mpa (8 bar / 116 psi)
Electrical connection
9CAUTION
Do not connect the appliance to electronic energy
saver plugs.
Note: You can connect the appliance to mains-controlled
and sine-controlled inverters.
Mains-controlled inverters are used for photovoltaic
systems which are connected directly to the national grid.
Sine-controlled inverters must be used for isolated
applications. Isolated applications, e.g. on ships or in
mountain lodges, are not directly connected to the
national grid.
1. After installing the appliance, wait at least 1 hour
before connecting it to prevent damaging the
compressor.
2. Check that the outlet was installed according to the
regulations and complies with the requirements.
Requirements for outlets
Maximum simultaneous load
3. Connect the appliance to an outlet near the appliance.
The outlet must also be freely accessible following
installation of the appliance.
9WARNING
Risk of electric shock!
Never use multiple outlets, extension cords or
adapters.
The appliance must be grounded correctly.
Never cut through or remove the power cord's
third conductor (grounding conductor).
Risk of electric shock!
If the power cord is too short, never use
multiple outlets or extension cords. Instead,
please contact customer service.
Outlet with 110 V ... 120 V
Protective conductor 60 Hz
Fuse 10 A ... 16 A
Appliance 6 A

11
Getting to know your appliance en-us
* Getting to know your appliance
Gettingtoknowyourappliance
Appliance
Operating controls
Main menu
Press àbutton to open the main menu.
In the main menu you can find:
▯Basic settings
▯Display lock for cleaning
▯Ice cube production
▯Eco mode
▯Reset water filter counter
▯Self-test
▯Rest mode (when active)
~"Operating the appliance" on page 15
(...HOperating controls
PMain On/Off switch
XDoor damper
`Ice maker
hIce cube bin
)" Rating plate
)* Frozen food container
)2 Automatic door opening
): Ventilation opening
)B Water filter
)J...1* Dispenser
)J 1*
(H
P
X
)"
)2
h
)*
`
):
)B
(Touch fields
There are sensors under the touch fields.
Touching the symbol calls up the respective
function.
0Freezer compartment temperature display
Indicates the set temperature in °C/°F.
8A/@buttons
Used to change the temperature.
@h/âbutton
Switches fast freezing on or off.
Hàbutton
Opens main menu.
ì
à
+
0°
F
(
(
8
@
0
H

12
en-us Getting to know your appliance
Basic settings menu
To access the Basic settings menu:
1. Press àbutton.
2. Press Bbutton to move to the menu item Basic
settings.
3. Open the menu using ™button.
In the Basic settings menu you will find the following sub-
menus and setting options:
▯Brightness
▯Display screen
▯Touch field color
▯Touch field tone type
▯Touch field tone volume
▯Signal tone volume
▯Water filter counter
▯Dimming when door is opened and closed
▯Ice and water dispenser light
▯Ice and water dispenser proximity sensor
▯Temperature unit
▯Language
▯Factory settings
▯Demo mode
▯Rest mode
▯Automatic door opening
▯Home network
▯Automatic display lock for cleaning
~"Operating the appliance" on page 15
Ice and water dispenser
)B WATER button
Starts water dispensing.
)J CUBED button
Starts ice cube dispensing.
)R CRUSHED button
Starts dispensing crushed ice.
)Z LOCK button
Locks controls for dispenser panel lock (child
lock). To switch on or off, hold down for 3
seconds.
)b Ice and water dispenser cover
)j Grate for drips
1" Drip tray
=


M
E- 5

13
Getting to know your appliance en-us
Equipment
Shelf
You can remove and adjust the shelf:
1. Lift shelf and remove.
2. When re-inserting, insert hooks on back of shelf at
same height to make it level.
Note: Insert shelf carefully to avoid scratching the
appliance.
Container
You can remove the container:
▯Press container to the rear,
▯lift the container at the rear and remove.
You can insert the bin:
▯Pull out the telescopic rails all the way.
▯Place the bin on the telescopic rails and push into the
appliance until it engages.
Ice pack
In the event of a power failure or a fault:
▯The ice pack delays the warming of stored frozen
food.
You can take out the ice pack to temporarily keep food
cool, e.g. in a cool bag.
Ice maker
9CAUTION
Damage to the appliance!
Never store bottles or food in the ice cube
container, even for short periods. This can block
and damage the ice maker.
Ice cube production starts as soon as the appliance has
reached the set temperature.
Notes
▯Discard the first 30-40 ice cubes for hygiene reasons.
▯Ice cube production stops automatically when the ice
cube container is full.
Information about switching ice cube production on and
off
~"Switching ice cube production on or off"
on page 16

14
en-us Getting to know your appliance
Water filter
Change the water filter after 6 months at the latest.
If the ice tastes stale, discard the rest of the ice cubes
and the ones produced over the next 24 hours. If the ice
still tastes stale, change the water filter.
Note: If you use an external water filter system, you can
also operate the appliance without a water filter.Replace
the water filter with a bypass cartridge. Switch off the
water filter counter. There is no need to change the
bypass cartridge.
A new water filter or bypass cartridge can be obtained
from customer service or a specialist dealer.
Exchange water filter or replace with bypass cartridge
You can change the water filter, or replace it with a
bypass cartridge. The bypass cartridge can remain in the
appliance permanently: it does not need to be changed.
Note: After installing a water filter or a bypass cartridge,
discard all ice cubes produced over the first 24 hours.

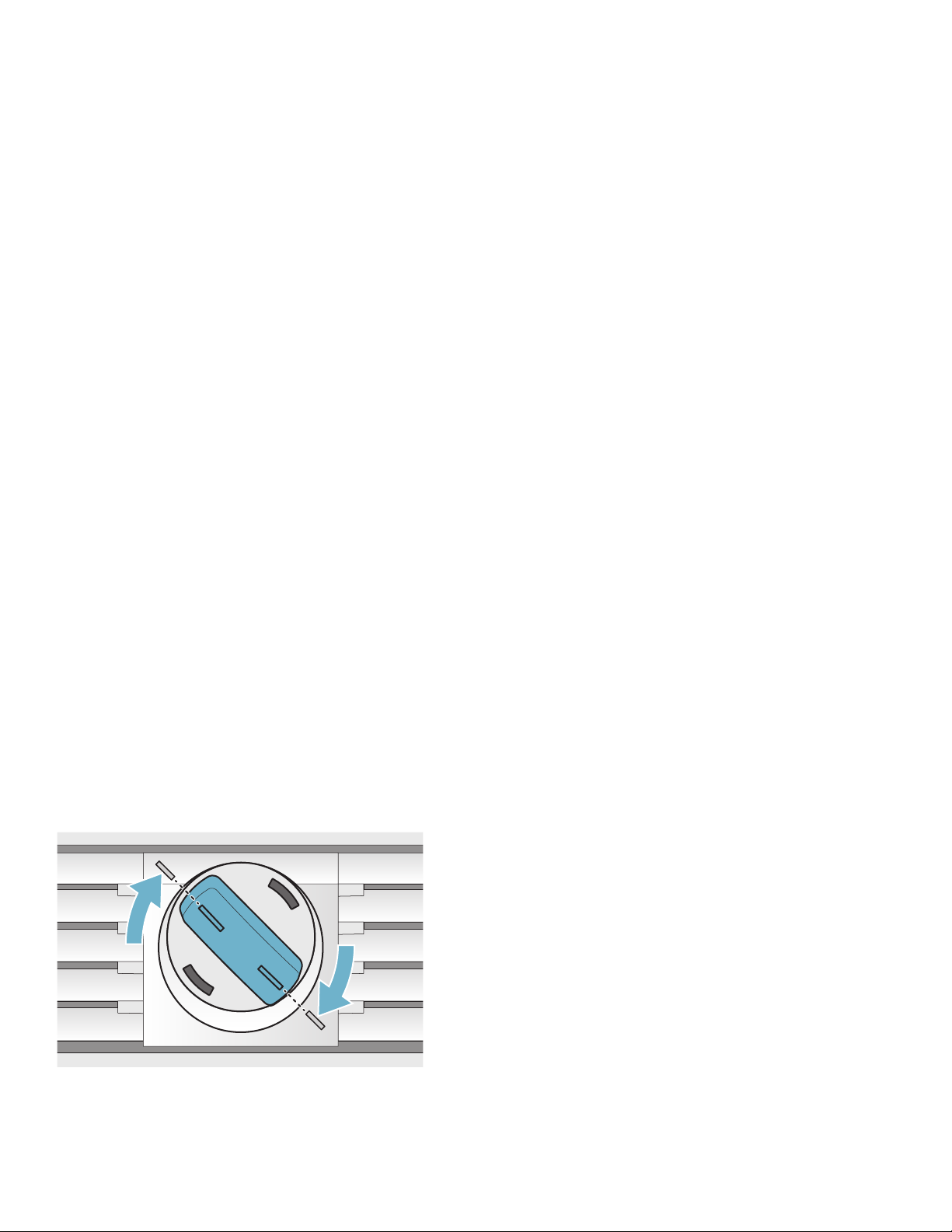

1. Turn the cap of the water filter counter-clockwise.
2. Take the water filter out.
3. Remove the protective cap of the new water filter or
the new bypass cartridge.
4. Take off the cap of the used water filter and put it on
the new water filter or bypass cartridge.
5. Slide the new water filter or bypass cartridge to the
stop in the filter opening.
Note: The cap must be horizontal here.
6. Turn the water filter or bypass cartridge clockwise to
the mark.
Note: If you do not turn the water filter or bypass
cartridge far enough, damage will be caused by
escaping water.
7. When installing a water filter: reset water filter
counter.
When installing a bypass cartridge: switch off water
filter counter.
8. Discard ice cubes produced over the first 24 hours.
9. Drain the water out of the used water filter.
Note: You can dispose of the used water filter with
your household garbage.

15
Operating the appliance en-us
1 Operating the appliance
Operatingtheappliance Switching the appliance on
1. Press the main On/Off switch.
The appliance starts cooling and the light is switched
on when the door is open.
2. Set the required temperature.
~"Setting the temperature" on page 15
Operating tips
▯When the appliance has been switched on, it may take
several hours until the set temperatures have been
reached. Do not put in any food until the selected
temperature has been reached.
▯The fully automatic NoFrost system ensures that the
freezer compartment remains frost-free.
Defrosting is not required.
▯The front sides of the housing are partly heated
slightly. This prevents condensation in the area
of the door seal.
▯If the freezer compartment door cannot be
immediately re-opened after it has been closed, wait
until the resulting low pressure has equalized.
Switching off and disconnecting the
appliance
Switching off the appliance
▯Press the main On/Off switch.
The appliance is no longer cooling.
Disconnecting the appliance
9CAUTION
Deterioration in water quality
The water supply must be turned off 3 hours before
disconnecting. This prevents mold forming with any
unused water.
If you do not use the appliance for a prolonged period:
1. Turn off the water supply to the appliance and wait 3
hours.
2. Remove groceries.
3. Press the main On/Off switch.
4. Pull out the mains plug or switch off the fuse.
The appliance is no longer cooling.
5. Empty the ice cube container and clean the appliance.
~"Cleaning" on page 28
6. Leave appliance open.
Setting the temperature
Recommended temperature
Freezer compartment
▯Keep pressing A/@button until the display indicates
the required temperature.
Fast freezing
Fast freezing cools the freezer compartment to as cold as
possible.
Fast freezing can be switched on in many different
situations, e.g.:
▯To quickly freeze food right through to the center
▯4 ... 6 hours before freezing food weighing 2 kg or
more
▯To use the freezing capacity
Note: When fast freezing is switched on, increased
operating noise may occur.
After approx. 2 ^days the appliance switches to normal
operation.
Switching fast freezing on or off:
▯Press h/âbutton.
Freezer compartment: 0 °F (-18 °C)

16
en-us Operating the appliance
Display lock for cleaning
You can use this function to switch off the touch function
of the controls for 10 seconds. During this time you can
clean the display.
~"Cleaning the display" on page 28
1. Press àbutton to open the main menu.
2. Press Ibutton.
The cleaning display appears, and the countdown starts.
Switching ice cube production on or off
9CAUTION
Damage to the appliance!
Never store bottles or food in the ice cube
container, even for short periods. This can block
and damage the ice maker.
Ice cube production starts as soon as the appliance has
reached the set temperature.
Note: Ice cube production stops automatically when the
ice cube container is full.
Switching ice maker on or off
1. Press àbutton to open the main menu.
2. Press Cbutton to move to the menu item Ice cube
production.
3. Press I/&button.
Eco mode
Eco mode switches the appliance to energy-saving
operation.
The appliance automatically sets the following
temperatures:
▯Freezer compartment: +3 °F (-16 °C)
Switching Eco mode on or off
1. Press àbutton to open the main menu.
2. Press Cbutton to move to the menu item Eco mode.
3. Press I/&button.
The temperature is changed, and the display shows the
new temperature. When Eco mode is switched off, the
recommended temperature is set.
Note: You can also switch Eco mode on or off by
adjusting the temperature with A/@buttons.
Reset water filter counter
After replacing the water filter, you have to reset the
water filter counter.
1. Press àbutton to open the main menu.
2. Use Cbutton to move to the menu item Reset water
filter counter.
3. Use ™button to confirm and confirm the query again
with ™button.
Note: The water filter counter will not be reset if you
abort the query or take longer than 10 seconds to make
an input.
Self-test
This function can be used to start fault analysis on your
appliance.
~"Appliance self-test" on page 34
Setting the brightness of the control
panel
1. Press àbutton to open the main menu.
2. Press Bbutton to move to the menu item Basic
settings.
3. Press ™button.
4. Press %button to open the menu item Brightness.
5. Press BCbuttons to set the required brightness.
6. Press ™button.
The setting is saved.
7. Press 'button to exit the menu.

17
Operating the appliance en-us
Setting the display screen
You can choose between the settings Reduced and
Standard. With the setting Reduced only the temperature
and active special functions are displayed on the control
panel after a short period without operation. If the touch
fields are touched, all keys will be visible again.
With the setting Standard all keys always remain visible.
1. Press àbutton to open the main menu.
2. Press Bbutton to move to the menu item Basic
settings.
3. Press ™button.
4. Press Cbutton to move to the menu item Display
screen.
5. Press %button.
6. Press BCbuttons to move to the required setting.
7. Press ™button.
The setting is saved.
8. Press 'button to exit the menu.
Setting the touch field color
1. Press àbutton to open the main menu.
2. Press Bbutton to move to the menu item Basic
settings.
3. Press ™button.
4. Press Cbutton to move to the menu item Touch field
color.
5. Press %button.
6. Press BCbuttons to move to the required setting.
7. Press ™button.
The setting is saved.
8. Press 'button to exit the menu.
Setting the touch field tone type.
You can change or switch off the sound of the tones
generated when pressing keys.
1. Press àbutton to open the main menu.
2. Press Bbutton to move to the menu item Basic
settings.
3. Press ™button to open the menu item.
4. Press Cbutton to move to the menu item Touch field
tone type.
5. Press %button to open the menu item.
6. Press BCbuttons to select the required setting.
7. Press ™button.
The setting is saved.
8. Press 'button to exit the menu.
Setting the touch field tone volume
You can adjust the volume level of the sounds generated
when pressing keys.
1. Press àbutton to open the main menu.
2. Press Bbutton to move to the menu item Basic
settings.
3. Press ™button to open the menu item.
4. Press Cbutton to move to the menu item Touch field
tone volume.
5. Press %button to open the menu item.
6. Press BCbuttons to select the required setting.
7. Press ™button.
The setting is saved.
8. Press 'button to exit the menu.
Setting the signal tone volume
You can adjust the volume level of the signal tones
generated e.g. with alarms.
1. Press àbutton to open the main menu.
2. Press Bbutton to move to the menu item Basic
settings.
3. Press ™button to open the menu item.
4. Press Cbutton to move to the menu item Signal tone
volume.
5. Press %button to open the menu item.
6. Press BCbuttons to select the required setting.
7. Press ™button.
The setting is saved.
8. Press 'button to exit the menu.

18
en-us Operating the appliance
Switching the water filter counter on
and off
If you have replaced the water filter with a particle filter,
switch the water filter counter off. It is not needed in this
case as the particle filter does not have to be replaced.
1. Press àbutton to open the main menu.
2. Press Bbutton to move to the Basic settings menu.
3. Press ™button.
4. Press Cbutton to move to the menu item Water filter
counter.
5. To change the setting, press %button.
6. Confirm the selection by pressing ™button.
Dimming when door is opened and
closed
If dimming is switched on, the light will slowly become
brighter when the door is opened, and then slowly darker
when it is closed.
Switching dimming on or off when opening and closing
the door
1. Press àbutton to open the main menu.
2. Press Bbutton to move to the menu item Basic
settings.
3. Press ™button.
4. Press Cbutton to move to the menu item Dimming
when door is opened and closed.
5. Press %button.
6. Press Cbutton to move to the menu item On or
Off.Confirm by pressing ™button.
Ice and water dispenser light
Use this function to set how long the light will illuminate
the ice and water dispenser.
Setting ice and water dispenser light
1. Press àbutton to open the main menu.
2. Press Bbutton to move to the menu item Basic
settings.
3. Press ™button to open the menu item.
4. Press Cbutton to move to the menu item Ice and water
dispenser light.
5. Press %button to open the menu item.
6. Press Cbutton to select the required duration.
7. Press ™button.
The setting is saved.
8. Press 'button to exit the menu.
Ice and water dispenser proximity
sensor
When the proximity sensor is switched on, the ice and
water dispenser light switches on automatically as soon
as a glass is held underneath.
Switching proximity sensor on or off
1. Press àbutton to open the main menu.
2. Press Bbutton to move to the menu item Basic
settings.
3. Press ™button to open the menu item.
4. Press Cbutton to move to the menu item Motion
sensor.
5. Press %button to open the menu item.
6. Press BCbuttons to move to the required setting.
7. Press ™button.
The setting is saved.
8. Press 'button to exit the menu.
Setting the temperature unit
You can choose between the unit °C and °F.
1. Press àbutton to open the main menu.
2. Press Bbutton to move to the menu item Basic
settings.
3. Press ™button.
4. Press Bbutton to move to the menu item Temperature
unit.
5. Press %button.
6. Press BCbuttons to move to the required unit.
7. Press ™button.
The unit will be changed.
8. Press 'button to exit the menu.

19
Operating the appliance en-us
Setting the language
1. Press àbutton to open the main menu.
2. Press Bbutton to move to the menu item Basic
settings.
3. Press ™button.
4. Press Bbutton to move to the menu item Language.
5. Press %button.
6. Press BCbuttons to move to the required language.
7. Press ™button.
The display restarts, and the start screen is displayed.
Resetting to the factory settings
1. Press àbutton to open the main menu.
2. Press Bbutton to move to the menu item Basic
settings.
3. Press ™button.
4. Press Bbutton to move to the menu item Factory
settings.
5. Press %button.
A signal tone sounds, and a message to confirm reset
appears.
6. Press ™button.
All settings are reset to the factory settings.
7. Press 'button to exit the menu.
Switching demo mode on or off
The cooling function of the appliance is switched off. All
other functions can be used.
Note: Do not store any food items in demo mode as the
appliance remains at room temperature.
1. Press àbutton to open the main menu.
2. Press Bbutton to move to the menu item Basic
settings.
3. Press ™button.
4. Press Bbutton to move to the menu item Demo mode.
5. Press %button.
6. Press BCbuttons to select the setting On or Off.
7. Press ™button.
The setting is saved.
8. Press 'button to exit the menu.
Rest mode
The appliance switches off the following:
▯Automatic door opening
Note: With handle-free installation, please note that
you will not be supported when opening the door
during this time. To open the door in this case, reach
from below under the bottom panel of the unit.
▯Ice maker
▯Audible signals
▯Interior light
▯Messages on the display
▯Background illumination of display is reduced
Switching Rest mode on or off
Displaying or hiding rest mode in the main menu
To use rest mode, you first have to display the function in
the main menu:
1. Press àbutton to open the main menu.
2. Press Bbutton to move to the menu item Basic
settings.
3. Press ™button.
4. Press Bbutton to move to the menu item Rest mode.
Press %button.
5. Press Cbuttons to move to the menu item Available or
Not available. Confirm by pressing ™button.
6. Press 'button to exit the menu.
The function is displayed or hidden in the main menu.
Switching rest mode on
1. Press àbutton to open the main menu.
2. Press /button to open the view Rest mode duration.
3. Press A/@buttons to change the duration.
4. Press Ibutton to start.
The appliance switches all listed functions off.
Switching rest mode off
▯After the selected time elapses, the appliance
switches over to normal operation.
▯To end rest mode before expiry of the selected time,
press &button.

20
en-us Operating the appliance
Automatic door opening
The automatic door opening function supports you in
opening the door.
As soon as you activate this function, automatic door
opening moves out and supports you in opening the door.
9CAUTION
Repeatedly closing the door too early will cause
automatic door opening to wear out or fail.
Do not close the door as long as automatic door
opening is still moved out.
If you have nevertheless closed the door, leave it
closed for 5 minutes. Automatic door opening will
re-adjust itself.
Open the menu item Automatic door opening:
1. Press àbutton to open the main menu.
2. Press Bbutton to move to the Basic settings menu.
3. Press ™button to open the menu.
4. Press Bbutton to move to the menu item Automatic
door opening.
5. To change the setting, press %button.
Switching on Push-to-open system
In an installation situation without handles you can select
the Push-to-open system. Your appliance will then open a
crack if you press lightly on the door.
Note: Please note that automatic door opening is
disabled if Rest mode is activated.
1. Open the menu item Automatic door opening.
2. Select menu item Push-to-open system.
3. Press ™button to open the menu item.
4. Select Opening force.Here you can select the level of
force required to activate automatic door opening.
5. Select Opening duration.Here you can select how long
the door should remain open a crack before it closes
again automatically.
Note: If the door only remains open a crack, the
appliance checks once a second whether the door is
still ajar.After the selected opening duration elapses,
the appliance will close the door automatically.
Switching on Pull-to-open system
In an installation situation with handles you can select the
Pull-to-open system. Your appliance will support you in
opening the door as soon as you pull on the handle.
1. Open the menu item Automatic door opening.
2. Select menu item Pull-to-open system.
3. Press ™button to open the menu item.
4. Select Opening force.Here you can select the level of
force required to activate automatic door opening.
Switching off automatic door opening
1. Open the menu item Automatic door opening.
2. Select menu item Off.
Home network
You can use this function to establish a connection
between the refrigerator and your mobile device.
~"Home Connect" on page 22
Automatic display lock for cleaning
You can use this function to select whether the automatic
clean lock is switched on automatically when the door is
opened.
1. Press àbutton to open the main menu.
2. Press Bbutton to move to the menu item Basic
settings.
3. Press ™button.
4. Press Bbutton to move to the menu item Automatic
display lock for cleaning.
5. To change the setting, press %button.
