Galley Tap IWTDPSS User manual

Made in Italy
THEGALLEY ™ TAP
Installation Instructions
Stainless Steel Pull-down Kitchen Faucet

Installation
2
Mounting
Shank
Stainless
Steel
Stainless
Steel
Washer
Mounting
Nut
Minimum Ø 1-3/8”
hole in Countertop
Optional
Base Ring
Insert all hoses and Mounting
Shank through the hole in
countertop.
1
2
3
Nut
Stainless Steel
Crosshead
Screws
On the underside of the countertop,
install the stainless steel Washer
and Mounting Nut by slipping
them over the hoses and threading
the nut onto the Mounting Shank.
Tighten the Mounting Nut against
the countertop and tighten the
two screws so the faucet is
secure.
Optional
Base Ring
Install the Optional Base Ring by
slipping it over the hoses and
onto the Mounting Shank.

Installation
Install the Counterweight onto
the Hand Spray Hose as shown.
Hand Spray
Hose
Counterweight
Hot
Supply
Hose
Cold
Supply
Hose
Hand Spray
Hose
Hand Sp
Check Valve
Housing
ray
Supply Hose
Connect the Hand Spray Hose
to the Hand Spray Supply Hose
on which the Check Valve housing
is fitted.
4
5
6
3
1”
Before connecting the hot and
cold Supply Hoses, flush water
supply stops to clear any debris.
Place a bucket underneath the
stops and run water for 5 to 10
Carefully position hot and cold
supplies so they will not interfere
with other hoses.
Connect the 3/8" Compression
Connections (Hot and Cold Supply
Hoses) to your hot and cold inlets.
Hoses are marked hot and cold.
1.
2.
3.
Important:
Remove protective paper and stick
rubber strips inside counterweight
Note - make sure Hand Spray
Hose and Counterweight are free to
slide up and down and are not
in conflict with any plumbing
components or items under the sink
or Workstation.

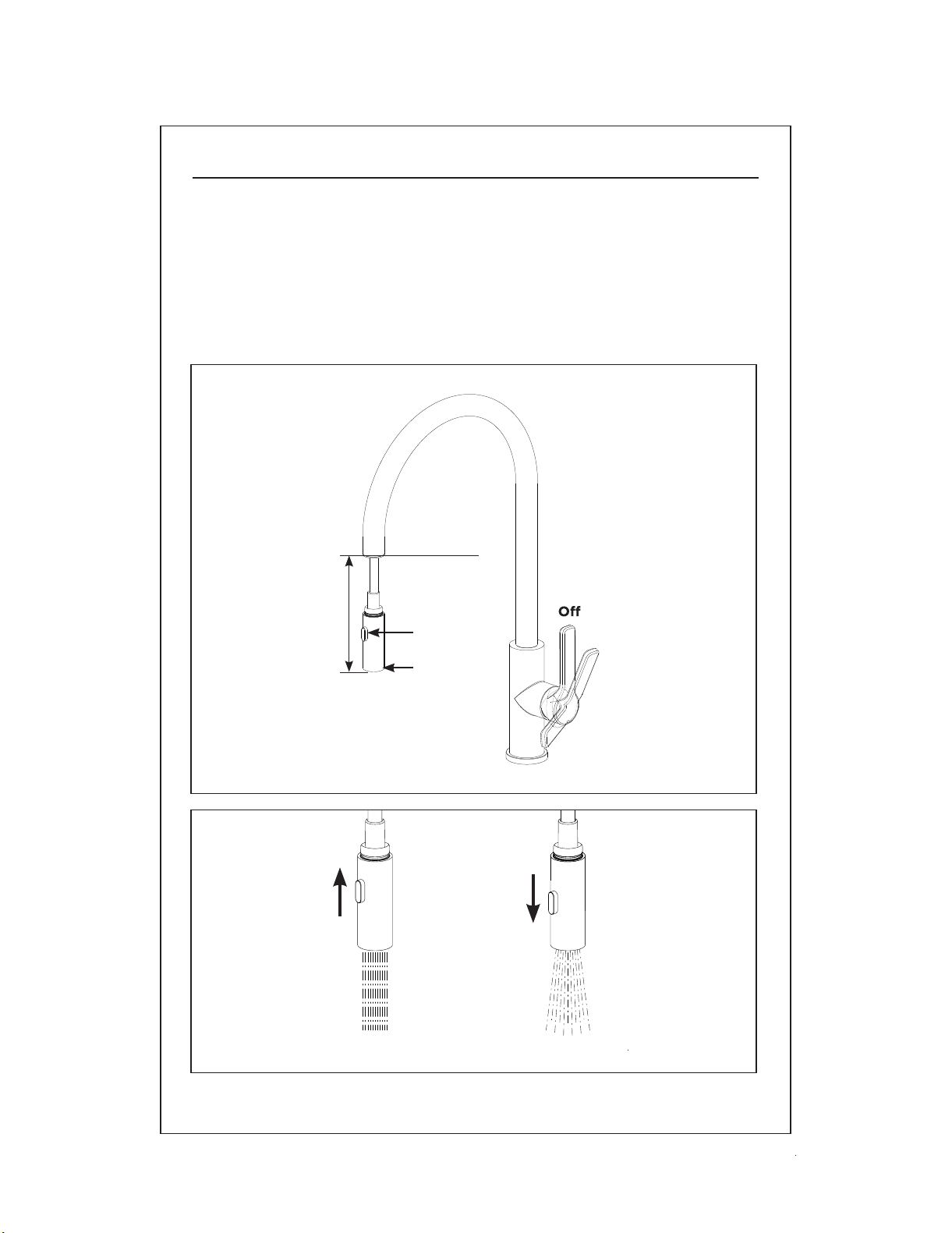

Usage
Faucet turns on by tilting handle out. Tilting angle is 24°. Handle rotates forward
for temperature adjustment.
When Handle is in upright position water temperature is fully cold. When Handle
is rotated 90° forward water temperature is fully hot.
Hand Spray pulls out up to 27” from the spout.
Adjust Slide Switch down for spray flow or up for laminar flow.
On /
Cold
On /
Hot
27”
Pull-out
Hand Spray
Hand
Spray
Slide
Switch
Spray FlowLaminar Flow
4

Maintenance - Indoor Installation
5
Aerator
Aerator Locking Ring
Handle
Aerator Key
Dome Cap
Cartridge
Set Screw
Cartridge Nut
Check Valve Housing
Check Valve
Hand Spray Hose
Hand Spray
Supply Hose
O-Ring
1. Cartridge Replacement:
a) Using an Allen Key, unthread Set Screw from handle.
b) Unthread and remove Dome Cap and Cartridge Nut.
c) Remove and replace Cartridge. Use the 2 pins on the bottom of the
Cartridge to seat the Cartridge correctly.
2. Check Valve Replacement:
a) Unthread Hose and Check Valve Housing.
b) Remove and replace Check Valves by inserting them O-Ring side forward
into Check Valve Housing.
c) Re-assemble.
3. Aerator Replacement:
a) Use Aerator Key to remove and replace Aerator.
4. Aerator Cleaning:
a) Clean aerator periodically to eliminate any build-up.

Maintenance - Outdoor Installation
6
1. Cartridge Replacement:
a) Using an Allen Key, unthread Set Screw from handle.
b) Unthread and remove Dome Cap and Cartridge Nut.
c) Remove and replace Cartridge. Use the 2 pins on the bottom of the
Cartridge to seat the Cartridge correctly.
2. Check Valve Replacement:
a) Unthread Hose and Check Valve Housing.
b) Remove and replace Check Valves by inserting them O-Ring side forward
into Check Valve Housing.
c) Re-assemble.
3. Aerator Replacement:
a) Use Aerator Key to remove and replace Aerator.
4. Aerator Cleaning:
a) Clean aerator periodically to eliminate any build-up.
5. Important - Your outdoor Galley Tap must be winterized if temperature
falls below freezing in your area. To winterize your outdoor Galley Tap:
a) Turn off water supply under the counter and disconnect Hot and Cold
Supply Hoses.
b) Disconnect Check Valve Housing and Hand Spray Supply Hose (see
picture below); remove both Check Valves.
c) Open handle and pull out Hand Spray from spout to drain any water;
drain completely.
Handle
Dome Cap
Cartridge
Set Screw
Cartridge Nut
Check Valve Housing
Check Valve
Hand Spray Hose
Hand Spray
Supply Hose
O-Ring
Aerator
Aerator Locking Ring
Aerator Key

Replacement Parts
7
Care and Cleaning for The Galley Tap Finishes
ABOUT OUR FINISHES:
The Galley Tap is made of solid stainless steel. This finish has NO PROTECTIVE COATING on
it. Stainless steel is by its material nature very tarnish-resistant, but by no means tarnish or
stain proof. This finish will react to it’s environment over time. Cleaners that contain bleach
may cause rust. Keep your Galley Tap wiped clean and dry, and use only a cleaner specifically
made for stainless steel. Trapped moisture on the surface of your finish can lead to staining.
Astringent cleaners, chlorine, bleach, and acidic-based organic cleansers are potentially
harmful to stainless steel finishes.
IMPORTANT NOTICE:
It is the responsibility of the customer to check for any material finish defects BEFORE
installation.
SUGGESTED FINISH MAINTENANCE PROCEDURE:
1. Do not allow water spots to dry on the fixture. Keep the surface clean and dry after use.
2. Periodic cleaning can be done by applying a stainless steel cleaner with a soft clean cloth
to gently remove surface spots and brighten the finish.
For PVD finishes, clean with a soft, warm damp cloth.
3. Never use cleaners with bleach, abrasives or vinegar. Never use any type of abrasive cleaning
pad.
* XXX represents finish ** From July 2017
1 - Handspray X.1051-XXX *
2- Aerator & Ring A.362
3- Aerator Key S.203
4- O-Ring Gasket O.052 **
5- Acetal Ring S.292 **
6- Acetal Ring S.293 **
7- Set screw A.128
8- Cartridge S.232
9- Cartridge Nut B.709
10- Dome Cap B.710-XXX *
11- Handle F.017-XXX *
12- Set screw A.356
13- O-Ring Gasket O.066 **
14- Base Ring B.711-XXX *
15- O-Ring Gasket O.022
16- Mounting Washer A.358
17- Mounting Nut F.016
18- Mounting Nut Screws A.357
19- Gasket A.064
20- Counterweight S.252
21- Adhesive Strips S.273
22- Check Valve A.290
23- Hand Spray Hose A.354
