GameSir VX AimBox User manual

User Manual
Gaming is winning.™GameSir VX AimBox
Multi-Platform Console Adapter

The mouse switching technology of VX AimBox will assume that the "view sensitivity" and
other related options are maximized in your gameplay settings. In any case, it must be
turned up to maximize your aiming performance.
MAXIMIZE GAME SENSITIVITY
HARDWARE REQUIREMENTS / COMPATIBILITY
Xbox One
Xbox Series X/S
PlayStation 4
PlayStation 5
NintendoSwitch

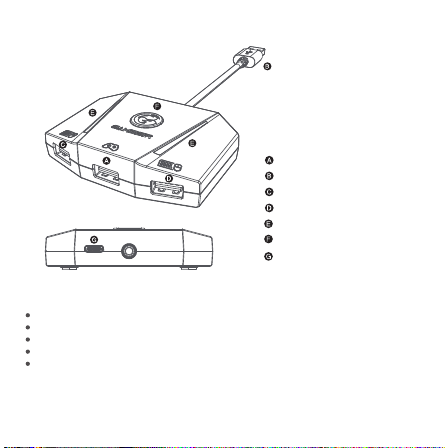

EQUIPMENT LAYOUT
Keyboard / mouse interface
Keyboard / mouse interface
Gamepad connection interface
USB plug
LOGO button
Indicator
Type-C Port
PACKAGE CONTENTS
VX AimBox Multi-Platform Console Adapter
Micro - USB cable
Type - C cable
Manual

The mouse switching technology of VX AimBox will assume that the "view sensitivity" and
other related options are maximized in your gameplay settings. In any case, it must be
turned up to maximize your aiming performance.
MAXIMIZE GAME SENSITIVITY
HARDWARE REQUIREMENTS / COMPATIBILITY
Xbox One
Xbox Series X/S
PlayStation 4
PlayStation 5
NintendoSwitch
EQUIPMENT LAYOUT
Keyboard / mouse interface
Keyboard / mouse interface
Gamepad connection interface
USB plug
LOGO button
Indicator
Type-C Port
PACKAGE CONTENTS
VX AimBox Multi-Platform Console Adapter
Micro - USB cable
Type - C cable
Manual

Go to PlayStation 4“Accessories>Controllers>Communication Method>Use USB cable”
Note: Please replug the USB cable from your game console if VX AimBox doesn't work. Note: Please replug the USB cable from your game console if VX AimBox doesn't work.
CONNECT TO PlayStation 4 CONNECT TO PlayStation 5

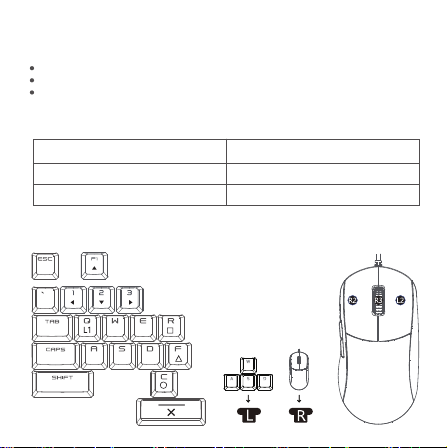

PlayStation 4 KEY VALUE DIAGRAM PlayStation 5 KEY VALUE DIAGRAM
Indicator Explanation
phantom cycle Default light eect
Blue ashes 3 times Recognize to PlayStation 4 mode
Indicator Explanation
phantom cycle Default light eect
Blue ashes 3 times Recognize to PlayStation 5 mode
PS
SHARE
OPTIONS
TOUCHPAD
L3
R1
Only games that can be controlled using PlayStation4 game controllers are supported
PS
SHARE
OPTIONS
TOUCHPAD
L3
R1
Connect the ocial PlayStation 4 game controller to the controller connection interface
Connect the keyboard/mouse to the keyboard/mouse interface
Connect the VX AimBox to the USB port of PlayStation5 through the USB plug. After
the VX AimBox is started, the indicator light defaults to a phantom color cycle. When
the indicator light ashes blue 3 times, it means the recognition is successful and can
be controlled.
Connect the ocial PlayStation 4 game controller to the controller connection interface
Connect the keyboard/mouse to the keyboard/mouse interface
Connect the VX AimBox to the USB port of PlayStation4 through the USB plug. After
the VX AimBox is started, the indicator light defaults to a phantom color cycle. When
the indicator light ashes blue 3 times, it means the recognition is successful and can
be controlled.

Go to PlayStation 4“Accessories>Controllers>Communication Method>Use USB cable”
Note: Please replug the USB cable from your game console if VX AimBox doesn't work. Note: Please replug the USB cable from your game console if VX AimBox doesn't work.
CONNECT TO PlayStation 4 CONNECT TO PlayStation 5
PlayStation 4 KEY VALUE DIAGRAM PlayStation 5 KEY VALUE DIAGRAM
Indicator Explanation
phantom cycle Default light eect
Blue ashes 3 times Recognize to PlayStation 4 mode
Indicator Explanation
phantom cycle Default light eect
Blue ashes 3 times Recognize to PlayStation 5 mode
PS
SHARE
OPTIONS
TOUCHPAD
L3
R1
Only games that can be controlled using PlayStation4 game controllers are supported
PS
SHARE
OPTIONS
TOUCHPAD
L3
R1
Connect the ocial PlayStation 4 game controller to the controller connection interface
Connect the keyboard/mouse to the keyboard/mouse interface
Connect the VX AimBox to the USB port of PlayStation5 through the USB plug. After
the VX AimBox is started, the indicator light defaults to a phantom color cycle. When
the indicator light ashes blue 3 times, it means the recognition is successful and can
be controlled.
Connect the ocial PlayStation 4 game controller to the controller connection interface
Connect the keyboard/mouse to the keyboard/mouse interface
Connect the VX AimBox to the USB port of PlayStation4 through the USB plug. After
the VX AimBox is started, the indicator light defaults to a phantom color cycle. When
the indicator light ashes blue 3 times, it means the recognition is successful and can
be controlled.

Note: Please replug the USB cable from your game console if VX AimBox doesn't work. Note: Please replug the USB cable from your game console if VX AimBox doesn't work.
Indicator Explanation
phantom cycle Default light eect
Green ashes 3 times Recognize to Xbox One mode
Indicator Explanation
phantom cycle Default light eect
Green ashes 3 times Recognize to Xbox Series mode

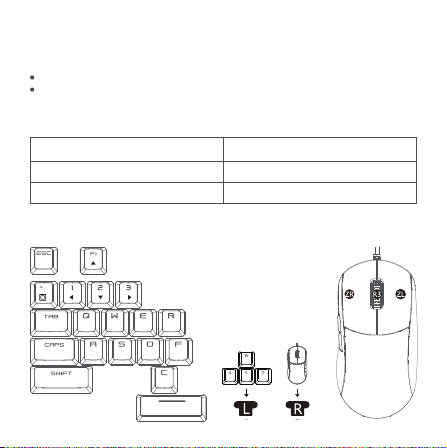

Xbox one KEY VALUE DIAGRAM
CONNECT TO Xbox One
Connect the ocial Xbox One game controller to the controller connection interface
Connect the keyboard/mouse to the keyboard/mouse interface
Connect VX AimBox to the USB port of Xbox One through the USB plug. After the VX
AIMBOX is turned on, the indicator light defaults to a phantom color cycle. When the
indicator light ashes green 3 times, it means that the recognition is successful and
can be controlled.
HOME
LB RB X
Y
B
A
Xbox Series KEY VALUE DIAGRAM
CONNECT TO Xbox Series
Connect the ocial Xbox gamepad to the controller connection interface
Connect the keyboard/mouse to the keyboard/mouse interface
Connect the VX AimBox to the USB port of Xbox Series through the USB plug. After
the VX AimBox is turned on, the indicator light defaults to a phantom color cycle. When
the indicator light ashes green 3 times, it means that the recognition is successful and
can be controlled.
HOME
LB RB X
Y
B
A

Note: Please replug the USB cable from your game console if VX AimBox doesn't work. Note: Please replug the USB cable from your game console if VX AimBox doesn't work.
Indicator Explanation
phantom cycle Default light eect
Green ashes 3 times Recognize to Xbox One mode
Indicator Explanation
phantom cycle Default light eect
Green ashes 3 times Recognize to Xbox Series mode
Xbox one KEY VALUE DIAGRAM
CONNECT TO Xbox One
Connect the ocial Xbox One game controller to the controller connection interface
Connect the keyboard/mouse to the keyboard/mouse interface
Connect VX AimBox to the USB port of Xbox One through the USB plug. After the VX
AIMBOX is turned on, the indicator light defaults to a phantom color cycle. When the
indicator light ashes green 3 times, it means that the recognition is successful and
can be controlled.
HOME
LB RB X
Y
B
A
Xbox Series KEY VALUE DIAGRAM
CONNECT TO Xbox Series
Connect the ocial Xbox gamepad to the controller connection interface
Connect the keyboard/mouse to the keyboard/mouse interface
Connect the VX AimBox to the USB port of Xbox Series through the USB plug. After
the VX AimBox is turned on, the indicator light defaults to a phantom color cycle. When
the indicator light ashes green 3 times, it means that the recognition is successful and
can be controlled.
HOME
LB RB X
Y
B
A

Note: Please replug the USB cable from your game console if VX AimBox doesn't work.
Indicator Explanation
phantom cycle Default light eect
Red ashes 3 times Recognize to Nintendo Switch mode
Light Eect
Color cycling (default)
Steady Blue
Steady Green
Steady Orange
Steady Purple
Nintendo Switch KEY VALUE DIAGRAM
CONNECT TO Nintendo Switch
Connect the keyboard/mouse to the keyboard/mouse interface
Connect VX AimBox to the USB interface of Nintendo switch dock through USB plug.
After VX AimBox is turned on, the indicator light defaults to the phantom color cycle.
When the indicator light ashes red three times, it means the recognition is successful
and can be controlled.
Turn on the Bluetooth of the mobile phone, search the GameSir VX box in the Bluetooth
device, pair and connect.
Open up the GameSir app for a highly personalized setting.
Go to switch “System Settings> controller and sensors> Pro controller wired connection”,
and adjust it to the “on” state
CONNECT TO THE "GAMESIR" MOBILE APP
The GameSir mobile app oers multiple features that give you the exibility to
customize gamepad button mappings, sensitivity adjustments, and rmware version
upgrades, and other features when necessary.
SWITCHING THE LIGHTING EFFECT
Switch the light eect by pressing the LOGO
button at the top of the VX AimBox
SUPPLY POWER TO VX AIMBOX THROUGH TYPE-C INTERFACE
Please note that VX AimBox may not be able to provide the required power for some
keyboards/mouses. After power on, they may not work normally. In this case, please
try to input additional power to the Type-C interface on the VX AimBox to supply power.
Scan the QR code below to download the "GameSir" mobile application
HOME
LRY
X
A
B
+
－
L3

Note: Please replug the USB cable from your game console if VX AimBox doesn't work.
Indicator Explanation
phantom cycle Default light eect
Red ashes 3 times Recognize to Nintendo Switch mode
Light Eect
Color cycling (default)
Steady Blue
Steady Green
Steady Orange
Steady Purple
Nintendo Switch KEY VALUE DIAGRAM
CONNECT TO Nintendo Switch
Connect the keyboard/mouse to the keyboard/mouse interface
Connect VX AimBox to the USB interface of Nintendo switch dock through USB plug.
After VX AimBox is turned on, the indicator light defaults to the phantom color cycle.
When the indicator light ashes red three times, it means the recognition is successful
and can be controlled.
Turn on the Bluetooth of the mobile phone, search the GameSir VX box in the Bluetooth
device, pair and connect.
Open up the GameSir app for a highly personalized setting.
Go to switch “System Settings> controller and sensors> Pro controller wired connection”,
and adjust it to the “on” state
CONNECT TO THE "GAMESIR" MOBILE APP
The GameSir mobile app oers multiple features that give you the exibility to
customize gamepad button mappings, sensitivity adjustments, and rmware version
upgrades, and other features when necessary.
SWITCHING THE LIGHTING EFFECT
Switch the light eect by pressing the LOGO
button at the top of the VX AimBox
SUPPLY POWER TO VX AIMBOX THROUGH TYPE-C INTERFACE
Please note that VX AimBox may not be able to provide the required power for some
keyboards/mouses. After power on, they may not work normally. In this case, please
try to input additional power to the Type-C interface on the VX AimBox to supply power.
Scan the QR code below to download the "GameSir" mobile application
HOME
LRY
X
A
B
+
－
L3

パッケージの内容
VXAimBoxゲームコンソールキーボードおよびマウスコンバーター
マイクロUSBデータケーブル
タイプCデータケーブル
アフターサンクスカード
GameSirステッカー
説明書
合格証
NOTICE Please read this Precautions carefully.
CONTAINS SMALL PARTS. Keep out of reach of children under the age of 3. Seek immediate medical
attention if swallowed or inhaled.
DO NOT use the product near re.
DO NOT expose to direct sunlight or high temperatures.
DO NOT leave the product in a humid or dusty environment.
DO NOT impact the product or cause it to fall due to strong impact.
DO NOT touch USB port directly or it might cause malfunctions.
DO NOT strongly bend or pull cable parts.
Use a soft, dry cloth while cleaning.
DO NOT use chemicals such as gasoline or thinner.
DO NOT disassemble, repair or modify.
DO NOT use for purposes other than its original purpose. We are NOT responsible for accidents or
damage when used for non-original purposes.
DO NOT look directly at the optical light. It might damage your eyes.
If you have any quality concerns or suggestions, please contact GameSir or your local distributor.
Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)This
devicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,including
interferencethatmaycauseundesiredoperation.
Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuantto
part15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterference
inaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.
However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes
causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipment
oandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:
-Reorientorrelocatethereceivingantenna.
-Increasetheseparationbetweentheequipmentandreceiver.
-Connecttheequipmentintoanoutletonacircuitdierentfromthat towhichthereceiverisconnected.
-Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

User Manual
Gaming is winning.™GameSir VX AimBox
Multi-Platform Console Adapter
