Garden Gear G0518 User manual
For correct usage, read these instructions carefully and keep in
a safe place for future reference
After Sales Support
Call 0871 911 7031
Email
Product Code: G0518
Weed Sweeper
Instruction Manual
Thank you for purchasing this product,
which has been made to demanding high
quality standards and is guaranteed for
domestic use against manufacturing faults
for a period of 12 months from date of
purchase
Introduction ...................................................................................................03
Safety ..........................................................................................................04
General Information ........................................................................................06
Description of Parts .........................................................................................07
Instructions for use ...........................................................................................08
Cleaning and Maintenance ..............................................................................10
Declaration of Conformity ................................................................................11
Guarantee ....................................................................................................12
Contents
2
Welcome
INTRODUCTION
Congratulations
You have made an excellent choice with the purchase of this quality Garden
Gear product.
By doing so you now have the assurance and peace of mind which comes
from purchasing a product that has been manufactured to the highest
standards, performance and safety.
We want you to be completely satisfied with your purchase, so this Garden
Gear product is backed by our full 12 month manufacturers guarantee
and an outstanding after sales service through our dedicated Helpline.
Register your product for an extended 2-year warranty by visiting our website
www.gardengearonline.co.uk. The product must be registered, along with
your contact information, within 30 days of purchase. For full terms and
conditions please visit our website.
We hope you enjoy using your purchase for many years to come.
3
Important
When using the equipment, a few safety precautions must be observed to reduce the risk
of injuries and damage.
Please read the complete operating instructions and safety information with due care.
Keep these operating instructions in a safe place so that the information is available
at all times. If you give the equipment to any other person, hand over these operating
instructions and the safety information as well. We cannot accept any liability for damage
or accidents which arise due to a failure to follow these instructions and the included
safety information.
CAUTION: Read all the safety regulations and instructions. Failure to follow the safety
regulations and instructions may result in an electric shock, fire and/or serious injury.
Keep all safety information and instructions in a safe place for future use. This equipment
is not designed to be used by children or people with limited physical, sensory or mental
capacities or those with no experience and/or knowledge of the equipment.
IMPORTANT:
The equipment and packaging material are not toys. Do not let children play with plastic
bags, foils or small parts. There is a danger of swallowing or suffocating!
ADDITIONAL INFORMATION FOR ELECTRIC POWER TOOLS
Warning!
The specified vibration value was established in accordance with a standardized testing
method. It may change according to how the electric equipment is used and may exceed
the specified value in exceptional circumstances. The specified vibration value can be
used to compare the equipment with another electric power tool.
• Reduce noise generation and vibration as much as possible!
• Use only equipment that is in good condition. Maintain and clean the equipment
regularly. Adapt your way of working to the equipment. Do not overload the
equipment. Have the equipment checked if necessary. Switch off the equipment when
not in use. Wear gloves.
• Even if you use this electric power tool in accordance with the instructions, certain
residual risks cannot be eliminated. The following hazards may arise in connection with
the equipment’s construction and layout:
1. Lung damage if no suitable protective dust mask is applied.
2. Damage to hearing if no suitable ear protection is applied.
3. Health damage caused by hand-arm vibrations if the equipment is used over a
longer period or is not properly guided and maintained.
Safety
4
• Wear ear defenders.
• The impact of noise can cause damage to hearing. Total vibration values (vector sum of
three directions) determined in accordance with EN 60745.
Surface grinding
Vibration value: 1,6 m/s² for main handle, 1,2m/s² for front grip, K: 1.5 m/s².
Intended use
The equipment is designed to remove weeds from between paving stones and slabs. It is
not intended for use on sensitive surfaces like tiles. The equipment is to be used only for its
prescribed purpose. Any other use is deemed to be a case of misuse. The user/operator
and not the manufacturer will be liable for any damage or injuries of any kind caused
as a result of this. Please note that our equipment has not been designed for use in
commercial, trade or industrial applications. Our warranty will be voided if the equipment
is used in commercial, trade or industrial businesses or for equivalent purposes.
Safety
5
General Information
Product Information
Mains voltage: 220-240v~50Hz
Power input: 140W
Idling speed: 1200 rpm
Max. brush diameter: 100 mm
Protection class: II
Weight: 1.7kg
Sound and Noise
Sound and vibration values were measured in accordance with EN 60745.
Sound pressure level: LpA 81 dB(A)
Sound power level: LwA 97 dB(A)
Uncertainty: K 3 dB
Explanation of the warning signs on the equipment
1. Important.
2. Read the directions for use before operating the tool.
3. Wear goggles and ear defenders.
4. Do not use the tool in rain or snow. Do not expose the tool to wet conditions.
5. Keep all other persons away from the working area.
6. Beware of objects ricocheting out of the guard.
7. Switch off the tool and pull out the power plug before carrying out any cleaning or
maintenance work.
8. Rotating parts. Keep your hands and feet away from the brush.
1 2 3 4 5 6 7 8
6

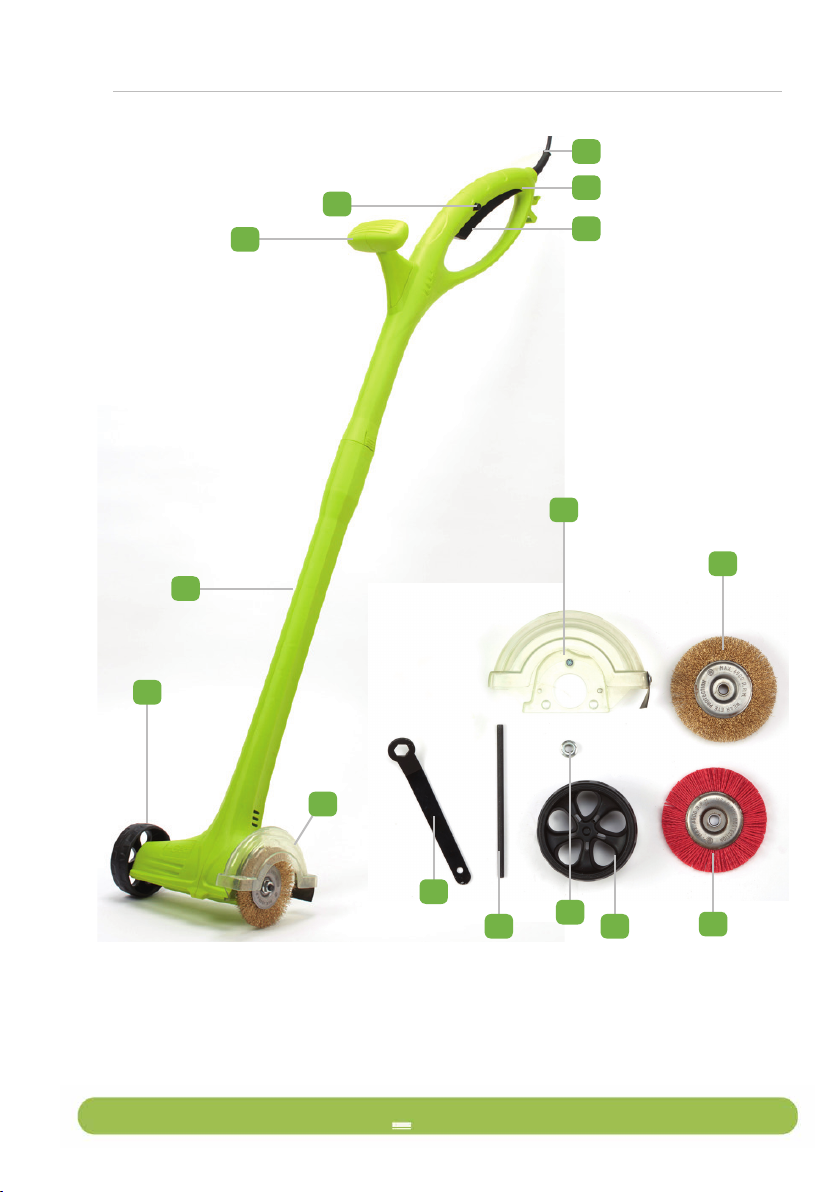

Description of Parts
5
4
1. Cable sleeve
2. Safety interlock
3. Guard hood
4. Guide wheel
5. Handle
6. On/Off trigger
7. Rear handle
8. Wire brush
9. Nylon brush
10. Main housing
11. Washer
12. 1 x Wrench
13. 1 x Rod
1
7
2
6
3
13
12
4
11
10
3
9
8
7
Instructions for use
Before you connect the equipment to the power supply, make sure that the data on
the rating plate is identical to your local mains supply voltage. Always pull out the
power plug before making adjustments to the equipment.
1. Insert the top half of the housing into the bottom half and click into place.
2. Insert the guide wheel (4) into the opening on the main housing. Make sure that there
is an audible click when it engages.
3. Clip on the guard hood (3) as shown and secure with 2 screws. Fit the brush
(8 or 9) onto the drive axle. Make sure that the brush fits accurately into the mount. The
M8 (11) nut must be fitted and tightened on the end of the shaft in order to fasten the
brush. To do so, insert the rod into the recess on the shaft and hold with one hand. Use
the open-ended wrench to secure the nut.
IMPORTANT:
Once the brush is attached be sure to remove the rod from the shaft. To remove or
change the brush follow these instructions in reverse order.
8
Instructions for use
The tool can be plugged into any socket-outlet (with 230V AC) that is equipped with a
10A fuse or higher. The socket-outlet has to be safeguarded by an RCD (Residual Current
Device). The operating current of the RCD must not exceed 30mA.
1. Secure the power
cable with the
strain-relief clip
found on the
equipment.
– Select desired length of cable required, form a loop
and feed through ring on rear handle (7)
– Secure cable over strain relief clip (15)
2. To switch on the equipment press in the safety interlock
(2) button and press and hold the On/Off trigger (6).
To switch off, release the On/Off (6) trigger.
One wire brush (8) and one nylon brush (9) are supplied with the equipment. The wire
brush is suited for use on robust surfaces and obstinate weeds. We recommend using the
nylon brush for light vegetation and surfaces too sensitive for the wire brush (which can be
used for tougher debris).
IMPORTANT:
Always carry out a short trial run to check out possible effects on the surfaces of the
paving stones or slabs before starting with your work. Never use the equipment on very
sensitive surfaces, for example tiles.
IMPORTANT:
Only use brushes which are in good condition. Replace excessively worn or damaged
brushes immediately.
•Always use both hands to operate the equipment.
•Guide the equipment along the joints at a walking pace.
•For uniform results, carry out your work at a constant speed.
•If necessary, guide the equipment along the same joint several times.
Replacing the power cable
If the power cable for this equipment is damaged, it must be replaced by a qualified
engineer to ensure its continued safety in use.
9
Always disconnect the tool from mains power before starting any cleaning work or
maintenance.
Cleaning
Keep all safety devices, air vents and the motor housing free of dirt and dust as far as
possible. Wipe the equipment with a clean cloth or blow it down with compressed air
at low pressure. We recommend that you clean the equipment immediately after you
use it. Clean the equipment regularly with a damp cloth and some soft soap. Do not use
cleaning agents or solvents; these may be damaging to the plastic parts in the equipment.
Ensure that no water can get into the interior of the equipment. Clean the guard hood
with a brush to prevent build-up of dirt and grime.
Carbon brushes
In case of excessive sparking, have the carbon brushes checked by a qualified
electrician.
IMPORTANT: The carbon brushes should not be replaced by anyone but a qualified
electrician.
Servicing
There are no parts inside the equipment which require additional maintenance.
Storage
Store the equipment and accessories out of the reach of children in a dark and dry place
at above freezing temperature. The ideal storage temperature is between 5 and 30°C.
Store the electric tool in its original packaging.
Replacing the power cable
If the power cable for this equipment is damaged, it must be replaced by a qualified
engineer to remain safe to use.
Disposal and recycling
The equipment is supplied in packaging to prevent it from being damaged in
transit. The raw materials in this packaging can be reused or recycled. The
equipment and its accessories are made of various types of material, such
as metal and plastic. Defective components must be disposed of as special
waste. Ask your local council.
Technical Specification
230V ~ 50Hz
140W
1200/min
Protection Class II (The equipment does not require an earth)
Cleaning and maintenance
10
Declaration of Conformity
In accordance with EN ISO 17050-1:2010
We Branded Garden Products Ltd, Poplar Lane, Ipswich, Suffolk, IP8 3BU, UK
in accordance to the following Directives:
2014/30/EU The Electromagnetic Compatibility Directive
2006/42/EC The Machinery Directive
2015/863/EU
& Amending Annex II 2011/65/EU Restriction of Hazardous Substancese
2012/19 Waste Electrical and Electronic Equipment
Directive
94/62/EC Packaging and Waste
Hereby declare that:
Equipment Electric Weed Sweeper
Model number G0518 / N1CT-YL-140r
is in conformity with the applicable requirements of the following documents Ref. No:
EN 60335-1:2012+A11:2014; EN ISO 12100:2010; AfPS GS 2014:01 PAK;
EN 55014-1:2006+A1:2009+A2:2011; EN 61000-3-2:2014; EN 61000-3-3:2013;
EN 55014-2:2015; IEC 62321
Noise measurements have been made in accordance with EN ISO11680-1 with internal control
of production (Schedule 8 / Annex V). The declared noise values are as follows:
I hereby declare that the equipment named above has been designed to comply with the relevant
sections of the above referenced specifications and is in accordance with the requirements of the
Directives.
Signed by:
Mr Dan Price
Managing Director
January 2021
Measured sound power level Guaranteed sound pressure level
97 dB LwA 81 dB LpA
5
11
UK
CA
Poplar Lane, Ipswich, Suffolk, IP8 3BU
The technical documentation for the machinery is available from:
Guarantee
GUARANTEE
IMPORTANT
Please do not return this product without first calling the Customer
Service number below:
0871 911 7031
Thank you for purchasing this product, which has been made to demanding high quality
standards and is guaranteed for domestic use against manufacturing faults for a period of 12
months from the date of purchase.
Register your product for an extended 2-year warranty by visiting our website
www.gardengearonline.co.uk. The product must be registered, along with your contact
information, within 30 days of purchase. For full terms and conditions please visit our website.
This guarantee does not affect your statutory rights. If your product fails due to a defect in
material or workmanship during this period, please return it to the place of purchase.
Normal wear and tear is not covered under the guarantee.
Any guarantee is invalid if the product has been misused or subject to neglect or an attempted
repair other than by our own service centre.
Due to continuous product improvement, we reserve the right to change the product
specification without prior notice.
After Sales Customer Service:
Customer Service Department, Branded Garden Products Ltd, Premier House, Hortonwood 7,
Telford, TF1 7GP, UK
Telephone: 0874 911 7031
E-mail: [email protected]
Please retain for future reference.
Colours and contents may vary.
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice.
Please note that all products with the symbol below must be recycled.
612
Notes
13
Notes
14
Notes
15
Weed Sweeper G0518
For correct usage, please read these instructions
carefully before use and keep in a safe place for
future reference.
This manual suits for next models
1
Table of contents
Popular Floor Machine manuals by other brands
Floorex Products
Floorex Products Satellite 480 Generation3 Safety & operator manual
Nacecare
Nacecare NR17 owner's manual
Pacific Steamex
Pacific Steamex TRIUMPH 870 Operating & maintenance instructions
Tornado
Tornado 99410 BR 13/1MW user manual
Alto
Alto SSB 430 operating instructions
Clarke
Clarke Mini-Max 26 Operator's manual
Kärcher
Kärcher Windsor Armada BRC 40/22 operating instructions
Truvox International
Truvox International Multiwash Pro Series user manual
Tennant
Tennant 515 Operator's manual
Superabrasive
Superabrasive Lavina Elite L25GEK user manual
Minuteman
Minuteman X Ride 28 user manual
Clarke
Clarke 08001B Operator's manual
