zūmo 660 Installation Instructions
Mount Your zūmo on the Motorcyle

Warning: Incorrectly wiring the power cable with bare wire leads can result in
damage to the vehicle or the battery and can cause bodily injury. Garmin strongly
recommends having an experienced installer with the proper knowledge of electrical
systems install the unit.
See the Important Safety and Product Information guide in the product box for product warnings
and other important information.
Step 1: Connect Power to the Mount
Select a suitable and secure location to mount the zūmo on your motorcycle, based on
available power sources and safe cable routing.
Cradle
Headphone/audio out jack (3.5 mm)
Microphone jack (2.5 mm) Mini-USB connector
(for trafc receiever)
Bare wires with
inline fuse for
power connection
Power cable
Step 2: Install the Handlebar Base
The zūmo includes parts for two handlebar installation solutions. Custom mounts can
require additional hardware (www.ram-mount.com).
A) To install the U-bolt and handlebar base:
1. Place the U-bolt around the handlebar, and thread the ends through the handlebar
base.
2. Tighten the nuts to secure the base. Do not overtighten.

note: The recommended torque is 50 lbf-in. Do not exceed torque of 80 lbf-in.
Handlebar
base
Handlebar
U-bolt

B) To install the handlebar base to the clutch/brake clamp bracket:

note: Both 1/4 in. standard and M6 bolts are included. Match the size of the factory
bolts on your clutch/brake clamp bracket.
1. Remove the two factory bolts on your clutch/brake clamp bracket.
2. Thread the new bolts through the handlebar base, spacers, and clamp bracket.
3. Tighten the bolts to secure the base.
Clutch/brake
clamp bracket
Handlebar
base
Spacers
Step 3: Attach the Base Plate to the zūmo Mount
1. Thread the M4 × 40 mm panhead screws through the washers, cradle, spacers,
and base plate.
2. Tighten the nuts to secure the base plate.
Base plate
Cradle
Panhead screws
Washers
Spacers
Nuts
Base plate
Cradle
Panhead screws
Washers
Spacers
Nuts

Step 4: Attach the Base Plate to the Handlebar Base
1. Align the ball of the handlebar base and the ball of the base plate with the double-
socket arm.
2. Tighten the knob slightly.
3. Adjust for better viewing and operation.
4. Tighten the knob to secure the mount.
Step 5: Install Your zūmo in the Mount
1. Fitthebottomofyourzūmointothecradle.
2. Tiltthezūmobackuntilitsnapsintoplace.
Cradle
Power
cable
Release button
Remove Your zūmo from Either Mount
1. Pressthebuttononthesideofthemounttoreleasethezūmo.
2. Liftoutthezūmo.
3. Place the weather cap on the cradle (motorcycle mount only).
Cradle
Knob
Handlebar base
Power cable
Base plate
Double-socket arm
Cradle
Knob
Handlebar base
Power cable
Base plate
Double-socket arm

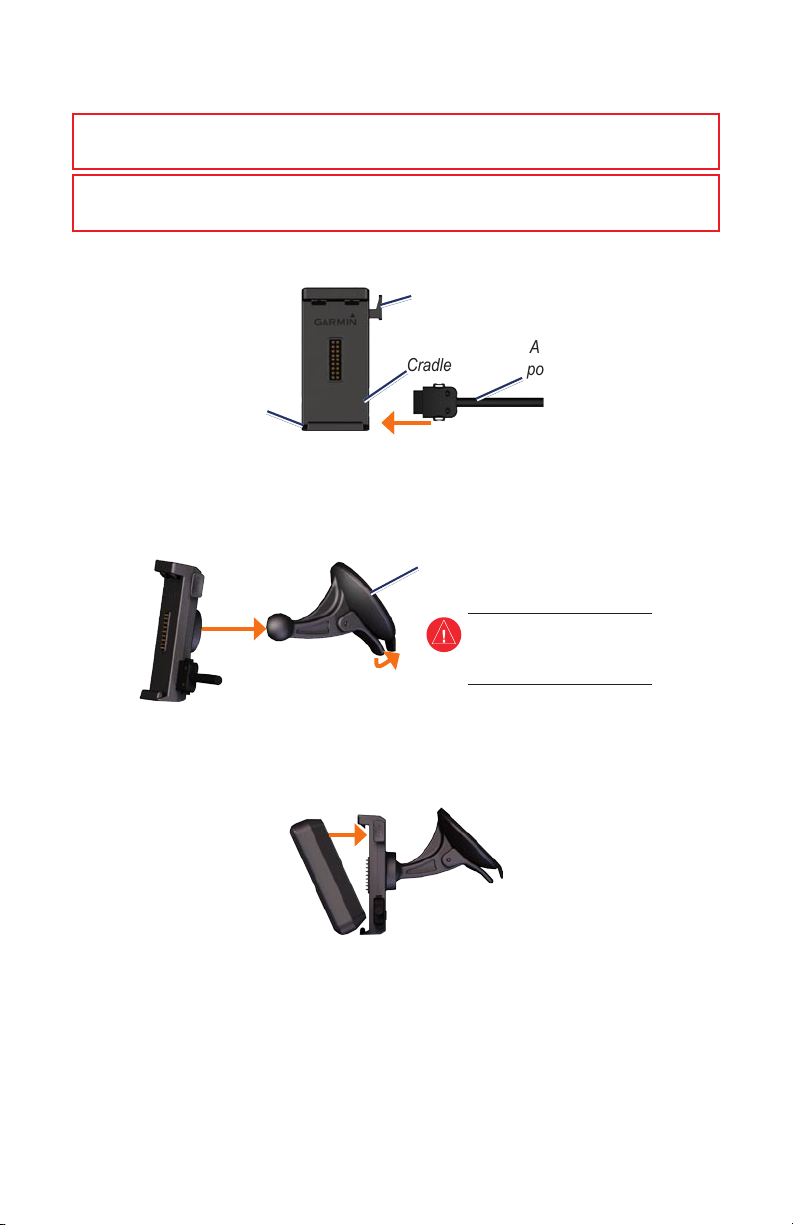

Mount Your zūmo in an Automobile
1. Plug the automotive power cable into the connector on the right side of the cradle.
2. Remove the clear plastic from the suction cup. Clean and dry your windshield and
the suction cup with a lint-free cloth.
3. Place the suction cup on the windshield.
4. Flip the lever back, toward the windshield.
Warning: Do not use
the suction cup mount on a
motorcycle.
Suction cup
mount
5. Snap the cradle onto the suction cup arm.
6. Fitthebottomofyourzūmointothecradle.
7. Tiltthezūmobackuntilitsnapsintoplace.
8. Plug the other end of the automotive power cable into a power outlet.
9. If you are using a trafcreceiverinEurope,securetheantennaonthetrafc
receiver to the windshield using the suction cups.
© 2008 Garmin Ltd. or its subsidiaries www.garmin.com
Garmin
®
and zūmo
®
are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and
other countries. These trademarks may not be used without the express permission of Garmin. Other
trademarks and trade names are those of their respective owners.
January 2009 Part Number 190-01026-02 Rev. A Printed in Taiwan
Before mounting the zūmo, see the Important Safety and Product Information guide in the product box
for information about laws pertaining to windshield mounting.
Before mounting the zūmo, see the Important Safety and Product Information guide in the product box
for information about laws pertaining to windshield mounting.
Warning: This product contains a lithium-ion battery. To prevent damage, remove the unit from the
vehicle when exiting or store it out of direct sunlight.
Warning: This product contains a lithium-ion battery. To prevent damage, remove the unit from the
vehicle when exiting or store it out of direct sunlight.
Cradle
Automotive
power cable
Microphone
jack (2.5 mm)
Release button
Cradle
Automotive
power cable
Microphone
jack (2.5 mm)
Release button
