Garmin Personal Navigator GPS 45XL User manual

Owner’s
Manual
&
Reference
GPS45XL
Personal
NavigatorTM
®
GPS 45XL Manual C 8/4/98 3:05 PM Page 1

Software Version 3.0 or above
© 1996 GARMINCorporation
1200 E. 151st Street, Olathe, KS USA 66062
GARMIN (Europe) LTD
Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, U.K. SO51 9AQ
All rights reserved. No part of this manual may be reproduced or transmitted in any
form or by any means, electronic or manual, including photocopying and recording, for
any purpose without the express written permission of GARMIN.
Information in this document is subject to change without notice. GARMIN reserves
the right to change or improve its products and to make changes in the content without
obligation to notify any person or organization of such changes or improvements.
GARMIN, GPS 45XL, Personal Navigator, AutoLocate™,TracBack™, and
MultiTrac8™ are all trademarks of GARMIN Corporation and may not be used without
the expressed permission of GARMIN.
October 1996 Part #190-00123-00 Rev. C Printed in Taiwan.
GPS 45XL Manual C 8/4/98 3:05 PM Page 2

GPS 45XL
Personal NavigatorTM
OWNER’S MANUAL
Introduction
Preface
i
Welcome to the smallest, easiest-to-use GPS navigator for marine use!
The GPS 45XL represents GARMIN’s continuing commitment to provide
mariners or boaters with quality navigation information in a versatile,
accurate and user-friendly design you’ll enjoy for years to come. To get the
most from your new GPS unit, it is important that you take the time to read
through the owner’s manual to understand the operating features of the GPS
45XL. The manual is organized into three sections for your convenience:
Section One takes you through step-by-step instructions to initialize the
receiver for first time use.
Section Two introduces you to the basic features of the unit and provides
a quick-start orientation to the GPS 45XL. This section has been designed to
acquaint you with the unit and provide a basic working knowledge necessary
to use the unit in typical conditions.
Section Three provides a detailed reference to the advanced features and
operations of the GPS 45XL in a topical format. This allows you to concen-
trate on a specific topic quickly, without reading through entire sections of
text that you may not need.
Packing List
Before getting started with your GPS receiver, check to see that your
GARMIN GPS 45XL package includes the following items. If you are missing
any parts, please contact your dealer immediately.
Standard Package:
• GPS 45XL Unit • Lanyard
• Owner’s Manual • Quick Reference Card
• 4 AA Batteries • Carrying Case
Thanks for choosing the GARMINGPS 45XL. We hope it will help you
meet all of your marine navigation needs.
GPS 45XL Manual C 8/4/98 3:05 PM Page i

CAUTION
ii
Introduction
Cautions
The GPS system is operated by the government of the United States,
which is solely responsible for its accuracy and maintenance. The system is
subject to changes which could affect the accuracy and performance of all
GPS equipment. Although the GPS 45XL is a precision electronic NAVigation
AID (NAVAID), any NAVAID can be misused or misinterpreted and therefore,
become unsafe.
Use the GPS 45XL at your own risk. To reduce the risk of unsafe opera-
tion, carefully review and understand all aspects of this Owner’s Manual and
thoroughly practice operation using the simulator mode prior to actual use.
When in actual use, carefully compare indications from the GPS 45XL to all
available navigation sources including the information from other NAVAIDs,
visual sightings, charts, etc. For safety, always resolve any discrepancies before
continuing navigation.
NOTE: This device meets requirements for Part 15 of the FCC interfer-
ence limits for Class B digital devices for home or office use. It has been test-
ed for compliance with all necessary FCC standards. This equipment gener-
ates, uses, and can radiate radio frequency energy, and if not installed and
used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to other equipment, which can be determined by turning the
equipment off and on, the user is encouraged to try and correct the interfer-
ence by relocating the equipment or connecting the equipment to a different
circuit than the affected equipment. Consult an authorized dealer or other
qualified service technician for additional help if these remedies do not cor-
rect the problem. Operation is subject to the following conditions: (1) This
device cannot cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired opera-
tion. The GPS 45XL does not contain any user-serviceable parts. Repairs
should only be made by an authorized GARMIN service center. Unauthorized
repairs or modifications could void your warranty and your authority to oper-
ate this device under Part 15 regulations.
GPS 45XL Manual C 8/4/98 3:05 PM Page ii

Introduction
Table of
Contents
1
SECTION ONE Introduction
GPS Definitions/Navigation Basics . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
Initializing the Receiver/External & DGPS Antennas . . . . . . . . . . . . .5-8
SECTION TWO Getting Started
Power On/Satellite Status Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Sky View/Position Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Marking a Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Position and Moving Map Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
GOTO and Steering Guidance . . . . . . . . . . . . . . . . . . . . . . . . . . .13-14
Page Sequence and Menu Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Clearing the Track Log/Power Off . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
SECTION THREE Reference
Satellite Status Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17-19
Position Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Creating and Using Waypoints . . . . . . . . . . . . . . . . . . . . . . . . . . .21-27
GOTO and MOB Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
TracBack Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29-30
Creating and Using Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31-36
Compass and Highway Page Steering Guidance . . . . . . . . . . . . . . .37-39
Moving Map Plotting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40-43
Menu Page and Auxiliary Functions . . . . . . . . . . . . . . . . . . . . . . .44-52
Simulator Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Appendix A—Messages/Time Offsets . . . . . . . . . . . . . . . . . . . . . . .54-55
Appendix B—Map Datums . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56-57
Appendix C—Specifications, Wiring, & Battery Replacement . . . . .58-59
Appendix D—Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Appendix E—Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61-62
GPS 45XL Manual C 8/4/98 3:05 PM Page 1

2
Introduction
GPS
Definitions
The GPS 45XL is a powerful navigation tool that can guide you anywhere
in the world. To better understand its operation and capabilities, it may be
helpful to review the basic terms and concepts briefly explained below.
Other navigation and GPS definitions used in the manual are defined in the
appropriate reference sections of the manual.
Almanac Data
Satellite constellation information (including location and health of satel-
lites) that is transmitted to your receiver from every GPS satellite. Almanac data
must be acquired before GPS navigation can begin.
Bearing
The compass direction from your position to a destination.
Course Made Good (CMG)
The bearing from the ‘active from’ position (your starting point) to your pre-
sent position.
Crosstrack Error (XTE)
The distance you are off a desired course in either direction.
Desired Track (DTK)
The compass course between the ‘from’ and ‘to’ waypoints.
Differential GPS (DGPS)
An extension of the GPS system that uses land-based radio beacons to trans-
mit position corrections to GPS receivers.
Estimated Time of Arrival (ETA)
The time of day of your arrival at a destination.
Estimated Time Enroute (ETE)
The time left to your destination at your present speed.
GPS 45XL Manual C 8/4/98 3:05 PM Page 2

Introduction
GPS
Definitions
3
Grid
Coordinate system that projects the earth on a flat surface, using square
zones for position measurements. UTM/UPS and Maidenhead formats are
grid systems.
Ground Speed
The velocity you are traveling relative to a ground position.
Latitude
The north/south measurement of position perpendicular to the earth’s
polar axis.
Longitude
An east/west measurement of position in relation to the Prime Meridian,
an imaginary circle that passes through the north and south poles.
Navigation
The process of travelling from one place to another and knowing where
you are in relation to your desired course.
Position
An exact, unique location based on a geographic coordinate system.
Track (TRK)
The direction of movement relative to a ground position.
Universal Transverse Mercator (UTM)
A grid coordinate system that projects global sections onto a flat surface to
measure position in specific zones.
Velocity Made Good (VMG)
The speed you are traveling in the direction of the destination.
Waypoint
A specific location saved in the receiver’s memory.
GPS 45XL Manual C 8/4/98 3:05 PM Page 3

4
Getting Started
Navigation
Basics
The GPS 45XL provides steering guidance and naviga-
tion information using degrees, a measurement measured in a
clockwise direction from a north reference. North is
described as 000º, east as 090º, south as 180º, and west as
270º. The diagram and compass rose below provide a graphic
illustration of the navigation terms used by the GPS 45XL.
More information on basic navigation and GPS are available
at your local library or bookstore.
GPS 45XL Manual C 8/4/98 3:05 PM Page 4

Getting Started with your GPS
Welcome to the exciting world of GARMINGPS! The
GPS 45XL represents GARMIN’s continuing commitment to
provide marine users with quality navigation information in
a versatile, user-friendly design they will enjoy for years to
come. To get the most out of your GPS receiver, be sure to
read through the initialization and Getting-Started sections
of this manual, and refer to the reference section for com-
plete details on the GPS 45XL’s advanced features.

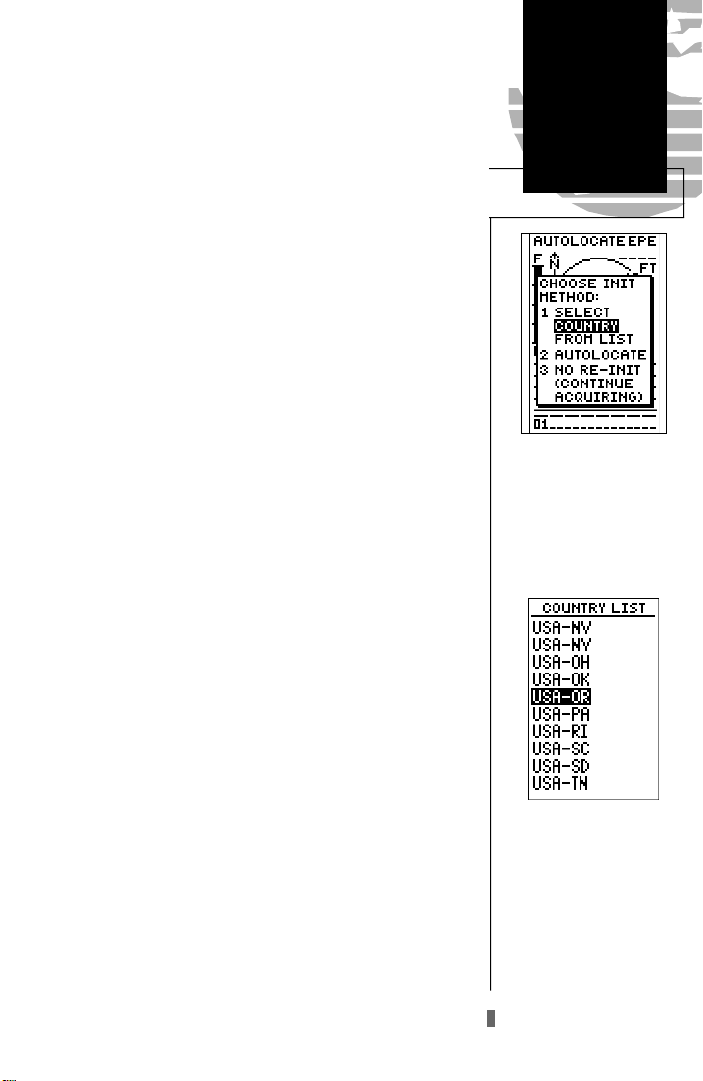

Initializing Your GPS for First-Time Use
The GPS 45XL calculates your position and movement
by tracking signals sent from GPS satellites. Each of the 24
GPS satellites circle the earth twice a day in a very precise
orbit, and transmit information back to earth. In order to
determine a position fix, your GPS 45XL needs to continu-
ously “see” at least three satellites.
Because a GPS receiver can only see satellites above the
horizon, it needs to know what satellites to look for at any
given time. By using an almanac (a timetable of satellite
numbers and their orbits) stored in the receiver’s memory,
the GPS 45XL can determine the distance and position of
any GPS satellite.
To use this almanac data, your GPS receiver needs to
know where you are, or be given the opportunity to “find
itself”. Once you initialize the unit to this position, the GPS
45XL will usually compute a fix within a few minutes.
Remember, this process is only necessary under the
following conditions:
• First time use from the factory.
•The receiver has been moved over 500 miles from
the last calculated position with power off.
• The receiver’s memory has been cleared and all
stored data has been lost.
Getting Started
Initialization
&
Lanyard
Attachment
5
Next, take the solid end
of the lanyard , insert it
through the slot at the
other end, and tighten.
Lanyard Attachment
To attach the GPS 45XL’s
lanyard, thread the strap
through the D-ring on
the battery compartment
cover.
GPS 45XL Manual C 8/4/98 3:05 PM Page 5

Acquiring Satellite Signals
Because the GPS 45XL relies on satellite signals to pro-
vide you with navigation guidance, the receiver needs to
have an unobstructed, clear view of the sky for best perfor-
mance. What exactly does this mean? In a nutshell, the GPS
receiver’s view of the sky will generally determine how fast
you get a position fix, or if you get a fix at all. GPS signals
are relatively weak and do not travel through rocks, build-
ings, people, metal, and materials such as thick canvas, so
you need to make sure that you’re not near any of these
structures or materials when acquiring satellites.
Once the GPS 45XL has calculated a position fix, you’ll
usually have anywhere from four to eight satellites in view.
The GPS 45XL will now continuously select the best satel-
lites in view to update your position. If some of the satel-
lites in view get blocked or “shaded” the receiver can sim-
ply use an alternate satellite to maintain the position fix.
Although a GPS receiver needs four satellites to provide a
3D fix, the GPS 45XL can maintain a 2D fix with only three
satellites.
Before You Initialize
Take the GPS 45XL outside and find a large, open area
(try a nearby park) that has a clear view of the sky from
horizon to horizon. Hold the receiver at a comfortable
height, at arm’s length from your body, with the external
antenna turned perpendicular to the ground.
GPS signals are blocked from reaching the receiver
by buildings, rocks, metal structures, or materials such
as heavy canvas. Do your best to stay away from
these structures and materials.
To turn the GPS 45XL on:
1. Hold the unit so it is parallel to the ground and turn the
external antenna perpendicular to the unit.
2. Press and hold B until the receiver turns on.
The welcome page will be displayed while the unit con-
ducts a self test.
6
Getting Started
Acquiring
Satellites
Hold the receiver parallel to
the ground and rotate the
antenna perpendicular to
the receiver.
!
#
Welcome Page
GPS 45XL Manual C 8/4/98 3:05 PM Page 6

Once testing is complete, the welcome page will be
replaced by the status page, with the EZinit prompt ready
for you to select one of two initialization methods:
•Select Country––allows you to initialize the receiver
by selecting your present position from a list of coun-
tries in the GPS 45XL’s internal database. This usually
provides a position fix in 3-5 minutes.
•AutoLocateTM ––allows the GPS 45XL to initialize
itself and calculate a position fix without knowing
your present position. This usually provides a position
fix in 7.5-15 minutes.
If the EZinit prompt has not automatically appeared
on the status page:
1. Press the
E
key.
If you’ve already initialized the GPS 45XL and the
EZinit prompt appears, highlight the ‘no re-init’ selection
with the arrow keypad and press ENTER. The EZinit
prompt may appear if you’ve had the unit on in normal
mode while indoors, or if the antenna is shaded while
acquiring satellites in normal or battery saver mode.
To initialize the receiver:
1. If the ‘country’ option is not highlighted, press theDkey
repeatedly to move the field highlight to the ‘country’
option.
2. Press the
E
key.
3. Use the Dkey to scroll through the list options until the
country of your present position appears.
4. Use theUkey to highlight the country/state/region
you’re in. If the country you’re in is not listed, select anoth-
er country within 500 miles of your present position.
5. Press
E
to finish.
The GPS 45XL will now begin searching for the appro-
priate satellites for your position and should acquire a fix
within 3-5 minutes. You can verify that you have acquired a
fix by watching the status page transition to the position
page (provided you haven’t pressed any other buttons) or
looking for a 2D or 3DNAV status at the top left corner of
the status page.
Getting Started
Powering Up
7
The EZinit prompt will
automatically appear if the
receiver needs to be initial-
ized. The prompt may also
appear during normal use if
the antenna is shaded or the
unit is indoors.
Use the arrow keypad to
highlight the country and
region or state (if neces-
sary) of your present posi-
tion from the list and press
ENTER. If the country is
not listed, select the closest
country instead.
GPS 45XL Manual C 8/4/98 3:05 PM Page 7

To prevent accidental battery power loss, the GPS 45XL
will automatically shut off 10 minutes after the last key-
stroke if the unit is not tracking at least one satellite and
has never acquired a position fix.
If you have trouble initializing the receiver or getting a
position fix, check the following:
•Does the receiver have a clear view of the sky?
If there are large buildings, rocks, or mountains, if there
is heavy tree cover, the receiver may not be receiving
enough satellite signals to calculate a fix.
•Have you selected the right country/state/region
from the EZinit list?
Check for the correct approximate lat/lon on the posi-
tion page or reselect the appropriate country from the
list to restart the initialization.
•Have you moved more than 500 miles from the last
calculated position with the receiver off?
Reinitialize the receiver, selecting the country/state/
region of your new location from the EZinit list.
External Antenna
The GPS 45XL’s antenna may be removed to attach an
optional external antenna or automobile antenna.
To remove the attached antenna:
1. Rotate the knurled knob (located at the bottom left of the
antenna) toward the front of the unit one-quarter turn.
2. Pull the antenna gently away from the unit.
3. To install the antenna lead, mate the BNC connector
notches with the mounting posts and turn the knurled knob
one-quarter turn toward the back of the unit.
8
Getting Started
EZinit,
External &
DGPS Antennas
Beacon Receiver
The GARMIN GBR 21
Beacon Receiver is the rec-
ommended DPGS receiver
for use with the GPS
45XL.
Other RTCM 104 v. 2.0
receivers are compatible
with the GPS 45XL, but
may not provide complete
on-screen status or tuning
control.
GPS 45XL Manual C 8/4/98 3:05 PM Page 8

Getting-Started Tour
Now that your GPS receiver has been initialized, it’s
time to take a tour through its basic features and functions.
The tour assumes that you have initialized the receiver and
have not changed any of the factory settings (units of mea-
sure, selectable fields, etc.). If you have changed any of the
default settings, the pictures and descriptions may not
match your unit’s configuration.
Powering Up and Taking a Fix
Take the GPS 45XL outside and find an open area
where the receiver will have a clear view of the sky. Hold
the receiver at a comfortable height, at arm’s length from
your body, with the external antenna turned perpendicular
to the receiver.
To turn the unit on:
1. Press and hold
B
until the receiver turns on.
A welcome page will be displayed while the unit con-
ducts a self test. Once testing is complete, the welcome
page will be replaced by the satellite status page and the
GPS 45XL will begin acquiring satellites.
Satellite Status Page
The GPS 45XL’s satellite status page provides a visual
reference of satellite acquisition and position. As the receiv-
er locks onto satellites, a signal strength bar will appear for
each satellite in view, with the appropriate satellite number
(1-32) underneath each bar. The progress of satellite acqui-
sition is shown in three stages:
•No signal strength bars— the GPS 45XL is look-
ing for the satellites indicated.
•Hollow signal strength bars— the GPS 45XL has
found the satellite(s) and is collecting data.
•Solid signal strength bars— the GPS 45XL has
collected the necessary data and the satellite(s) is
ready for use.
Note that each satellite has a 30-second data transmis-
sion that must be collected (hollow bar status) before the
satellite may be used for navigation (solid bar status). Once
a fix has been calculated, the GPS 45XL will then update
your position, track and speed by selecting and using the
best satellites in view.
Getting Started
Power On/
Satellite Status
9
Welcome Page
Status Page
The signal strength bars at
the bottom of the page will
not appear until the GPS
45XL has found the
satellites indicated at the
bottom of the screen.
GPS 45XL Manual C 8/4/98 3:05 PM Page 9

The satellite sky view shows a bird’s-eye view of the
position of each satellite relative to the unit’s last known
position. The outer circle represents the horizon (north up);
the inner circle 45º above the horizon; and the center point
directly overhead. You can use the sky view to help deter-
mine if any satellites are being blocked, and whether you
have a current position fix (indicated by a ‘2D NAV’ or ‘3D
NAV’ in the status field.
Once sufficient signals have been acquired, the status
page will be replaced with the position page, provided you
have not pressed any other buttons.
Position Page
The second page in the GPS 45XL’s main page sequence
is the position page. The position page shows you where
you are, what direction you’re heading and how fast you’re
going, and is particularly helpful when you do not have an
active destination selected. The graphic display at the top of
the page indicates your cardinal heading (while you’re mov-
ing) with the track and speed indicated below.
The graphic compass display is designed to show
your current track and does not serve as a true
magnetic compass while you’re standing still.
The rest of the page shows your current position in
three dimensions: latitude, longitude and altitude. The
GPS 45XL uses this basic information to mark exact posi-
tions as waypoints, which help guide you from one place to
another. A trip odometer and 12/24 hour clock are also
provided.
10
Getting Started
Sky View/
Position Page
Once satellites have been
found, hollow signal strength
bars will be displayed while
data is being collected. The
hollow bars can be used to
help determine if satellites
are being shaded.
Position Page
In addition to displaying
your position coordinates,
the position page shows
your track and speed over
the ground. Speed and alti-
tude data may fluctuate due
to Selective Availability.
Status
Battery
Indicator
Satellite
Sky View
Horizontal
Accuracy
Signal Strength
Indicators
Satellite
Number
!
#
GPS 45XL Manual C 8/4/98 3:05 PM Page 10

Marking a Position
Now that you’ve acquired a position, let’s mark it as a
waypoint for future reference.
1. Press the
M
key to capture and hold your position.
To mark a position, you must have obtained a 2D or
3D fix, or have the receiver in simulator mode. If
you try to mark a position without a position fix, you
will be alerted with a ‘No GPS Position’ message.
The mark position page will appear, showing the cap-
tured position and a default 3-digit waypoint name. Let’s
change the default name to something a little more mean-
ingful, like ‘HOME’.
1. Press the U key twice to move the field highlight from
the ‘save’ field to the name field.
2. Press
E
and L to clear the default waypoint name.
3. Press and hold the U key to scroll through the alphabet
until the letter ‘H’ appears.
4. Press the R key once to move the character highlight to
the next character space.
5. Repeat steps 3 and 4 until the word ‘HOME’ is displayed.
6. Press
E
to complete entry of the name.
7. Press the
D
key once to return the field highlight to the
‘save’ field.
8. Press the
E
key to confirm that you want to save the
position as a waypoint named ‘HOME’.
The mark position page will now be replaced by the
position page (the page displayed prior to pressing the
M
key). The ‘HOME’ waypoint is now stored in the GPS
45XL’s memory, and will remain there until you manually
remove it or clear the receiver’s memory. For more on way-
point management, see pages 21-27.
Getting Started
Marking a
Position
11
To save a waypoint with the
default three digit name,
simply press the ENTER
key. The GPS 45XL will
return to the page
previously displayed.
The arrow keypad is used
for all data entry. Use the
UP and DOWN keys to
select letters, numbers or
menu options; use the LEFT
and RIGHT keys to move
the cursor forward or back-
ward along the line.
!
#
GPS 45XL Manual C 8/4/98 3:05 PM Page 11

Using the Position and Map Pages
Now that you’ve marked a position, it’s time to take a
brisk walk using the position and moving map pages to
watch your every move. To get the most from this tutorial,
you will need to walk for at least the time stated in the
below steps. Since the GPS system has a margin of error of
15 meters, this will ensure you travel far enough to register
useful information. You’ll also get a much better indication
of how the GPS 45XL’s steering guidance and mapping
features work to guide you wherever you go.
1. Walk in a straight line for 3-4 minutes at a fast pace and
watch the position page. You can time your distance with
the on-screen clock.
The direction you are moving (your track) and your
speed are displayed on the upper part of the screen, just
below the graphic compass display. The latitude, longitude
and approximate altitude of your position--along with a
resettable trip odometer--are continuously displayed in the
middle of the page, with the time of day displayed below.
Now let’s change the display to the moving map page
and watch the track log of our walk:
1. Press the
P
key to change from the position page to
the map page.
Your current position is shown as the diamond in the
middle of the screen. The dark circle below the diamond
represents the position you created, with the line between
the two showing your track.
1. Now turn 90º to your right and continue walking at a fast
pace for another 2-3 minutes. Notice how the display
changes, always keeping the direction you are moving at
the top of the map.
12
Getting Started
Position Page/
Map Page
Map Page
The map page displays your
present position as a dia-
mond icon and provides a
real time graphic ‘bread-
crumb’ display of your track
right on screen.
The moving map’s default
setting is track up orienta-
tion.‘Track up’ means that
your current direction of
travel is always up (or
towards the top of) the
screen. It can also be set for
north up, or desired track
up orientation by using the
map setup page.
GPS 45XL Manual C 8/4/98 3:05 PM Page 12

Going To a Waypoint
Once you’ve stored a waypoint in memory, you can use
the GPS 45XL to guide you to it by performing a simple
GOTO. A GOTO is really nothing more than the receiver
drawing a straight-line course from your present position to
the destination you’ve selected. To see how it works, let’s
try navigating back to our starting position, the HOME
waypoint.
To select a GOTO destination:
1. Press the
G
key.
2. The GOTO waypoint page will appear, displaying all the
waypoints in memory in alphabetical order.
3. Use U or D to highlight the ‘HOME’ waypoint.
4. Press the
E
key to confirm that you want to navigate
to the displayed waypoint.
The GPS 45XL’s highway page also provides graphic
steering guidance to a destination, with an emphasis on a
straight line course to the desired waypoint and the dis-
tance and direction you are off course. The bearing and dis-
tance to a waypoint, along with your current track and
speed are displayed at the top of the screen, with your esti-
mated time enroute (ETE) and velocity made good (VMG),
or the rate you are closing in on your destination shown at
the bottom.
Getting Started
GOTO/
Highway Page
13
The GOTOwaypoint page
allows you to select your
destination from a list of all
available waypoints in the
GPS 45XL’s memory.
Once a GOTO is activated,
the highway page will
appear to provide steering
guidance to your destina-
tion. To cancel a GOTO,
highlight the cancel prompt
at the bottom of the page
and press ENTER.
Distance to
Waypoint
Track Over
Ground
Bearing to
Waypoint
Estimated
Time Enroute
Velocity
Made Good
Speed Over
Ground
Using the Highway Page
GPS 45XL Manual C 8/4/98 3:06 PM Page 13

Using the Highway Page (continued)
As you head toward your destination, the middle sec-
tion of the screen provides visual guidance to your way-
point on a moving graphic ‘highway’. The moving arrow
just below the course deviation scale always points to your
selected waypoint relative to the direction you are moving.
Your present position is represented by the diamond in
the center of the course deviation scale. The line down the
middle of the highway represents your desired track. As
you navigate toward a waypoint, the highway will actually
move, indicating the direction you’re off course, relative to
the position diamond on the CDI scale. To stay on course,
simply steer toward the center of the highway.
While navigating, you may decide to view the compass
page (see picture above left) instead of the highway page.
To select the compass page:
1. While viewing the highway page press
E
twice.
The compass page will now become the displayed navi-
gation page. This page provides a directional pointer to
your destination, by using a rotating compass display to
show direction of travel. It provides better steering guid-
ance at slower speeds for travel with many directional
changes.
To switch back to the highway page, press ENTER
twice, again.
14
Getting Started
Steering
Guidance
Compass Page
The GPS 45XL will also
provide steering guidance
with a compass page.
Message Page
Once you are one minute
from the destination (based
on your present speed and
course), an arrival message
will be appear on the mes-
sage page.
Destination
Waypoint
Graphic
Highway
CDIScale
Pointer to Waypoint
GPS 45XL Manual C 8/4/98 3:06 PM Page 14

Scrolling Through the Main Pages
Now that you’ve arrived ‘HOME’, let’s take a minute to
see how the GPS 45XL’s main pages work together. The GPS
45XL features five main pages, which are linked together in a
chain. You can quickly scroll through the pages in either
direction using the
P
and
Q
keys.
1. Press the
P
key to scroll through the five main pages
in sequence.
2. Press the
Q
key to scroll through pages in the oppo-
site direction.
Menu Page
You’ve already seen the first four pages in action by
acquiring satellites, marking a position and navigating to a
destination. The last page available from the main page
sequence is the menu page, which provides access to the
GPS 45XL’s waypoint management, route, track log and
setup features. The 11 submenus are divided into categories
by function.
To select a submenu from the menu page:
1. Press
P
or
Q
until the menu page appears.
2. Use the U or D keys to highlight the submenu you
want to view.
3. Press
E
to access the submenu.
Getting Stared
Page Sequence/
Menu Page
15
Menu Page
Use the UP and DOWN
keys to select a submenu
from the menu page. Press
ENTER to access the select-
ed submenu.
GPS 45XL Manual C 8/4/98 3:06 PM Page 15

Clearing the Track Log
After you’ve used the GPS45XL for a few trips, you
may find that your map display has become a bit messy
from keeping track of your every move. To get a feel for
how the menu page works, let’s clear the track log (the plot
points left on the map page) we’ve just created during the
Getting Started tour.
1. Press
P
or
Q
until the menu page appears.
2. Use the D key to move the field highlight to the
‘TRACKLOG’ option.
3. Press
E
to access the track log page.
4. Press the U key twice to highlight the ‘CLEARLOG?’
option. The clear log confirmation page will appear.
5. Use the L key to highlight the ‘Yes’ prompt.
6. Press
E
to finish.
Turning the Receiver Off
You’ve now gone through the basic operation of your
new GPS receiver and probably know a little more than you
think about how it works. We encourage you to experiment
with the GPS 45XL until it becomes an extension of your
own navigation skills. If you encounter any problems using
the unit or want to take advantage of the GPS 45XL’s more
advanced features, refer to the reference section.
To turn the GPS 45XL off:
1. Press and hold the
B
key for 3 seconds.
16
Getting Started
Track Log/
Power Off
Highlight the CLEARLOG?
prompt and press ENTERto
clear the track log. Once all
768 points are used, the old-
est point will be continuous-
ly deleted to make room for
the latest track log point.
Confirm the track log warn-
ing page to clear the log.
GPS 45XL Manual C 8/4/98 3:06 PM Page 16
