GASLAND chef CH30BF User manual

Electric Ceramic Cooktop
Installation Instructions
[email protected]
www.gaslandchef.com.au
Available Models
CH30BF/CH60BF/CH603BF/CH604BF/CH77BF/CH90BF

Safety Warning
Your safety is important to us. Please read this information before using your
cooktop.
Installation
Electrical Shock Hazard
• Disconnect the appliance from the mains electricity supply before carrying out
any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualified
electrician.
• Failure to follow this advice may result in electrical shock or death.
Cut Hazard
• Take care - panel edges are sharp.
• Failure to use caution could result in injury or cuts.
Important Safety Instructions
• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any
time.
• Please make this information available to the person responsible for installing
the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these
instructions for installation.
• This appliance is to be properly installed and earthed only by a suitably qualified
person.
• This appliance should be connected to a circuit which incorporates an isolating
switch providing full disconnection from the power supply.
• Failure to install the appliance correctly could invalidate any warranty or liability
claims.
01
Australia:
[email protected]
www.gaslandchef.com
[email protected]
www.gaslandchef.com.au
United States:

Operation And Maintenance Electrical Shock
Hazard
•Do not cook on a broken or cracked cooktop. If the cooktop surface should
break or crack, switch the appliance off immediately at the mains power supply
(wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.
Health Hazard
• This appliance complies with electromagnetic safety standards
Hot Surface Hazard
• During use, accessible parts of this appliance will become hot enough to cause
burns.
• Do not let your body, clothing or any item other than suitable cookware contact
the ceramic glass until the surface is cool.
• Metallic objects such as knives, forks, spoons and lids should not be placed on
the cooktop surface since they can get hot.
• Keep children away.
• Handles of saucepans may be hot to touch. Check saucepan handles do not
overhang other cooking zones that are on. Keep handles out of reach of
children.
• Failure to follow this advice could result in burns and scalds.
Cut Hazard
• The razor-sharp blade of a cooktop scraper is exposed when the safety cover is
retracted. Use with extreme care and always store safely and out of reach of
children.
• Failure to use caution could result in injury or cuts.
02
Australia:
[email protected]
www.gaslandchef.com
[email protected]
www.gaslandchef.com.au
United States:

Important Safety Instructions
• Never leave the appliance unattended when in use. Boil over causes smoking
and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Never use your appliance for warming or heating the room.
• After use, always turn off the cooking zones and the cooktop as described in this
manual (i.e. by using the touch controls).
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance.
Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is in
use.
• Children or persons with a disability which limits their ability to use the appliance
should have a responsible and competent person to instruct them in its use.
The instructor should be satisfied that they can use the appliance without
danger to themselves or their surroundings.
• Do not repair or replace any part of the appliance unless specifically recom
-mended in the manual. All other servicing should be done by a qualified
technician.
• Do not use a steam cleaner to clean your cooktop.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the ceramic glass
surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your
cooktop, as these can scratch the ceramic glass.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is intended to be used in household and similar applications such
as: Staff kitchen areas in shops, offices and other working environ ments; Farm
houses; By clients in hotels, motels and other residential type environments;
Bed and breakfast type environments.
• WARNING: The appliance and its accessible parts become hot during use. Care
should be taken to avoid touching heating elements. Children less than 8 years
of age shall be kept away unless continuously supervised.
• This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruc tion
concerning use of the appliance in a safe way and understand the hazards
involved.
03
Australia:
[email protected]
www.gaslandchef.com
[email protected]
www.gaslandchef.com.au
United States:

• Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
• WARNING: Unattended cooking on a cooktop with fat or oil can be dangerous
and may result in fire. NEVER try to extinguish a fire with water, but switch off
the appliance and then cover flame e.g. with a lid or a fire blanket.
• WARNING: Danger of fire: do not store items on the cooking surfaces.
• WARNING: If the surface is cracked, switch off the appliance to avoid the
possibility of electric shock, for cooktop surfaces of glass-ceramic or similar
material which protect live parts.
• A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of an external timer or
separate remote-control system.
Congratulations
On the purchase of your new ceramic cooktop. We recommend that you spend
some time to read this Instruction / Installation Manual in order to fully understand
how to install correctly and operate it. For installation, please read the installation
section. Read all the safety instructions carefully before use and keep this
Instruction / Installation Manual for future reference.
Product Overview
Top view (CH30BF) Control panel (CH30BF)
1. Max. 1800W zone
2. Max. 1200W zone
3. Glass plate
4. Control panel
1. Timer control
2. ON/OFF control
3. Heating zone selection control
4. Power/Timer regulating control
5. Key lock control
1
3
4
1
2
3
45
2
04
Australia:
[email protected]
www.gaslandchef.com
[email protected]
www.gaslandchef.com.au
United States:

1. Max. 1200W zone
2. Max. 1800W zone
3. Max. 1800W zone
4. Max. 1200W zone
5. Glass plate
6. Control panel
1. Heating zone selection control
2. Timer control
3. ON/OFF control
4. Power/Timer regulating control
5. Timer control
1. Heating zone selection control
2. Timer control
3. Key lock control
4. Power/Timer regulating control
5. Oval zone control
6. ON/OFF control
Top view (CH60BF) Control panel (CH60BF)
1
3
5
2
4
6
1
1 4 5
2 3
1. Max. 1800W zone
2. Max. 2400W/1500W zone
3. Max. 1200W zone
4. Glass plate
5. Control panel
Top view (CH603BF) Control panel (CH603BF)
43 5 6
1 2 1
1
3
4
2
5
05
Australia:
[email protected]
www.gaslandchef.com
[email protected]
www.gaslandchef.com.au
United States:

1. Max. 1200W zone
2. Max. 2000W(1100W) zone
3. Max. 2200W(1000W) zone
4. Max. 1200W zone
5. Glass plate
6. Control panel
1. Heating zone selection control
2. Timer control
3. ON/OFF control
4. Dual zone control
5. Power/Timer regulating control
6. Key lock control
Top view (CH604BF) Control panel (CH604BF)
21 3
1
6
5 6
4
1
34
5
2
1. Max. 1200W zone
2. Max. 2000W(1100W) zone
3. Max. 2200W(1000W) zone
4. Max. 1200W zone
5. Glass plate
6. Control panel
1. Heating zone selection control
2. Timer control
3. ON/OFF control
4. Dual zone control
5. Power/Timer regulating control
6. Key lock control
Top view (CH77BF) Control panel (CH77BF)
21 3
1 5 6
4
1
3
5
6
4
2
06
Australia:
[email protected]
www.gaslandchef.com
[email protected]
www.gaslandchef.com.au
United States:

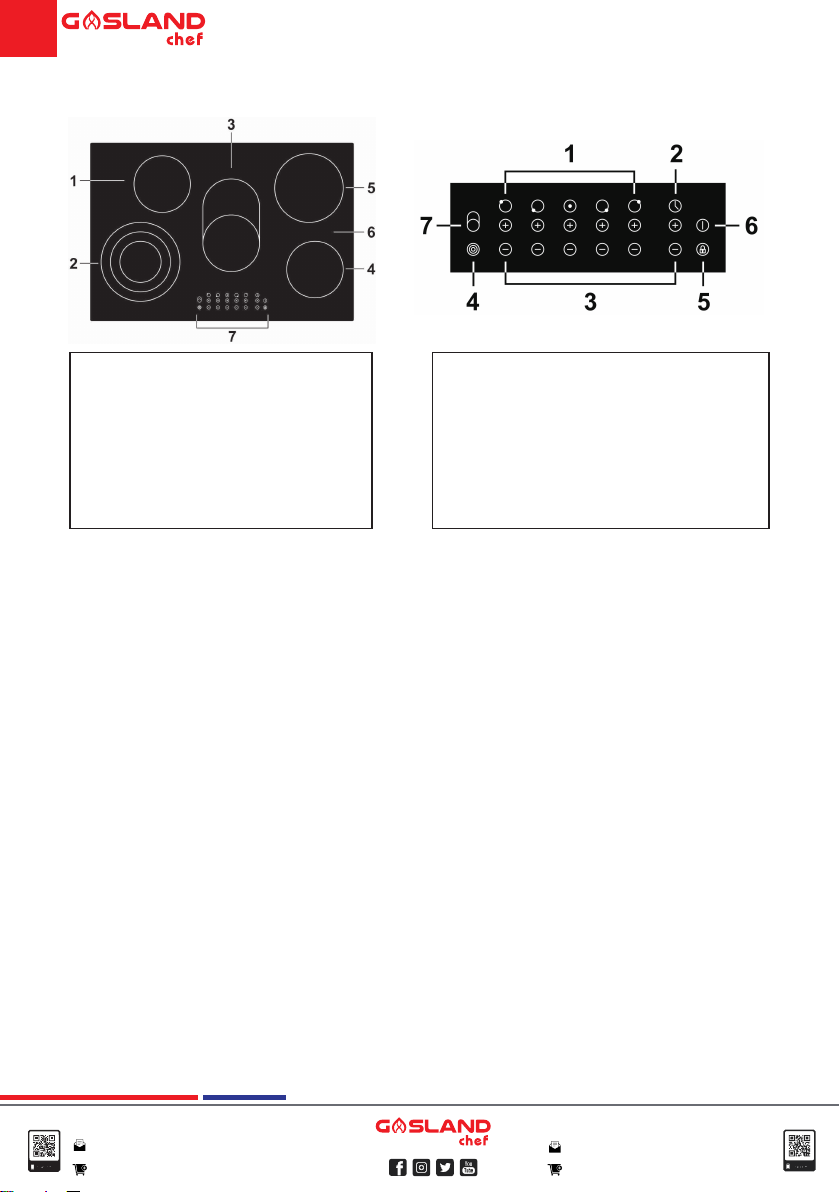

1. Max. 1200W zone
2. Max. 2300/1600/800W zone
3. Max. 2000/1100W zone
4. Max. 1200W zone
5. Max. 1800W zone
6. Glass plate
7. Control panel
Product Information
The ceramic cooktop can meet different kinds of cuisine demands because of
resistance wire heating, micro-computerized control and multi-power selection.
It’s an ideal really the optimal choice for modern families.
Before Using Your New Ceramic Cooktop
• Read this guide, taking special note of the ‘Safety Warnings’ section.
• Remove any protective film that may still be on your ceramic cooktop.

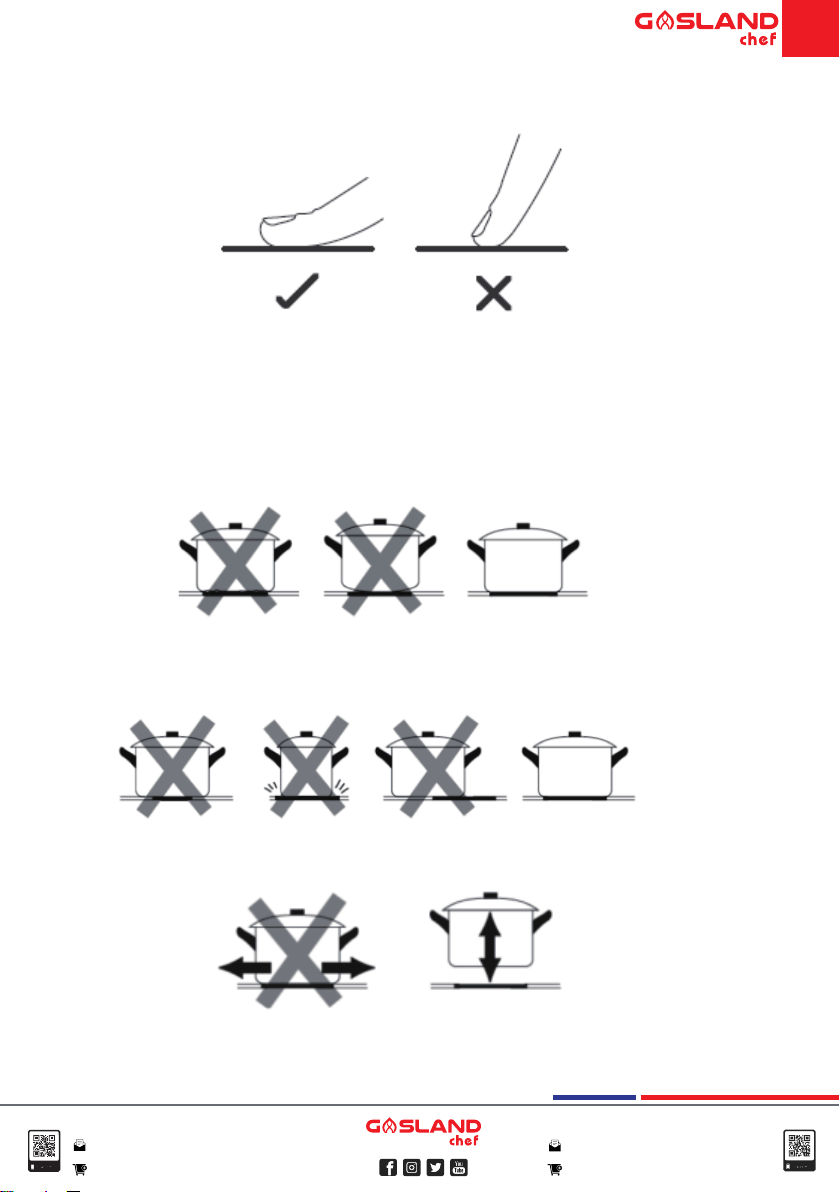

Using The Touch Controls
• The controls respond to touch, so you don’t need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
1. Heating zone selection control
2. Timer control
3. Power/Timer regulating control
4. Triple zone control
5. Key lock control
6. ON/OFF control
7. Oval zone control
Top view (CH90BF) Control panel (CH90BF)
07
Australia:
[email protected]
www.gaslandchef.com
[email protected]
www.gaslandchef.com.au
United States:

• Make sure the controls are always clean, dry, and that there is no object (e.g. a
utensil or a cloth) covering them. Even a thin film of water may make the
controls difficult to operate.
Choosing The Right Cookware
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is
the same size as the cooking zone. Always centre your pan on the cooking zone.
Always lift pans off the ceramic cooktop – do not slide, or they may scratch the
glass.
08
Australia:
[email protected]
www.gaslandchef.com
[email protected]
www.gaslandchef.com.au
United States:

Using Your Ceramic Cooktop
To start cooking
• After power on, the buzzer beeps once, all the indicators light up
for 1 second then go out, indicating that the ceramic cooktop has
entered the state of standby mode.
1. Touch the ON/OFF control，all the indicators show “-”.
2. Place a suitable pan on the cooking zone that you hope to use.
• Make sure the bottom of the pan and the surface of the
cooking zone are clean and dry.
3. For model CH30BF, CH60BF, CH603BF, CH604BF, CH77BF, touch heating
zone selection controls first, and select a heat setting by touching the “-” or “+”
control. Then touch “-” or “+” to adjust the heating stage.
4. For model CH604BF, CH77BF, CH90BF, that have dual zone or
oval zone, activate the double zone by pressing , when double
zone is working, turning double zone off by pressing .
5. For model CH603BF, CH90BF, select a heat setting by touching the
“-” or “+” control. Then touch “-” or “+” to adjust the heating stage.
• If you don’t choose a heat setting within 1 minute, the ceramic
cooktop will automatically switch off. You will need to start
again at step 1.
• You can modify the heat setting at any time during cooking.
6. For model CH603BF, CH604BF that have triple zone, activating or deactivating
dual zone by pressing .
For model CH90BF, that have triple zone, activating or deactivating triple zone
by pressing .
09
Australia:
[email protected]
www.gaslandchef.com
[email protected]
www.gaslandchef.com.au
United States:

When You Have Finished Cooking
1. For model CH30BF, CH60BF, CH604BF, CH77BF, touch heating zone selection
controls first, and select a heat setting by touching the “-” control, turn the
cooking zone off by scrolling down to “0” Then touch “-” or “+” to adjust the
heating stage.
2. For model CH603BF, CH90BF, turn the cooking zone off by scrolling down to
“0”. Make sure the display shows “0”, then shows “H”.
3. Turn the whole cooktop off by touching the ON/OFF control.
4. Beware of hot surfaces
• “H” showing means the cooking zone is hot to touch. It will disappear when
the surface has cooled down to a safe temperature. It can also be used as an
energy saving function if you want to heat further pans, use the hotplate that
is still hot.
10
Australia:
[email protected]
www.gaslandchef.com
[email protected]
www.gaslandchef.com.au
United States:

Locking The Controls
• You can lock the controls to prevent unintended use (for example children
accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control are
disabled.
To lock the controls
Touch the keylock control. The timer indicator will show “Lo”.
To unlock the controls
1. Make sure the ceramic cooktop is turned on.
2. Touch and hold the keylock control for a while.
3. You can now start using your ceramic cooktop.
When the cooktop is in the lock mode, all the controls are disable except
the ON/OFF, you can always turn the ceramic cooktop off with the ON/OFF
control in anemergency, but you shall unlock the cooktop first in the next
operation.
Over-Temperature Protection
A temperature sensor equipped can monitor the temperature inside the ceramic
cooktop. When an excessive temperature is monitored, the ceramic cooktop will
stop operation automatically.
Residual Heat Warning
When the cooktop has been operating for some time, there will be some residual
heat. The letter “ ”appears to warn you to keep away from it.
Auto Shutdown Protection
Another safety feature of the cooktop is auto shutdown. This occurs whenever
you forget to switch off a cooking zone. The default shutdown times are shown in
the table below:
11
Australia:
[email protected]
www.gaslandchef.com
[email protected]
www.gaslandchef.com.au
United States:

Using The Timer
You can use the timer in two different ways:
• You can use it as a minute minder. In this case, the timer will not turn any
cooking zone off when the set time is up.
• You can set it to turn one cooking zone off after the set time is up.
• You can set the timer up to 99 minutes.
Using The Timer As A Minute Minder
If you are not selecting any cooking zone
1. Make sure the cooktop is turned on.
Note: You can use the minute minder even if you’re not selecting any cooking
zone.
2. Touch timer control, the minder indicator will start flashing and
“30” will show in the timer display.
3. Set the time by touching the “-” or “+” control of the timer.
Hint: Touch the “-” or “+” control of the timer once to decrease
or increase by 1 minute. Touch and hold the “-” or “+”
control of the timer to decrease or increase by 10 minutes.
4. When the time is set, it will begin to count down immediately.
The display will show the remaining time and the timer indicator
will flash for 5 seconds.
5. Buzzer will beep for 30 seconds and the timer indicator shows
“- - ” when the setting time finished.
Note: The cooktop will continue to cook, this timer function is a minute minder
only, it does not turn the cooktop ON or OFF.
Default working timer (hour)
Power level
123456789
888444222
12
Australia:
[email protected]
www.gaslandchef.com
[email protected]
www.gaslandchef.com.au
United States:

Setting The Timer To Turn One Cooking Zone Off
1. For CH30BF, CH60BF, CH604BF, CH77BF, touch the heating zone selection
control that you want to set the timer for. Touching the timer and then adjust the
time by touching the “-” or “+” controls.
2. For CH603BF, CH90BF, touch the “-“ or “+” control of the heating zone selec
tion control first, then set the time by touching the “-” or “+” controls of Timer.
Hint: Touch the “-” or “+” control of the timer once will decrease or
increase by 1 minute.
Touch and hold the “-” or “+” control of the timer will decrease or
increase by 10 minutes.
3. Touch the “-” control, if the “00” will show in the minute display, the timer is
cancelled.
4. When the time is set, it will begin to count down immediately.
The display will show the remaining time and the timer indicator
flash for 5 seconds.
Note: The red dot next to power level indicator will illuminate
indicating that zone is selected.
5. When cooking timer expires, the corresponding cooking zone will
be switch off automatically.
Other cooking zone will keep operating if they are turned on previously.
13
Australia:
[email protected]
www.gaslandchef.com
[email protected]
www.gaslandchef.com.au
United States:

Setting The Timer To Turn More Than One Cooking
Zone Off
Model: CH30BF, CH60BF, CH604BF, CH77BF
1. If more than one heating zone use this function, the timer indicator will show
the lowest time. (e.g. zone 2# setting time of 3 minutes, zone 3# setting time of
6 minutes, the timer indicator shows “3”.)
Note: The red dot next to power level indicator will flash.
2. When cooking timer expires, the corresponding cooking zone
will be switch off automatically.
Model: CH603BF, CH90BF
1. If more than one heating zone use this function, the timer indicator will show
the lowest time. (e.g. zone 1# setting time of 6 minutes, zone 2# setting time of
3 minutes, the timer indicator shows “3”.)
Note: The red dot next to power level indicator will flash.
2. When cooking timer expires, the corresponding cooking zone
will be switched off automatically.
Note: If you want to change the time after the timer is set, you have to start from
step 1.
(set to 6 minutes)
(set to 3 minutes)
(sset to 3 minutes)
(set to 6 minutes)
14
Australia:
[email protected]
www.gaslandchef.com
[email protected]
www.gaslandchef.com.au
United States:

Power Management
Power management function on Group A
• If both zones are working on/above power stage 7, these two zones will be
automatically switched on and off by turns, which was controlled by software.
• If only one zone is switched on or two zones both working below power stage 7,
there will be no limitation by software.
In Group B all zones can work together without limitation.
Cooking Guidelines
Take care when frying as the oil and fat heat up very quickly, particularly
if you’re using Power Boost. At extremely high temperature oil and fat will
ignite spontaneously and this presents a serious fire risk.
Cooking Tips
• When food comes to the boil, reduce the temperature setting.
• Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimize the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated
through.
1715
Australia:
[email protected]
www.gaslandchef.com
[email protected]
www.gaslandchef.com.au
United States:

Simmering, cooking rice
• Simmering occurs below boiling point, at around 85˚C(185˚F), when bubbles are
just rising occasionally to the surface of the cooking liquid. It is the key to
delicious soups and tender stews because the flavor develop without
overcooking the food. You should also cook egg-based and flour thickened
sauces below boiling point.
• Some tasks, including cooking rice by the absorption method, may require a
setting higher than the lowest setting to ensure the food is cooked properly in the
time recommended.
Searing steak
To cook juicy flavor some steaks:
1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the
hot pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on
the thickness of the steak and how cooked you want it. Times may vary from
about 2-8 minutes per side. Press the steak to gauge how cooked it is the
firmer it feels the more ‘well done’ it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax
and become tender before serving.
For stir-frying
1. Choose a ceramic compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick.
If cooking large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone
to a lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.
Heat Settings
The settings below are guidelines only. The exact setting will depend on several
factors, including your cookware and the amount you are cooking. Experiment
with the ceramic cooktop to find the settings that best suit you.
16
Australia:
[email protected]
www.gaslandchef.com
[email protected]
www.gaslandchef.com.au
United States:

9
• Stir-frying
• Searing
• Bringing soup to the boil
• Boiling water
Heat setting Suitability
• Delicate warming for small amounts of food
• Melting chocolate, butter, and foods that burn quickly
• Gentle simmering
• Slow warming
1 - 2
3-4
5-6
7-8
• Reheating
• Rapid simmering
• Cooking rice
• Pancakes
• Sauteing
• Cooking pasta
Hints And Tips
Problem What to doPossible causes
No power. Make sure the cooktop is connected
to the power supply and that it is
switched on.
Check whether there is a power
outage in your home or area. If
you’ve checked everything and the
problem persists, call a qualified
technician.
The cooktop cannot
be turned on.
The controls are locked. Unlock the controls. See section
‘Using your ceramic cooktop’ for
instructions.
The touch controls
are unresponsive.
There may be a slight
film of water over the
controls or you may be
using the tip of your
finger when touching
the controls.
Make sure the touch control area is
dry and use the ball of your finger
when touching the controls.
The touch controls
are difficult to
operate.
1717
Australia:
[email protected]
www.gaslandchef.com
[email protected]
www.gaslandchef.com.au
United States:

Rough-edged cookware.
Unsuitable, abrasive
scourer or cleaning
products being used.
Use cookware with flat and smooth
bases. See ‘Choosing the right
cookware’.
See ‘Care and cleaning’.
The glass is being
scratched.
This may be caused by
the construction of your
cookware (layers of
different metals
vibrating differently).
This is normal for cookware and
does not indicate a fault.
Some pans make
crackling or clicking
noises.
Error Codes
Error codes Causes Measurement
E1 Short circuit of heating
element sensor.
E2 Heating element
sensor damaged.
E3 The temperature of
cooktop surface is too high.
E4 Open circuit of heating
element sensor.
Shut down and restart the
cooktop or contact the seller.
Please contact the seller.
Turn off the cooktop to let it cool down.
Then restart the cooktop.
Shut down and restart the
cooktop, or contact the seller.
18
Australia:
[email protected]
www.gaslandchef.com
[email protected]
www.gaslandchef.com.au
United States:

Care And Cleaning
What? Important!How?
1. Switch the power to the
cooktop off.
2. Apply a cooktop cleaner
while the glass is still
warm (but not hot!)
3. Rinse and wipe dry with
a clean cloth or paper
towel.
4. Switch the power to the
cooktop back on.
• When the power to the
cooktop is switched off, there
will be no ‘hot surface’
indication but the cooking zone
may still be hot! Take extreme
care.
• Heavy-duty scourers, some
nylon scourers and harsh/
abrasive cleaning agents may
scratch the glass. Always read
the label to check if your
cleaner or scourer is suitable.
• Never leave cleaning residue
on the cooktop: The glass may
become stained.
Everyday soiling
on glass
(fingerprints,
marks, stains left
by food or
non-sugary
spillovers on the
glass)
Remove these immediately
with a fish slice, palette knife
or razor blade scraper
suitable for ceramic glass
cooktops, but beware of hot
cooking zone surfaces:
1. Switch the power to the
cooktop off at the wall.
2. Hold the blade or utensil
at a 30° angle and scrape
the soiling or spill to a
cool area of the cooktop.
3. Clean the soiling or spill
up with a dish cloth or
paper towel.
4. Follow steps 2 to 4 for
‘Everyday soiling on
glass’ above.
• Remove stains left by melts
and sugary food or spillovers
as soon as possible. If left to
cool on the glass, they may be
difficult to remove or even
permanently damage the glass
surface.
• Cut hazard: when the safety
cover is retracted, the blade in
a scraper is razor-sharp. Use
with extreme care and always
store safely and out of reach of
children.
Boilovers, melts,
and hot sugary
spills on the
glass
19
Australia:
[email protected]
www.gaslandchef.com
[email protected]
www.gaslandchef.com.au
United States:
