GASLAND IH30BF User manual

Important! Read these instructions for installation and use carefully. Keep these
instructions for future reference. Any questions regarding the operation, mainte-
nance service or warranty of the appliance should be directed to GASLAND Chef.
Electric Induction Cooktop
Instruction For Installation And Use
Model No. : IH30BF
IH60BF
IH77BF
IH90BF
[email protected]
Australia:
www.gaslandchef.com.au
[email protected]
www.gaslandchef.com
United States:

Safety Warning
Your safety is important to us. Please read this information before using your
cooktop.
Installation
Electrical Shock Hazard
• Disconnect the appliance from the mains electricity supply before carrying out
any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualified
electrician.
• Failure to follow this advice may result in electrical shock or death.
Cut Hazard
• Take care - panel edges are sharp.
• Failure to use caution could result in injury or cuts.
Important Safety Instructions
• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any
time.
• Please make this information available to the person responsible for installing
the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these
instructions for installation.
• This appliance is to be properly installed and earthed only by a suitably quali-
fied person.
• This appliance should be connected to a circuit which incorporates an isolating
switch providing full disconnection from the power supply.
• Failure to install the appliance correctly could invalidate any warranty or liability
claims.
01
www.gaslandchef.com
[email protected]
Australia:
www.gaslandchef.com.au
[email protected]
www.gaslandchef.com
United States:

Operation And Maintenance
Electrical Shock Hazard
• Do not cook on a broken or cracked cooktop. If the cooktop surface should
break or crack, switch the appliance off immediately at the mains power supply
(wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.
Health Hazard
• This appliance complies with electromagnetic safety standards.
• However, persons with cardiac pacemakers or other electrical implants(such as
insulin pumps) must consult with their doctor or implant manufacturer before
using this appliance to make sure that their implants will not be affected by the
electromagnetic field.
• Failure to follow this advice may result in death.
Hot Surface Hazard
• During use, accessible parts of this appliance will become hot enough to cause
burns.
• Do not let your body, clothing or any item other than suitable cookware contact
the Induction glass until the surface is cool.
• Metallic objects such as knives, forks, spoons and lids should not be placed on
the cooktop surface since they can get hot.
• Keep children away.
• Handles of saucepans may be hot to touch. Check saucepan handles do not
overhang other cooking zones that are on. Keep handles out of reach of
children.
• Failure to follow this advice could result in burns and scalds.
02
www.gaslandchef.com
[email protected]
Australia:
www.gaslandchef.com.au
[email protected]
www.gaslandchef.com
United States:

Cut Hazard
• The razor-sharp blade of a cooktop scraper is exposed when the safety cover
is retracted. Use with extreme care and always store safely and out of reach of
children.
• Failure to use caution could result in injury or cuts.
Important Safety Instructions
• Never leave the appliance unattended when in use. Boil over causes smoking
and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Do not place or leave any magnetizable objects(e.g. credit cards, memory
cards)or electronic devices(e.g. computers, MP3 players) near the appliance,
as they may be affected by its electromagnetic field.
• Never use your appliance for warming or heating the room.
• After use, always turn off the cooking zones and the cooktop as described in
this manual(i.e. by using the touch controls). Do not rely on the pan detection
feature to turn off the cooking zones when you remove the pans.
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance.
Children climbing on the cooktop could be seriously injured.
• Children or persons with a disability which limits their ability to use the appli-
ance should have a responsible and competent person to instruct them in its
use. The instructor should be satisfied that they can use the appliance without
danger to themselves or their surroundings.
• Do not repair or replace any part of the appliance unless specifically recom
mended in the manual. All other servicing should be done by a qualified techni-
cian.
• Do not use a steam cleaner to clean your cooktop.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the Induction glass
surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your
cooktop, as these can scratch the Induction glass.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
03
www.gaslandchef.com
[email protected]
Australia:
www.gaslandchef.com.au
[email protected]
www.gaslandchef.com
United States:

• This appliance is intended to be used in household and similar applications
such as: staff kitchen areas in shops, offices and other working environments;
farm houses; by clients in hotels, motels and other residential type environ
ments; bed and breakfast type environments.
• WARNING: The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements. Children less than 8
years of age shall be kept away unless continuously supervised.
• This appliance can be used by children aged from 8 years and above and
persons with reduced physical,sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
• WARNING: Unattended cooking on the cooktop with fat or oil can be
dangerous and may result in fire. NEVER try to extinguish a fire with water, but
switch off the appliance and then cover flame with a lid or a fire blanket.
• WARNING: Danger of fire: do not store items on the cooking surfaces.
• WARNING: If the surface is cracked, switch off the appliance to avoid the
possibility of electric shock.
• A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of an external timer or
separate remote-control system.
CAUTION:The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.
WARNING: In order to prevent tipping of the appliance, this stabilizing means
must be installed.Refer to the instructions for installation.
WARNING: Use only cooktop guards designed by the manufacture of the cooking
appliance or indicated by the manufacture of the appliance in the instruction for
use as suitable or cooktop guards incorporated in the appliance.The use of
inappropriate guards can cause accidents. This appliance incorporates an earth
connection for functional purposes only.
Congratulations
On the purchase of your new Induction cooktop.We recommend that you spend
some time to read this Instruction/Installation Manual in order to fully understand
how to install correctly and operate it. For installation, please read the installation
section. Read all the safety instructions carefully before use and keep this
Instruction/Installation Manual for future reference.
04
www.gaslandchef.com
[email protected]
Australia:
www.gaslandchef.com.au
[email protected]
www.gaslandchef.com
United States:

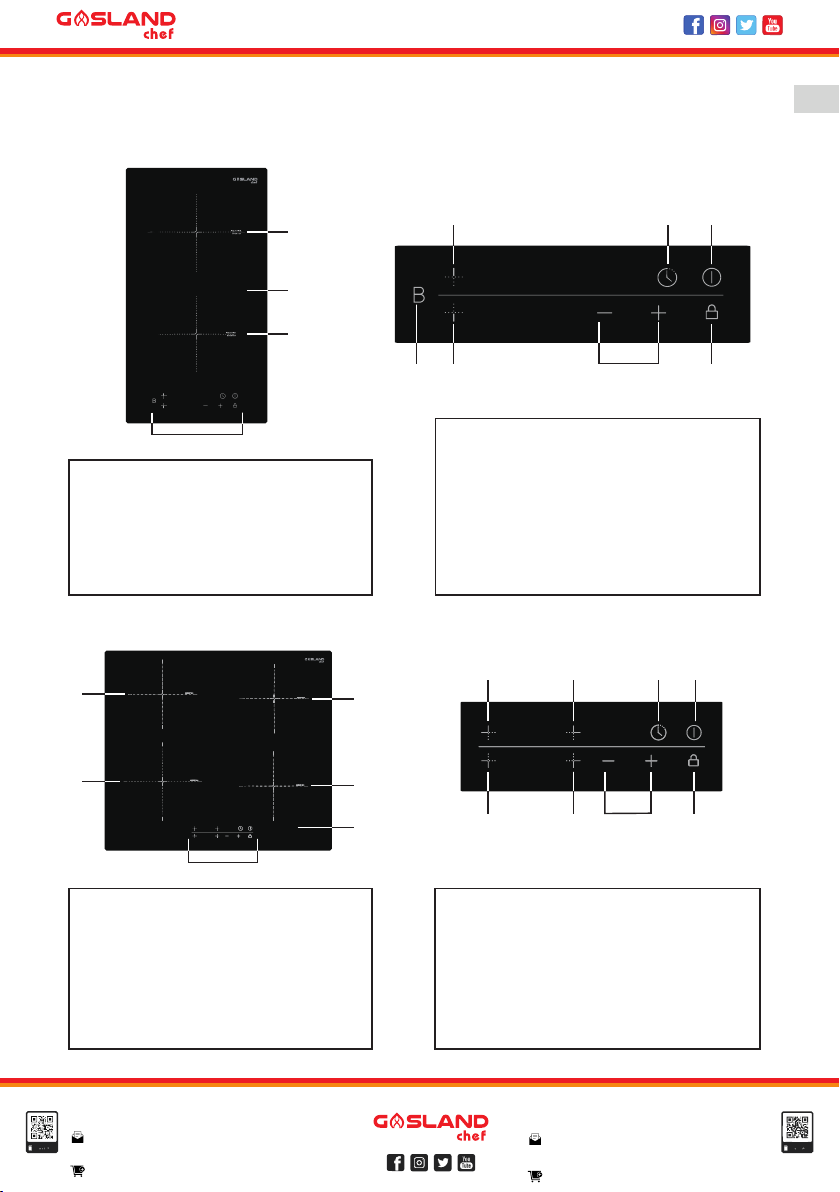

Product Overview
Top view(IH30BF)
1. Max. 2000W zone
2. Max. 1500W zone
3. Glass plate
4. Control panel
1. Heating zone selection control
2. Timer control
3. Power/Timer regulating control
4. Key lock control
5. ON/OFF control
6. Boost function
1. Max. 2000W zone
2. Max. 1500W zone
3. Max. 2000W zone
4. Max. 1500W zone
5. Glass plate
6. Control panel
Control panel(IH30BF)
Control panel(IH60BF)Top view(IH60BF)
1. ON/OFF control
2. Power/Timer regulating control
3. Heating zone selection controls
4.Timer control
5.Key lock control
3 3
3 3 52
41
4
1
2
5
3
6
1
2
3
4
6 1 4
1 2 5
3
05
www.gaslandchef.com
[email protected]
Australia:
www.gaslandchef.com.au
[email protected]
www.gaslandchef.com
United States:

1. Max. 2000W zone
2. Max. 1500W zone
3. Max. 2000W zone
4. Max. 1500W zone
5. Glass plate
6. Control panel
1. Heating zone selection controls
2. Timer control
3. Power/Timer regulating control
4. Key lock control
5. ON/OFF control
1. Max. 2600W zone
2. Max. 2000W zone
3. Max. 2600W zone
4. Max. 2000W zone
5. Max. 3000W zone
6. Glass plate
7. Control panel
1. Heating zone selection controls
2. Timer control
3. Power/Timer regulating control
4. Keylock control
5. ON/OFF control
6. Boost function
7. Keep warm function
8. Stop & go function control
Control panel(IH77BF)
Control panel(IH90BF)
Top view(IH77BF)
Top view(IH90BF)
4
5
3
6
1
2
31 1
1 1 2 5
4
3
5
4
6
7
1
2
83
1
2 56 4 7
06
www.gaslandchef.com
[email protected]
Australia:
www.gaslandchef.com.au
[email protected]
www.gaslandchef.com
United States:

A Word On Induction Cooking
Induction cooking is a safe, advanced, efficient, and economical cooking
technology. It works by electromagnetic vibrations generating heat directly in the
pan, rather than indirectly through heating the glass surface. The glass becomes
hot only because the pan eventually warms it up.
Before Using Your New Induction Cooktop
• Read this guide, taking special note of the “Safety Warnings” section.
• Remove any protective film that may still be on your Induction cooktop.
Using The Touch Controls
• The controls respond to touch, so you don’t need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object(e.g. a
utensil or a cloth) covering them. Even a thin film of water may make the
controls difficult to operate.
iron pot
magnetic circuit
ceramic glass plate
induction coil
induced currents
07
www.gaslandchef.com
[email protected]
Australia:
www.gaslandchef.com.au
[email protected]
www.gaslandchef.com
United States:

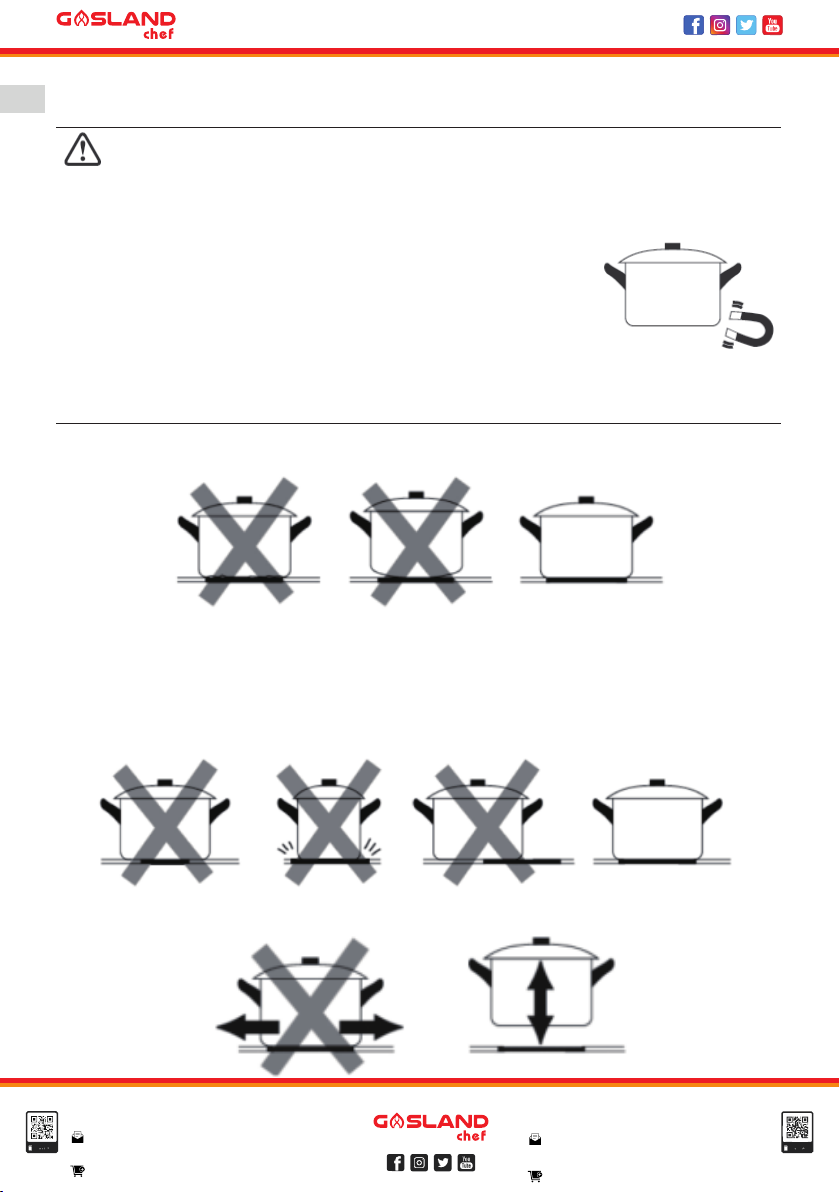

Choosing The Right Cookware
• Only use cookware with a base suitable for induction cooking. Look for
the induction symbol on the packaging or on the bottom of the pan.
• You can check whether your cookware is suitable by carrying out a magnet
test. Move a magnet towards the base of the pan. If it is attracted, the pan is
suitable for induction cooking.
• If you do not have a magnet:
1. Put some water in the pan you want to check.
2. If does not flash in the display and the water is heating,
the pan is suitable.
• Cookware made from the following materials is not suitable:
pure stainless steel, aluminium or copper without a magnetic base, glass,
wood, porcelain, ceramic, and earthenware.
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is
the same size as the cooking zone. Use pans whose diameter is as large as the
graphic of the zone selected.Using a pot a slightly wider energy will be used at its
maximum efficiency.If you use smaller pot efficiency could be less than expect-
ed.Pot less than 51/2 inch could be undetected by the cooktop. Always centre your
pan on the cooking zone.
Always lift pans off the Induction cooktop – do not slide, or they may scratch the
glass.
08
www.gaslandchef.com
[email protected]
Australia:
www.gaslandchef.com.au
[email protected]
www.gaslandchef.com
United States:

Pan dimensions
The cooking zones are up to a limit, automatically adapted to the diameter of the
pan. However the bottom of this pan must have a minimum of diameter according
to the corresponding cooking zone. To obtain the best efficiency of your hob,
please place the pan in the centre of the cooking zone.
The base diameter of induction cookware
Using Your Induction Cooktop
To start cooking
1. Touch the ON/OFF control.
After power on, the buzzer beeps once, all displays show
“ – “ or “ – – “, indicating that the induction cooktop has
entered the state of standby mode.
2. Place a suitable pan on the cooking zone that you wish
to use.
• Make sure the bottom of the pan and the surface Of the
cooking zone are clean and dry.
3. Touching the heating zone selection control, and an indicator
next to the key will flash.
Cooking Zone Diameter(Mm)
160
180
160
180
160
180
180
280
Minimum(mm)
100
120
100
120
100
120
120
180
Model No.
IH30BF
IH60BF
IH77BF
IH90BF
09
www.gaslandchef.com
[email protected]
Australia:
www.gaslandchef.com.au
[email protected]
www.gaslandchef.com
United States:

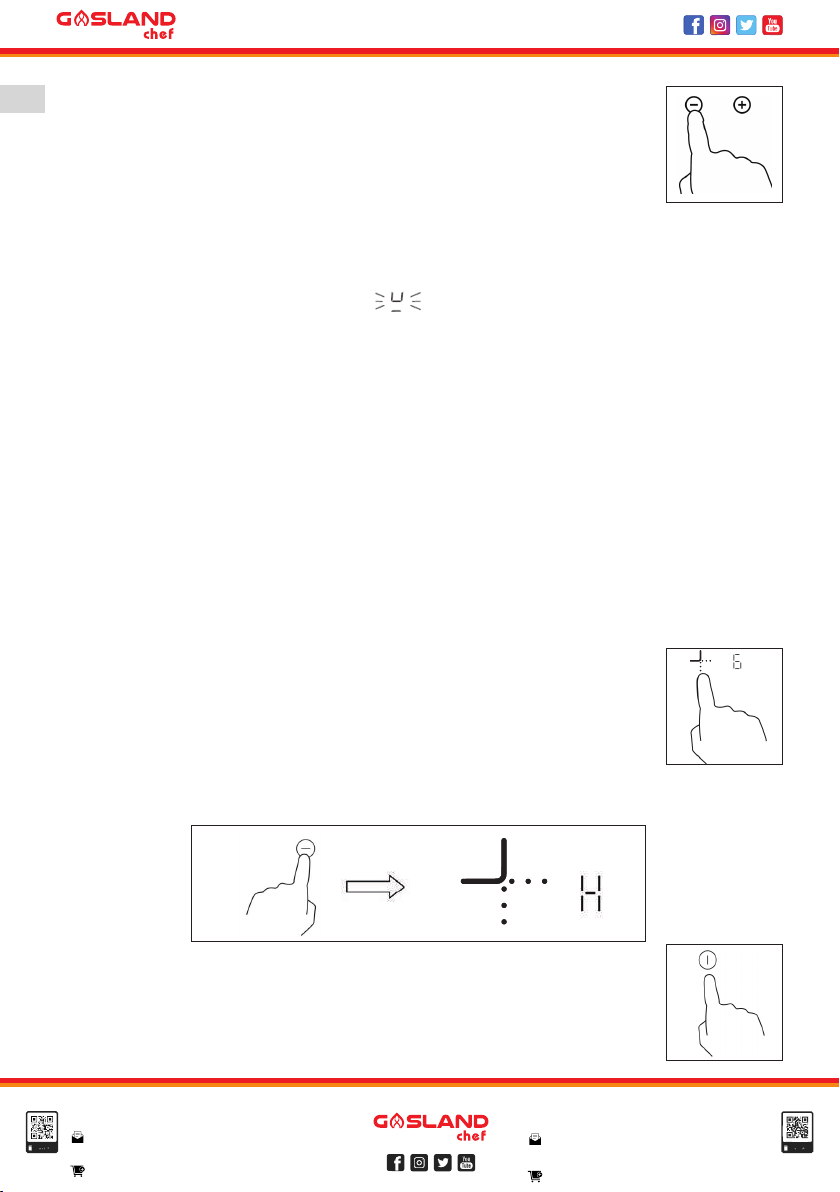

4. Select a heat setting by touching the “-“ or “+” control.
• If you don’t choose a heat setting within 1 minute, the
induction cooktop will automatically switch off. You will
need to start again at step 1.
• You can modify the heat setting at any time during cooking.
If The Display Flashes Alternately With The
Heat Setting
This means that:
• You have not placed a pan on the correct cooking zone or,
• The pan you’re using is not suitable for induction cooking or,
• The pan is too small or not properly centred on the cooking zone.
No heating takes place unless there is a suitable pan on the cooking zone. The
display will automatically turn off after 1 minutes if no suitable pan is placed on it.
When You Have Finished Cooking
1. Touching the heating zone selection control that you wish to
switch off.
2. Turn the cooking zone off by touching the “-” and scrolling down to “0”. Make
sure the display shows ”0”, then shows ”H”.
3. Turn the whole cooktop off by touching the ON/OFF control.
10
www.gaslandchef.com
[email protected]
Australia:
www.gaslandchef.com.au
[email protected]
www.gaslandchef.com
United States:

4. Beware of hot surfaces, “ H ” will show which cooking zone is
hot to touch. It will disappear when the surface has cooled
down to a safe temperature. It can also be used as an energy
saving function if you want to heat further pans, use the hotplate
that is still hot.
Using the Boost Function(For IH90BF)
Boost function is the function that one zone rising to a larger power in one second
and lasting for 5 minutes. Then you can get a more powerful and faster cooking.

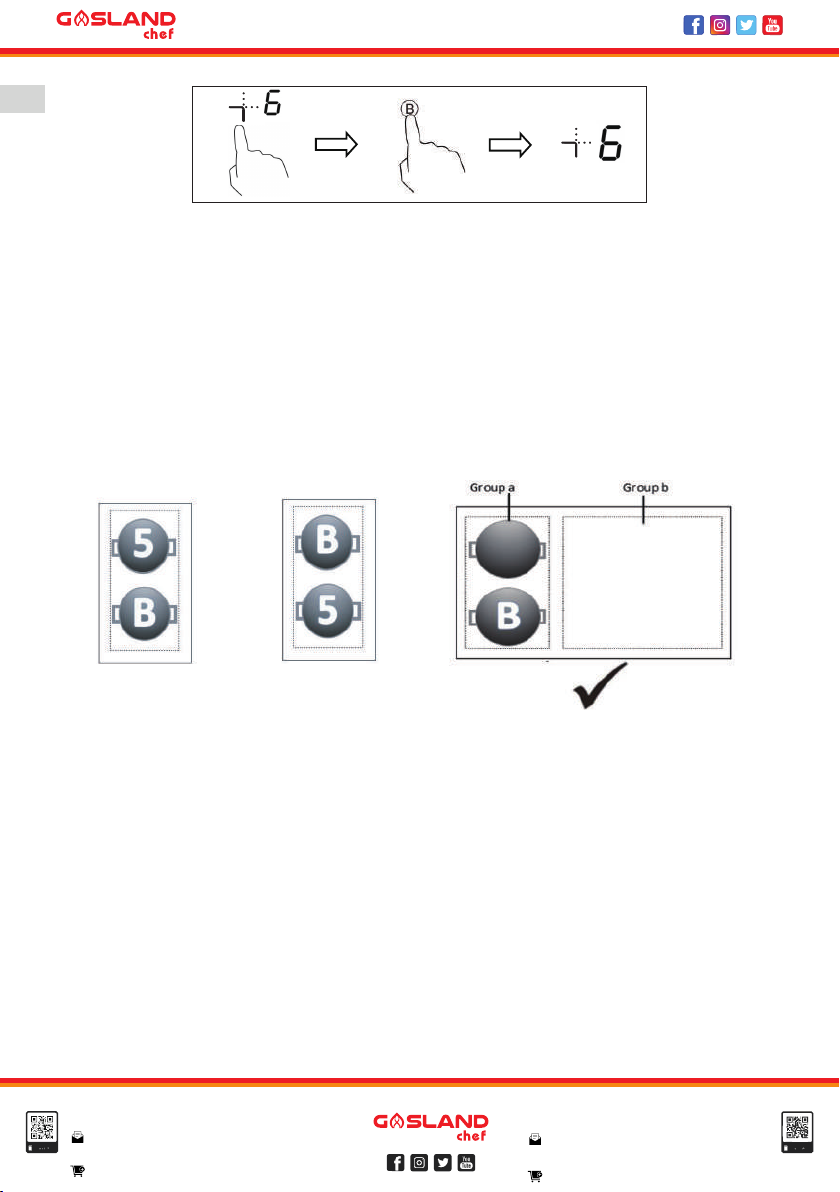

Using the Boost to get larger power(For IH90BF)
1. Touch the heating zone selection button that you hope to
boost, an indicator next to the key will flash.
2. Touch the boost button, the heating zone will begin to work at boost mode. The
power display will show “P” to indicate that the zone is boosting.
3. The boost power will last for 5 minutes and then the zone will
go back to the power stage which was set before boost.
4. If you want to cancel the boost during this 5 minutes, touch the heating zone
selection button, an indicator next to the key will flash. And then touch the
boost button. The heating zone will go back to the power stage which was set
before boost.
11
www.gaslandchef.com
[email protected]
Australia:
www.gaslandchef.com.au
[email protected]
www.gaslandchef.com
United States:

Restrictions When Using(For IH90BF)
In this hob every zone can work with Boost function.
1. In group a, if you need to use boost please decrease the power level of the
other zone in the same group to “5” or less first, otherwise “P” and “9” symbols
will flash on the display of the selected zone and power level “9” is
automatically set. Both zones can be operated with full power as their total
power is 3500W.
2. In group b, if you want to use boost function, you can only use two zone at the
same time.
a. If you want to use the middle zone’s boost function, only one of the zone on
the right side can be used at the same time. First make sure the power stage
selected zone of the right zone set power stage “4” or less, then set the
middle zone boost. If the selected zone on the right side was set higher than
“4”, the “P” and “9” symbols will flash on the display of the middle zone and
power level will be automatically set as 9.
If you change the power stage of the right selected zone while the middle zone
working as boost, the boost function will quit automatically.
IH30BF IH90BF
12
www.gaslandchef.com
[email protected]
Australia:
www.gaslandchef.com.au
[email protected]
www.gaslandchef.com
United States:

b. If you want to use the boost function of group b, only two zone can be used
at the same time. You need to decrease the power level of the other zone in
the same group to “5” or less first, otherwise “P” and “9” symbols will flash on
the display of the selected zone and power level “9” is automatically set.
3. In group b, you can use three zones at the same time if you don’t active the
boost, but the max power level collocation is 7-level, 7-level, 7-level.
13
www.gaslandchef.com
[email protected]
Australia:
www.gaslandchef.com.au
[email protected]
www.gaslandchef.com
United States:

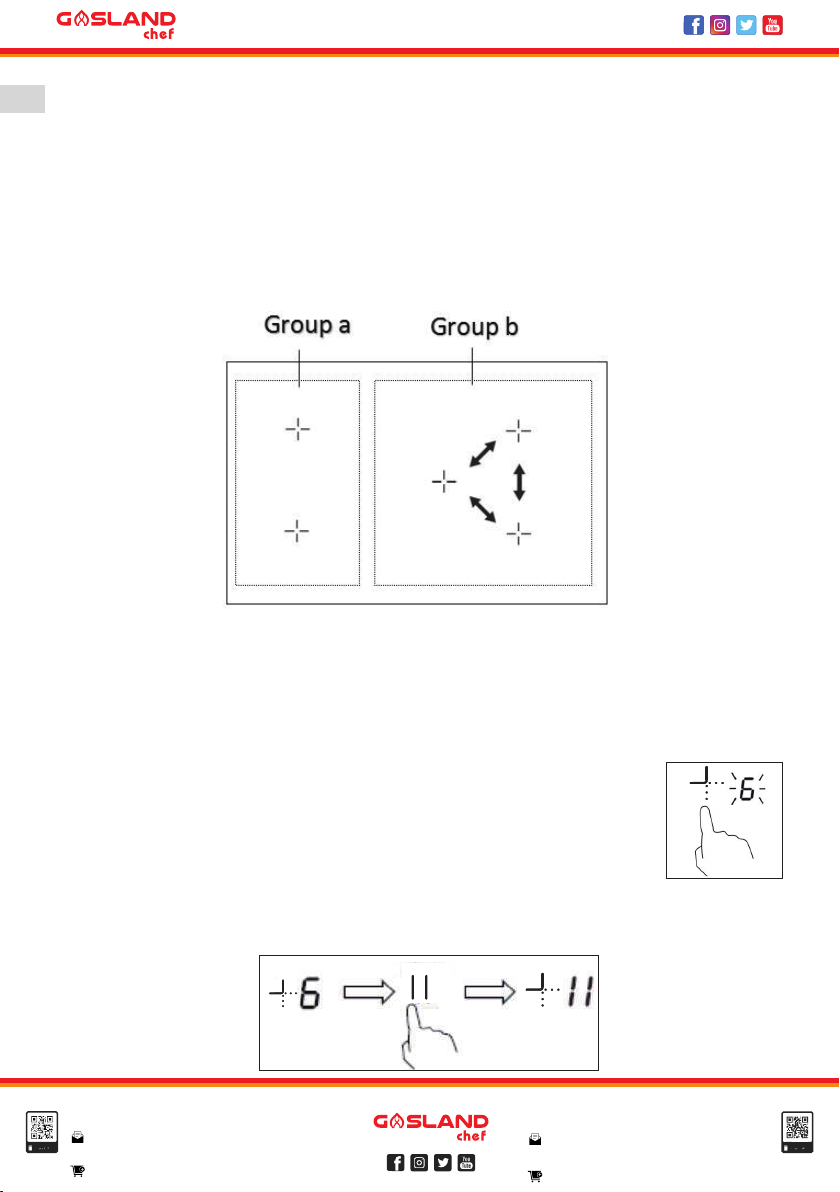

Power Management Function(For IH90BF)
• Cooking zones are grouped according to the two phases in the hob (see
illustration). Each phase has a maximum electricity loading of 3500W. The
function divides the power between cooking zones connected to the same
phase.
• Only Group b has this function. The function will activate when the total
electricity loading of the cooking zones exceeds 3500W.
• The function decreases the power to the other cooking zones.
Using The Pause Function- STOP+GO(For IH90BF)
Pause function can be used at any time during cooking. It allows to stop the
induction cooktop and come back to it.
Make sure the cook zone is working.
1. Touch the heating zone selection button that you wish to use
STOP+GO, an indicator next to the key will flash.
2. Touch the button STOP+GO, the cooking zone indicator will show “ll”.
And then the operation of the induction hob will be deactivate within the scope
of all cooking zones, except the STOP+GO, ON/OFF and lock keys.
14
www.gaslandchef.com
[email protected]
Australia:
www.gaslandchef.com.au
[email protected]
www.gaslandchef.com
United States:

3. To cancel the pause status, touch the button STOP+GO, then the cooking zone
will go back to the power stage which you set before.
Using The Keep Warm(For IH90BF)
Keep warm function is suitable for keeping food warm.
Using The Keep Warm To Get Stable Temperature
1. Touch the heating zone selection button that you wish to
use keep warm, an indicator next to the key will flash.
2. Touch the keep warm function control, the cooking zone indicator will display
“A”.
3. If you want to cancel the keep warm, touch the heating zone selection button,
an indicator next to the key will flash. And then touch the keep warm function
control，the heating zone will go back to “0” power stage.
15
www.gaslandchef.com
[email protected]
Australia:
www.gaslandchef.com.au
[email protected]
www.gaslandchef.com
United States:

Locking The Controls
• You can lock the controls to prevent unintended use(for example children
accidentally turning the cooking zones on)
• When the controls are locked, all the controls except the ON/OFF control are
disabled.
To lock the controls
Touch the key lock control . The timer indicator will show “Lo”.(For IH30BF,
IH60BF)
Touch and hold the key lock control for a while. The timer indicator will show
“Lo”.(For IH77BF,IH90BF)
To unlock the controls
1. Make sure the Induction cooktop is turned on.
2. Touch and hold the key lock control for a while.(For IH30BF, IH60BF)
3. Touch and hold the key lock control for a while.(For IH77BF, IH90BF)
4. You can now start using your Induction cooktop.
When the cooktop is in the lock mode, all the controls are disable except the
ON/OFF, you can always turn the induction cooktop off with the ON/OFF
control in an emergency, but you shall unlock the cooktop first in the next
operation.
Over-Temperature Protection
A temperature sensor equipped can monitor the temperature inside the Induction
cooktop. When an excessive temperature is monitored, the Induction cooktop will
stop operation automatically.
Detection Of Small Articles
When an unsuitable size or non-magnetic pan(e.g. aluminium), or some other
small item(e.g. knife, fork, key) has been left on the cooktop, the cooktop automat-
ically go on to standby in 1 minute. The fan will keep cooling down the induction
cooktop for 1 minute.
16
www.gaslandchef.com
[email protected]
Australia:
www.gaslandchef.com.au
[email protected]
www.gaslandchef.com
United States:

Auto Shutdown Protection
Auto shut down is a safety protection function for your induction cooktop. It shut
down automatically if ever you forget to turn off your cooking. The default working
times for various power levels are shown in the below table:
When the pot is removed, the induction cooktop can stop heating immediately
and the cooktop automatically switch off after 2 minutes
People with a heart pace maker should consult with their doctor before
using this unit.
Using The Timer
You can use the timer in two different ways:
• You can use it as a minute minder. In this case, the timer will not turn any
cooking zone off when the set time is up.
• You can set it to turn one cooking zone off after the set time is up.
• You can set the timer up to 99 minutes.
Using The Timer As A Minute Minder
If you are not selecting any cooking zone
1. Make sure the cooktop is turned on.
Note: you can use the minute minder even if you’re not selecting any cooking
zone.
2. Touch timer control, the minder indicator will start flashing
and “30” will show in the timer display.
Default working timer (hour)
Power level
1 23456789
8 88444222
17
www.gaslandchef.com
[email protected]
Australia:
www.gaslandchef.com.au
[email protected]
www.gaslandchef.com
United States:

3. Adjust the timer setting by touch the “-” or “+” controls.
The minute minder indicator will start flashing and will show
in the timer display.
Hint: Touch the “-” or “+” control of the timer once to decrease
or increase by 1 minute. Touch and hold the “-” or “+”
control of the timer to decrease or increase by 10 minutes.
If the setting time exceeds 99 minutes, the timer will automatically return
to 0 minute.
4. To cancel the timer, touch the ‘Timer’, and the “--” will show in the minute
display.
5. When the time is set, it will begin to count down immediately.
The display will show the remaining time and the timer
indicator will flash for 5 seconds.
6. Buzzer will beep for 30 seconds and the timer indicator
shows “- - ” when the setting time finished.
Note: The cooktop will continue to cook, this timer function is a minute minder
only, it does not turn the cooktop off.
Setting The Timer To Turn One Cooking Zone Off
1. Touching the heating zone selection control that you want
to set the timer for.
18
www.gaslandchef.com
[email protected]
Australia:
www.gaslandchef.com.au
[email protected]
www.gaslandchef.com
United States:
