Your Gateway
KAS-303 Home Theater
systemguide

i
Contents
1 Checking Out Your Gateway Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Back panel connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Universal remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

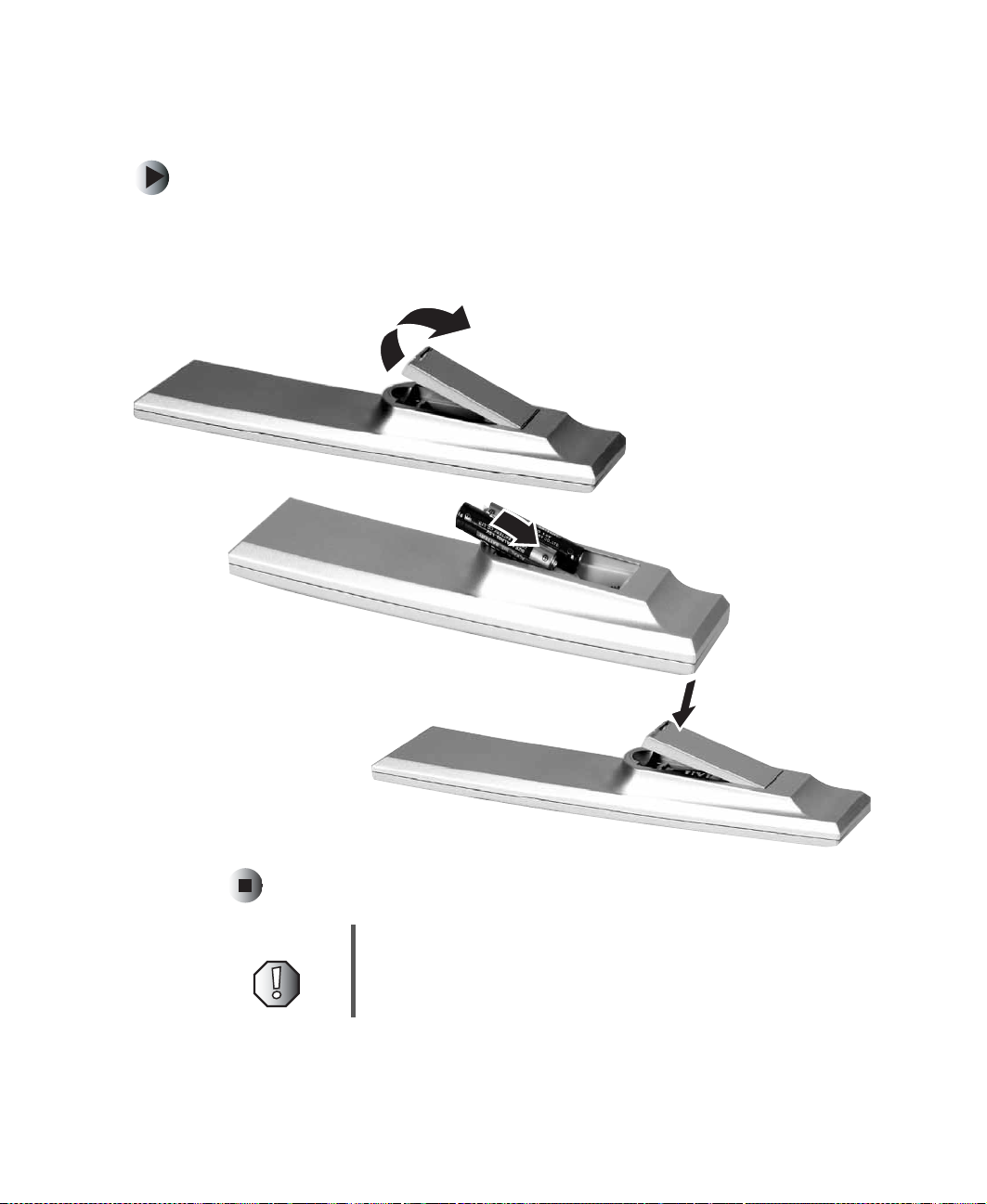

Inserting batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2 Connecting Components and Speakers. . . . . . . . . . . . . . . . . . . . . . . . . 13
Understanding video connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Understanding audio connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Connecting the AM loop antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connecting the FM antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Connecting a DVD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Connecting a 6 or 7 channel component . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Connecting a VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Connecting a tape component . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Connecting an AUX component . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Connecting a television . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Connecting speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Speaker placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Making the connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Plugging in your components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3 Using the Receiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Turning the receiver on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Setting up your speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Adjusting the speaker settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Using the universal remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Operating components with the universal remote control . . . . . . . . . . . . . . . . 42
Programming the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Switching between connected components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Surround sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Surround modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Selecting the surround mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Adjusting the channel levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Storing channel levels in memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

ii
Adjusting the LFE level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Adjusting the tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Compressing the dynamic range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Adjusting Dolby Pro Logic II Music parameters . . . . . . . . . . . . . . . . . . . . . . . .56
Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Selecting the tuner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Manual tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Auto tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Memorizing radio stations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Tuning to preset stations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Analog Audio/Video recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Digital Audio recording with an MD recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Using the sleep timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Adjusting the display brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
4 Using the OSD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Displaying the current status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Using the Menu screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
OSD menus and options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
5 Maintaining and Troubleshooting Your Receiver . . . . . . . . . . . . . . . .69
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Initializing the receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Technical support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Telephone support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
A Specifications and Setup Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
LN-520 receiver specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
KAS-303 speakers specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
SW303 subwoofer specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Setup Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
TV setup codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
VCR setup codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
DVD setup codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
Cable Set-top Box setup codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Satellite Set-top Box setup codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
Aux-Tape/MiniDisc setup codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96
Aux-Laserdisc setup codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96
Aux-Tape setup codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

iii
Aux-Amplifier setup codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Aux-Home Automation setup codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Aux-DBS setup codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Aux-Accessory setup codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
CD setup codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
B Safety, Regulatory, and Legal Information . . . . . . . . . . . . . . . . . . . . . 103
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

iv

1
1
Checking Out
Your Gateway
Receiver
This chapter provides basic information about your
Gateway Receiver.
Read this chapter to learn about:
■Warnings and safeguards
■Controls and connections
■Remote control

2
Chapter 1: Checking Out Your Gateway Receiver
www.gateway.com
Features
A powerful, 1000-watt, 6.1 home theater system featuring TrueDigital™
amplification for premium, multichannel digital sound.
■600-watt audio receiver
■400-watt Hsu Research™-engineered sub-woofer
■5 satellite and 1 Ventriloquist™center channel speakers
■Analog and digital audio inputs and outputs.
■Composite and S-Video video inputs and outputs.
Important Safeguards
Warnings and precautions
■Disconnect all cables before moving your receiver. Moving your receiver
with its cables attached may damage the cables and cause fire or electric
shock danger.
■Do not expose your receiver to rain or moisture.
■Keep your receiver away from excessive dust, high temperatures, moisture,
or direct sunlight.
■Use your receiver in a well-ventilated area and do not cover the ventilation
openings.
■Do not modify your receiver or use an unshielded power cord or video
output source cable, or you may experience excessive interference.
Warning Risk of electric shock - Do not open
To reduce the risk of electric shock, do no remove the
cover. There are no user-serviceable parts inside.
Removing the cover voids the warranty.
Have your receiver repaired by qualified service personnel
only.

3
Package contents
www.gateway.com
■Disconnect your receiver and unplug the power cord when not used for
a long period of time.
■For more safety information, see “Important safety information” on
page 103.
Package contents
Along with your receiver, the packaging box contains the following items:
■Remote control
■Two AAA batteries
■RCA audio/video cables
■AM Loop antenna
■FM antenna
■User guide
You can purchase these optional accessories for your receiver:
■S-Video cable
■AC-3 (Toslink) cable

4
Chapter 1: Checking Out Your Gateway Receiver
www.gateway.com

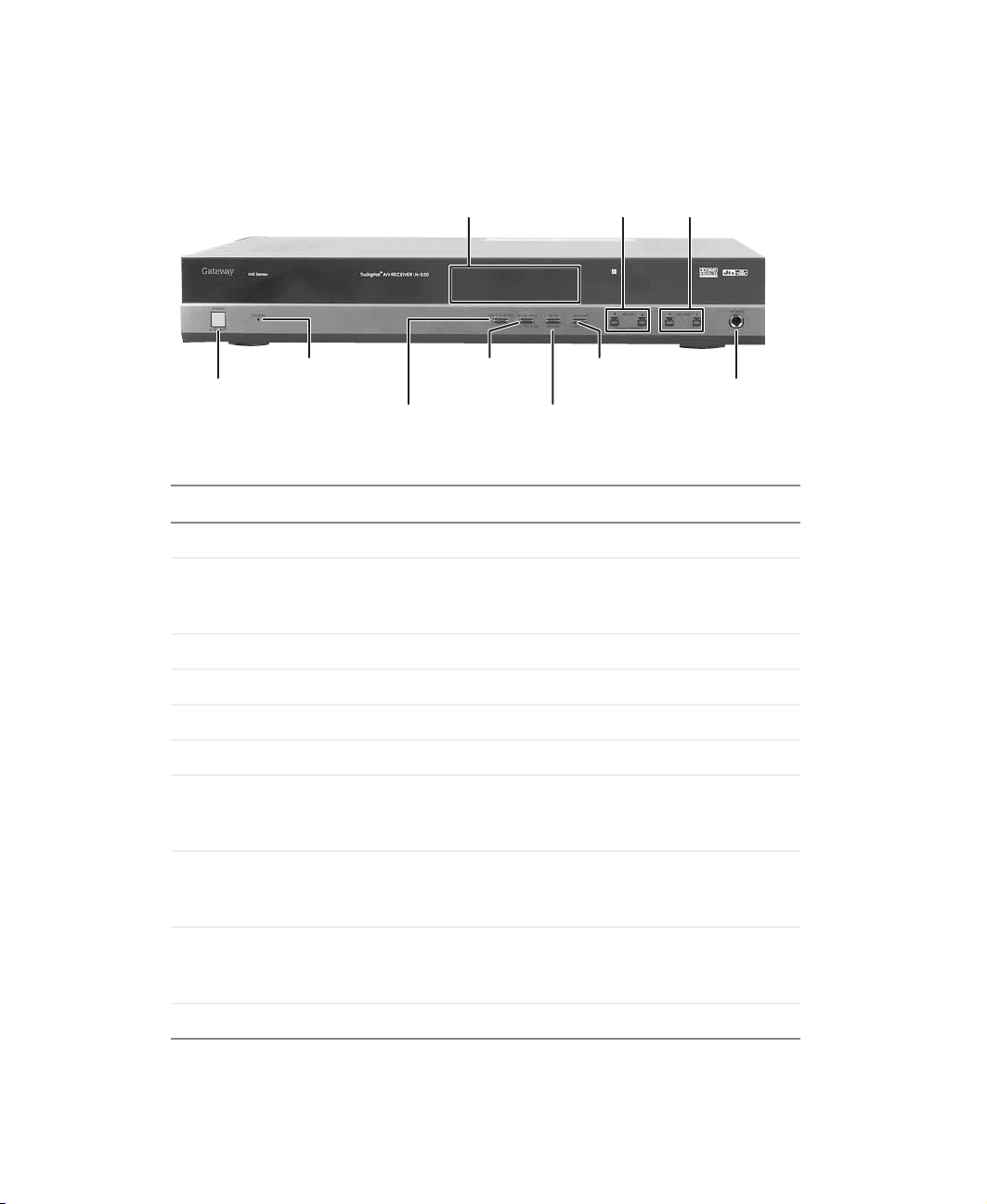

Front panel
Item Description
Display See “Display” on page 5.
Adjust/
Tuning/Preset When in Setup mode, adjusts submenu items. When the tuner is selected, tunes the radio manually,
automatically, or to preset radio stations.
Volume Turns the volume up or down.
Power Turns the receiver on and off.
Standby Lights when the receiver is in Standby mode.
Input Selector Switches inputs.
Digital Input/
AM/FM Mode Digital Input selector when a digital signal (AUX, VIDEO 1-3) is selected.
When the tuner is selected, selects the band.
Setup/
Memory Press for more than two seconds to enter Setup mode. While in Setup mode, switches between main menu items.
When the tuner is selected, memorizes radio stations.
Decoding/
Tune Mode When in Setup mode, switches submenu items. When the tuner is selected, switches between Tuning mode
and Preset mode.
Headphone jack Connect your headphones to this jack.
Display Adjust/ Tuning/Preset Volume
Power Standby
Input Selector Headphone
jack
Decoding/
Tuning Mode
Setup/
Memory
Digital Input/
AM/FM Mode

5
Front panel
www.gateway.com

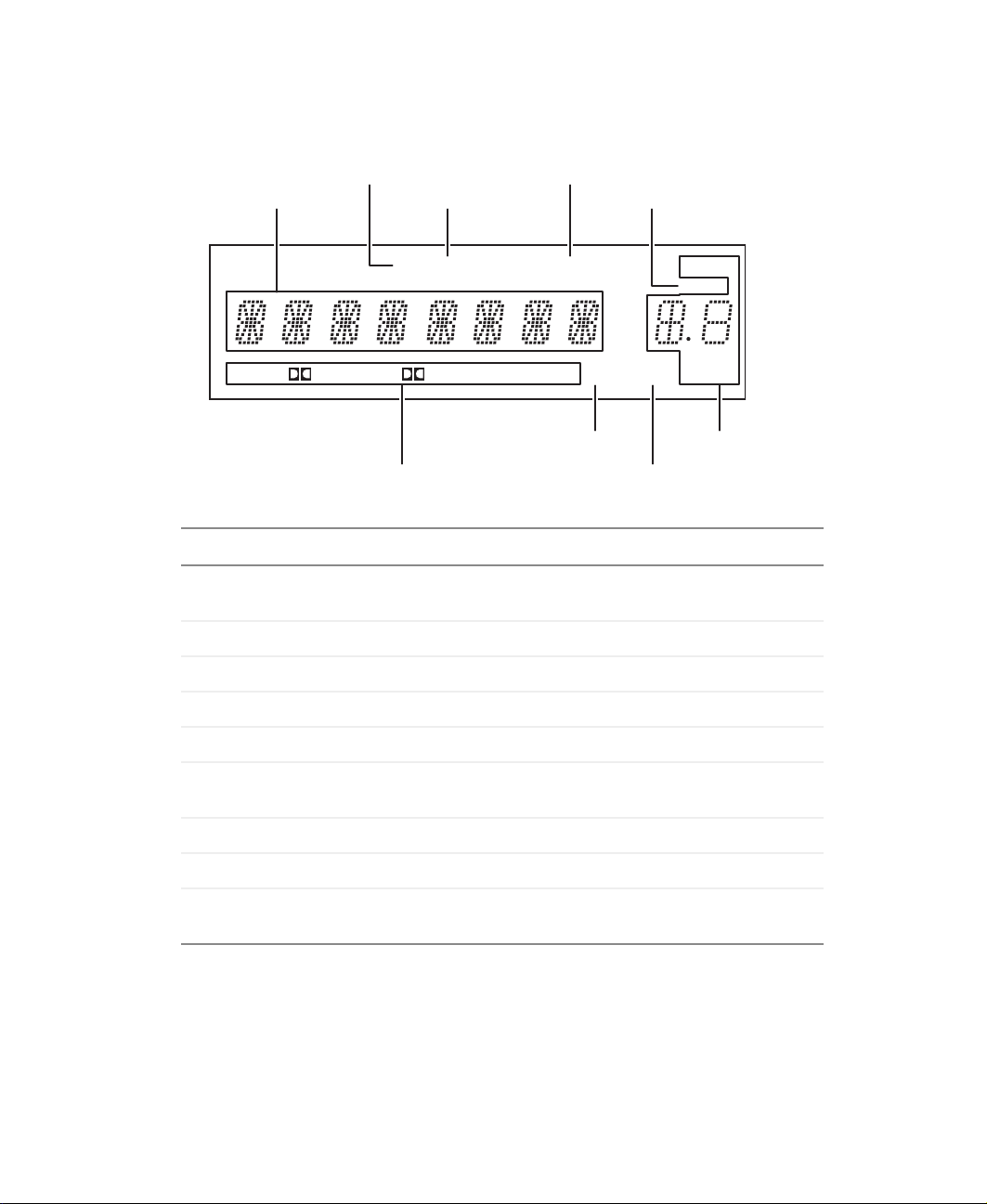

Display
Item Description
Main display Displays items such as, Input source, frequency,
volume level, and operating information.
STEREO indicator Displays stereo radio signal status.
TUNED indicator Displays tuned radio station status.
DIRECT indicator Displays direct mode status.
MEMory indicator Displays the selected memory channel.
Surround mode indicators Displays the currently selected surround sound
mode.
AUTO indicator Displays automatic mode status.
DIGITAL input signal indicator Displays presence of a digital audio signal.
PRESET number, SLEEP time,
Speaker distance display Displays presets, sleep timer, and speaker distance information.
ST TUNED TIMER R2 DIRECT TAPE 2M PRESET
DTS ES DIGITAL-EX PROLOGIC II CM DSP AUTO DIGITAL SLEEP
MEM 1
ft
dB
kHz
MHz
Surround mode indicators
Auto mode indicator
Digital input signal indicator
Preset/Sleep/Distance
indicators
Memory indicator
Direct indicator
Tuned indicator
Stereo indicator
Main display

6
Chapter 1: Checking Out Your Gateway Receiver
www.gateway.com
Back panel connections
Connector Array Description
Antenna Connect AM and FM antennas.
Video (and audio)
components
■Connect the VIDEO 1-3 jacks to components, such
as a VCR or DVD player.
■Connect the Monitor jacks to your primary and
secondary displays, such as a television or projector.
6 or 7 channel direct input
components Connect the analog audio outputs of a 6 or 7 channel component such as a DVD player or external decoder.
When connecting a 6 channel component leave the
SURR BACK jack empty.
Digital INs and OUT ■Connect the Digital INs to the coaxial and optical
Digital OUTs of the components connected to AUX
and VIDEO 1-3.
■Connect the Digital OUT to the Digital IN of a digital
recordersuchasanMDrecorderorCDrecorderthat
has a digital input.
Audio (only) components ■Connect the TAPE IN/OUT jacks to an audio
only-type component, such as a tape deck.
■Connect the AUX jacks to an additional component
such as a CD player.
Subwoofer Connect a powered subwoofer.
Speakers Connect speakers with an impedance of 6 ohms or
above.
Antenna Video 6 or 7 channel direct
Digital Audio Subwoofer Speakers

7
Universal remote control
www.gateway.com
Universal remote control
This universal remote control can operate not only this receiver, but also most
popular brands of audio and video components such as CD players, cassette
decks, TVs, cable boxes, VCRs, DVD players, and satellite receivers.
To operate up to 7 components, other than this receiver, enter the setup code
for each component. For information, see “Programming the remote control”
on page 43.
LED
DEVICE
STEREO
DSP MODE
7 CH DIRECT
Numeric keypad (0-9, 10+)/
Direct INPUT selector
AUTO
MACRO
SPEAKER SETUP
PL II MUSIC PARAMETER
ADJUST
POWER
AUDIO SELECT
SUBTITLE
OSD/SETUP
SLEEP/DISPLAY
REVERSE PLAY/PAUSE
RECORD
TUNE/SEARCH
STANDBY
CHANNEL/LEVEL
MUTE
ZOOM
Navigation/ENTER
CHANNEL SELECT/T/V
VOLUME
TEST TONE/MENU
DIMMER/RETURN
P.SCAN
PLAY
PRESET/SKIP

8
Chapter 1: Checking Out Your Gateway Receiver
www.gateway.com
Button Description
Power On. Turns the receiver off or putsthe receiver in Standby mode. For more
information, see “Turning the receiver on and off” on page 38.
LED. Provides visual feedback when performing functions or programming
operations.
Standby. Turns the receiver on or puts the receiver in Standby mode. For more
information, see “Turning the receiver on and off” on page 38.
Device. Press to put the remote into a specific device mode for operating
connected components. For more information, see “Operating components with
the universal remote control” on page 42.
Channel level. Adjusts a program (television) channel or the test tone channel
levels up or down. For more information, see “Adjusting the channel levels” on
page 52.
Channel select. Selectsa specificchannelto adjust individualtest tonechannel
levels up or down. For more information, see “Adjusting the channel levels” on
page 52.
T/V. Changes inputs for connected components such as a TV or VCR.
Mute. Mutes the sound.
Volume. Adjusts the overall volume.
Zoom. Enlarges a part of the DVD screen.
Stereo. Turns off surround mode and puts the receiver into stereo mode. For
more information, see “Selecting the surround mode” on page 50.
DSP Mode. Cycles through the available surround modes. For more
information, see “Selecting the surround mode” on page 50.
Test tone. Enters the test tone mode. For more information, see “Adjusting the
channel levels” on page 52.
Menu. Opens the menu for connected components such as a DVD player.
, , , . Navigates the on-screen display (OSD) menus. For more
information, see “Using the OSD” on page 63.
POWER
STANDBY
CH/LEVE
L
CH/LEVE
L
T/V
CH SEL
MUTE
VOLUME
VOLUME
ZOOM
STEREO
DSP
T. T O N
E
MENU

9
Universal remote control
www.gateway.com
Enter. Confirms a selection in a menu. For more information, see “Using the
OSD” on page 63.
Dimmer. Adjusts the display brightness. For more information, see “Adjusting
the display brightness” on page 62.
Return. Returns from an OSD settings screen to the Setup Menu. For more
information, see “Using the OSD” on page 63.
Play ( ). Plays the DVD, CD, or MP3.
P.Scan. Scans the preset radio stations pausing at each one for 5 seconds.
For more information, see “Listening to the radio” on page 57.
Stop ( ).
Stops playing the disc.
Preset/Skip back ( ). Changes the radio station to the next memorized station
or performs backward skipfunctions such as skipping back one CD trackor DVD
chapter. For more information, see “Listening to the radio” on page 57.
Preset/Skip ahead ( ). Changes the radio station to the previous memorized
station or performs forward skip functions such as skipping ahead one CD track
or DVD chapter. For more information, see “Listening to the radio” on page 57.
7 Channel Direct. Selects audio signal from a connected 6 or 7 channel direct
input component. For more information, see “Switching between connected
components” on page 46.
Numeric keypad (0-9, 10+). Enters numbers when selecting or programming.
Direct INPUT selector. Selectscorrespondingconnectedcomponentassource
for audio/video input. For more information, see “Switching between connected
components” on page 46.
Tune/Search back ( ). Tunes in a radio station or performs backward search
functions, such as playing a CD backward quickly or playing a DVD backward
in slow motion. For more information, see “Listening to the radio” on page 57.
Tune/Search ahead( ). Tunes in a radio station or performs forward search
functions, such as playing a CD forward quickly or playing a DVD forward in
slow motion. For more information, see “Listening to the radio” on page 57.
Record. Starts recording on components, such as a VCR.
Reverse play. Reverses play for connected components, such as AUX.
Pause ( ). Pauses play.
Button Description
ENTER
DIMMER
RETURN
P.SCAN
- PRESET +
7CH DIR
.
- TUNE +

10
Chapter 1: Checking Out Your Gateway Receiver
www.gateway.com
Sleep. Sets the receiver to automatically turn off after a set period of time.
Shows the on-screen display. For more information, see “Using the sleep timer”
on page 62.
Display. Turns on the display for connected components, such as a DVD player.
OSD. Opens the on-screen display (OSD) menus. For more information, see
“Using the OSD” on page 63.
Setup. Opens the setup menu for connected components, such as a DVD
player.
Auto. Automactially selects surround mode based on the type of digital input
signal detected. For more information, see “Surround sound” on page 47.
Subtitle. Opens the Subtitle menu.
Audio select. Changes audio track selection for connected components, such
as a DVD player.
PL II Music Parameter. Adjusts Dolby Pro Logic II music parameters. For more
information, see “Adjusting Dolby Pro Logic II Music parameters” on page 56.
Speaker setup. Adjusts speaker settings. For more information, see “Setting
up your speakers” on page 39.
Adjust. Use to adjust above two settings.
Macro. Program macros to send many button presses with the touch of just
one button. For more information, see “Programming the remote control” on
page 43.
Button Description
SLEEP
DISPLAY
OSD
SETUP
AUT
O
SUBTITLE
AUDIO SE
L
PLII PARA
SPK SE
T
-ADJUST-
AUT
O

11
Universal remote control
www.gateway.com
Inserting batteries
To install the batteries:
■Insert two AAA batteries into the remote control. Make sure that you match
the + and – on the batteries with the + and – symbols inside the battery
compartment.
Warning Do not use rechargeable Ni-Cd batteries in this remote
control.

12
Chapter 1: Checking Out Your Gateway Receiver
www.gateway.com

2
13
Connecting
Components and
Speakers
Read this chapter to learn how to connect your receiver to
audio/video (A/V) components and speakers.
Important Do not plug the power cord into a wall outlet
or turn the receiver on until all connections
have been made.

14
Chapter 2: Connecting Components and Speakers
www.gateway.com
Understanding video connections
Your receiver has two types of standard video connections. You should use the
best connection available to get the best display. For example, if your VCR
supports an S-video connection, connect the VCR to your receiver using S-video
instead of composite video.
Connection
Quality Cable and Connector Description
Good Composite. The video signal is carried
through a single “pin.” This connection
method is the one that is most commonly
found on devices.
Better S-Video. The video signal issplit intotwo
signals, black-and-white and color. Text
displayed on-screen through this
connectionwillbenoticeablysharperthen
composite.
