GAZ SOL G Series User manual

Visit us at www.enersys.com
SOL G
Technical Manual SOL G Ni-Cd Batteries for renewable
energy applications
Made in Germany

1. Receiving the battery
Cells must not be stored in their packaging, therefore, unpack
the battery immediately upon receipt. Do not tilt the package or
turn it upside down. The battery cells are equipped with a blue
plastic transport plug. SOL...G batteries will be delivered filled and

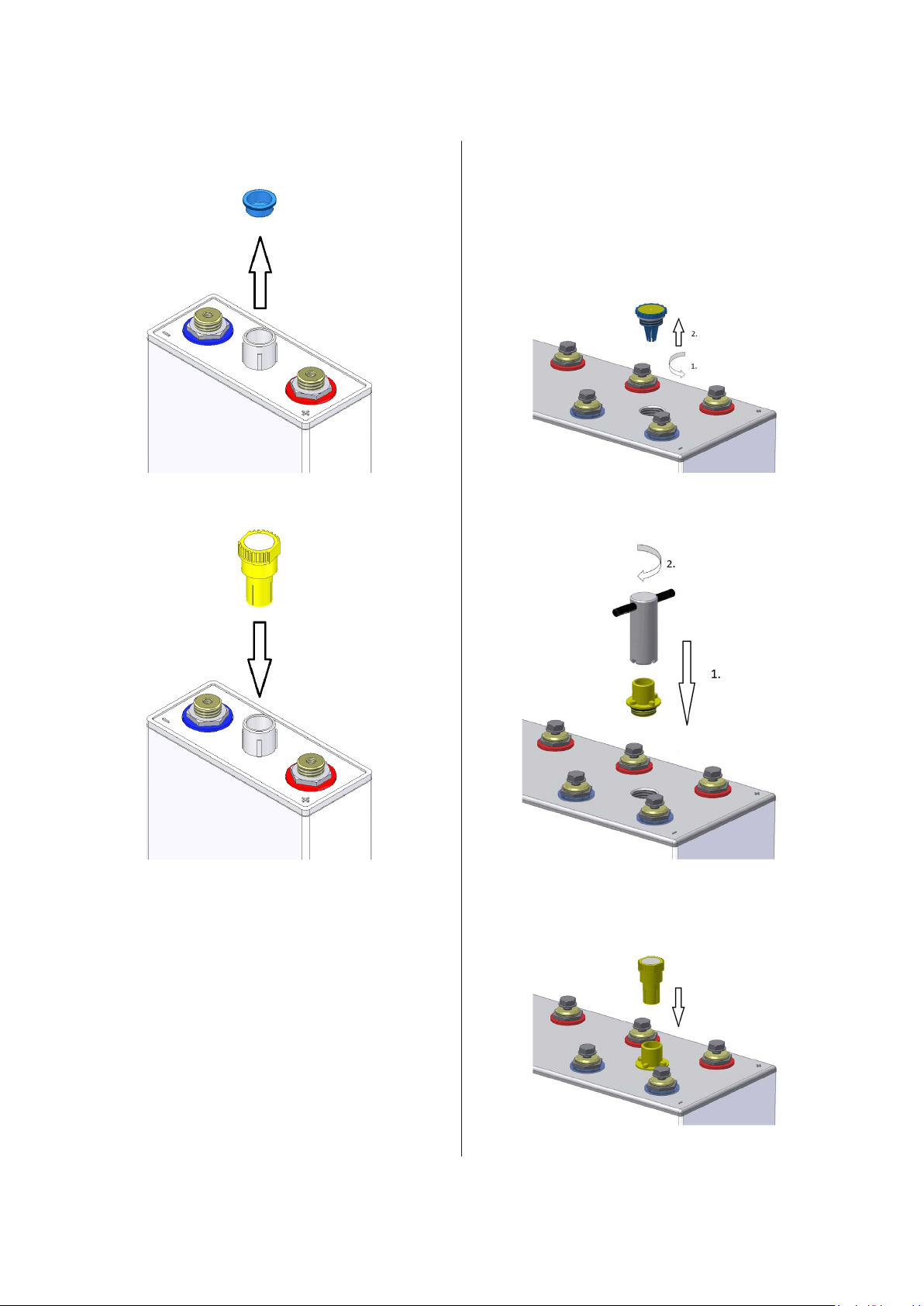

charged. The battery is ready for installation. Replace the transport
plug with the yellow vent cap included in the accessories just
before use (see section 7).
The battery must not be charged with the transport plug installed
as this can damage the battery.
2. Storage
The rooms provided for storing the batteries must be clean, dry,
cool (+10°C to +30°C) and well ventilated. Cells must not be stored
in the transport packaging and must not be exposed to direct
sunlight or UV-radiation.
If the cells are delivered in plywood boxes, open the boxes before
storage and remove the packing material on the top of the cells. If
the cells are delivered on pallets, remove the packing material on
the top of the cells.
Filled SOL...G cells can be stored up to 12months from the day of
delivery.
Storage of filled cells at a temperature above +30°C will result in a
loss of capacity of approximately 5% per 10 degrees per year. It is
very important that the cells are sealed with the plastic transport
plugs tightly in place. This is to be checked after receiving the
goods. In case of electrolyte loss during transport, refill the cell up
to the “MAX” mark with genuine electrolyte before storage.
3. Installation
The installation should be carried out in accordance with the
requirements of IEC 62485-2:2010, Part 2 “Safety Requirements
for secondary batteries and battery installations – Part 2: Stationary
batteries”. For non-stationary installations, specific standards may
also apply.
3.1 Location
Install the battery in a dry and clean room. Avoid exposure to direct
sunlight and heat. The battery will give the optimal performance
and maximum service life if the ambient temperature range is
between +10°C and +30°C.
3.2 Ventilation
During the last phase of charging, battery gases are released
(a mixture of oxygen and hydrogen). Ventilation is necessary, even
if the generation of gas is very low during float charging.
Compliance with local regulations as to ventilation may be
necessary for certain applications. If there are no special
regulations, standard IEC 62485-2:2010, Part 2 must be met.
3.3 Setting up
Always follow the assembly drawings, circuit diagrams and other
separate instructions. In the case of parallel string connection
only use battery cells of the same capacity, design and age up to a
maximum of two parallel strings. For parallel connection of more
than two strings, please contact the manufacturer for technical
approval. Use nickel-plated cable lugs for cable connections.
The transport plugs have to be replaced by the yellow vent caps
included in the accessories.
Tighten the terminal screws with corresponding tightening torque
as per table 1.
It is recommended to use a calibrated torque wrench.
Table 1: Torque loadings for terminal screws:
